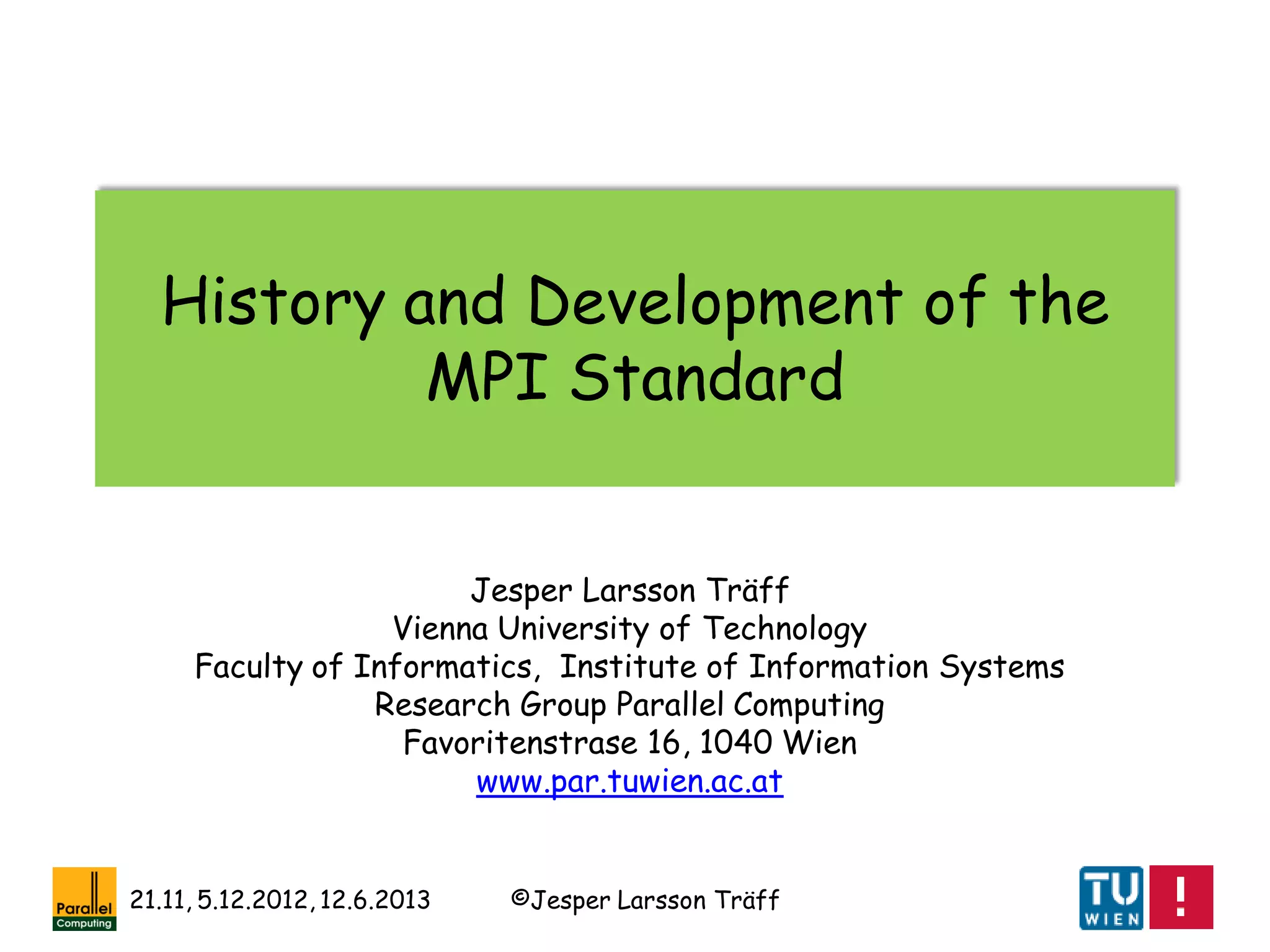

MPI History

©Jesper Larsson Träff21.11, 5.12.2012, 12.6.2013
History and Development of the
MPI Standard
Jesper Larsson Träff
Vienna University of Technology
Faculty of Informatics, Institute of Information Systems
Research Group Parallel Computing
Favoritenstrase 16, 1040 Wien
www.par.tuwien.ac.at

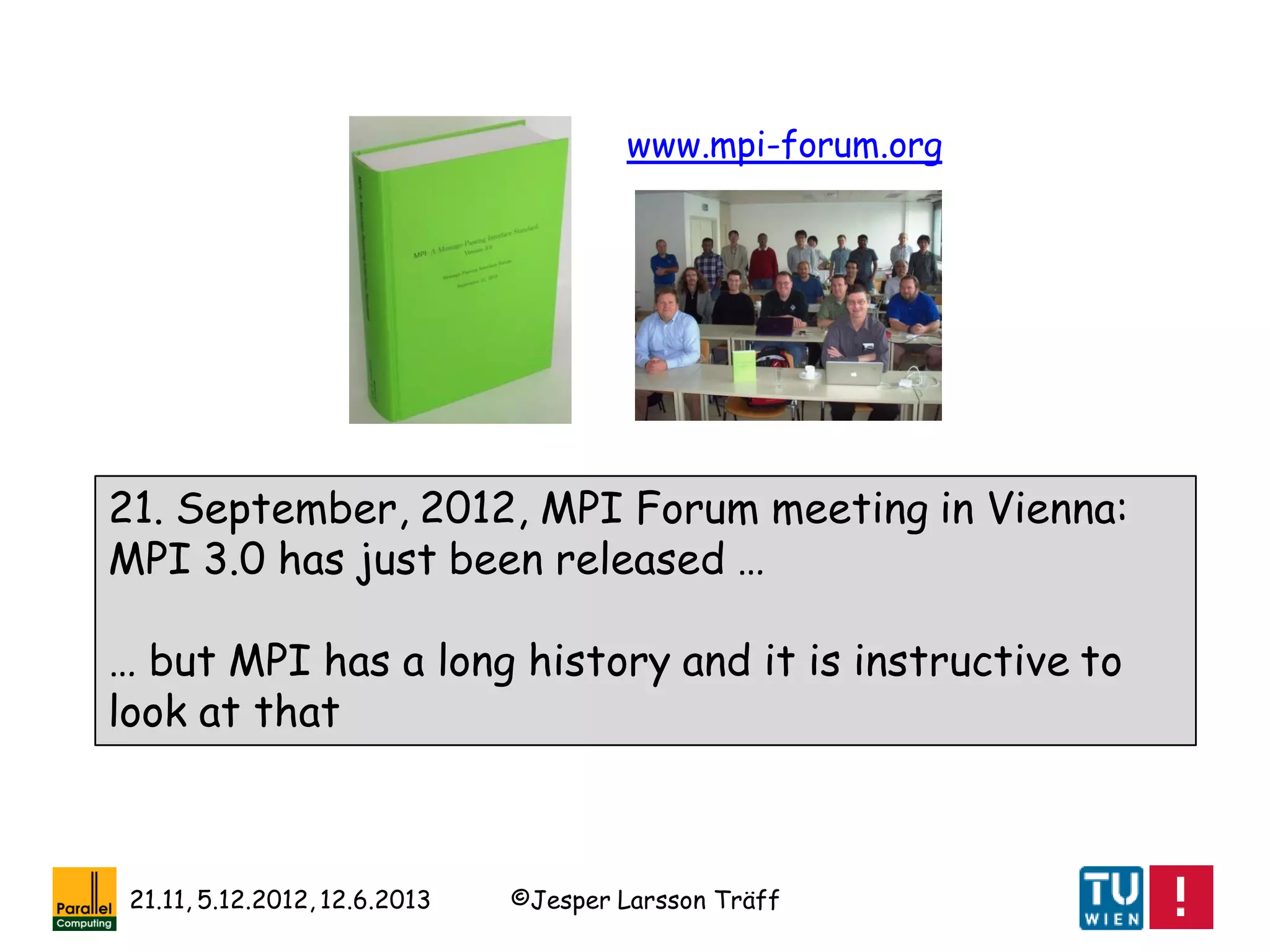

21. September, 2012, MPI Forum meeting in Vienna:
MPI 3.0 has just been released …
… but MPI has a long history and it is instructive to
look at that
www.mpi-forum.org

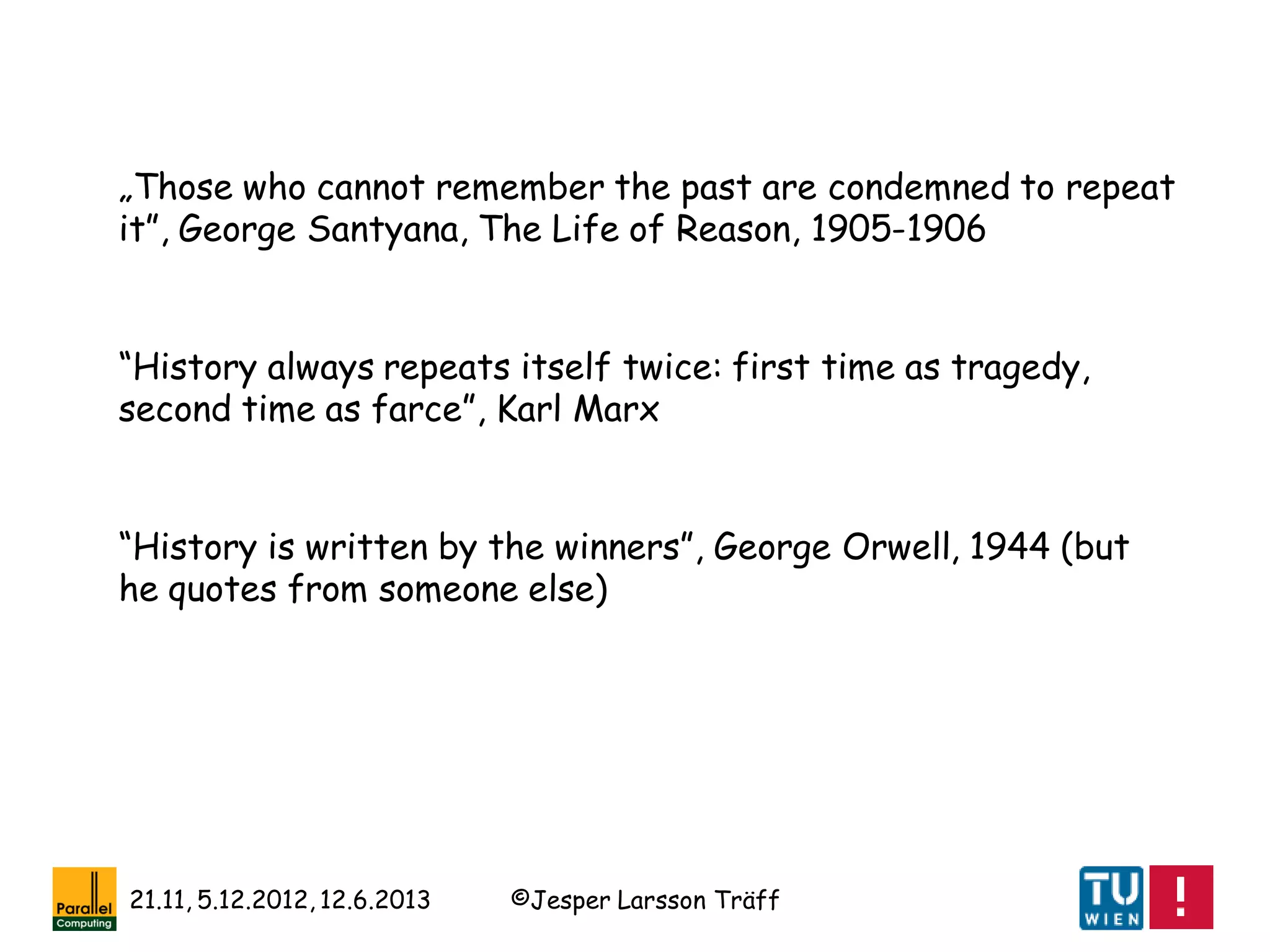

„Those who cannot remember the past are condemned to repeat
it”, George Santyana, The Life of Reason, 1905-1906
“History always repeats itself twice: first time as tragedy,
second time as farce”, Karl Marx
“History is written by the winners”, George Orwell, 1944 (but
he quotes from someone else)

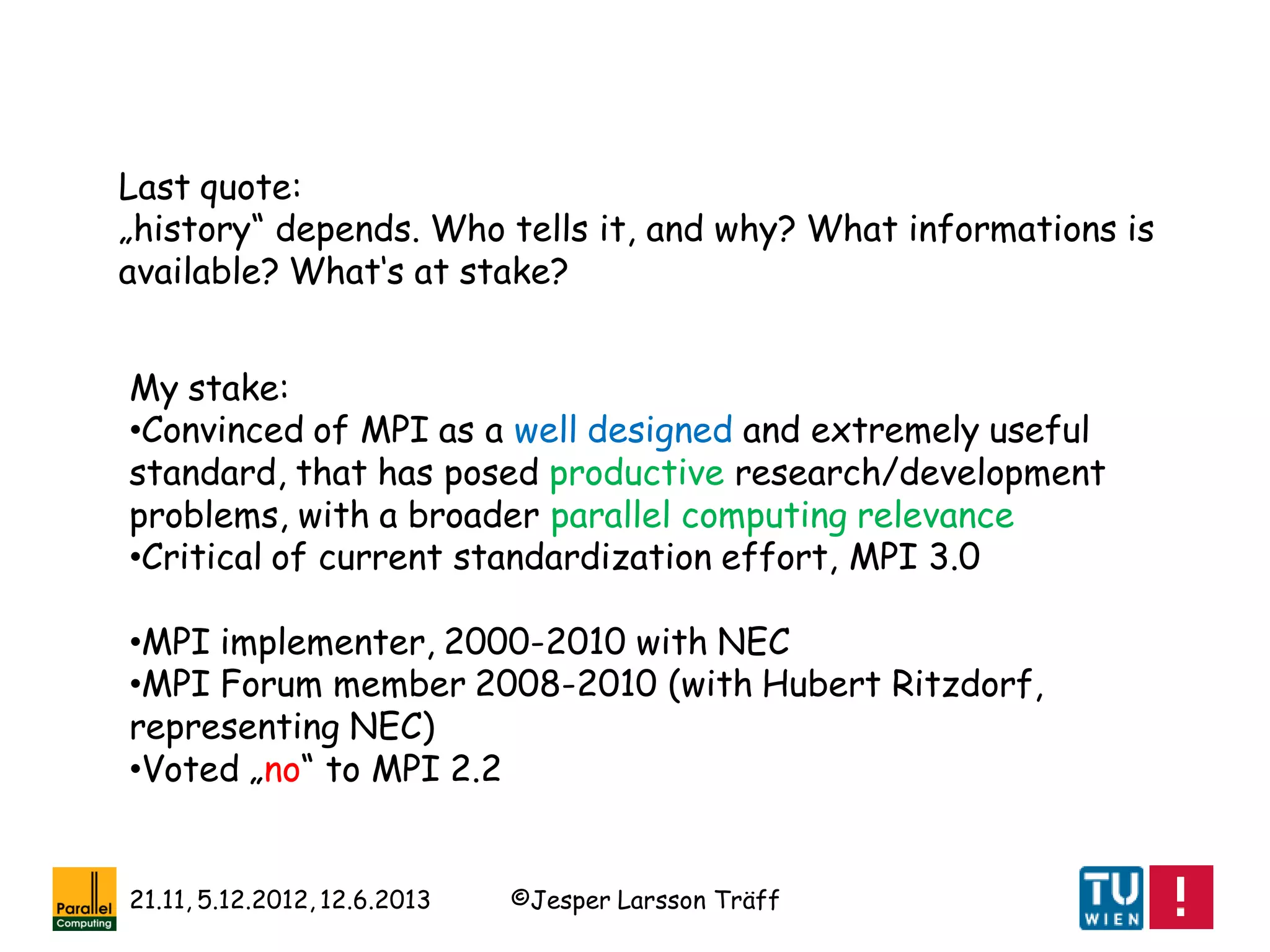

Last quote:
„history“ depends. Who tells it, and why? What informations is
available? What‘s at stake?
My stake:
•Convinced of MPI as a well designed and extremely useful
standard, that has posed productive research/development
problems, with a broader parallel computing relevance
•Critical of current standardization effort, MPI 3.0
•MPI implementer, 2000-2010 with NEC
•MPI Forum member 2008-2010 (with Hubert Ritzdorf,
representing NEC)
•Voted „no“ to MPI 2.2

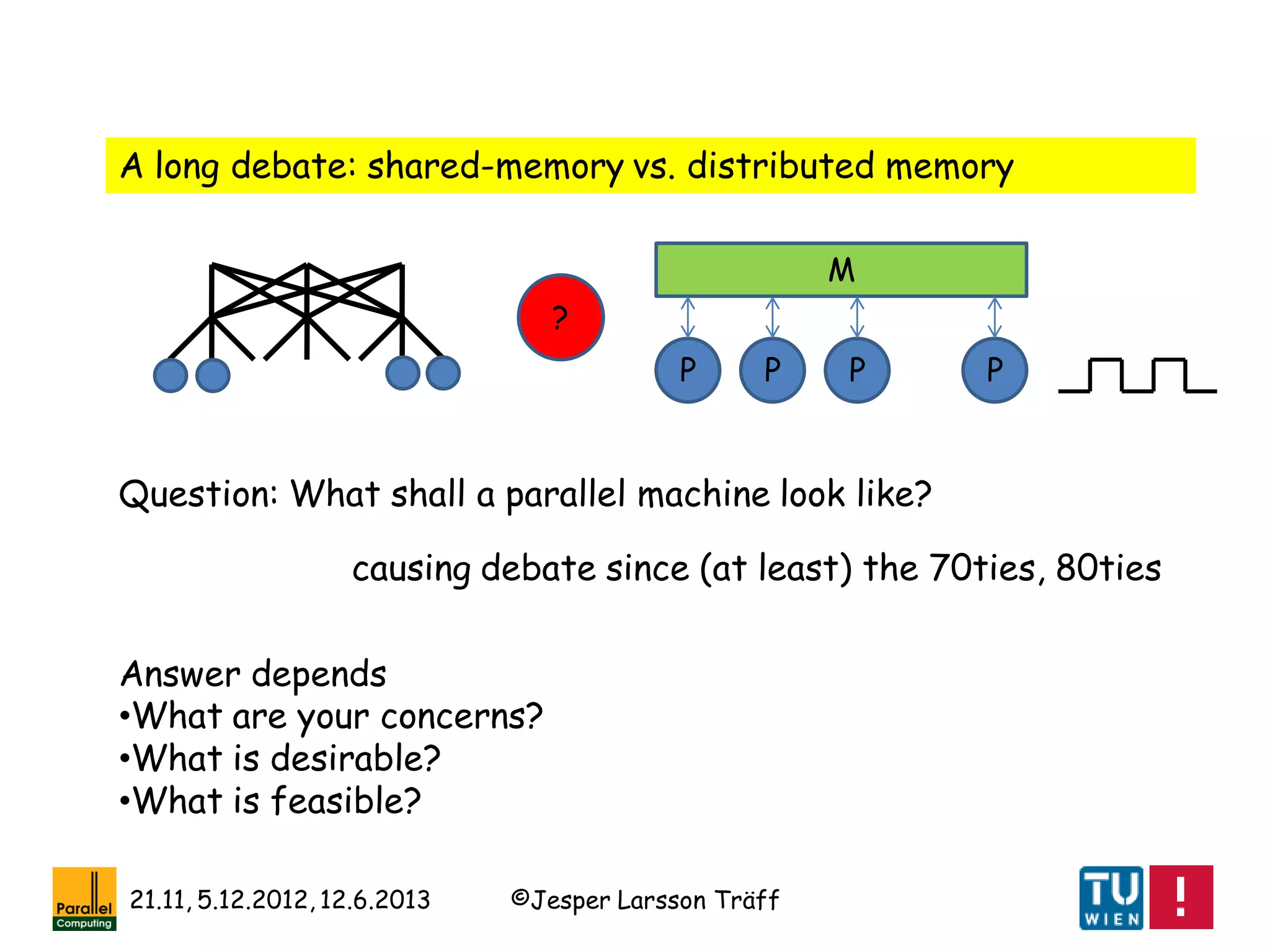

A long debate: shared-memory vs. distributed memory
Question: What shall a parallel machine look like?
M
P P P P
Answer depends
•What are your concerns?
•What is desirable?
•What is feasible?
causing debate since (at least) the 70ties, 80ties
?

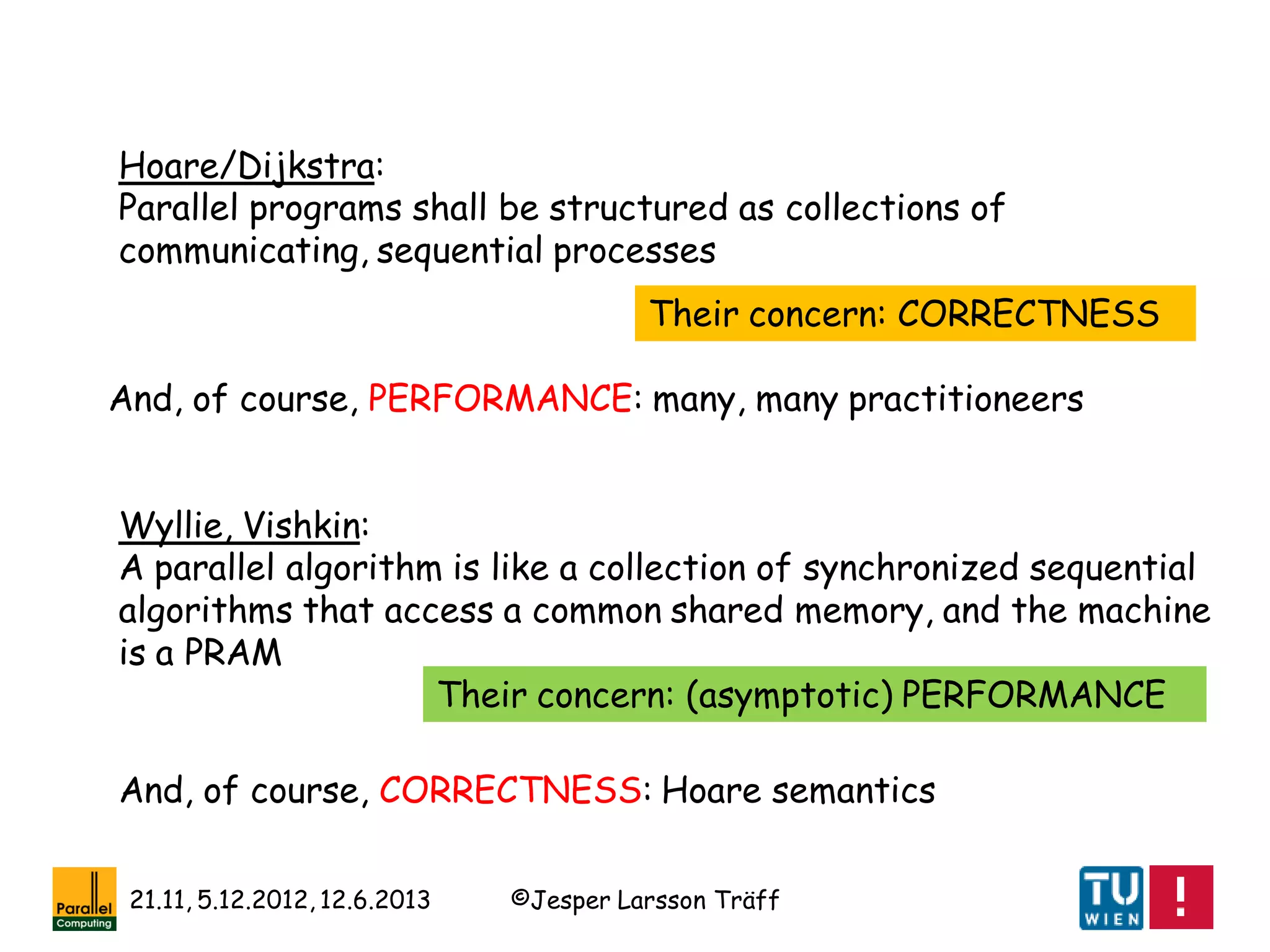

Hoare/Dijkstra:
Parallel programs shall be structured as collections of
communicating, sequential processes
Their concern: CORRECTNESS
Wyllie, Vishkin:
A parallel algorithm is like a collection of synchronized sequential
algorithms that access a common shared memory, and the machine
is a PRAM
Their concern: (asymptotic) PERFORMANCE
And, of course, PERFORMANCE: many, many practitioneers
And, of course, CORRECTNESS: Hoare semantics

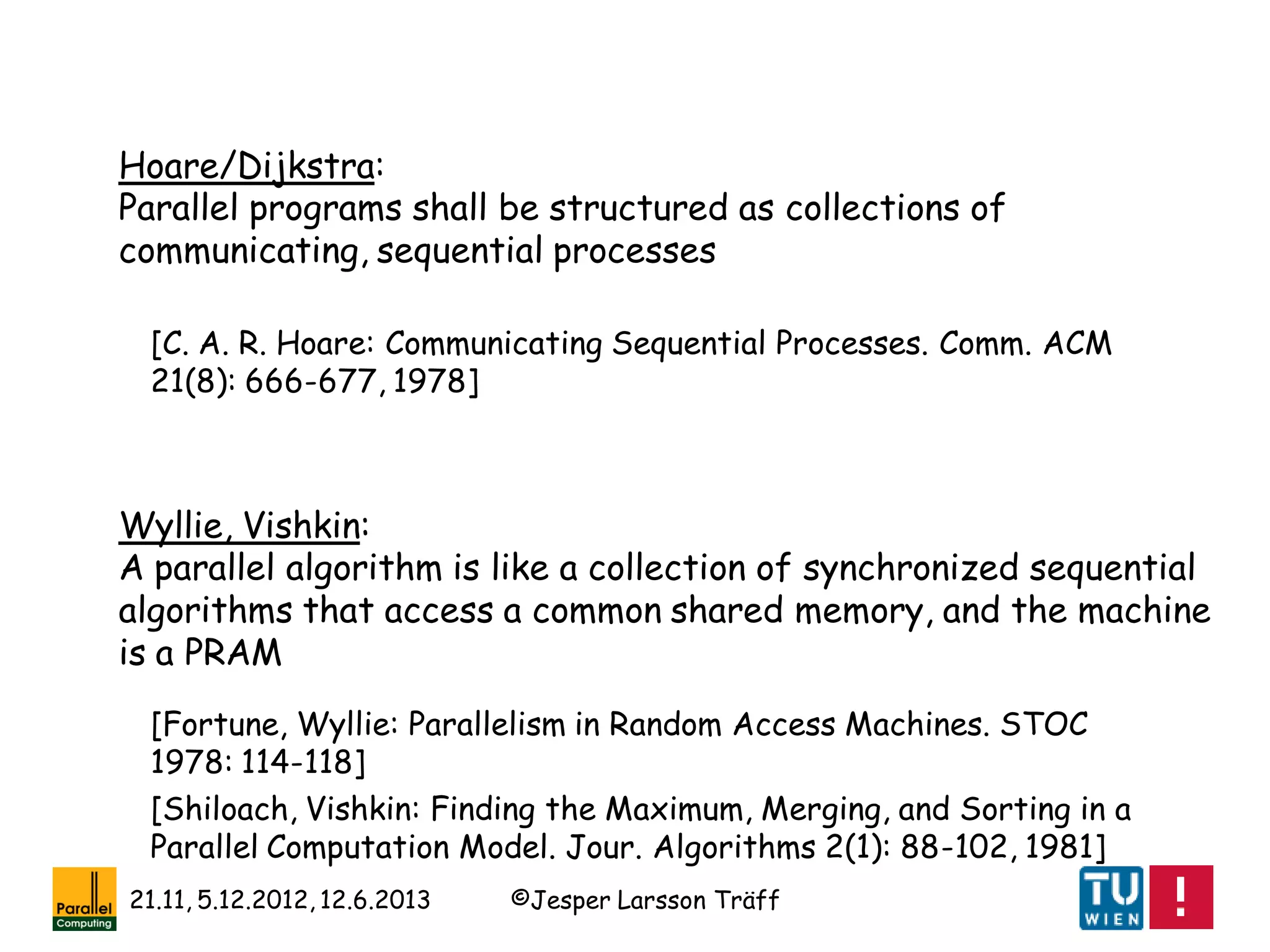

Hoare/Dijkstra:
Wyllie, Vishkin:
is a PRAM
[Fortune, Wyllie: Parallelism in Random Access Machines. STOC
1978: 114-118]
[Shiloach, Vishkin: Finding the Maximum, Merging, and Sorting in a
Parallel Computation Model. Jour. Algorithms 2(1): 88-102, 1981]
[C. A. R. Hoare: Communicating Sequential Processes. Comm. ACM
21(8): 666-677, 1978]

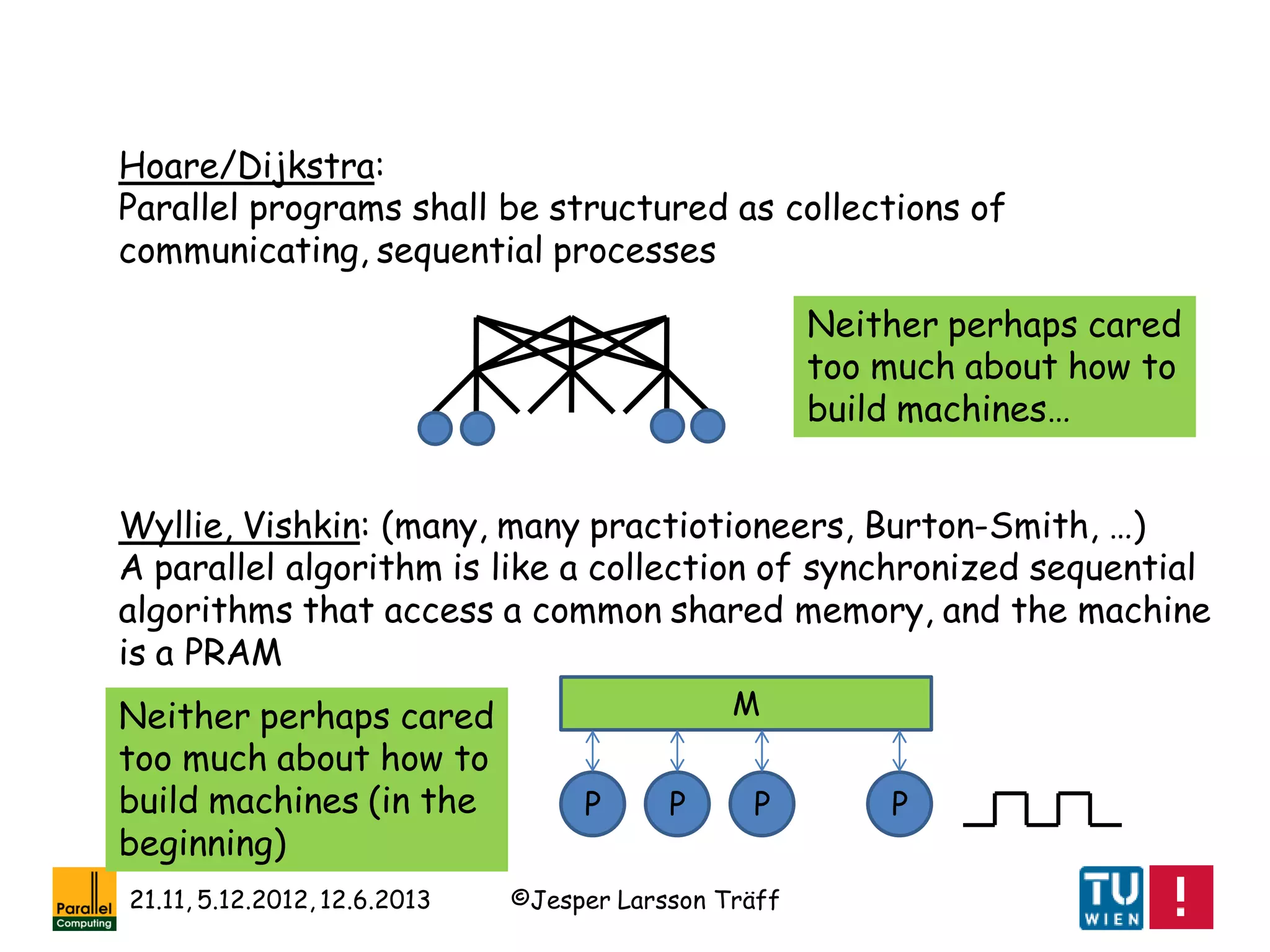

Hoare/Dijkstra:
Wyllie, Vishkin: (many, many practiotioneers, Burton-Smith, …)
is a PRAM
M
P P P P
Neither perhaps cared
too much about how to
build machines…
Neither perhaps cared
too much about how to
build machines (in the
beginning)

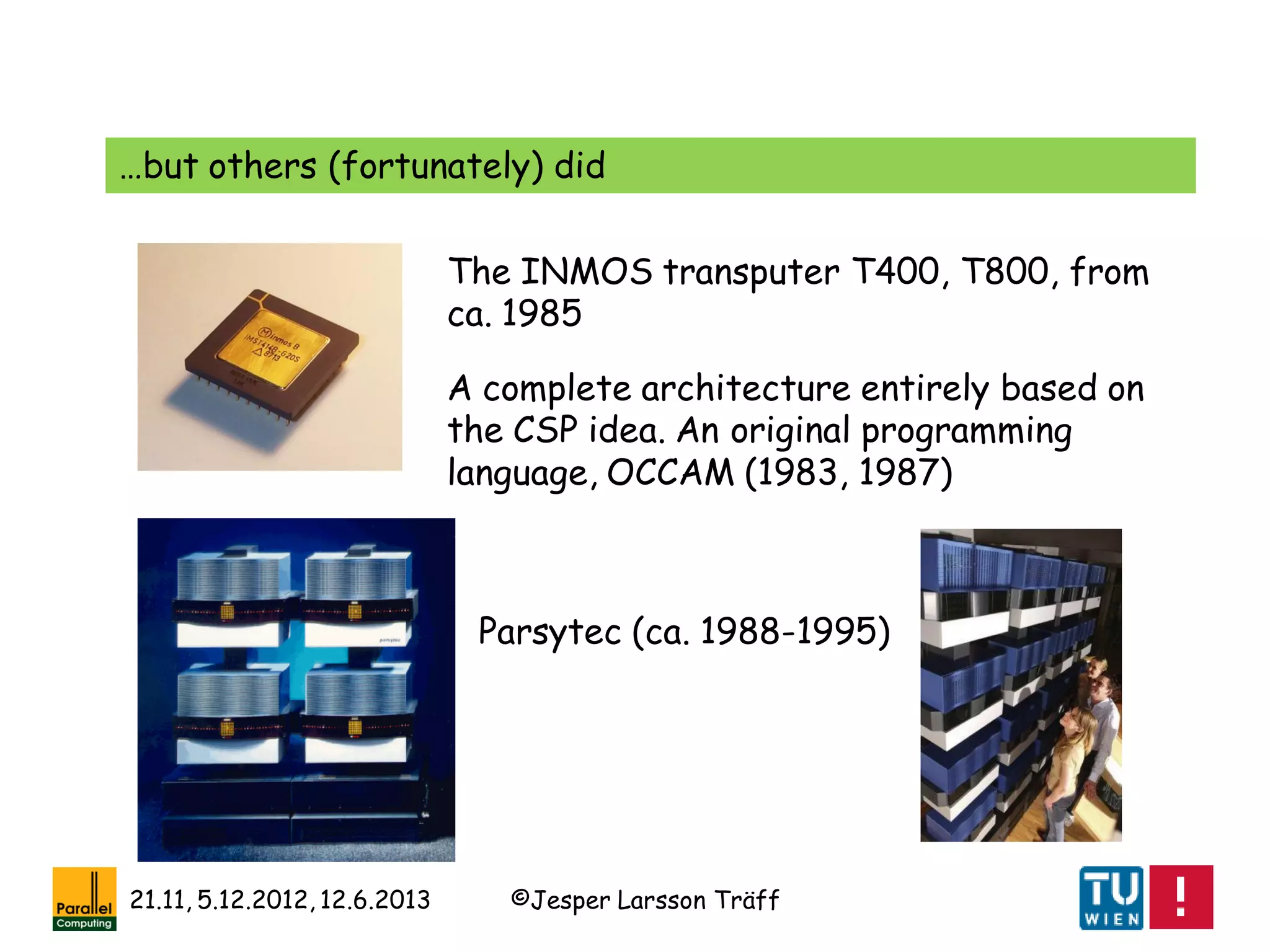

The INMOS transputer T400, T800, from
ca. 1985
…but others (fortunately) did
A complete architecture entirely based on
the CSP idea. An original programming
language, OCCAM (1983, 1987)
Parsytec (ca. 1988-1995)

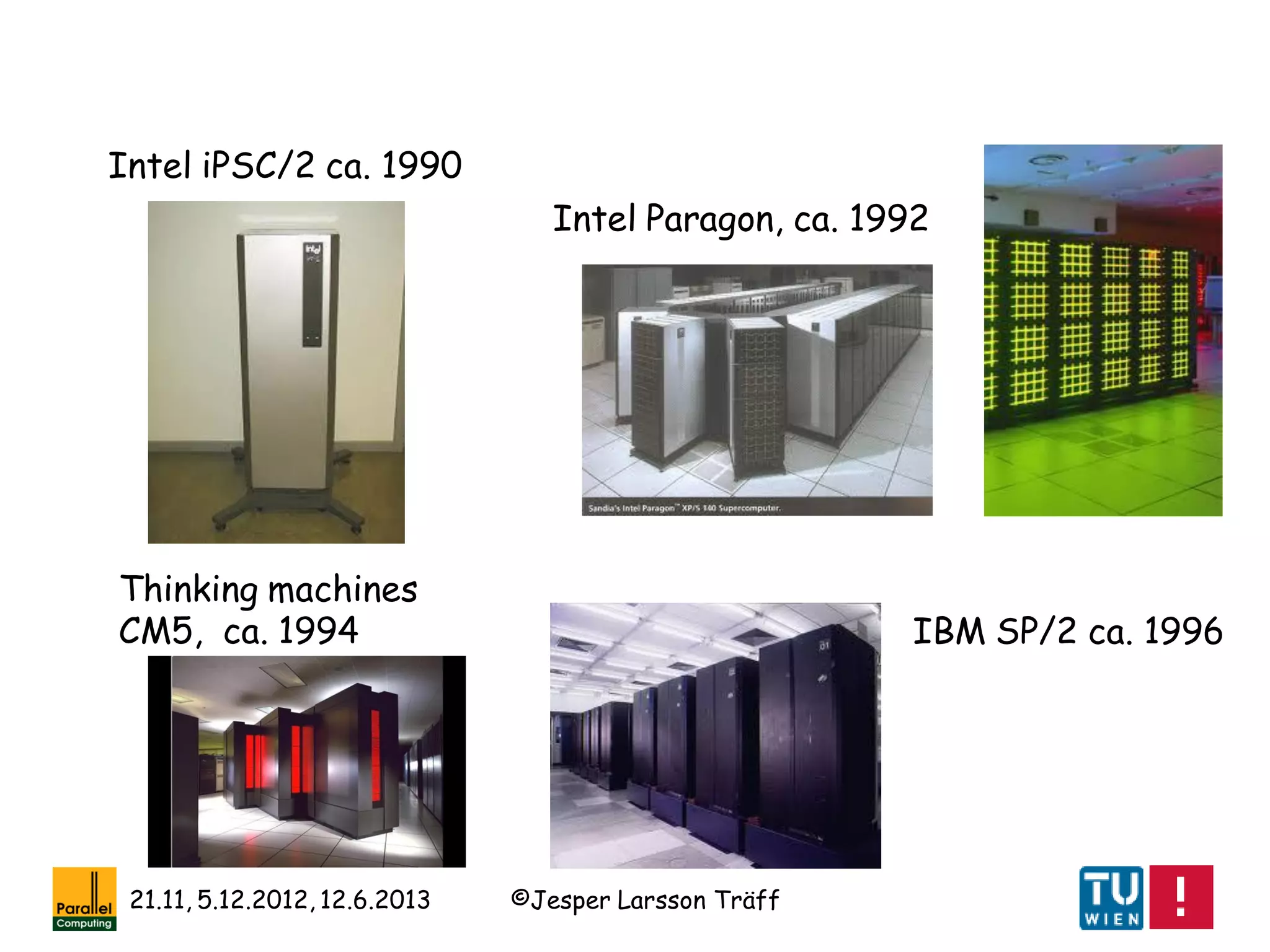

Intel iPSC/2 ca. 1990
Intel Paragon, ca. 1992
IBM SP/2 ca. 1996
Thinking machines
CM5, ca. 1994

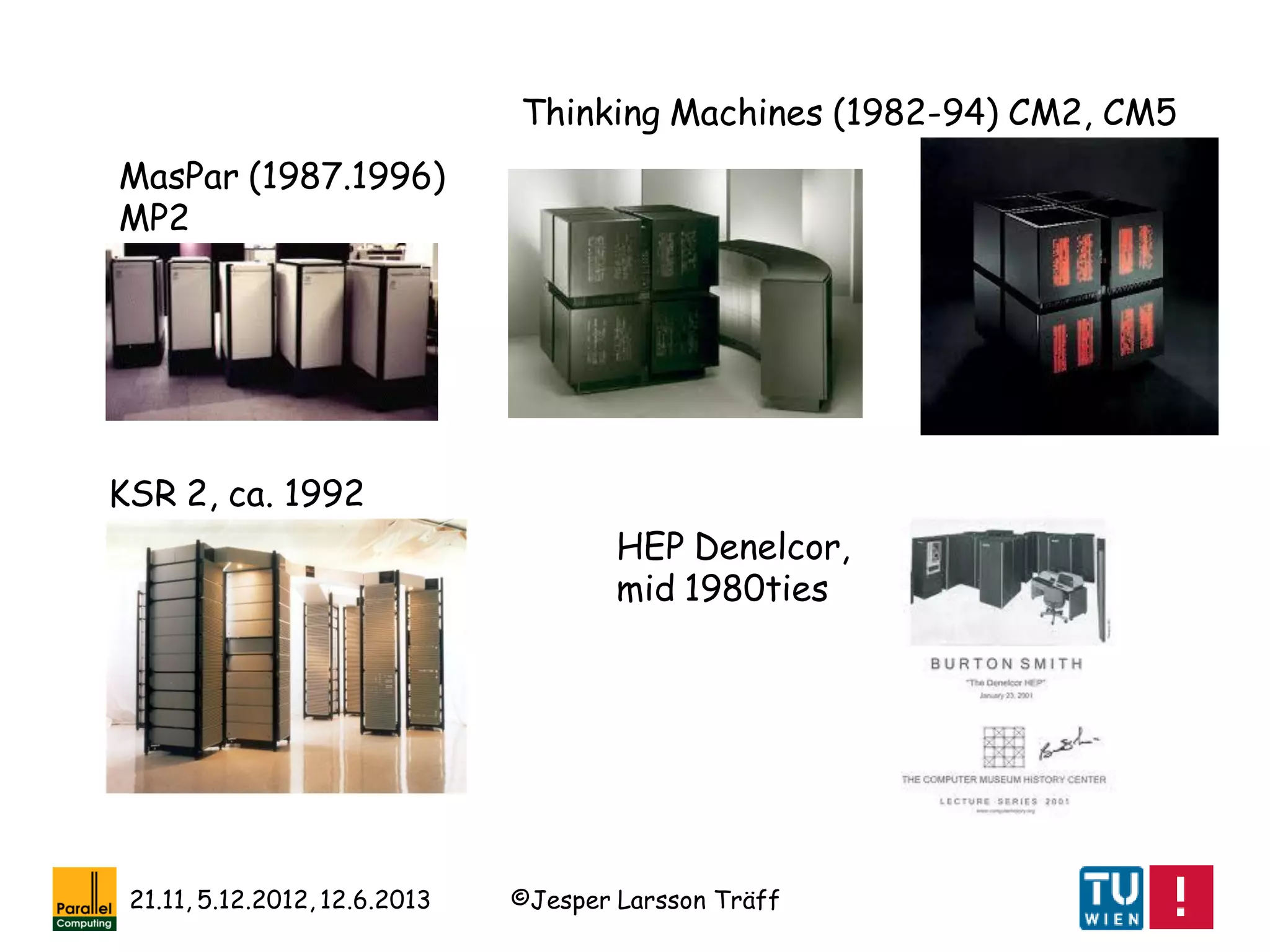

MasPar (1987.1996)
MP2
Thinking Machines (1982-94) CM2, CM5
KSR 2, ca. 1992
HEP Denelcor,
mid 1980ties

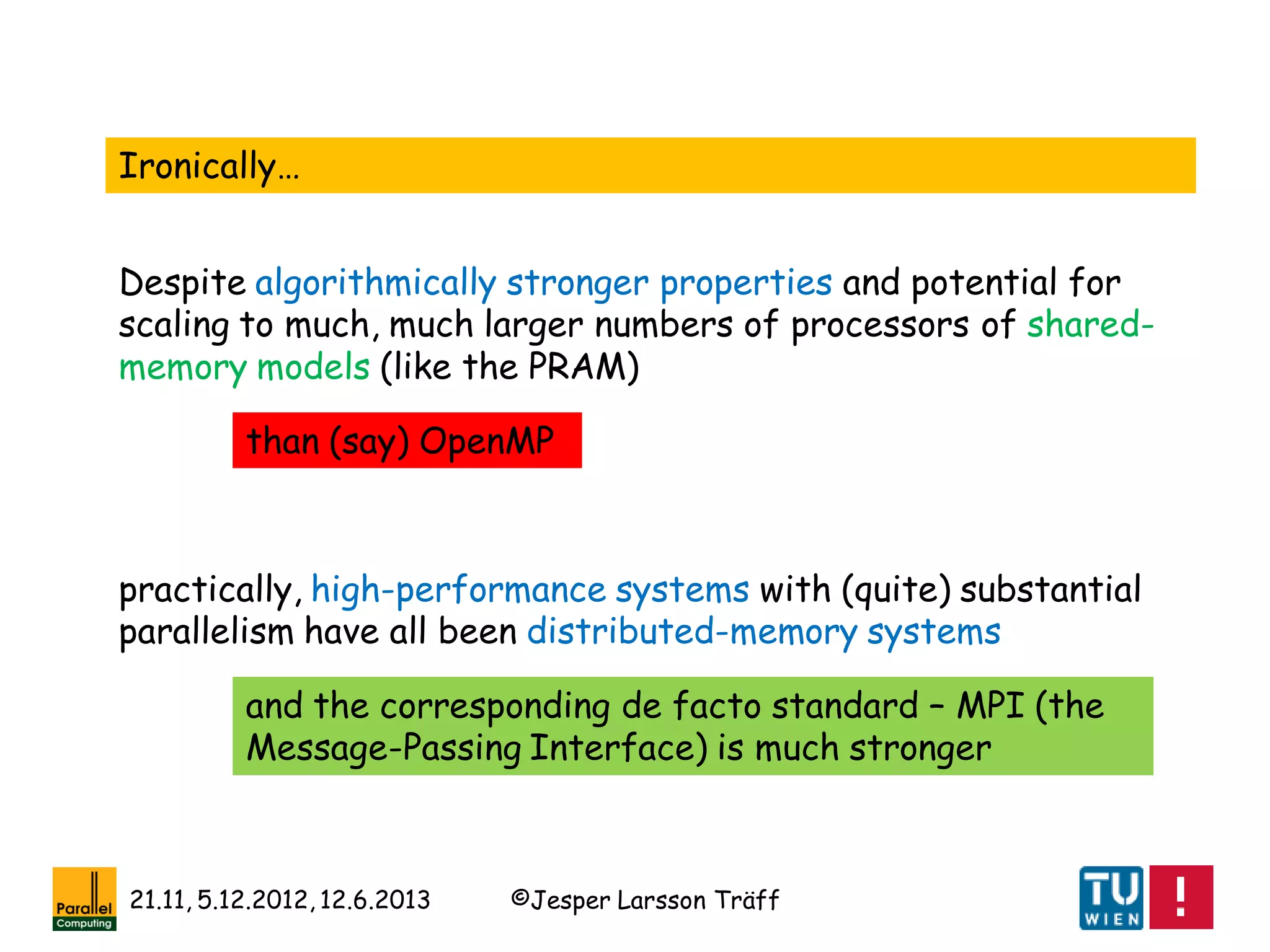

Ironically…
Despite algorithmically stronger properties and potential for
scaling to much, much larger numbers of processors of shared-
memory models (like the PRAM)
practically, high-performance systems with (quite) substantial
parallelism have all been distributed-memory systems
and the corresponding de facto standard – MPI (the
Message-Passing Interface) is much stronger
than (say) OpenMP

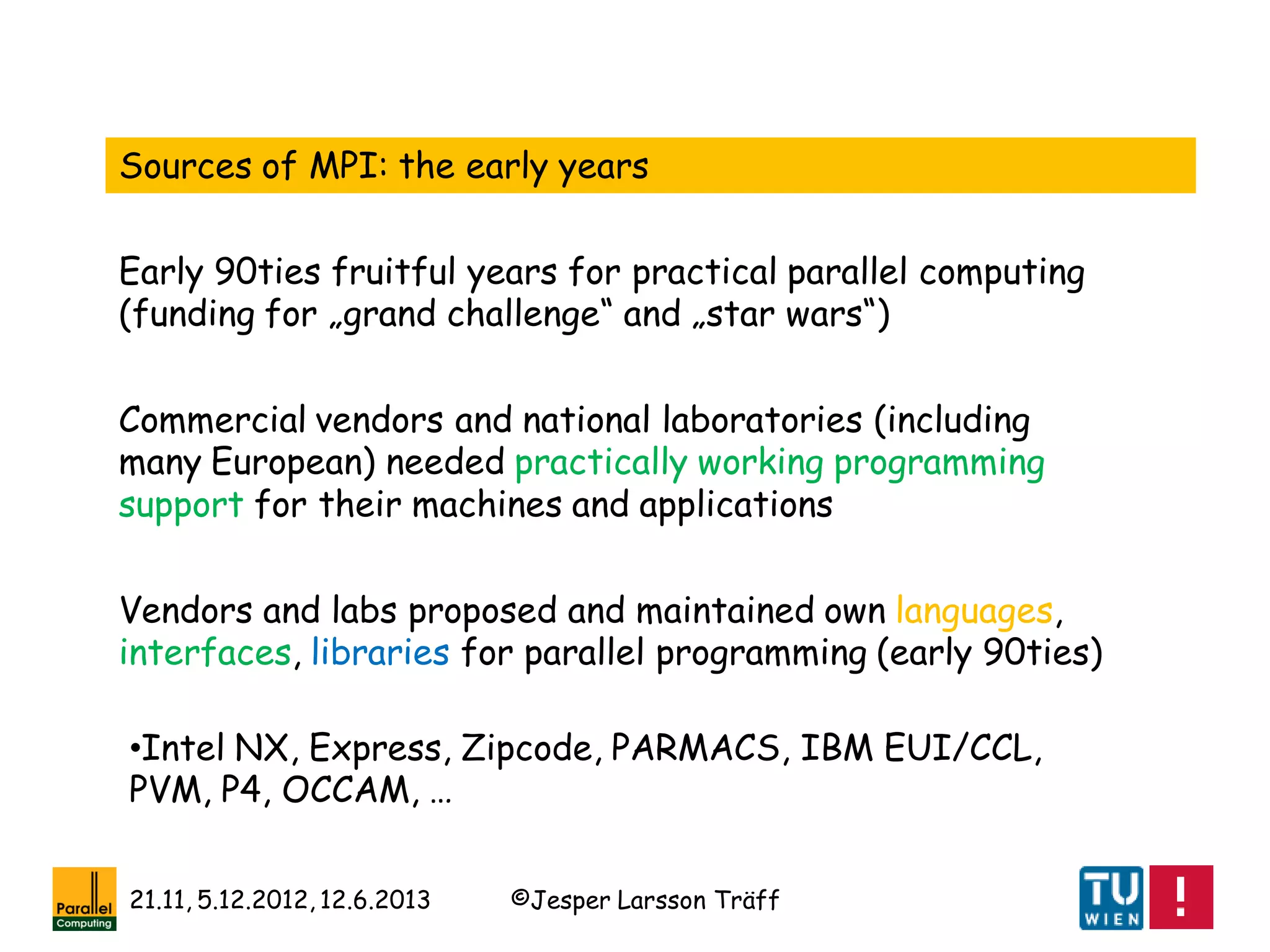

Sources of MPI: the early years
Commercial vendors and national laboratories (including
many European) needed practically working programming
support for their machines and applications
Early 90ties fruitful years for practical parallel computing
(funding for „grand challenge“ and „star wars“)
Vendors and labs proposed and maintained own languages,
interfaces, libraries for parallel programming (early 90ties)
•Intel NX, Express, Zipcode, PARMACS, IBM EUI/CCL,
PVM, P4, OCCAM, …

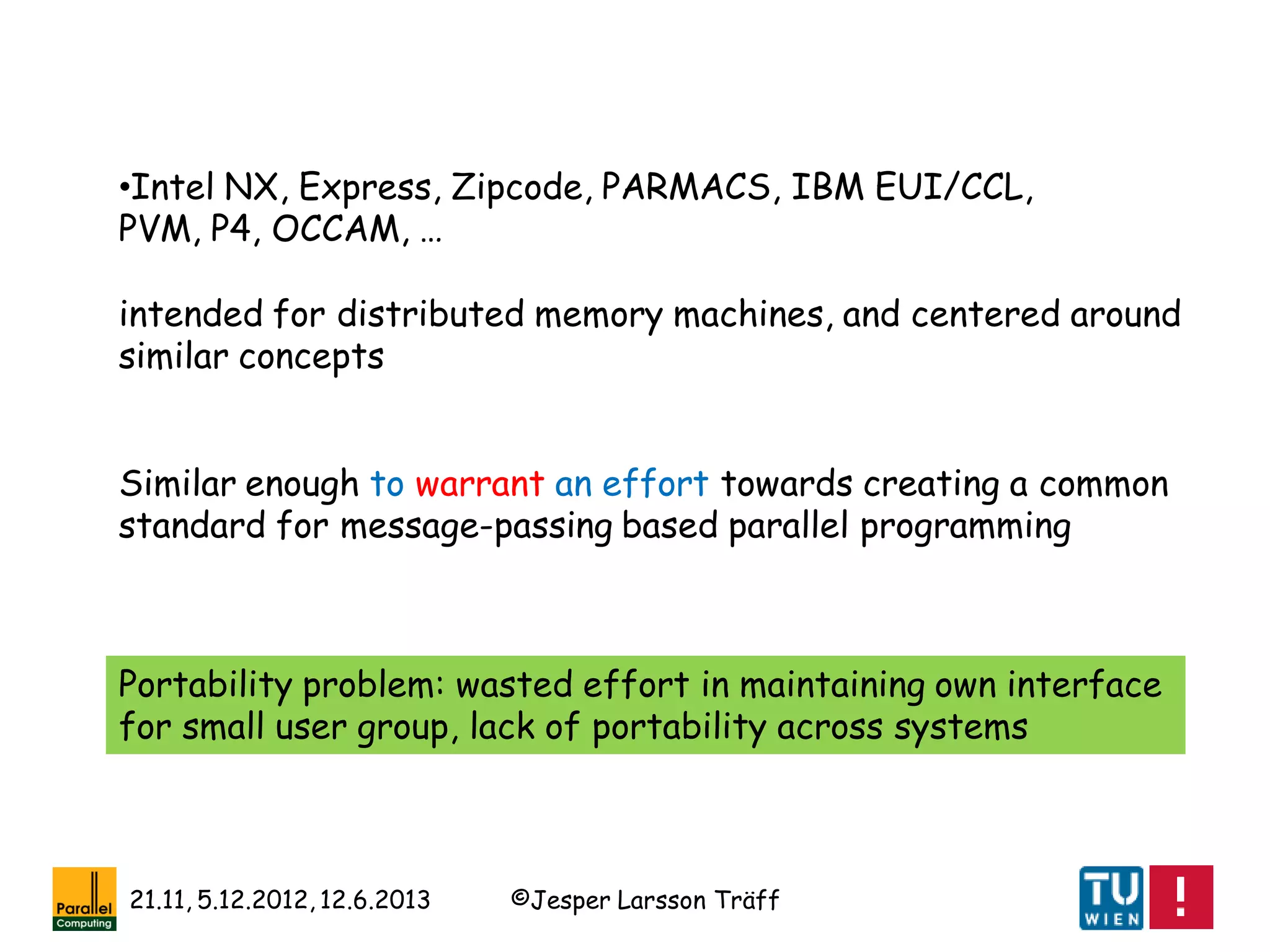

•Intel NX, Express, Zipcode, PARMACS, IBM EUI/CCL,
PVM, P4, OCCAM, …
intended for distributed memory machines, and centered around
similar concepts
Similar enough to warrant an effort towards creating a common
standard for message-passing based parallel programming
Portability problem: wasted effort in maintaining own interface
for small user group, lack of portability across systems

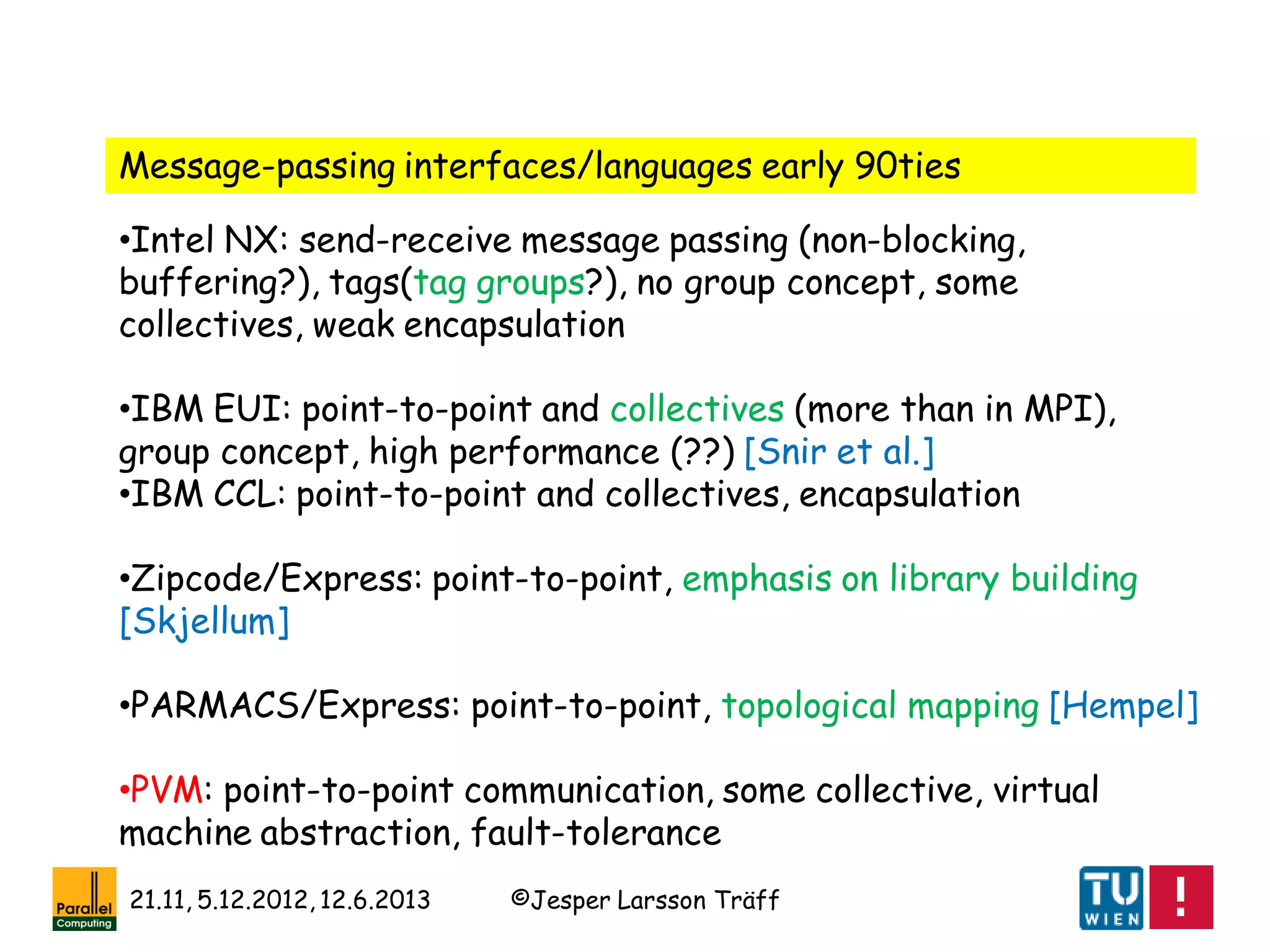

•Intel NX: send-receive message passing (non-blocking,
buffering?), tags(tag groups?), no group concept, some
collectives, weak encapsulation
•IBM EUI: point-to-point and collectives (more than in MPI),
group concept, high performance (??) [Snir et al.]
•IBM CCL: point-to-point and collectives, encapsulation
•Zipcode/Express: point-to-point, emphasis on library building
[Skjellum]
•PARMACS/Express: point-to-point, topological mapping [Hempel]
•PVM: point-to-point communication, some collective, virtual
machine abstraction, fault-tolerance
Message-passing interfaces/languages early 90ties

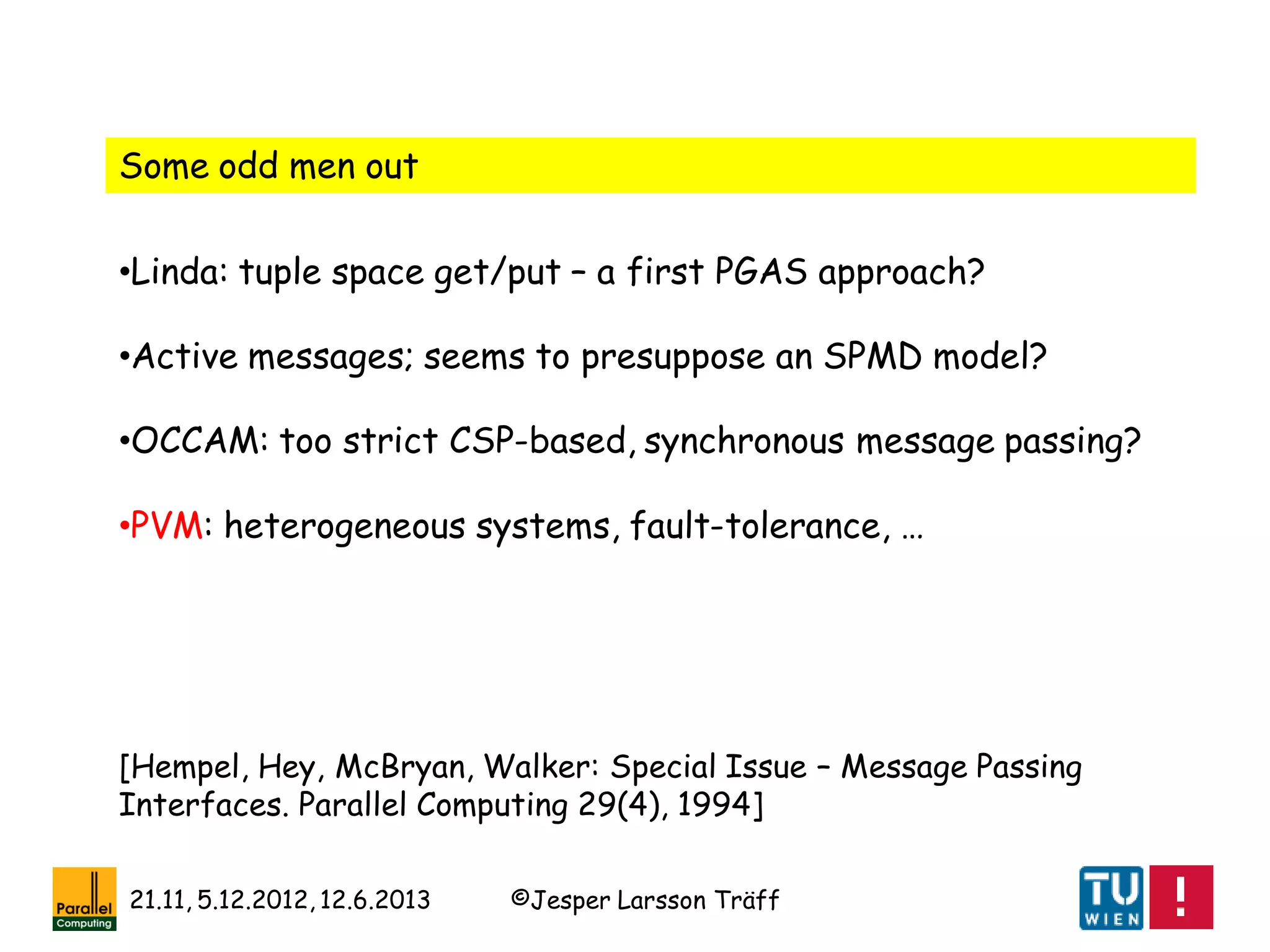

Some odd men out
•Linda: tuple space get/put – a first PGAS approach?
•Active messages; seems to presuppose an SPMD model?
•OCCAM: too strict CSP-based, synchronous message passing?
•PVM: heterogeneous systems, fault-tolerance, …
[Hempel, Hey, McBryan, Walker: Special Issue – Message Passing
Interfaces. Parallel Computing 29(4), 1994]

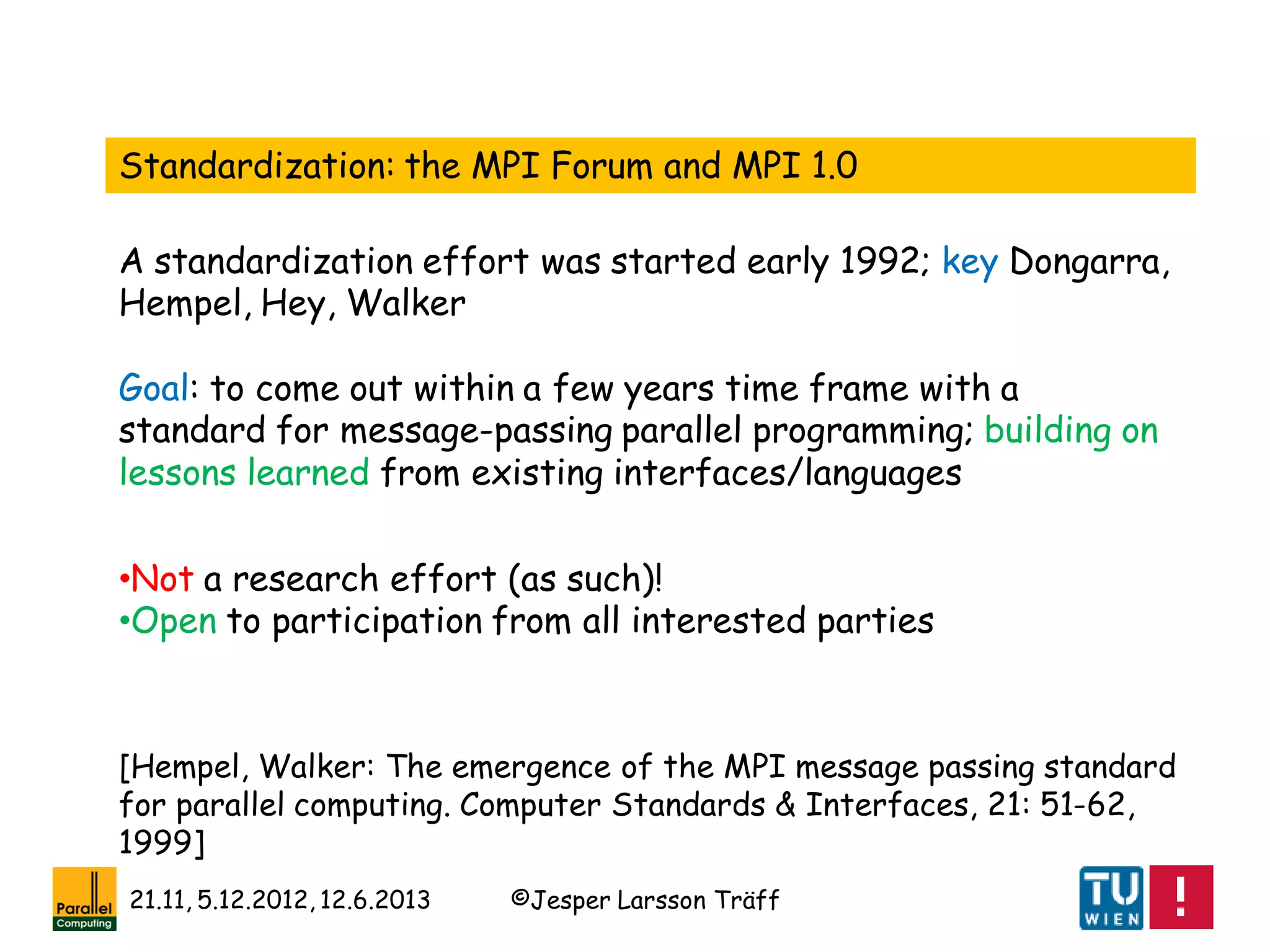

Standardization: the MPI Forum and MPI 1.0
[Hempel, Walker: The emergence of the MPI message passing standard
for parallel computing. Computer Standards & Interfaces, 21: 51-62,
1999]
A standardization effort was started early 1992; key Dongarra,
Hempel, Hey, Walker
Goal: to come out within a few years time frame with a
standard for message-passing parallel programming; building on
lessons learned from existing interfaces/languages
•Not a research effort (as such)!
•Open to participation from all interested parties

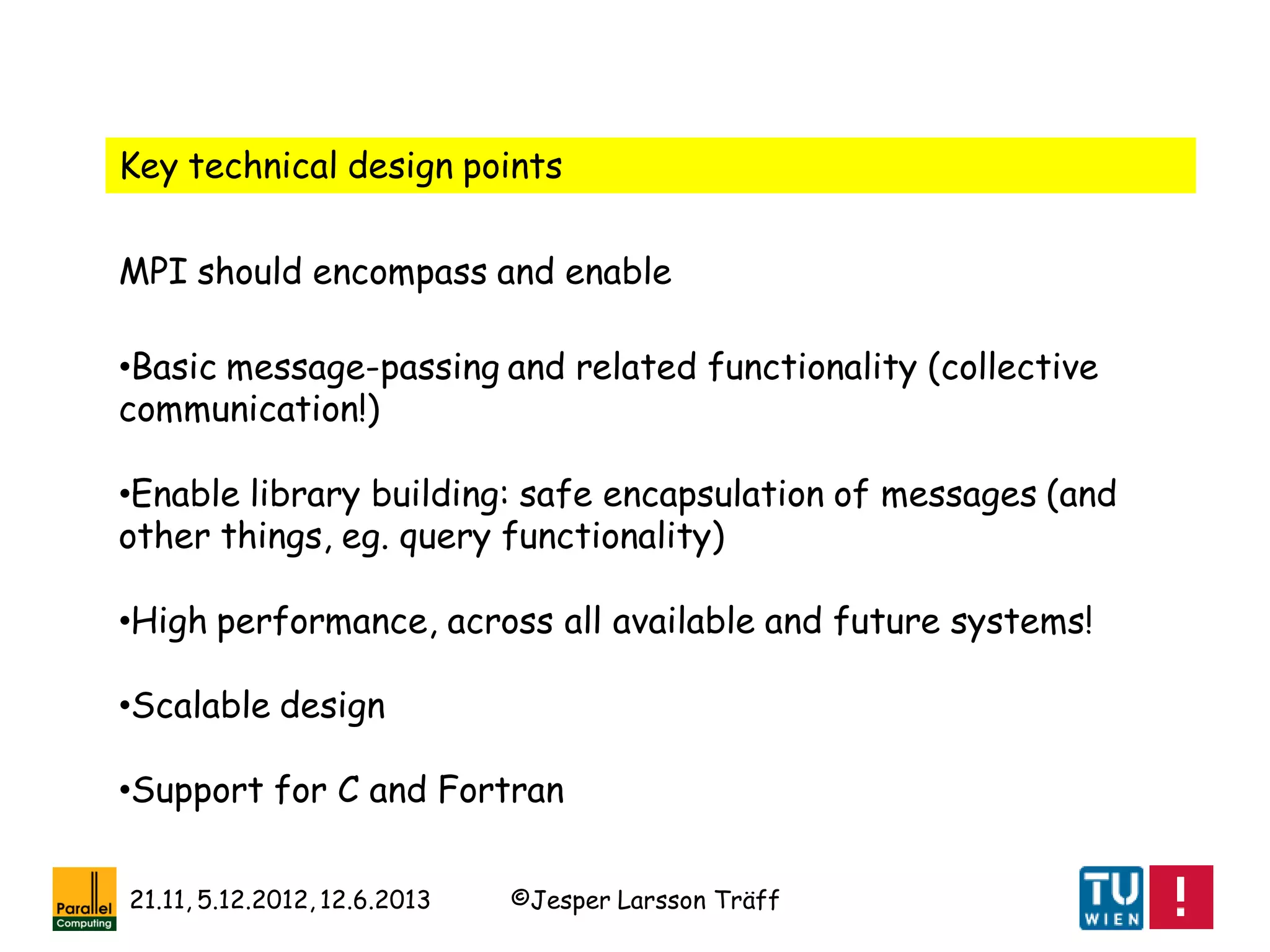

Key technical design points
•Basic message-passing and related functionality (collective
communication!)
•Enable library building: safe encapsulation of messages (and
other things, eg. query functionality)
•High performance, across all available and future systems!
•Scalable design
•Support for C and Fortran
MPI should encompass and enable

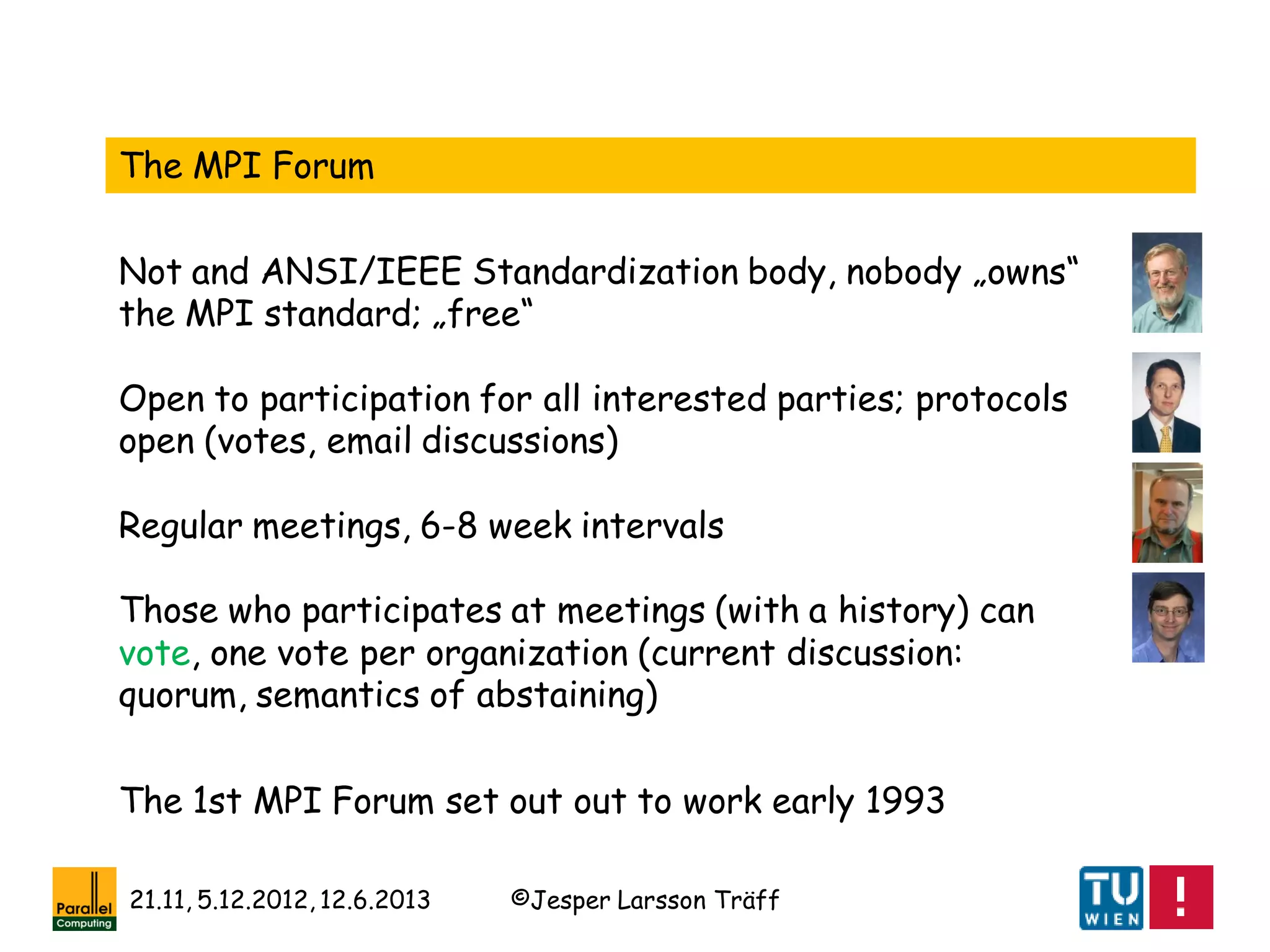

The MPI Forum
Not and ANSI/IEEE Standardization body, nobody „owns“
the MPI standard; „free“
Open to participation for all interested parties; protocols
open (votes, email discussions)
Regular meetings, 6-8 week intervals
Those who participates at meetings (with a history) can
vote, one vote per organization (current discussion:
quorum, semantics of abstaining)
The 1st MPI Forum set out out to work early 1993

Errata, minor adjustments: MPI 1.0, 1.1, 1.2: 1994-1995

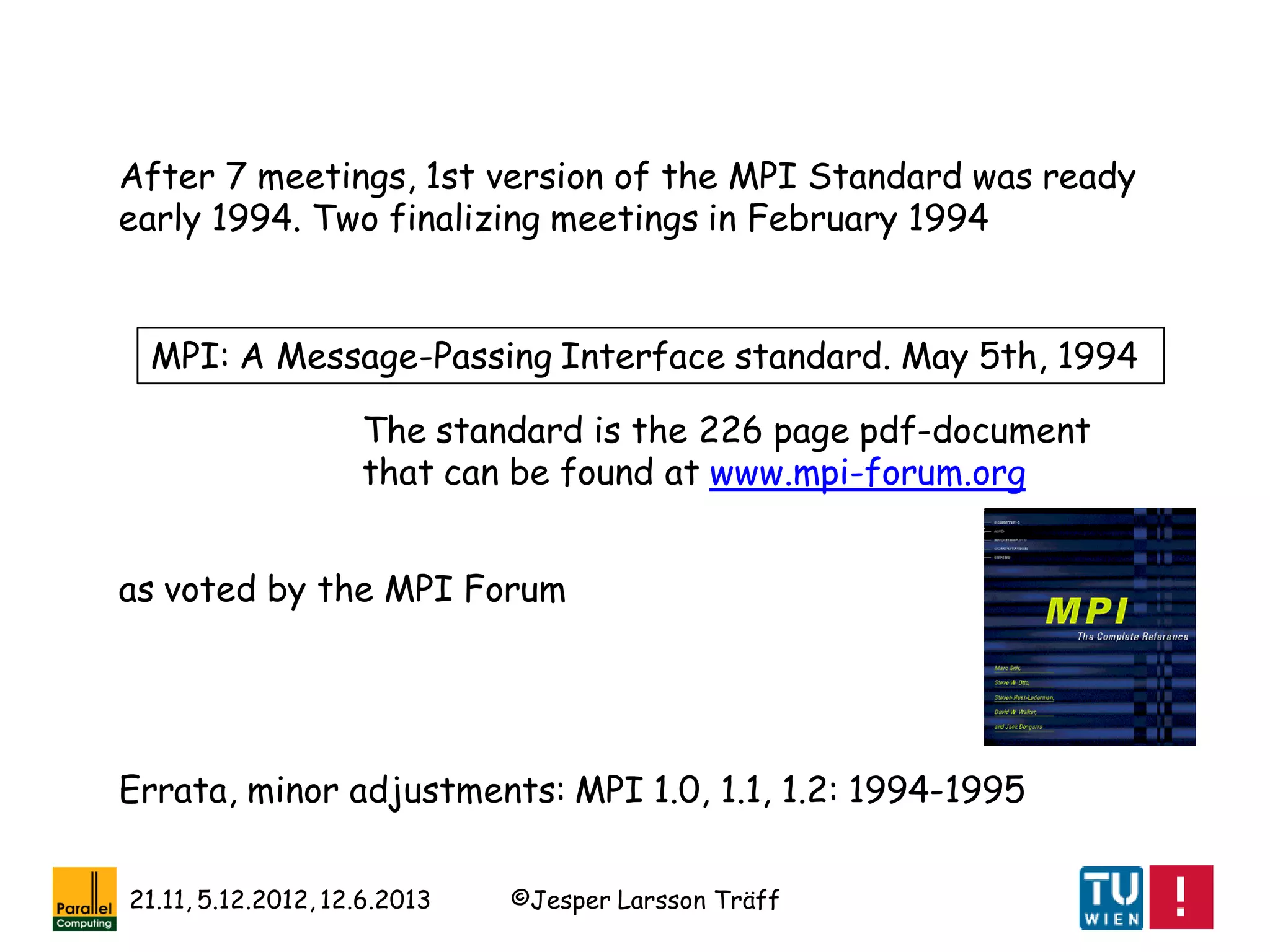

After 7 meetings, 1st version of the MPI Standard was ready
early 1994. Two finalizing meetings in February 1994
MPI: A Message-Passing Interface standard. May 5th, 1994
The standard is the 226 page pdf-document
that can be found at www.mpi-forum.org
as voted by the MPI Forum

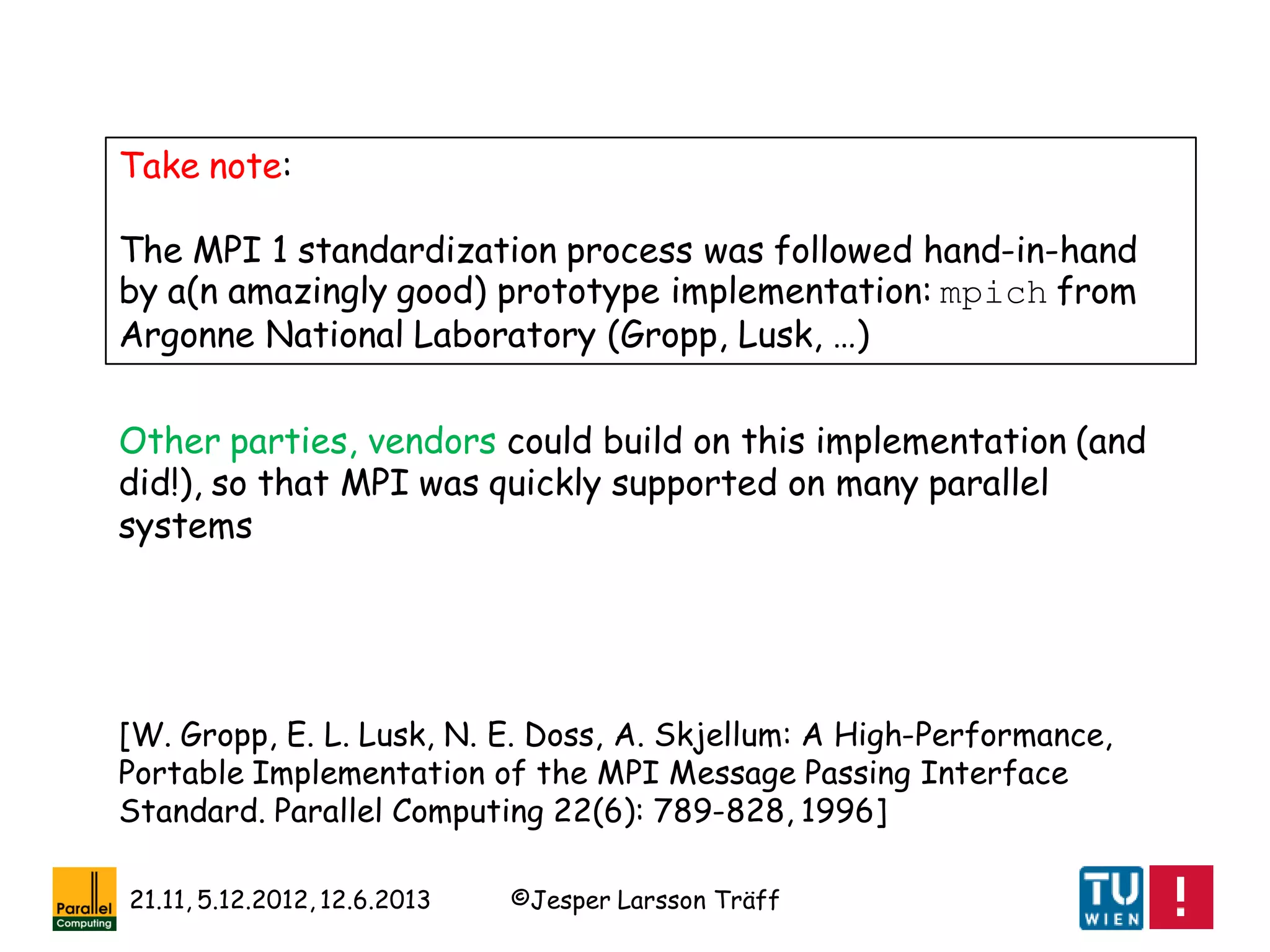

Take note:
The MPI 1 standardization process was followed hand-in-hand
by a(n amazingly good) prototype implementation: mpich from
Argonne National Laboratory (Gropp, Lusk, …)
[W. Gropp, E. L. Lusk, N. E. Doss, A. Skjellum: A High-Performance,
Portable Implementation of the MPI Message Passing Interface
Standard. Parallel Computing 22(6): 789-828, 1996]
Other parties, vendors could build on this implementation (and
did!), so that MPI was quickly supported on many parallel
systems

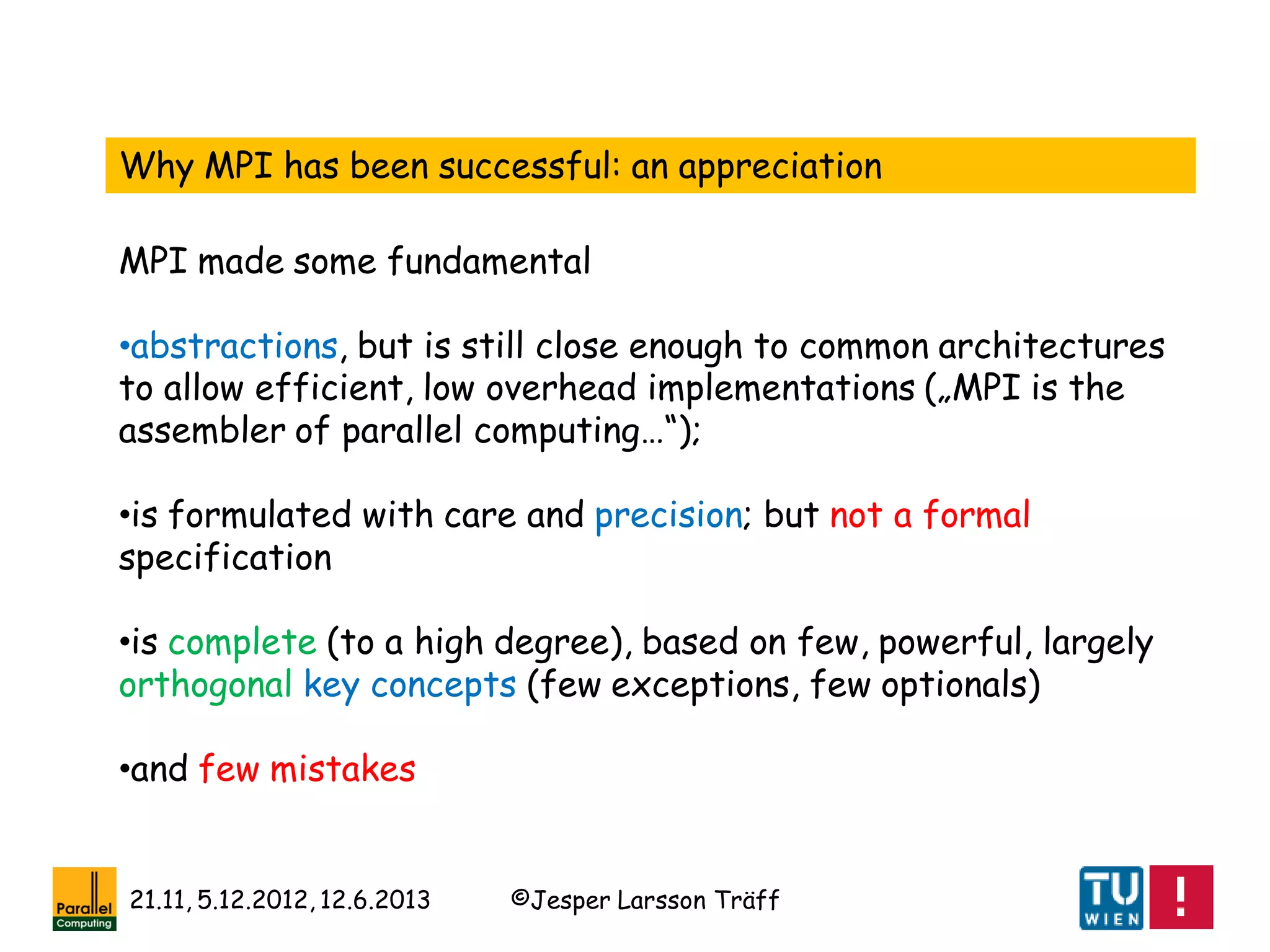

Why MPI has been successful: an appreciation
•abstractions, but is still close enough to common architectures
to allow efficient, low overhead implementations („MPI is the
assembler of parallel computing…“);
•is formulated with care and precision; but not a formal
specification
•is complete (to a high degree), based on few, powerful, largely
orthogonal key concepts (few exceptions, few optionals)
•and few mistakes

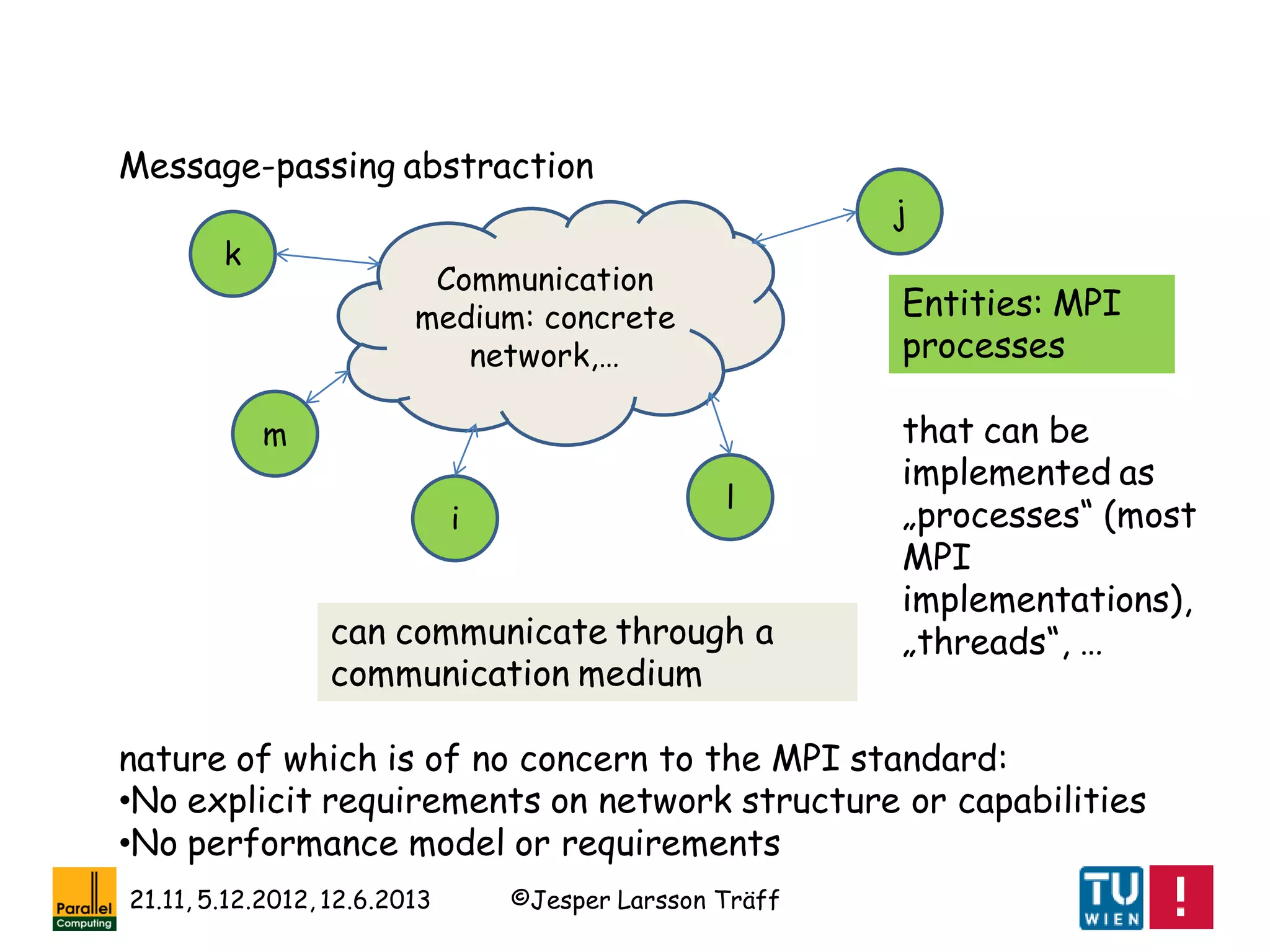

MPI made some fundamental

i
j
m
k
l
Entities: MPI
processes
can communicate through a
communication medium
that can be
implemented as
„processes“ (most
MPI
implementations),
„threads“, …
Communication
medium: concrete
network,…
nature of which is of no concern to the MPI standard:
•No explicit requirements on network structure or capabilities
•No performance model or requirements

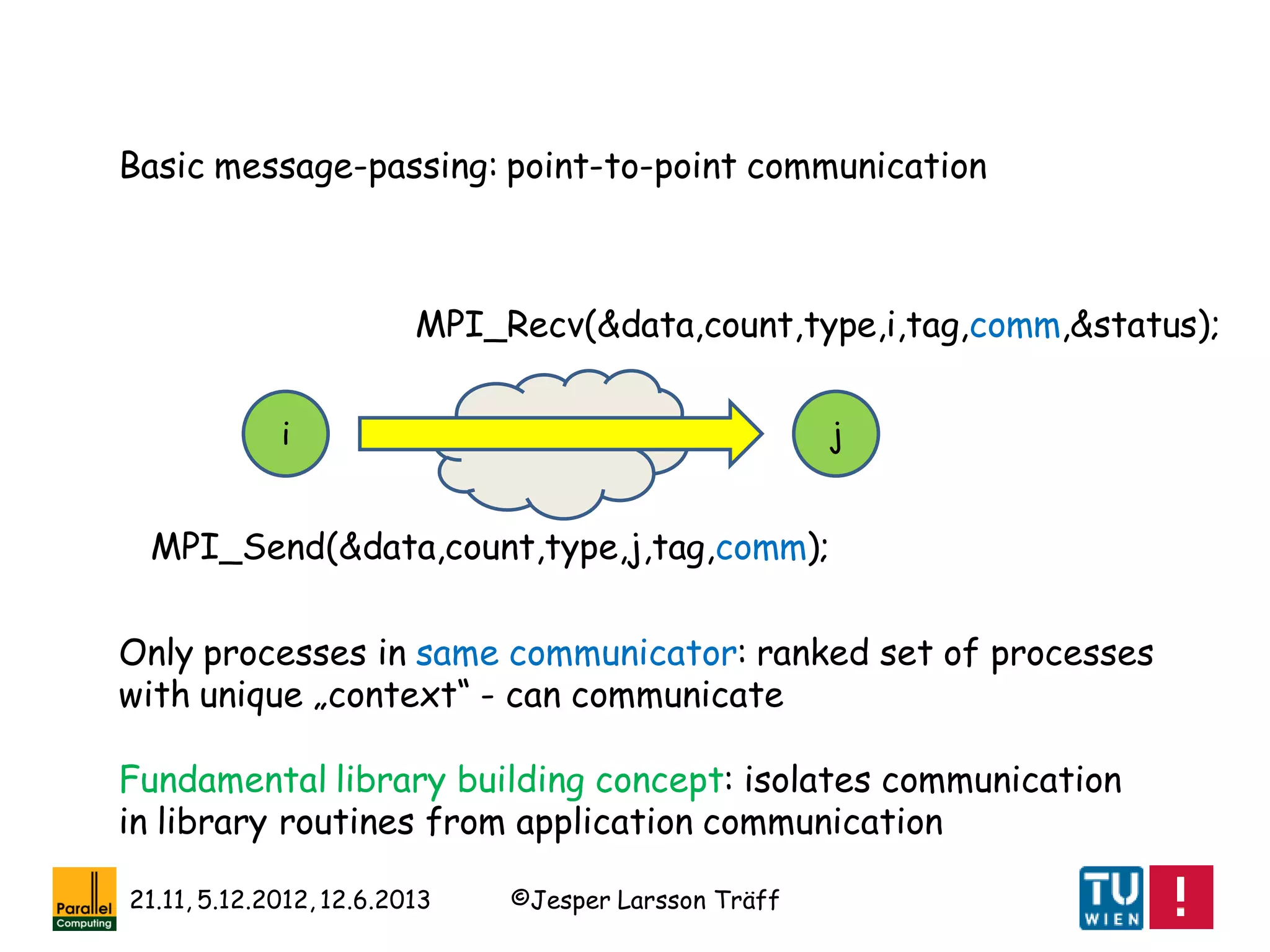

Message-passing abstraction

i j
MPI_Send(&data,count,type,j,tag,comm);
MPI_Recv(&data,count,type,i,tag,comm,&status);
Basic message-passing: point-to-point communication
Only processes in same communicator: ranked set of processes
with unique „context“ - can communicate
Fundamental library building concept: isolates communication
in library routines from application communication

i j
Receiving
process blocks
until data have
been
transferred
MPI implementation must ensure reliable transmission; no time
out (see RT-MPI)
Semantics: messages from same sender are delivered in order;
possible to write fully deterministic programs

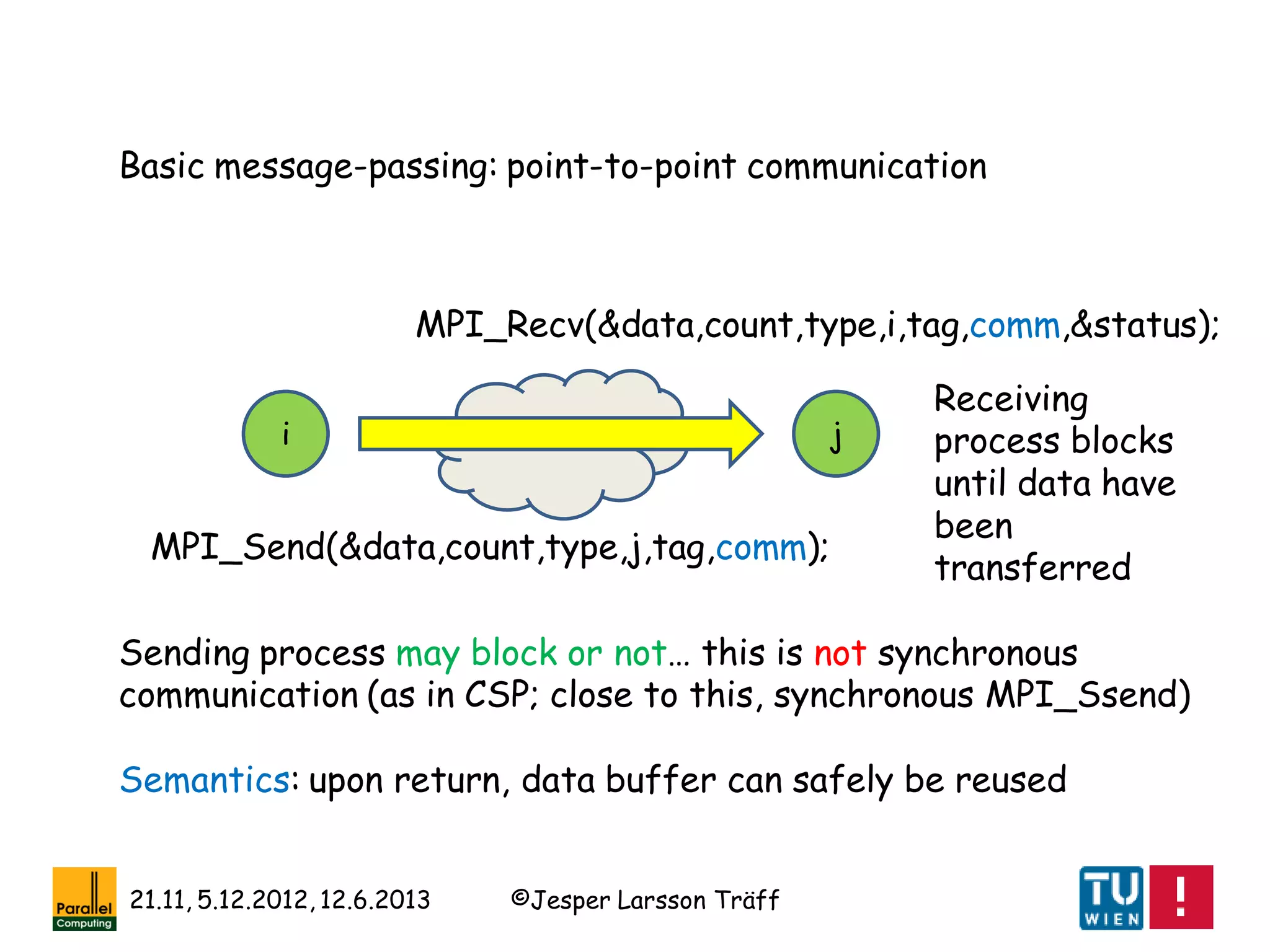

i j
Receiving
process blocks
until data have
been
transferred
Sending process may block or not… this is not synchronous
communication (as in CSP; close to this, synchronous MPI_Ssend)
Semantics: upon return, data buffer can safely be reused

i j

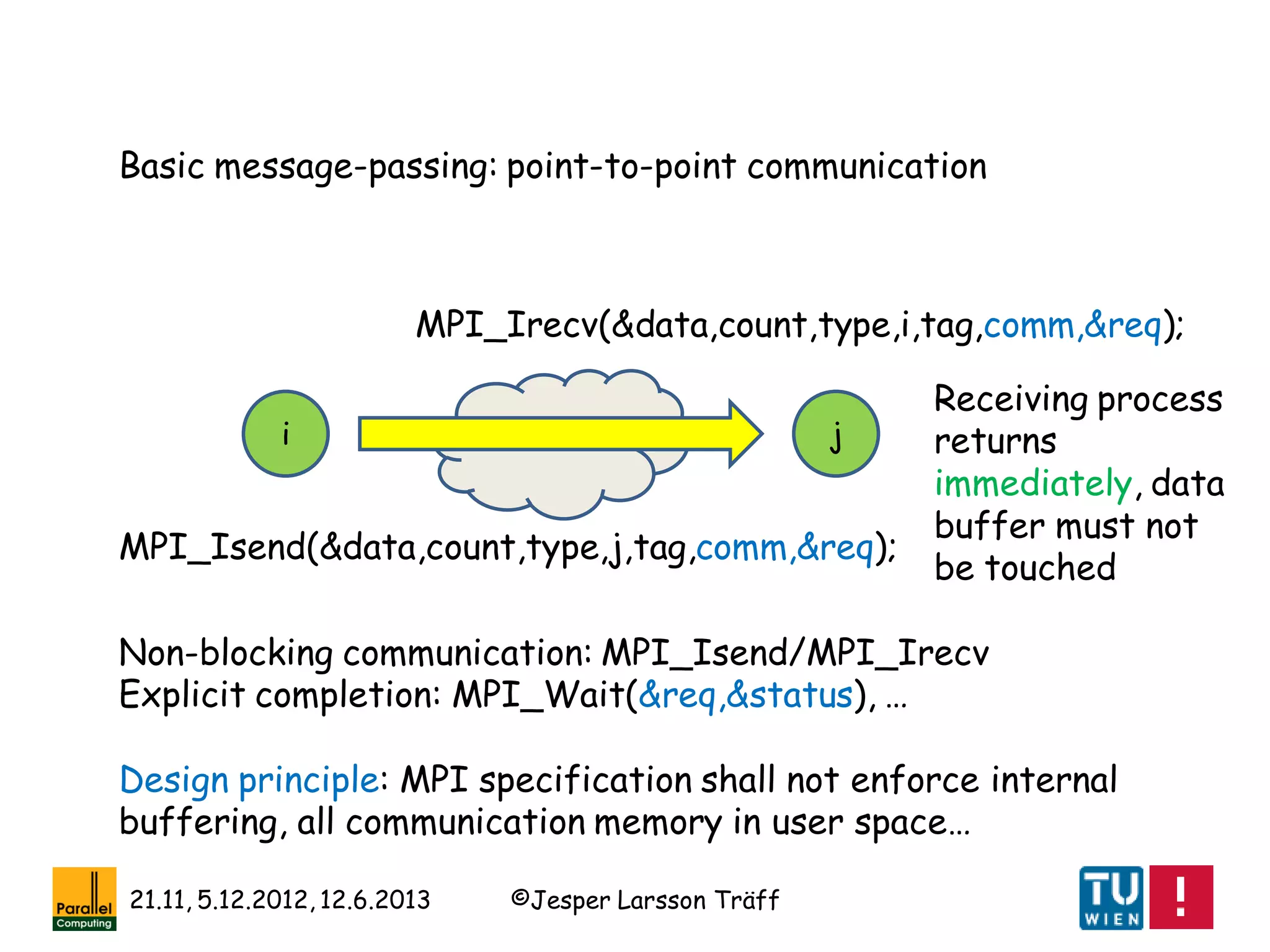

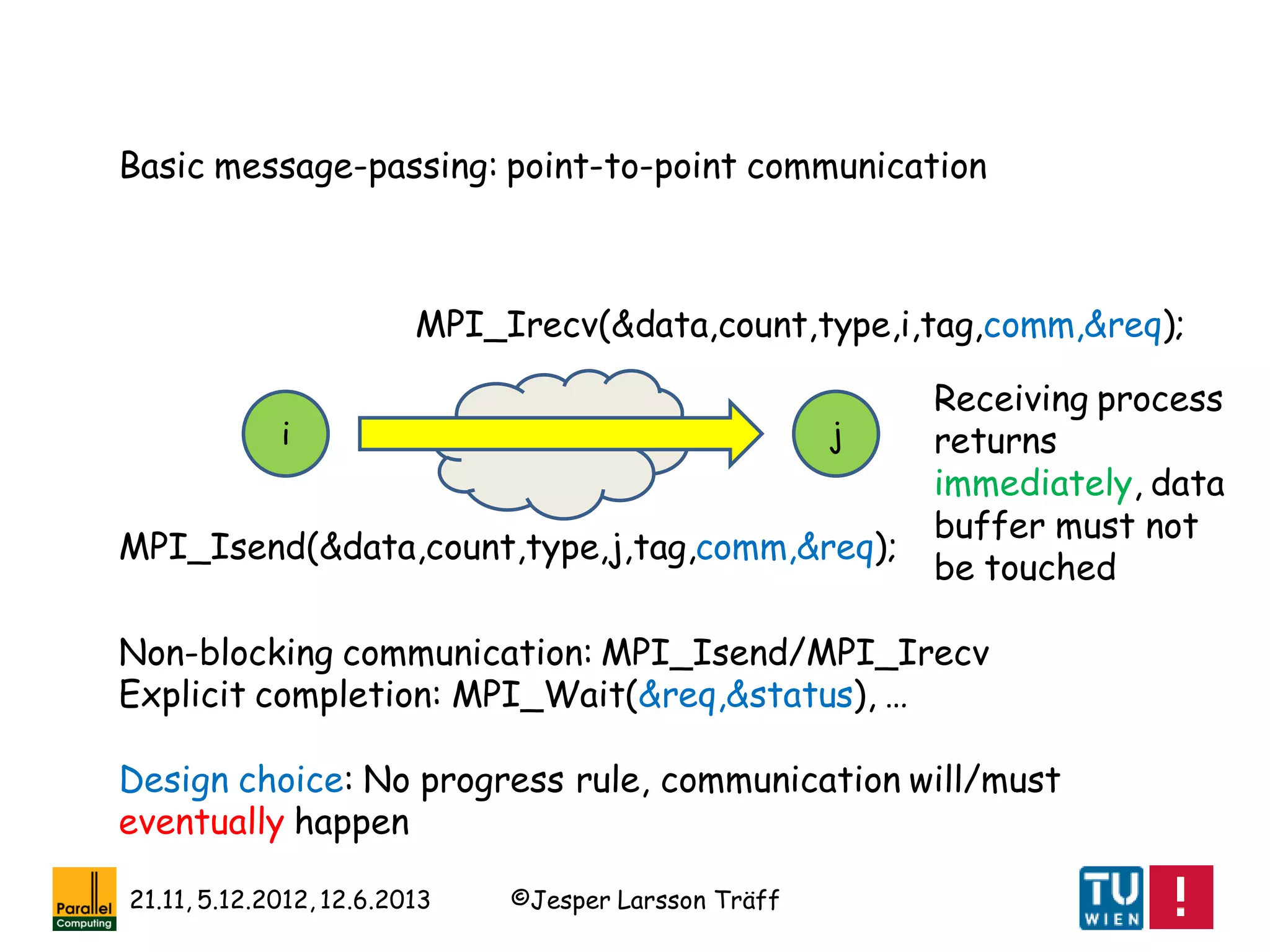

MPI_Isend(&data,count,type,j,tag,comm,&req);
MPI_Irecv(&data,count,type,i,tag,comm,&req);
Receiving process
returns
immediately, data
buffer must not
be touched
Non-blocking communication: MPI_Isend/MPI_Irecv
Explicit completion: MPI_Wait(&req,&status), …
Design principle: MPI specification shall not enforce internal
buffering, all communication memory in user space…

i j
Receiving process
returns
immediately, data
buffer must not
be touched
Non-blocking communication: MPI_Isend/MPI_Irecv
Explicit completion: MPI_Wait(&req,&status), …
Design choice: No progress rule, communication will/must
eventually happen

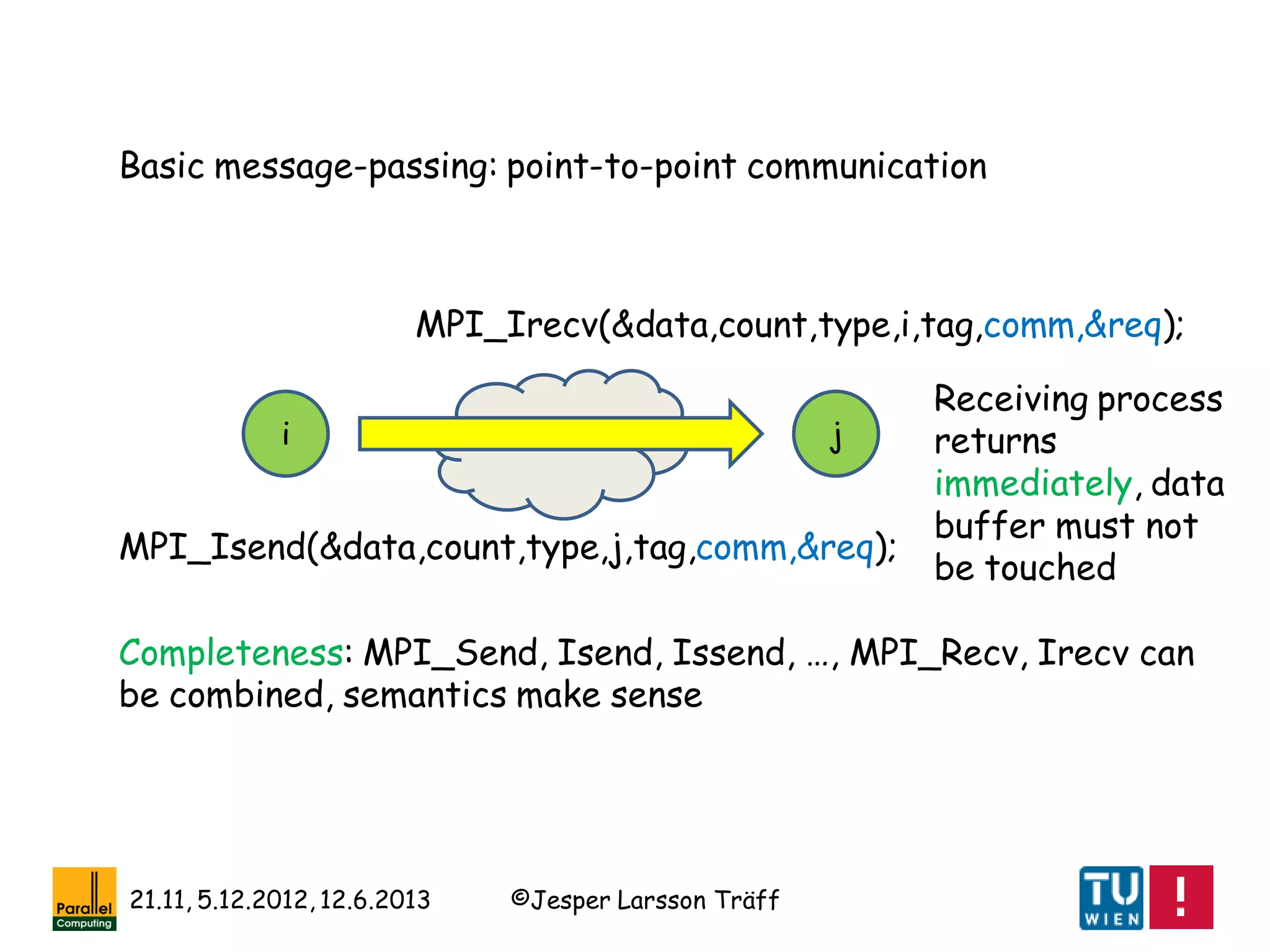

i j
Completeness: MPI_Send, Isend, Issend, …, MPI_Recv, Irecv can
be combined, semantics make sense
Receiving process
returns
immediately, data
buffer must not
be touched

i j
Receiving
process blocks
until data have
been
transferred

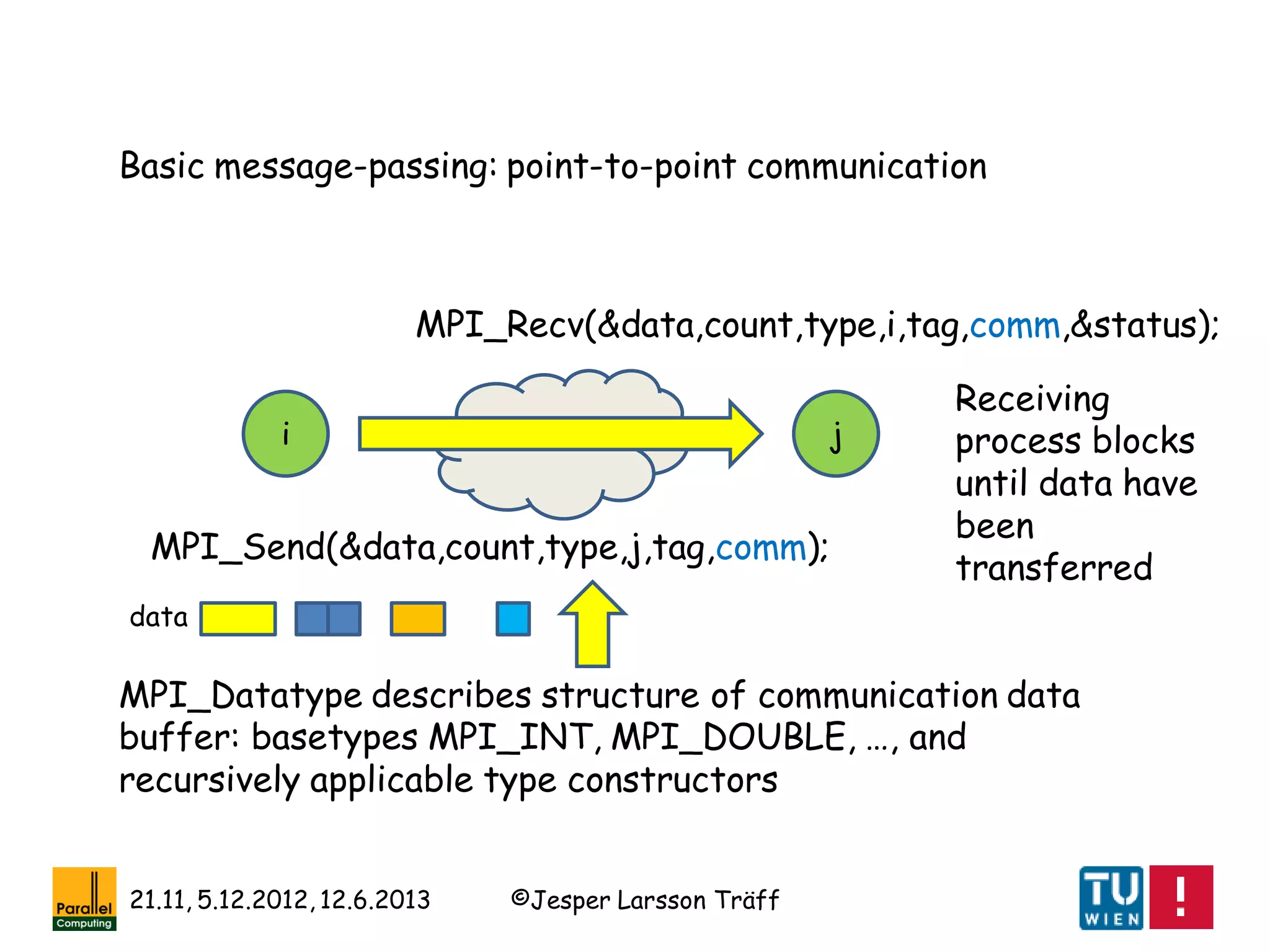

MPI_Datatype describes structure of communication data
buffer: basetypes MPI_INT, MPI_DOUBLE, …, and
recursively applicable type constructors
data

i j
Receiving
process blocks
until data have
been
transferred
Orthogonality: Any MPI_Datatype can be used in any
communication operation
data
Semantics: only signature of data sent and data received must
match (performance!)

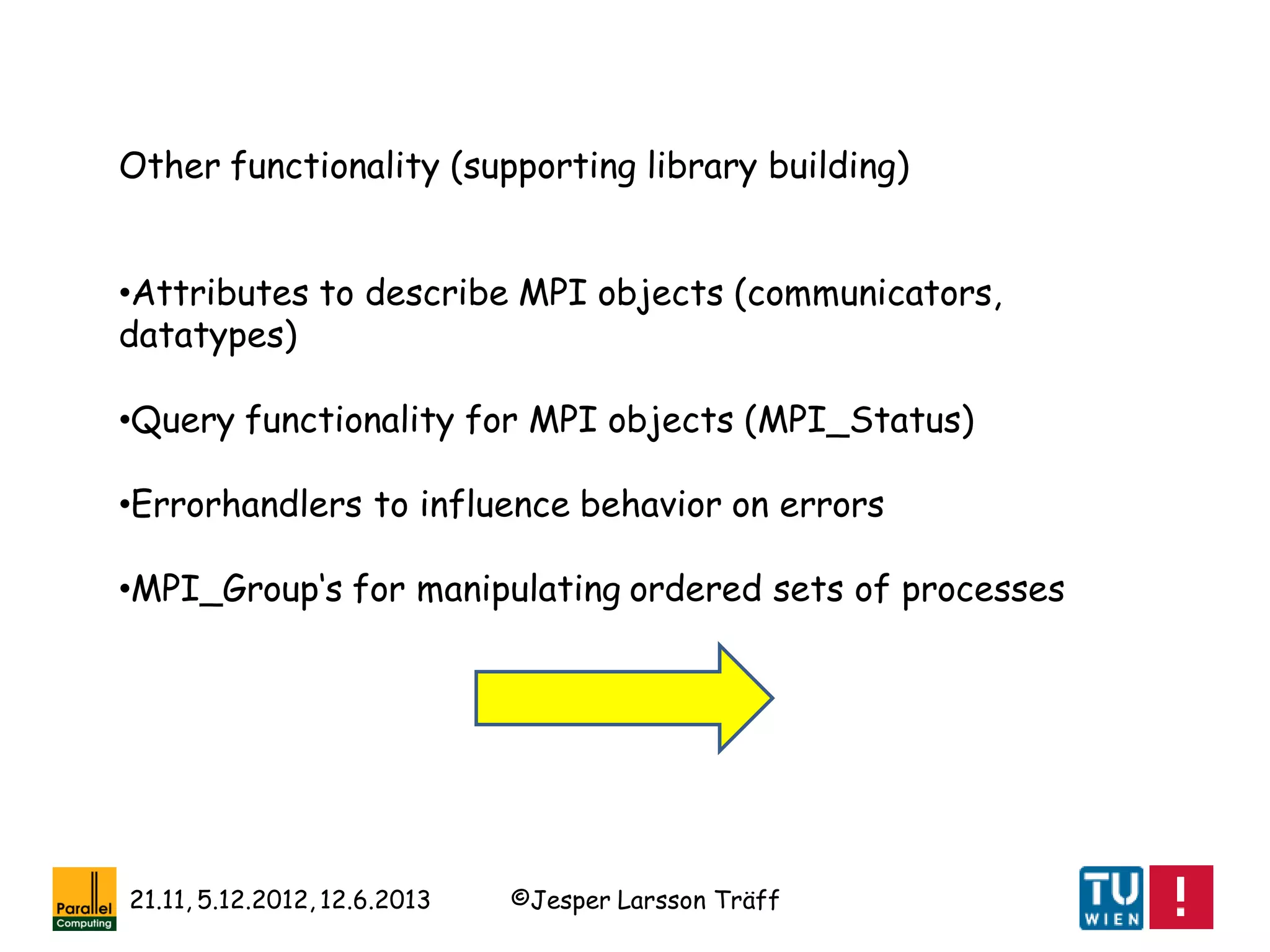

Other functionality (supporting library building)
•Attributes to describe MPI objects (communicators,
datatypes)
•Query functionality for MPI objects (MPI_Status)
•Errorhandlers to influence behavior on errors
•MPI_Group‘s for manipulating ordered sets of processes

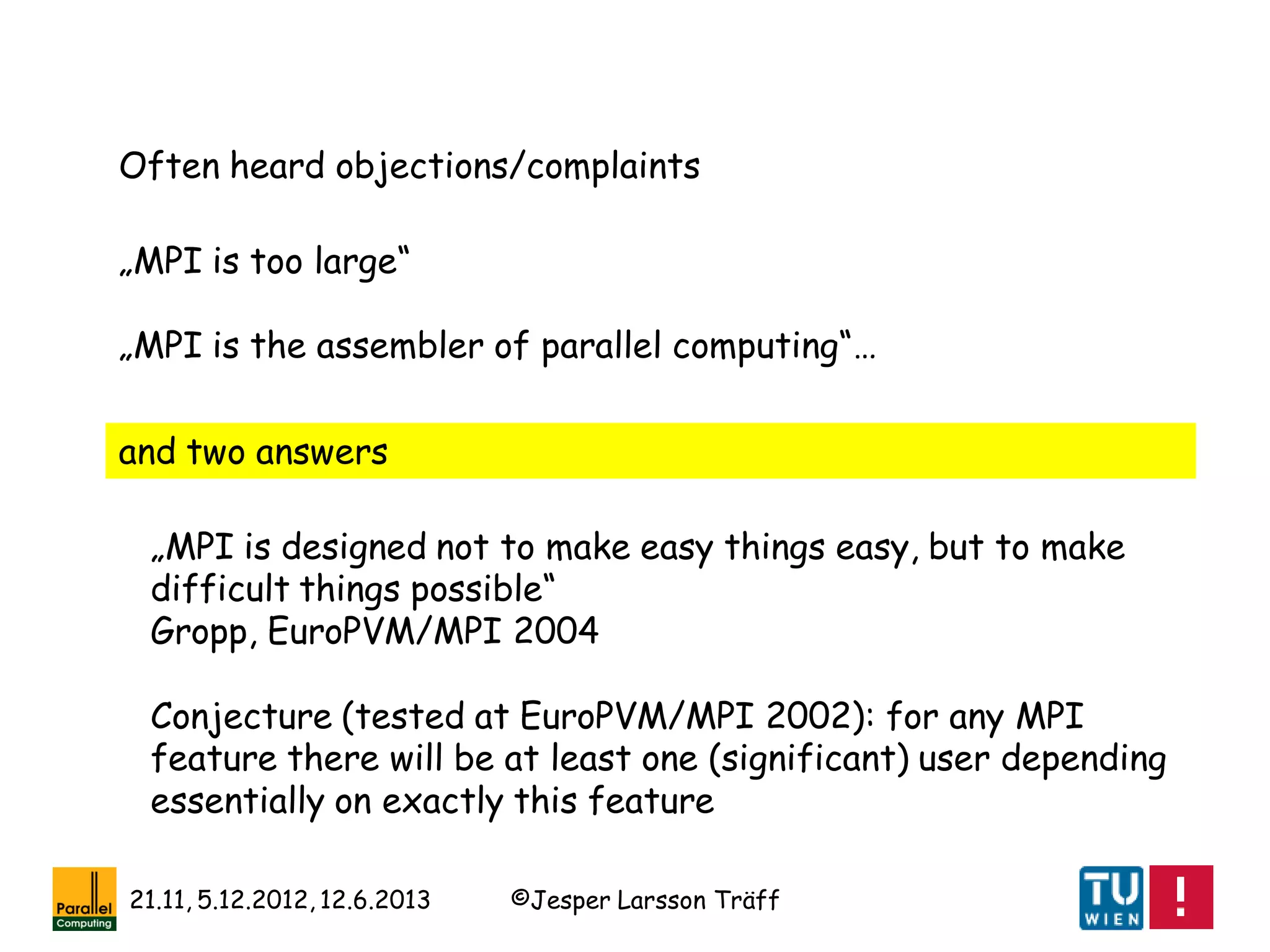

„MPI is too large“
„MPI is the assembler of parallel computing“…
„MPI is designed not to make easy things easy, but to make
difficult things possible“
Gropp, EuroPVM/MPI 2004
Conjecture (tested at EuroPVM/MPI 2002): for any MPI
feature there will be at least one (significant) user depending
essentially on exactly this feature
Often heard objections/complaints
and two answers

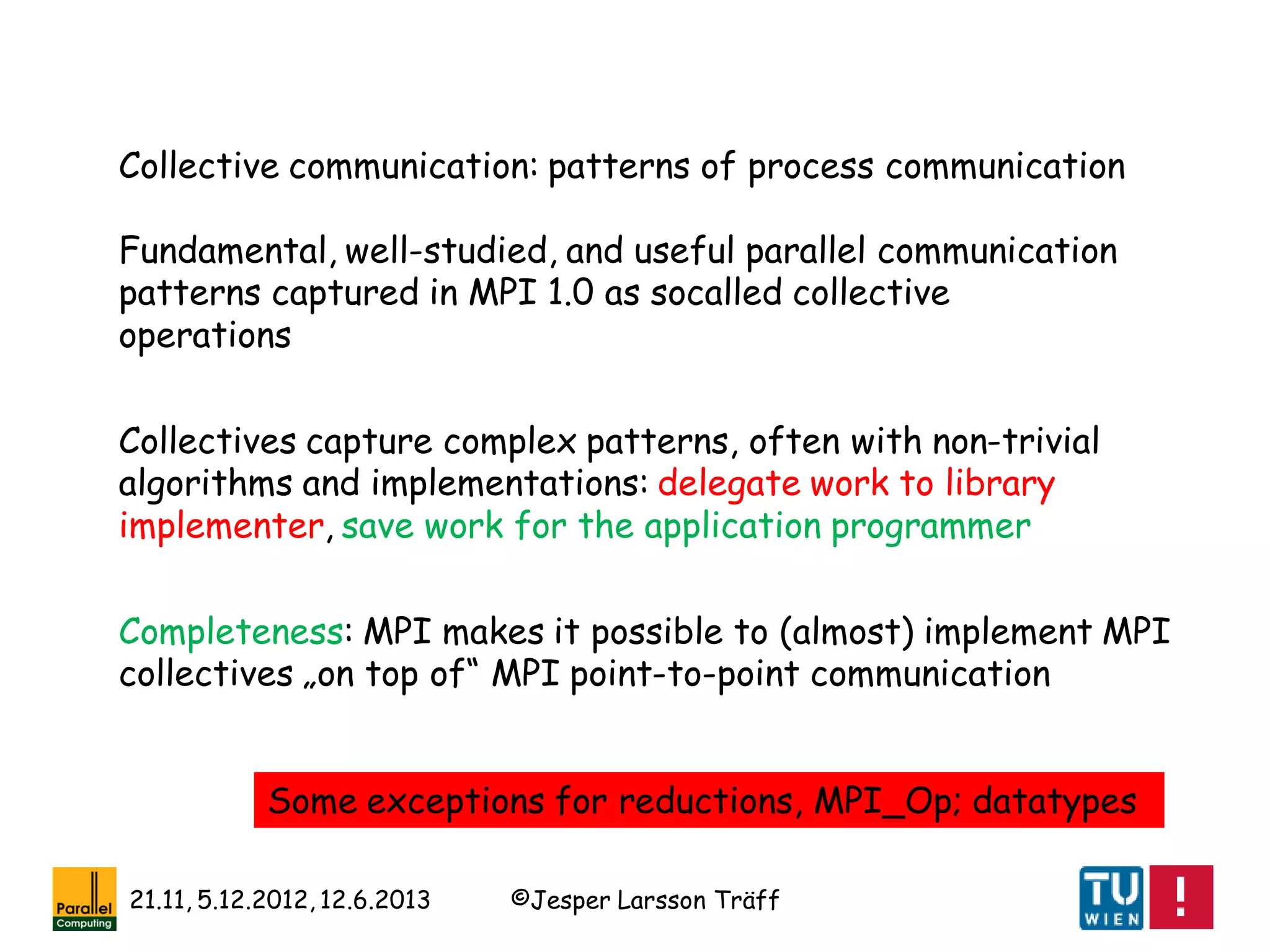

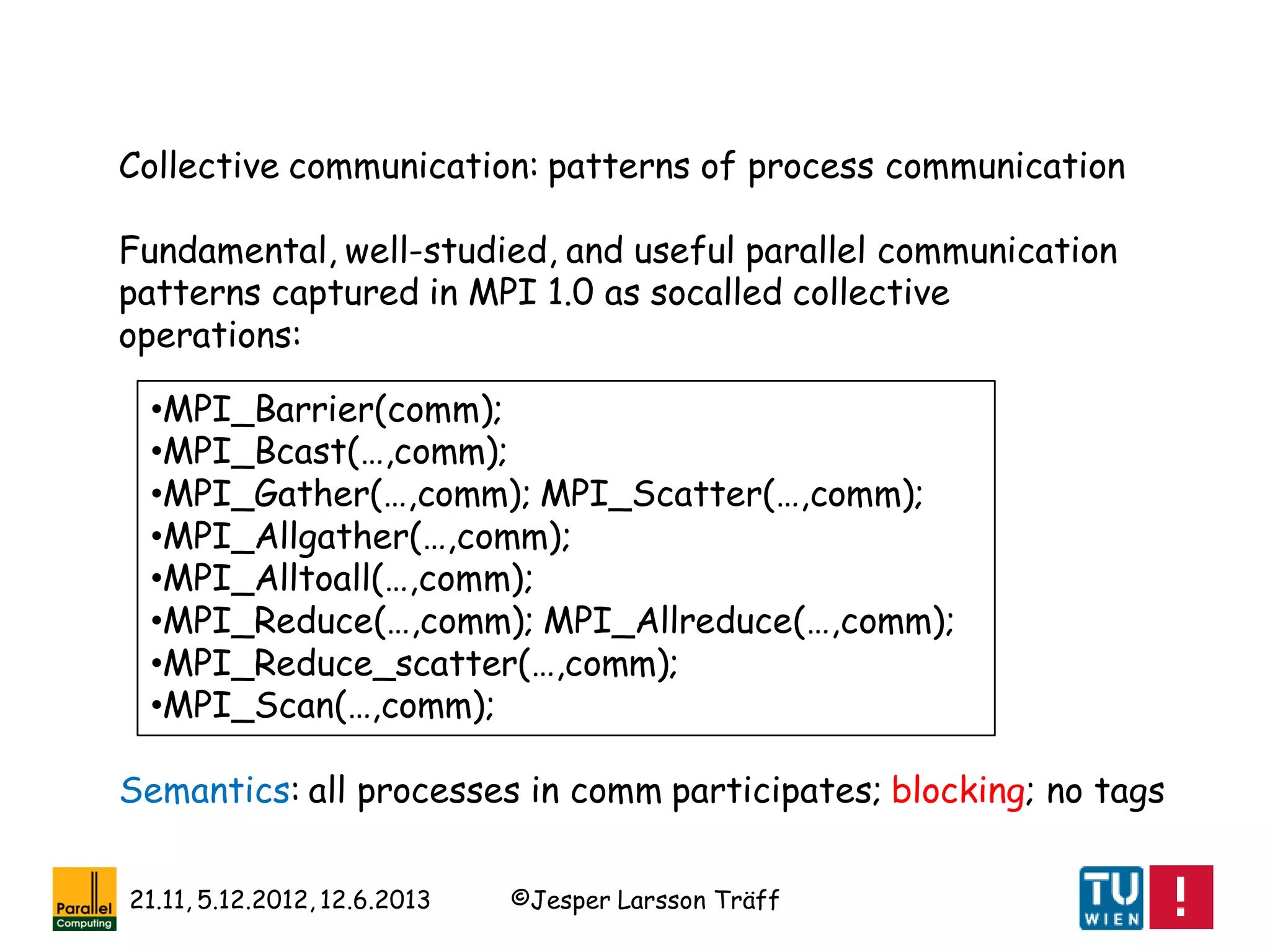

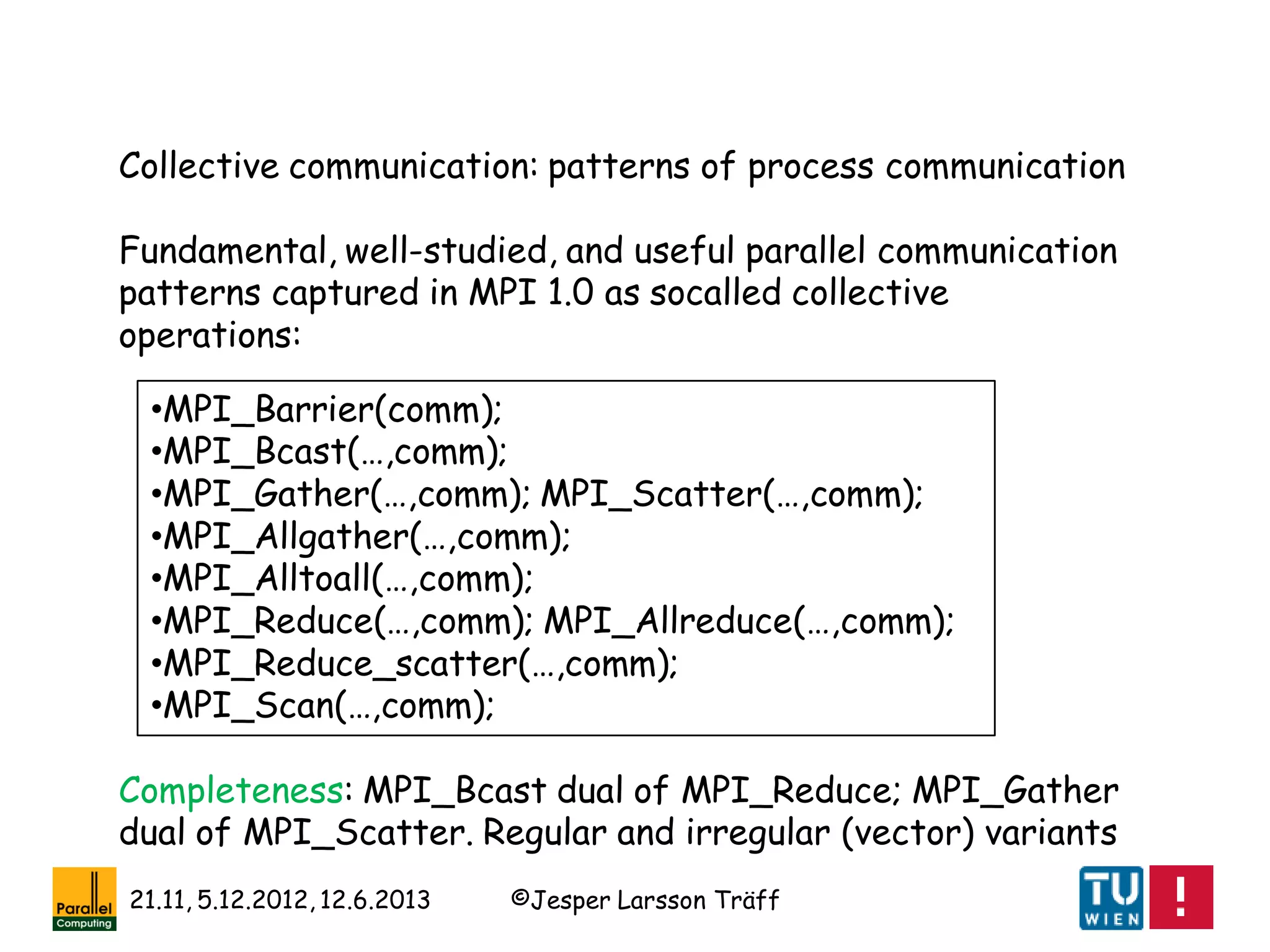

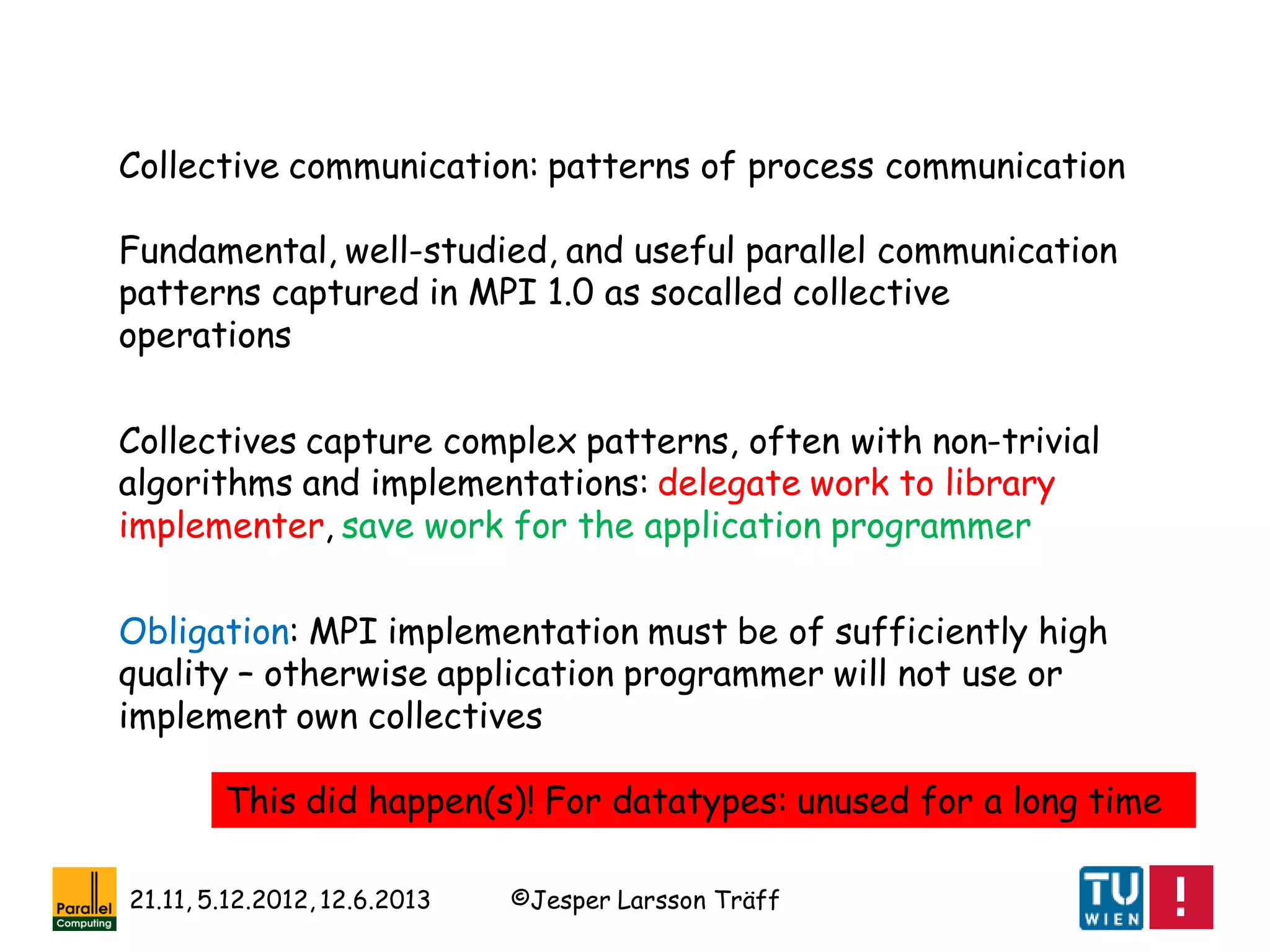

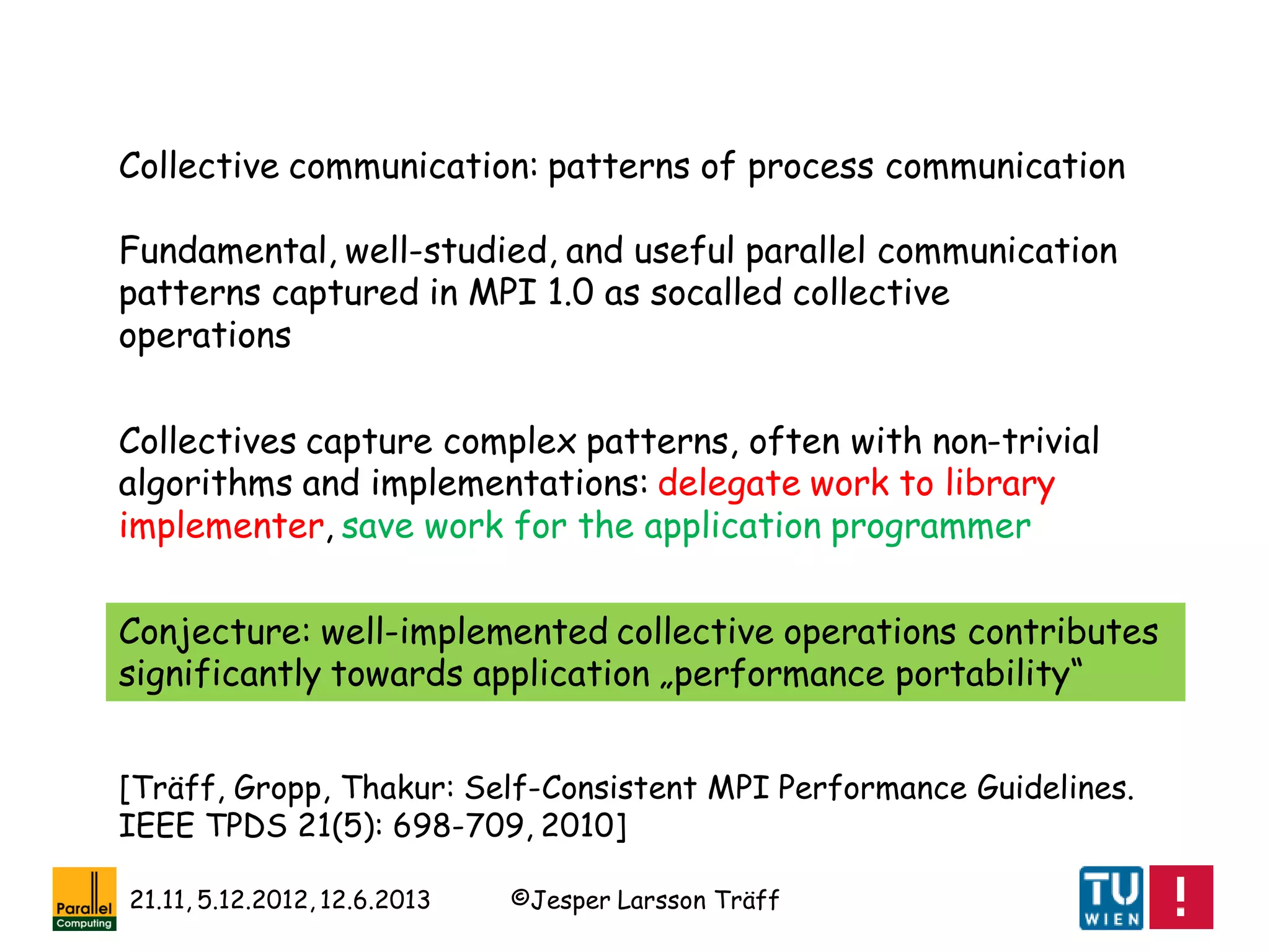

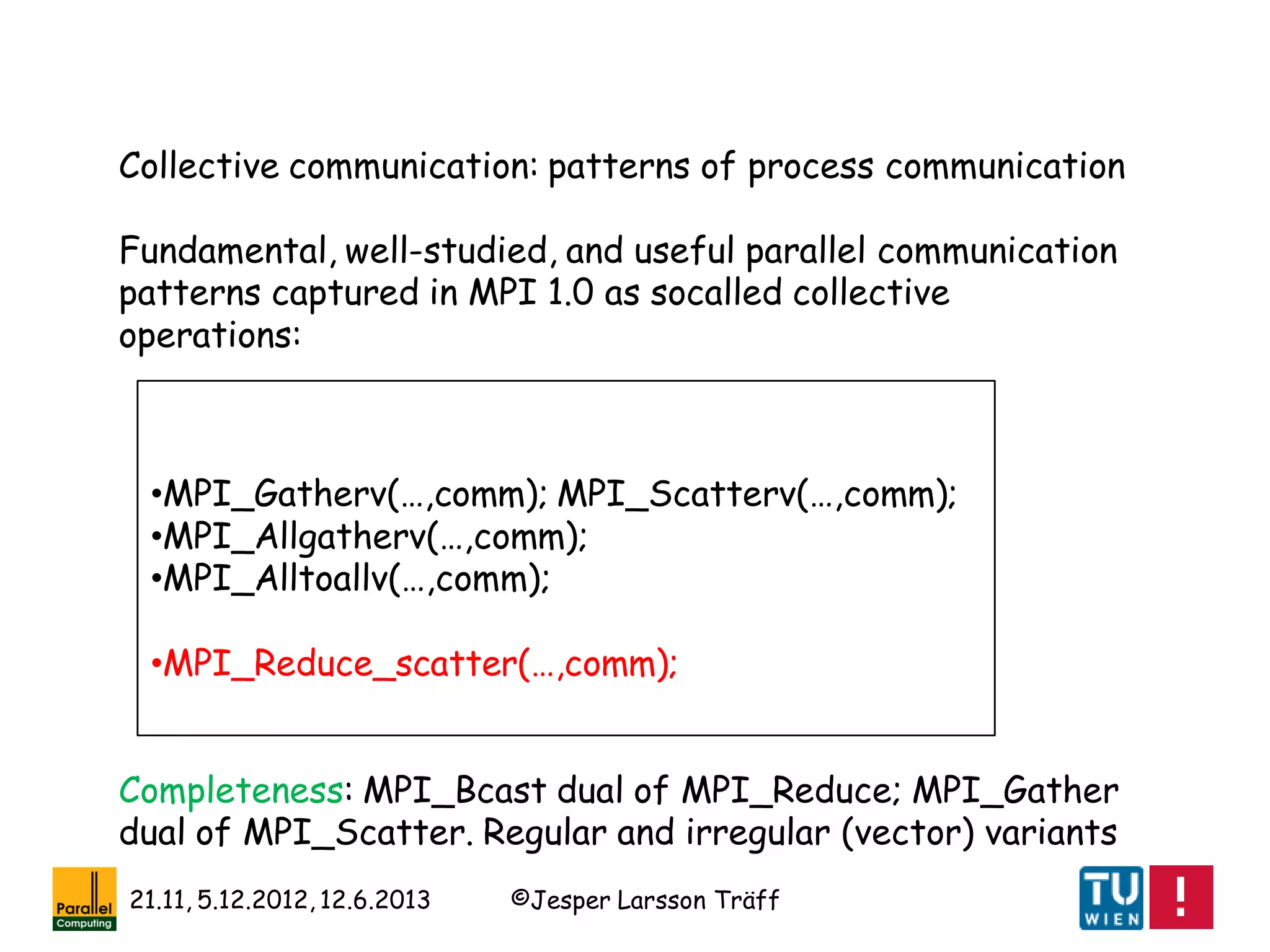

Collective communication: patterns of process communication
Fundamental, well-studied, and useful parallel communication
patterns captured in MPI 1.0 as socalled collective
operations:
•MPI_Barrier(comm);
•MPI_Bcast(…,comm);
•MPI_Gather(…,comm); MPI_Scatter(…,comm);
•MPI_Allgather(…,comm);
•MPI_Alltoall(…,comm);
•MPI_Reduce(…,comm); MPI_Allreduce(…,comm);
•MPI_Reduce_scatter(…,comm);
•MPI_Scan(…,comm);
Semantics: all processes in comm participates; blocking; no tags

operations:
•MPI_Barrier(comm);
•MPI_Bcast(…,comm);
•MPI_Gather(…,comm); MPI_Scatter(…,comm);
•MPI_Allgather(…,comm);
•MPI_Alltoall(…,comm);
•MPI_Reduce(…,comm); MPI_Allreduce(…,comm);
•MPI_Scan(…,comm);
Completeness: MPI_Bcast dual of MPI_Reduce; MPI_Gather
dual of MPI_Scatter. Regular and irregular (vector) variants

operations:
•MPI_Gatherv(…,comm); MPI_Scatterv(…,comm);
•MPI_Allgatherv(…,comm);
•MPI_Alltoallv(…,comm);
Completeness: MPI_Bcast dual of MPI_Reduce; MPI_Gather
dual of MPI_Scatter. Regular and irregular (vector) variants

operations
Collectives capture complex patterns, often with non-trivial
algorithms and implementations: delegate work to library
implementer, save work for the application programmer
Obligation: MPI implementation must be of sufficiently high
quality – otherwise application programmer will not use or
implement own collectives
This did happen(s)! For datatypes: unused for a long time

operations
Completeness: MPI makes it possible to (almost) implement MPI
collectives „on top of“ MPI point-to-point communication
Some exceptions for reductions, MPI_Op; datatypes

operations
Conjecture: well-implemented collective operations contributes
significantly towards application „performance portability“
[Träff, Gropp, Thakur: Self-Consistent MPI Performance Guidelines.
IEEE TPDS 21(5): 698-709, 2010]

Proc 0
x
Proc p-1

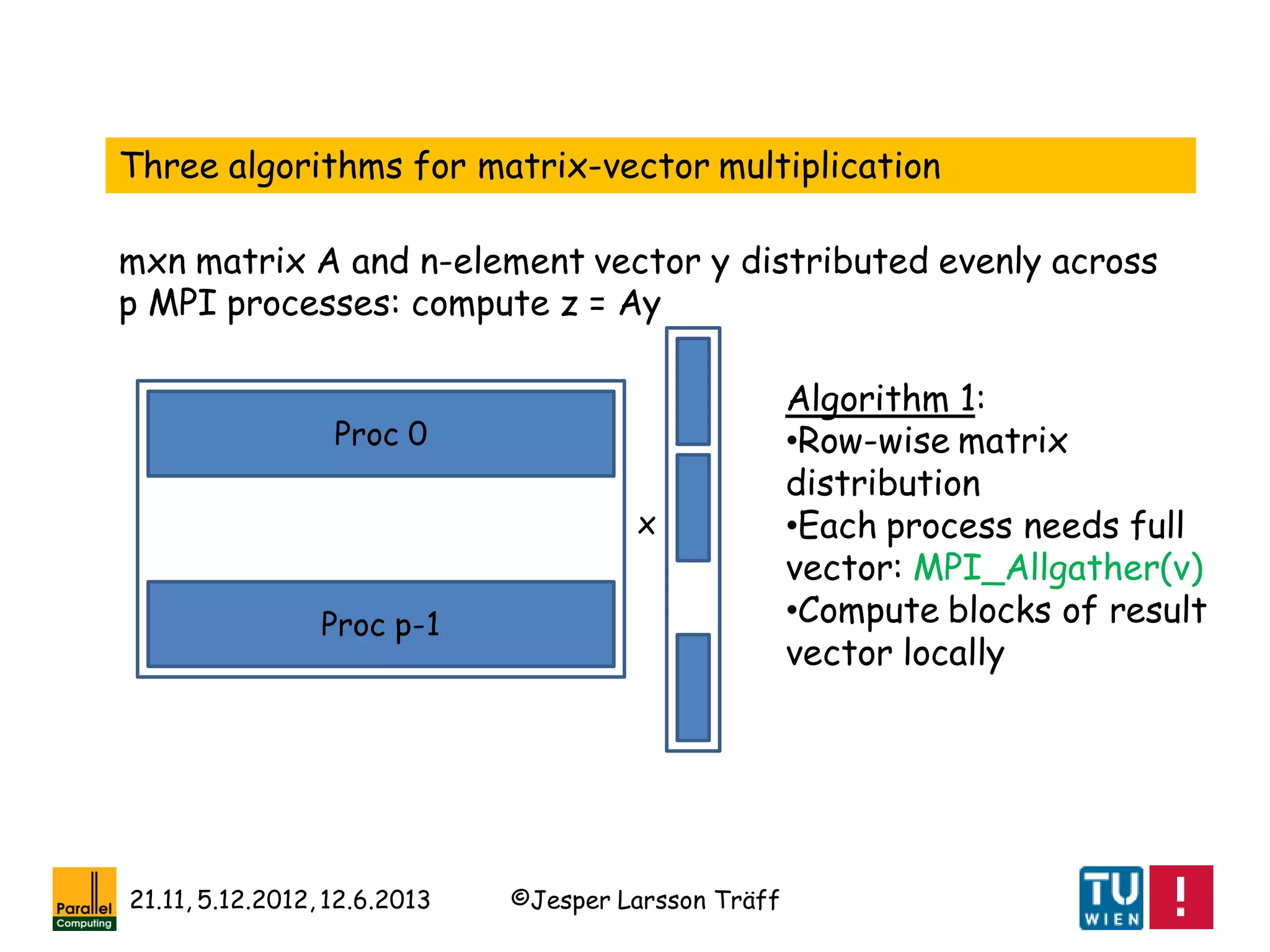

Three algorithms for matrix-vector multiplication
mxn matrix A and n-element vector y distributed evenly across
p MPI processes: compute z = Ay
Algorithm 1:
•Row-wise matrix
distribution
•Each process needs full
vector: MPI_Allgather(v)
•Compute blocks of result
vector locally

Proc 0 xProc p-1

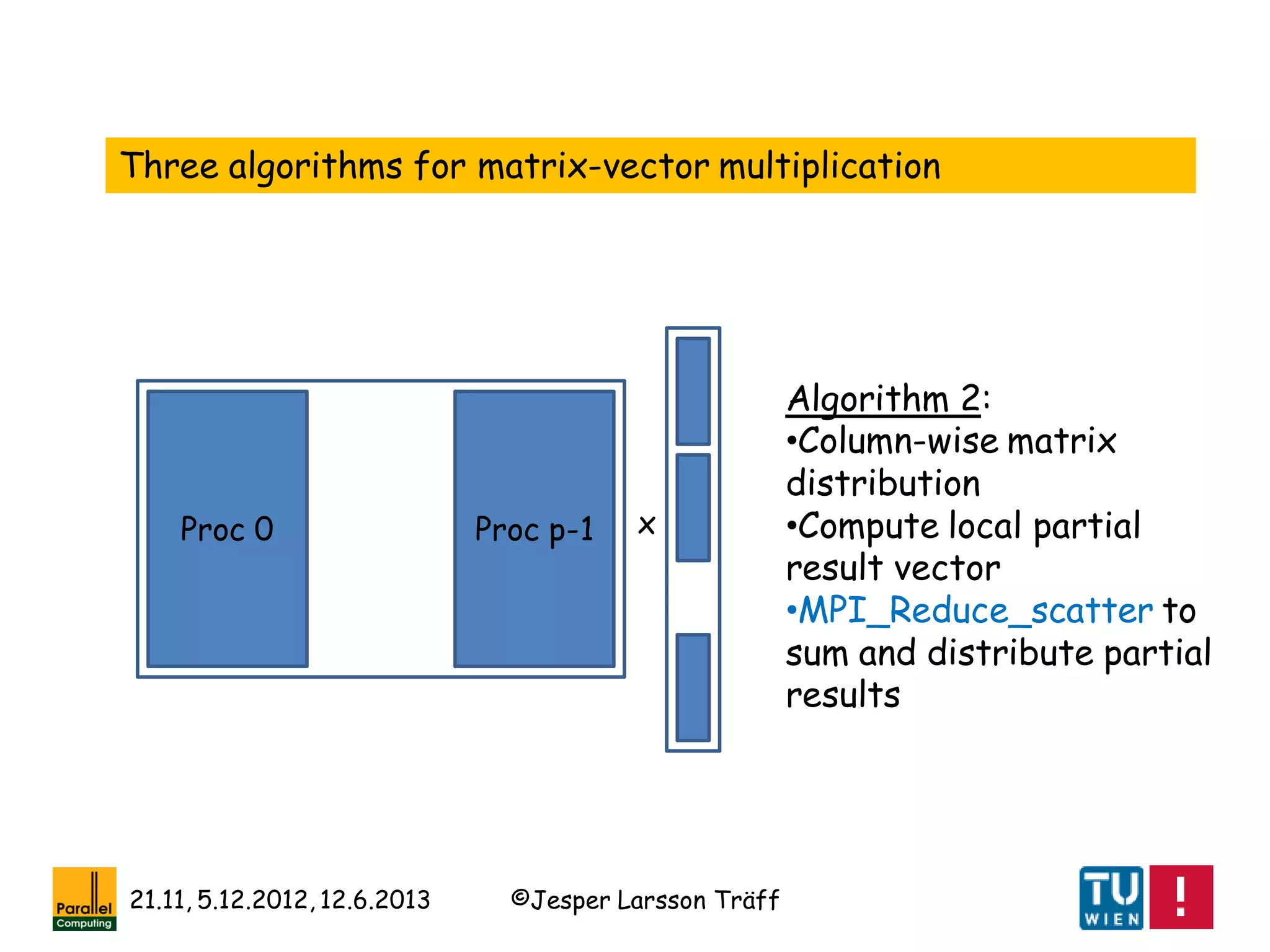

Algorithm 2:
•Column-wise matrix
distribution
•Compute local partial
result vector
•MPI_Reduce_scatter to
sum and distribute partial
results

Proc 0
Proc 2c
Proc c
Proc c-1…
x
MPI_Allgather
MPI_Allgather

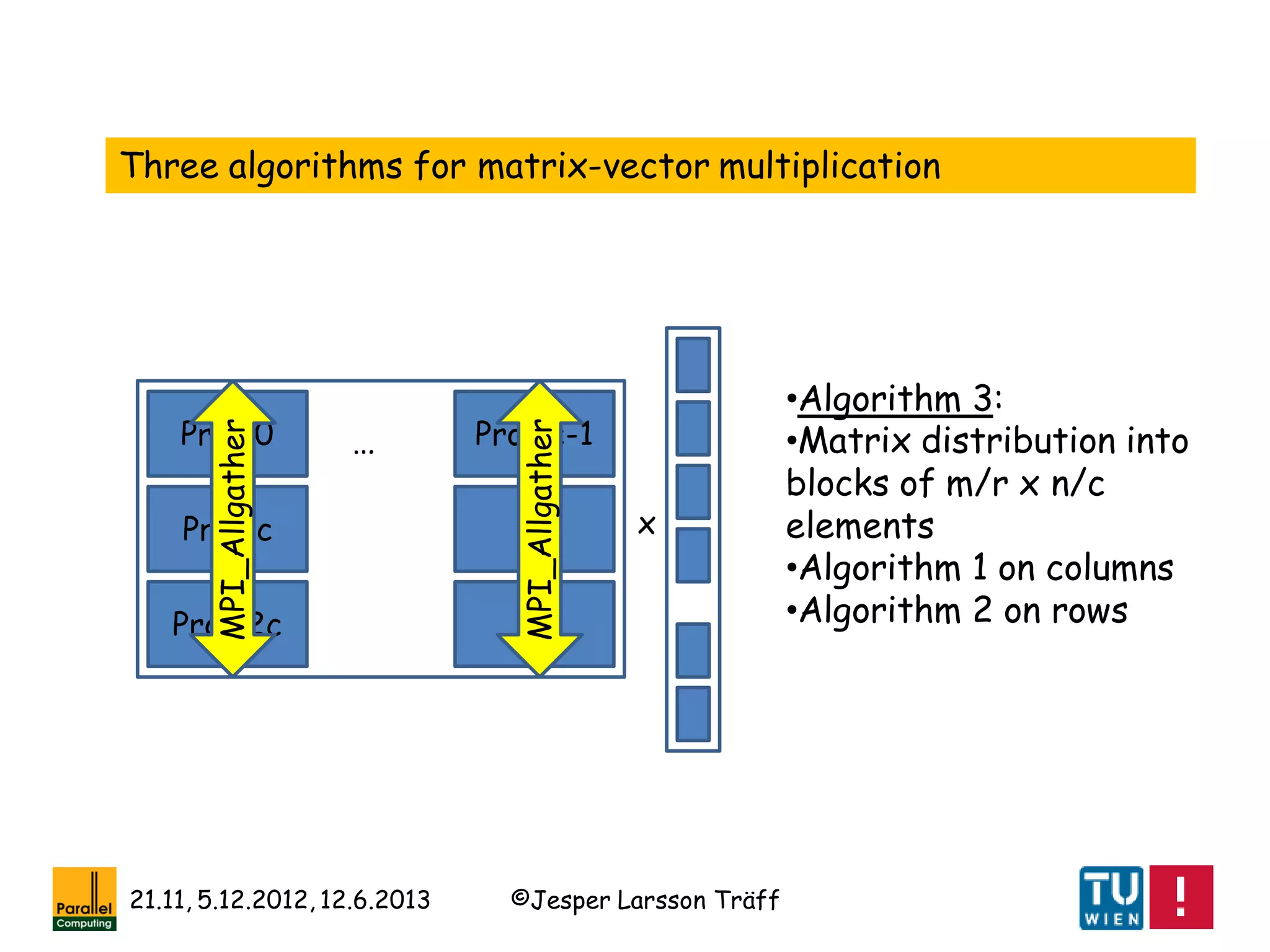

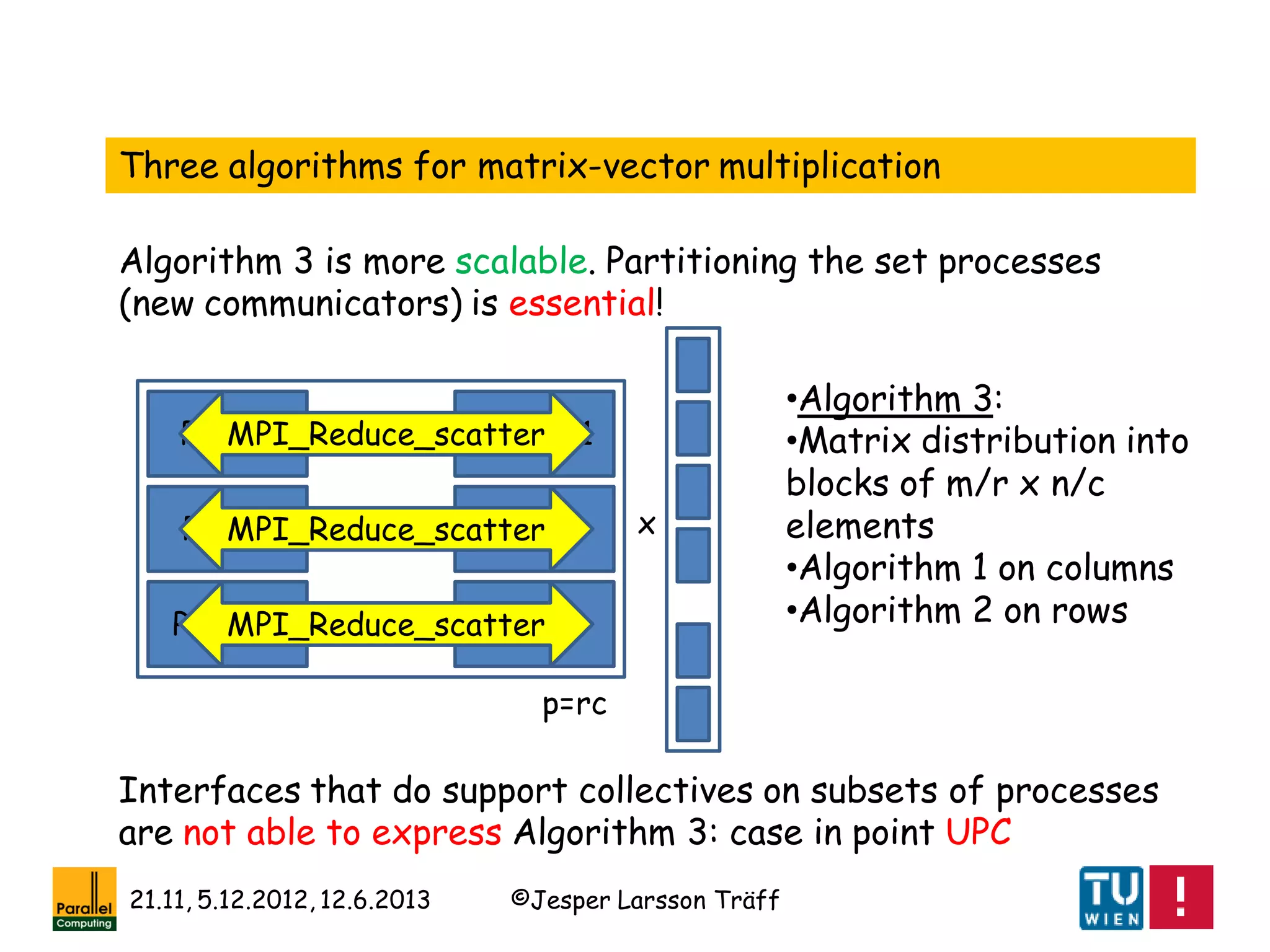

•Algorithm 3:
•Matrix distribution into
blocks of m/r x n/c
elements
•Algorithm 1 on columns
•Algorithm 2 on rows

Proc 0
Proc 2c
Proc c
Proc c-1…
x
MPI_Reduce_scatter
MPI_Reduce_scatter
MPI_Reduce_scatter
p=rc
•Algorithm 3:
•Matrix distribution into
blocks of m/r x n/c
elements
•Algorithm 1 on columns
•Algorithm 2 on rows
Algorithm 3 is more scalable. Partitioning the set processes
(new communicators) is essential!
Interfaces that do support collectives on subsets of processes
are not able to express Algorithm 3: case in point UPC

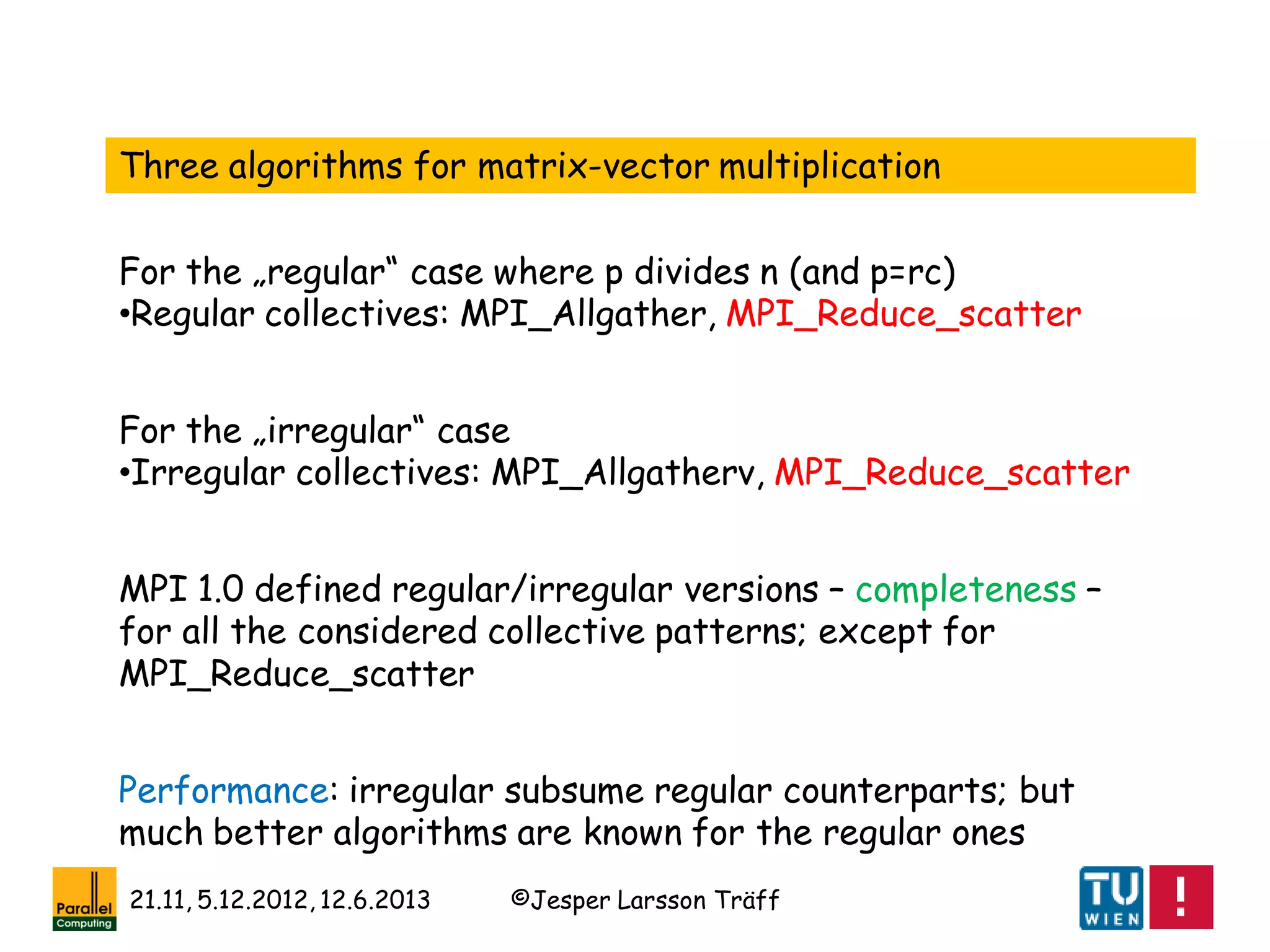

For the „regular“ case where p divides n (and p=rc)
•Regular collectives: MPI_Allgather, MPI_Reduce_scatter
For the „irregular“ case
•Irregular collectives: MPI_Allgatherv, MPI_Reduce_scatter
MPI 1.0 defined regular/irregular versions – completeness –
for all the considered collective patterns; except for
MPI_Reduce_scatter
Performance: irregular subsume regular counterparts; but
much better algorithms are known for the regular ones

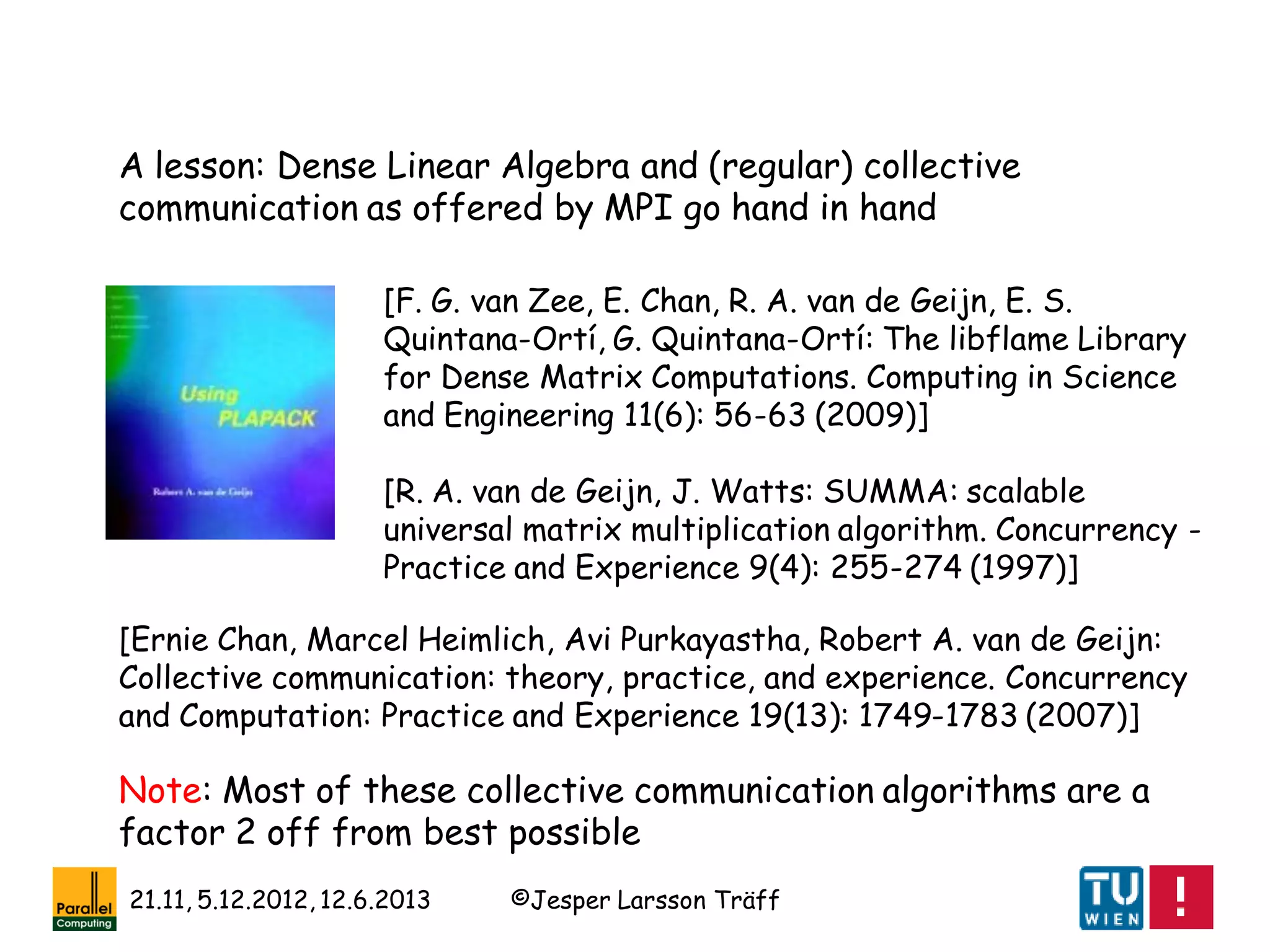

[R. A. van de Geijn, J. Watts: SUMMA: scalable
universal matrix multiplication algorithm. Concurrency -
Practice and Experience 9(4): 255-274 (1997)]
[Ernie Chan, Marcel Heimlich, Avi Purkayastha, Robert A. van de Geijn:
Collective communication: theory, practice, and experience. Concurrency
and Computation: Practice and Experience 19(13): 1749-1783 (2007)]
[F. G. van Zee, E. Chan, R. A. van de Geijn, E. S.
Quintana-Ortí, G. Quintana-Ortí: The libflame Library
for Dense Matrix Computations. Computing in Science
and Engineering 11(6): 56-63 (2009)]
A lesson: Dense Linear Algebra and (regular) collective
communication as offered by MPI go hand in hand
Note: Most of these collective communication algorithms are a
factor 2 off from best possible

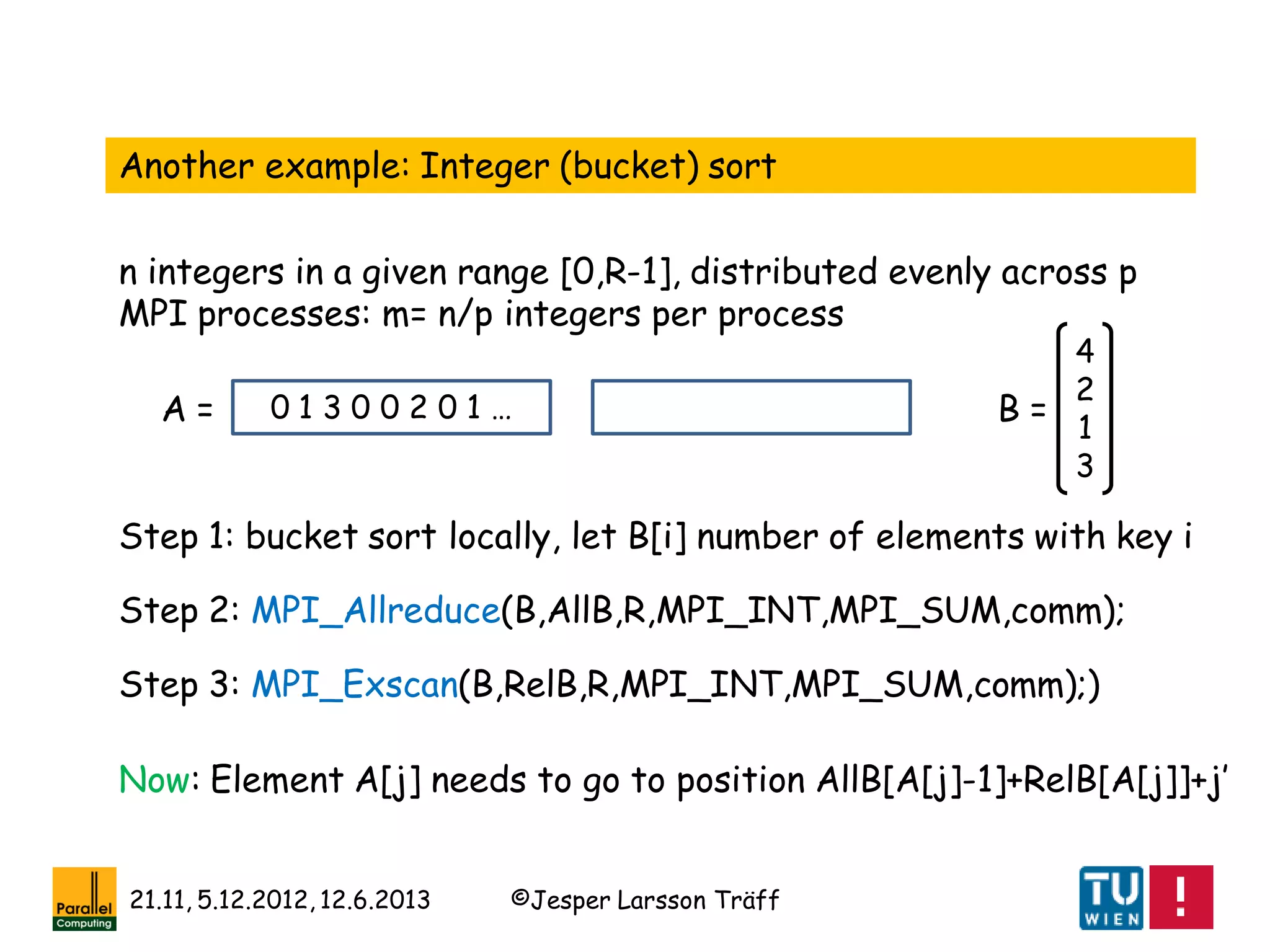

Another example: Integer (bucket) sort
n integers in a given range [0,R-1], distributed evenly across p
MPI processes: m= n/p integers per process
0 1 3 0 0 2 0 1 …
4
2
1
3
Step 1: bucket sort locally, let B[i] number of elements with key i
Step 2: MPI_Allreduce(B,AllB,R,MPI_INT,MPI_SUM,comm);
Step 3: MPI_Exscan(B,RelB,R,MPI_INT,MPI_SUM,comm);)
B =A =
Now: Element A[j] needs to go to position AllB[A[j]-1]+RelB[A[j]]+j’

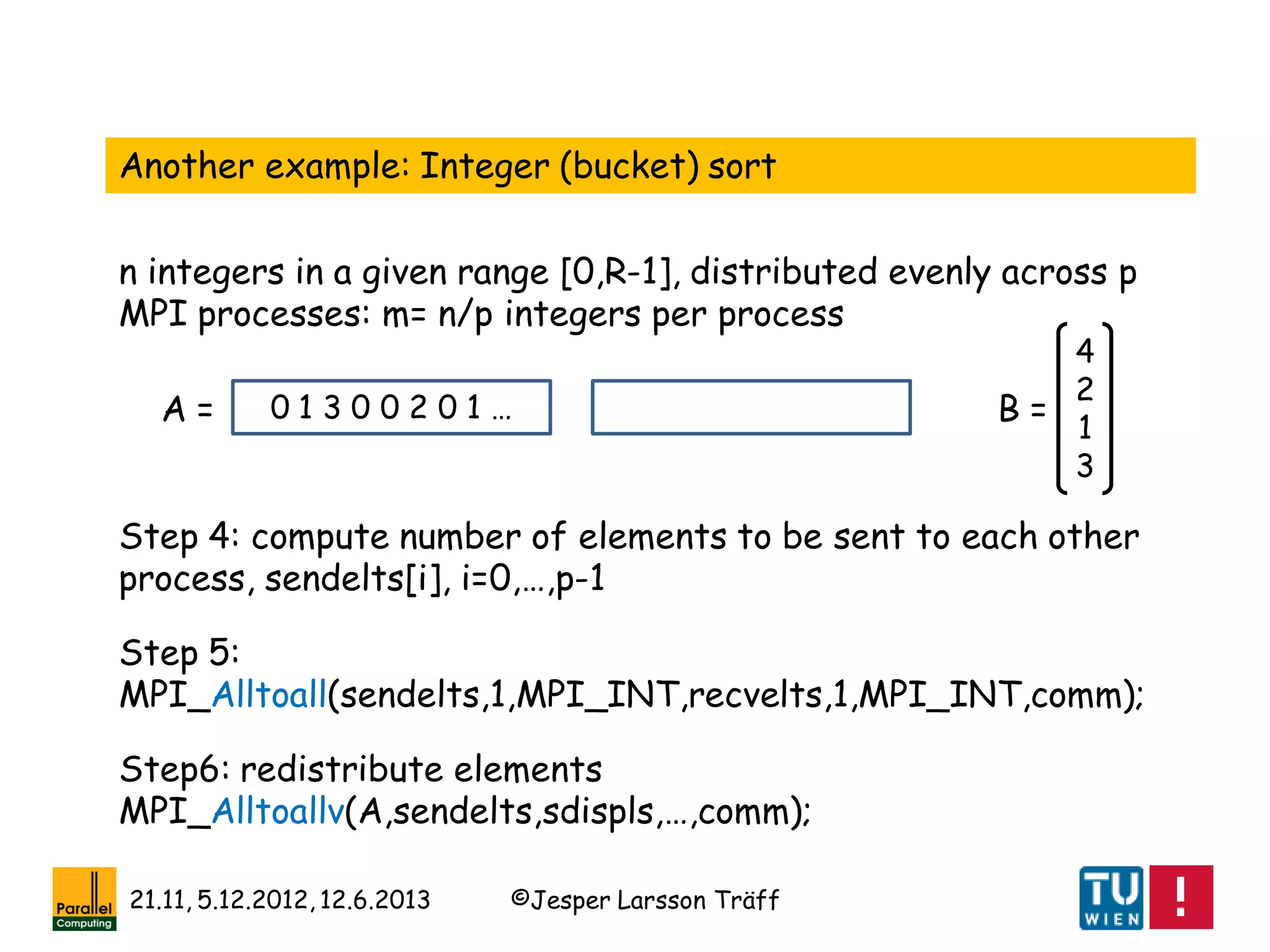

n integers in a given range [0,R-1], distributed evenly across p
MPI processes: m= n/p integers per process
0 1 3 0 0 2 0 1 …
4
2
1
3
Step 4: compute number of elements to be sent to each other
process, sendelts[i], i=0,…,p-1
B =A =
Step 5:
MPI_Alltoall(sendelts,1,MPI_INT,recvelts,1,MPI_INT,comm);
Step6: redistribute elements
MPI_Alltoallv(A,sendelts,sdispls,…,comm);

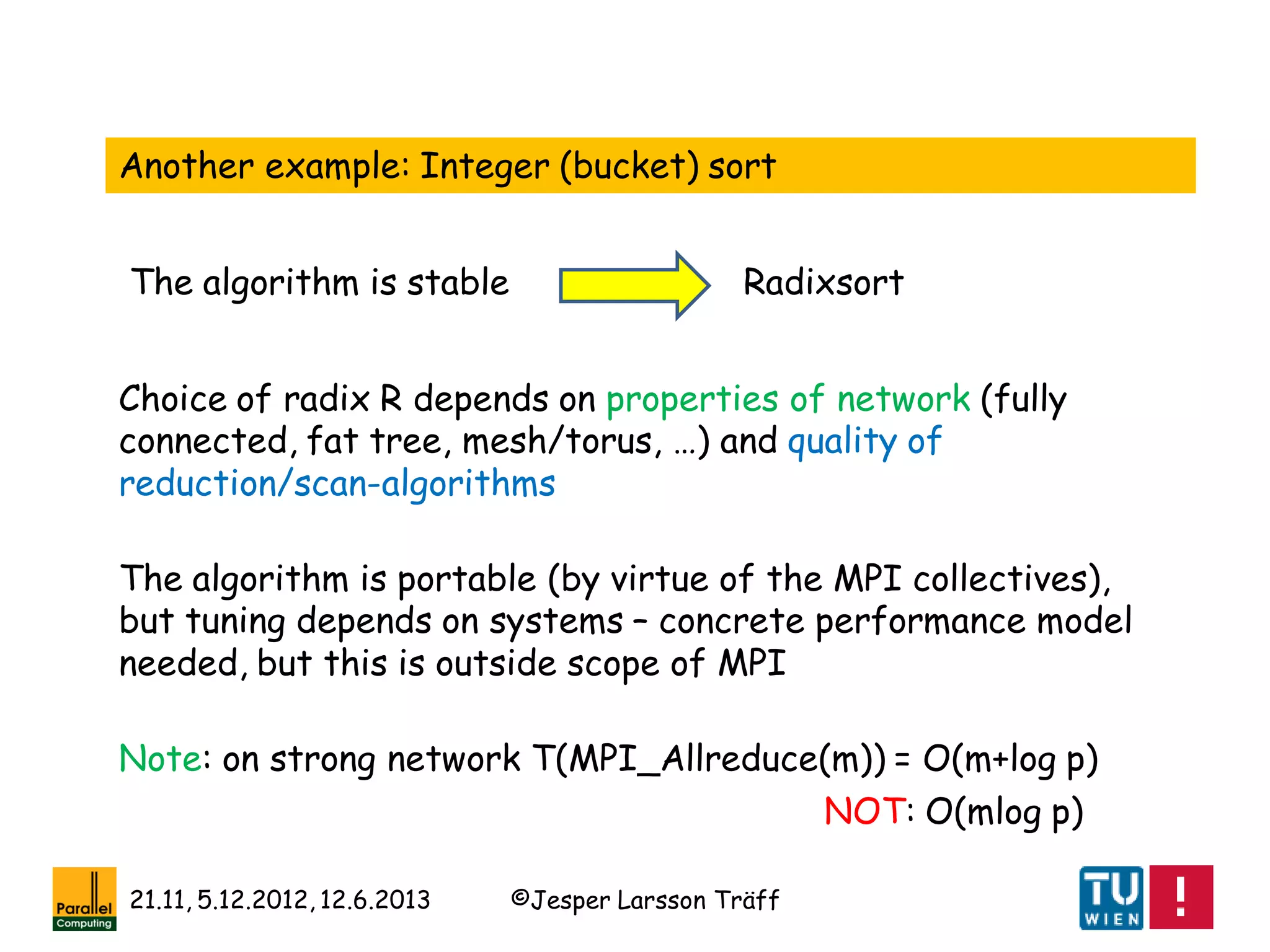

The algorithm is stable Radixsort
Choice of radix R depends on properties of network (fully
connected, fat tree, mesh/torus, …) and quality of
reduction/scan-algorithms
The algorithm is portable (by virtue of the MPI collectives),
but tuning depends on systems – concrete performance model
needed, but this is outside scope of MPI
Note: on strong network T(MPI_Allreduce(m)) = O(m+log p)
NOT: O(mlog p)

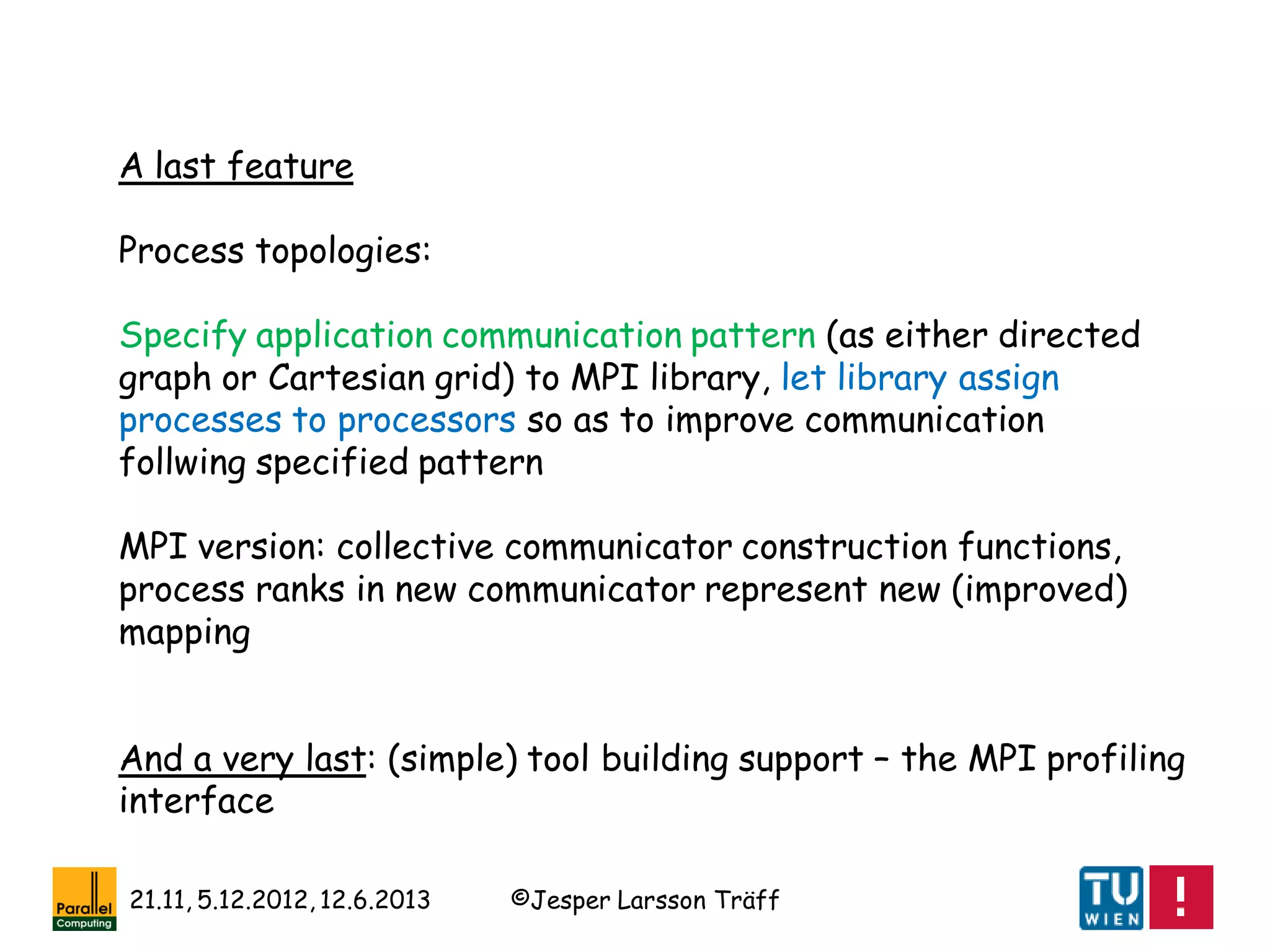

A last feature
Process topologies:
Specify application communication pattern (as either directed
graph or Cartesian grid) to MPI library, let library assign
processes to processors so as to improve communication
follwing specified pattern
MPI version: collective communicator construction functions,
process ranks in new communicator represent new (improved)
mapping
And a very last: (simple) tool building support – the MPI profiling
interface

The mistakes
•MPI_Cancel(), semantically ill-defined, difficult to implement; a
concession to RT?
•MPI_Rsend(); vendors got too much leverage?
•MPI_Pack/Unpack; was added as an afterthought in last 1994
meetings
•Some functions enforce full copy of argument (list)s into
library

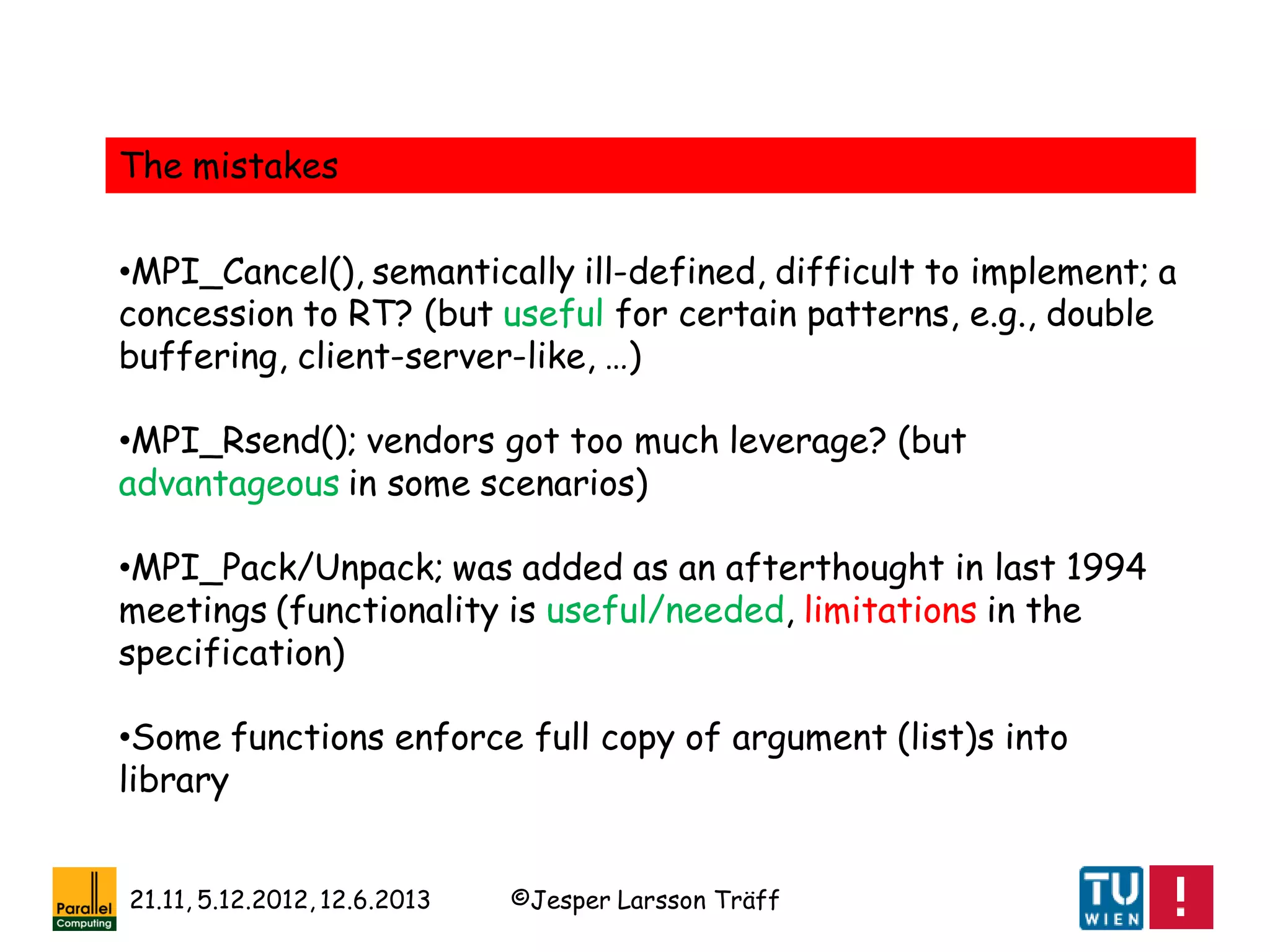

The mistakes
•MPI_Cancel(), semantically ill-defined, difficult to implement; a
concession to RT? (but useful for certain patterns, e.g., double
buffering, client-server-like, …)
•MPI_Rsend(); vendors got too much leverage? (but
advantageous in some scenarios)
•MPI_Pack/Unpack; was added as an afterthought in last 1994
meetings (functionality is useful/needed, limitations in the
specification)
•Some functions enforce full copy of argument (list)s into
library

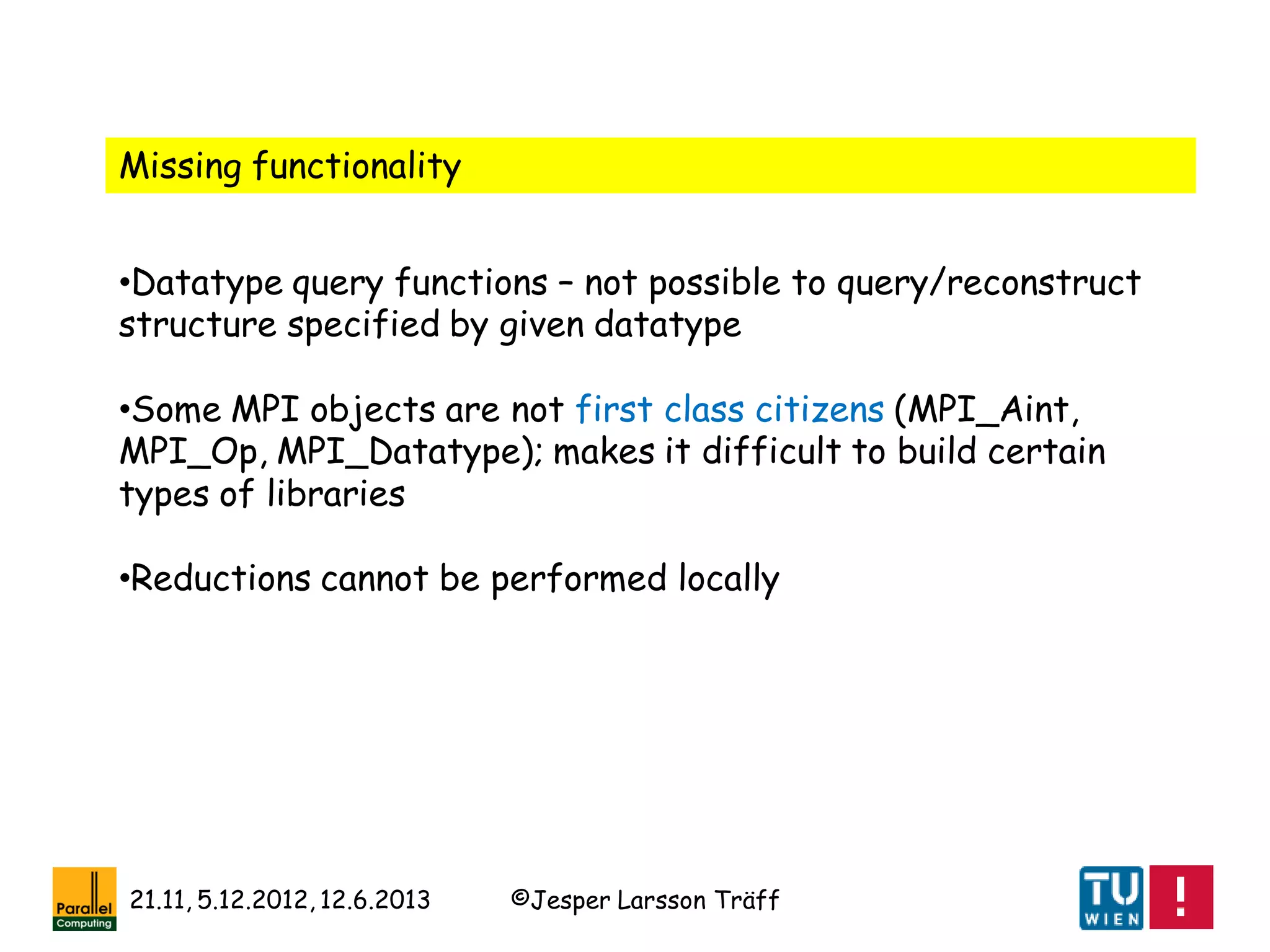

Missing functionality
•Datatype query functions – not possible to query/reconstruct
structure specified by given datatype
•Some MPI objects are not first class citizens (MPI_Aint,
MPI_Op, MPI_Datatype); makes it difficult to build certain
types of libraries
•Reductions cannot be performed locally

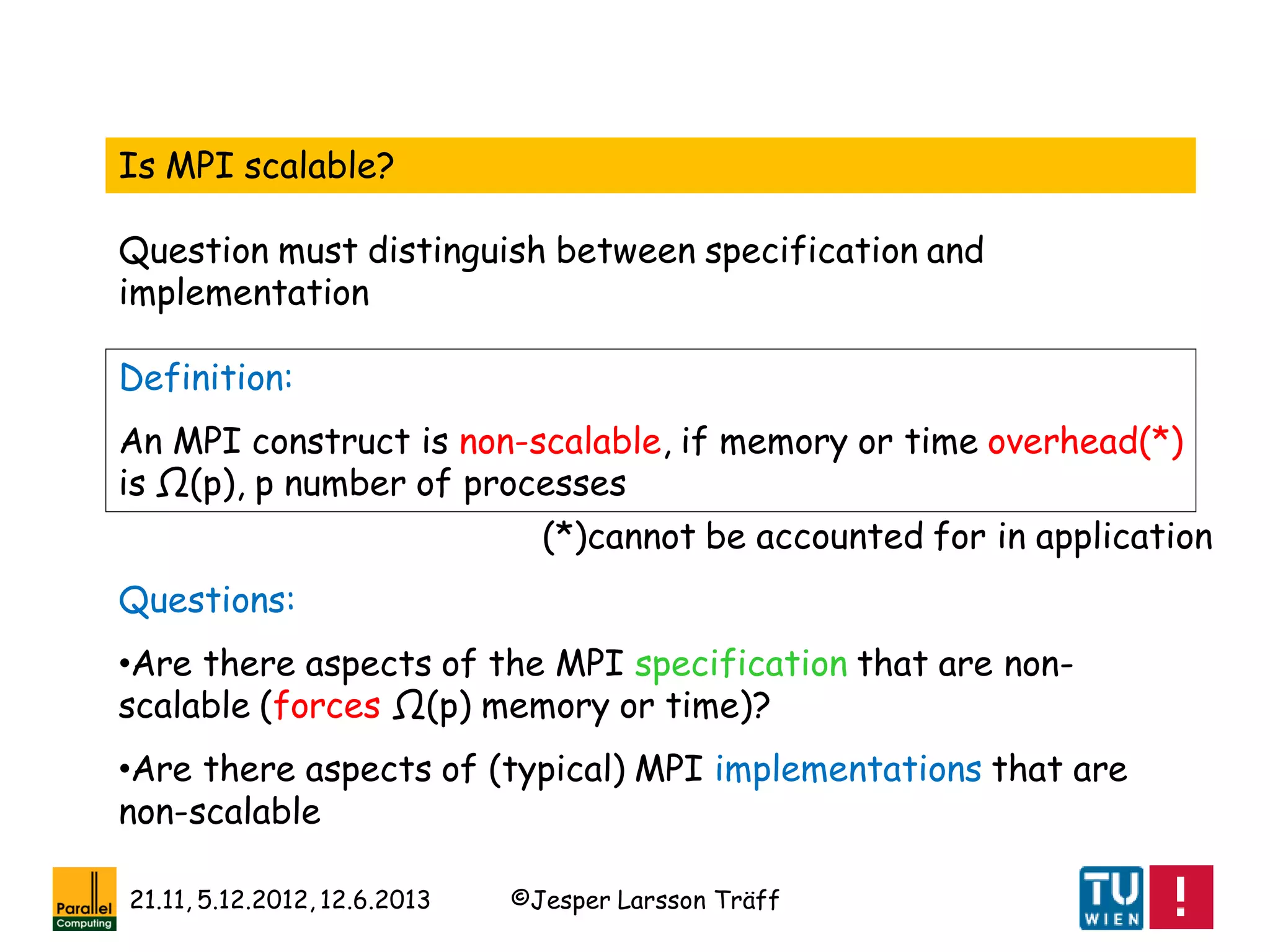

Definition:
An MPI construct is non-scalable, if memory or time overhead(*)
is Ω(p), p number of processes
Questions:
•Are there aspects of the MPI specification that are non-
scalable (forces Ω(p) memory or time)?
•Are there aspects of (typical) MPI implementations that are
non-scalable
(*)cannot be accounted for in application
Is MPI scalable?
Question must distinguish between specification and
implementation

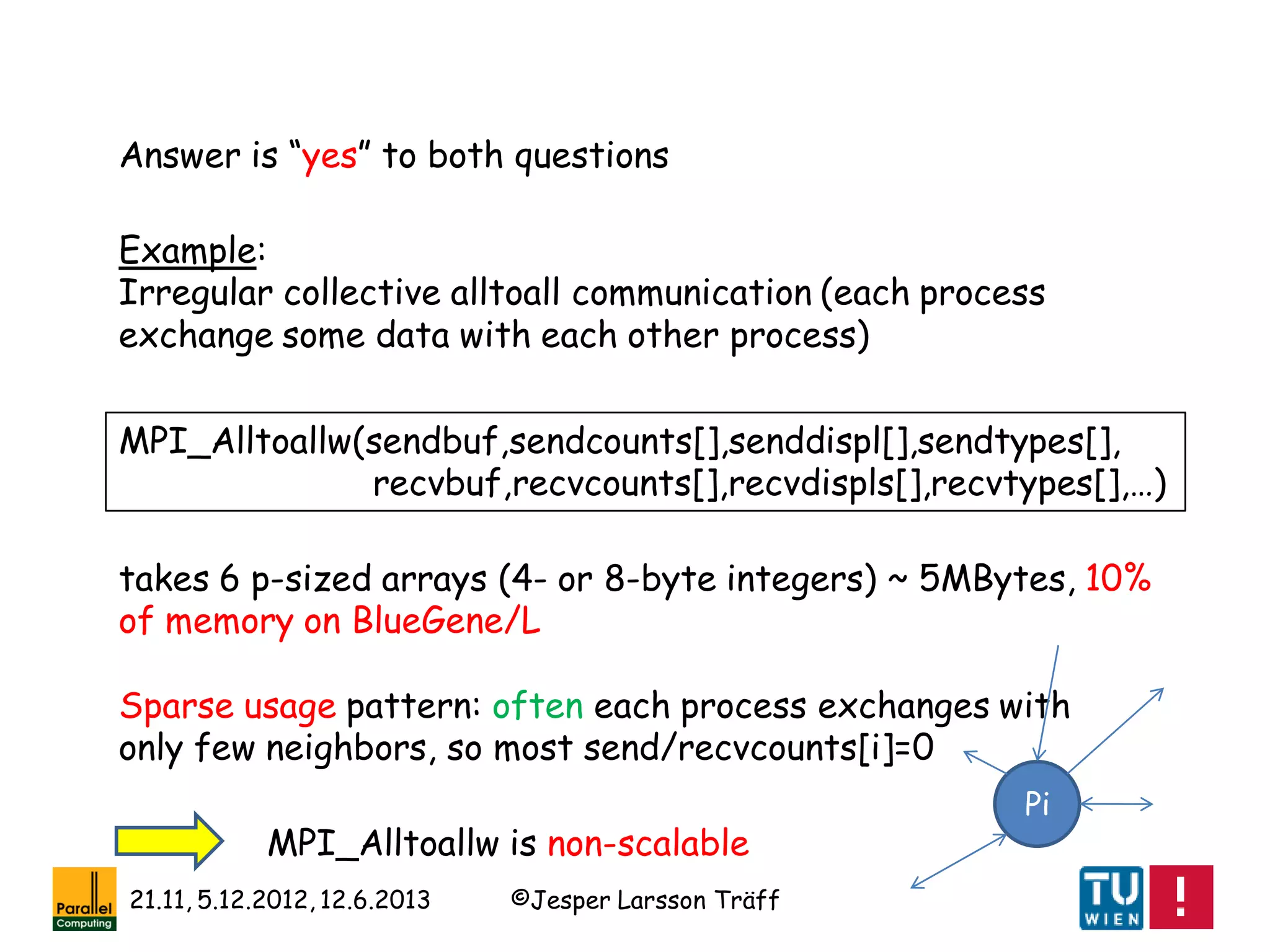

Answer is “yes” to both questions
Example:
Irregular collective alltoall communication (each process
exchange some data with each other process)
MPI_Alltoallw(sendbuf,sendcounts[],senddispl[],sendtypes[],
recvbuf,recvcounts[],recvdispls[],recvtypes[],…)
takes 6 p-sized arrays (4- or 8-byte integers) ~ 5MBytes, 10%
of memory on BlueGene/L
Sparse usage pattern: often each process exchanges with
only few neighbors, so most send/recvcounts[i]=0
MPI_Alltoallw is non-scalable
Pi

Experiment:
sendcounts[i]=0, recvcounts[i] =0 for all processes and all i
Argonne Natl. Lab
BlueGene/L
Entails no communication
[Balaji, …, Träff : MPI on millions of cores. Parallel Processing Letters
21(1): 45-60, 2011]

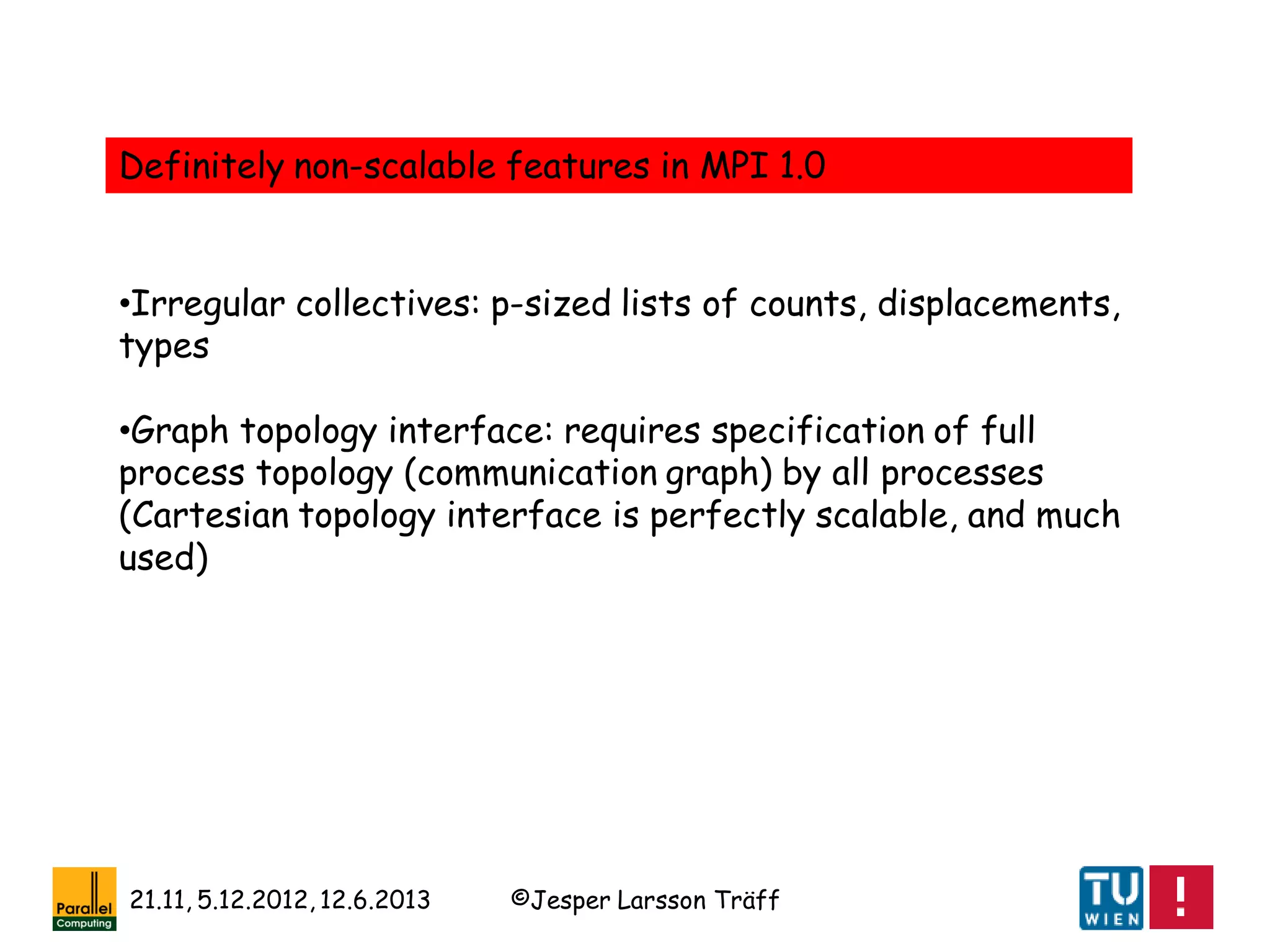

Definitely non-scalable features in MPI 1.0
•Irregular collectives: p-sized lists of counts, displacements,
types
•Graph topology interface: requires specification of full
process topology (communication graph) by all processes
(Cartesian topology interface is perfectly scalable, and much
used)

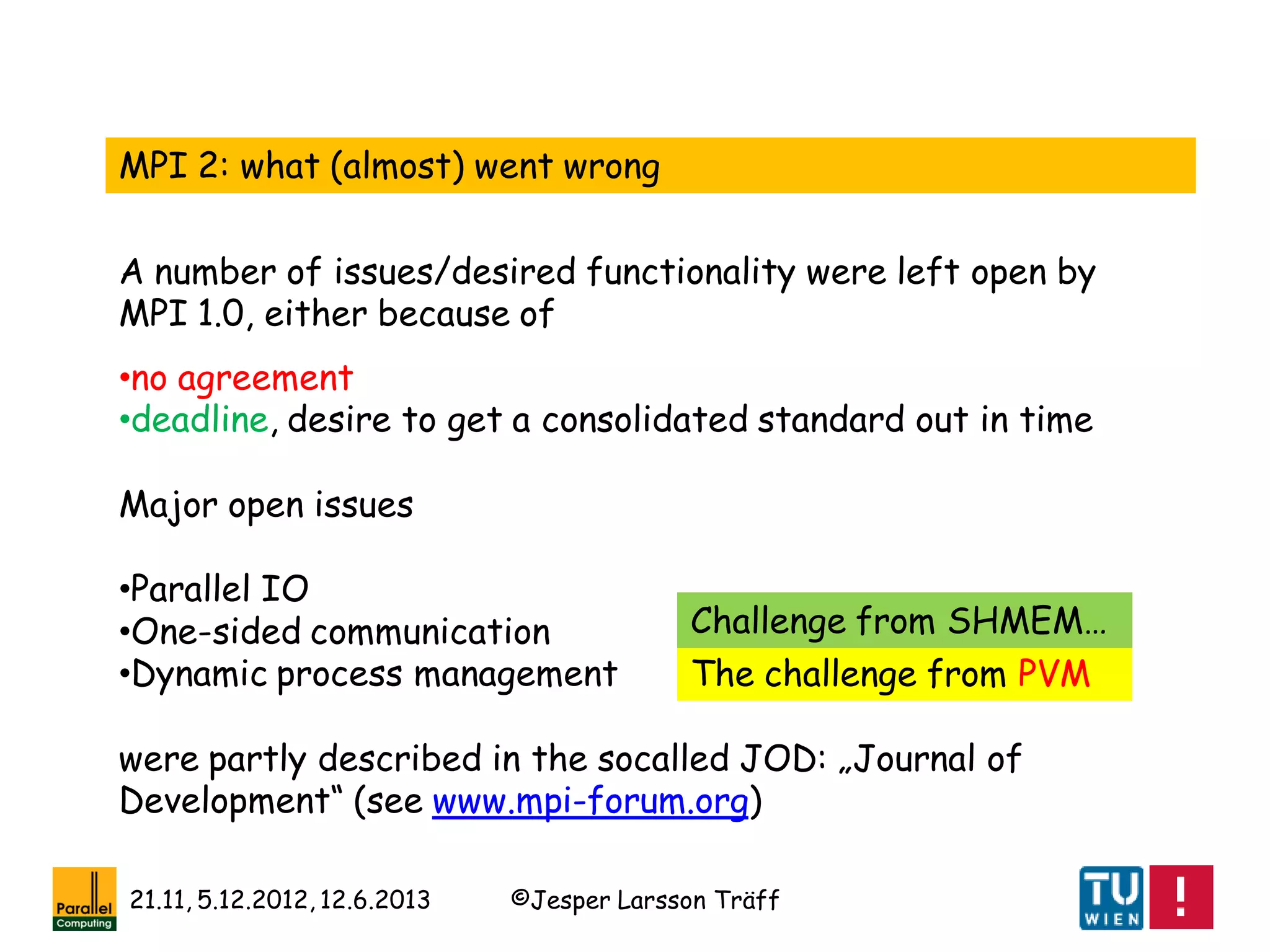

MPI 2: what (almost) went wrong
A number of issues/desired functionality were left open by
MPI 1.0, either because of
•no agreement
•deadline, desire to get a consolidated standard out in time
Major open issues
•Parallel IO
•One-sided communication
•Dynamic process management
were partly described in the socalled JOD: „Journal of
Development“ (see www.mpi-forum.org)
The challenge from PVM
Challenge from SHMEM…

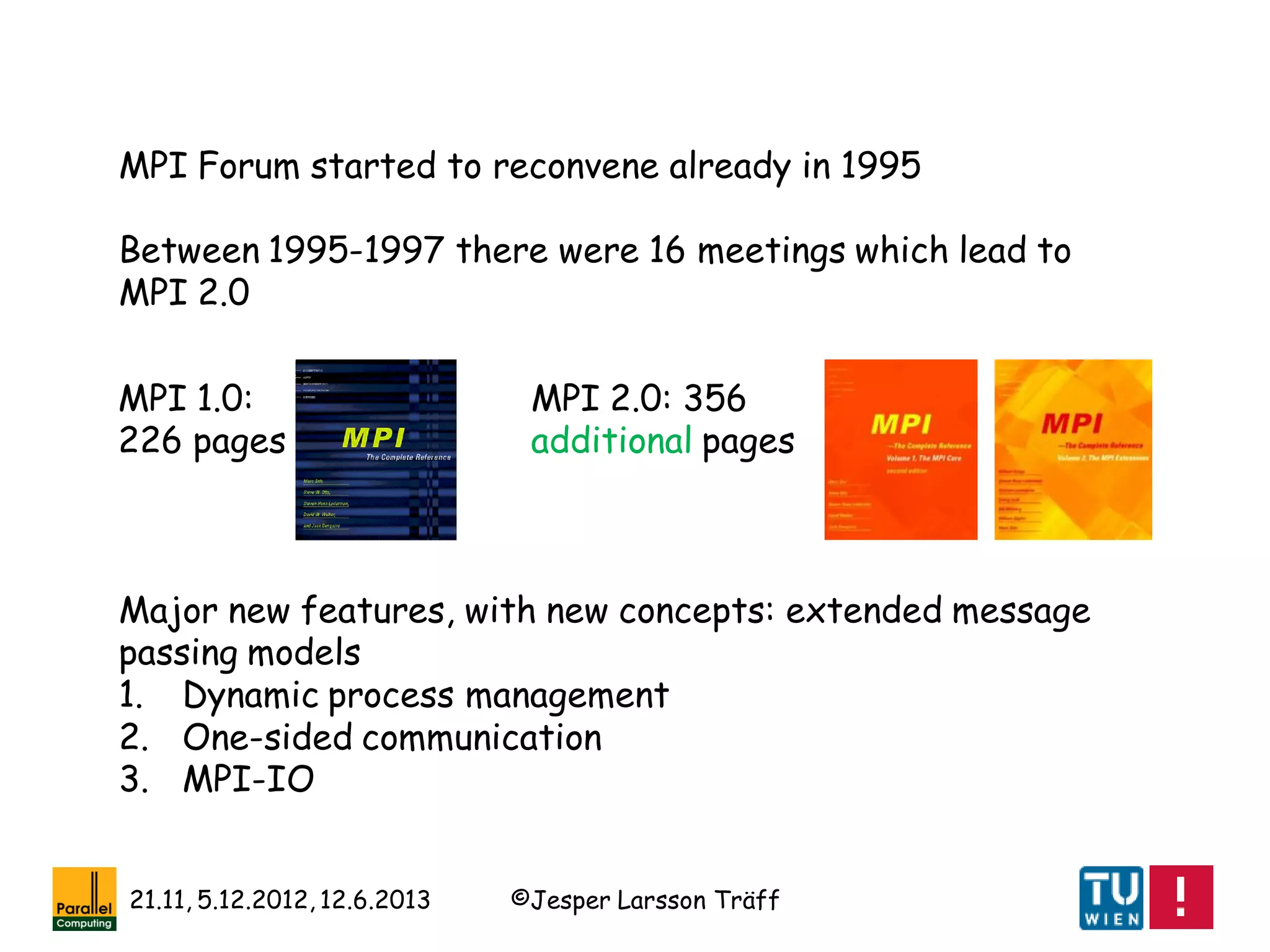

MPI Forum started to reconvene already in 1995
Between 1995-1997 there were 16 meetings which lead to
MPI 2.0
MPI 1.0:
226 pages
MPI 2.0: 356
additional pages
Major new features, with new concepts: extended message
passing models
1. Dynamic process management
2. One-sided communication
3. MPI-IO

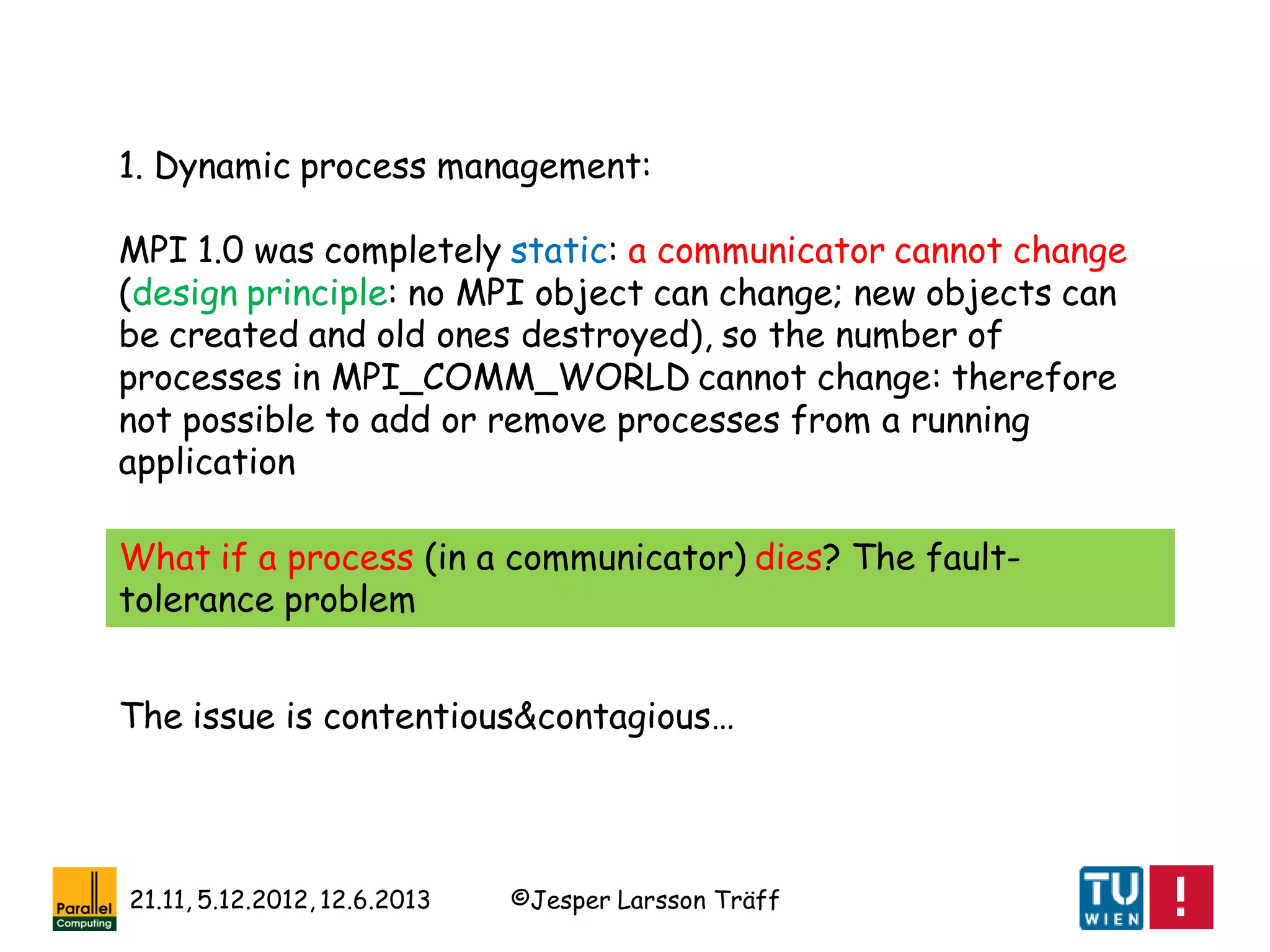

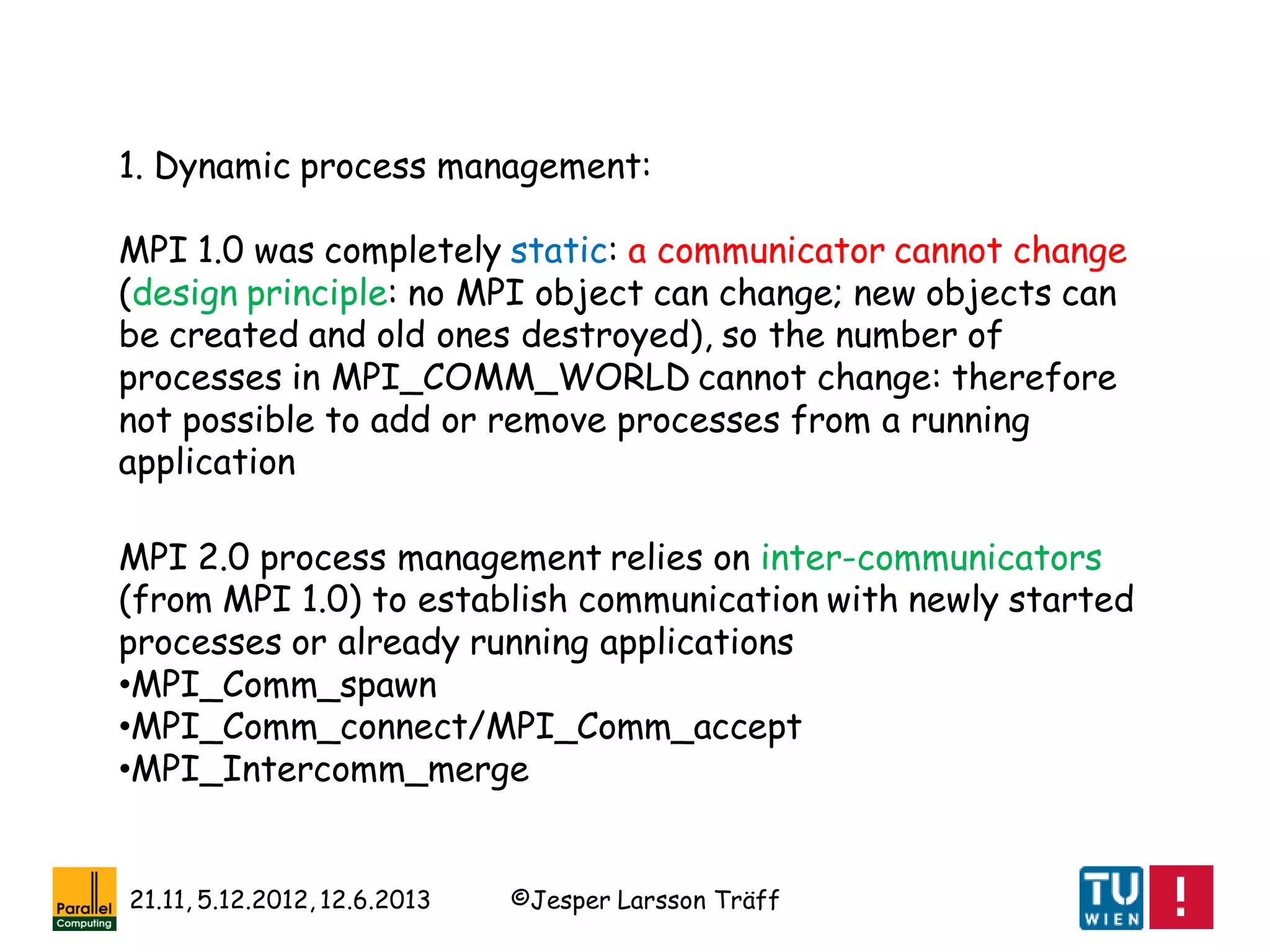

1. Dynamic process management:
MPI 1.0 was completely static: a communicator cannot change
(design principle: no MPI object can change; new objects can
be created and old ones destroyed), so the number of
processes in MPI_COMM_WORLD cannot change: therefore
not possible to add or remove processes from a running
application
MPI 2.0 process management relies on inter-communicators
(from MPI 1.0) to establish communication with newly started
processes or already running applications
•MPI_Comm_spawn
•MPI_Comm_connect/MPI_Comm_accept
•MPI_Intercomm_merge

application

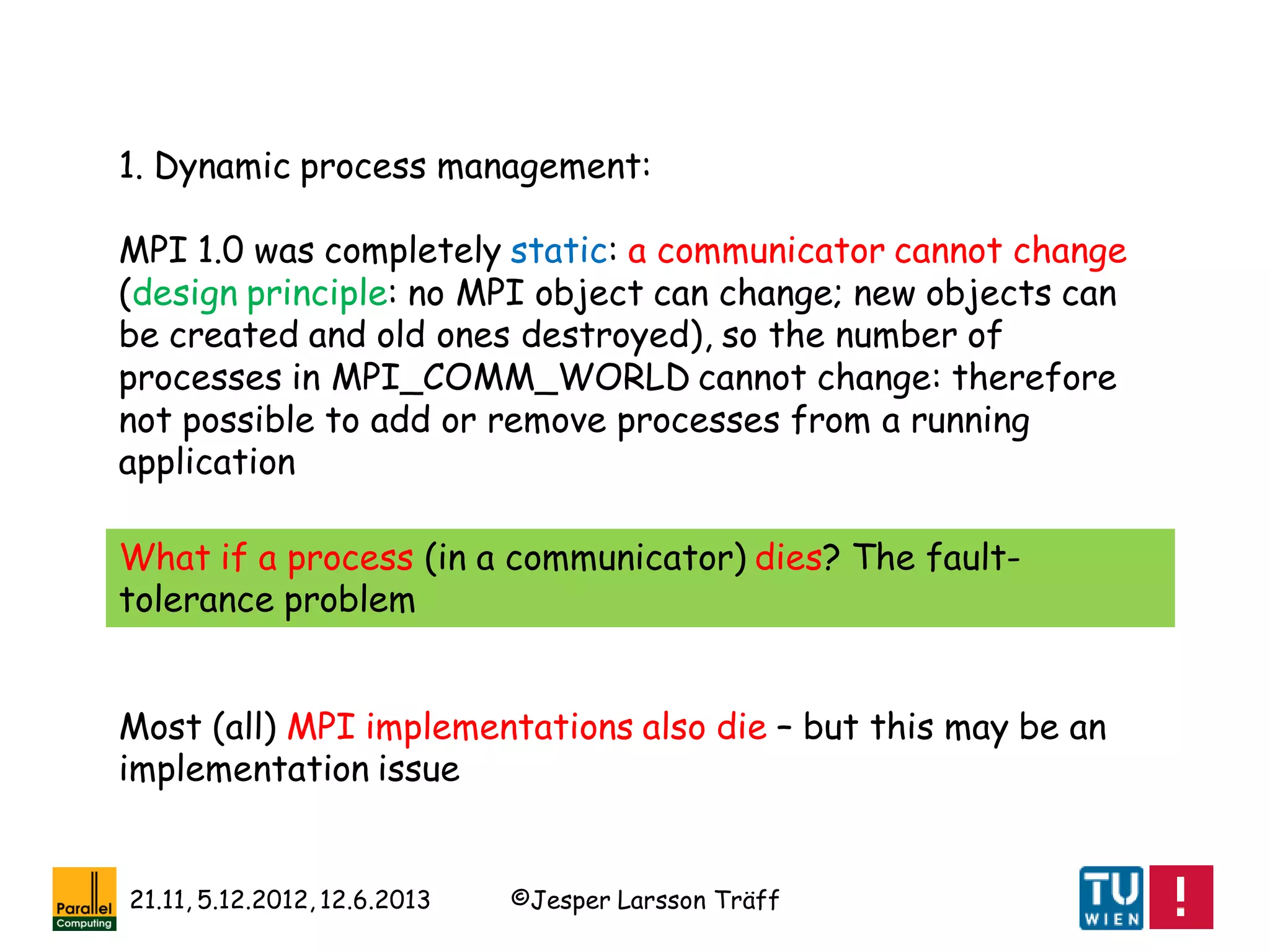

What if a process (in a communicator) dies? The fault-
tolerance problem
Most (all) MPI implementations also die – but this may be an
implementation issue

application
tolerance problem

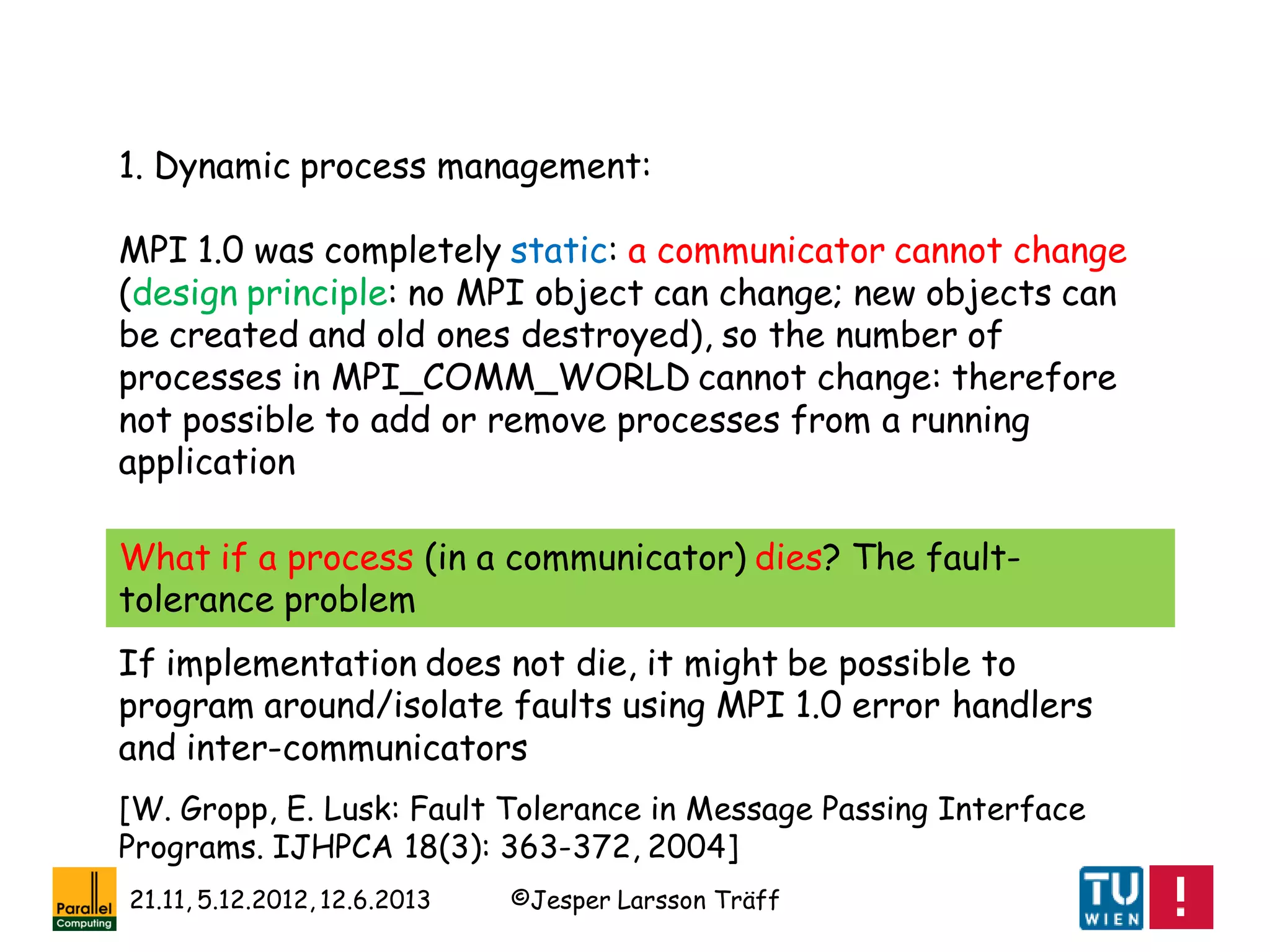

If implementation does not die, it might be possible to
program around/isolate faults using MPI 1.0 error handlers
and inter-communicators
[W. Gropp, E. Lusk: Fault Tolerance in Message Passing Interface
Programs. IJHPCA 18(3): 363-372, 2004]

application
tolerance problem
The issue is contentious&contagious…

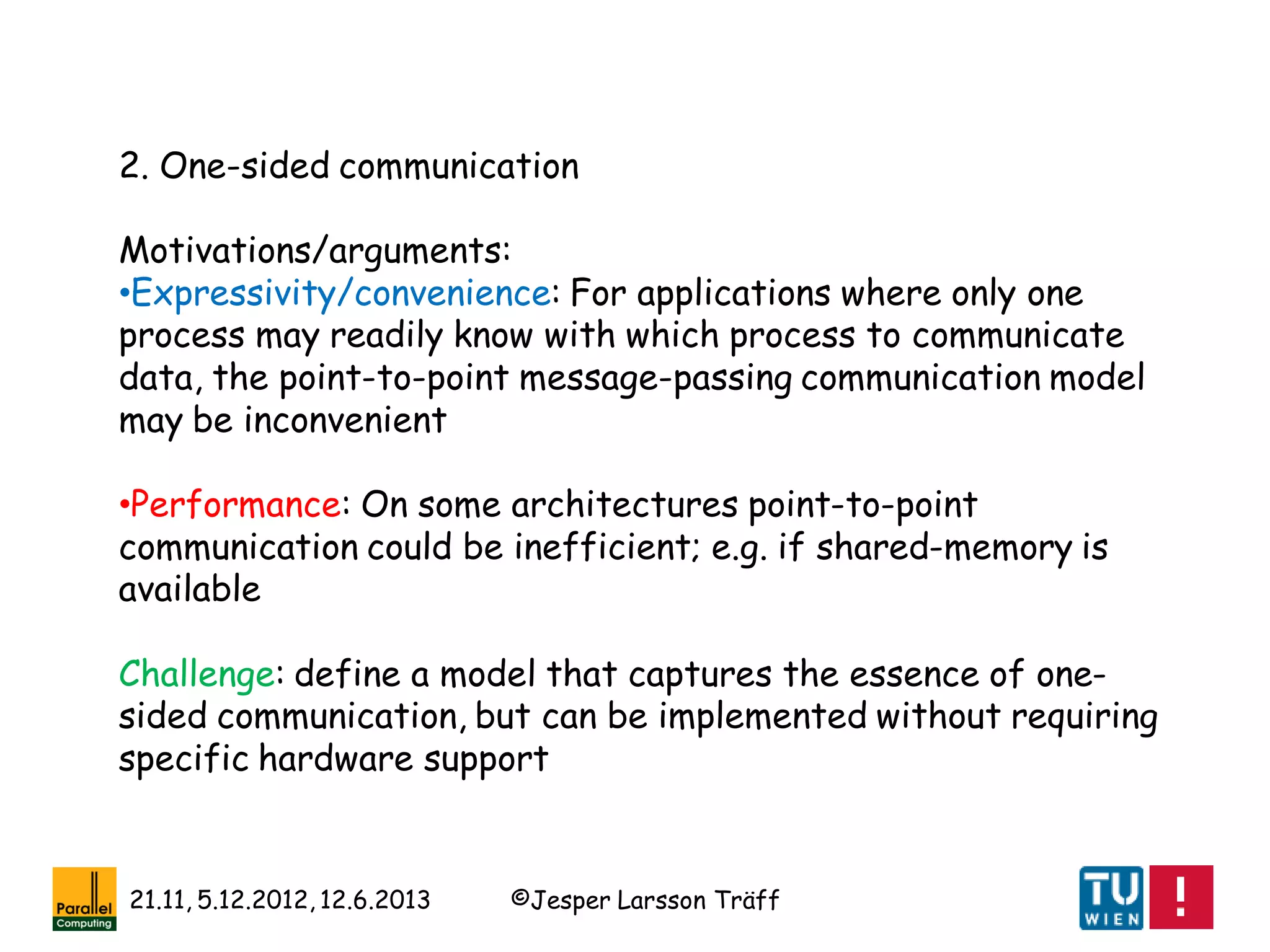

Motivations/arguments:
•Expressivity/convenience: For applications where only one
process may readily know with which process to communicate
data, the point-to-point message-passing communication model
may be inconvenient
•Performance: On some architectures point-to-point
communication could be inefficient; e.g. if shared-memory is
available

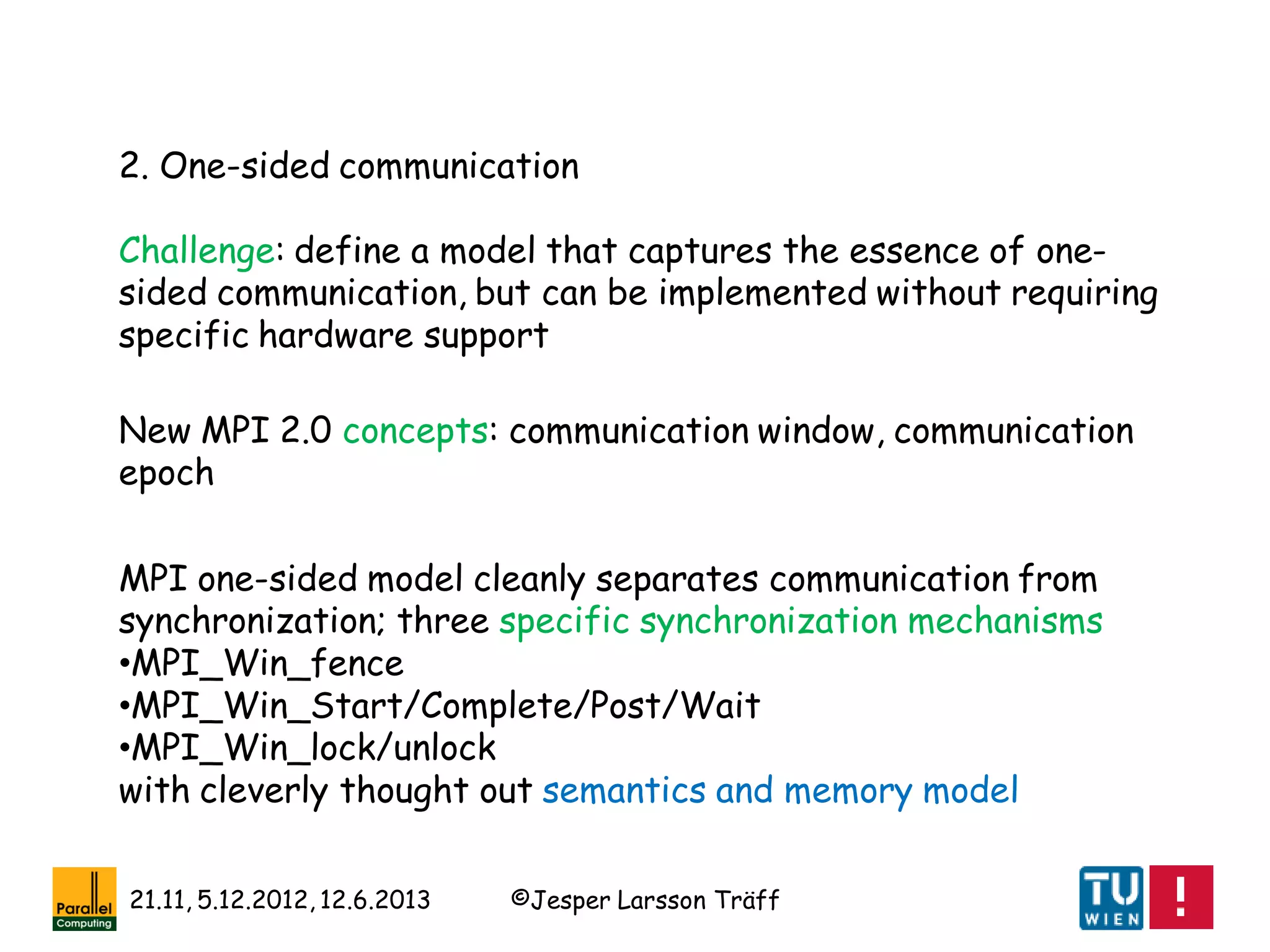

Challenge: define a model that captures the essence of one-
sided communication, but can be implemented without requiring
specific hardware support

Challenge: define a model that captures the essence of one-
sided communication, but can be implemented without requiring
specific hardware support
New MPI 2.0 concepts: communication window, communication
epoch

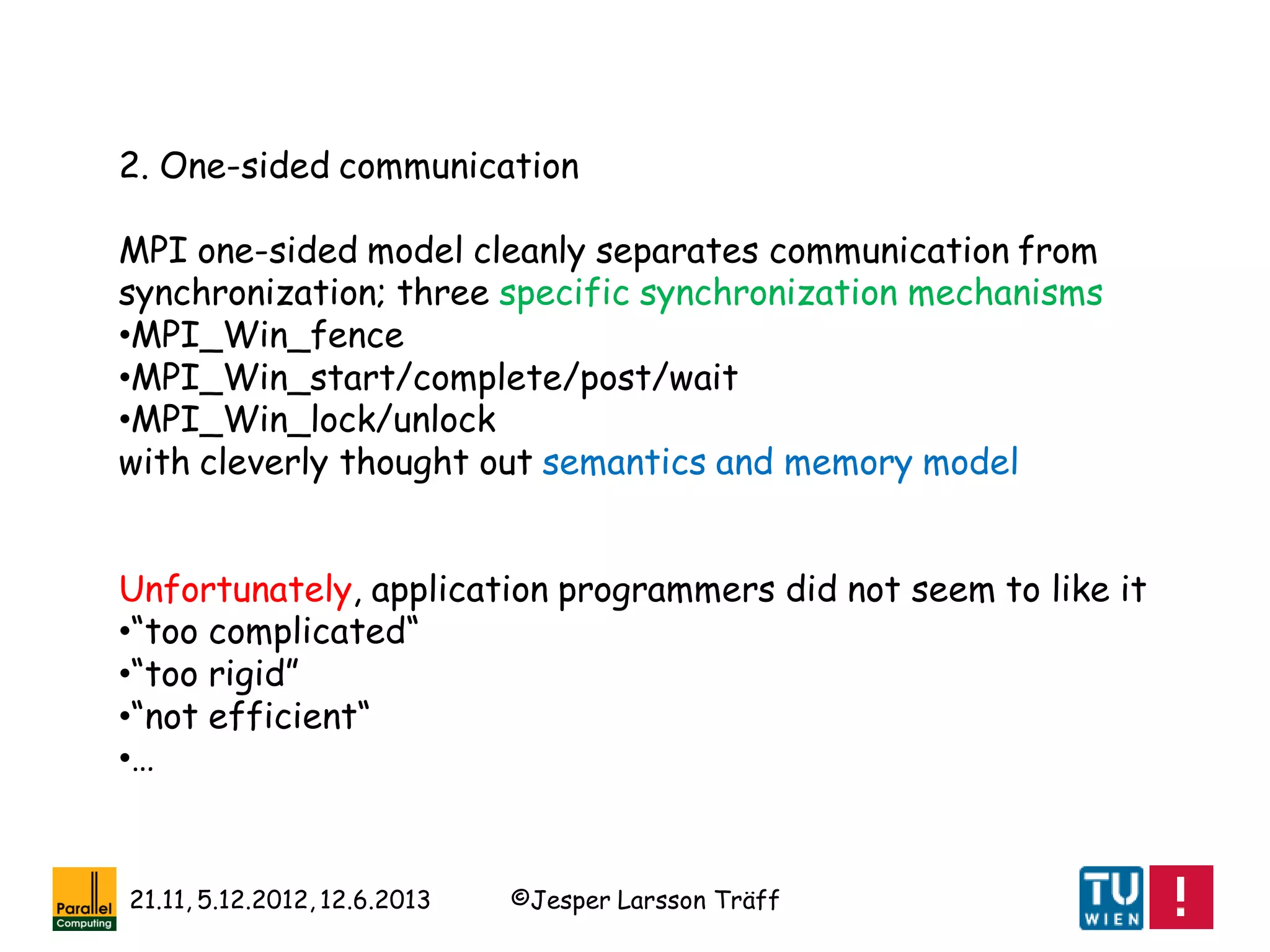

MPI one-sided model cleanly separates communication from
synchronization; three specific synchronization mechanisms
•MPI_Win_fence
•MPI_Win_Start/Complete/Post/Wait
•MPI_Win_lock/unlock
with cleverly thought out semantics and memory model

MPI one-sided model cleanly separates communication from
synchronization; three specific synchronization mechanisms
•MPI_Win_fence
•MPI_Win_start/complete/post/wait
•MPI_Win_lock/unlock
with cleverly thought out semantics and memory model
Unfortunately, application programmers did not seem to like it
•“too complicated“
•“too rigid”
•“not efficient“
•…

3. MPI-IO
Communication with external (disk/file) memory. Could leverage
MPI concepts and implementations:
•Datatypes to describe file structure
•Collective communication for utilizing local file systems
•Fast communication
MPI datatype mechanism is essential, and the power of this
concept starts to become clear
MPI 2.0 introduces (inelegant!) functionality to decode a
datatype = discover the structure described by datatype.
Needed for MPI-IO implementation (on top of MPI) and
supports library building

Take note:
Apart from MPI-IO (ROMIO), the MPI 2.0 standardization
process was not followed by prototype implementations
New concept (IO only): split collectives

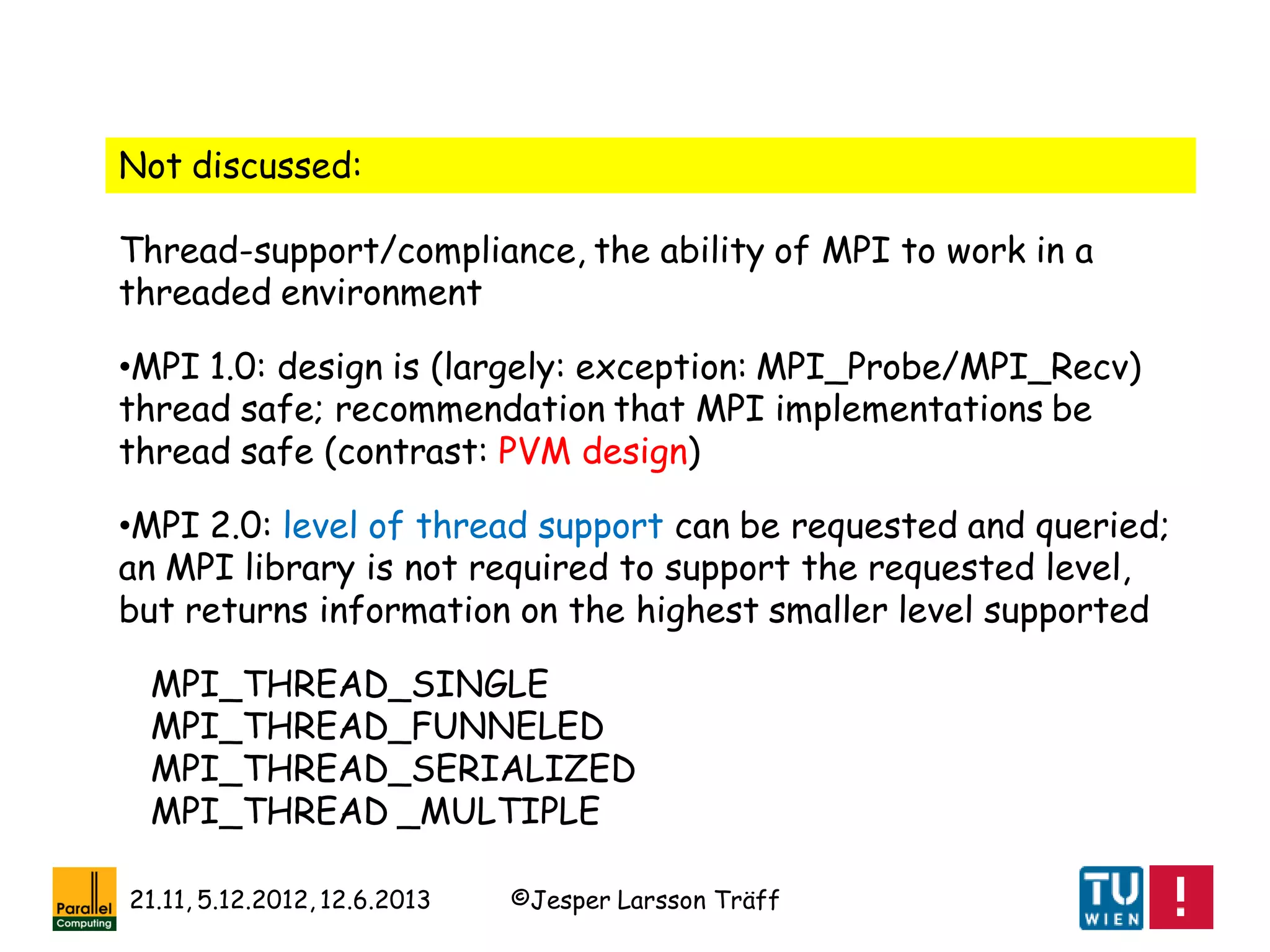

Not discussed:
Thread-support/compliance, the ability of MPI to work in a
threaded environment
•MPI 1.0: design is (largely: exception: MPI_Probe/MPI_Recv)
thread safe; recommendation that MPI implementations be
thread safe (contrast: PVM design)
•MPI 2.0: level of thread support can be requested and queried;
an MPI library is not required to support the requested level,
but returns information on the highest smaller level supported
MPI_THREAD_SINGLE
MPI_THREAD_FUNNELED
MPI_THREAD_SERIALIZED
MPI_THREAD _MULTIPLE

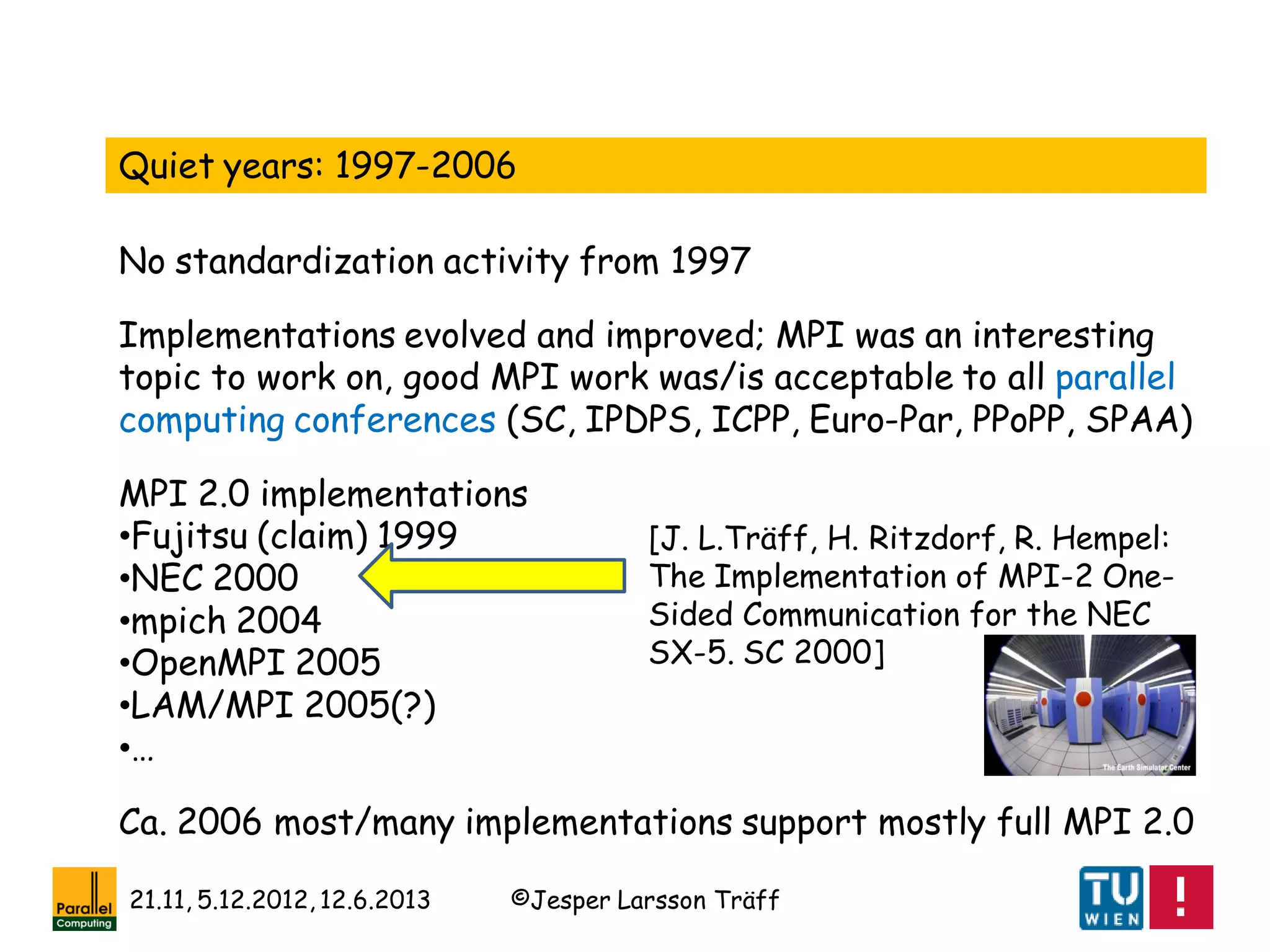

Quiet years: 1997-2006
No standardization activity from 1997
MPI 2.0 implementations
•Fujitsu (claim) 1999
•NEC 2000
•mpich 2004
•OpenMPI 2005
•LAM/MPI 2005(?)
•…
Ca. 2006 most/many implementations support mostly full MPI 2.0
Implementations evolved and improved; MPI was an interesting
topic to work on, good MPI work was/is acceptable to all parallel
computing conferences (SC, IPDPS, ICPP, Euro-Par, PPoPP, SPAA)
[J. L.Träff, H. Ritzdorf, R. Hempel:
The Implementation of MPI-2 One-
Sided Communication for the NEC
SX-5. SC 2000]

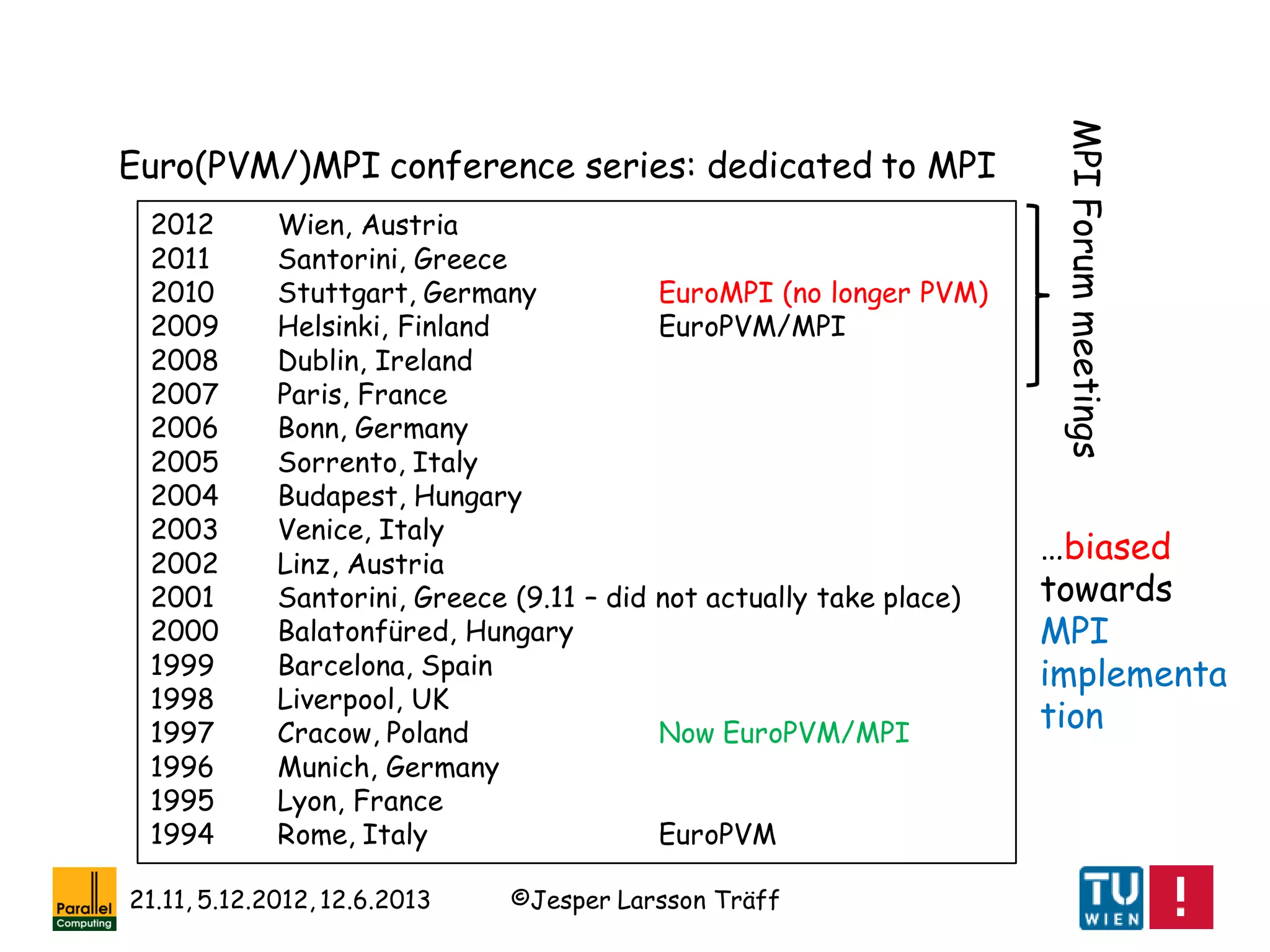

2012 Wien, Austria
2011 Santorini, Greece
2010 Stuttgart, Germany EuroMPI (no longer PVM)
2009 Helsinki, Finland EuroPVM/MPI
2008 Dublin, Ireland
2007 Paris, France
2006 Bonn, Germany
2005 Sorrento, Italy
2004 Budapest, Hungary
2003 Venice, Italy
2002 Linz, Austria
2001 Santorini, Greece (9.11 – did not actually take place)
2000 Balatonfüred, Hungary
1999 Barcelona, Spain
1998 Liverpool, UK
1997 Cracow, Poland Now EuroPVM/MPI
1996 Munich, Germany
1995 Lyon, France
1994 Rome, Italy EuroPVM
Euro(PVM/)MPI conference series: dedicated to MPI
MPIForummeetings
…biased
towards
MPI
implementa
tion

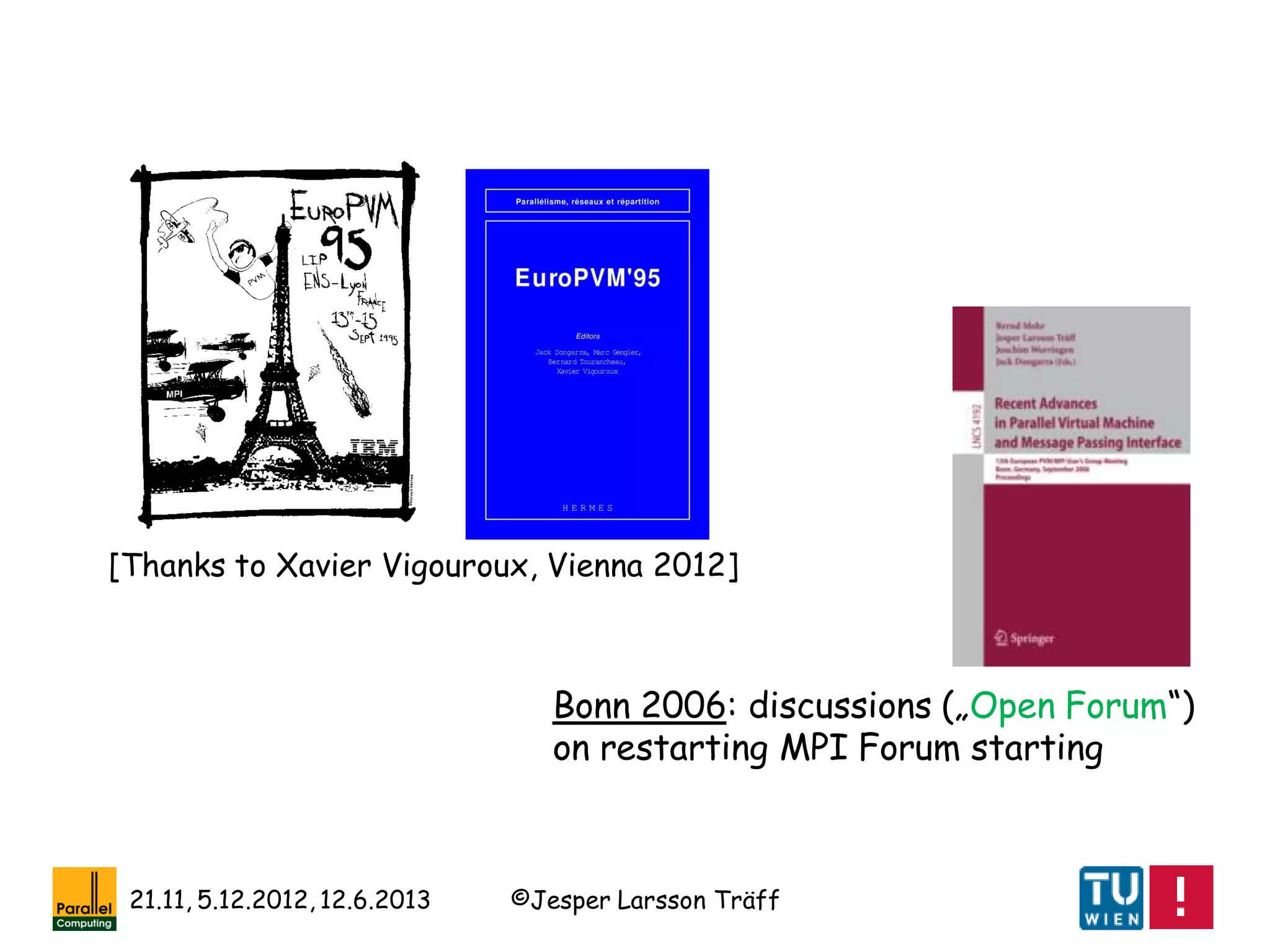

[Thanks to Xavier Vigouroux, Vienna 2012]
Bonn 2006: discussions („Open Forum“)
on restarting MPI Forum starting

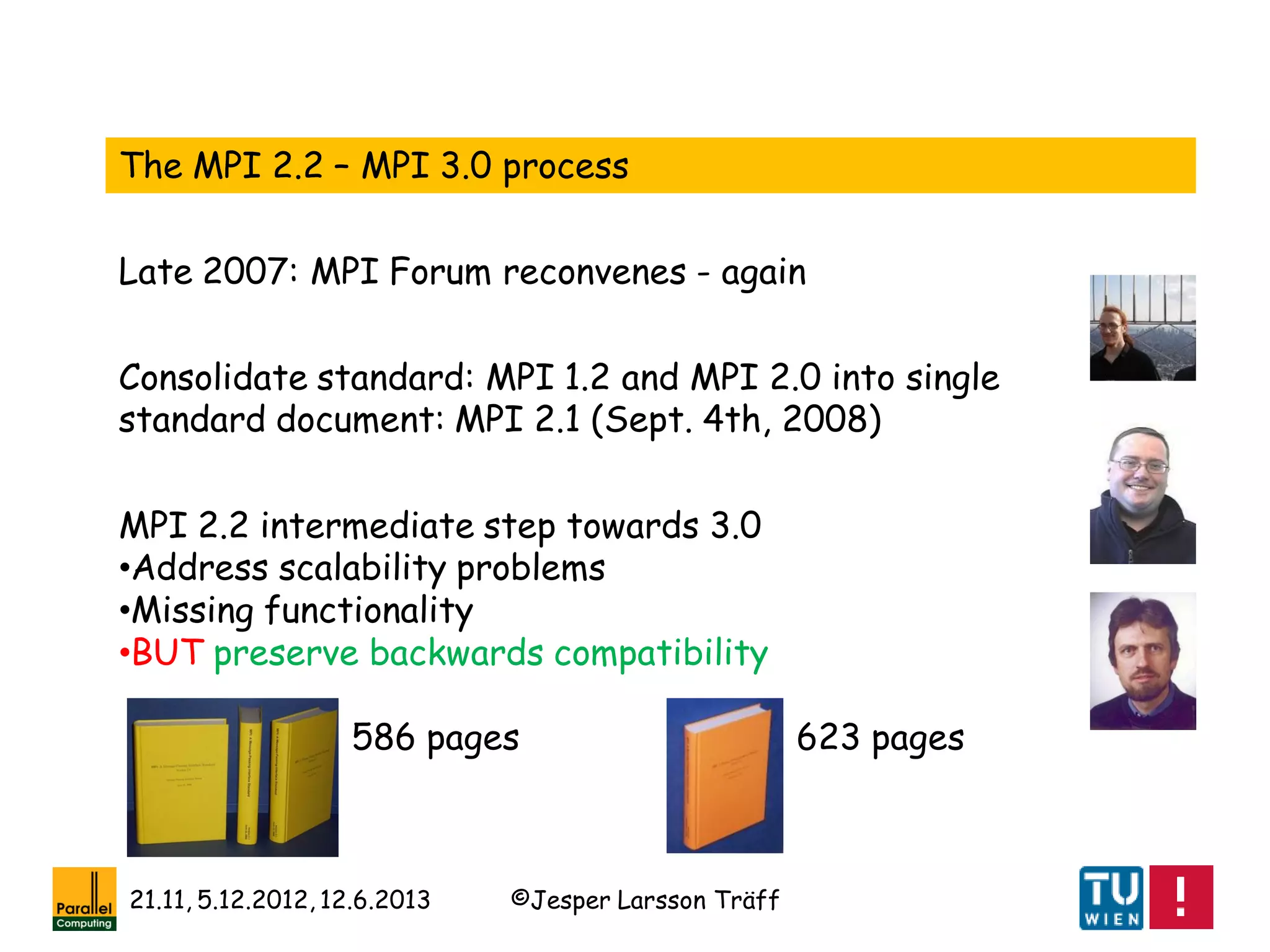

The MPI 2.2 – MPI 3.0 process
Late 2007: MPI Forum reconvenes - again
Consolidate standard: MPI 1.2 and MPI 2.0 into single
standard document: MPI 2.1 (Sept. 4th, 2008)
MPI 2.2 intermediate step towards 3.0
•Address scalability problems
•Missing functionality
•BUT preserve backwards compatibility
586 pages 623 pages

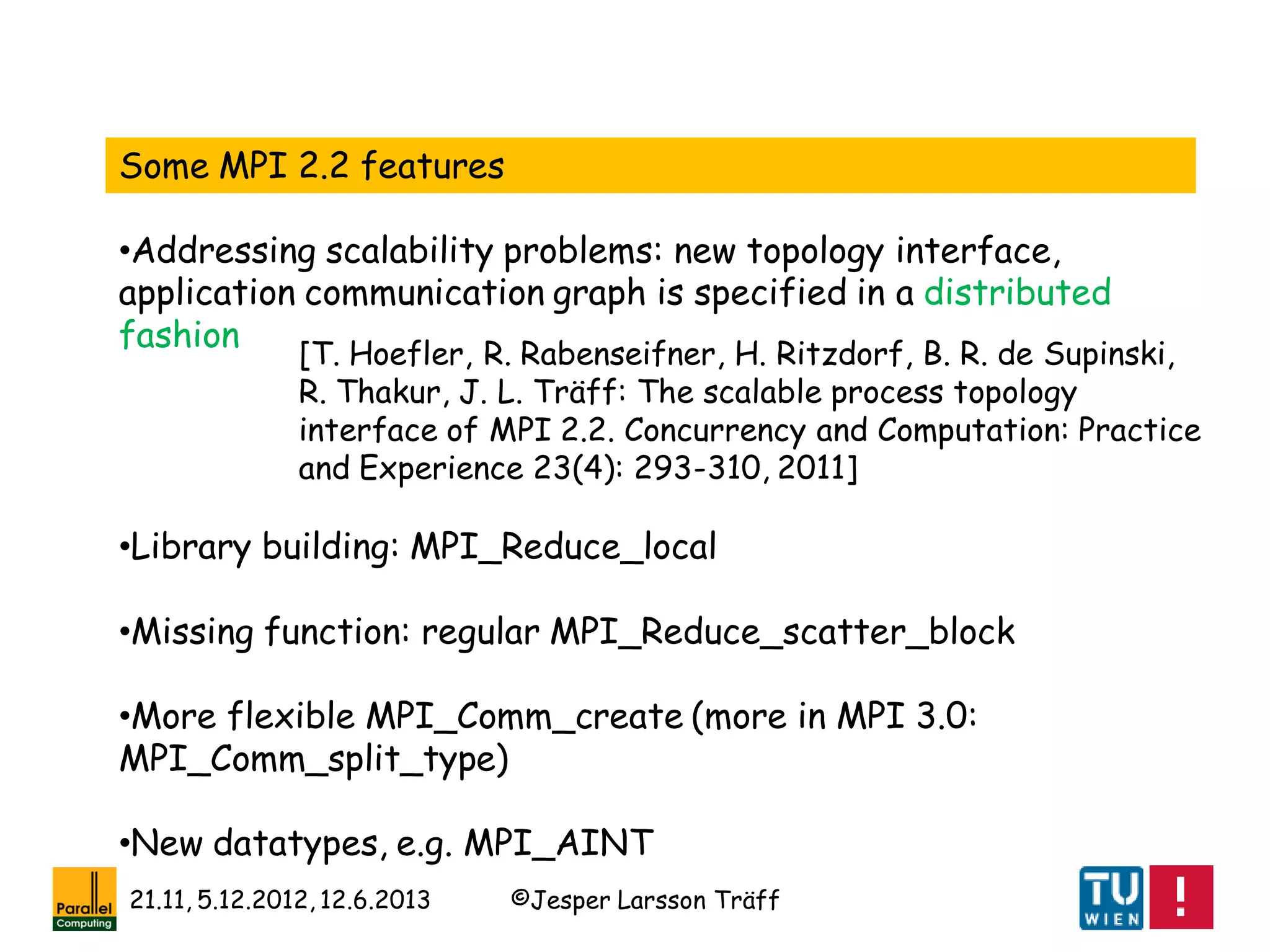

Some MPI 2.2 features
•Addressing scalability problems: new topology interface,
application communication graph is specified in a distributed
fashion
•Library building: MPI_Reduce_local
•Missing function: regular MPI_Reduce_scatter_block
•More flexible MPI_Comm_create (more in MPI 3.0:
MPI_Comm_split_type)
•New datatypes, e.g. MPI_AINT
[T. Hoefler, R. Rabenseifner, H. Ritzdorf, B. R. de Supinski,
R. Thakur, J. L. Träff: The scalable process topology
interface of MPI 2.2. Concurrency and Computation: Practice
and Experience 23(4): 293-310, 2011]

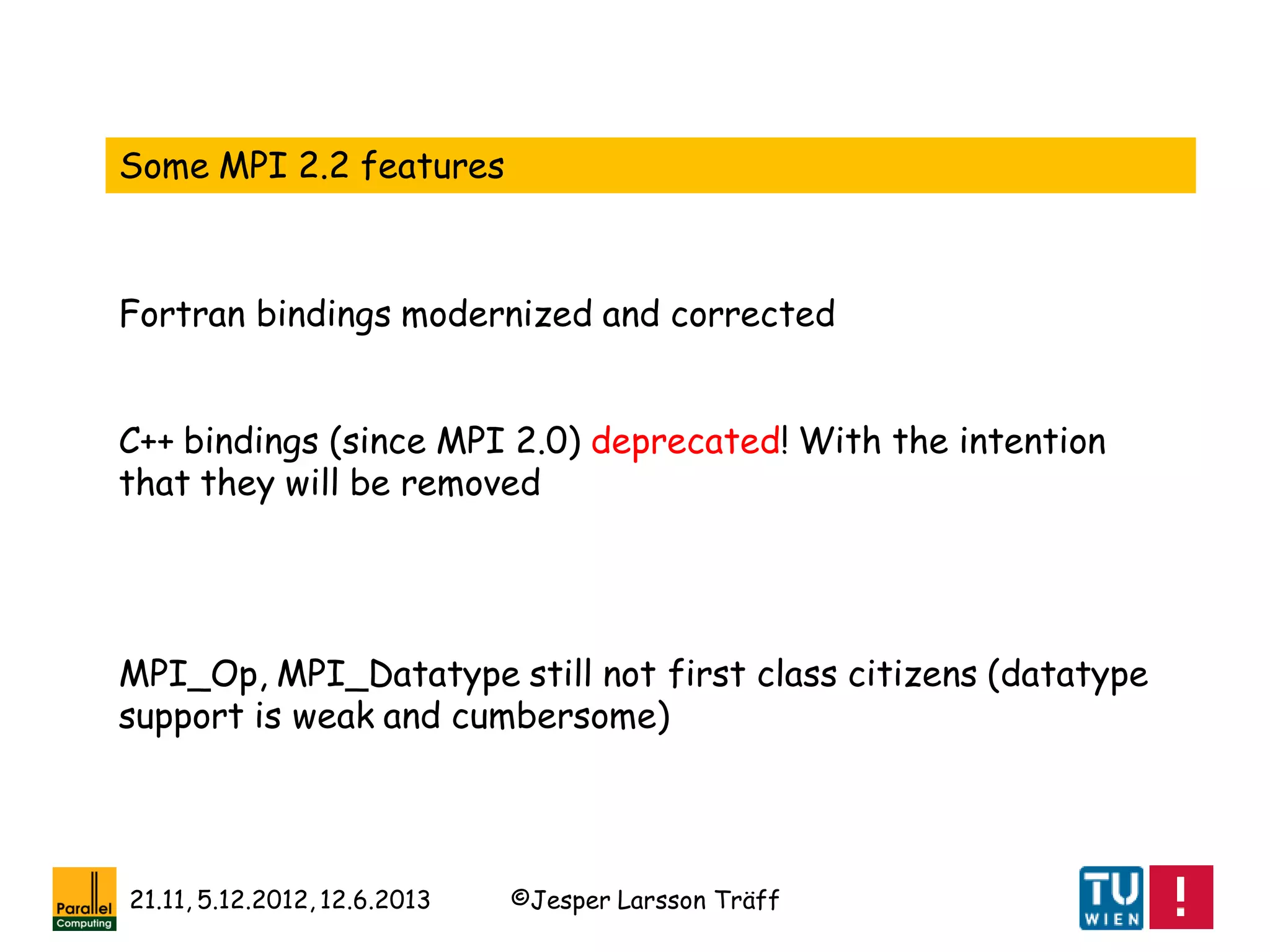

Some MPI 2.2 features
C++ bindings (since MPI 2.0) deprecated! With the intention
that they will be removed
MPI_Op, MPI_Datatype still not first class citizens (datatype
support is weak and cumbersome)
Fortran bindings modernized and corrected

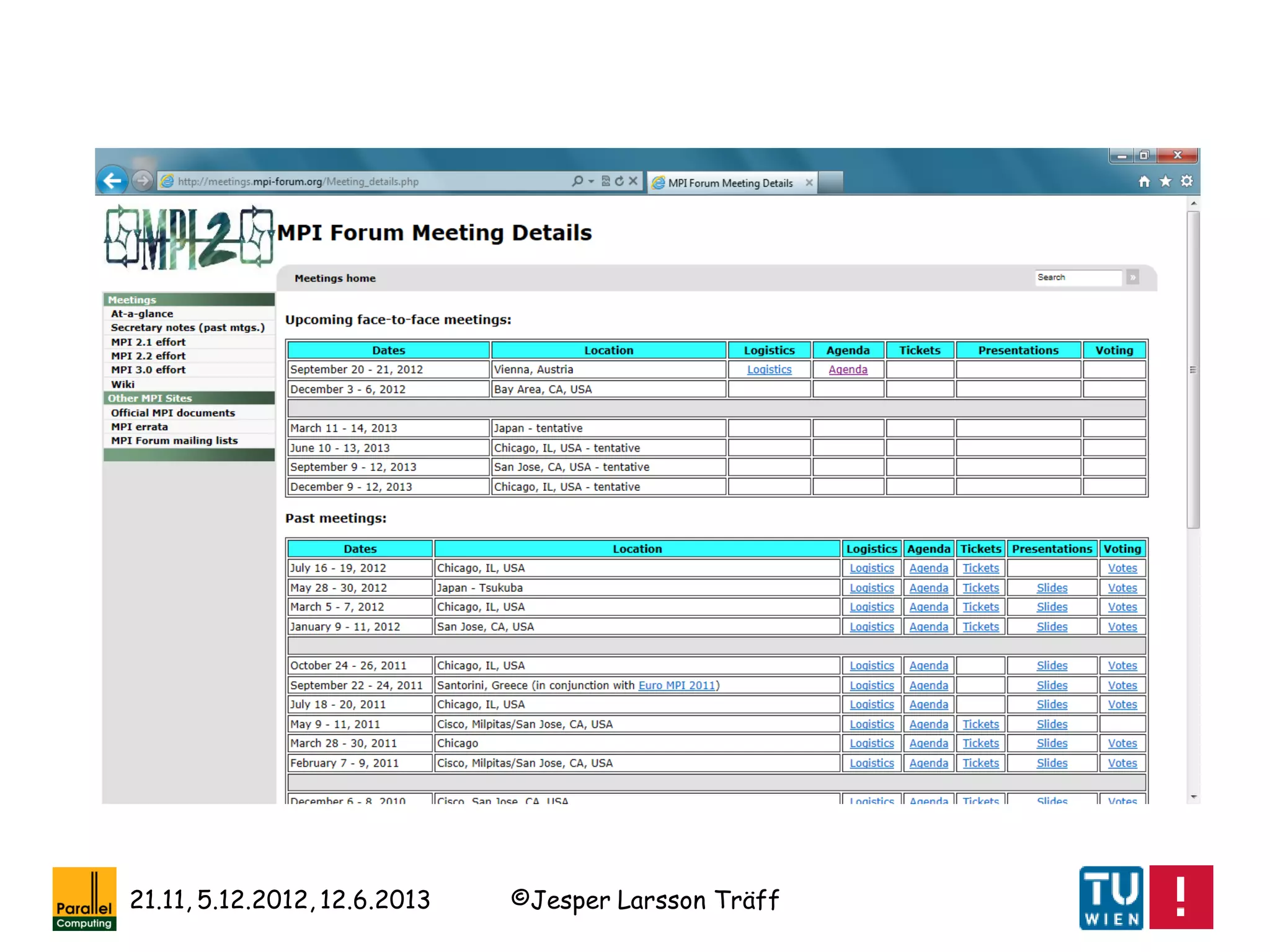

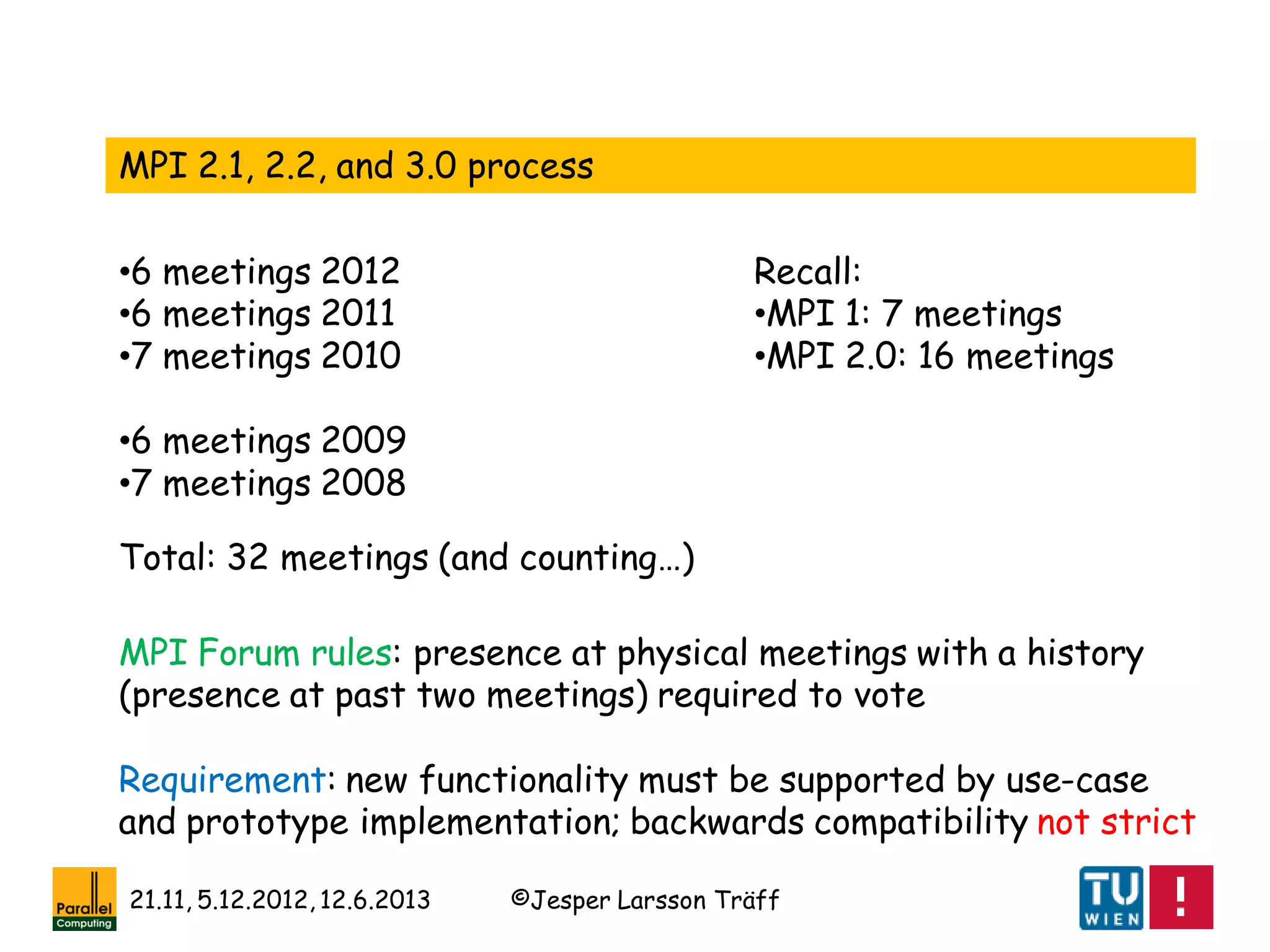

•6 meetings 2012
•6 meetings 2011
•7 meetings 2010
•6 meetings 2009
•7 meetings 2008
MPI 2.1, 2.2, and 3.0 process
Total: 32 meetings (and counting…)
Recall:
•MPI 1: 7 meetings
•MPI 2.0: 16 meetings
MPI Forum rules: presence at physical meetings with a history
(presence at past two meetings) required to vote
Requirement: new functionality must be supported by use-case
and prototype implementation; backwards compatibility not strict

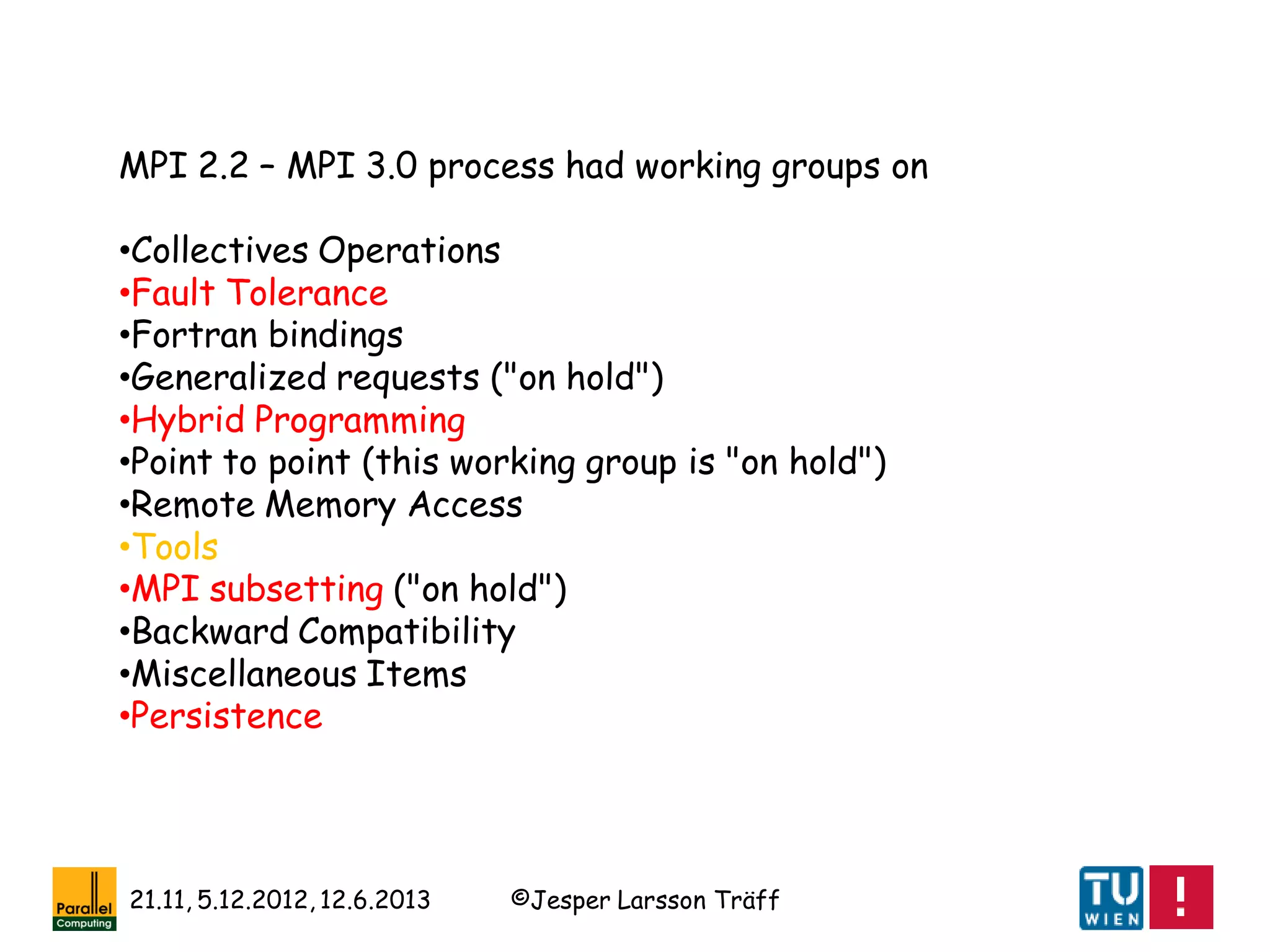

MPI 2.2 – MPI 3.0 process had working groups on
•Collectives Operations
•Fault Tolerance
•Fortran bindings
•Generalized requests ("on hold")
•Hybrid Programming
•Point to point (this working group is "on hold")
•Remote Memory Access
•Tools
•MPI subsetting ("on hold")
•Backward Compatibility
•Miscellaneous Items
•Persistence

MPI 3.0: new features, new themes, new opportunities
Major new functionalities:
1. Non-blocking collectives
2. Sparse collectives
3. New one-sided communication
4. Performance tool support
Deprecated functions removed: C++ interface has gone
MPI 3.0, 21. September 2012: 822 pages
Implementation status: mpich should cover MPI 3.0
Performance/quality?

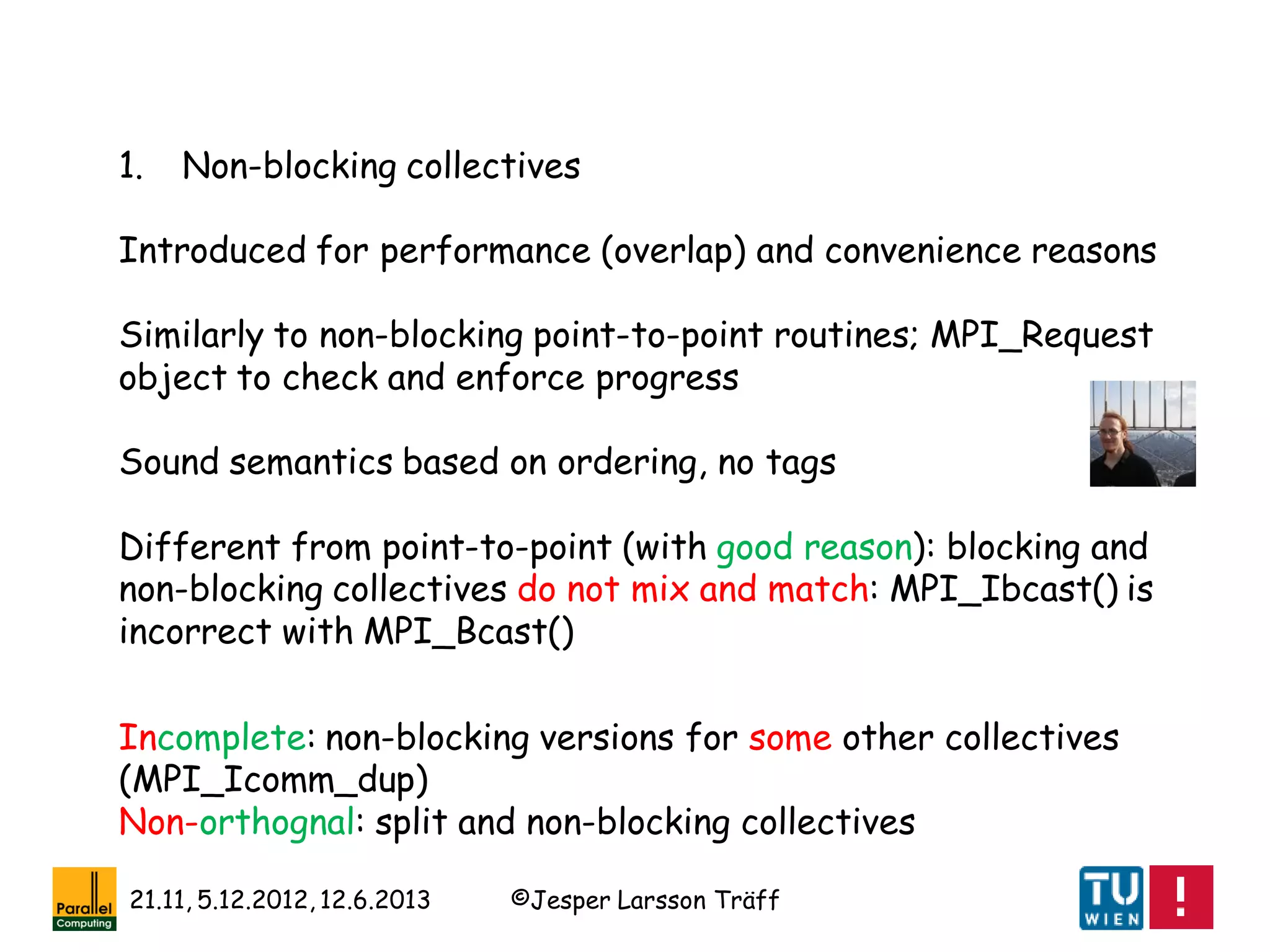

1. Non-blocking collectives
Introduced for performance (overlap) and convenience reasons
Similarly to non-blocking point-to-point routines; MPI_Request
object to check and enforce progress
Sound semantics based on ordering, no tags
Different from point-to-point (with good reason): blocking and
non-blocking collectives do not mix and match: MPI_Ibcast() is
incorrect with MPI_Bcast()
Incomplete: non-blocking versions for some other collectives
(MPI_Icomm_dup)
Non-orthognal: split and non-blocking collectives

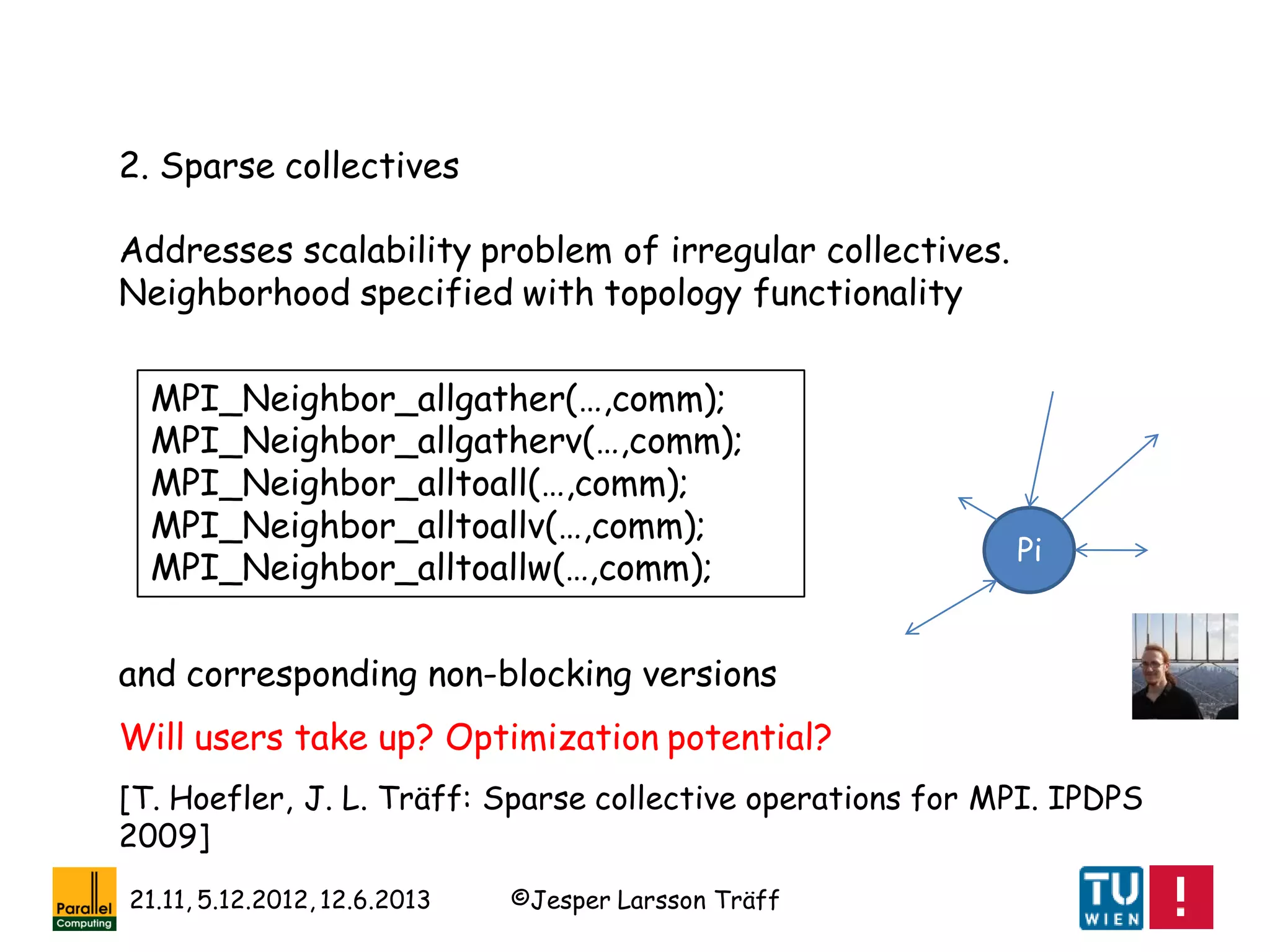

2. Sparse collectives
Addresses scalability problem of irregular collectives.
Neighborhood specified with topology functionality
MPI_Neighbor_allgather(…,comm);
MPI_Neighbor_allgatherv(…,comm);
MPI_Neighbor_alltoall(…,comm);
MPI_Neighbor_alltoallv(…,comm);
MPI_Neighbor_alltoallw(…,comm);
Pi
and corresponding non-blocking versions
[T. Hoefler, J. L. Träff: Sparse collective operations for MPI. IPDPS
2009]
Will users take up? Optimization potential?

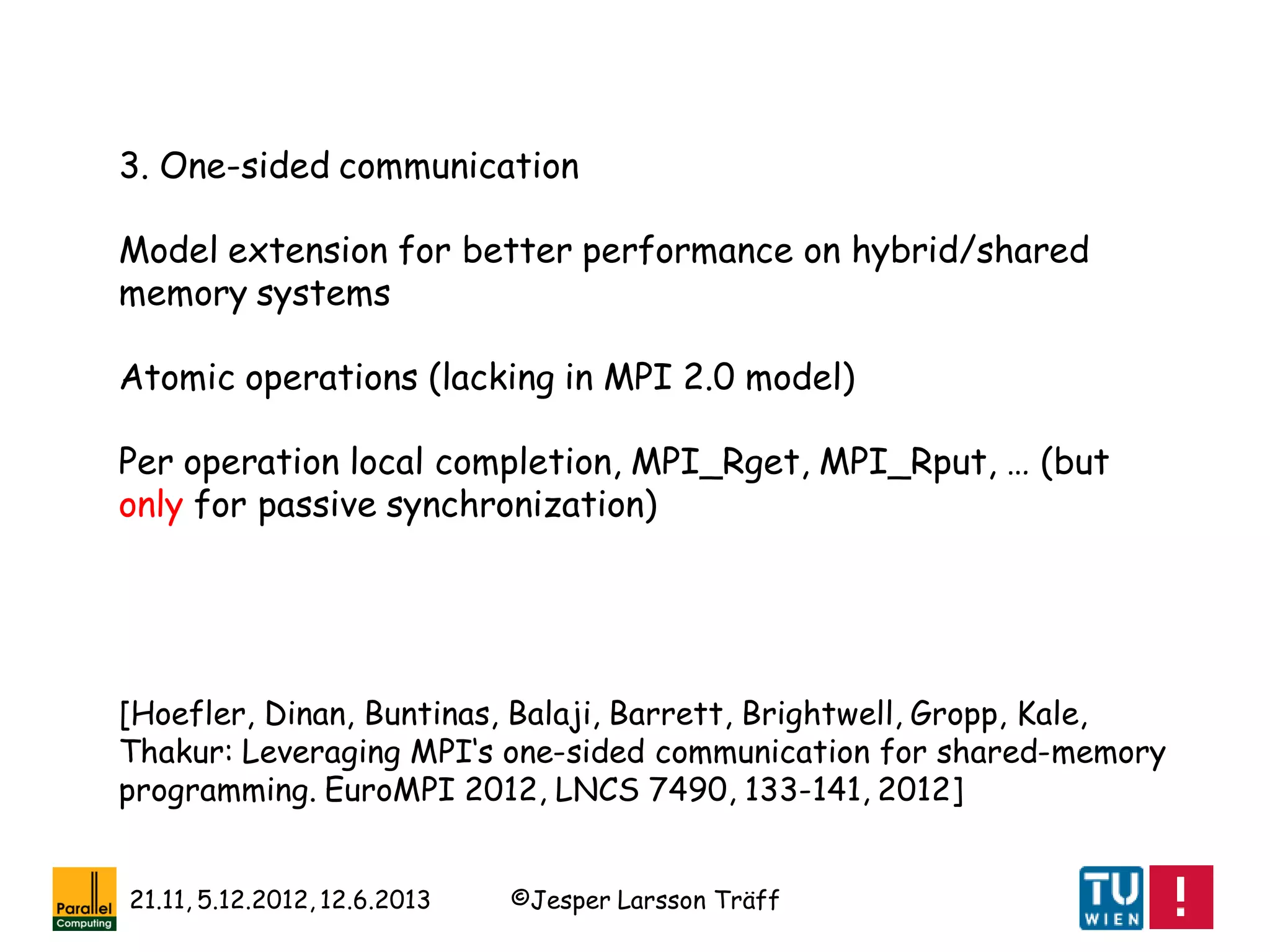

[Hoefler, Dinan, Buntinas, Balaji, Barrett, Brightwell, Gropp, Kale,
Thakur: Leveraging MPI‘s one-sided communication for shared-memory
programming. EuroMPI 2012, LNCS 7490, 133-141, 2012]
Model extension for better performance on hybrid/shared
memory systems
Atomic operations (lacking in MPI 2.0 model)
Per operation local completion, MPI_Rget, MPI_Rput, … (but
only for passive synchronization)

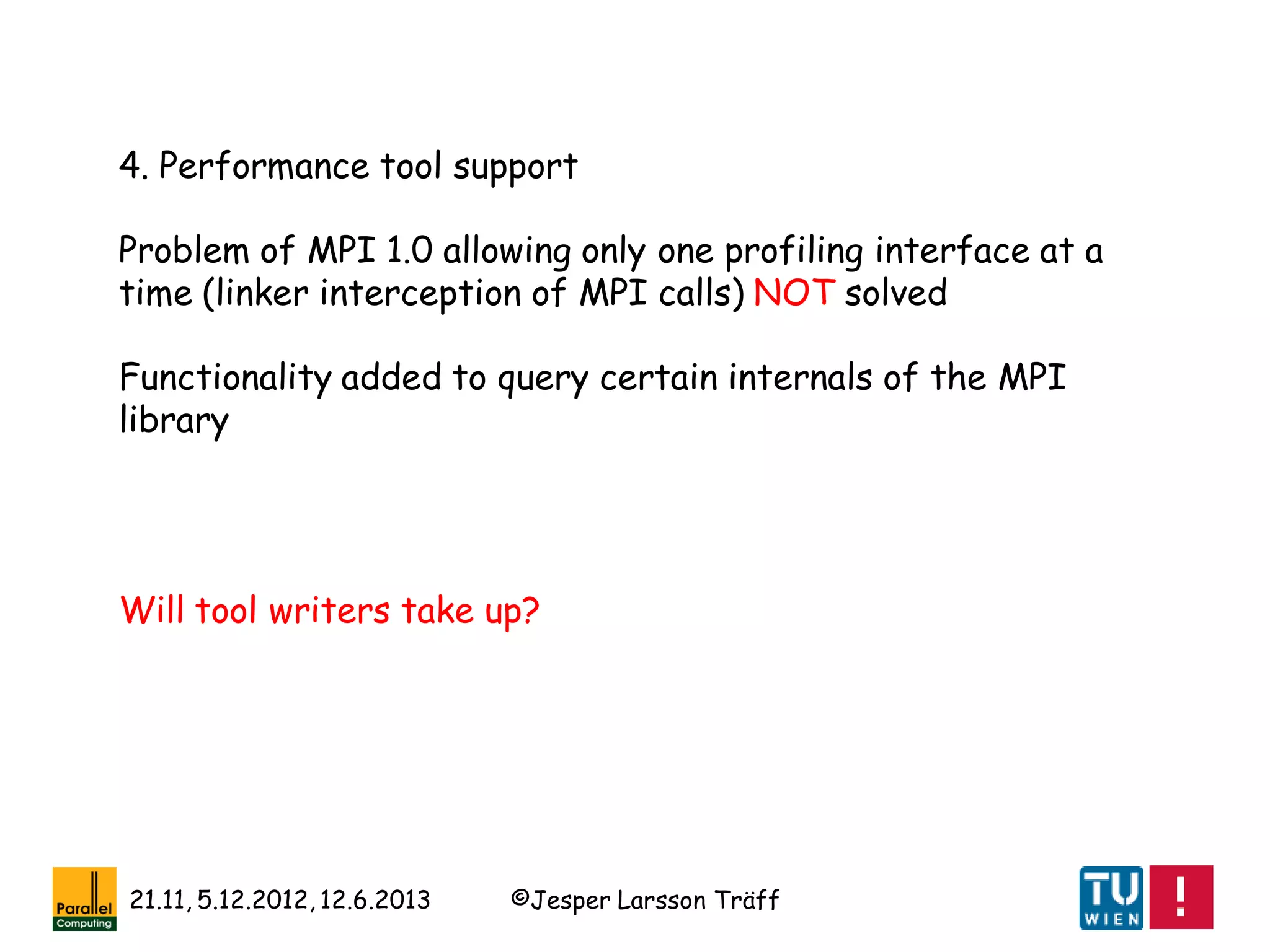

4. Performance tool support
Problem of MPI 1.0 allowing only one profiling interface at a
time (linker interception of MPI calls) NOT solved
Functionality added to query certain internals of the MPI
library
Will tool writers take up?

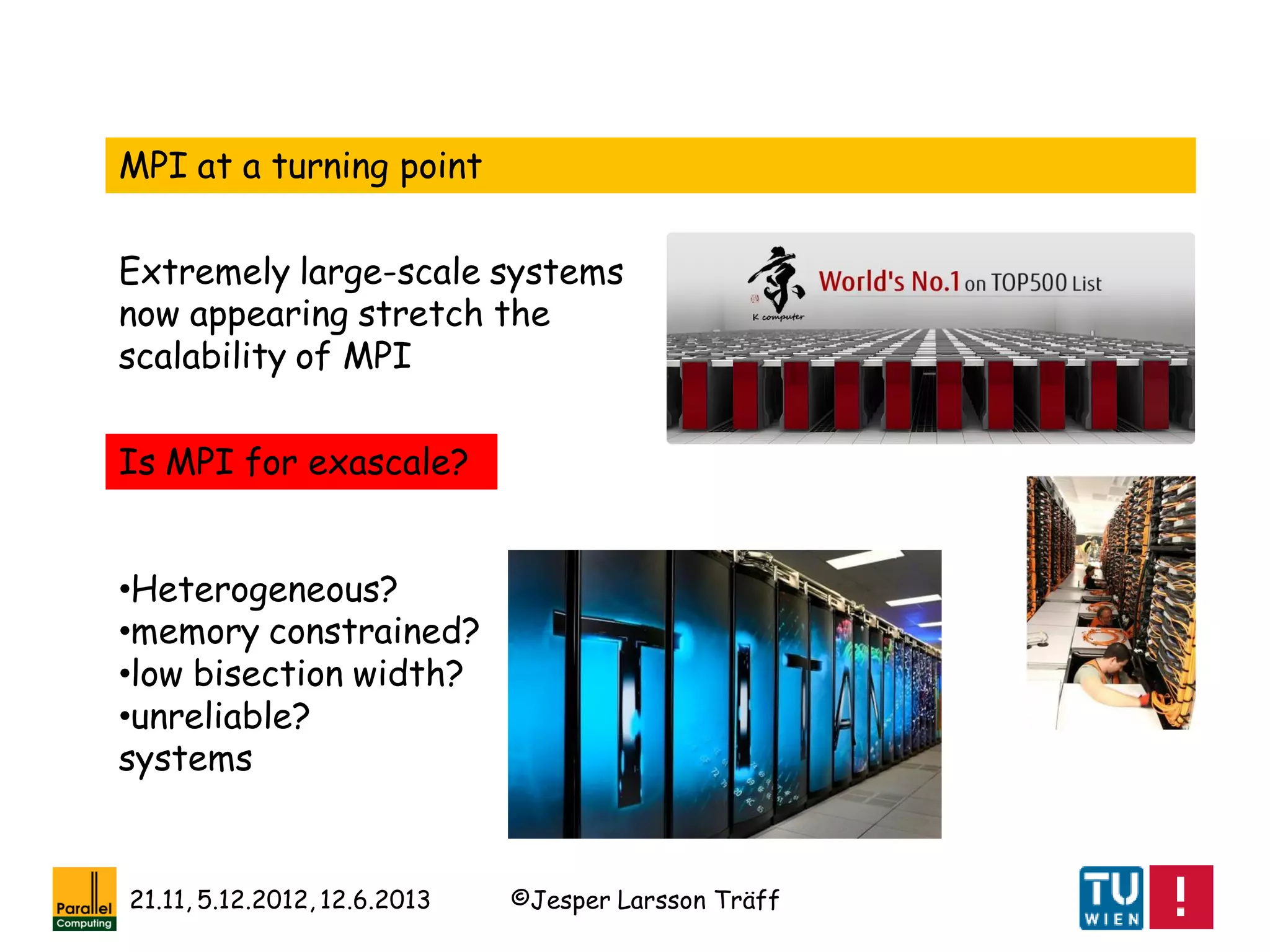

MPI at a turning point
Extremely large-scale systems
now appearing stretch the
scalability of MPI
Is MPI for exascale?
•Heterogeneous?
•memory constrained?
•low bisection width?
•unreliable?
systems

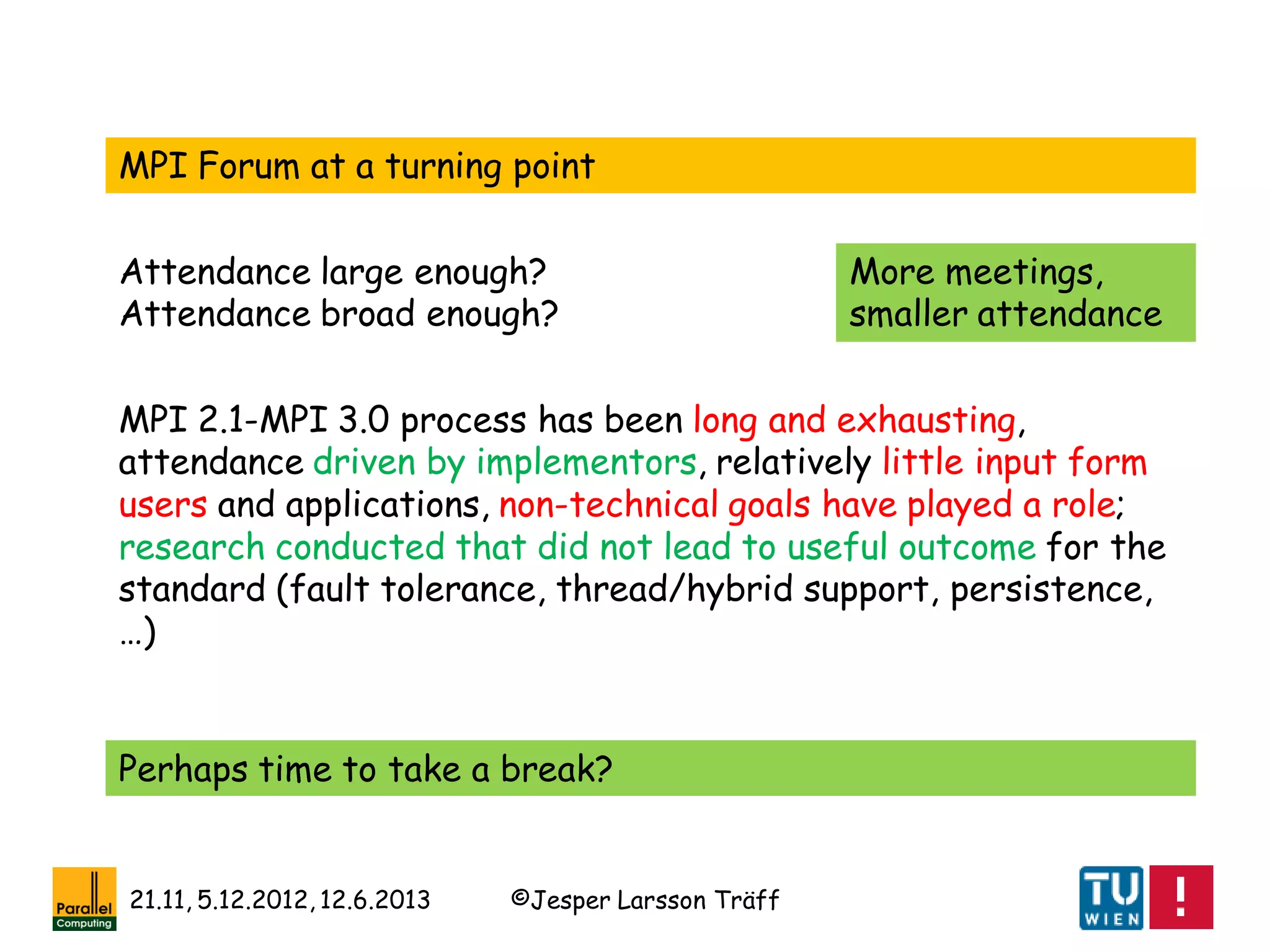

MPI Forum at a turning point
Attendance large enough?
Attendance broad enough?
MPI 2.1-MPI 3.0 process has been long and exhausting,
attendance driven by implementors, relatively little input form
users and applications, non-technical goals have played a role;
research conducted that did not lead to useful outcome for the
standard (fault tolerance, thread/hybrid support, persistence,
…)
Perhaps time to take a break?
More meetings,
smaller attendance

MPI 2.2
YES 24
NO 1
ABSTAIN 0
MISSED 0
Passed
September 2-4, 2009
MPI 2.1 first
YES 22
NO 0
ABSTAIN 0
MISSED 0
Passed
June 30-July 2, 2008
MPI 3.0
YES 17
NO/ABSTAIN 0/0
Passed
MPI 2.1 second
YES 23
NO 0
ABSTAIN 0
MISSED 0
Passed
MPI 1.3 second
YES 22
NO 1
ABSTAIN 0
MISSED 0
Passed
September 3-5, 2008

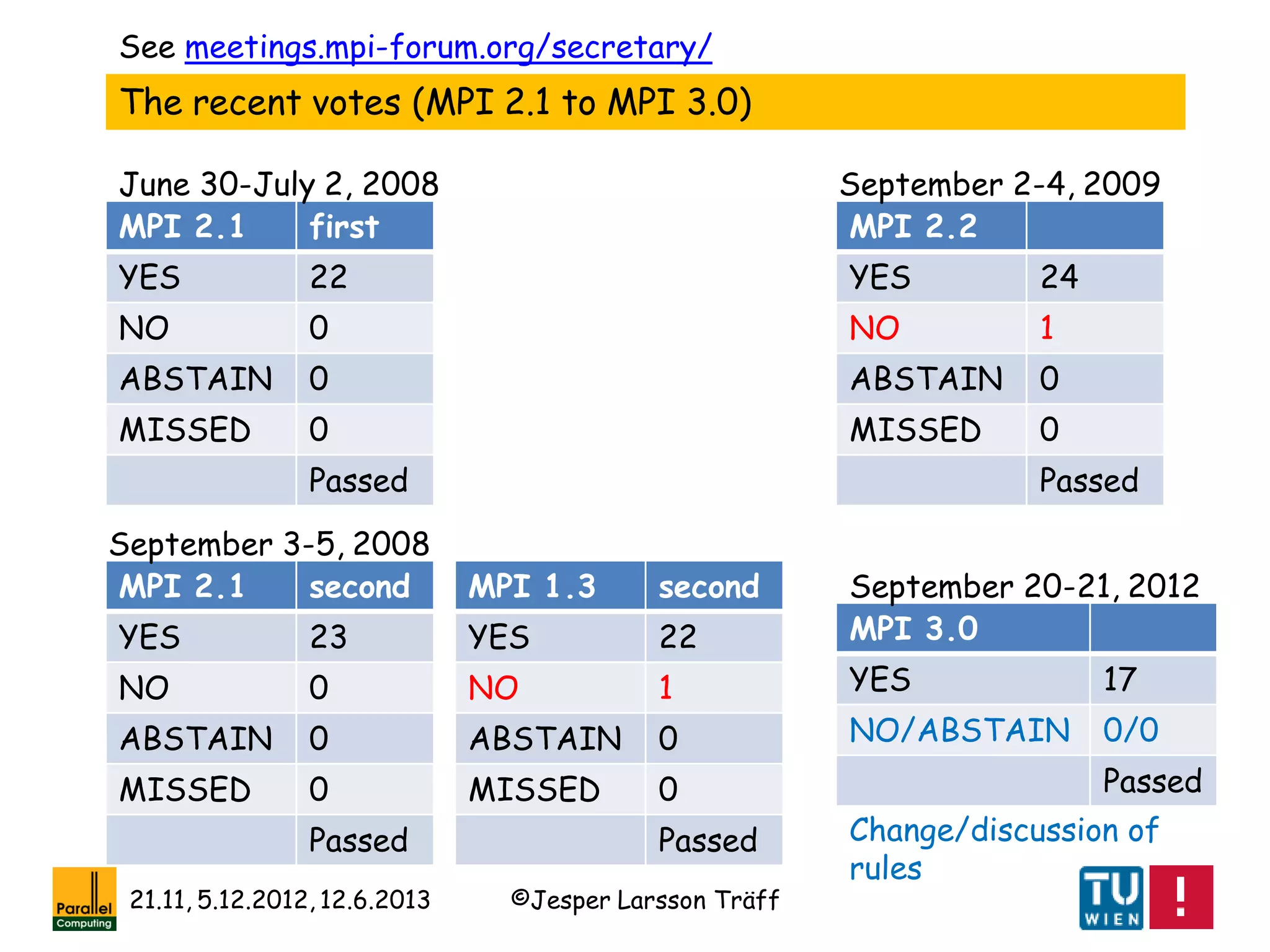

The recent votes (MPI 2.1 to MPI 3.0)
September 20-21, 2012
Change/discussion of
rules
See meetings.mpi-forum.org/secretary/

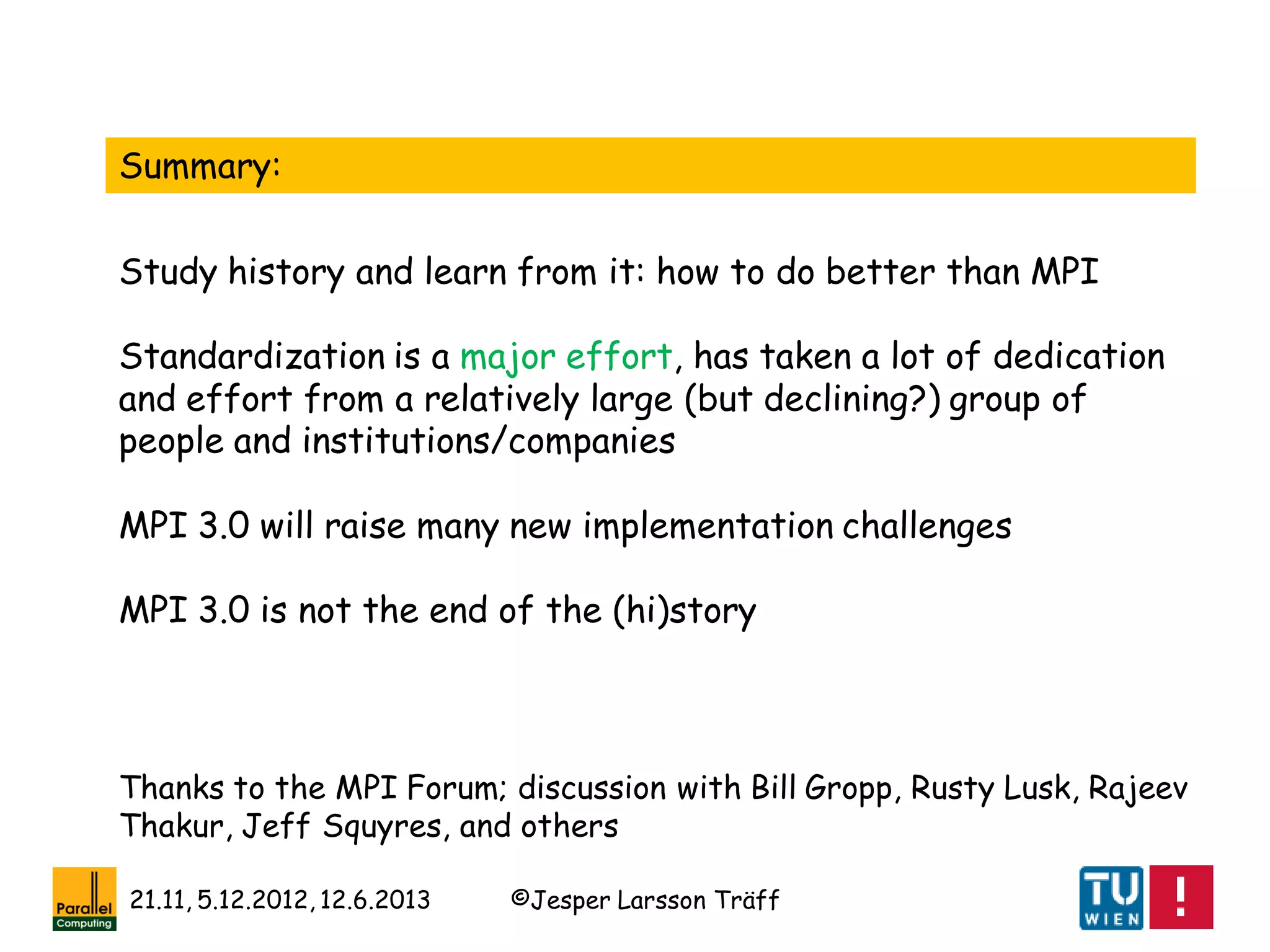

Summary:
Study history and learn from it: how to do better than MPI
Standardization is a major effort, has taken a lot of dedication
and effort from a relatively large (but declining?) group of
people and institutions/companies
MPI 3.0 will raise many new implementation challenges
MPI 3.0 is not the end of the (hi)story
Thanks to the MPI Forum; discussion with Bill Gropp, Rusty Lusk, Rajeev
Thakur, Jeff Squyres, and others

MPI History

More Related Content

What's hot

Similar to MPI History

More from Jeff Squyres

Recently uploaded

MPI History
