  GC-stall and PageScan Attacks by Linux Cuong Tran LinkedIn Performance Group
• 2.
  Agenda • GC attacksby Linux • Page scan attacks by Linux • Recommendations
• 3.

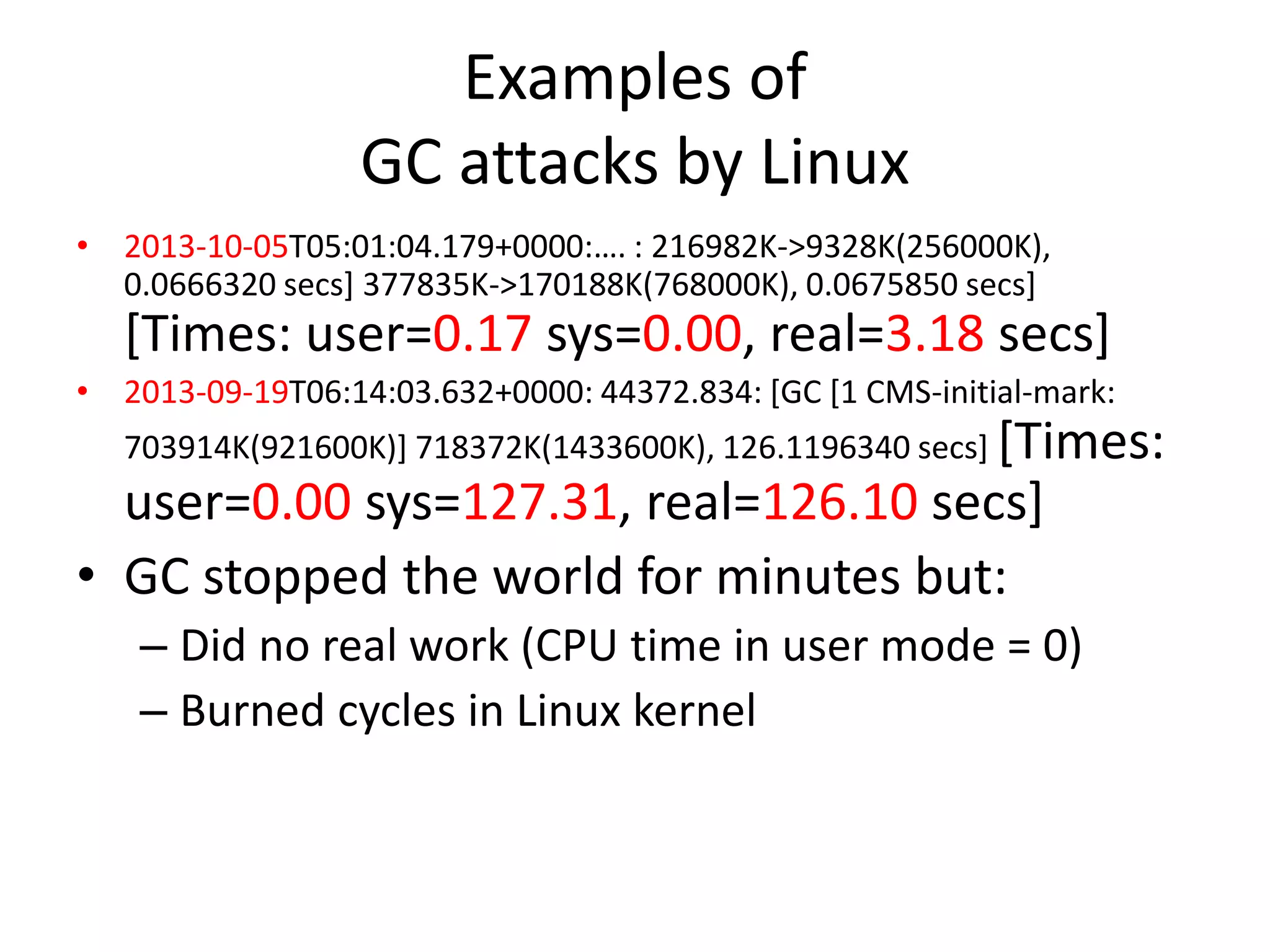

  Examples of GC attacksby Linux • 2013-10-05T05:01:04.179+0000:…. : 216982K>9328K(256000K), 0.0666320 secs] 377835K- >170188K(768000K), 0.0675850 secs] [Times: user=0.17 sys=0.00, real=3.18 secs] • 2013-09-19T06:14:03.632+0000: 44372.834: [GC [1 CMS-initial-mark: 703914K(921600K)] 718372K(1433600K), 126.1196340 secs] [Times: user=0.00 sys=127.31, real=126.10 secs] • GC stopped the world for minutes but: – Did no real work (CPU time in user mode = 0) – Burned cycles in Linux kernel
• 4.

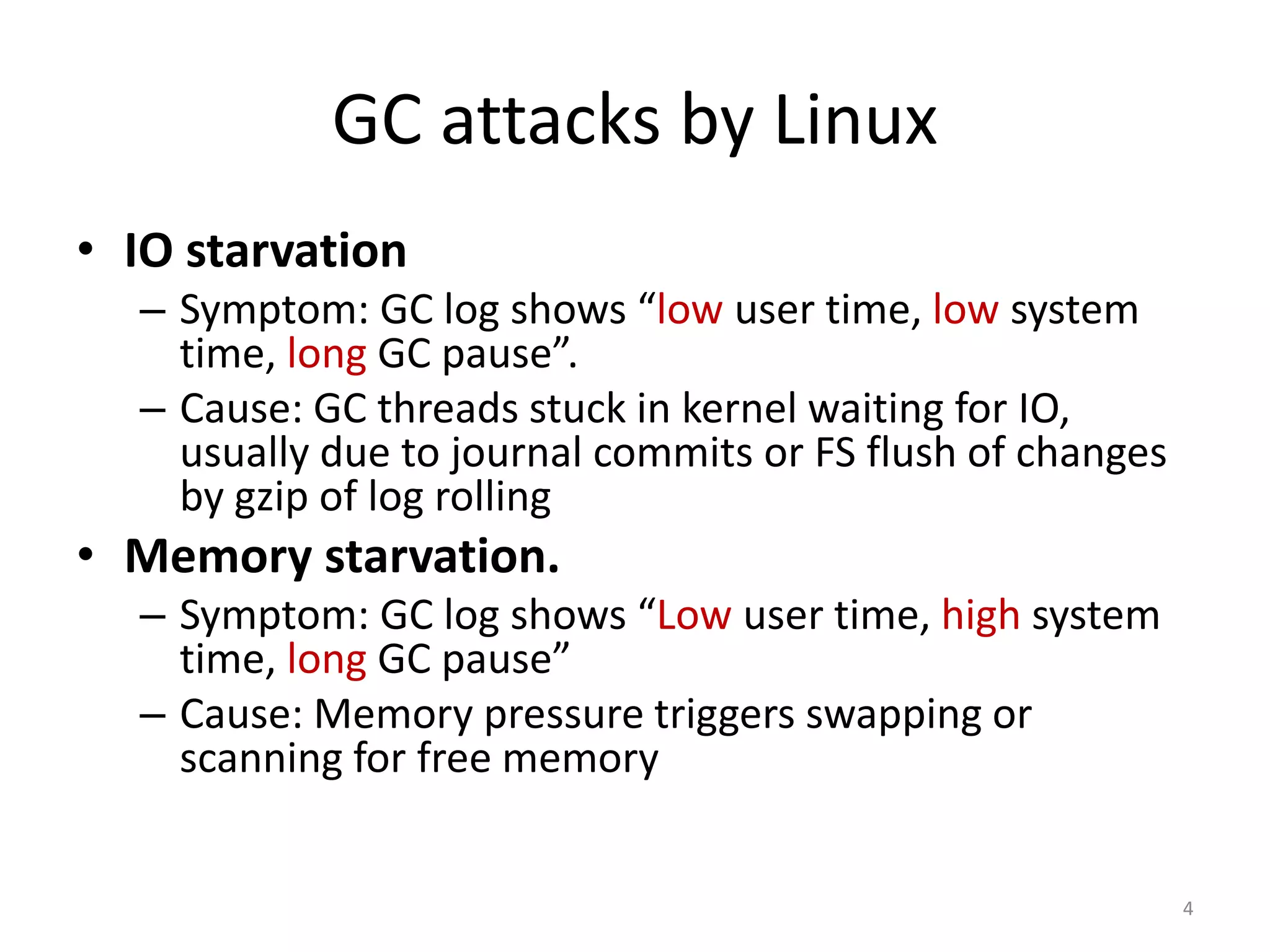

  GC attacks byLinux • IO starvation – Symptom: GC log shows “low user time, low system time, long GC pause”. – Cause: GC threads stuck in kernel waiting for IO, usually due to journal commits or FS flush of changes by gzip of log rolling • Memory starvation. – Symptom: GC log shows “Low user time, high system time, long GC pause” – Cause: Memory pressure triggers swapping or scanning for free memory 4
• 5.

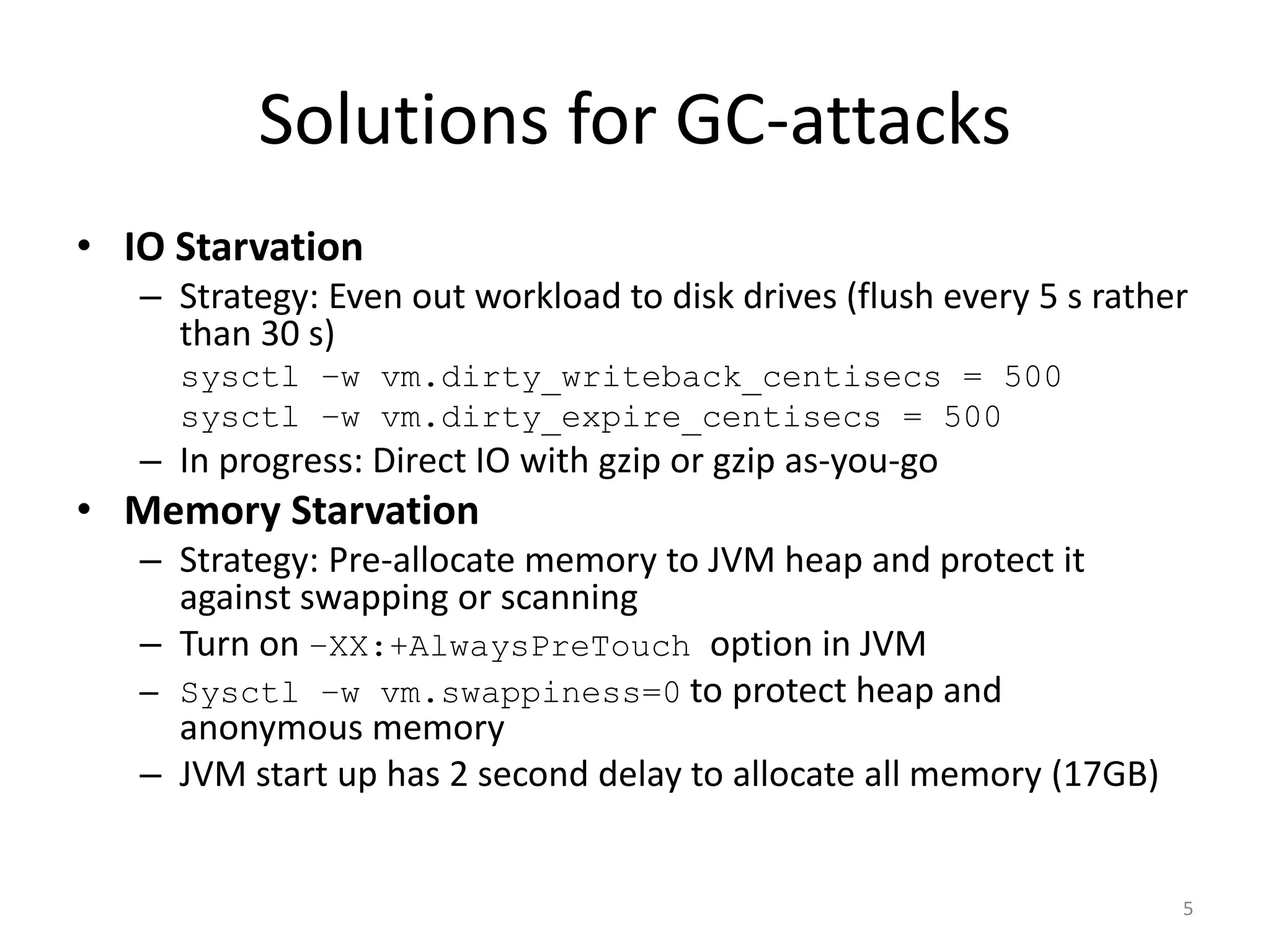

  Solutions for GC-attacks •IO Starvation – Strategy: Even out workload to disk drives (flush every 5 s rather than 30 s) sysctl –w vm.dirty_writeback_centisecs = 500 sysctl –w vm.dirty_expire_centisecs = 500 – In progress: Direct IO with gzip or gzip as-you-go • Memory Starvation – Strategy: Pre-allocate memory to JVM heap and protect it against swapping or scanning – Turn on –XX:+AlwaysPreTouch option in JVM – Sysctl –w vm.swappiness=0 to protect heap and anonymous memory – JVM start up has 2 second delay to allocate all memory (17GB) 5
• 6.

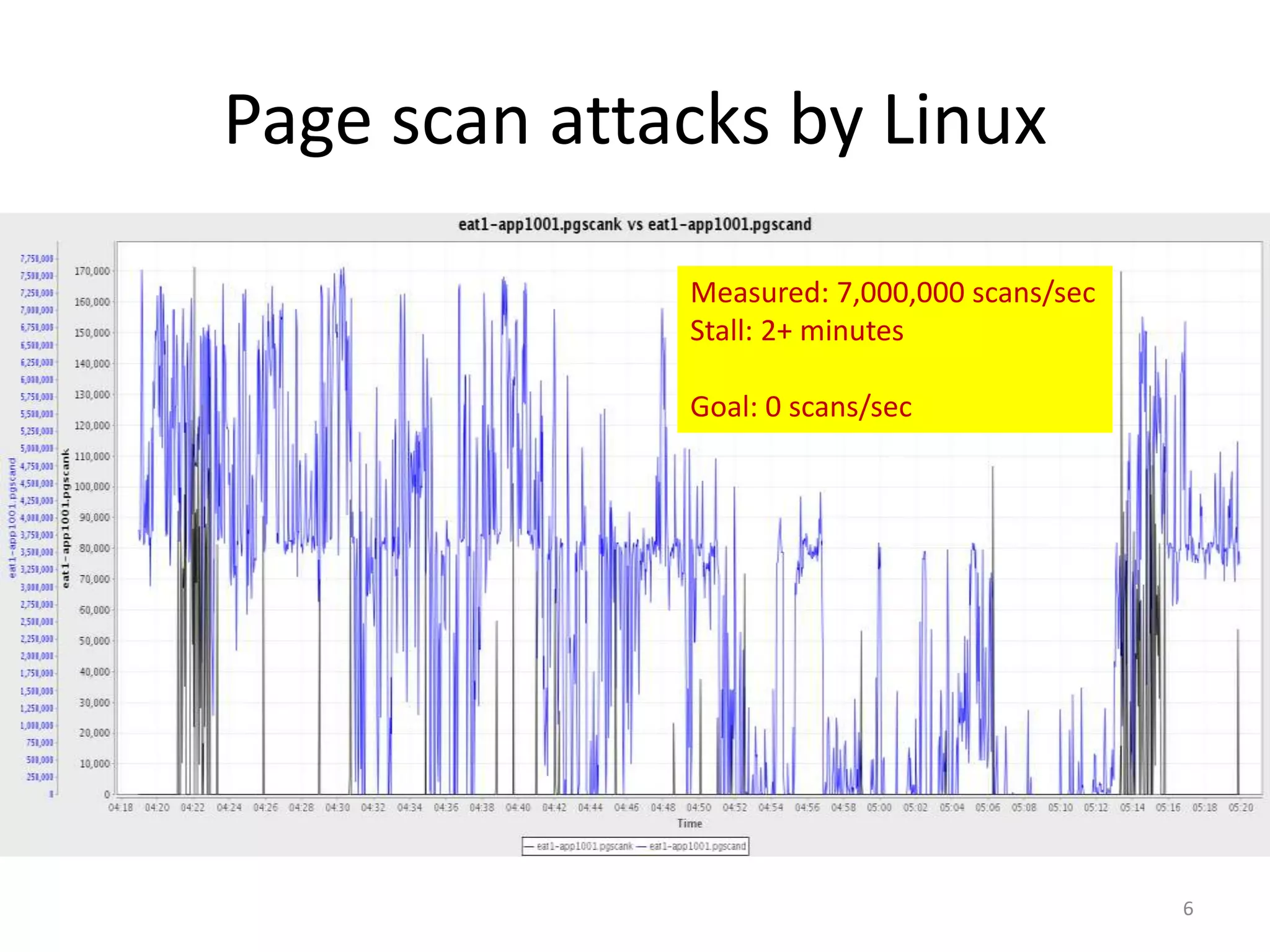

  Page scan attacksby Linux Measured: 7,000,000 scans/sec Stall: 2+ minutes Goal: 0 scans/sec 6
• 7.

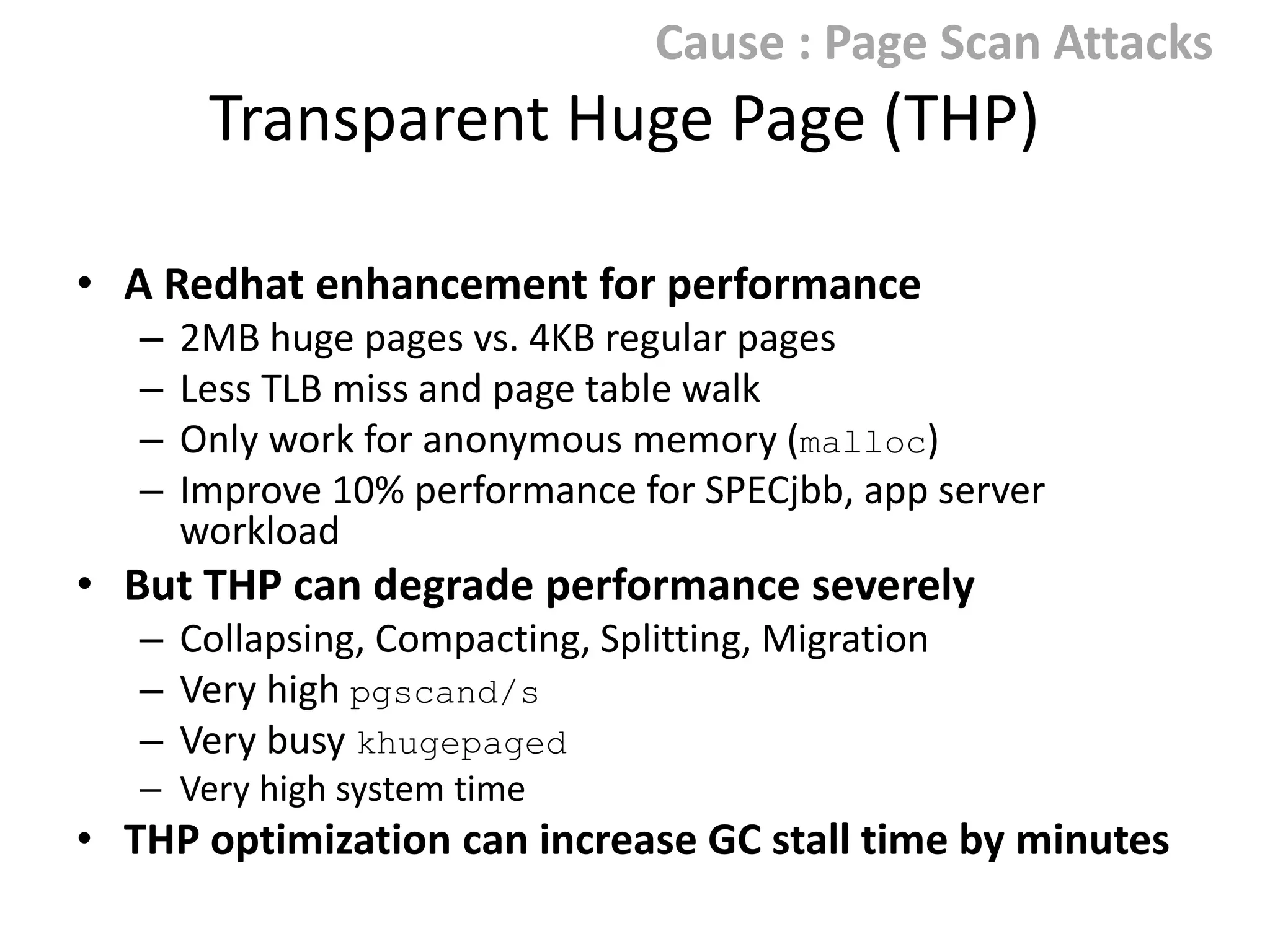

  Cause : PageScan Attacks Transparent Huge Page (THP) • A Redhat enhancement for performance – – – – 2MB huge pages vs. 4KB regular pages Less TLB miss and page table walk Only work for anonymous memory (malloc) Improve 10% performance for SPECjbb, app server workload • But THP can degrade performance severely – Collapsing, Compacting, Splitting, Migration – Very high pgscand/s – Very busy khugepaged – Very high system time when process compacts memory or khugepaged runs • THP optimization can increase GC stall time by minutes
• 8.

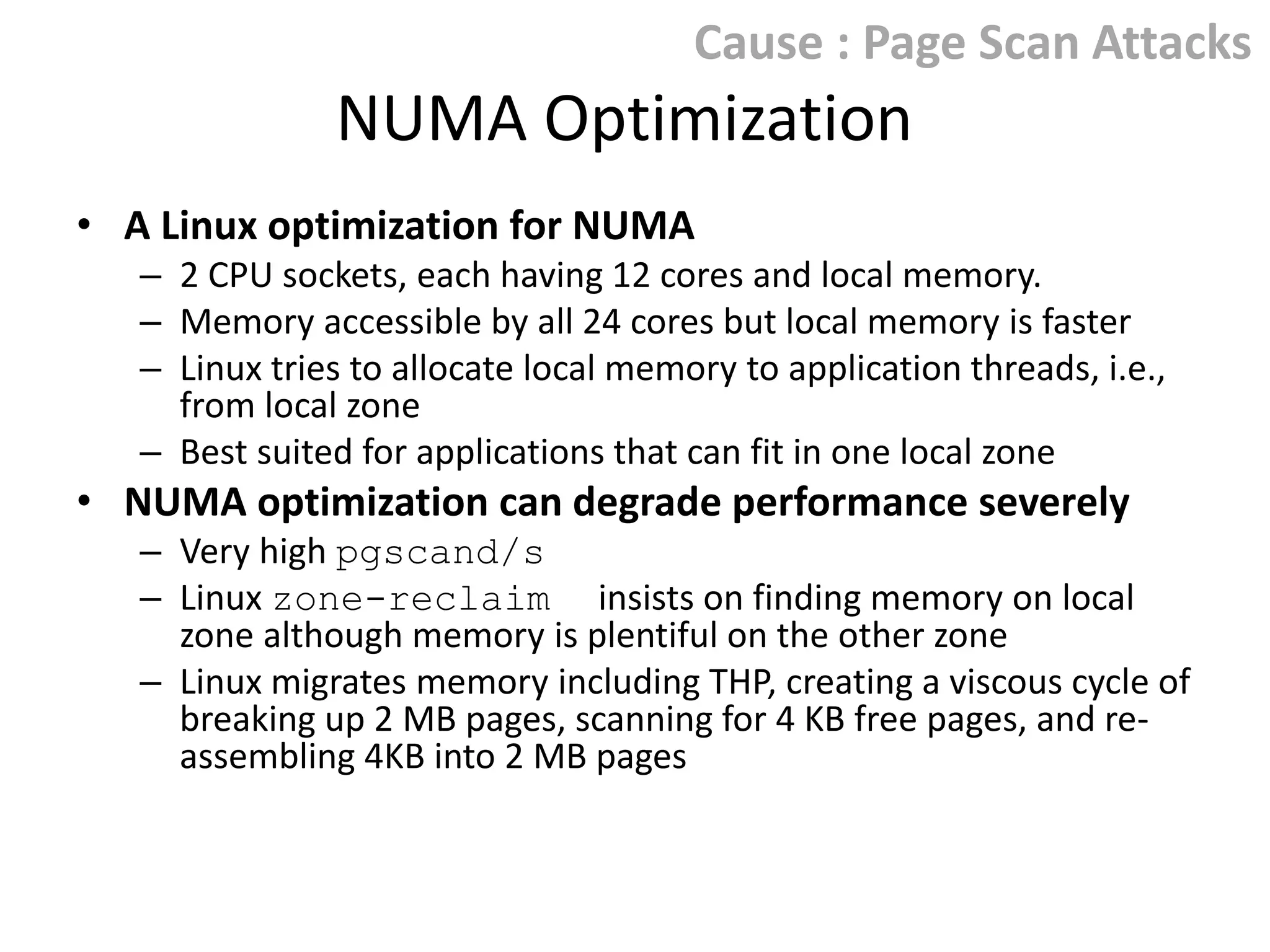

  Cause : PageScan Attacks NUMA Optimization • A Linux optimization for NUMA – 2 CPU sockets, each having 12 cores and local memory. – Memory accessible by all 24 cores but local memory is faster – Linux tries to allocate local memory to application threads, i.e., from local zone – Best suited for applications that can fit in one local zone • NUMA optimization can degrade performance severely – Very high pgscand/s – Linux zone-reclaim insists on finding memory on local zone although memory is plentiful on the other zone – Linux migrates memory including THP, creating a viscous cycle of breaking up 2 MB pages, scanning for 4 KB free pages, and reassembling 4KB into 2 MB pages
• 9.

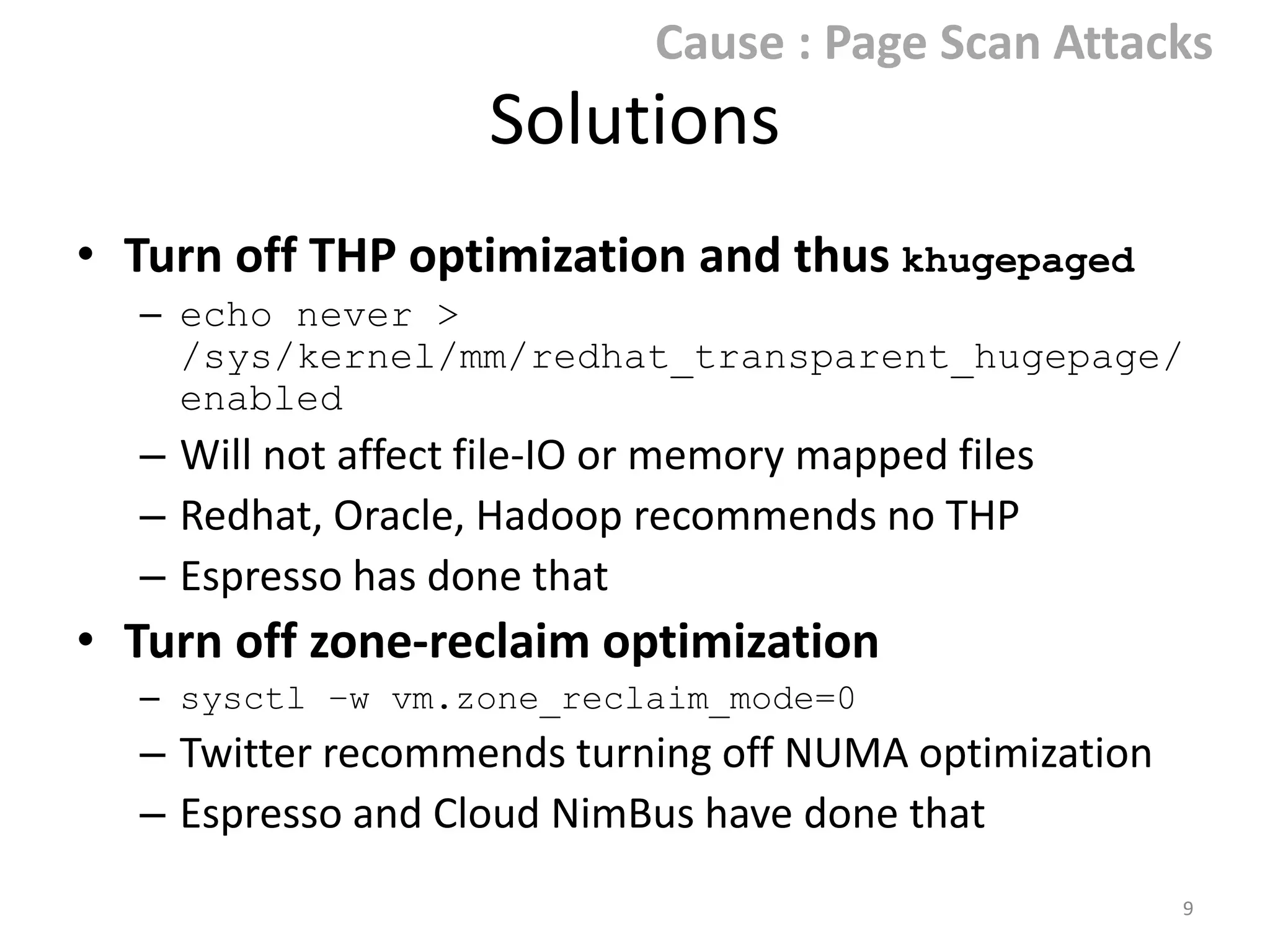

  Cause : PageScan Attacks Solutions • Turn off THP optimization and thus khugepaged – echo never > /sys/kernel/mm/redhat_transparent_hugepa ge/enabled – Will not affect file-IO or memory mapped files – Redhat, Oracle, Hadoop recommends no THP • Turn off zone-reclaim optimization – sysctl –w vm.zone_reclaim_mode=0 – Twitter recommends NUMA interleaving 9
• 10.

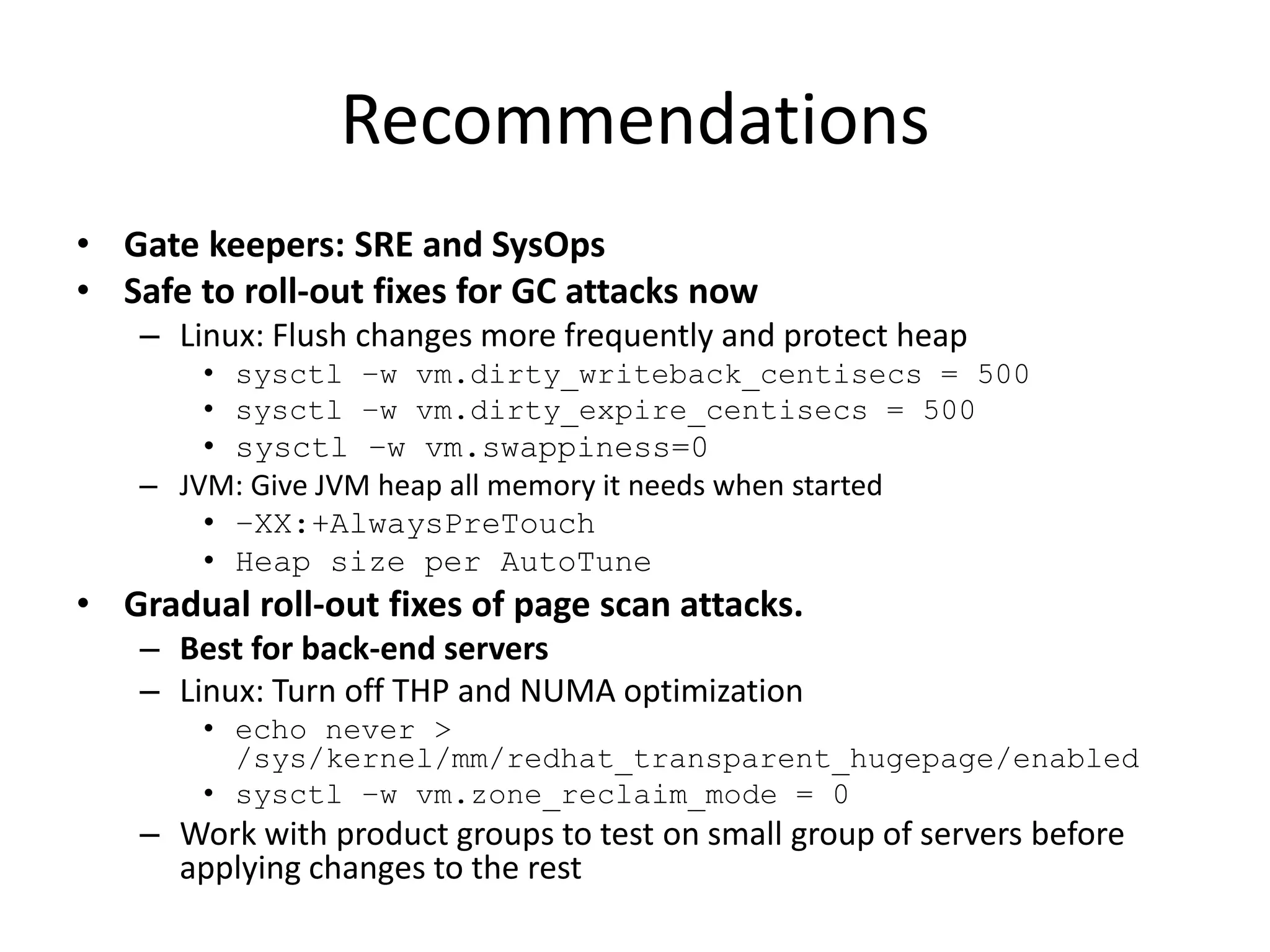

  Recommendations • Gate keepers:SRE and SysOps • Safe to roll-out fixes for GC attacks now – Linux: Flush changes more frequently and protect heap • sysctl –w vm.dirty_writeback_centisecs = 500 • sysctl –w vm.dirty_expire_centisecs = 500 • sysctl –w vm.swappiness=0 – JVM: Give JVM heap all memory it needs when started • –XX:+AlwaysPreTouch • Heap size per AutoTune • Gradual roll-out fixes of page scan attacks. – Best for back-end servers – Linux: Turn off THP and NUMA optimization • echo never > /sys/kernel/mm/redhat_transparent_hugepage/enabled • sysctl –w vm.zone_reclaim_mode = 0 – Work with product groups to test on small group of servers before applying changes to the rest
