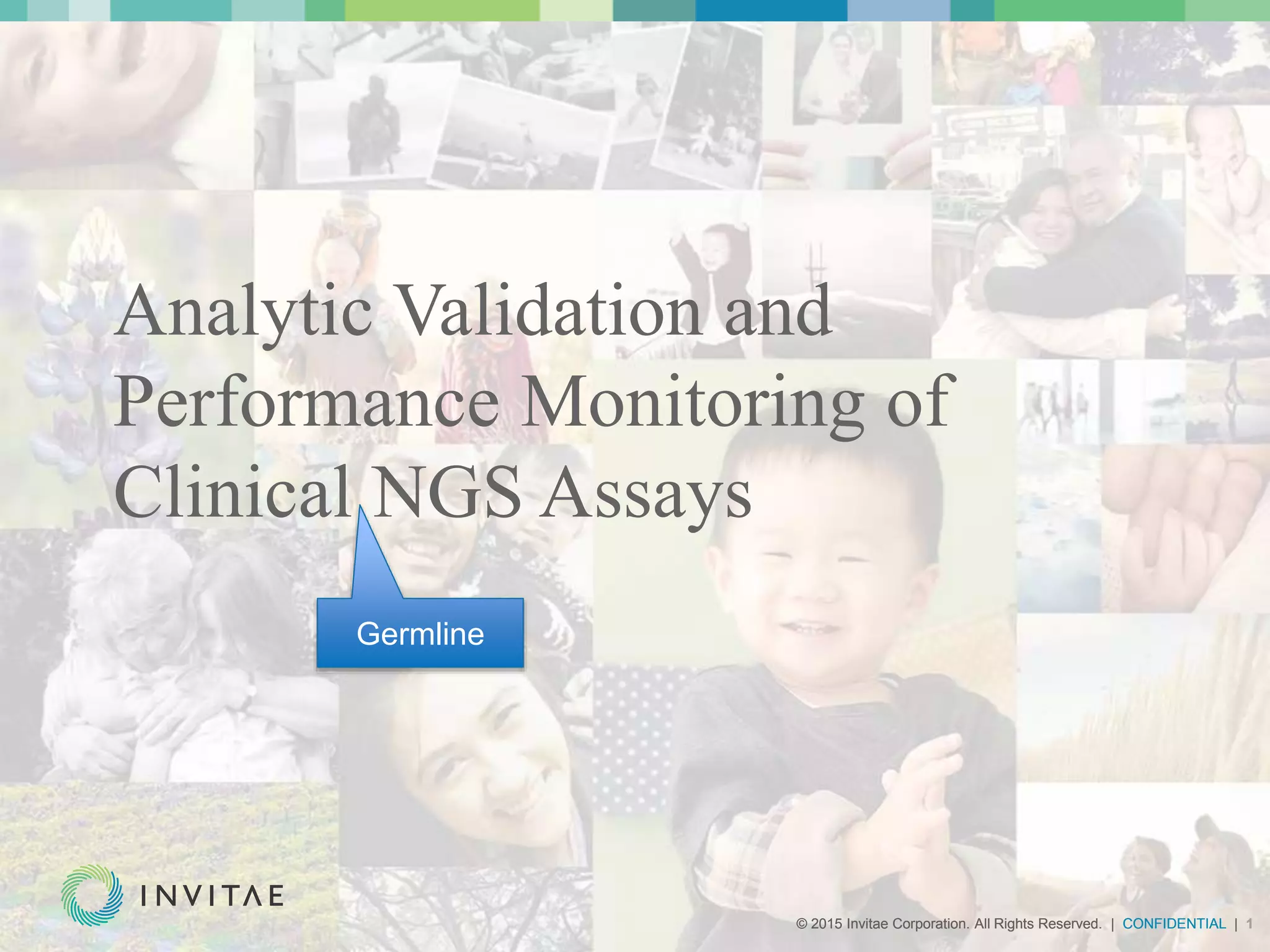

Analytic Validation and
Performance Monitoring of
Clinical NGS Assays
Germline

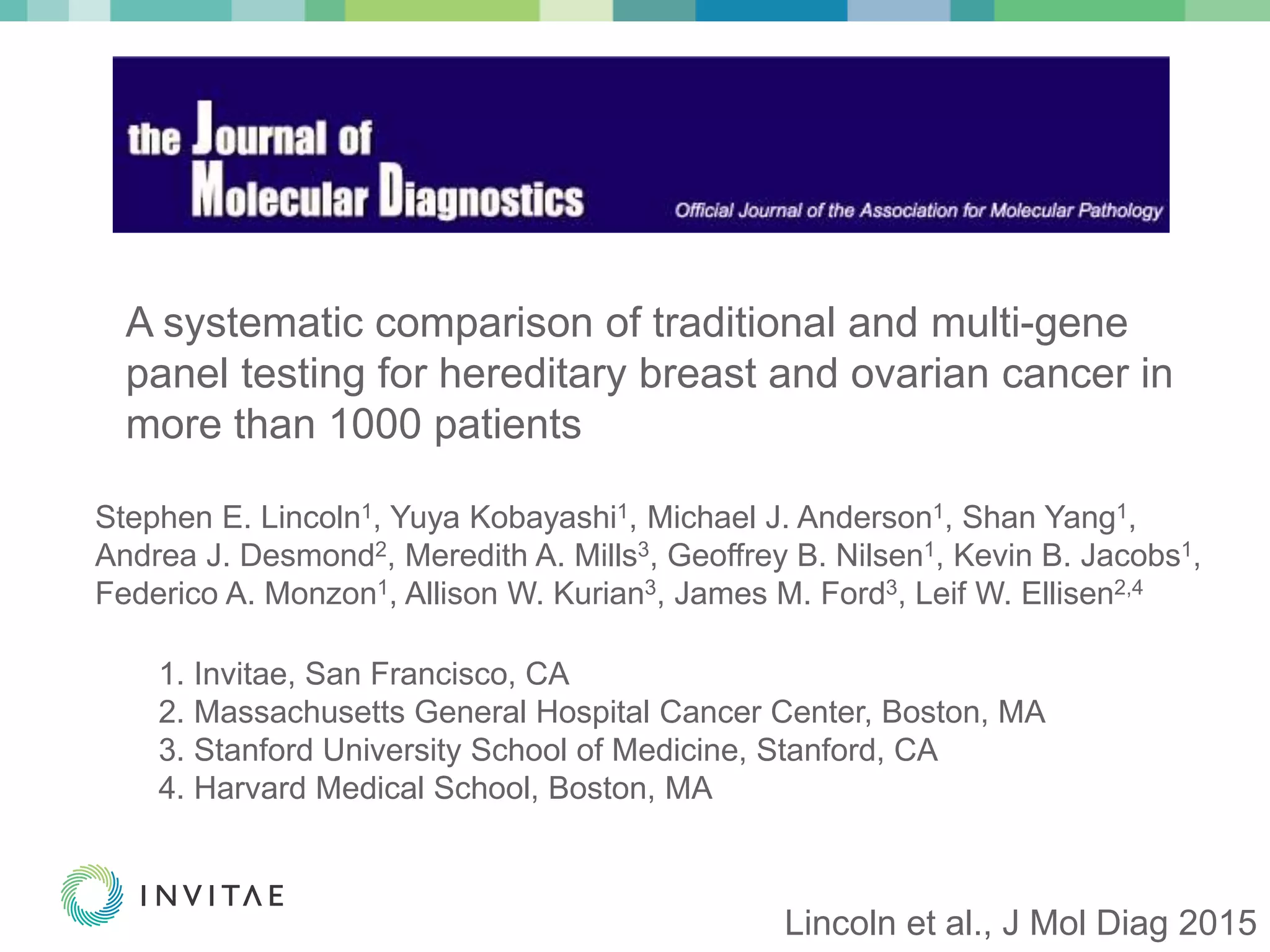

A systematic comparison of traditional and multi-gene
panel testing for hereditary breast and ovarian cancer in
more than 1000 patients
Stephen E. Lincoln1, Yuya Kobayashi1, Michael J. Anderson1, Shan Yang1,
Andrea J. Desmond2, Meredith A. Mills3, Geoffrey B. Nilsen1, Kevin B. Jacobs1,
Federico A. Monzon1, Allison W. Kurian3, James M. Ford3, Leif W. Ellisen2,4
1. Invitae, San Francisco, CA
2. Massachusetts General Hospital Cancer Center, Boston, MA
3. Stanford University School of Medicine, Stanford, CA
4. Harvard Medical School, Boston, MA
Lincoln et al., J Mol Diag 2015

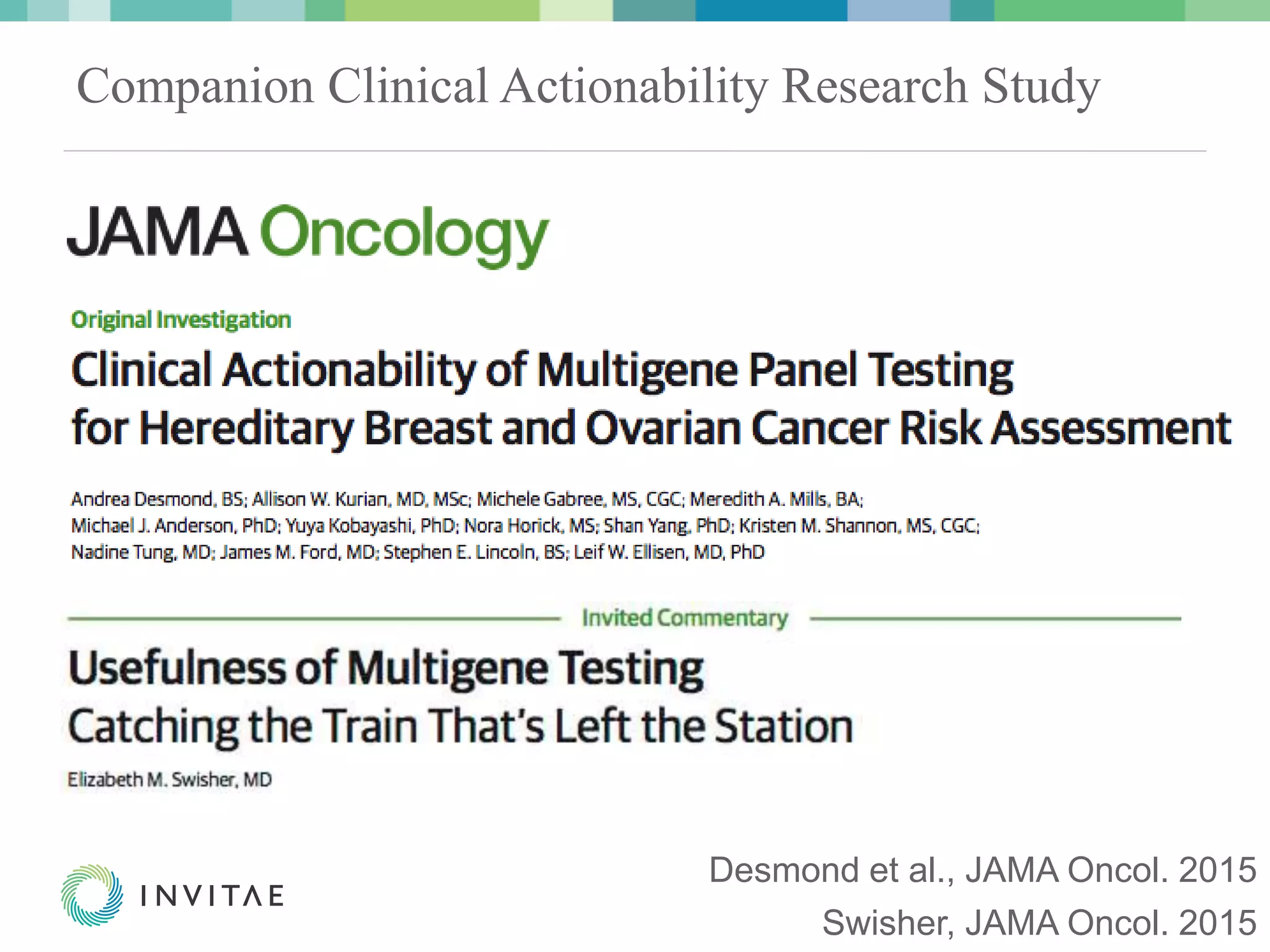

Companion Clinical Actionability Research Study
Desmond et al., JAMA Oncol. 2015
Swisher, JAMA Oncol. 2015

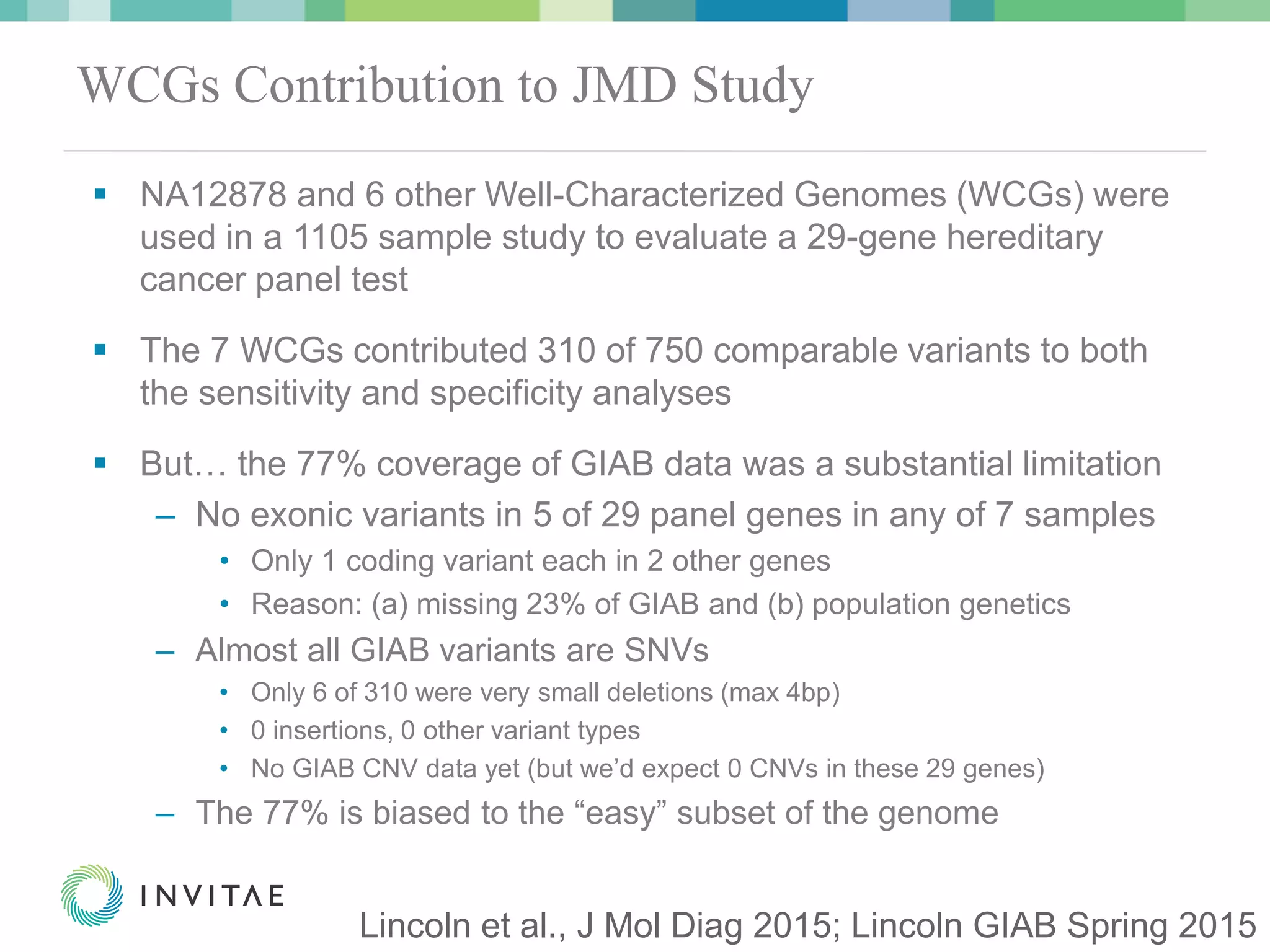

 NA12878 and 6 other Well-Characterized Genomes (WCGs) were
used in a 1105 sample study to evaluate a 29-gene hereditary
cancer panel test
 The 7 WCGs contributed 310 of 750 comparable variants to both
the sensitivity and specificity analyses
 But… the 77% coverage of GIAB data was a substantial limitation
– No exonic variants in 5 of 29 panel genes in any of 7 samples
• Only 1 coding variant each in 2 other genes
• Reason: (a) missing 23% of GIAB and (b) population genetics
– Almost all GIAB variants are SNVs
• Only 6 of 310 were very small deletions (max 4bp)
• 0 insertions, 0 other variant types
• No GIAB CNV data yet (but we’d expect 0 CNVs in these 29 genes)
– The 77% is biased to the “easy” subset of the genome
WCGs Contribution to JMD Study
Lincoln et al., J Mol Diag 2015; Lincoln GIAB Spring 2015

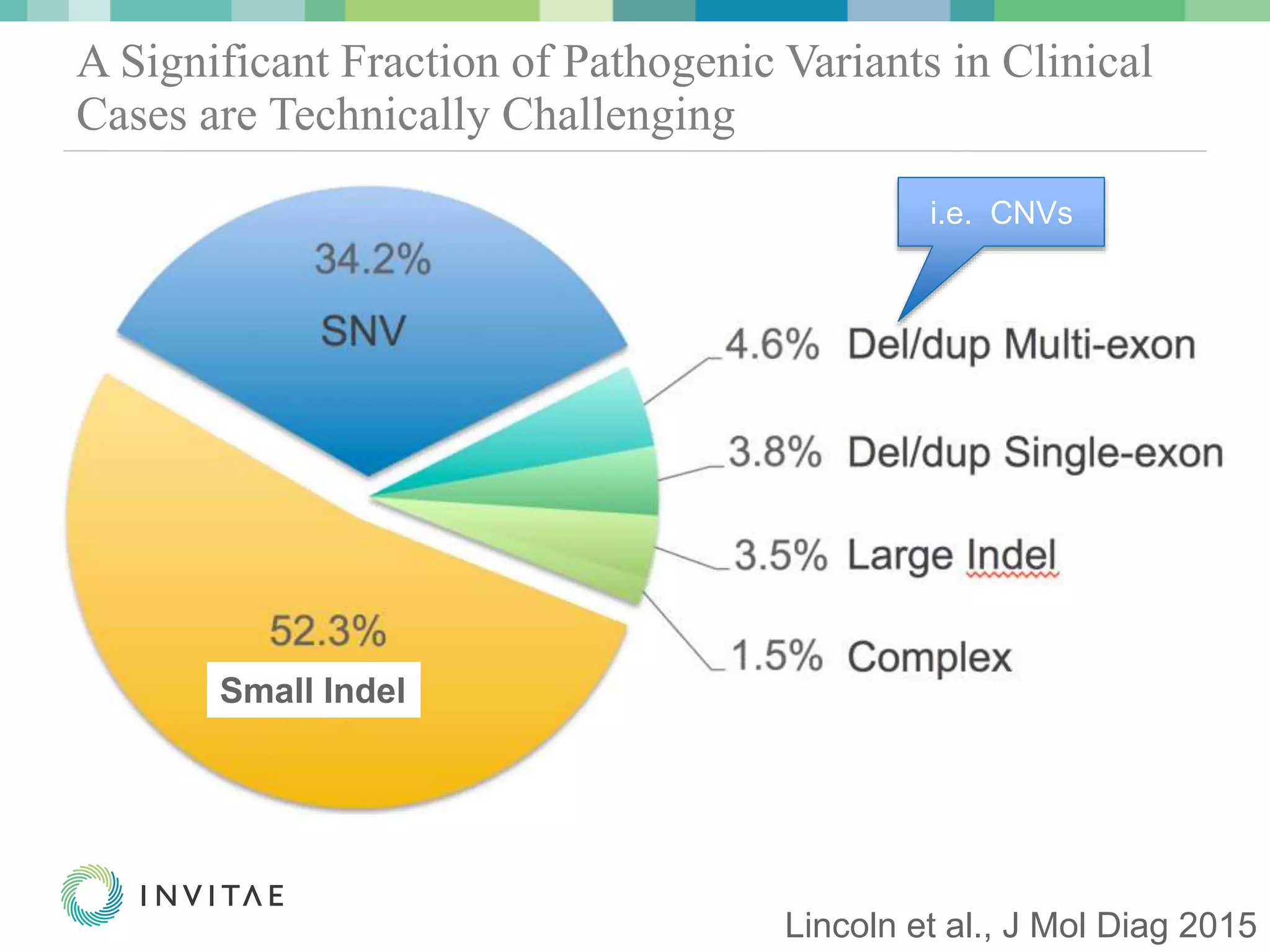

A Significant Fraction of Pathogenic Variants in Clinical
Cases are Technically Challenging
Pathogenic and likely pathogenic variants (n=260) among the
clinical cases (n=1062) by variant type:
Lincoln et al., J Mol Diag 2015
Small Indel
i.e. CNVs

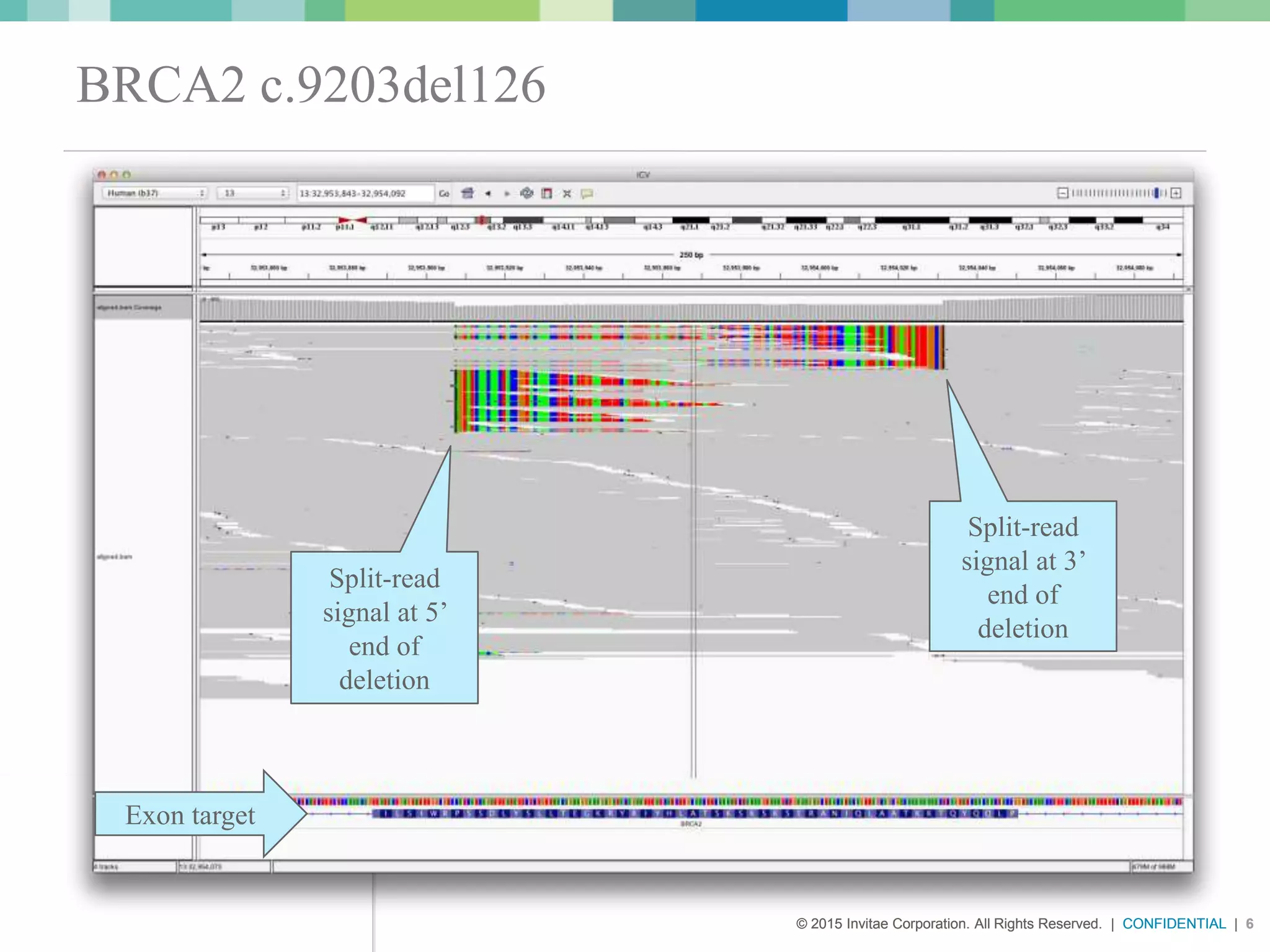

BRCA2 c.9203del126
Split-read
signal at 3’
end of
deletion
Split-read
signal at 5’
end of
deletion
Exon target

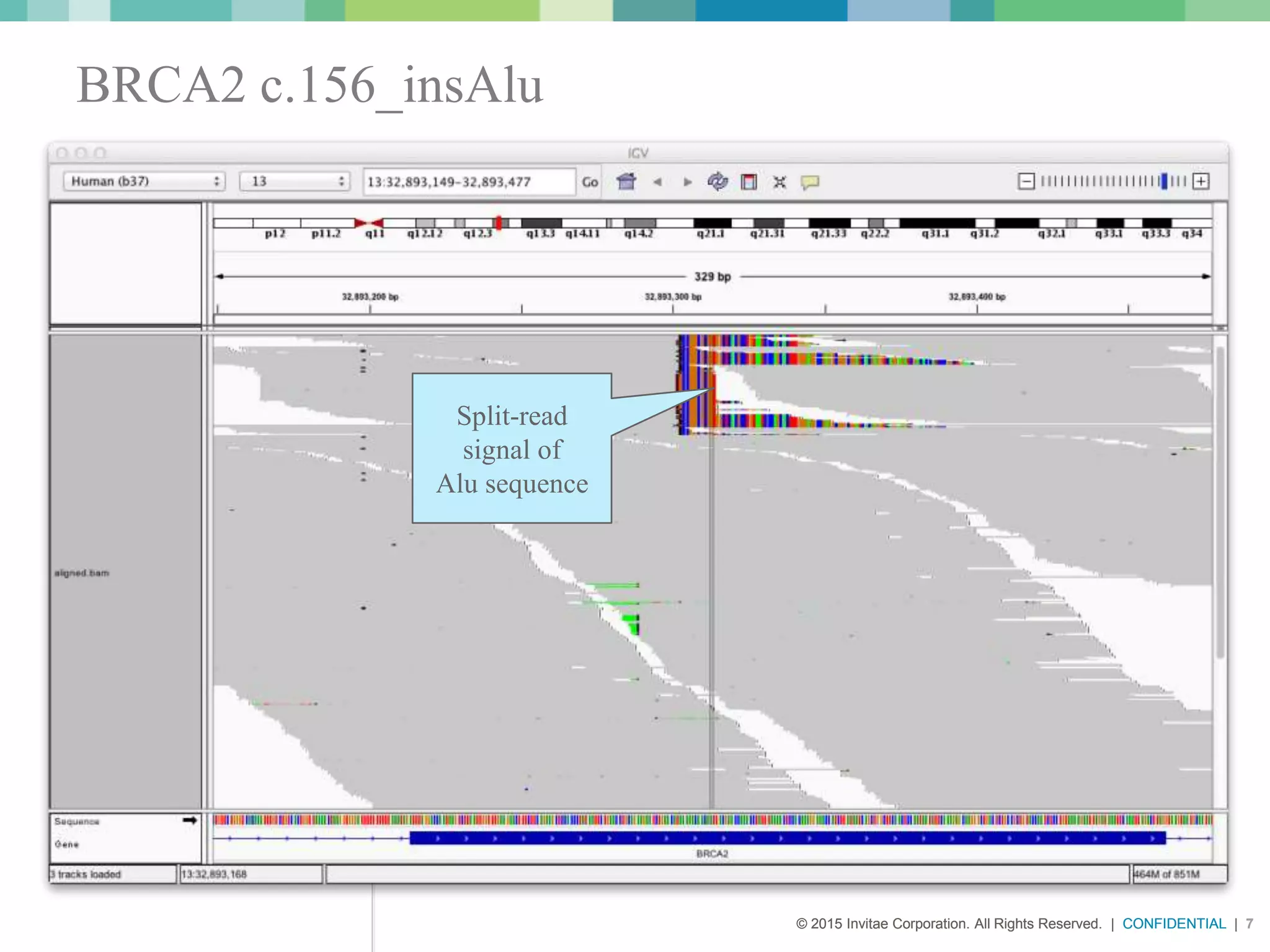

BRCA2 c.156_insAlu
Split-read
signal of
Alu sequence

 Get IGV

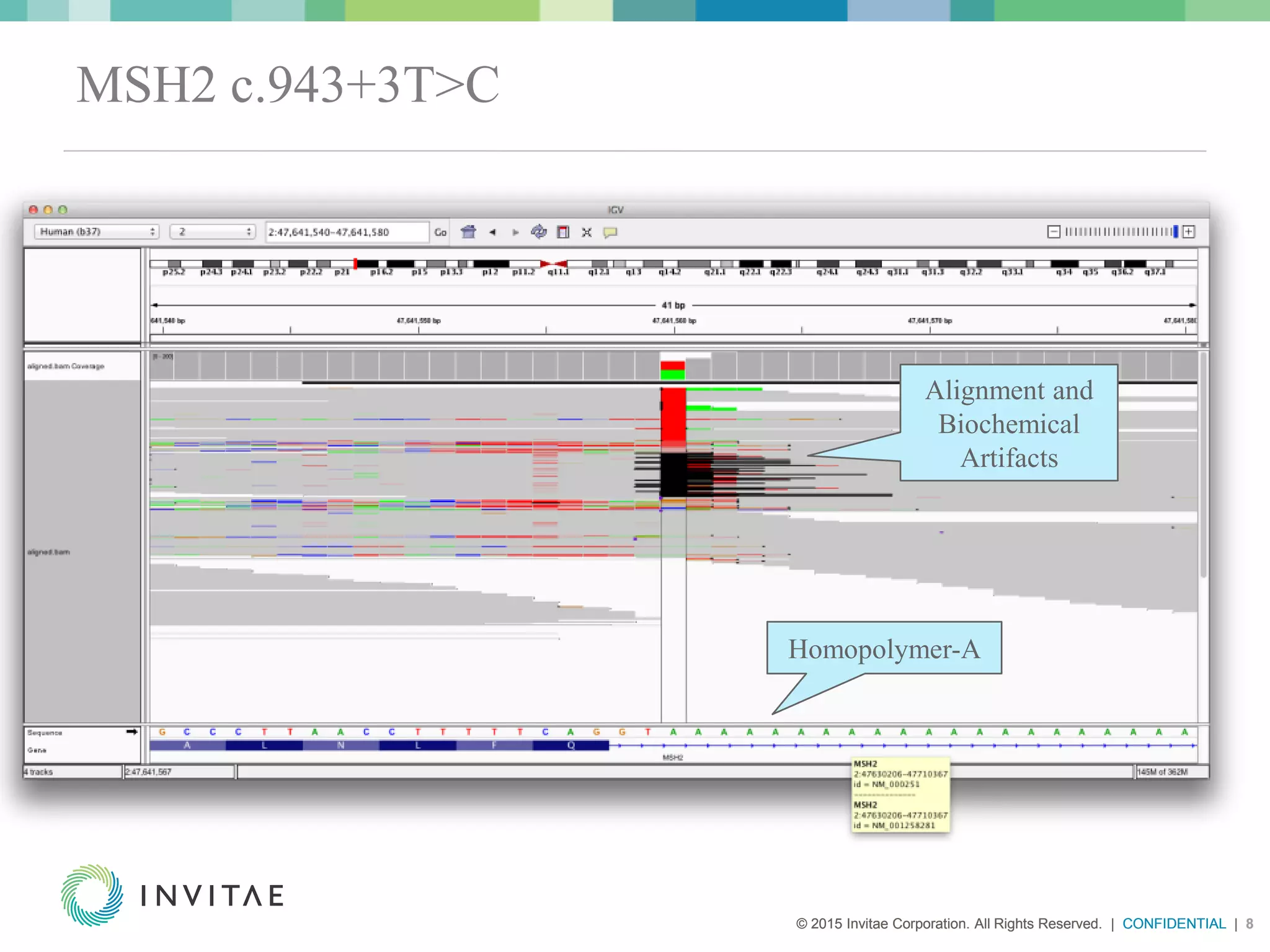

MSH2 c.943+3T>C
Homopolymer-A
Alignment and
Biochemical
Artifacts

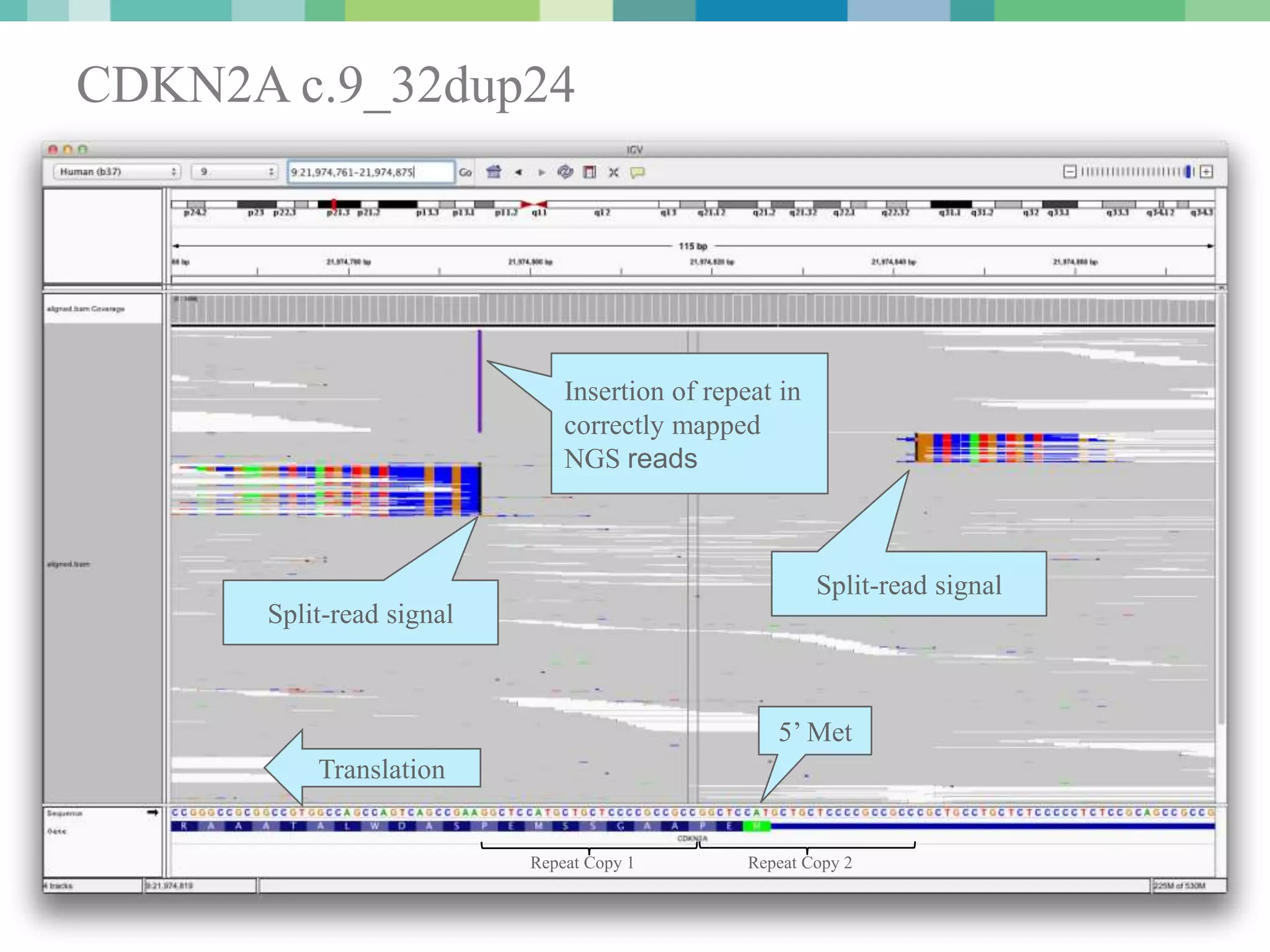

CDKN2A c.9_32dup24
Insertion of repeat in
correctly mapped
NGS reads
Split-read signal
Repeat Copy 1 Repeat Copy 2
Split-read signal
Translation
5’ Met

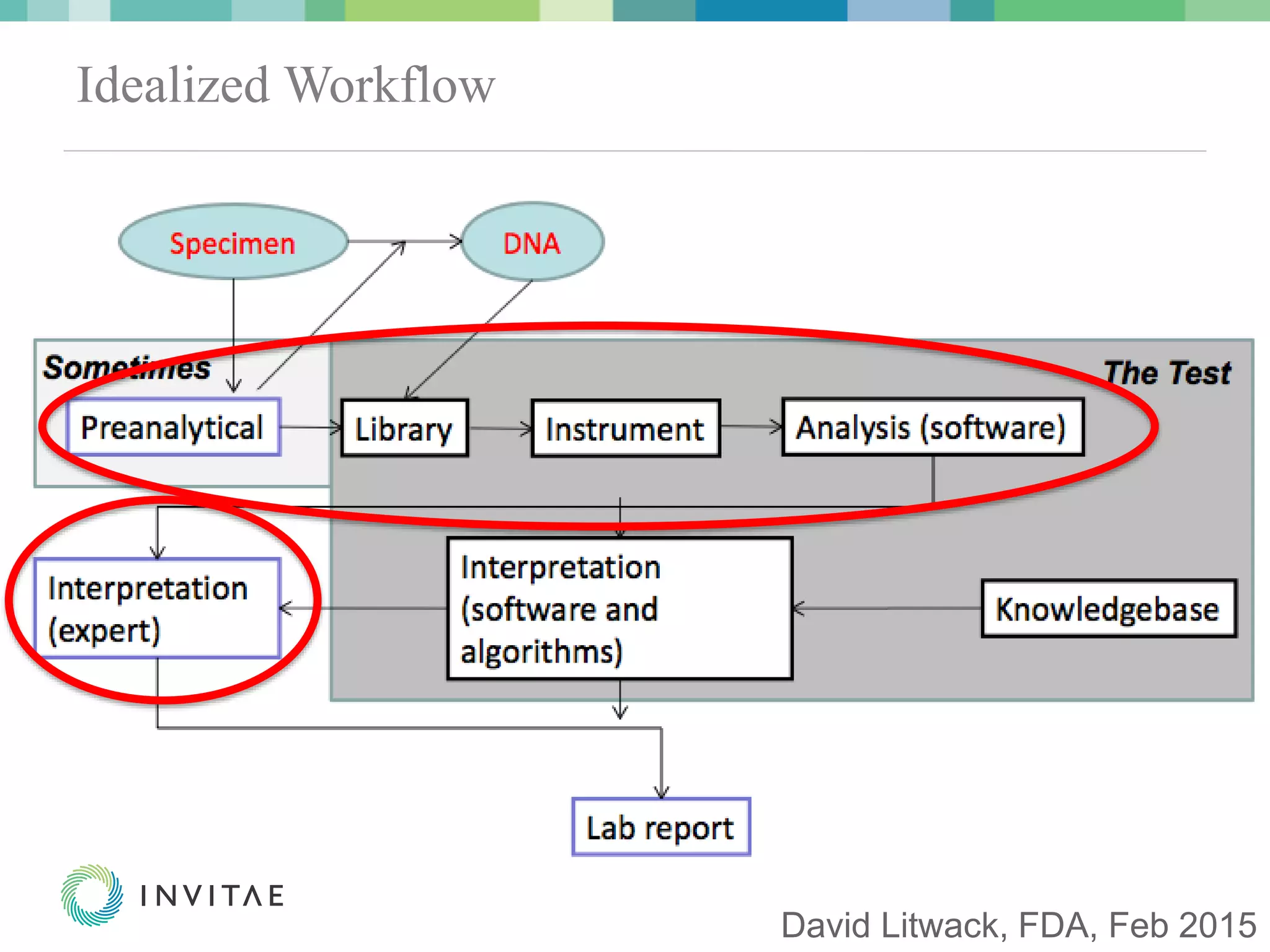

Idealized Workflow
David Litwack, FDA, Feb 2015

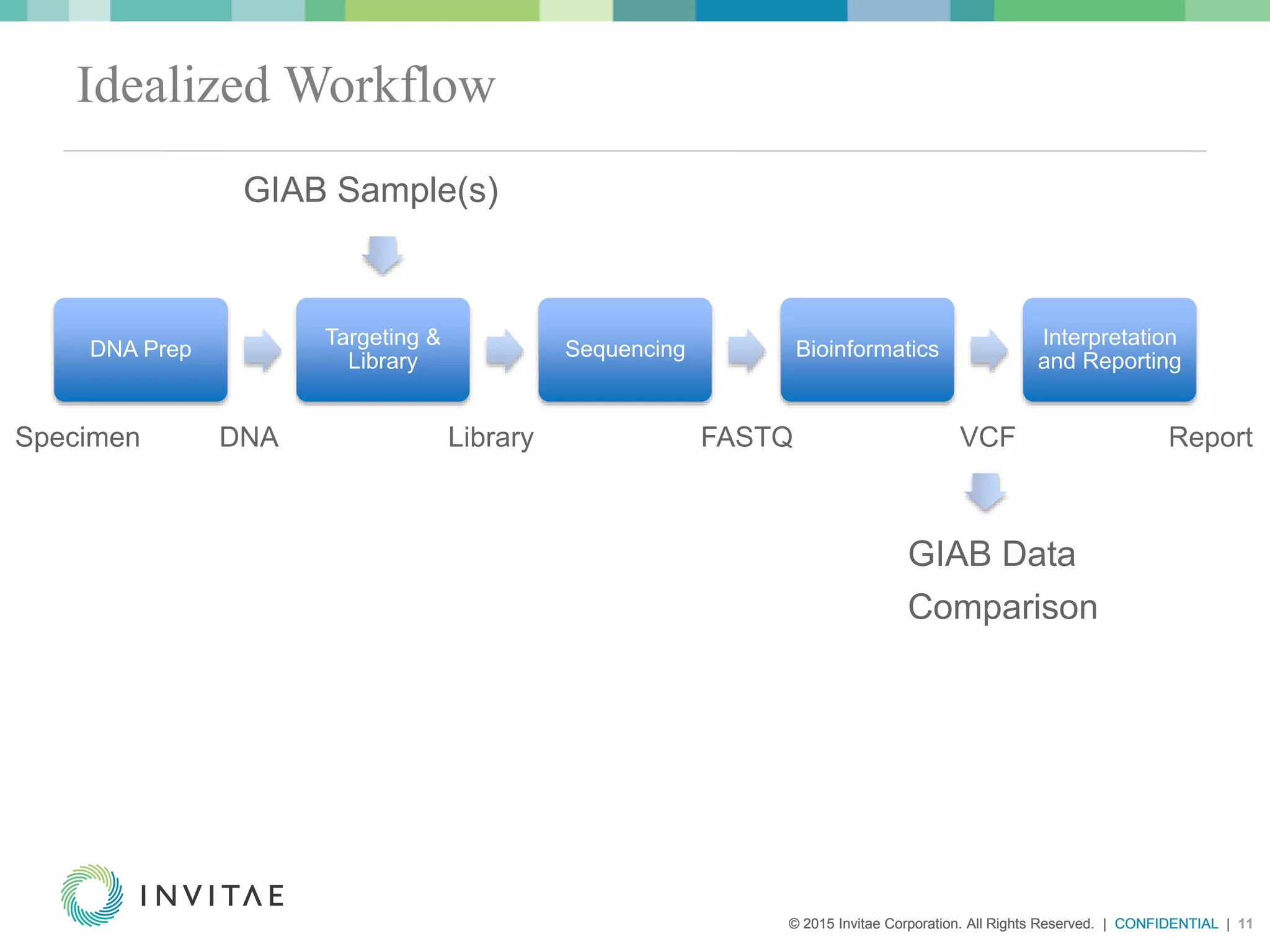

Idealized Workflow
DNA Prep
Targeting &
Library
Sequencing Bioinformatics
Interpretation
and Reporting
GIAB Sample(s)
FASTQ VCFLibraryDNASpecimen Report
GIAB Data
Comparison

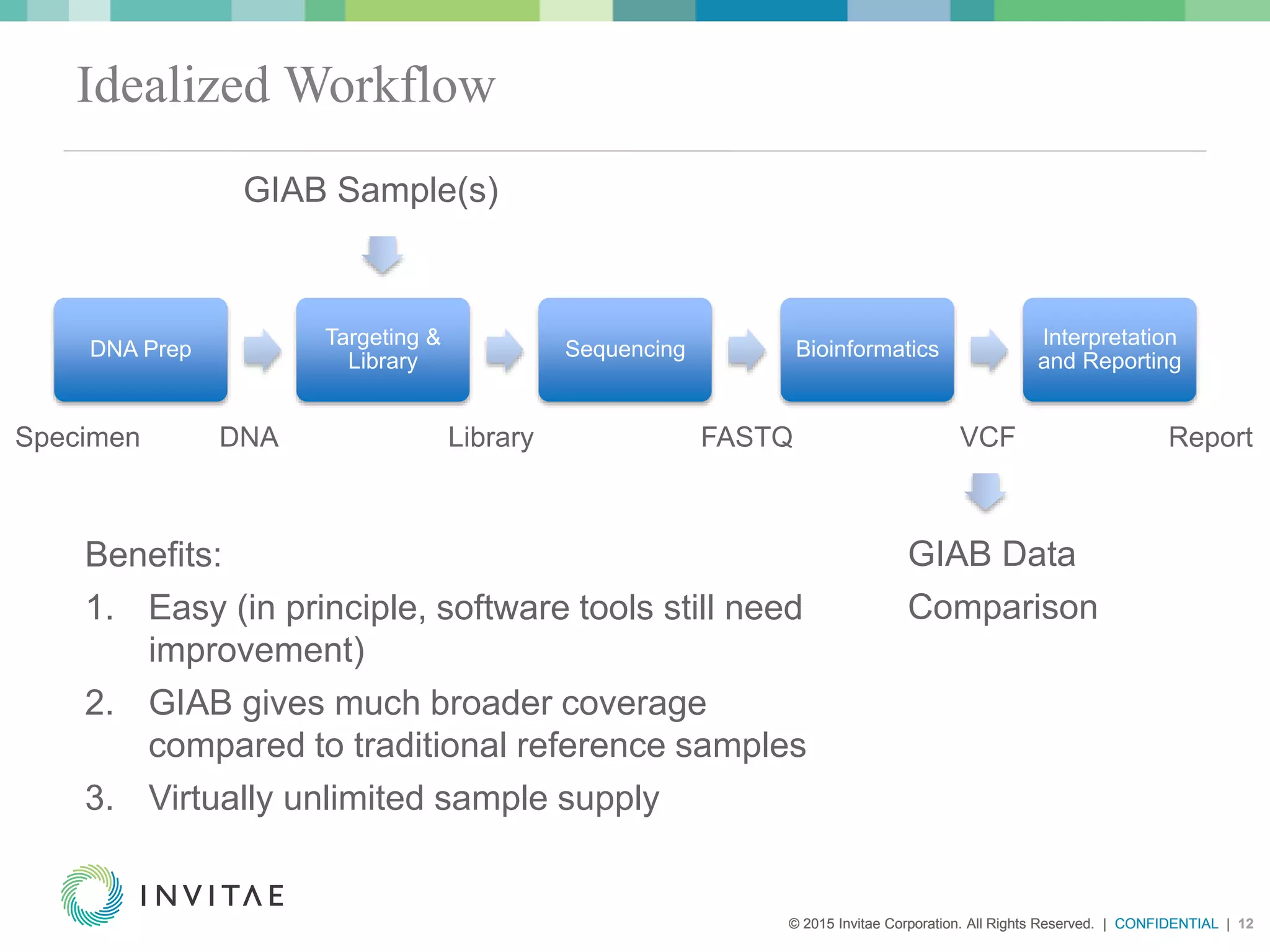

Idealized Workflow
Benefits:
1. Easy (in principle, software tools still need
improvement)
2. GIAB gives much broader coverage
compared to traditional reference samples
3. Virtually unlimited sample supply
DNA Prep
Targeting &
Library
Interpretation
and Reporting
GIAB Sample(s)
GIAB Data
Comparison

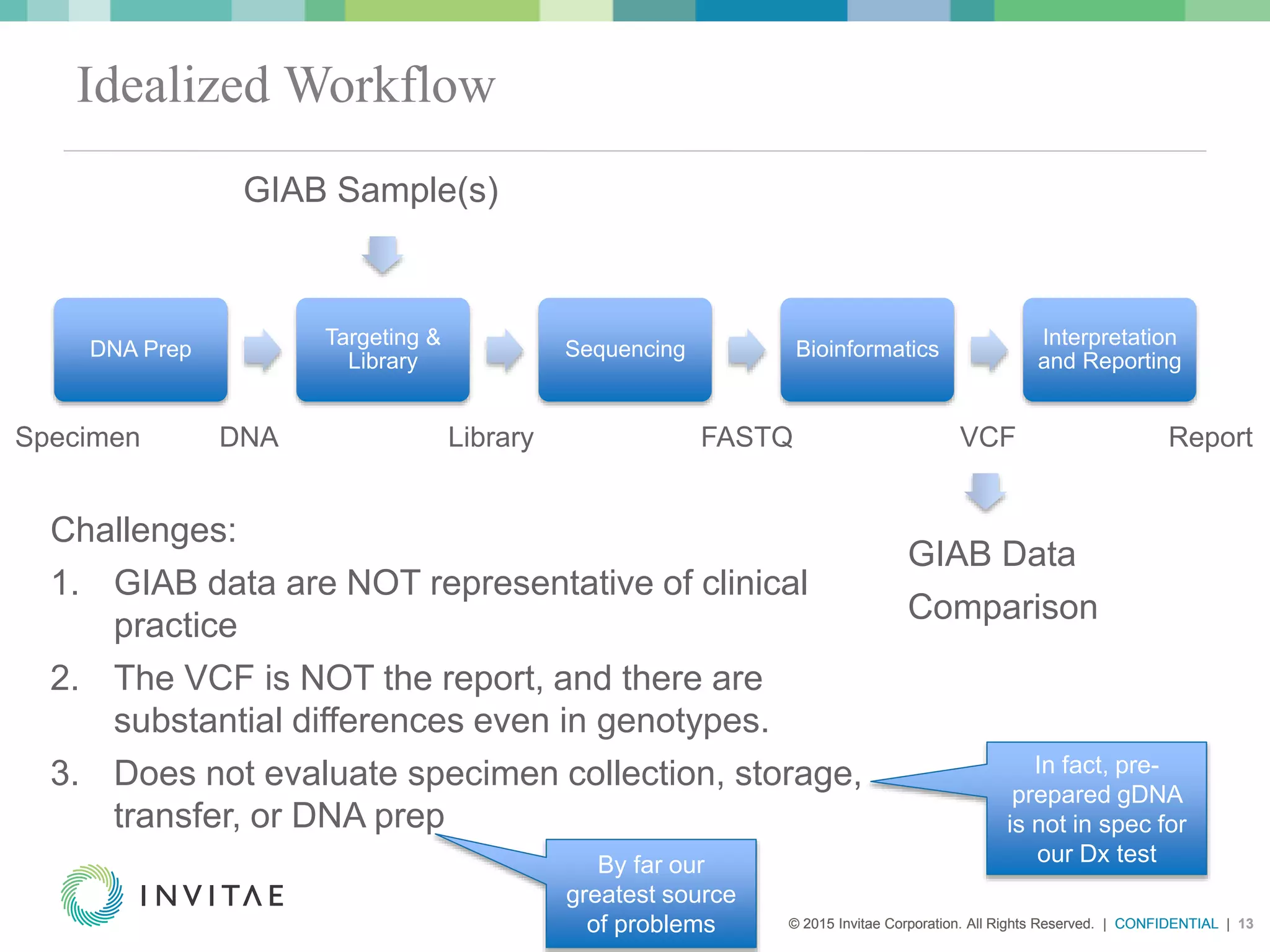

Idealized Workflow
DNA Prep
Targeting &
Library
Interpretation
and Reporting
GIAB Sample(s)
GIAB Data
Comparison
Challenges:
1. GIAB data are NOT representative of clinical
practice
2. The VCF is NOT the report, and there are
substantial differences even in genotypes.
3. Does not evaluate specimen collection, storage,
transfer, or DNA prep
By far our
greatest source
of problems
In fact, pre-
prepared gDNA
is not in spec for
our Dx test

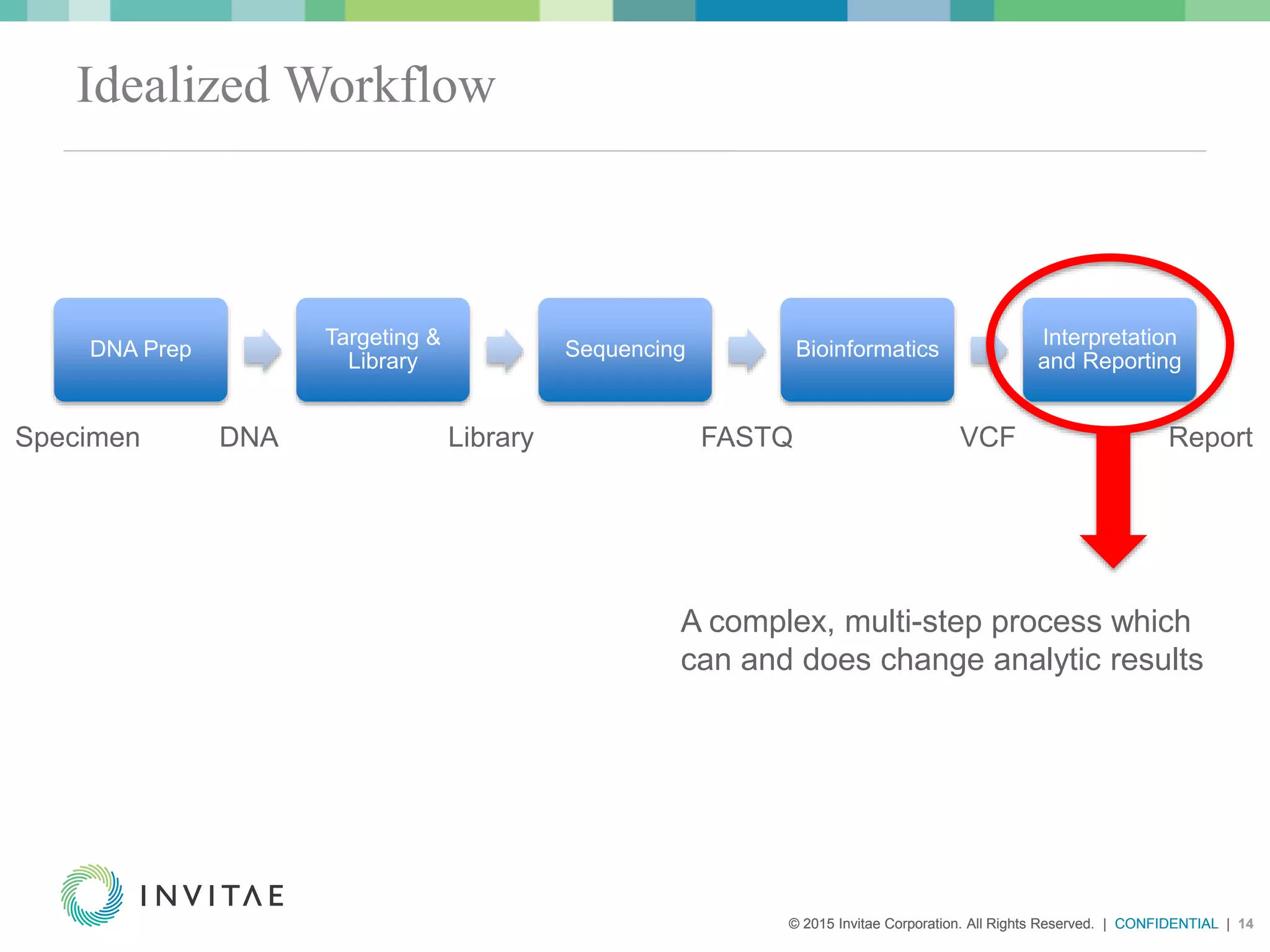

Idealized Workflow
DNA Prep
Targeting &
Library
Interpretation
and Reporting
A complex, multi-step process which
can and does change analytic results

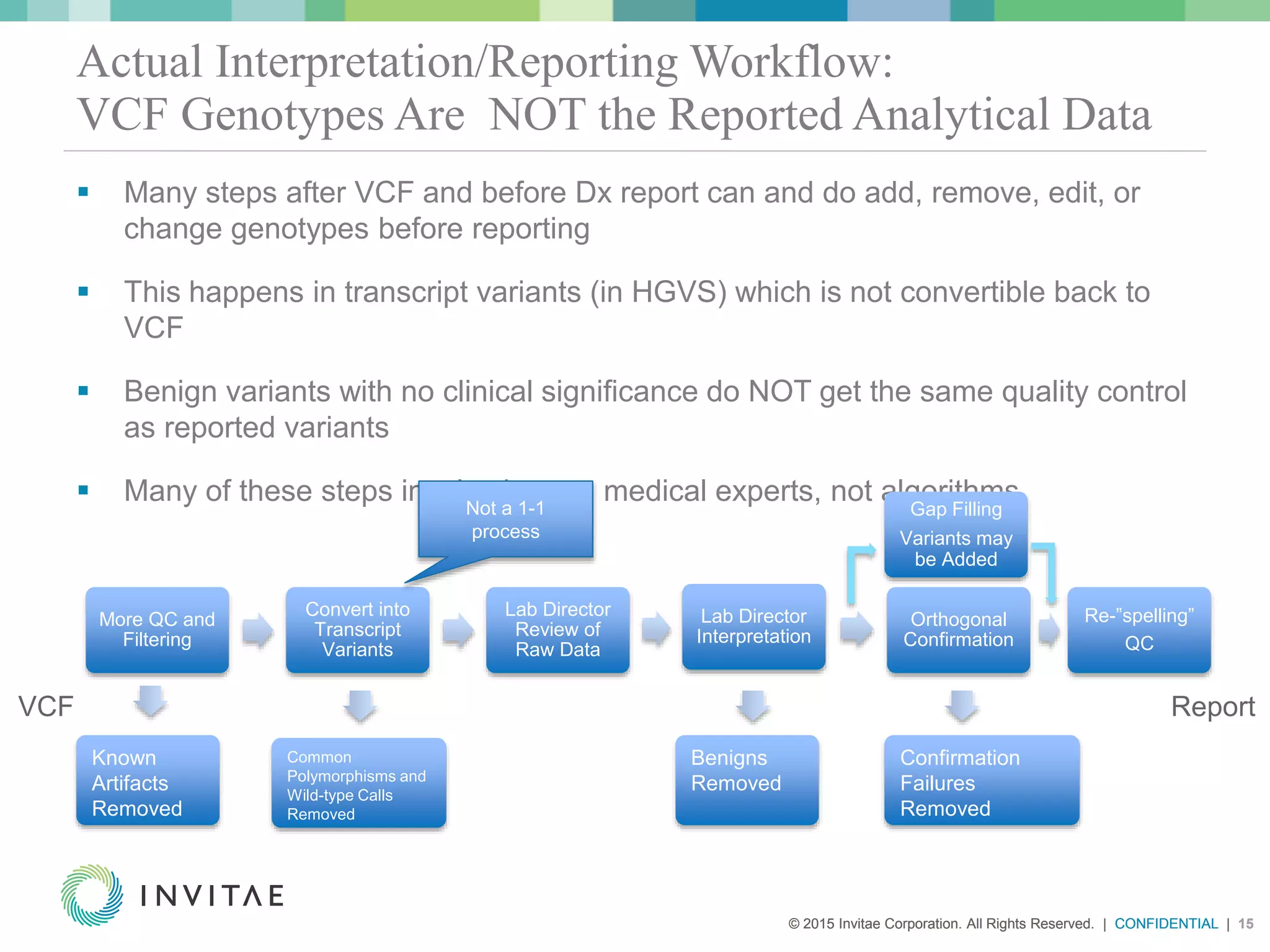

Actual Interpretation/Reporting Workflow:
VCF Genotypes Are NOT the Reported Analytical Data
More QC and
Filtering
Convert into
Transcript
Variants
Lab Director
Review of
Raw Data
Lab Director
Interpretation
Orthogonal
Confirmation
Re-”spelling”
QC
Confirmation
Failures
Removed
Common
Polymorphisms and
Wild-type Calls
Removed
Benigns
Removed
Known
Artifacts
Removed
 Many steps after VCF and before Dx report can and do add, remove, edit, or
change genotypes before reporting
 This happens in transcript variants (in HGVS) which is not convertible back to
VCF
 Benign variants with no clinical significance do NOT get the same quality control
as reported variants
 Many of these steps involve human medical experts, not algorithms
VCF Report
Gap Filling
Variants may
be Added
Not a 1-1
process

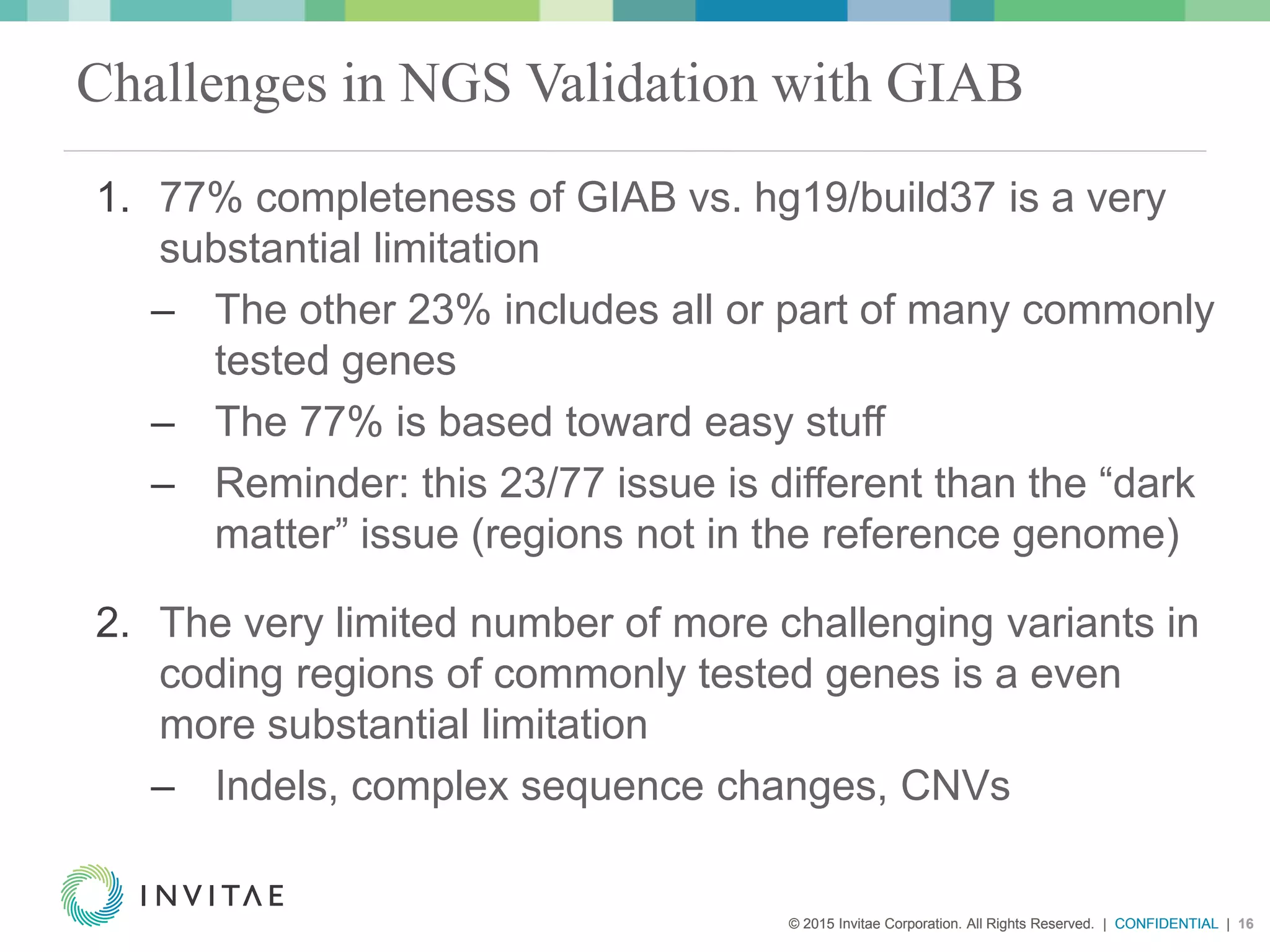

Challenges in NGS Validation with GIAB
1. 77% completeness of GIAB vs. hg19/build37 is a very
substantial limitation
– The other 23% includes all or part of many commonly
tested genes
– The 77% is based toward easy stuff
– Reminder: this 23/77 issue is different than the “dark
matter” issue (regions not in the reference genome)
2. The very limited number of more challenging variants in
coding regions of commonly tested genes is a even
more substantial limitation
– Indels, complex sequence changes, CNVs

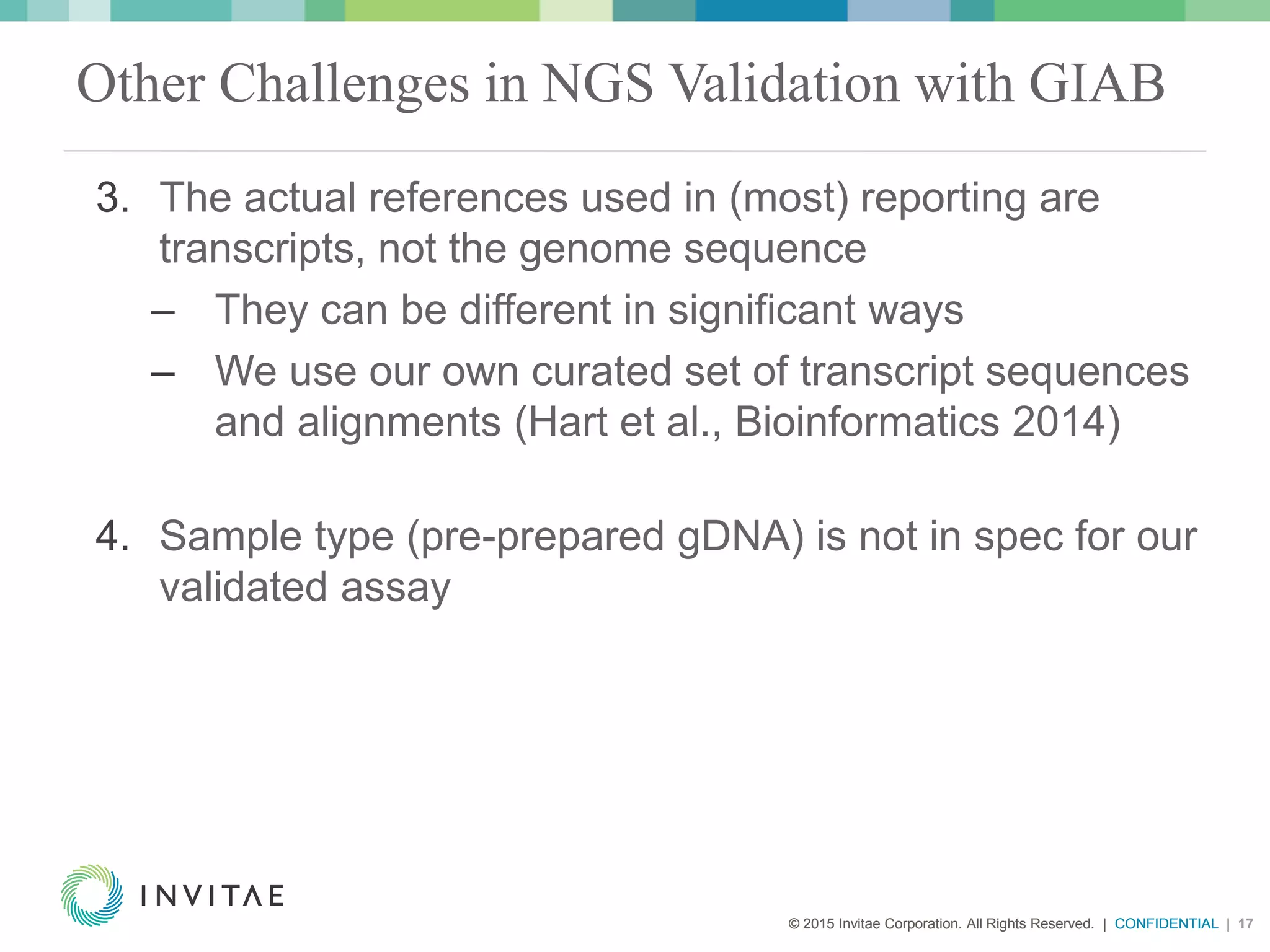

Other Challenges in NGS Validation with GIAB
3. The actual references used in (most) reporting are
transcripts, not the genome sequence
– They can be different in significant ways
– We use our own curated set of transcript sequences
and alignments (Hart et al., Bioinformatics 2014)
4. Sample type (pre-prepared gDNA) is not in spec for our
validated assay

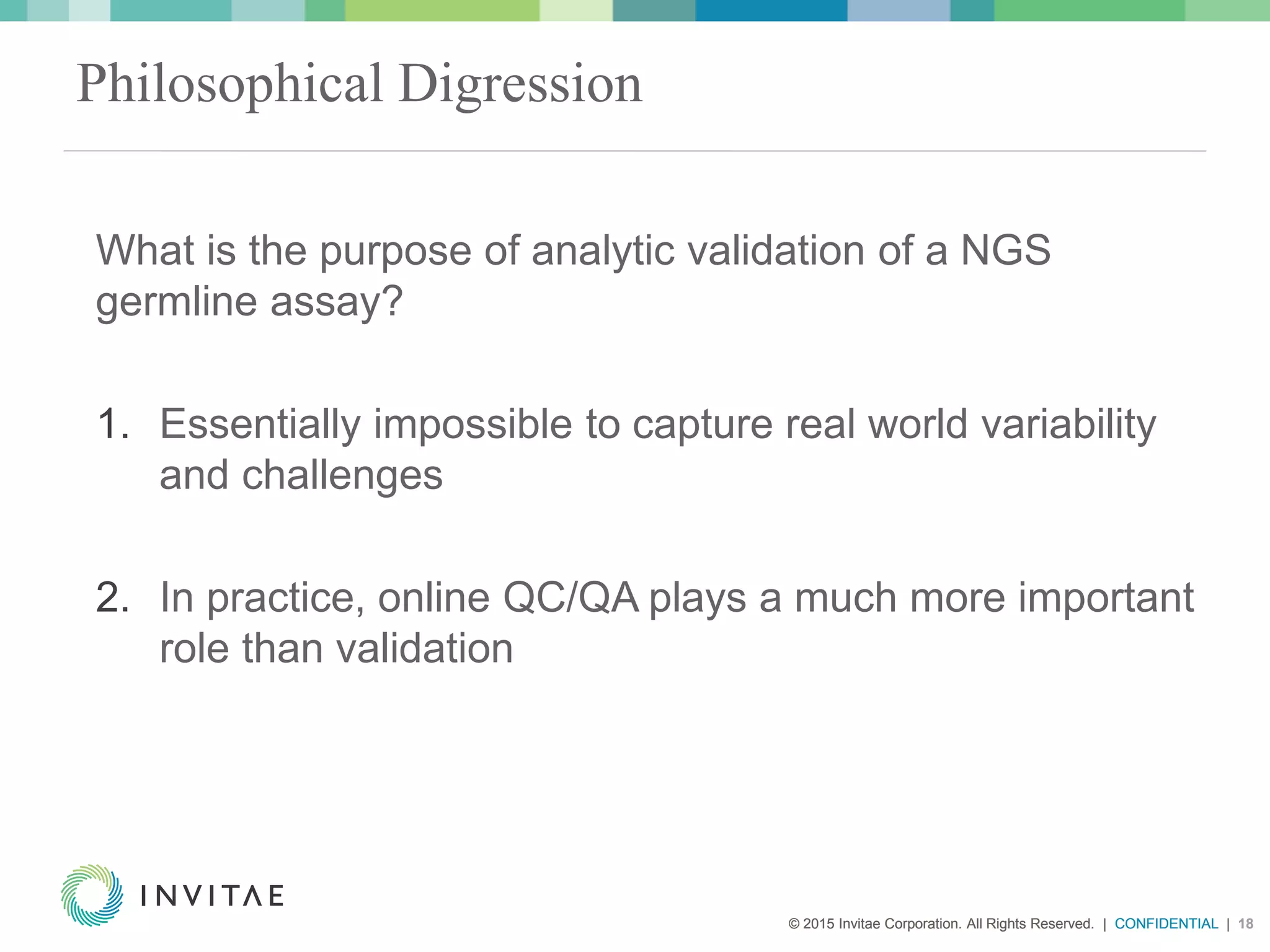

Philosophical Digression
What is the purpose of analytic validation of a NGS
germline assay?
1. Essentially impossible to capture real world variability
and challenges
2. In practice, online QC/QA plays a much more important
role than validation
