Microprocessor Based COD Analysis Colorimeter by ACMAS Technologies Pvt Ltd.
The ACM-Copo-0989 microprocessor-based colorimeter is designed for analyzing the concentration of solutes through colorimetry by measuring light absorption at specific wavelengths. It features an LED display, automatic wavelength selection, and comes with pre-programmed and user-defined testing options. This device is suitable for various applications, including water and soil analysis, and includes a range of technical specifications to enhance usability.
More Related Content
Similar to Microprocessor Based COD Analysis Colorimeter by ACMAS Technologies Pvt Ltd.
![[BDD 2025 - Artificial Intelligence] AI for the Underdogs: Innovation for Sma...](https://cdn.slidesharecdn.com/ss_thumbnails/ai-aifortheunderdogsinnovationforsmallbusinesses-251124030839-72a599a4-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Full-Stack Development] PHP in AI Age: The Laravel Way. (Rizqy Hi...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-phpinaiagethelaravelway-251125012602-ef9d330e-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Full-Stack Development] Digital Accessibility: Why Developers nee...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-digitalaccessibilitywhydevelopersneedtoknowandcarein2025-251127011019-0674441d-thumbnail.jpg?width=640&height=640&fit=bounds)
Microprocessor Based COD Analysis Colorimeter by ACMAS Technologies Pvt Ltd.
- 1. R MICROPROCESSOR BASED COD ANALYSISCOLORIMETER MODEL NO.- ACM- COPO-0989
- 2. R MICROPROCESSOR BASED COD ANALYSISCOLORIMETER MODEL NO.- ACM- COPO-0989 Weiber's Colorimeter is ideal equipment for research and general applications in the field of analysis of concentration of a solute. Our equipment is useful in the process of colorimetry where we examine a certain known solution by measuring the wavelengths of light absorbed by it. The specified wavelength of light rays absorbed by a given solution shows changes in the colour of known solution. Every colour obtained indicates specified results. Specifications Ÿ Portable Ÿ User friendly Menu driven display. Ÿ Automatic wavelength selection. Ÿ LED display Ÿ 85 pre-programmed tests with 10 user tests Ÿ The SMART 2 Colorimeter is supplied with 4 sample tubes, AC adapter, and instruction manual including test procedures TECHNOLOGIES PVT. LTD.

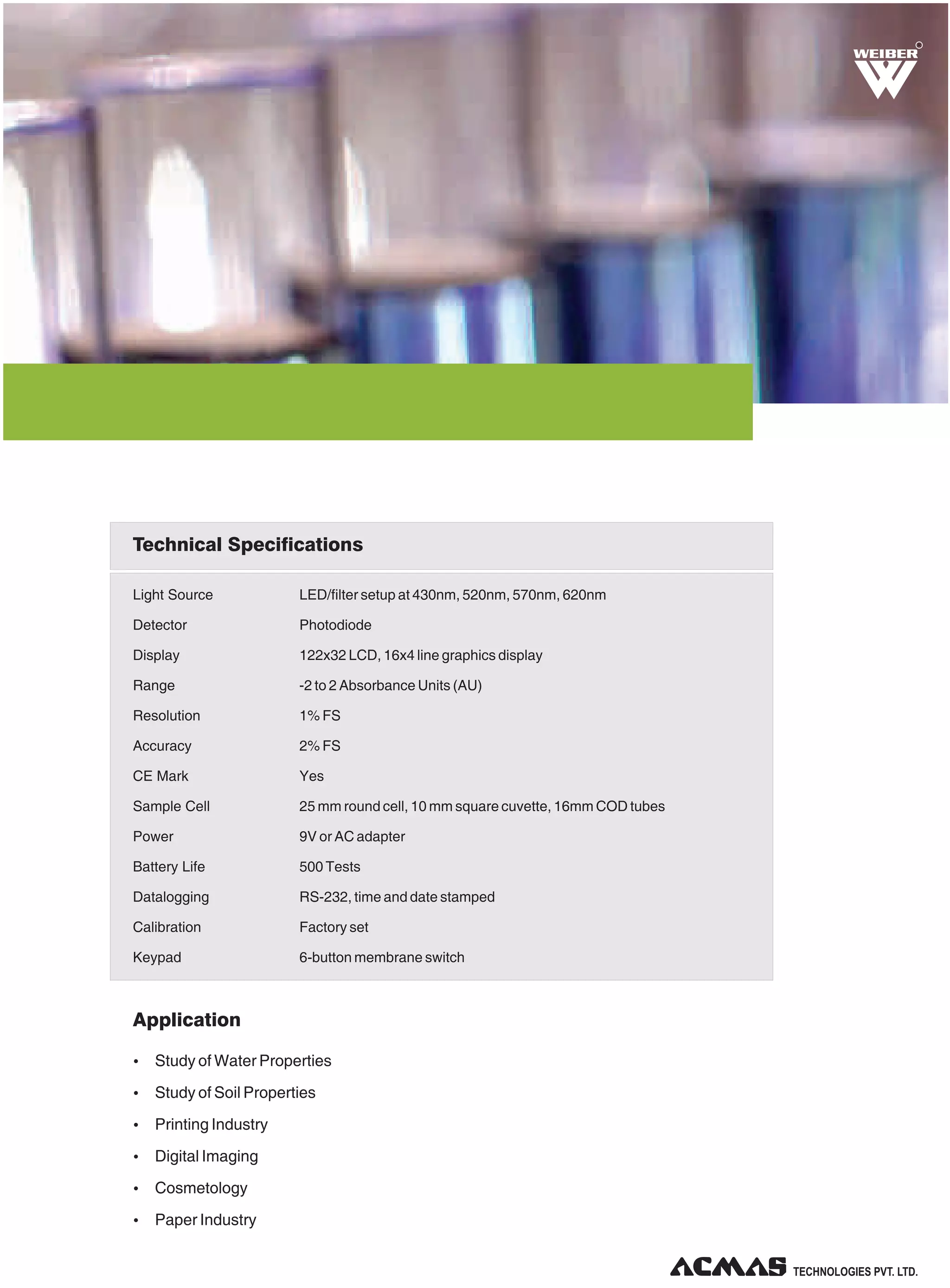

- 3. R Technical Specifications Light Source LED/filtersetup at 430nm, 520nm, 570nm, 620nm Detector Photodiode Display 122x32 LCD, 16x4 line graphics display Range -2 to 2 Absorbance Units (AU) Resolution 1% FS Accuracy 2% FS CE Mark Yes Sample Cell 25 mm round cell, 10 mm square cuvette, 16mm COD tubes Power 9V or AC adapter Battery Life 500 Tests Datalogging RS-232, time and date stamped Calibration Factory set Keypad 6-button membrane switch Application Ÿ Study of Water Properties Ÿ Study of Soil Properties Ÿ Printing Industry Ÿ Digital Imaging Ÿ Cosmetology Ÿ Paper Industry TECHNOLOGIES PVT. LTD.
- 4. An ISO 9001: 2208 | ISO 14001 : 2008 | ISO 13485 WHO: GMP Products | GLP Compliant Products www.acmasindia.com | www.acmasglobal.com | www.measuring-meters.com TECHNOLOGIES PVT. LTD. CORPORATE OFFICE/ SHOWROOM (INDIA) Plot No. 352-353, Sector – 57 Phase- IV Kundli, Sonepat, Haryana - 131028 Land Line No.: +91 - 11- 47619688, Fax: +91-11-47619788 E-mail.: info@acmasindia.com SALES OFFICE (HONG KONG) Unit D 28 11/F Wing Tat Comm,Bidg 97, Bonham Strand East, Sheung Wan, Hong Kong (PRC) Tel.: 0086-13929598046 | 0086- 18922303099 E-mail.: hk@acmasindia.com SALES OFFICE (RUSSIA) Inmed Trade Street Ozerkovsky Embankment, Unit No 50, Straine- 1, Off- 502, Moscow, Russia E-mail.: info@acmasindia.com Tel.: 0049- 79592345 | Email: russia@acmasindia.com
