Micro Computerized Bod5 Analyzer by ACMAS Technologies Pvt Ltd.
The ACM-890 microcomputerized BOD5 analyzer is designed to measure biochemical oxygen demand over five days by assessing pressure changes in sealed culture bottles due to biochemical oxidation. The device has a measuring range of 0 to 1000 mg/l, can process 8 samples simultaneously, and operates at a culture temperature of 20°C. It is widely utilized in academic, petrochemical, and environmental sectors for water quality monitoring.
More Related Content
Similar to Micro Computerized Bod5 Analyzer by ACMAS Technologies Pvt Ltd.
![[BDD 2025 - Full-Stack Development] Agentic AI Architecture: Redefining Syste...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-agenticaiarchitectureredefiningsystemcommunication-251124030838-e6c70cc2-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Full-Stack Development] The Modern Stack: Building Web & AI Appli...](https://cdn.slidesharecdn.com/ss_thumbnails/fs-themodernstackbuildingwebaiapplicationswithserverless-251124030844-388cf04f-thumbnail.jpg?width=640&height=640&fit=bounds)
![[BDD 2025 - Artificial Intelligence] Building AI Systems That Users (and Comp...](https://cdn.slidesharecdn.com/ss_thumbnails/ai-buildingaisystemsthatusersandcompanieslove-251124030845-038f7732-thumbnail.jpg?width=640&height=640&fit=bounds)
Micro Computerized Bod5 Analyzer by ACMAS Technologies Pvt Ltd.

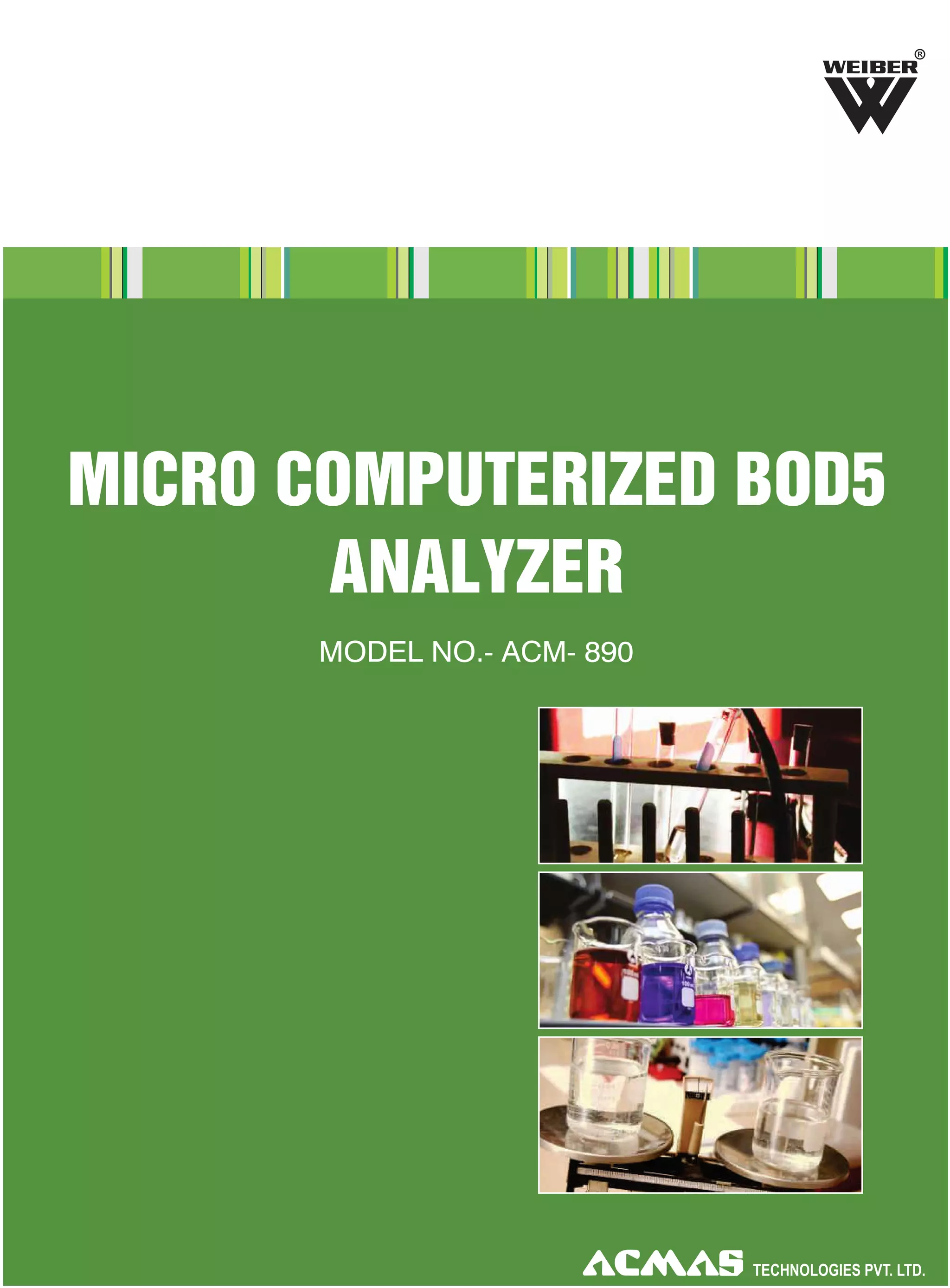

- 1. R MICRO COMPUTERIZED BOD5 ANALYZER MODELNO.- ACM- 890

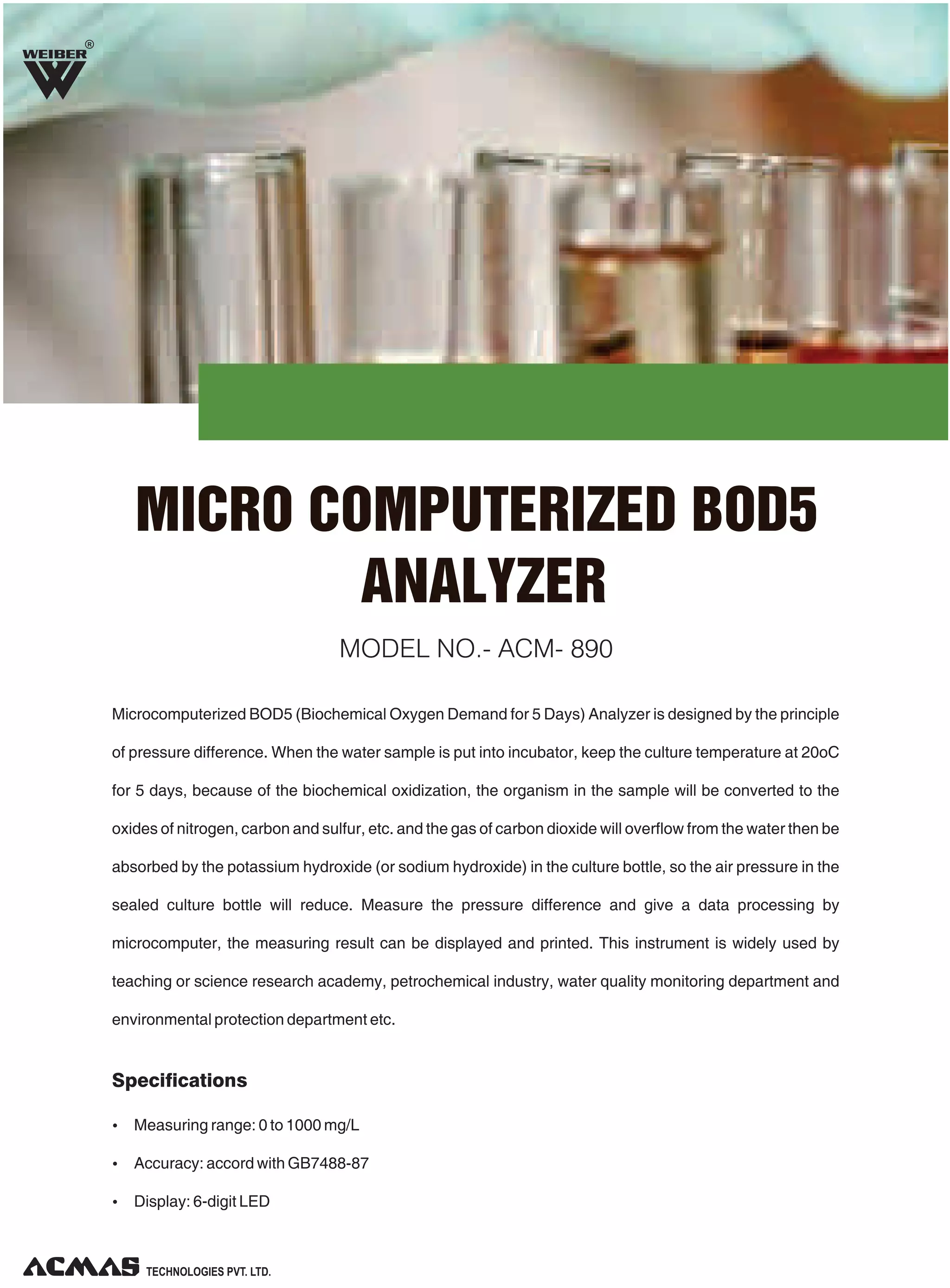

- 2. R MICRO COMPUTERIZED BOD5 ANALYZER MODELNO.- ACM- 890 Microcomputerized BOD5 (Biochemical Oxygen Demand for 5 Days) Analyzer is designed by the principle of pressure difference. When the water sample is put into incubator, keep the culture temperature at 20oC for 5 days, because of the biochemical oxidization, the organism in the sample will be converted to the oxides of nitrogen, carbon and sulfur, etc. and the gas of carbon dioxide will overflow from the water then be absorbed by the potassium hydroxide (or sodium hydroxide) in the culture bottle, so the air pressure in the sealed culture bottle will reduce. Measure the pressure difference and give a data processing by microcomputer, the measuring result can be displayed and printed. This instrument is widely used by teaching or science research academy, petrochemical industry, water quality monitoring department and environmental protection department etc. Specifications Ÿ Measuring range: 0 to 1000 mg/L Ÿ Accuracy: accord with GB7488-87 Ÿ Display: 6-digit LED TECHNOLOGIES PVT. LTD.

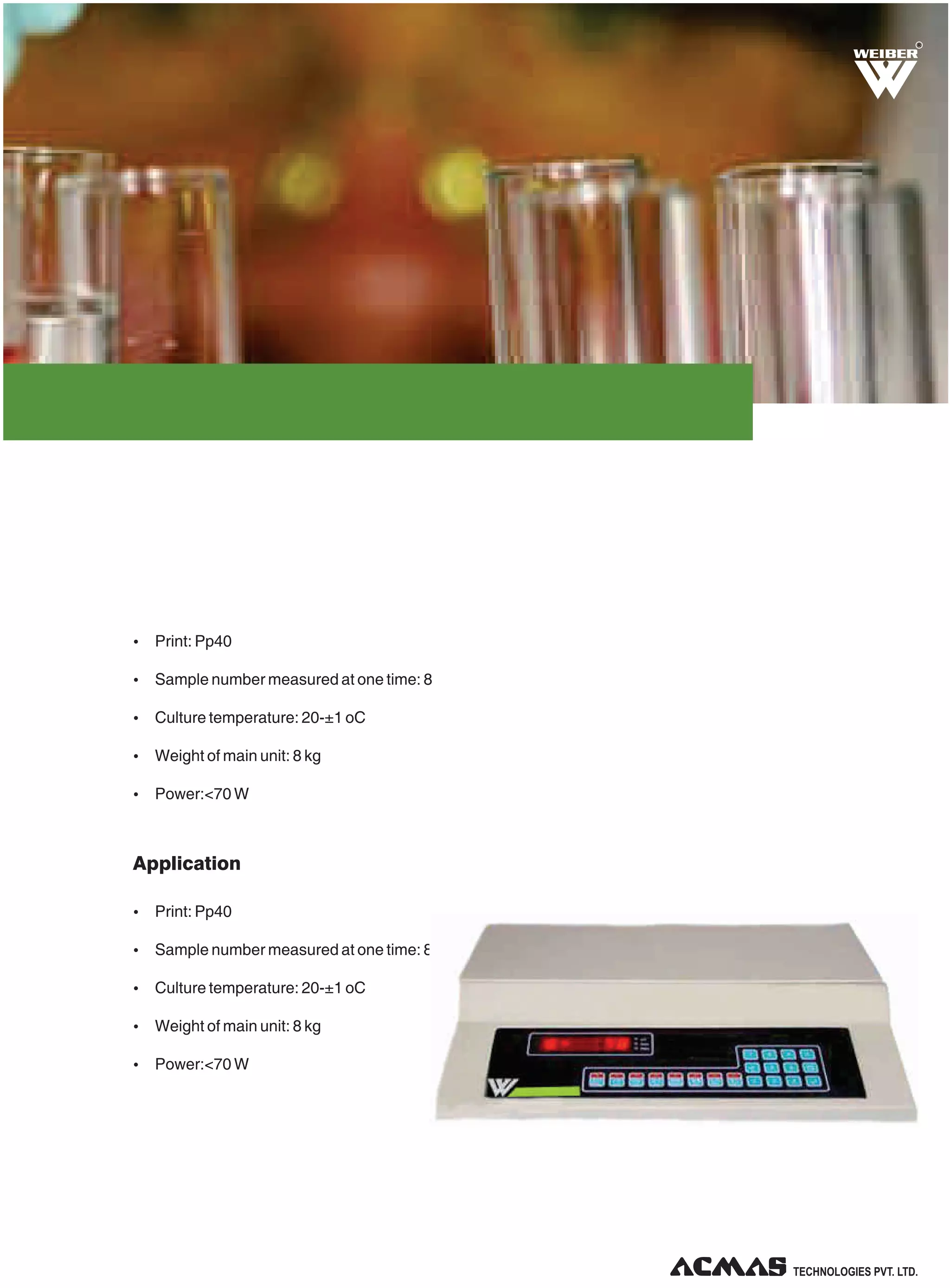

- 3. R Ÿ Print: Pp40 ŸSample number measured at one time: 8 Ÿ Culture temperature: 20-±1 oC Ÿ Weight of main unit: 8 kg Ÿ Power:<70 W Application Ÿ Print: Pp40 Ÿ Sample number measured at one time: 8 Ÿ Culture temperature: 20-±1 oC Ÿ Weight of main unit: 8 kg Ÿ Power:<70 W TECHNOLOGIES PVT. LTD.

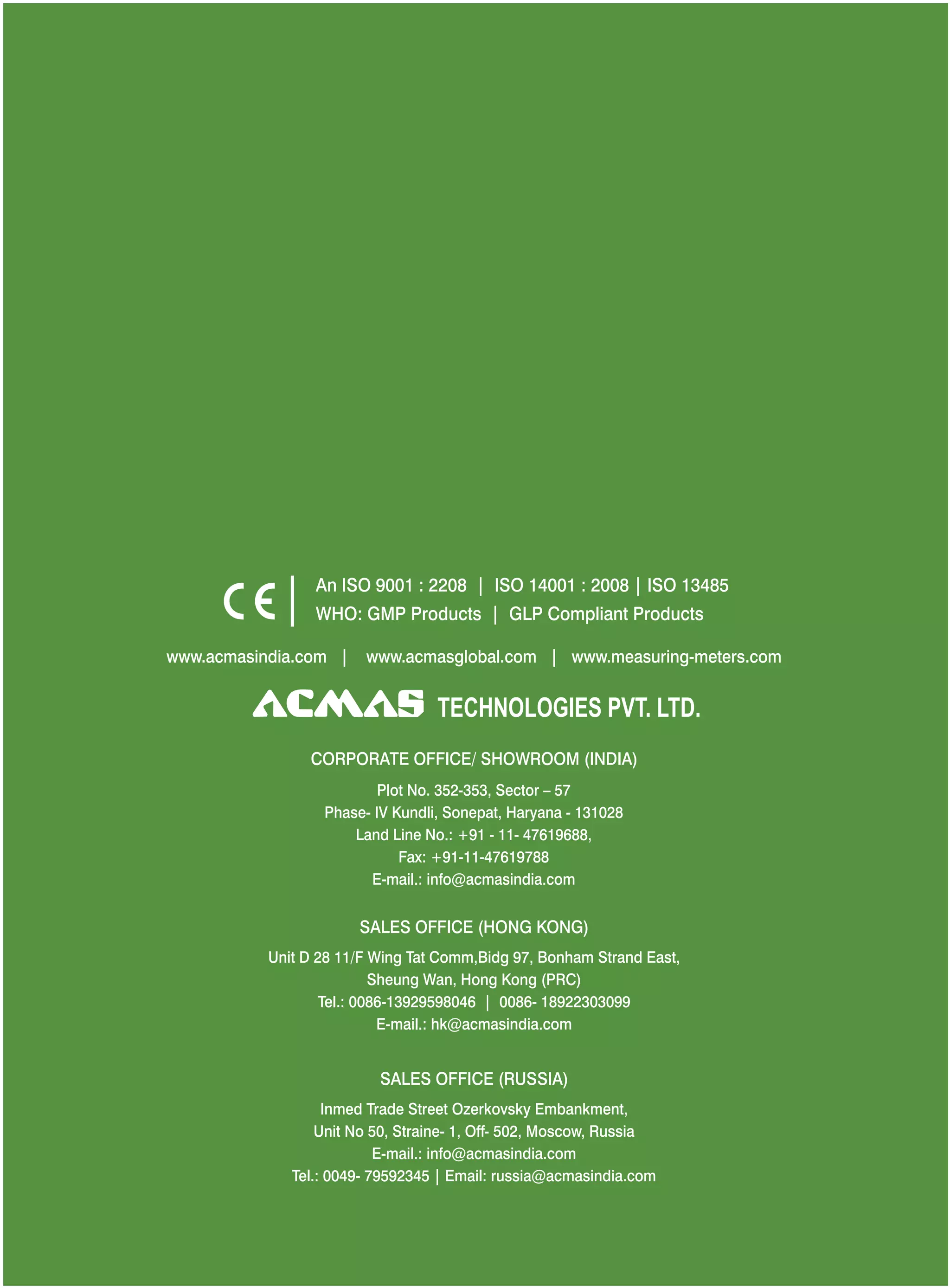

- 4. An ISO 9001: 2208 | ISO 14001 : 2008 | ISO 13485 WHO: GMP Products | GLP Compliant Products www.acmasindia.com | www.acmasglobal.com | www.measuring-meters.com TECHNOLOGIES PVT. LTD. CORPORATE OFFICE/ SHOWROOM (INDIA) Plot No. 352-353, Sector – 57 Phase- IV Kundli, Sonepat, Haryana - 131028 Land Line No.: +91 - 11- 47619688, Fax: +91-11-47619788 E-mail.: info@acmasindia.com SALES OFFICE (HONG KONG) Unit D 28 11/F Wing Tat Comm,Bidg 97, Bonham Strand East, Sheung Wan, Hong Kong (PRC) Tel.: 0086-13929598046 | 0086- 18922303099 E-mail.: hk@acmasindia.com SALES OFFICE (RUSSIA) Inmed Trade Street Ozerkovsky Embankment, Unit No 50, Straine- 1, Off- 502, Moscow, Russia E-mail.: info@acmasindia.com Tel.: 0049- 79592345 | Email: russia@acmasindia.com
