Human Computer Interaction chapter 1.ppt
- 1.

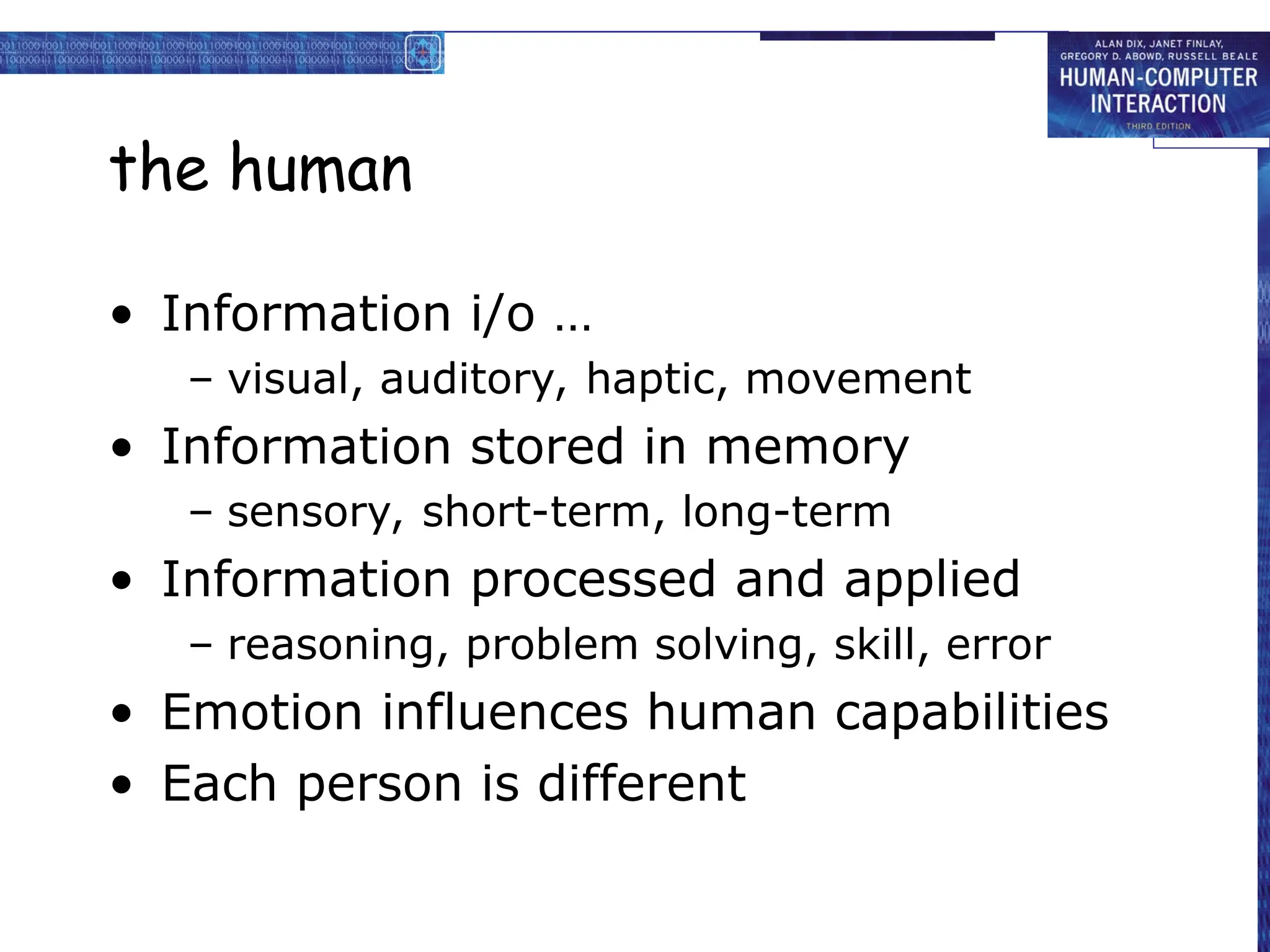

- 5. the human • Informationi/o … – visual, auditory, haptic, movement • Information stored in memory – sensory, short-term, long-term • Information processed and applied – reasoning, problem solving, skill, error • Emotion influences human capabilities • Each person is different

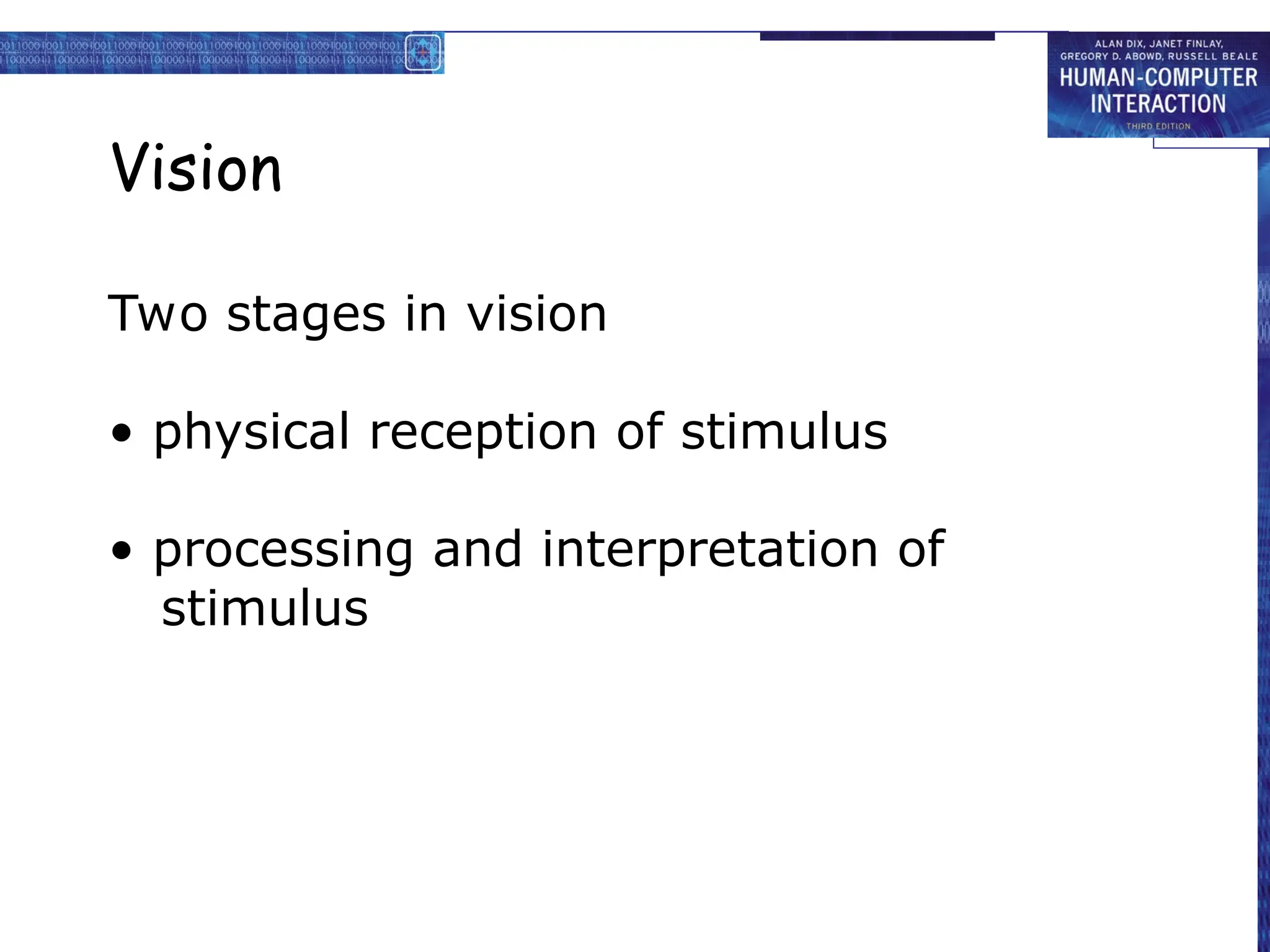

- 6. Vision Two stages invision • physical reception of stimulus • processing and interpretation of stimulus

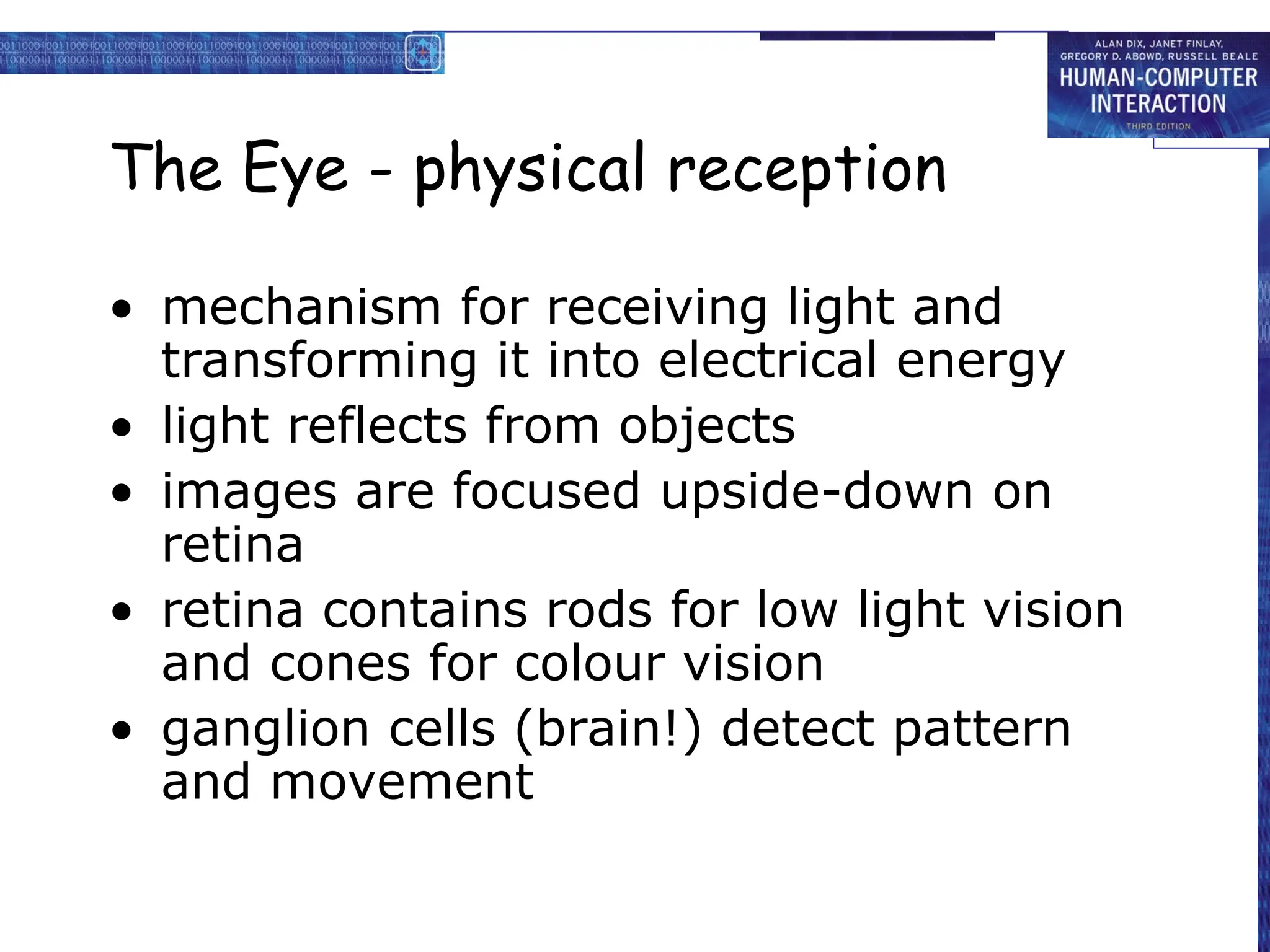

- 7. The Eye -physical reception • mechanism for receiving light and transforming it into electrical energy • light reflects from objects • images are focused upside-down on retina • retina contains rods for low light vision and cones for colour vision • ganglion cells (brain!) detect pattern and movement

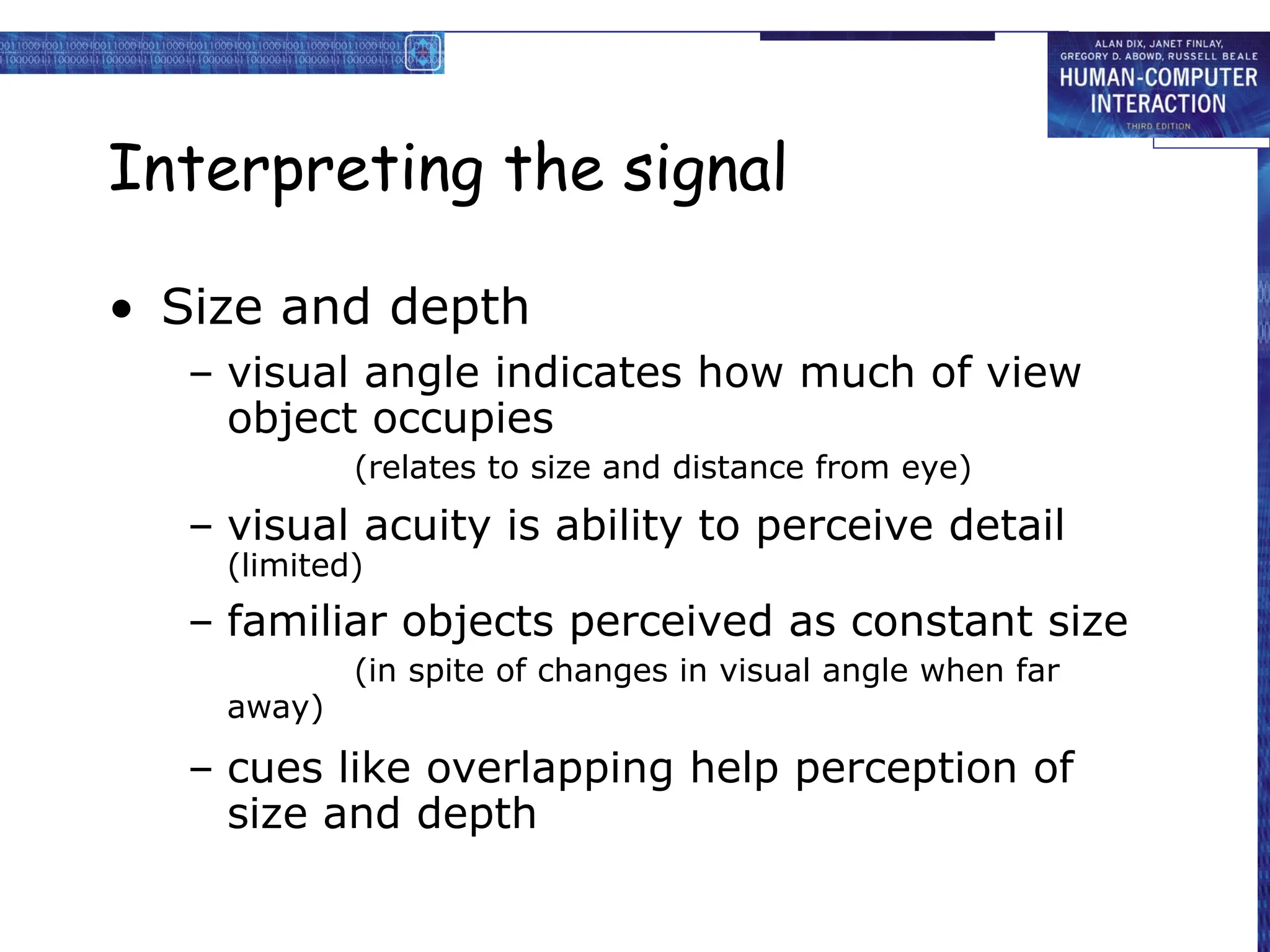

- 8. Interpreting the signal •Size and depth – visual angle indicates how much of view object occupies (relates to size and distance from eye) – visual acuity is ability to perceive detail (limited) – familiar objects perceived as constant size (in spite of changes in visual angle when far away) – cues like overlapping help perception of size and depth

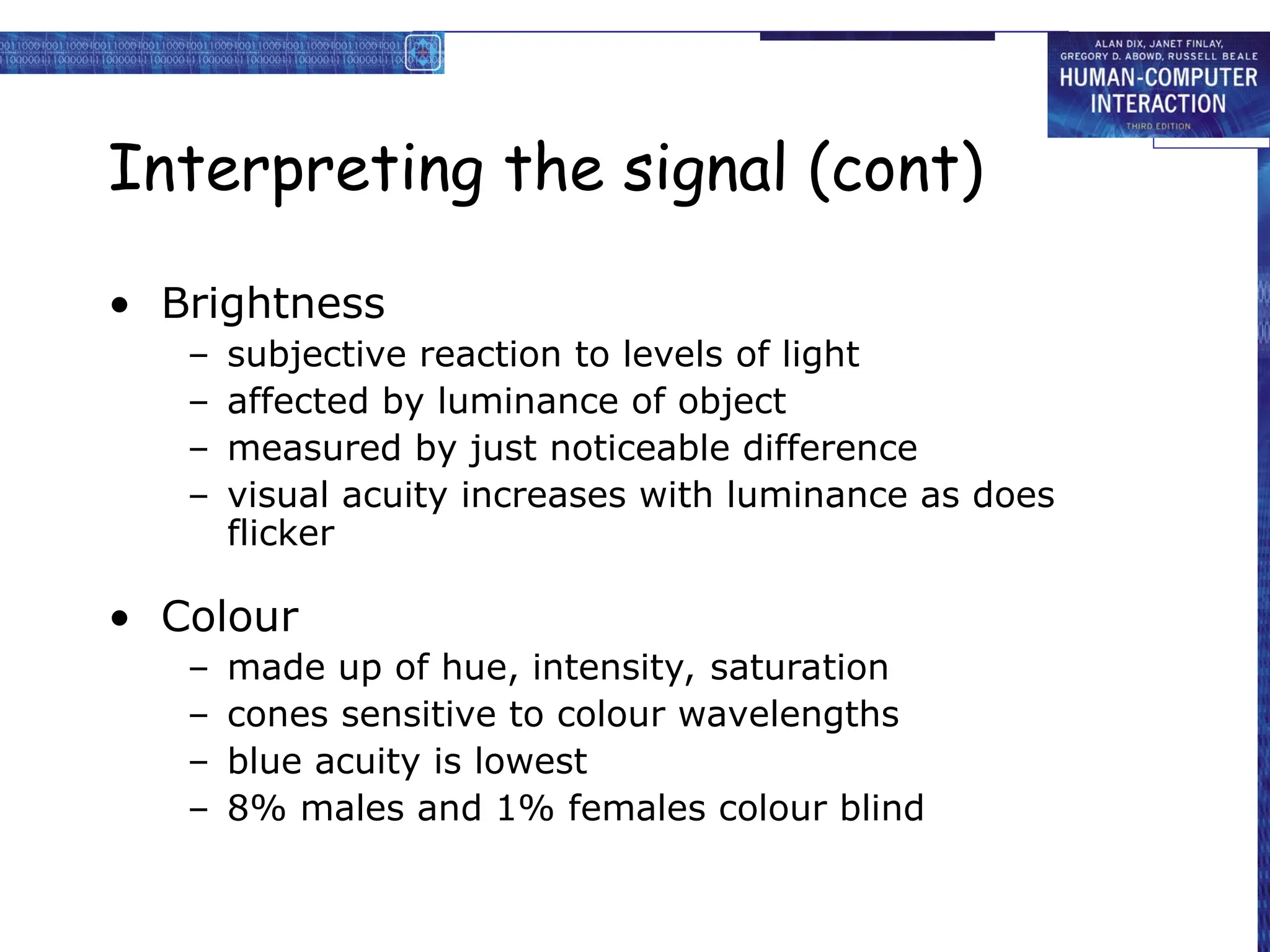

- 9. Interpreting the signal(cont) • Brightness – subjective reaction to levels of light – affected by luminance of object – measured by just noticeable difference – visual acuity increases with luminance as does flicker • Colour – made up of hue, intensity, saturation – cones sensitive to colour wavelengths – blue acuity is lowest – 8% males and 1% females colour blind

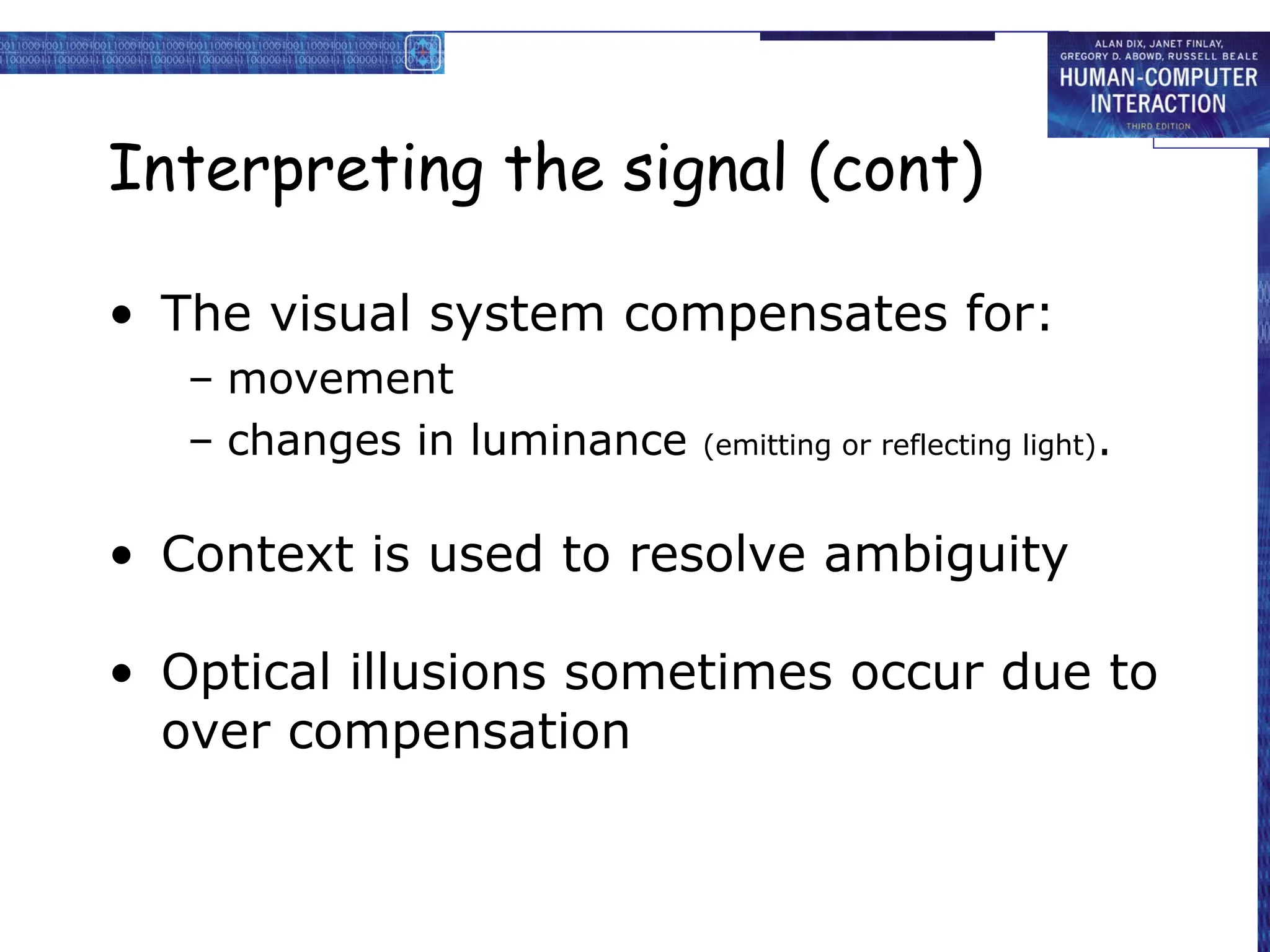

- 10. Interpreting the signal(cont) • The visual system compensates for: – movement – changes in luminance (emitting or reflecting light). • Context is used to resolve ambiguity • Optical illusions sometimes occur due to over compensation

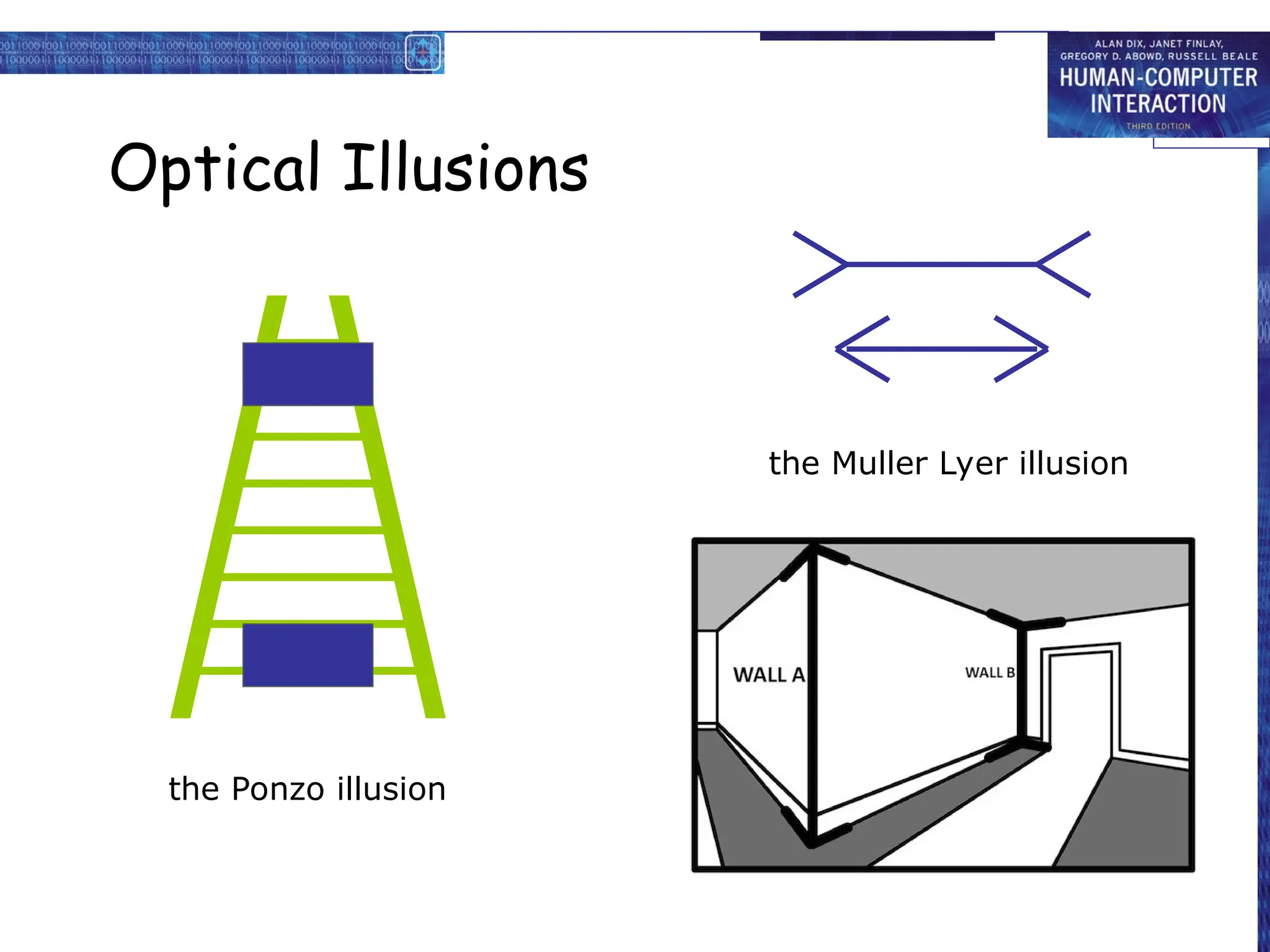

- 11. Optical Illusions the Ponzoillusion the Muller Lyer illusion
- 12.

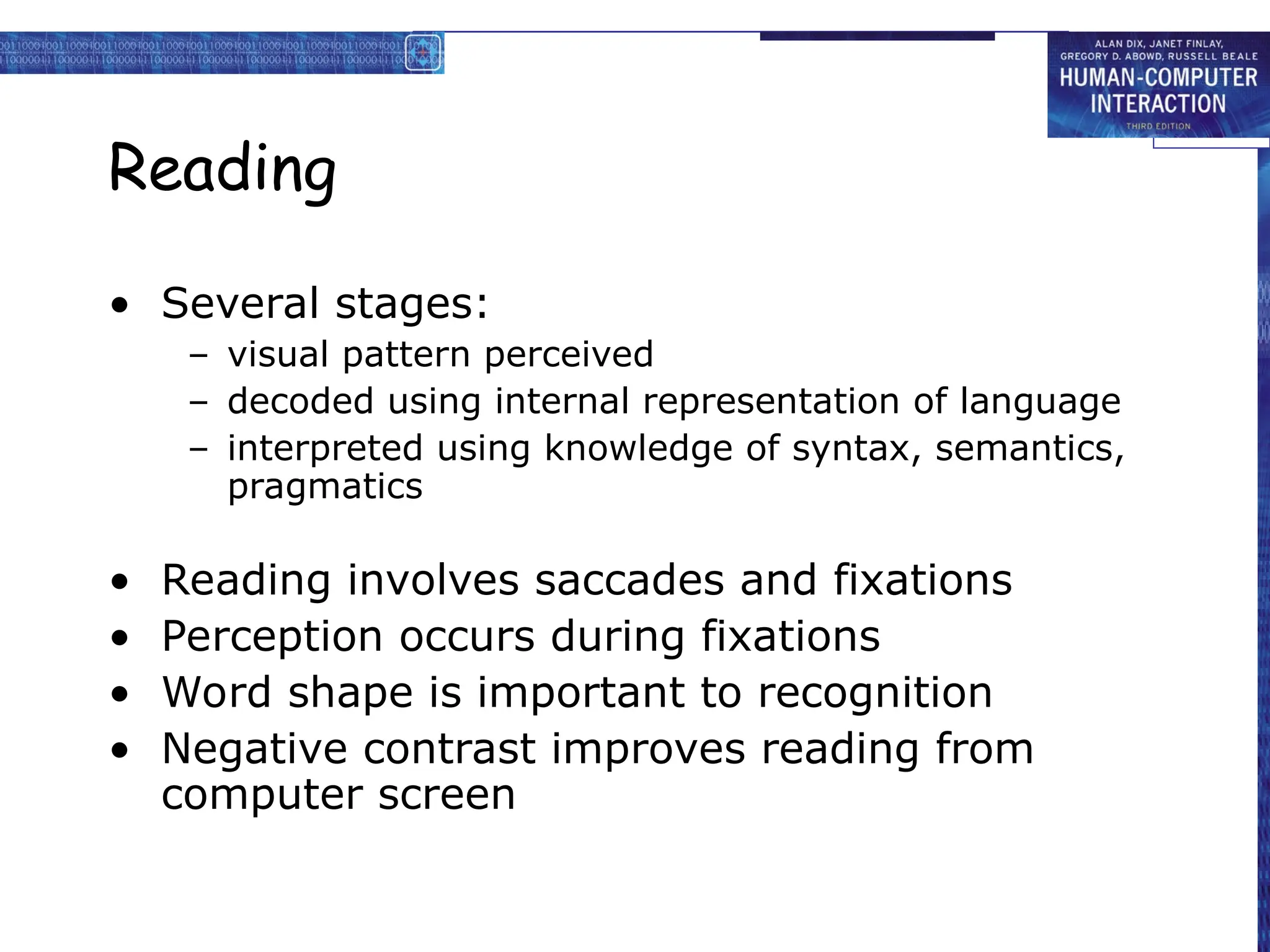

- 13. Reading • Several stages: –visual pattern perceived – decoded using internal representation of language – interpreted using knowledge of syntax, semantics, pragmatics • Reading involves saccades and fixations • Perception occurs during fixations • Word shape is important to recognition • Negative contrast improves reading from computer screen

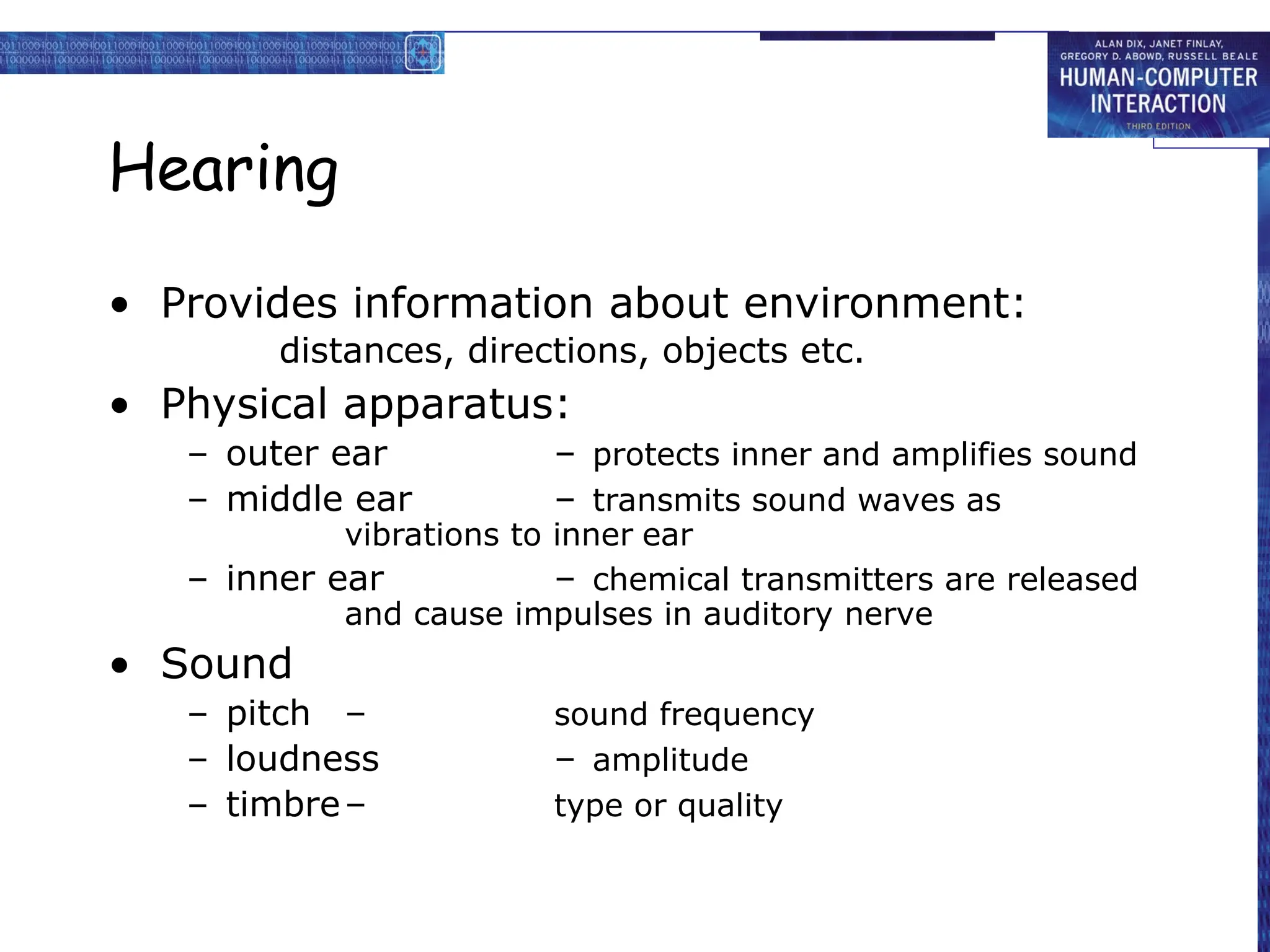

- 14. Hearing • Provides informationabout environment: distances, directions, objects etc. • Physical apparatus: – outer ear – protects inner and amplifies sound – middle ear – transmits sound waves as vibrations to inner ear – inner ear – chemical transmitters are released and cause impulses in auditory nerve • Sound – pitch – sound frequency – loudness – amplitude – timbre– type or quality

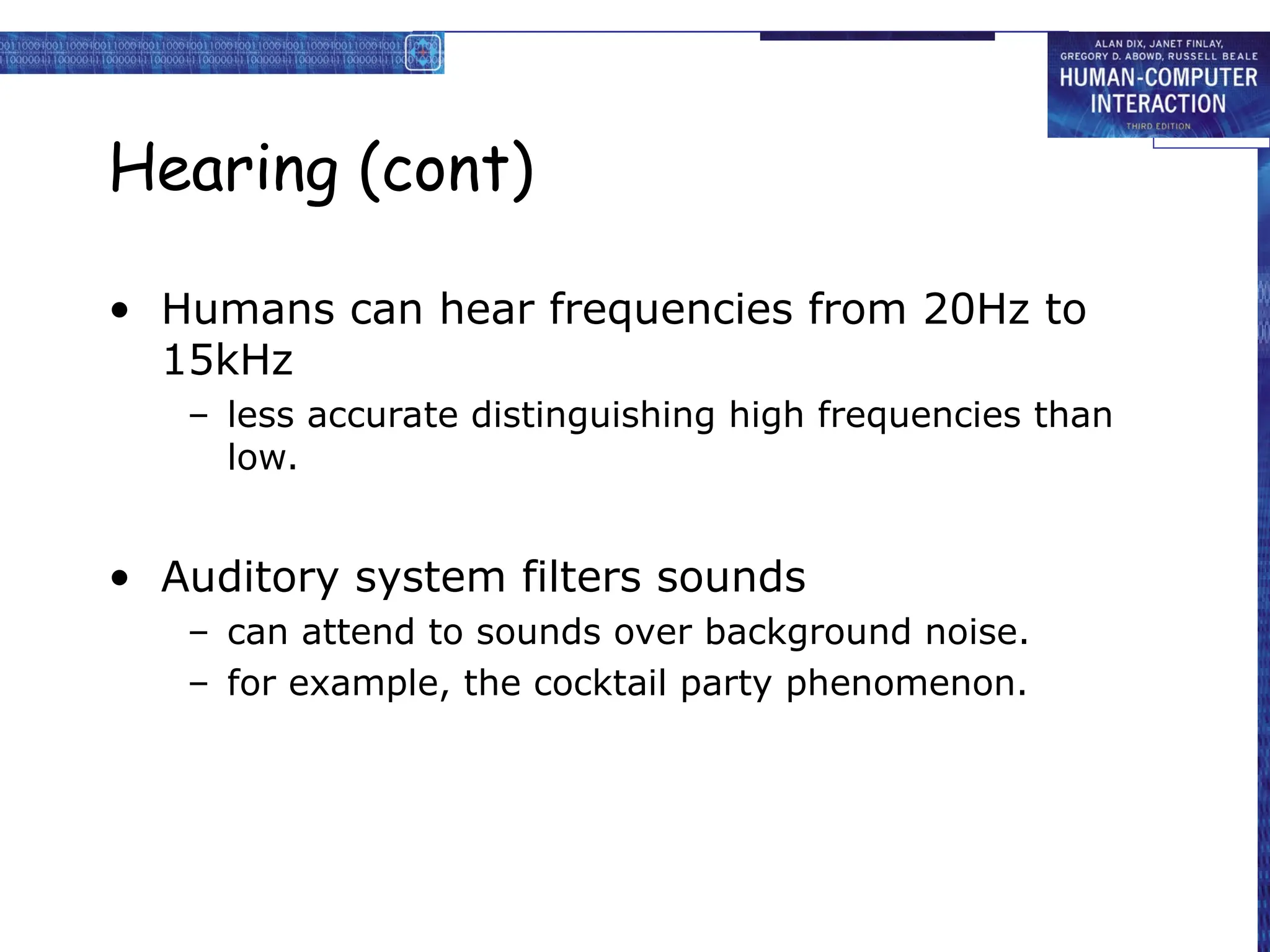

- 15. Hearing (cont) • Humanscan hear frequencies from 20Hz to 15kHz – less accurate distinguishing high frequencies than low. • Auditory system filters sounds – can attend to sounds over background noise. – for example, the cocktail party phenomenon.

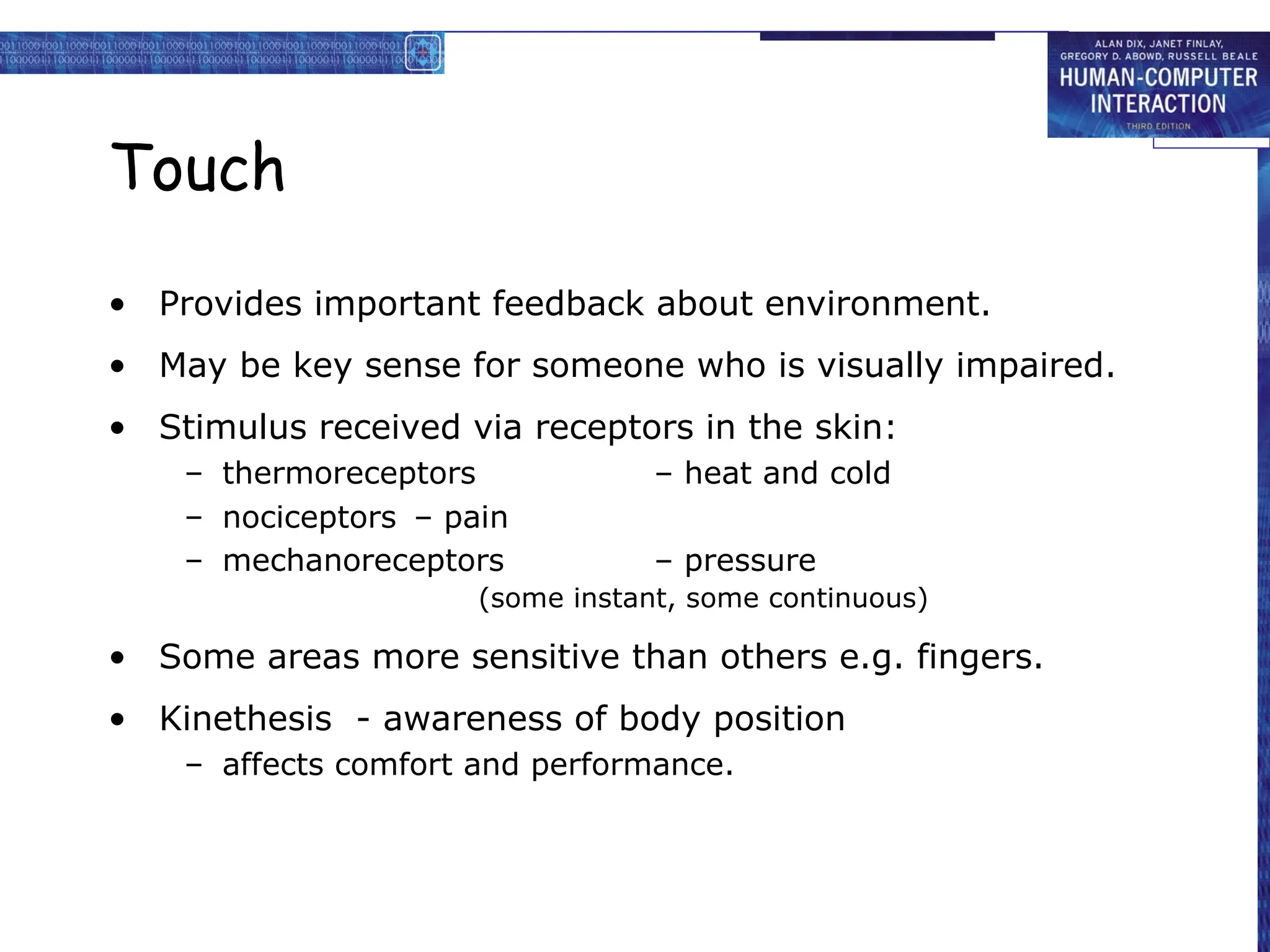

- 16. Touch • Provides importantfeedback about environment. • May be key sense for someone who is visually impaired. • Stimulus received via receptors in the skin: – thermoreceptors – heat and cold – nociceptors – pain – mechanoreceptors – pressure (some instant, some continuous) • Some areas more sensitive than others e.g. fingers. • Kinethesis - awareness of body position – affects comfort and performance.

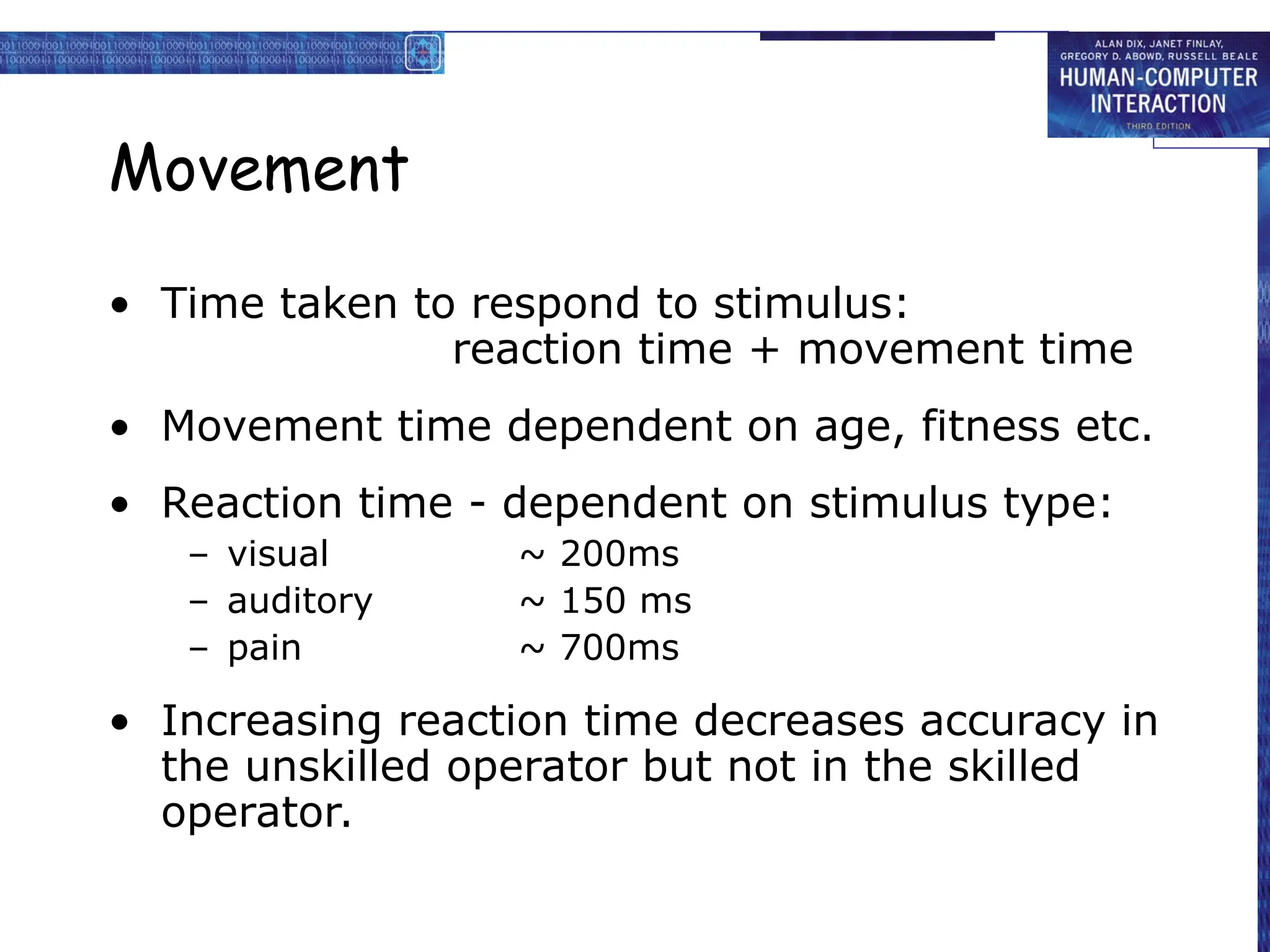

- 17. Movement • Time takento respond to stimulus: reaction time + movement time • Movement time dependent on age, fitness etc. • Reaction time - dependent on stimulus type: – visual ~ 200ms – auditory ~ 150 ms – pain ~ 700ms • Increasing reaction time decreases accuracy in the unskilled operator but not in the skilled operator.

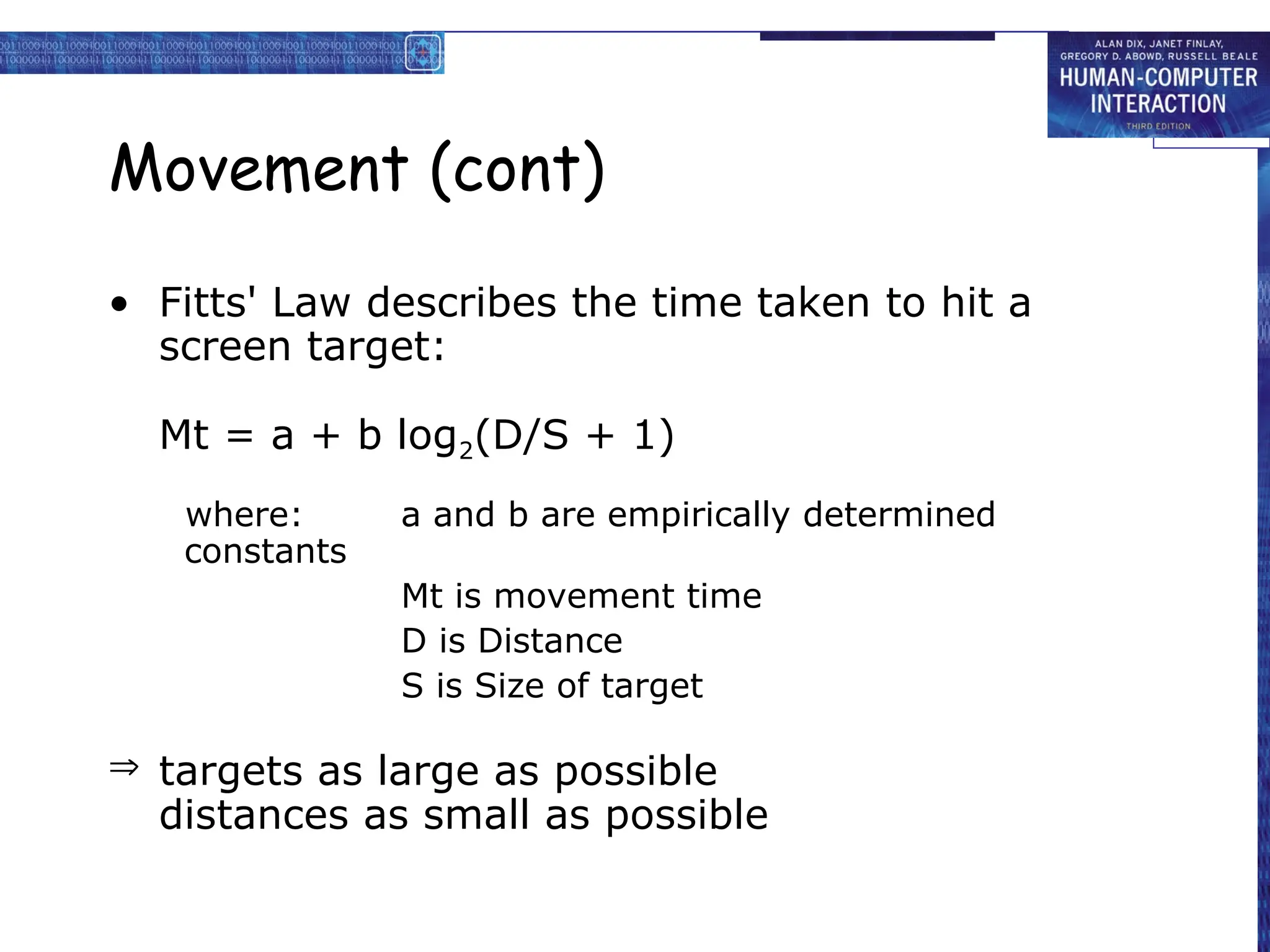

- 18. Movement (cont) • Fitts'Law describes the time taken to hit a screen target: Mt = a + b log2(D/S + 1) where: a and b are empirically determined constants Mt is movement time D is Distance S is Size of target targets as large as possible distances as small as possible

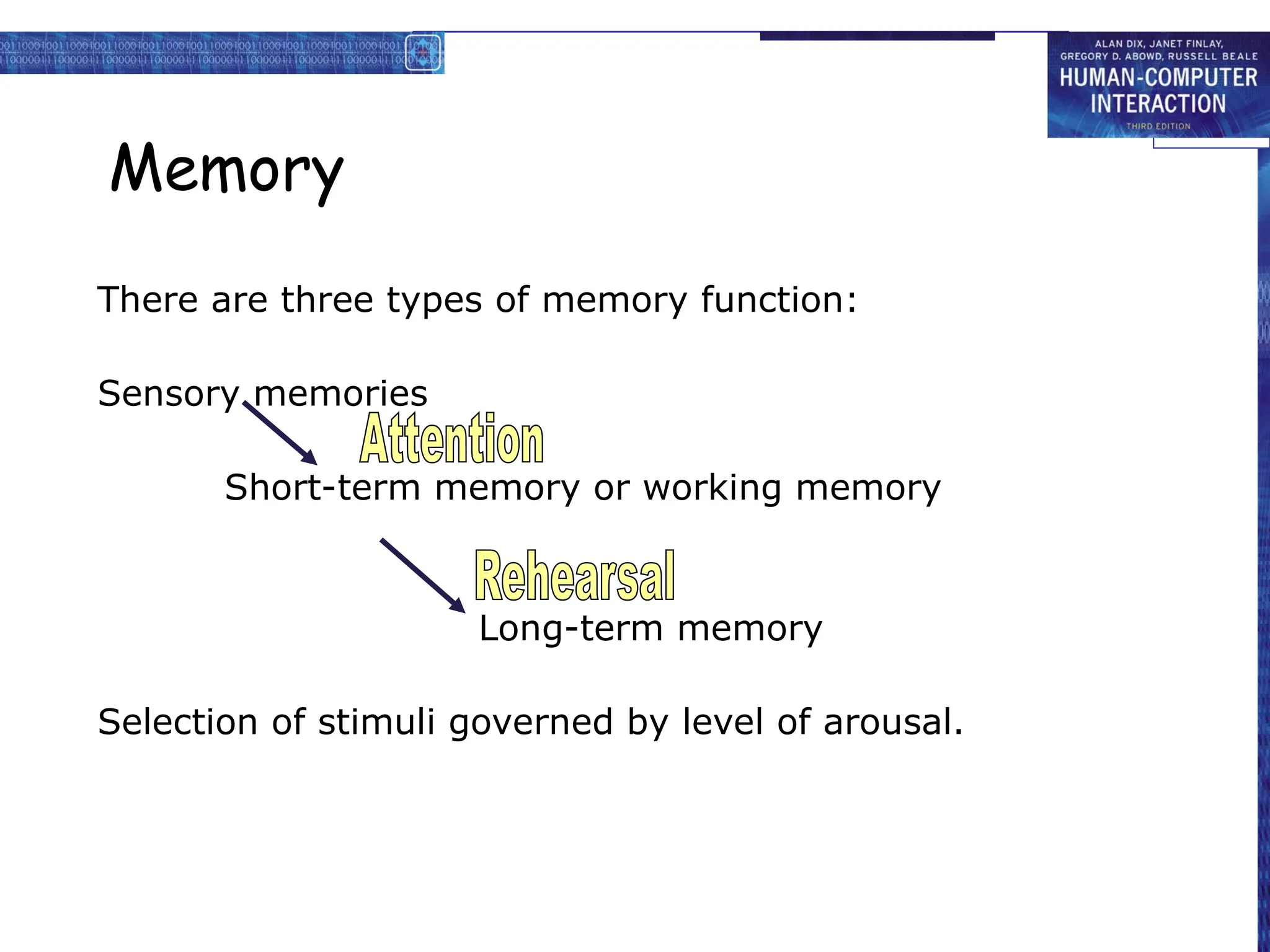

- 19. Memory There are threetypes of memory function: Sensory memories Short-term memory or working memory Long-term memory Selection of stimuli governed by level of arousal.

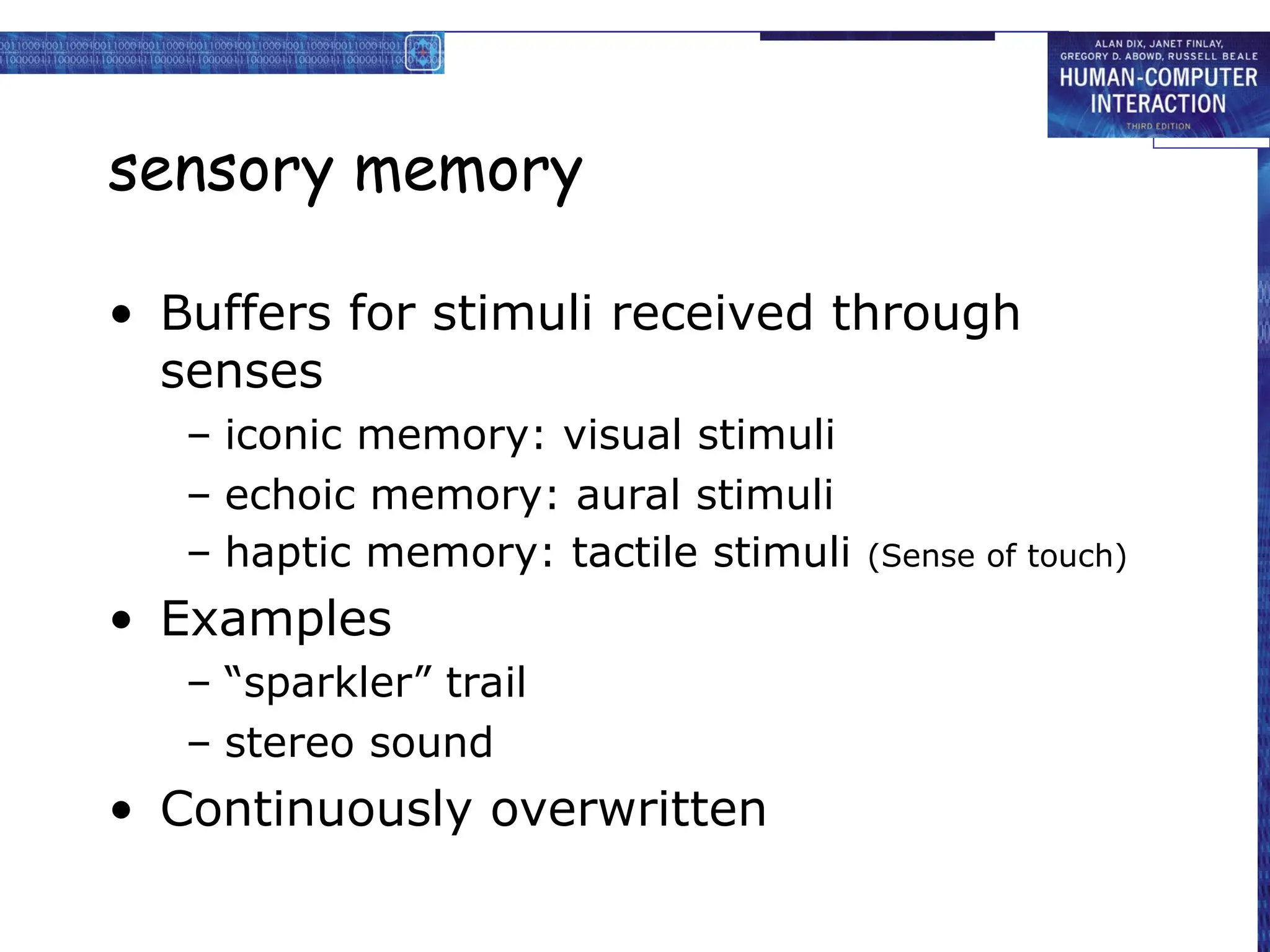

- 20. sensory memory • Buffersfor stimuli received through senses – iconic memory: visual stimuli – echoic memory: aural stimuli – haptic memory: tactile stimuli (Sense of touch) • Examples – “sparkler” trail – stereo sound • Continuously overwritten

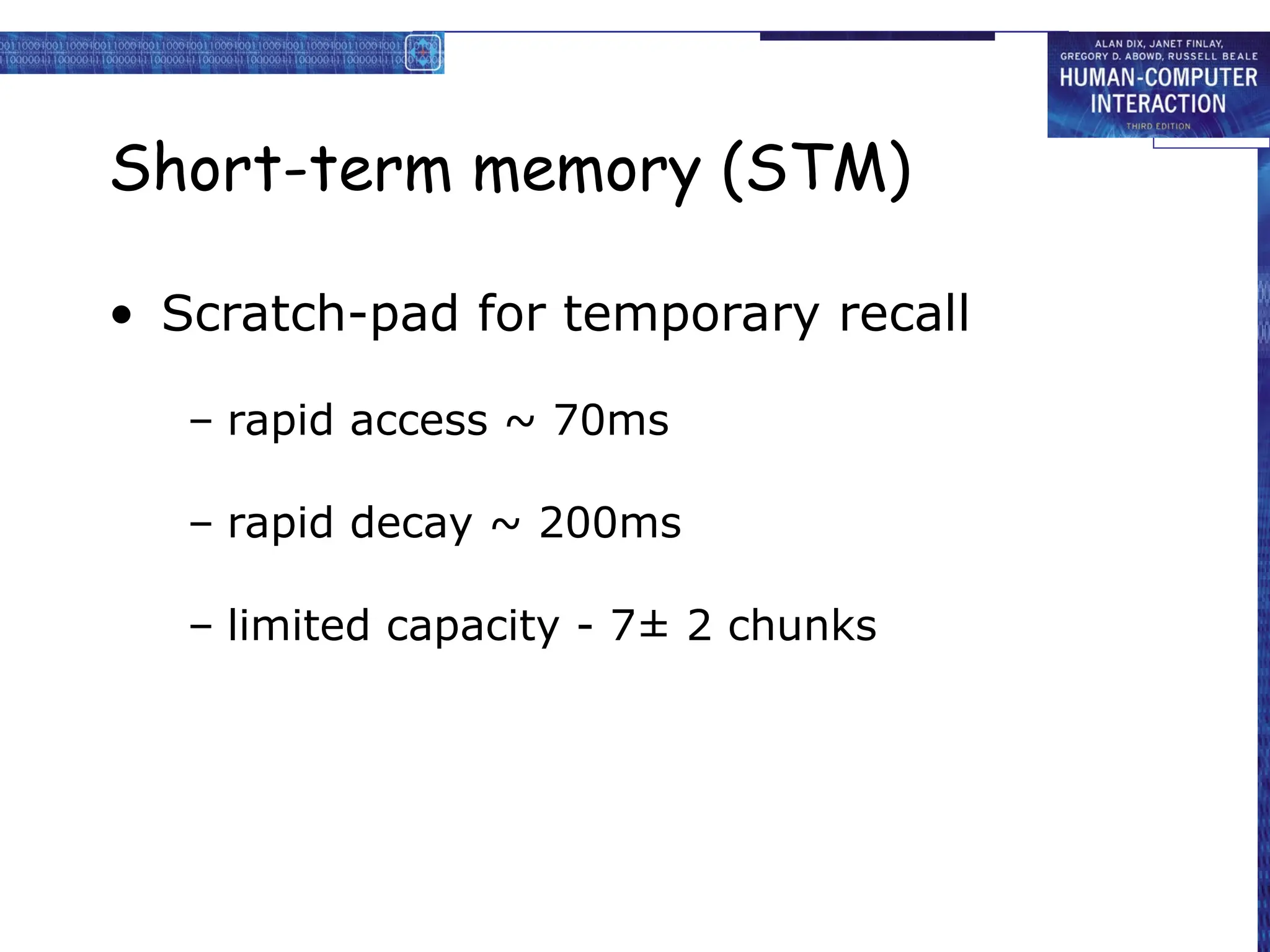

- 21. Short-term memory (STM) •Scratch-pad for temporary recall – rapid access ~ 70ms – rapid decay ~ 200ms – limited capacity - 7± 2 chunks

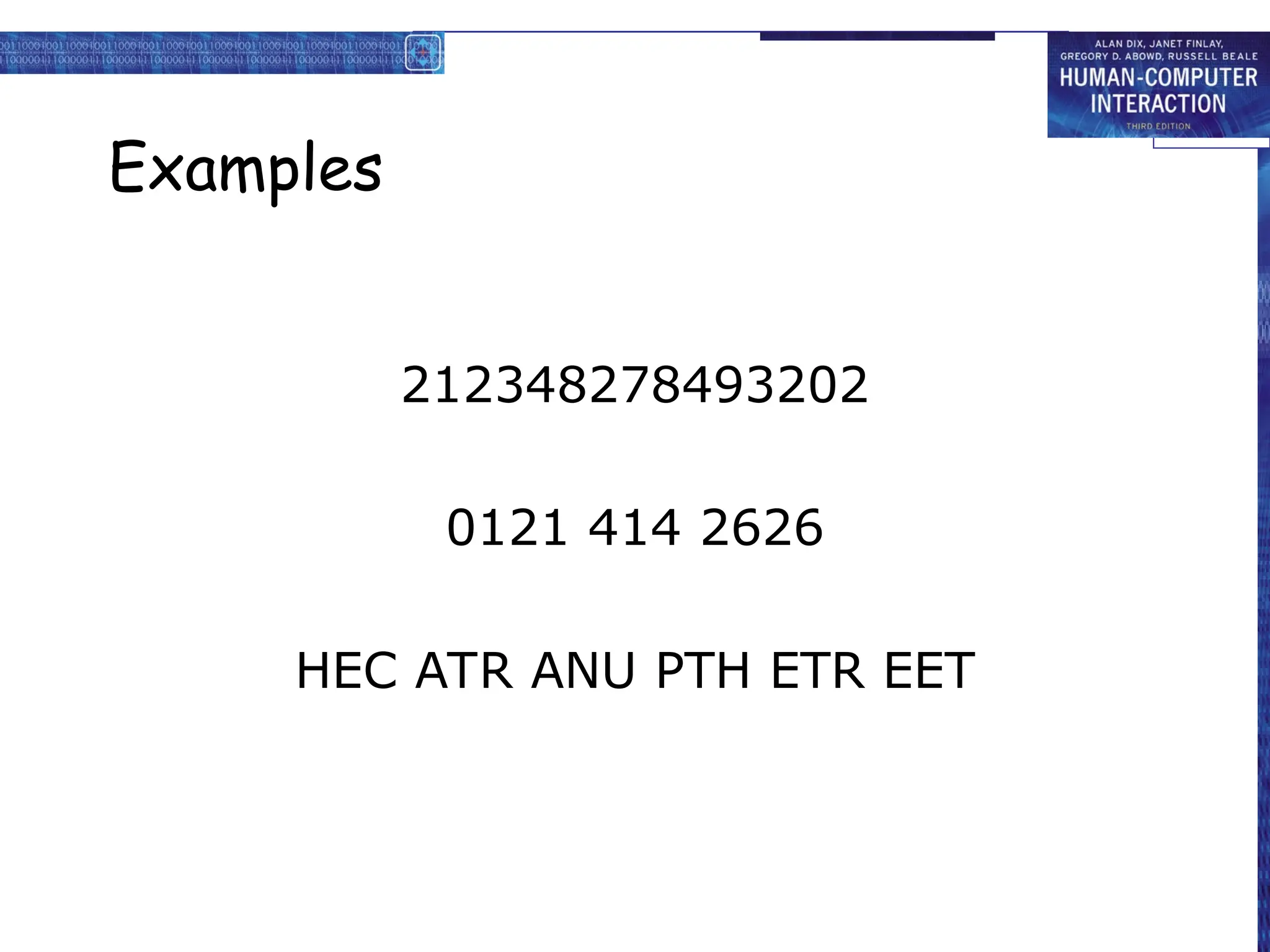

- 22. Examples 212348278493202 0121 414 2626 HECATR ANU PTH ETR EET

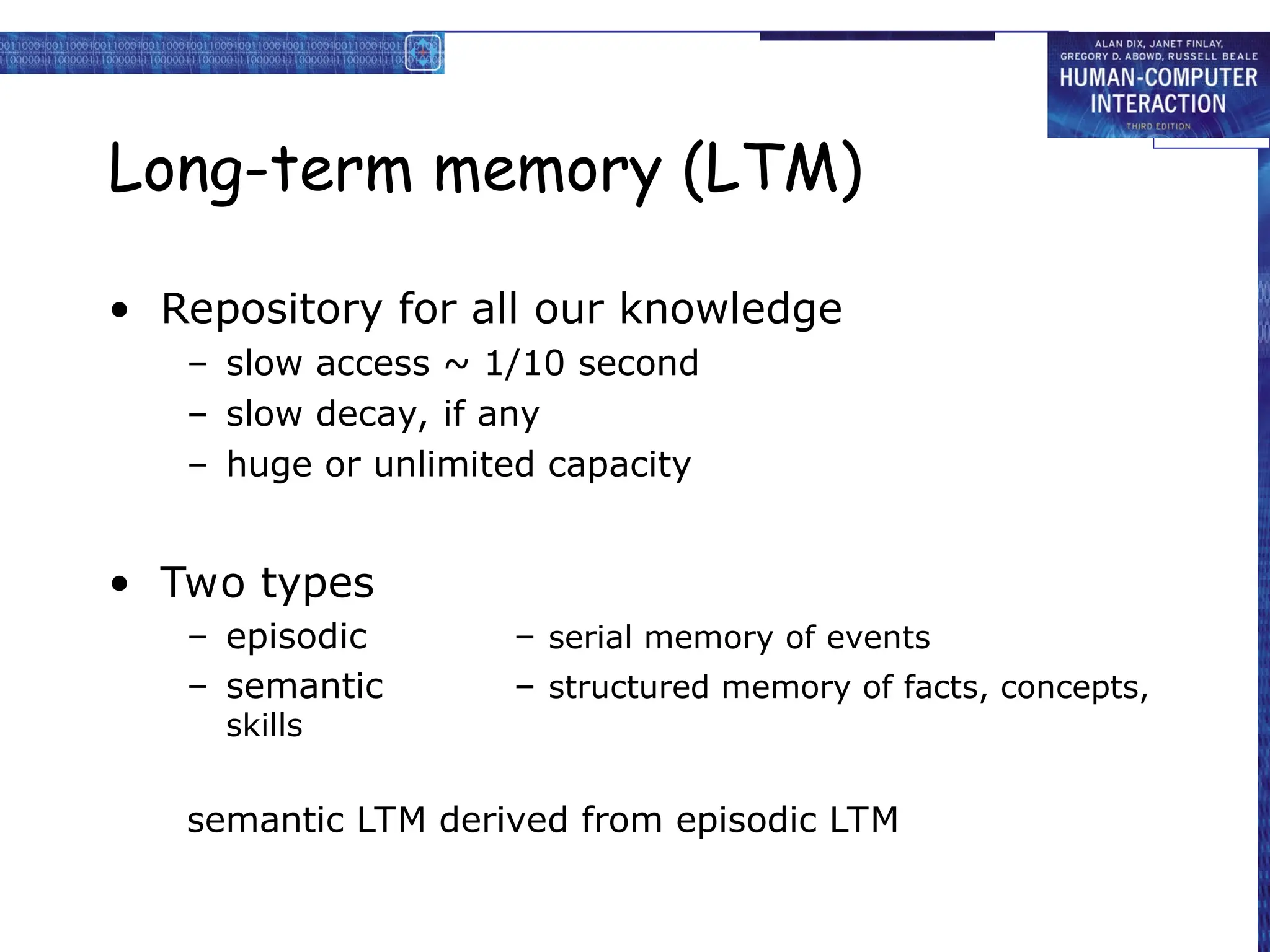

- 23. Long-term memory (LTM) •Repository for all our knowledge – slow access ~ 1/10 second – slow decay, if any – huge or unlimited capacity • Two types – episodic – serial memory of events – semantic – structured memory of facts, concepts, skills semantic LTM derived from episodic LTM

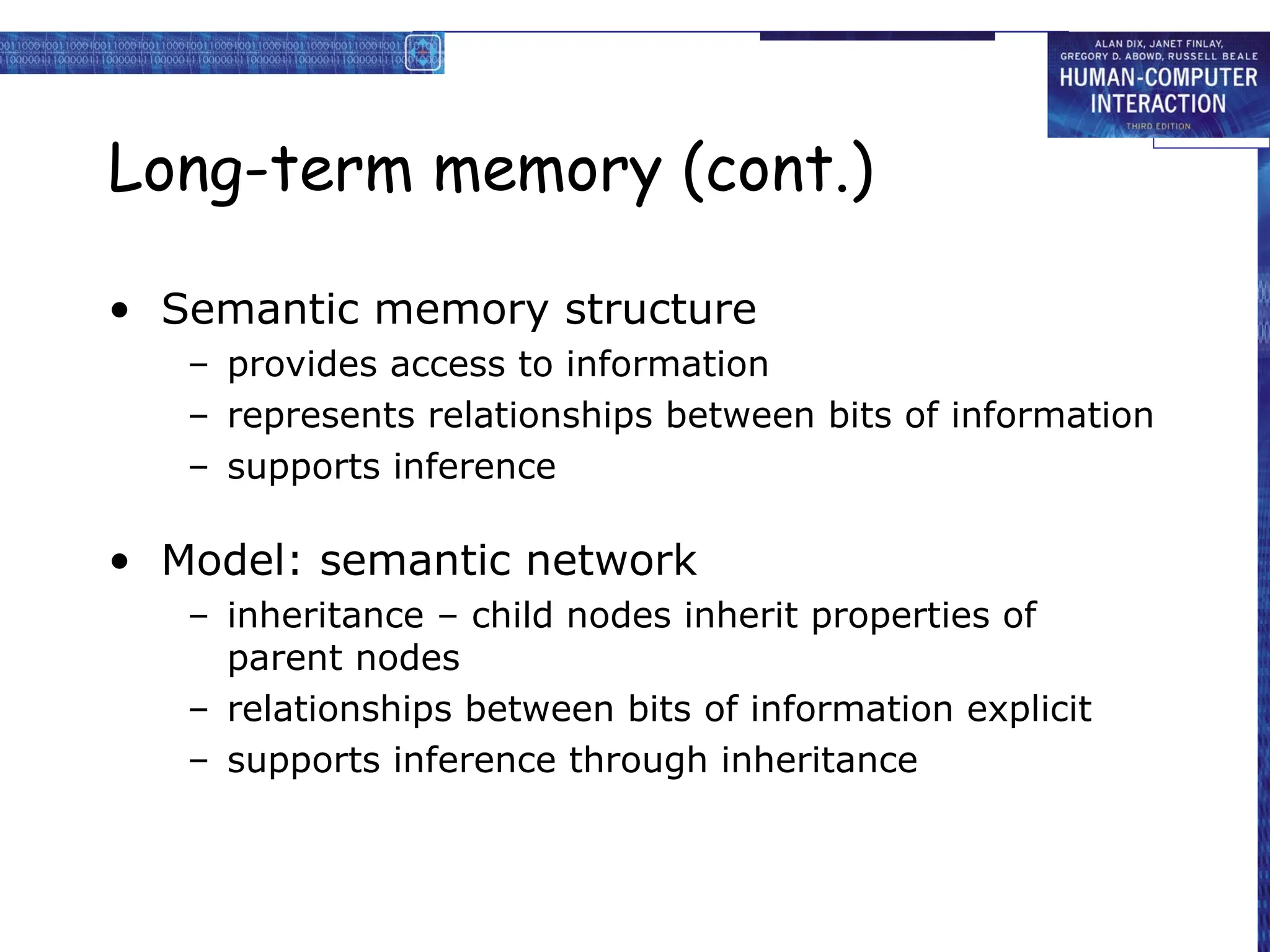

- 24. Long-term memory (cont.) •Semantic memory structure – provides access to information – represents relationships between bits of information – supports inference • Model: semantic network – inheritance – child nodes inherit properties of parent nodes – relationships between bits of information explicit – supports inference through inheritance

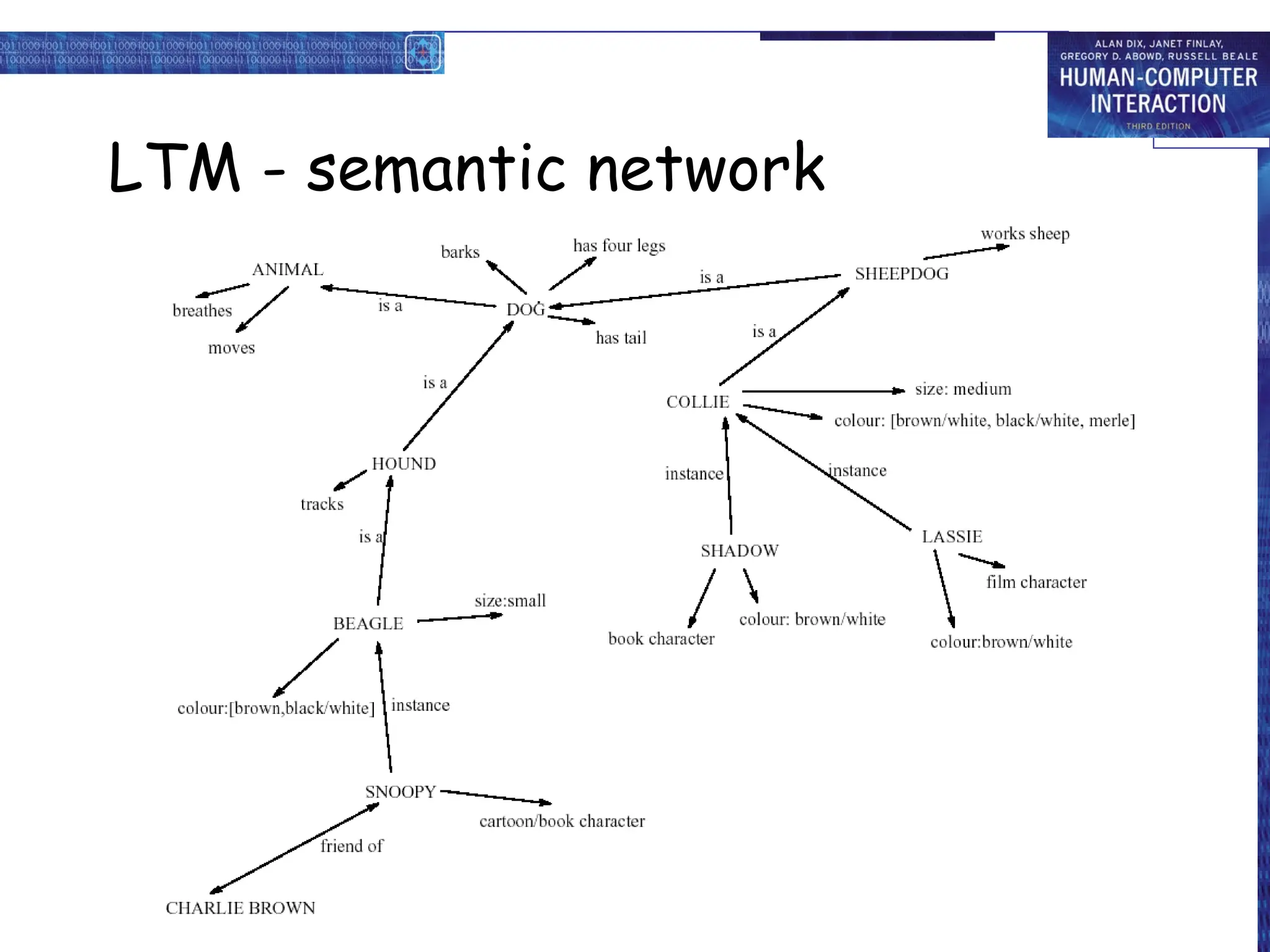

- 25. LTM - semanticnetwork

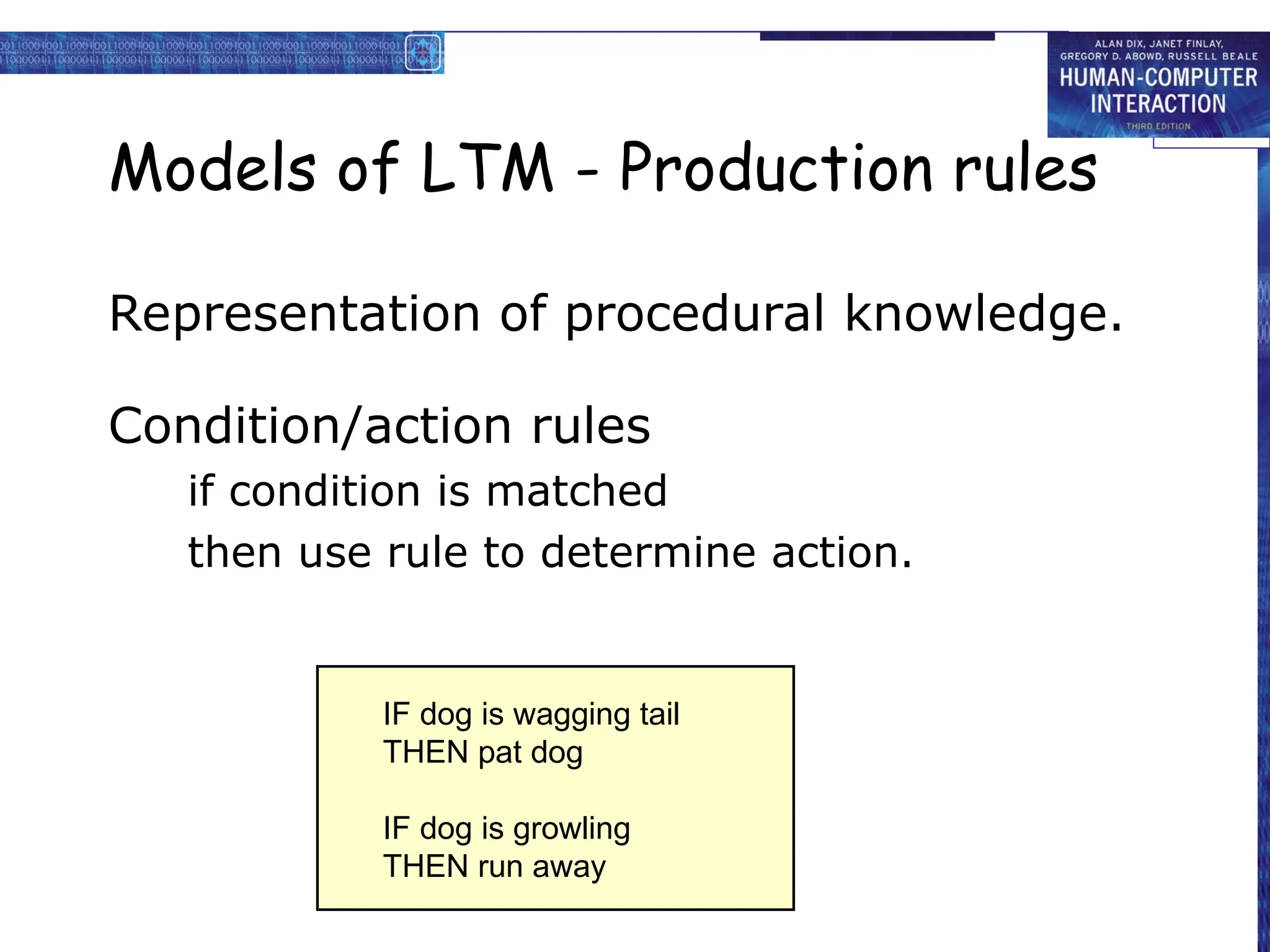

- 26. Models of LTM- Production rules Representation of procedural knowledge. Condition/action rules if condition is matched then use rule to determine action. IF dog is wagging tail THEN pat dog IF dog is growling THEN run away

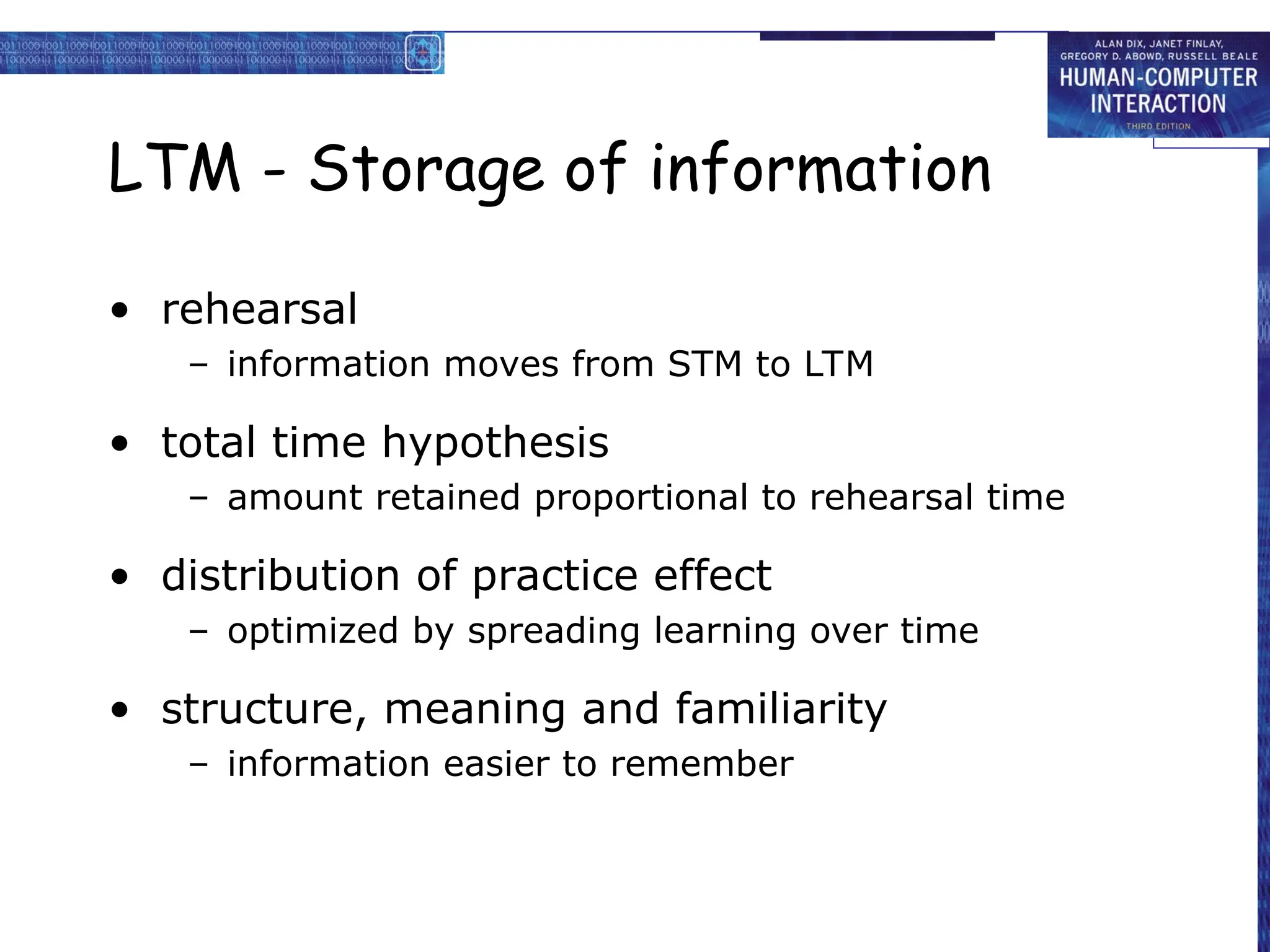

- 27. LTM - Storageof information • rehearsal – information moves from STM to LTM • total time hypothesis – amount retained proportional to rehearsal time • distribution of practice effect – optimized by spreading learning over time • structure, meaning and familiarity – information easier to remember

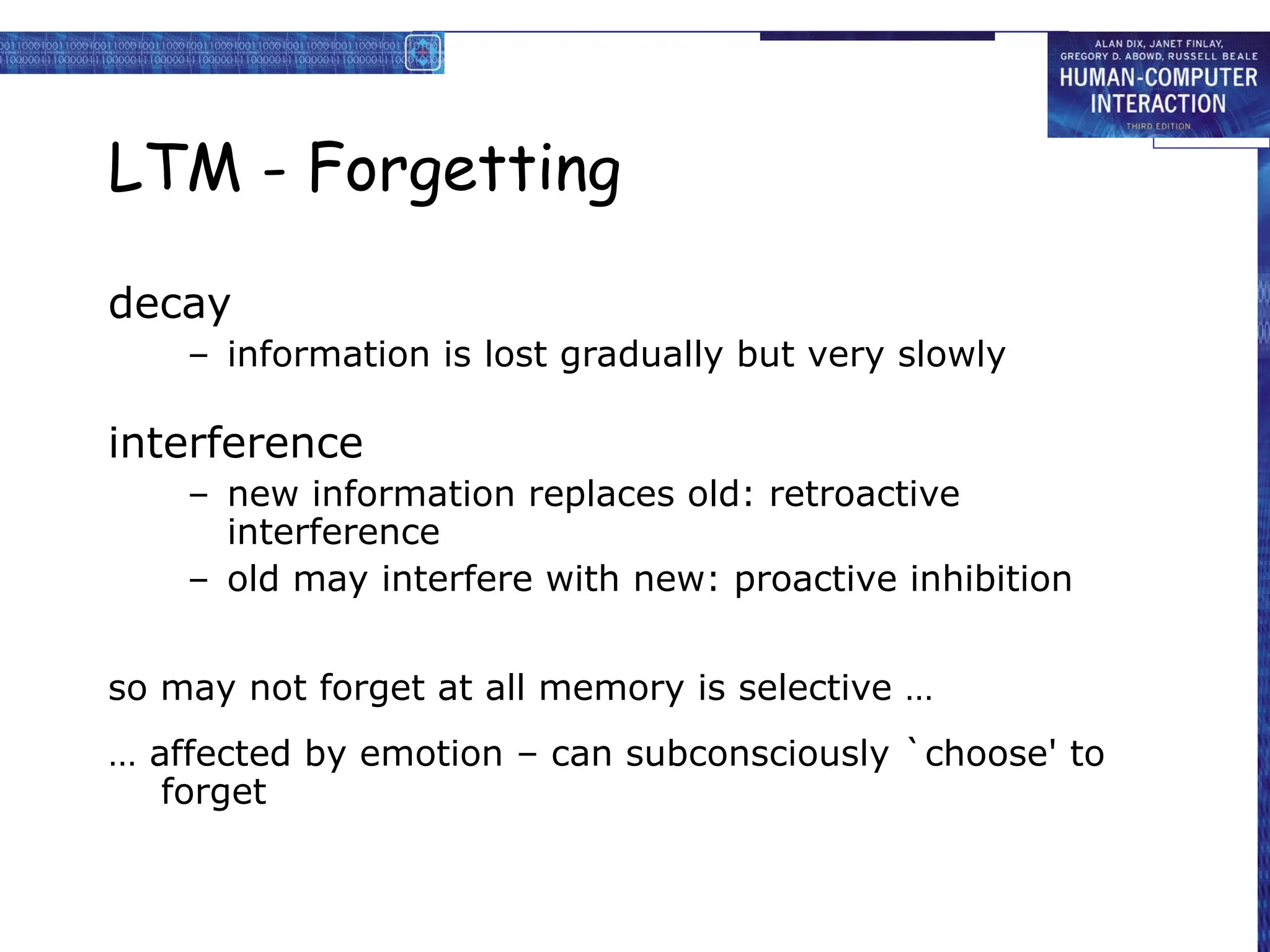

- 28. LTM - Forgetting decay –information is lost gradually but very slowly interference – new information replaces old: retroactive interference – old may interfere with new: proactive inhibition so may not forget at all memory is selective … … affected by emotion – can subconsciously `choose' to forget

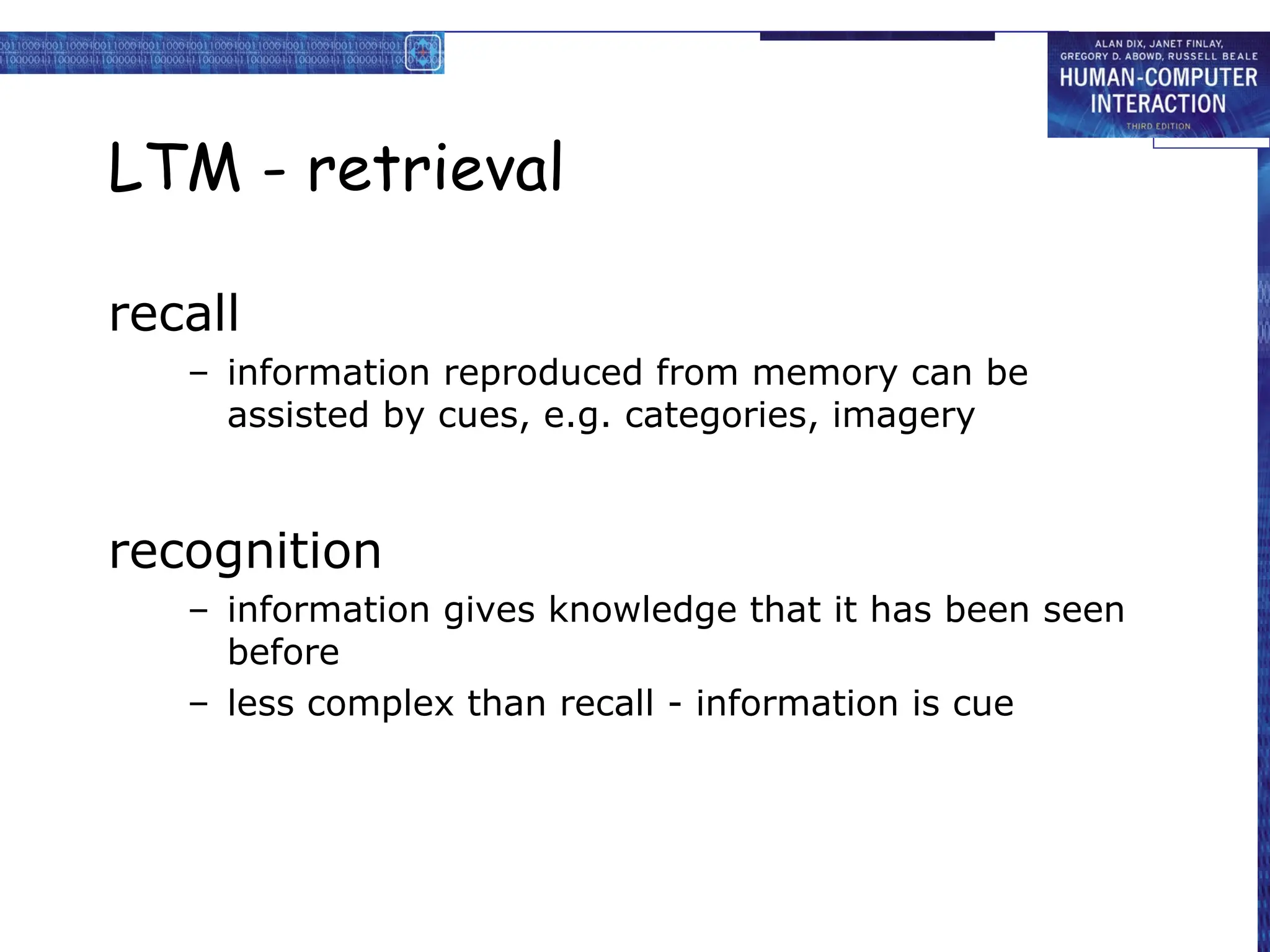

- 29. LTM - retrieval recall –information reproduced from memory can be assisted by cues, e.g. categories, imagery recognition – information gives knowledge that it has been seen before – less complex than recall - information is cue
- 30.

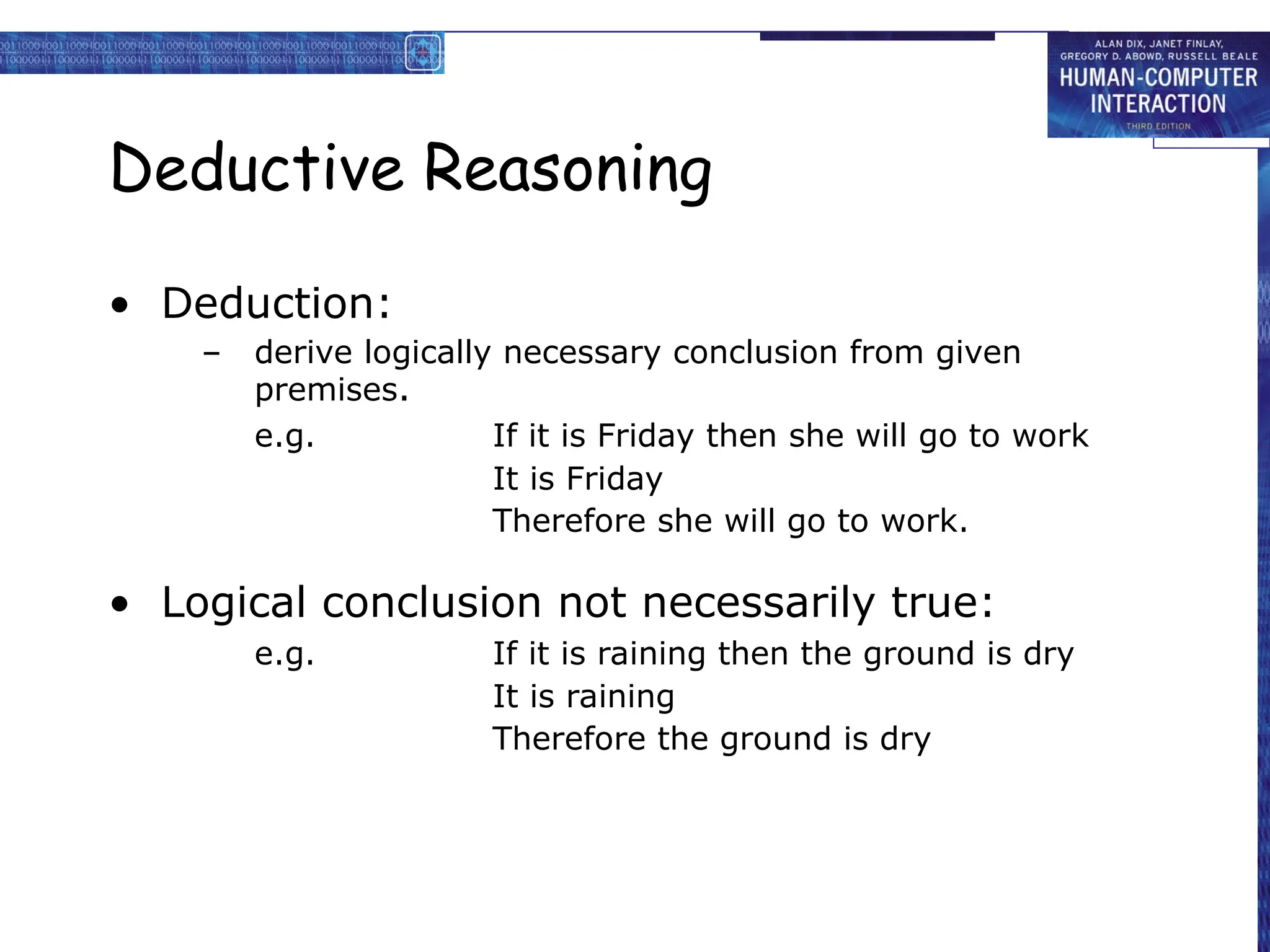

- 31. Deductive Reasoning • Deduction: –derive logically necessary conclusion from given premises. e.g. If it is Friday then she will go to work It is Friday Therefore she will go to work. • Logical conclusion not necessarily true: e.g. If it is raining then the ground is dry It is raining Therefore the ground is dry

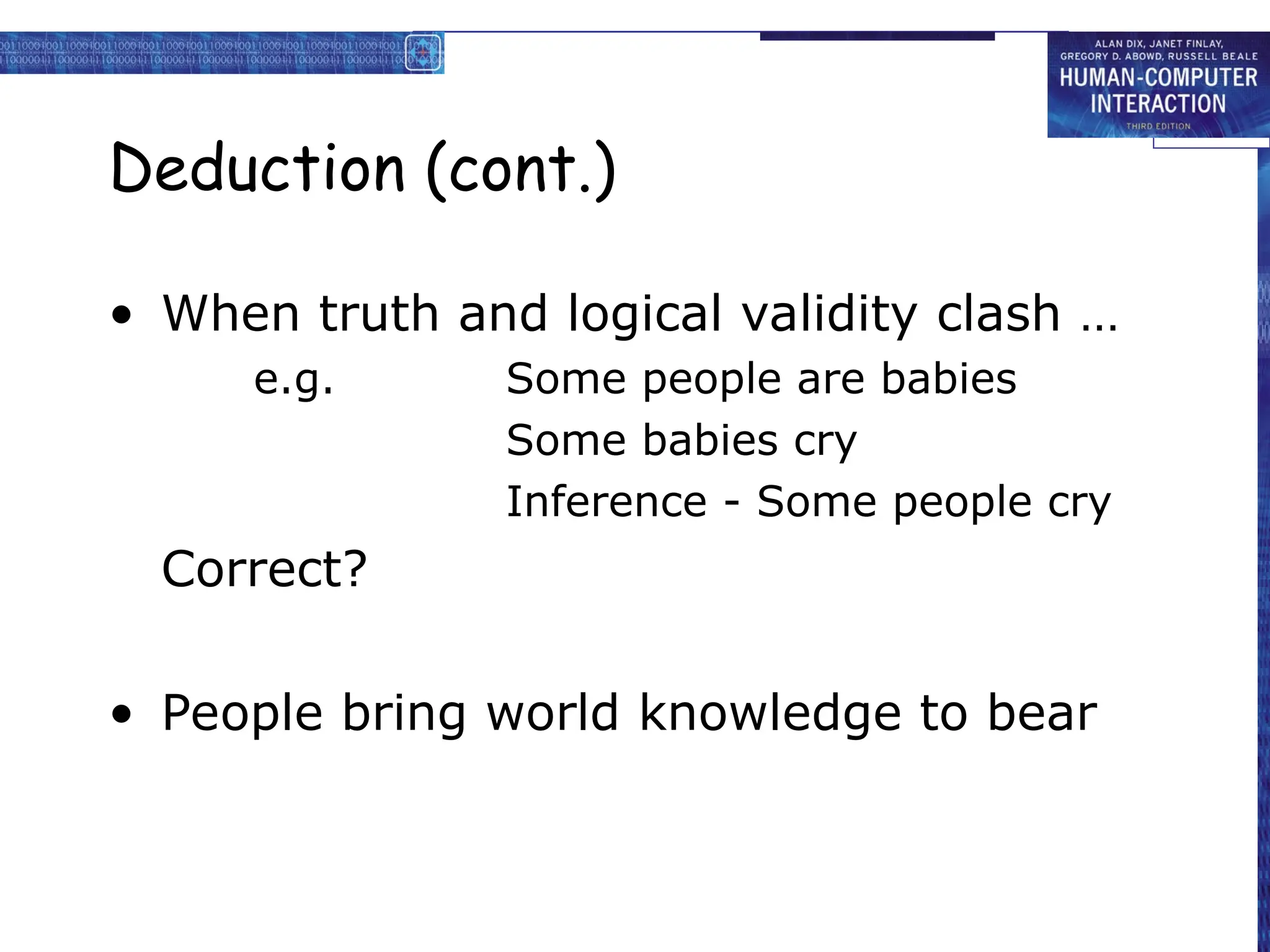

- 32. Deduction (cont.) • Whentruth and logical validity clash … e.g. Some people are babies Some babies cry Inference - Some people cry Correct? • People bring world knowledge to bear

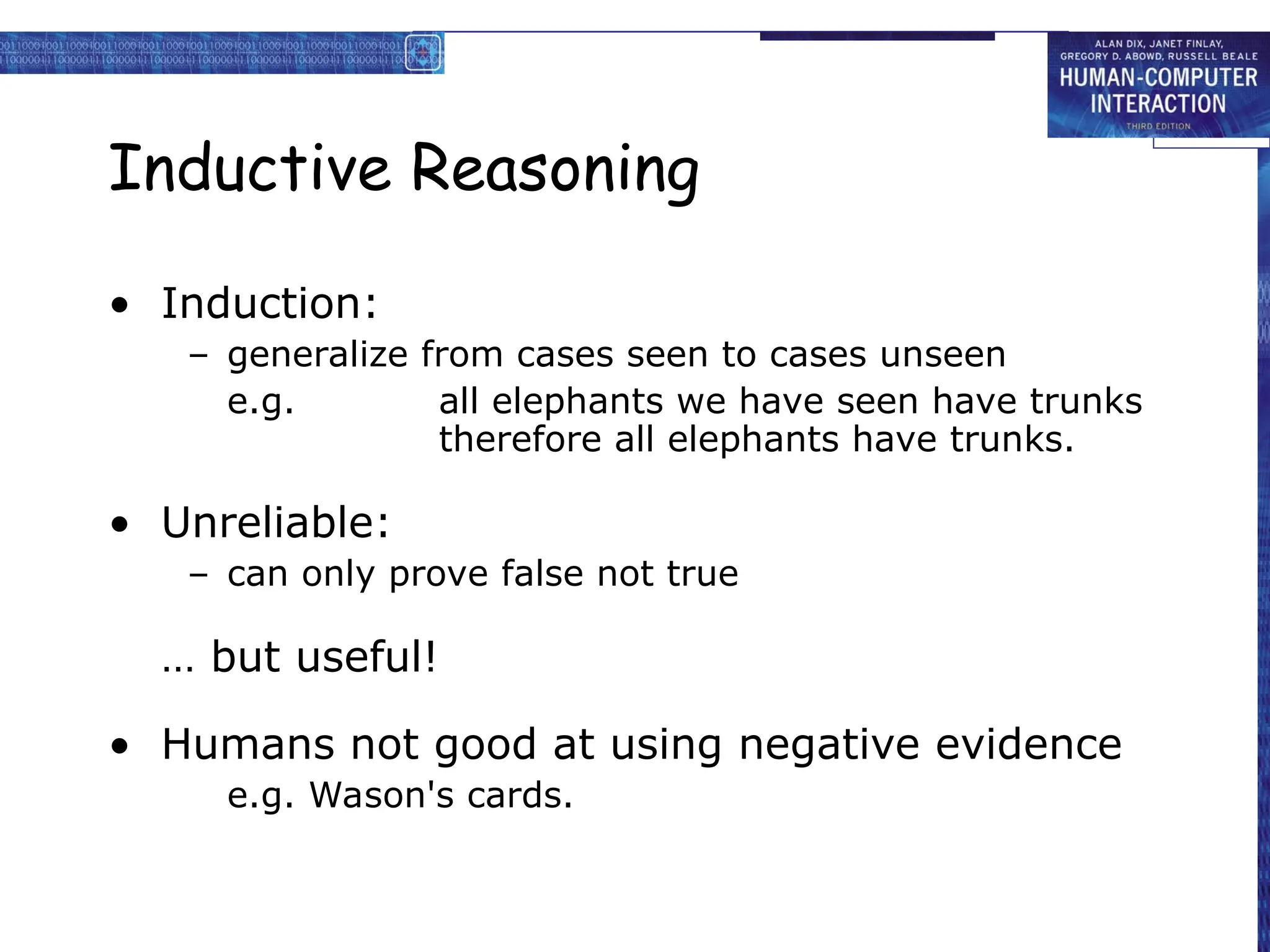

- 33. Inductive Reasoning • Induction: –generalize from cases seen to cases unseen e.g. all elephants we have seen have trunks therefore all elephants have trunks. • Unreliable: – can only prove false not true … but useful! • Humans not good at using negative evidence e.g. Wason's cards.

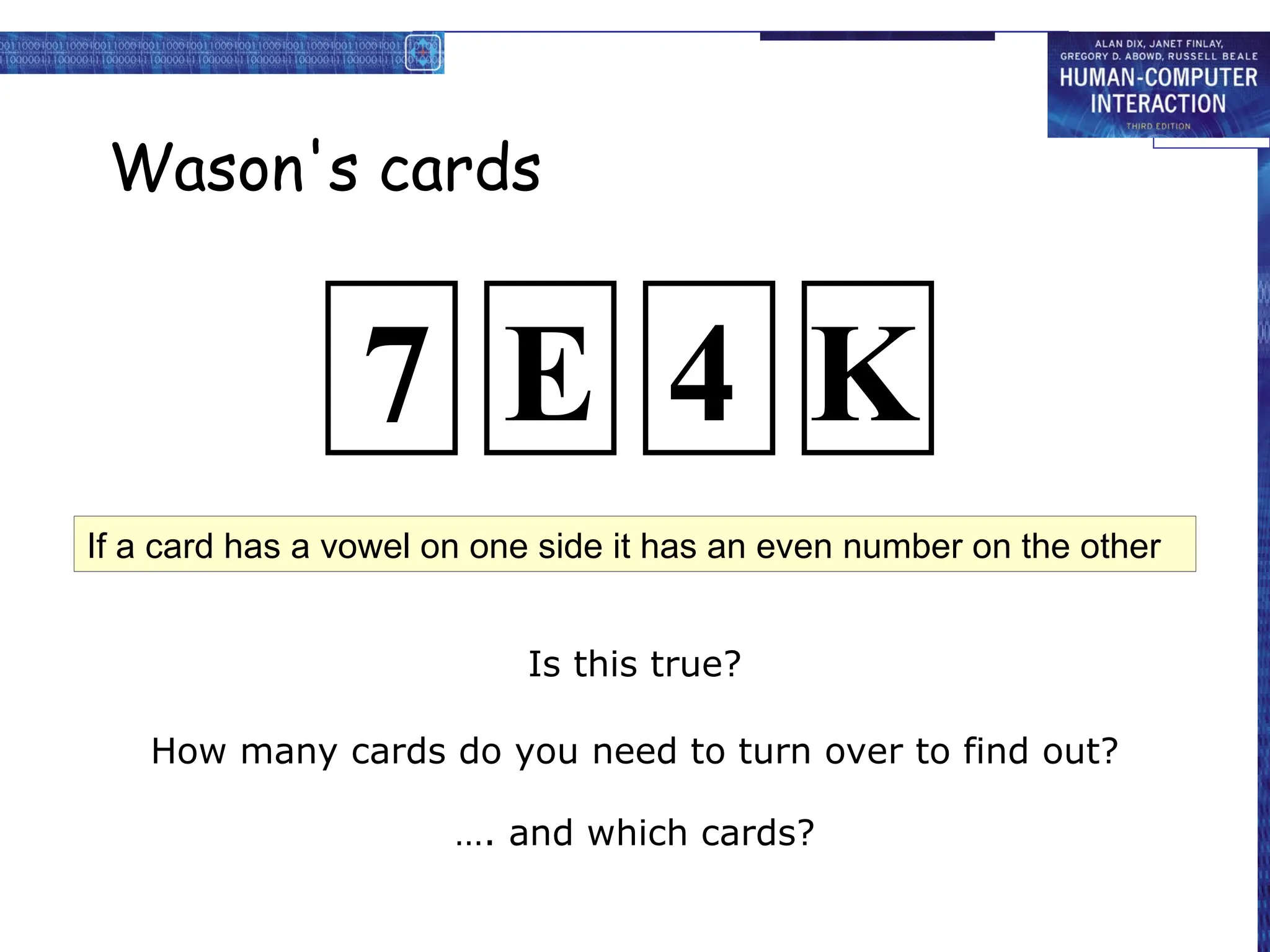

- 34. Wason's cards Is thistrue? How many cards do you need to turn over to find out? …. and which cards? If a card has a vowel on one side it has an even number on the other 7 E 4 K

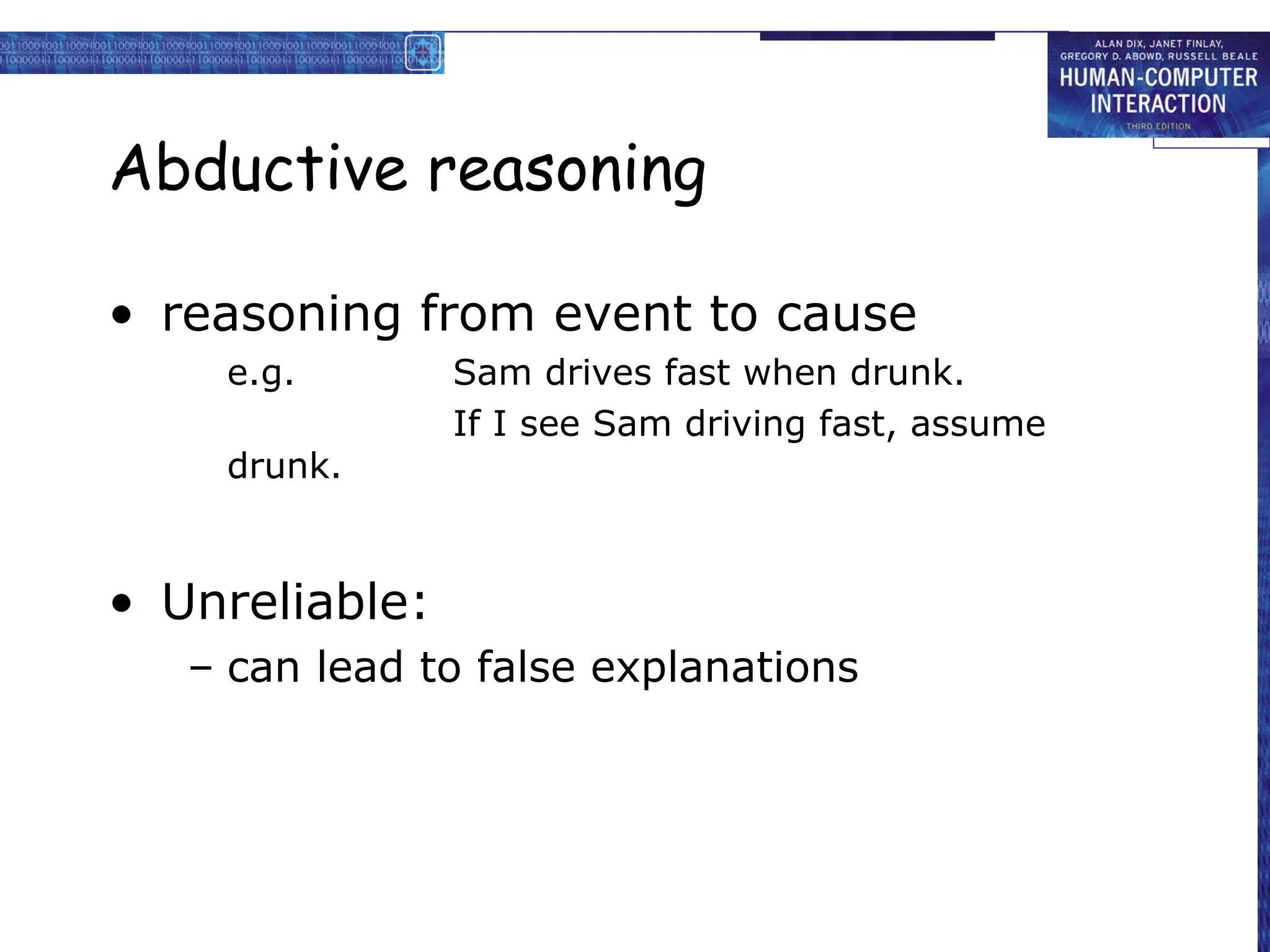

- 35. Abductive reasoning • reasoningfrom event to cause e.g. Sam drives fast when drunk. If I see Sam driving fast, assume drunk. • Unreliable: – can lead to false explanations

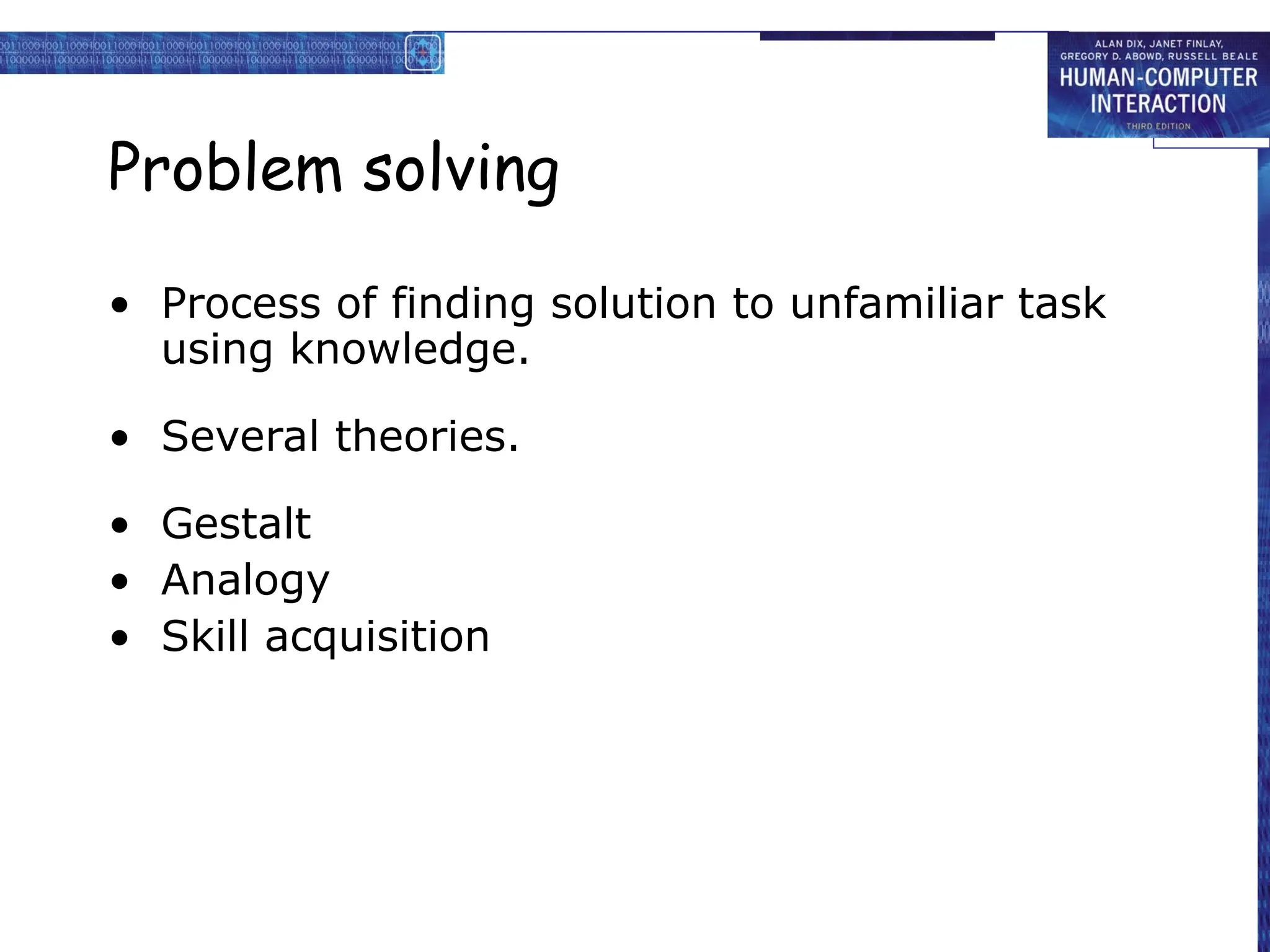

- 36. Problem solving • Processof finding solution to unfamiliar task using knowledge. • Several theories. • Gestalt • Analogy • Skill acquisition

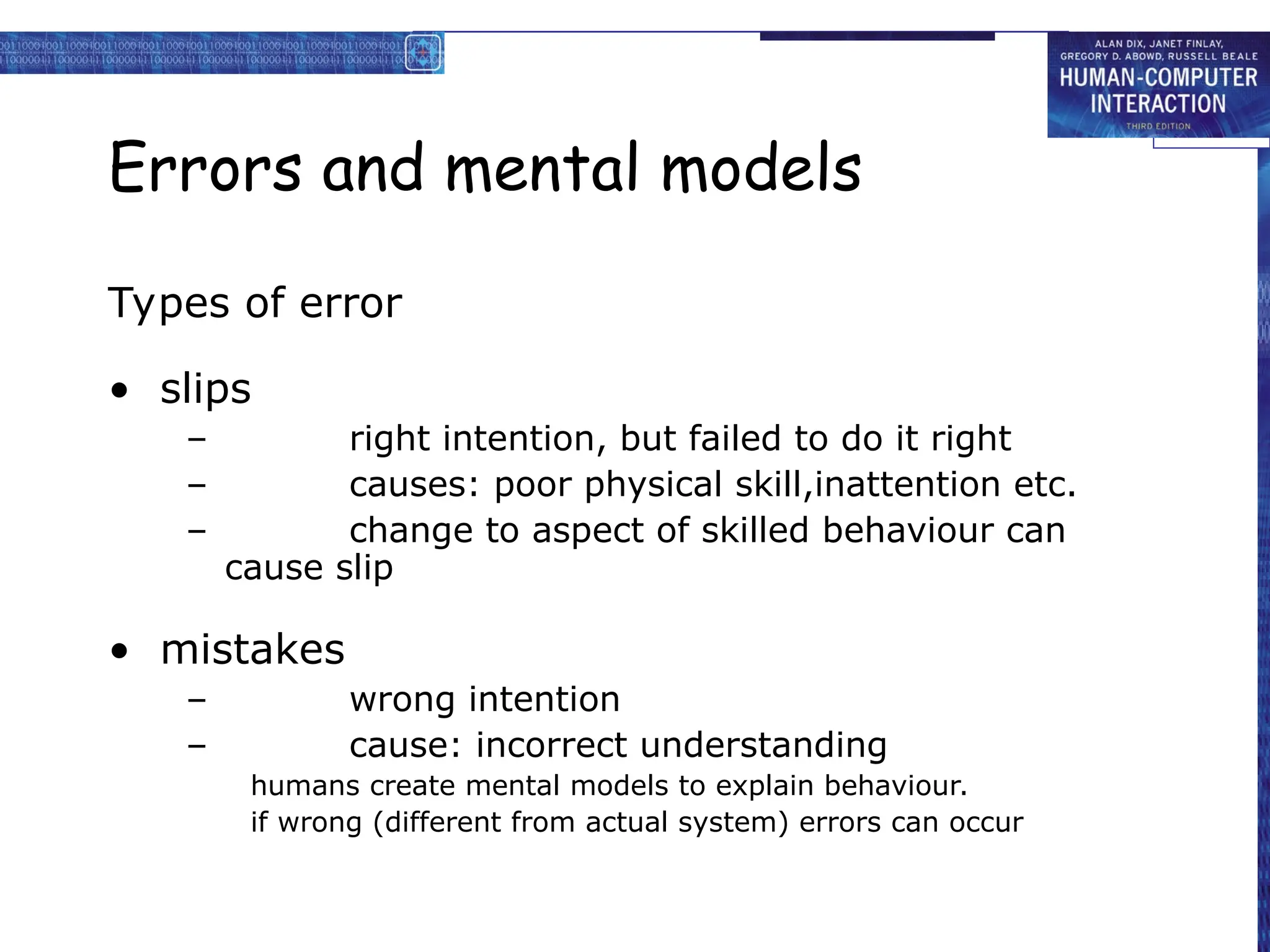

- 37. Errors and mentalmodels Types of error • slips – right intention, but failed to do it right – causes: poor physical skill,inattention etc. – change to aspect of skilled behaviour can cause slip • mistakes – wrong intention – cause: incorrect understanding humans create mental models to explain behaviour. if wrong (different from actual system) errors can occur

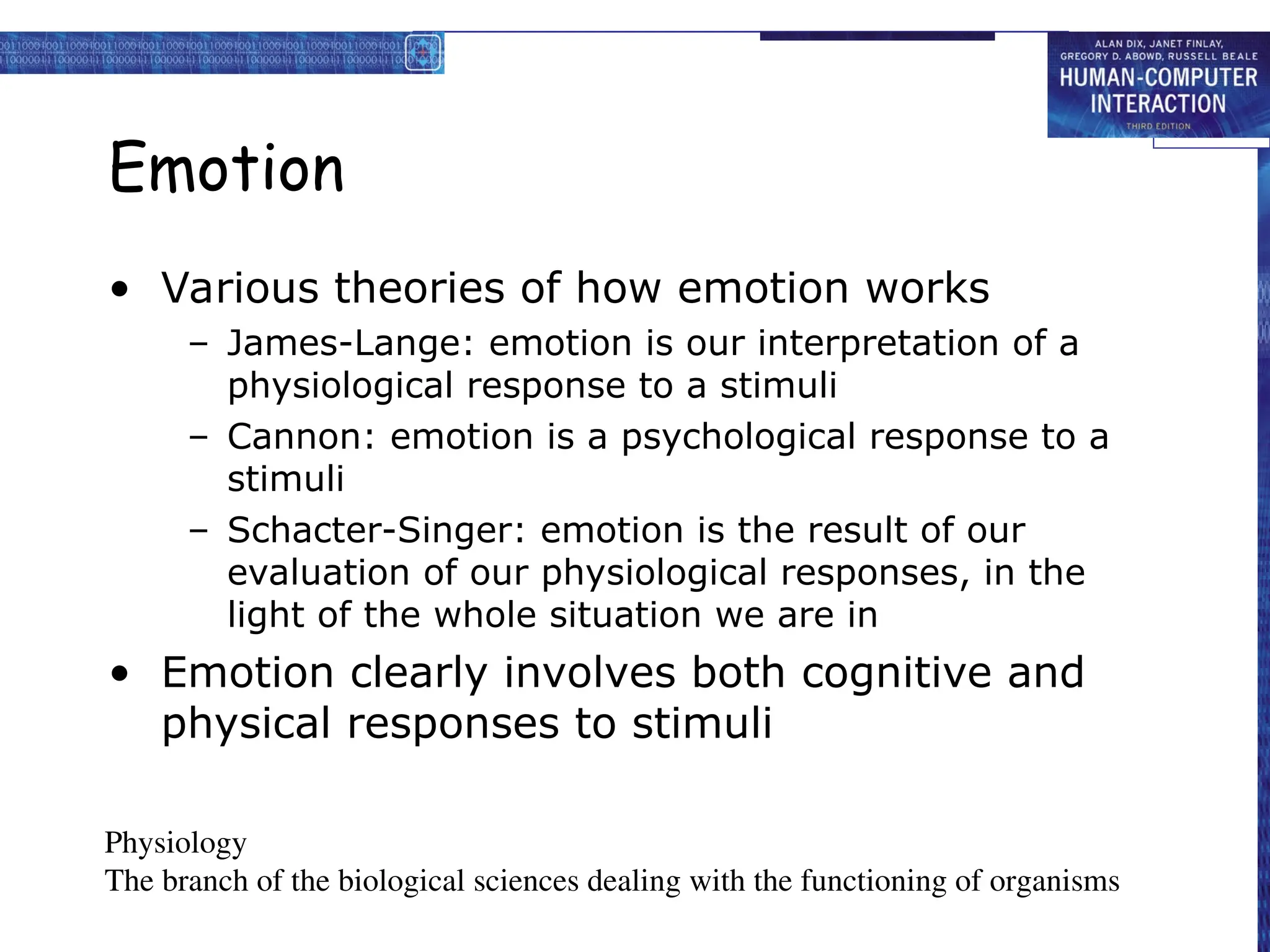

- 38. Emotion • Various theoriesof how emotion works – James-Lange: emotion is our interpretation of a physiological response to a stimuli – Cannon: emotion is a psychological response to a stimuli – Schacter-Singer: emotion is the result of our evaluation of our physiological responses, in the light of the whole situation we are in • Emotion clearly involves both cognitive and physical responses to stimuli Physiology The branch of the biological sciences dealing with the functioning of organisms

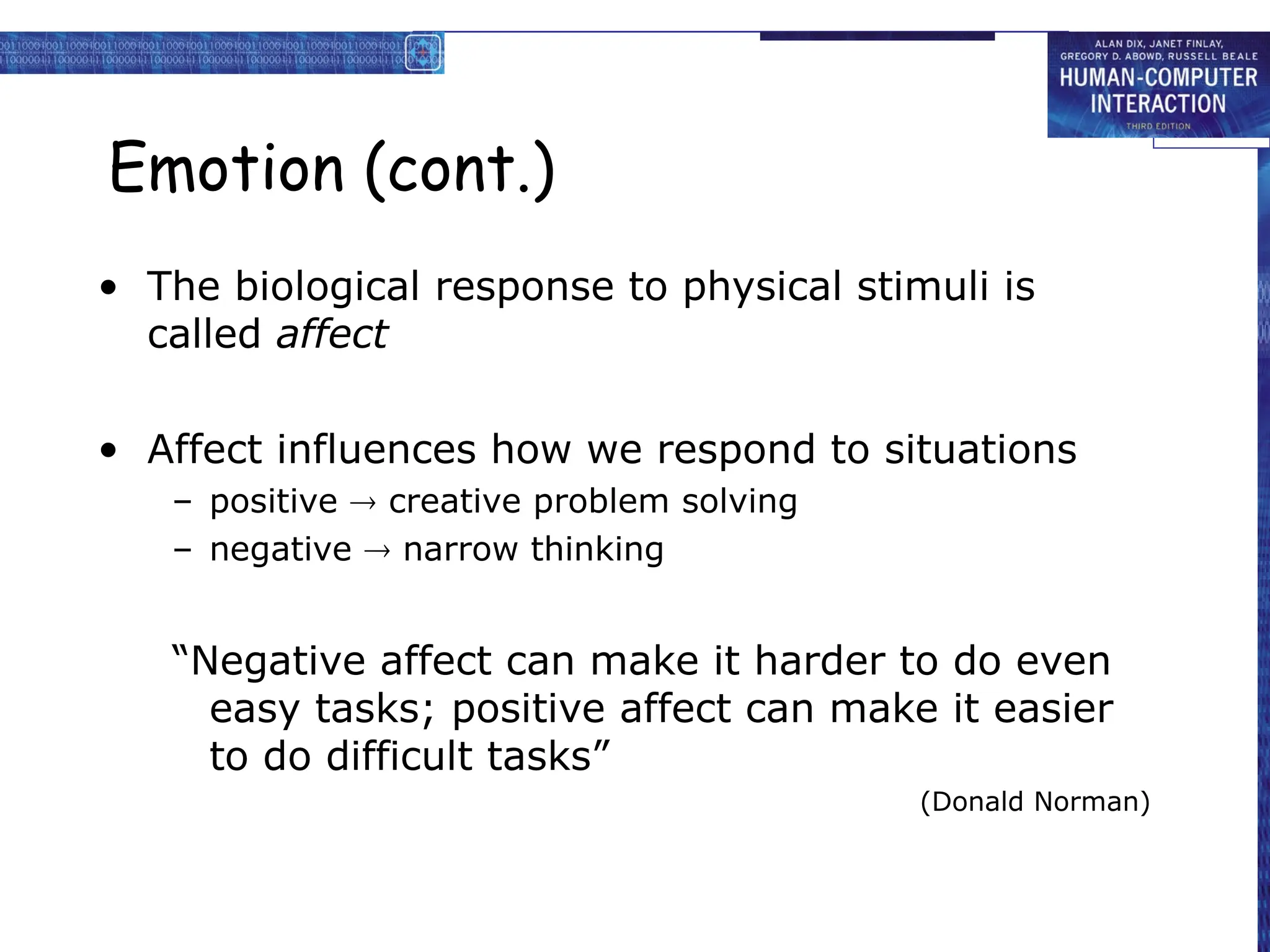

- 39. Emotion (cont.) • Thebiological response to physical stimuli is called affect • Affect influences how we respond to situations – positive creative problem solving – negative narrow thinking “Negative affect can make it harder to do even easy tasks; positive affect can make it easier to do difficult tasks” (Donald Norman)

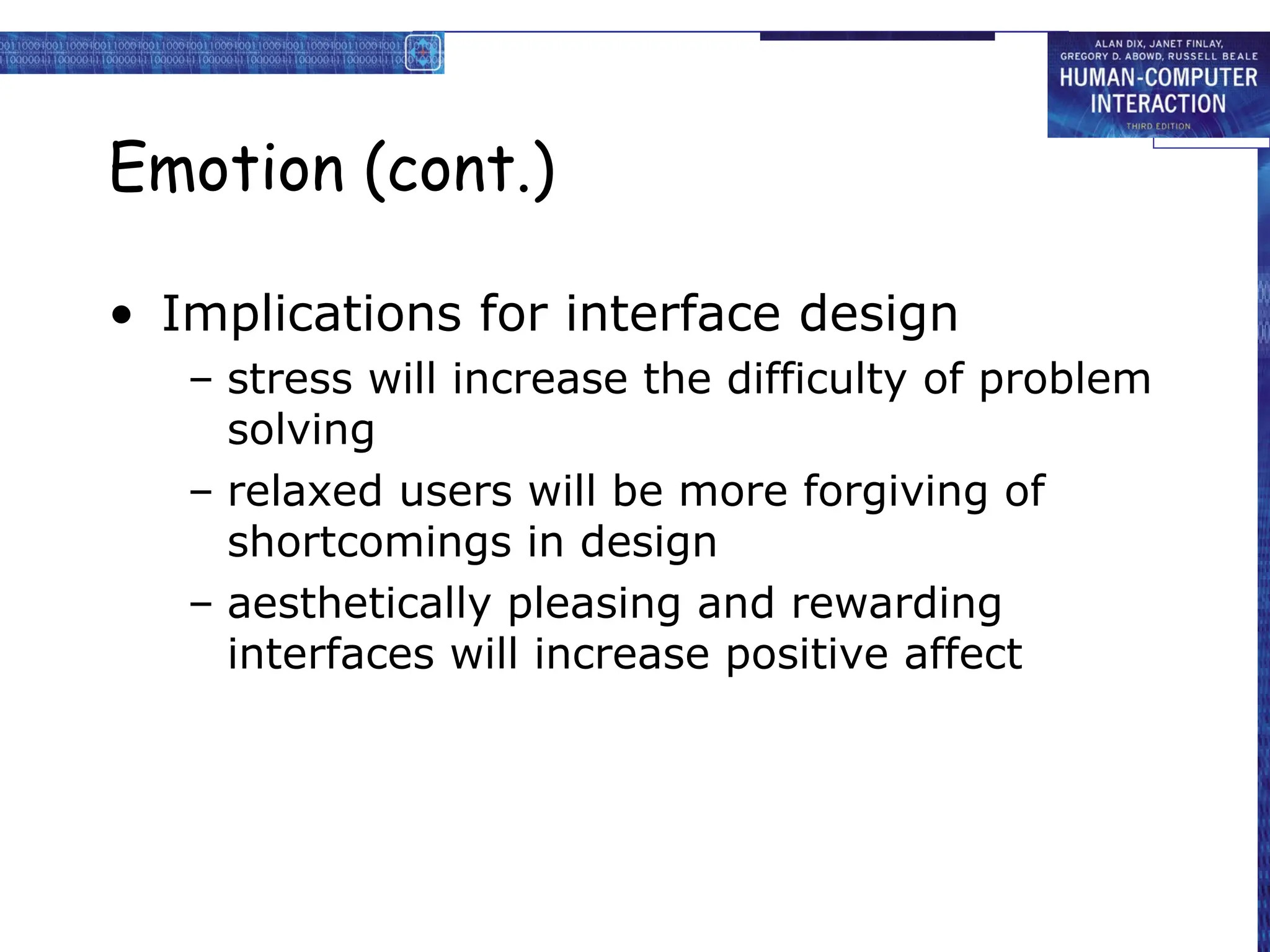

- 40. Emotion (cont.) • Implicationsfor interface design – stress will increase the difficulty of problem solving – relaxed users will be more forgiving of shortcomings in design – aesthetically pleasing and rewarding interfaces will increase positive affect

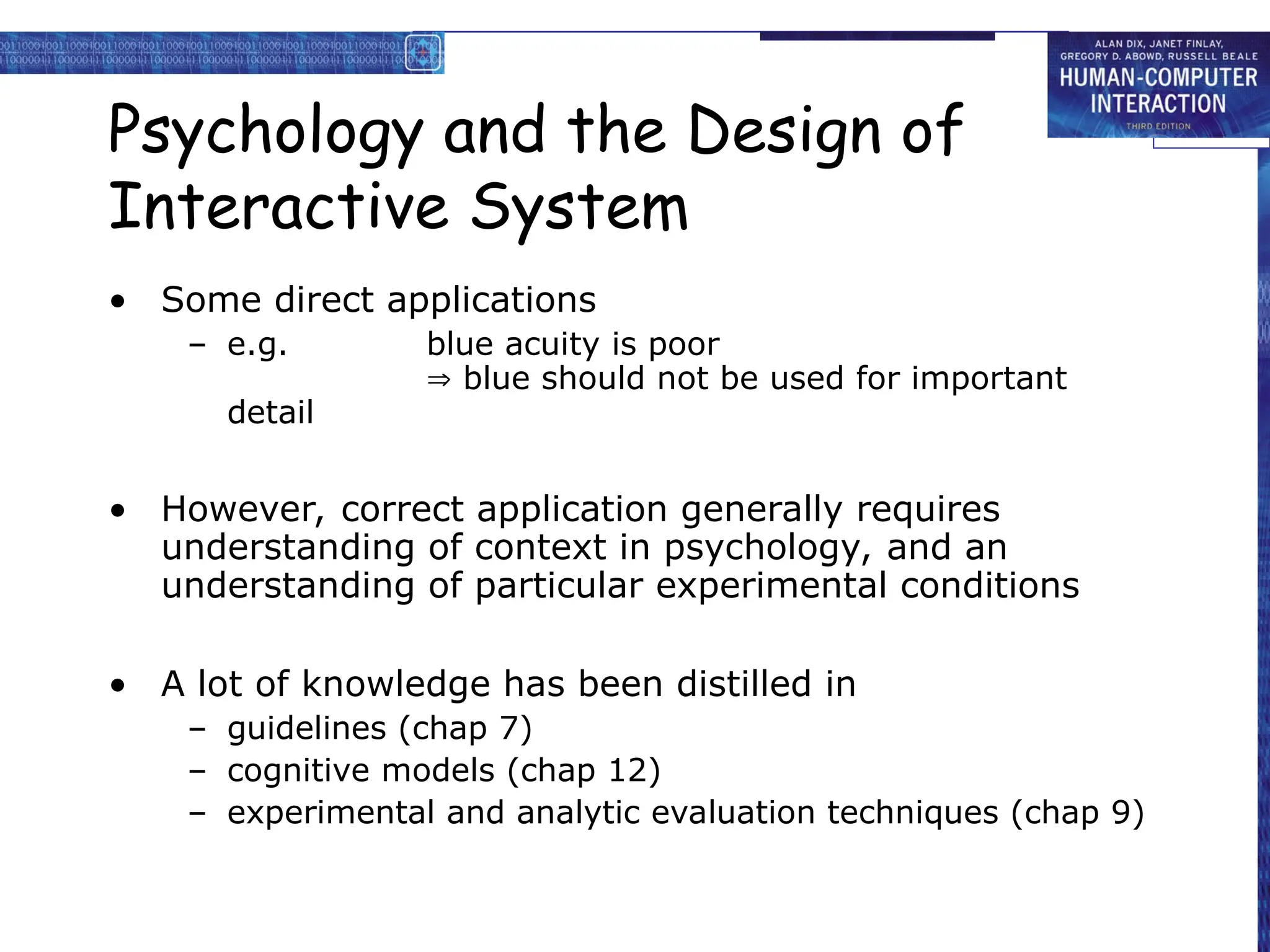

- 41. Psychology and theDesign of Interactive System • Some direct applications – e.g. blue acuity is poor blue should not be used for important detail • However, correct application generally requires understanding of context in psychology, and an understanding of particular experimental conditions • A lot of knowledge has been distilled in – guidelines (chap 7) – cognitive models (chap 12) – experimental and analytic evaluation techniques (chap 9)
- 42.
