U-Boot - An universal bootloader

Team Emertxe
Embedded Boot Loaders
U-Boot

U-Boot

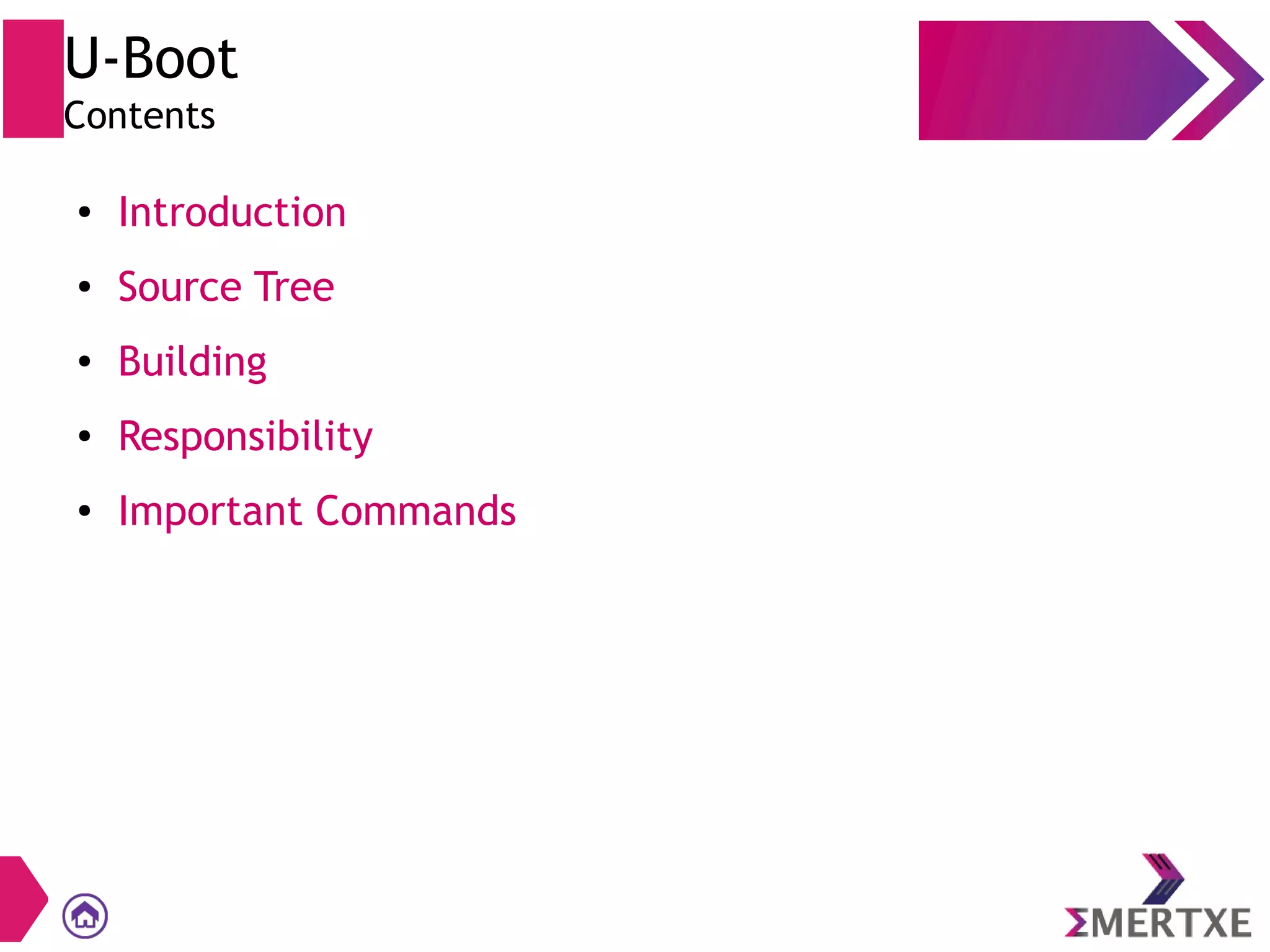

Contents
● Introduction
● Source Tree
● Building
● Responsibility
● Important Commands

U-Boot
Introduction - General
● The "Universal Bootloader" ("Das U-Boot") is a monitor
program
● Free Software: full source code under GPL
● Can get at: //www.denx.de/wiki/U-Boot
● Production quality: used as default boot loader by several
board vendors
● Portable and easy to port and to debug
● Many supported architectures: PPC, ARM, MIPS, x86,
m68k, NIOS, Microblaze

U-Boot

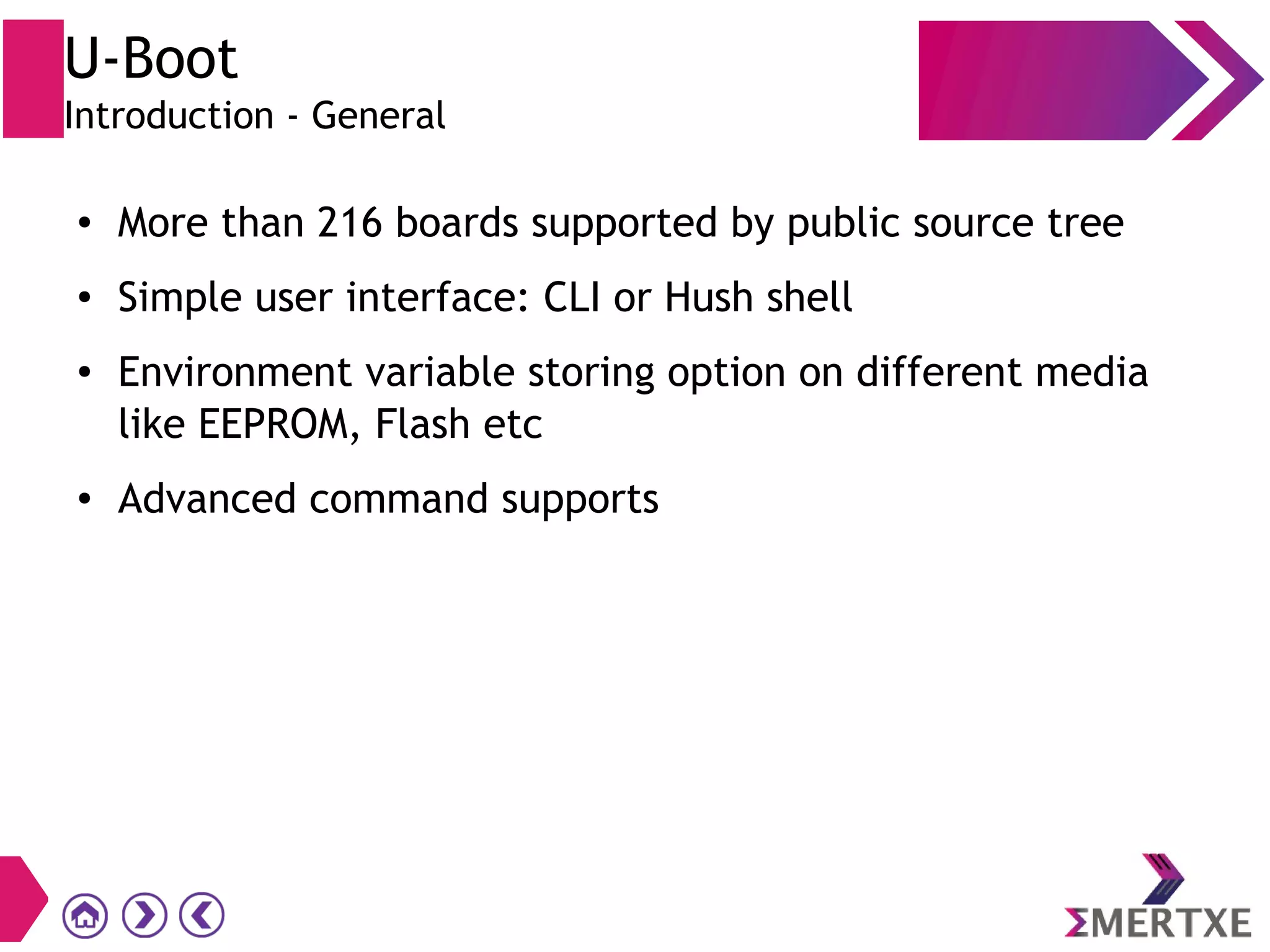

Introduction - General
● More than 216 boards supported by public source tree
● Simple user interface: CLI or Hush shell
● Environment variable storing option on different media
like EEPROM, Flash etc
● Advanced command supports

U-Boot
Introduction – Design Principles
● Easy to port to new architectures, new processors, and
new boards
● Easy to debug: serial console output as soon as possible
● Features and commands configurable
● As small as possible
● As reliable as possible

U-Boot

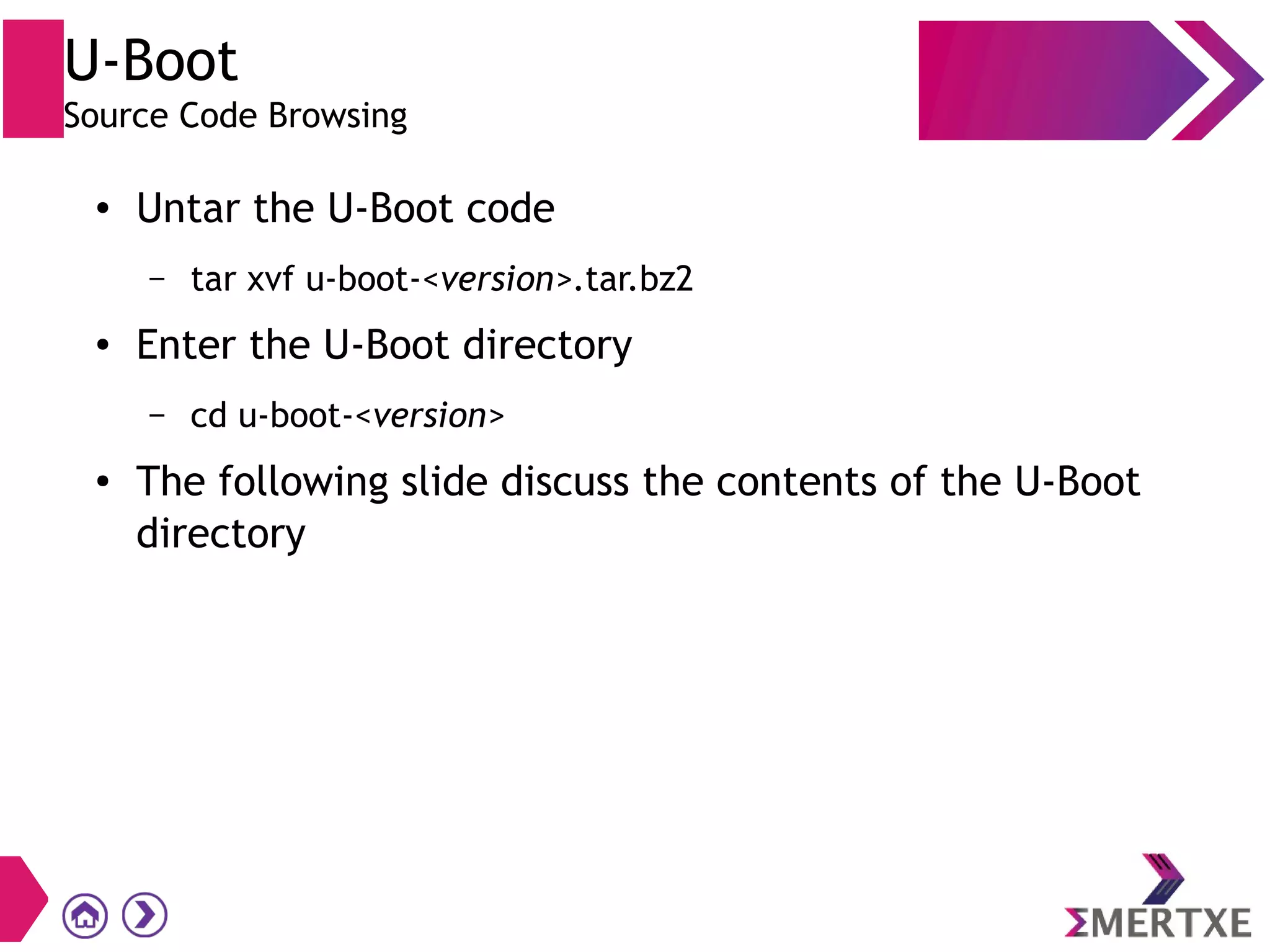

Source Code Browsing
● Untar the U-Boot code
– tar xvf u-boot-<version>.tar.bz2
● Enter the U-Boot directory
– cd u-boot-<version>
● The following slide discuss the contents of the U-Boot
directory

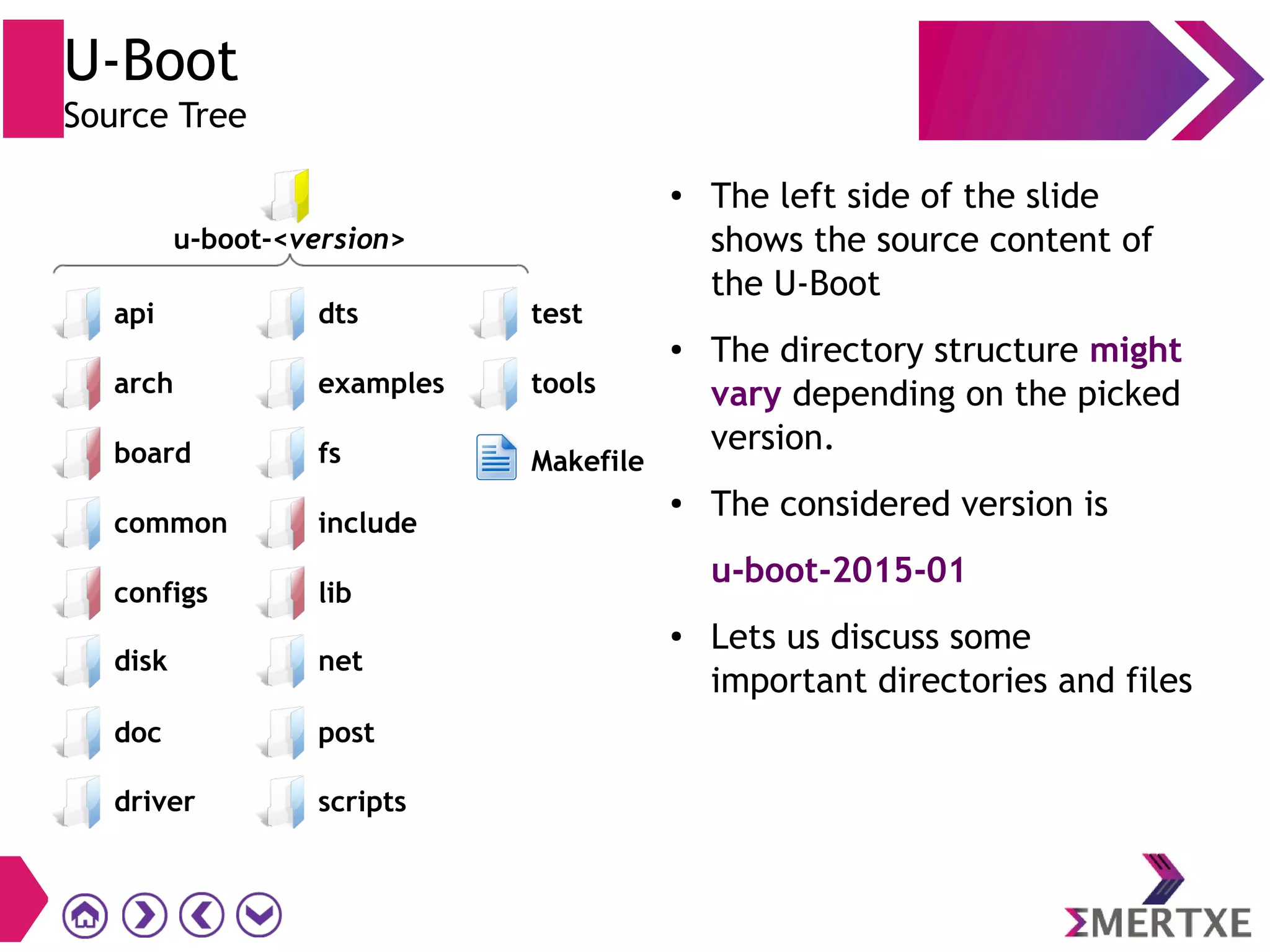

U-Boot
Source Tree
● The left side of the slide
shows the source content of
the U-Boot
● The directory structure might
vary depending on the picked
version.
● The considered version is
u-boot-2015-01
● Lets us discuss some
important directories and files
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree
● Machine/arch independent API
for external apps
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree

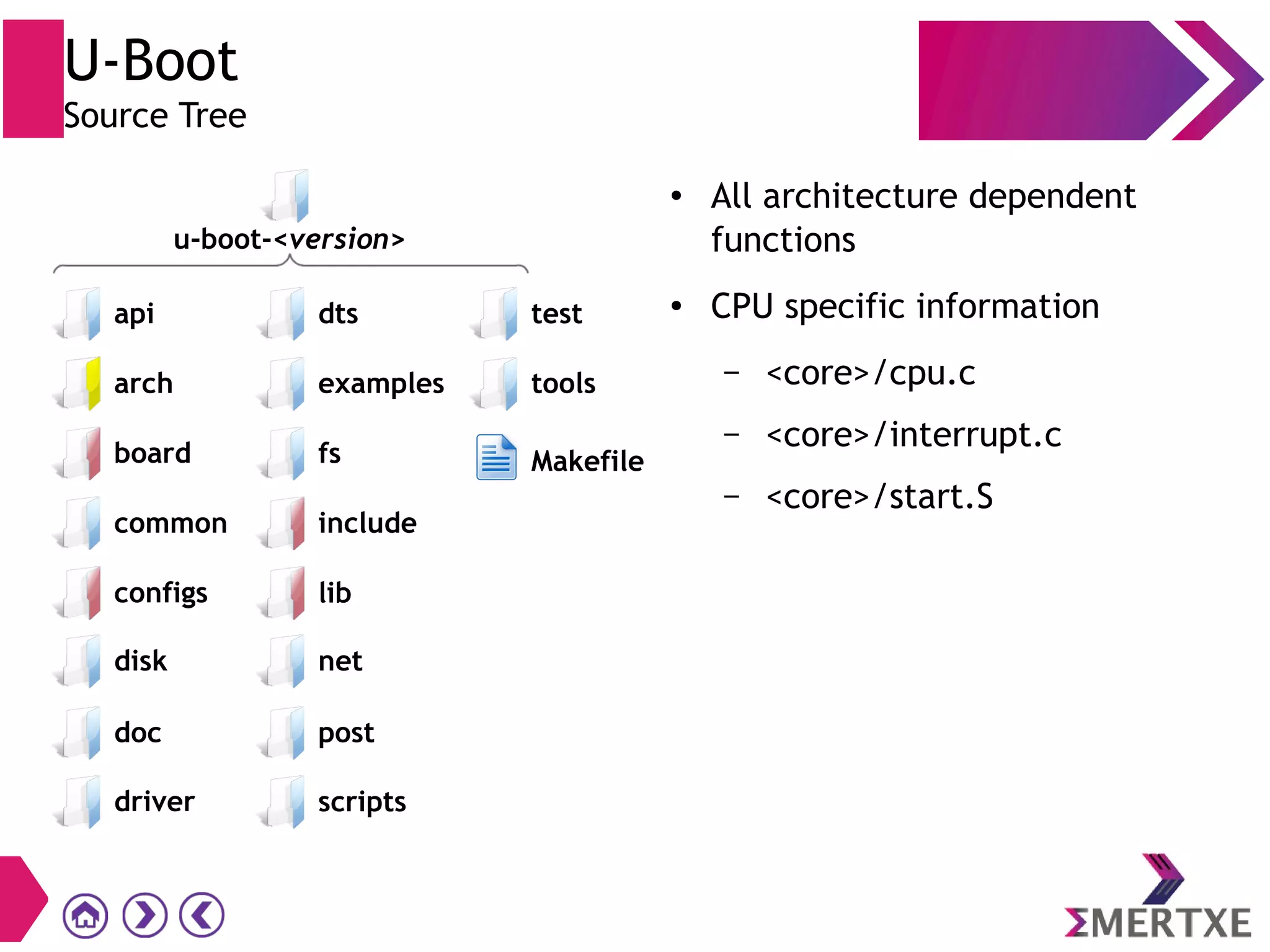

● All architecture dependent
functions
● CPU specific information
– <core>/cpu.c
– <core>/interrupt.c
– <core>/start.S
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree

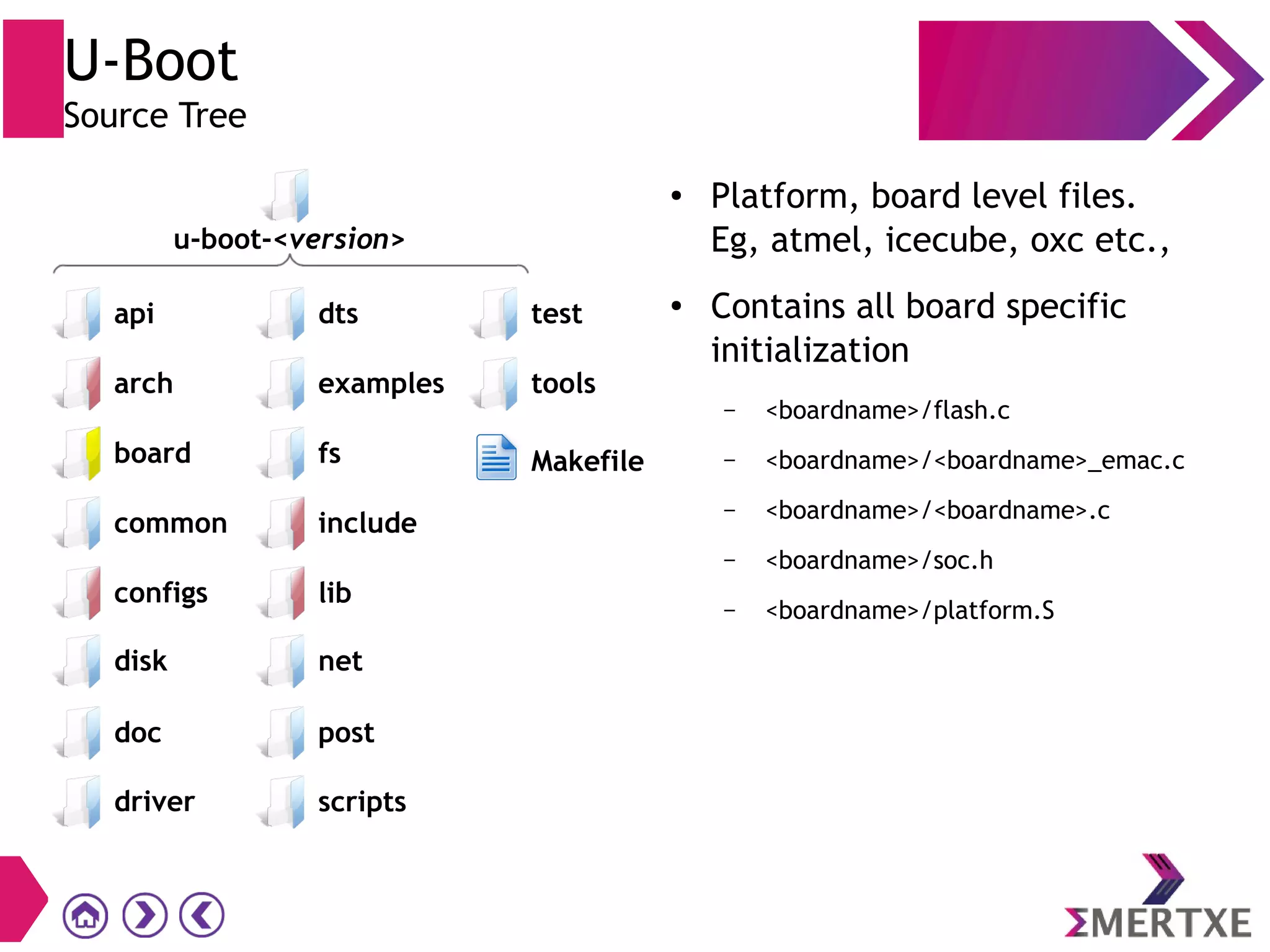

● Platform, board level files.
Eg, atmel, icecube, oxc etc.,
● Contains all board specific
initialization
– <boardname>/flash.c
– <boardname>/<boardname>_emac.c
– <boardname>/<boardname>.c
– <boardname>/soc.h
– <boardname>/platform.S
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree

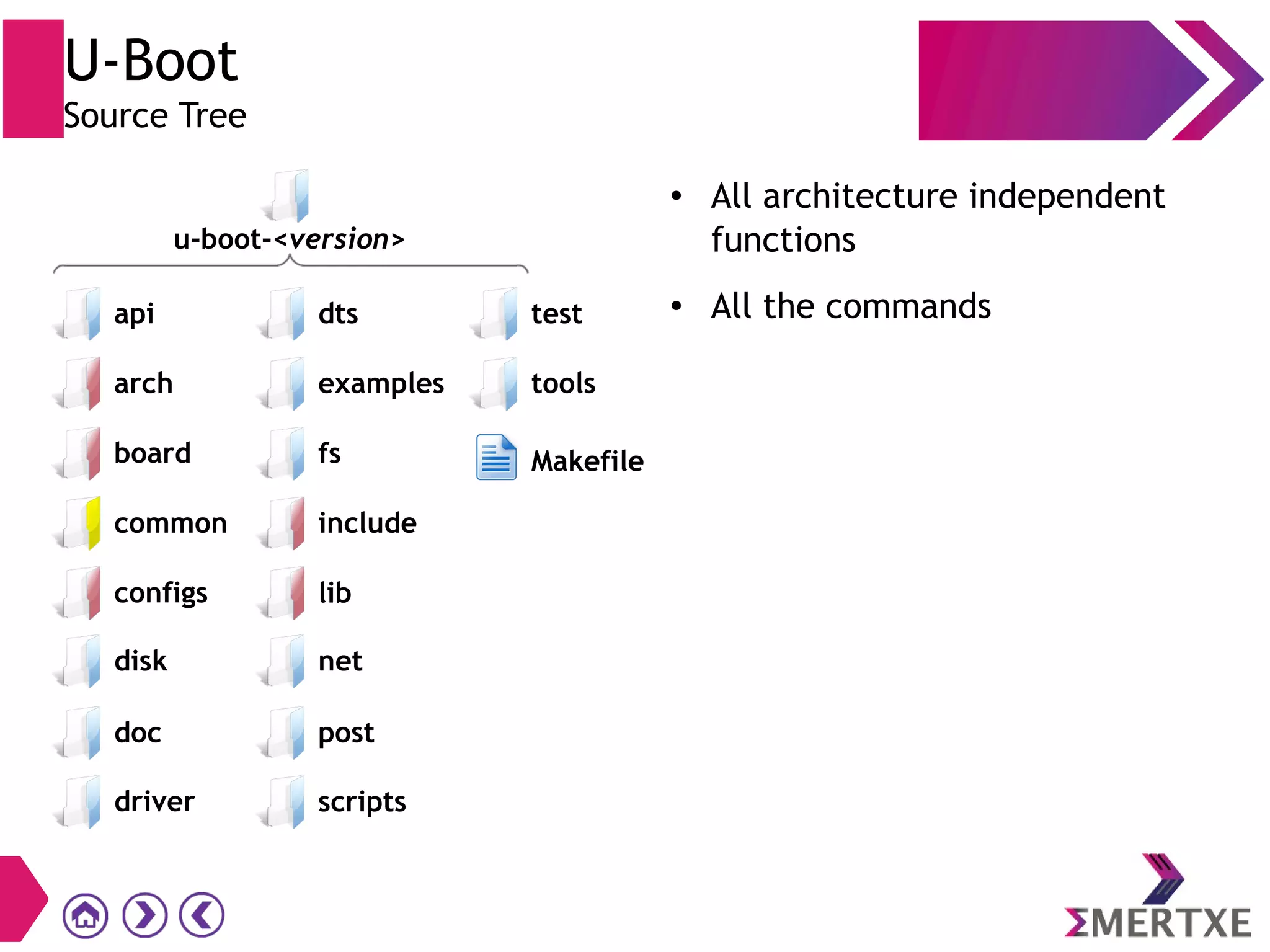

● All architecture independent
functions
● All the commands
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

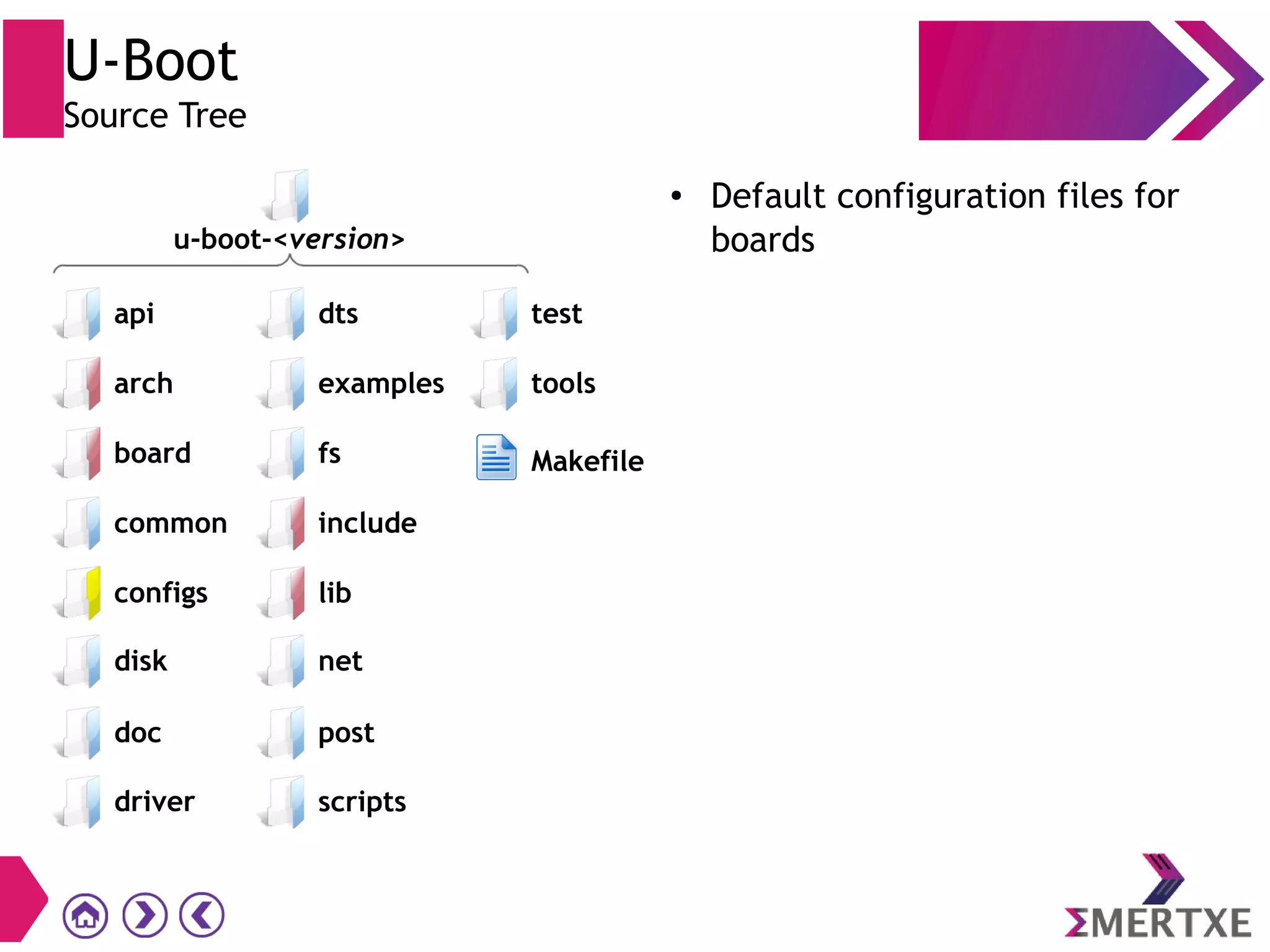

U-Boot
Source Tree
● Default configuration files for
boards
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree

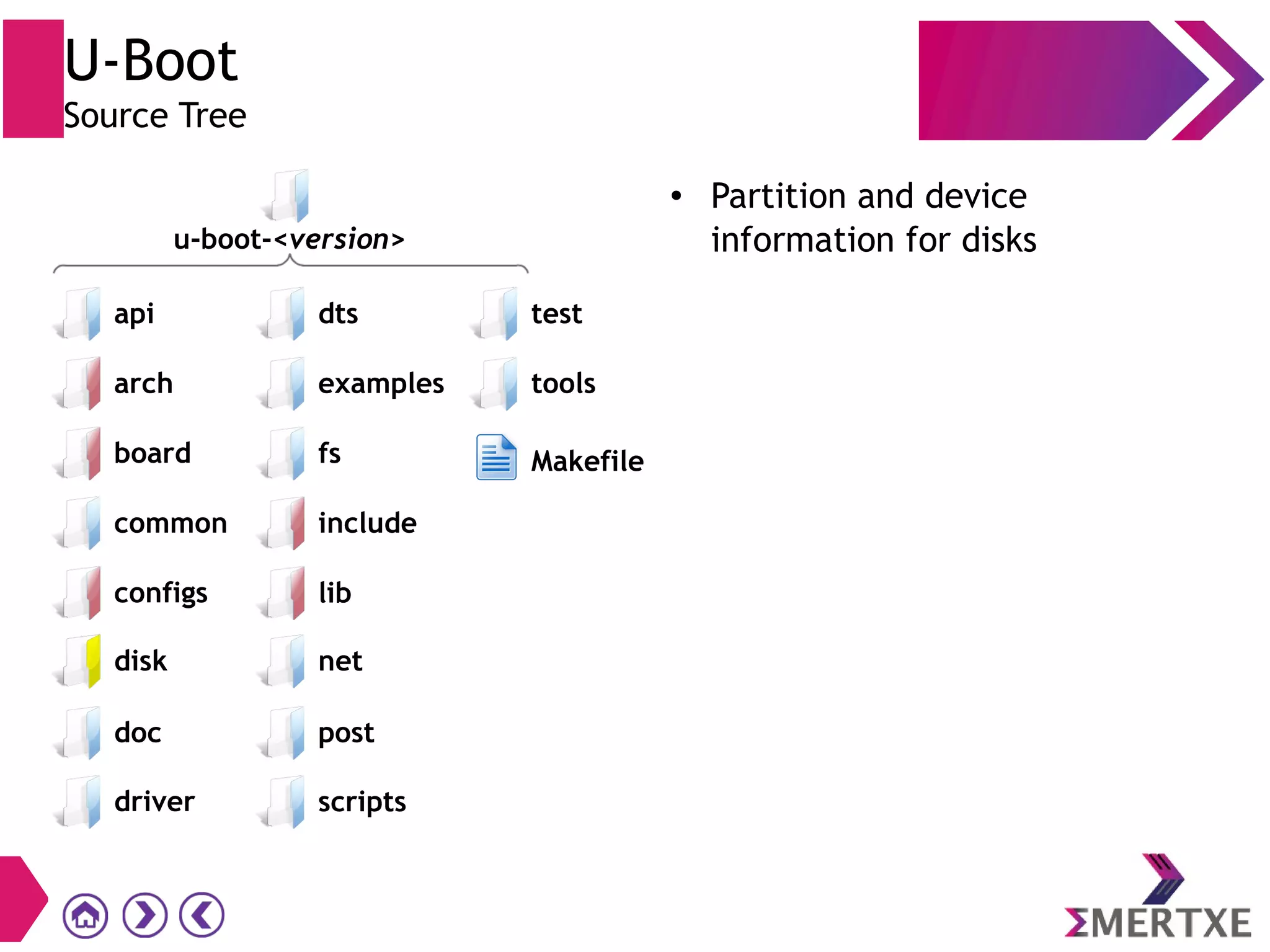

● Partition and device
information for disks
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree

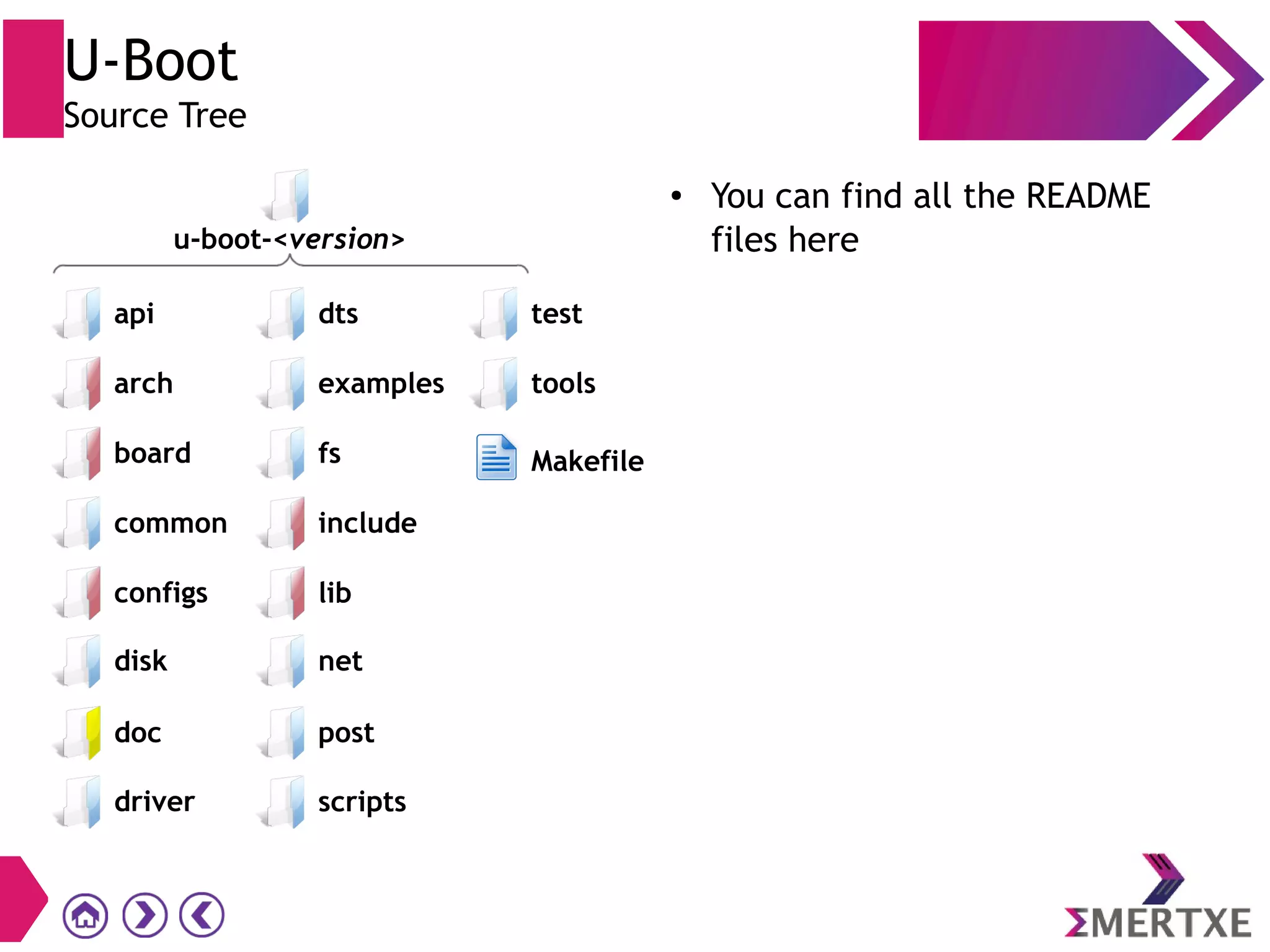

● You can find all the README
files here
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree
● Various device drivers files
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree

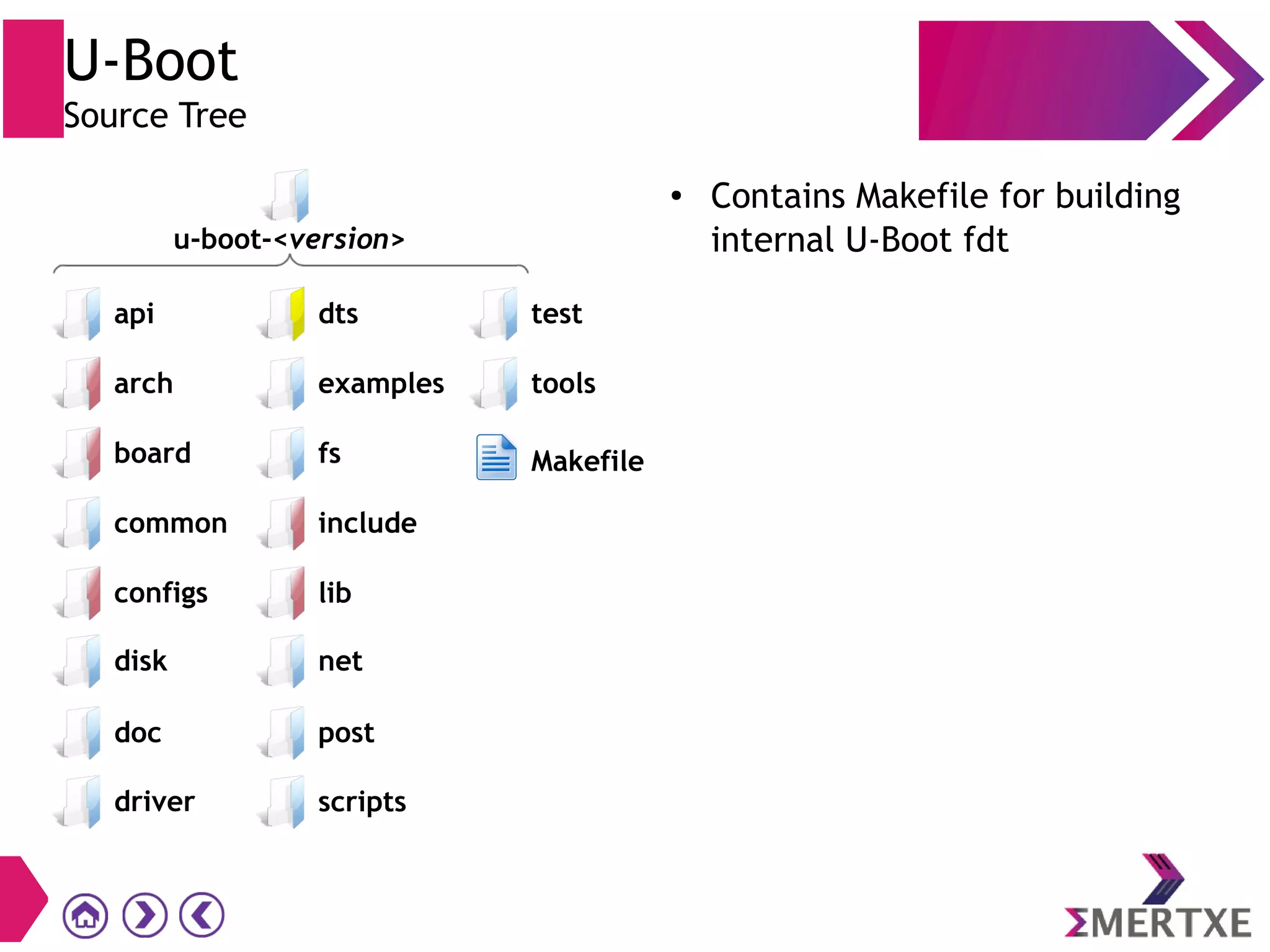

● Contains Makefile for building
internal U-Boot fdt
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree
● Example code for standalone
application
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree

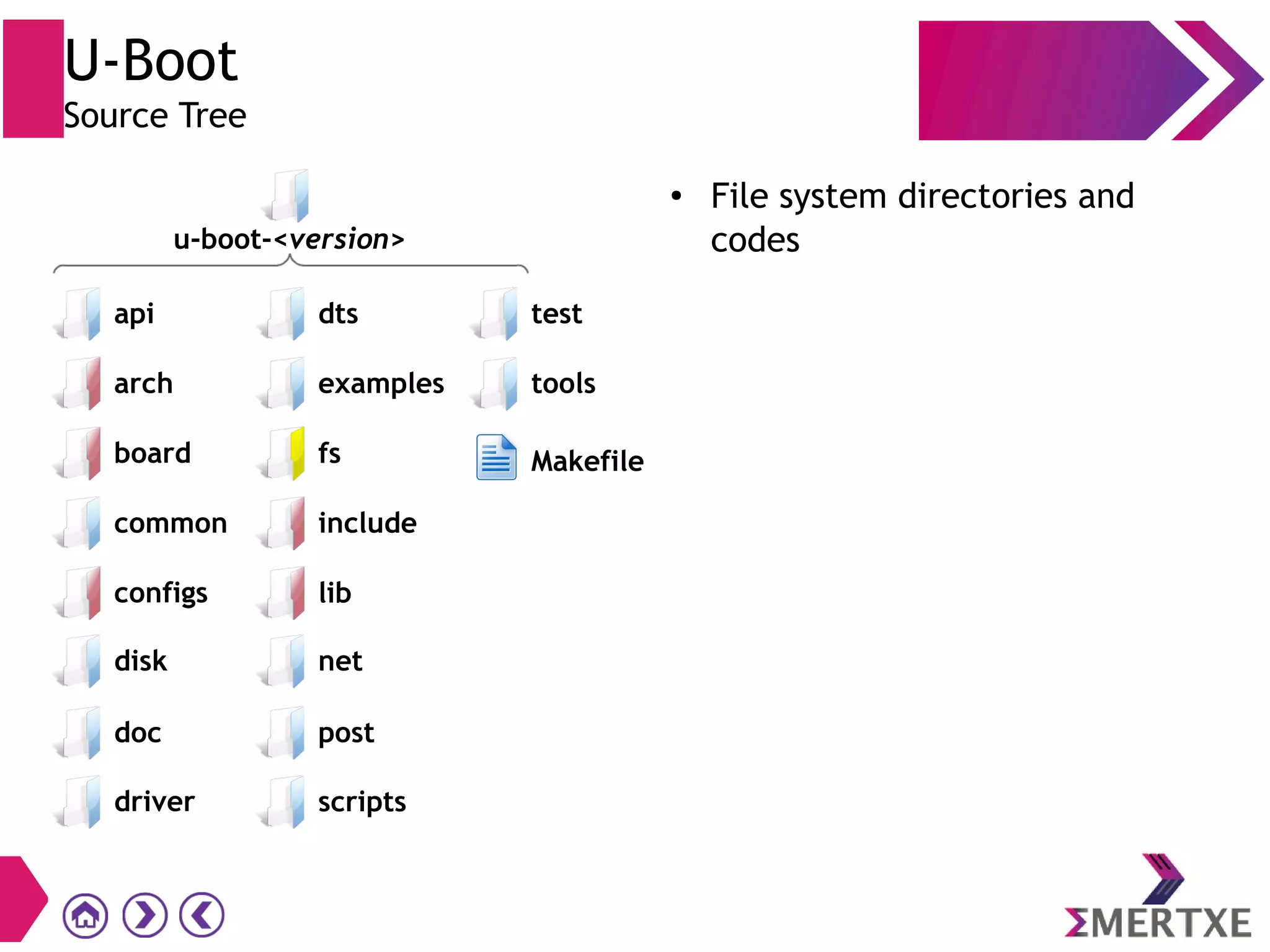

● File system directories and
codes
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot

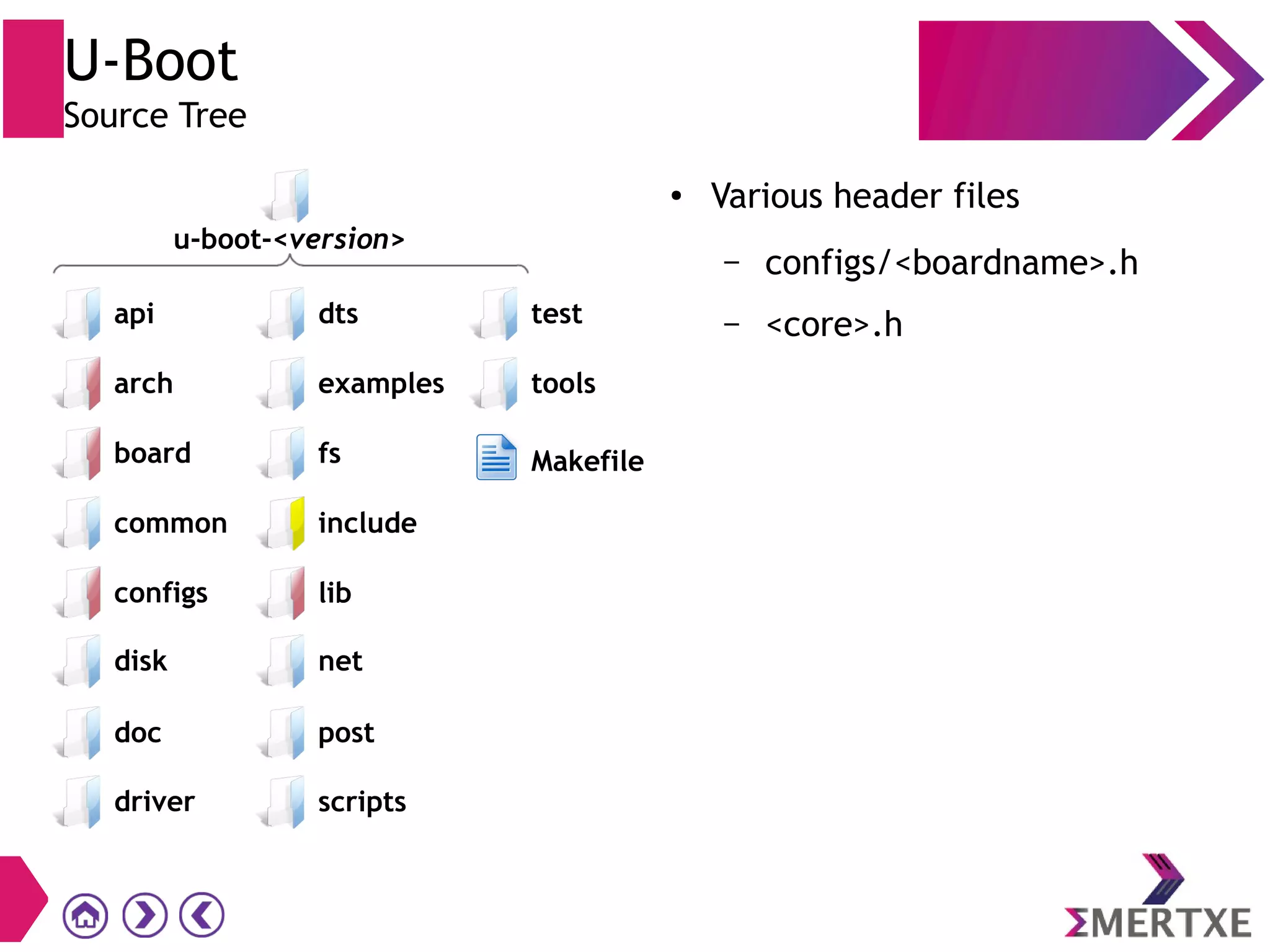

Source Tree
● Various header files
– configs/<boardname>.h
– <core>.h
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

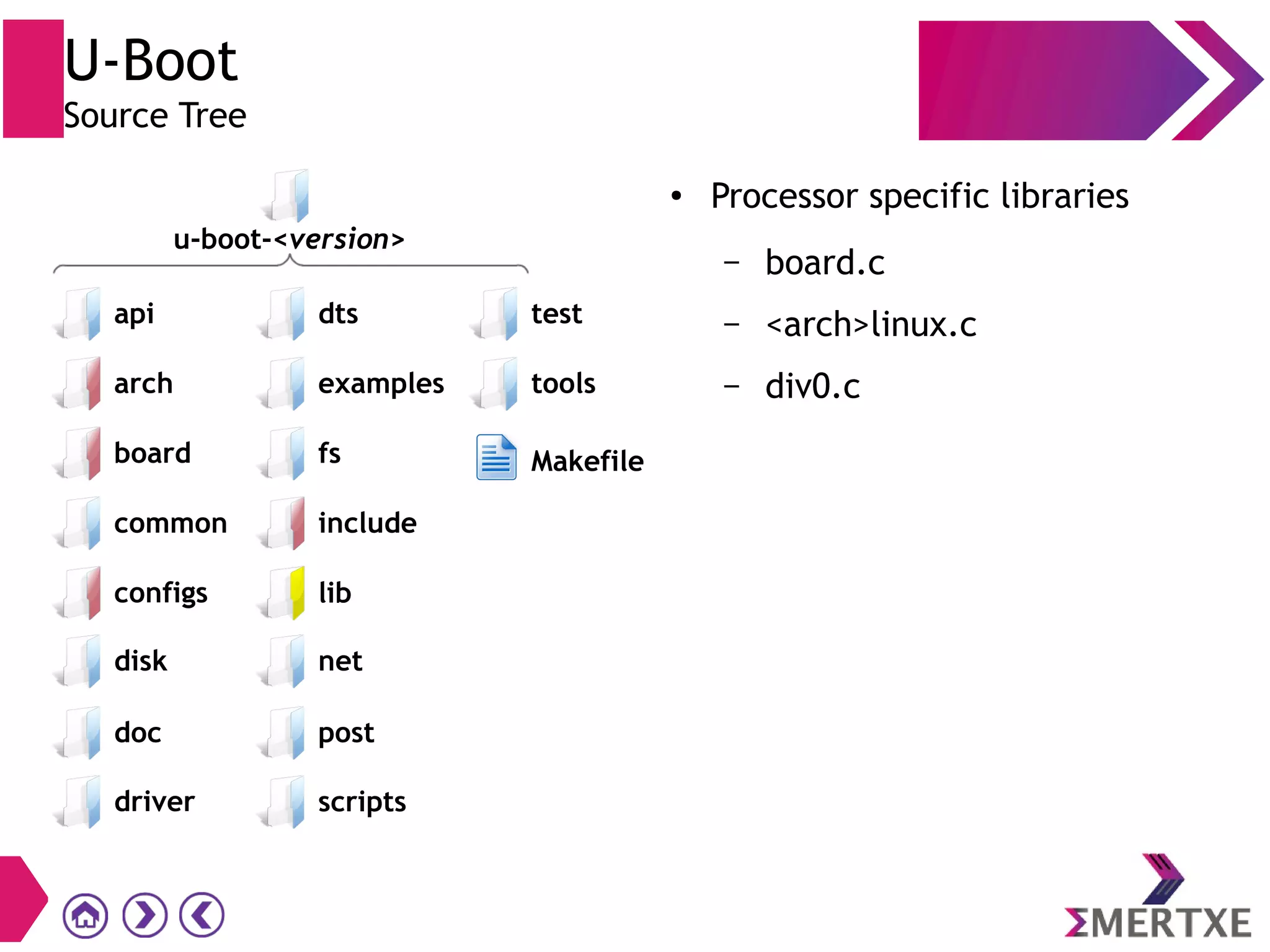

U-Boot
Source Tree
● Processor specific libraries
– board.c
– <arch>linux.c
– div0.c
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree
● Networking related files.
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree

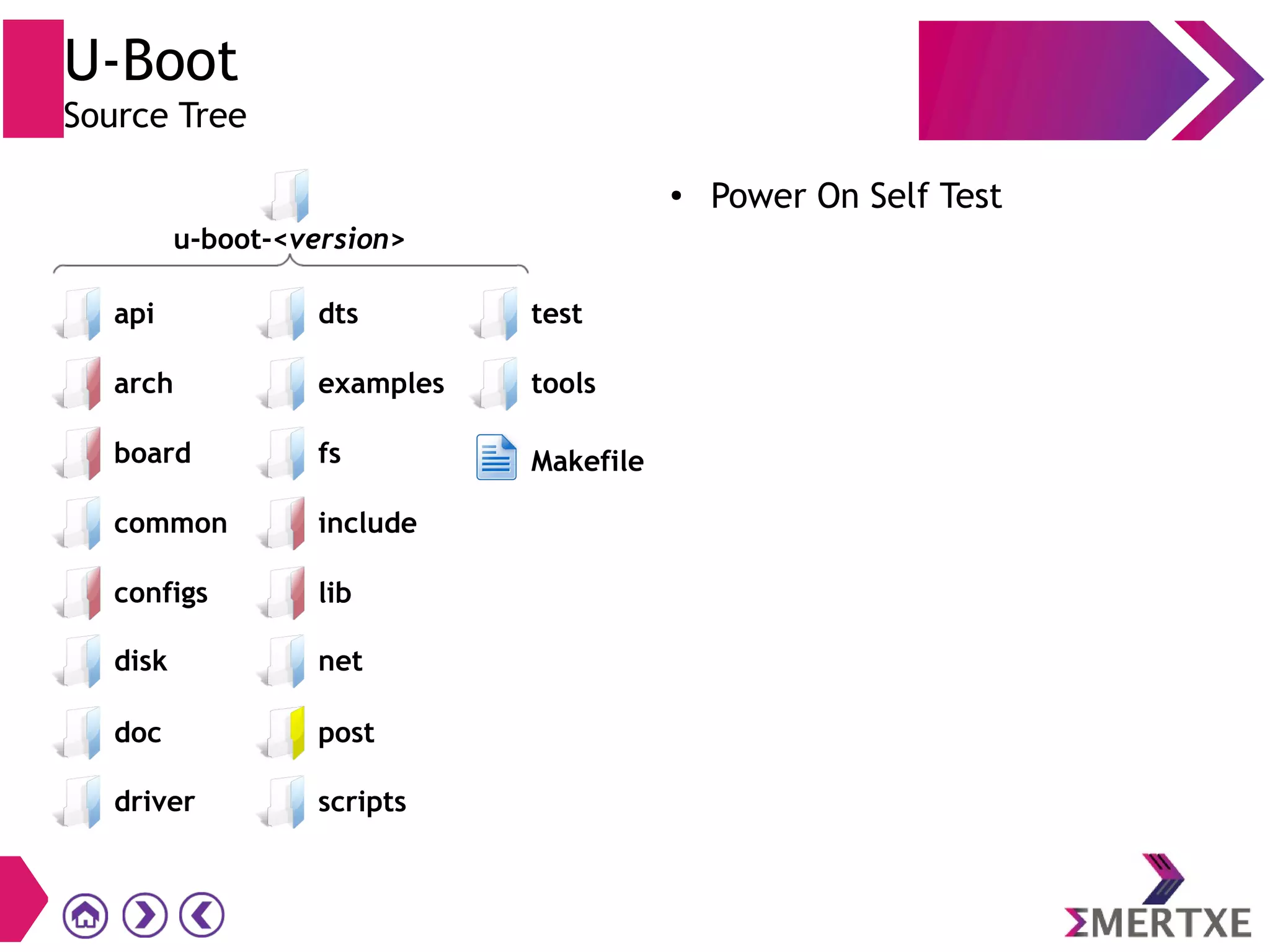

● Power On Self Test
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

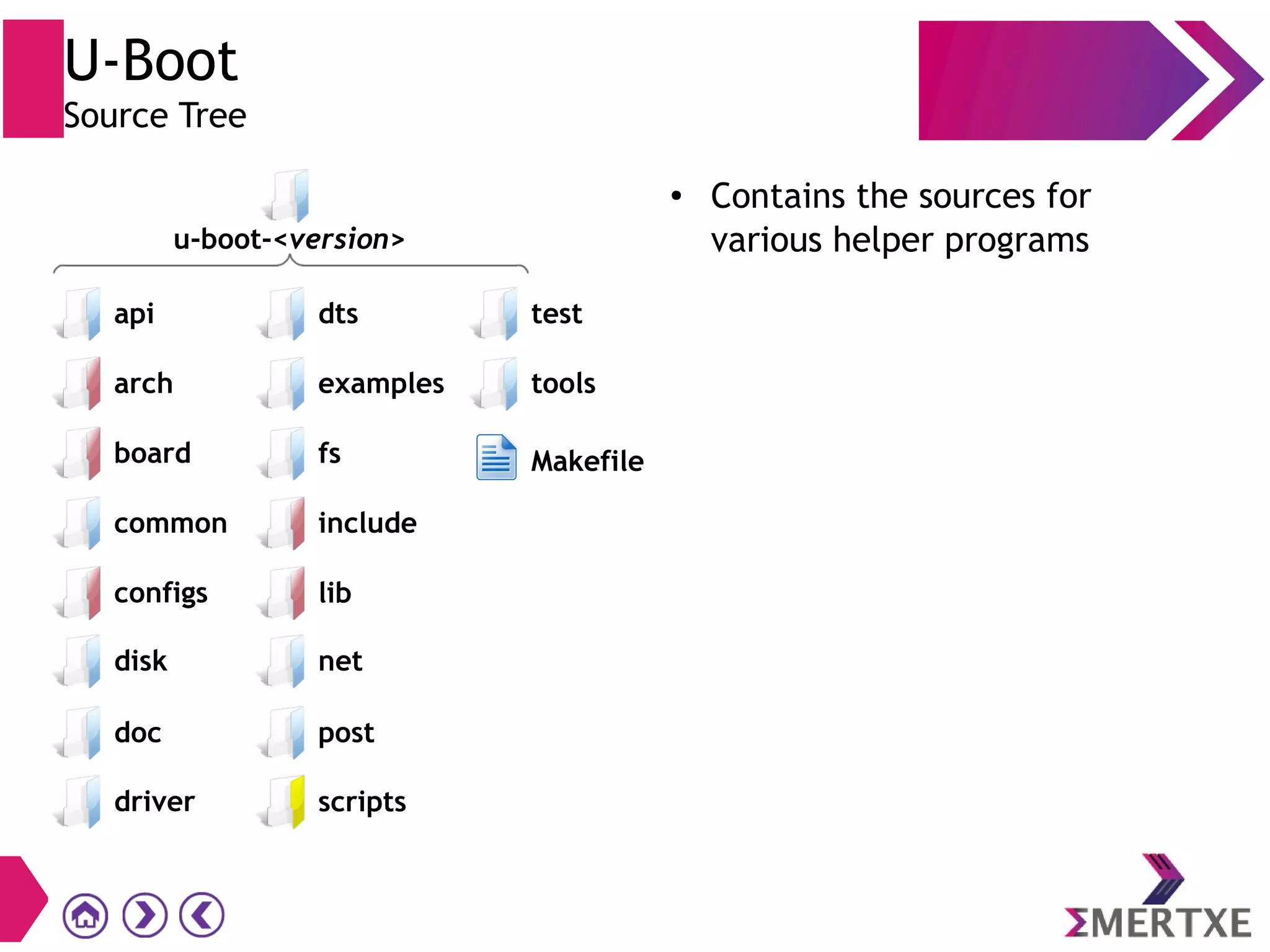

U-Boot
Source Tree
● Contains the sources for
various helper programs
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

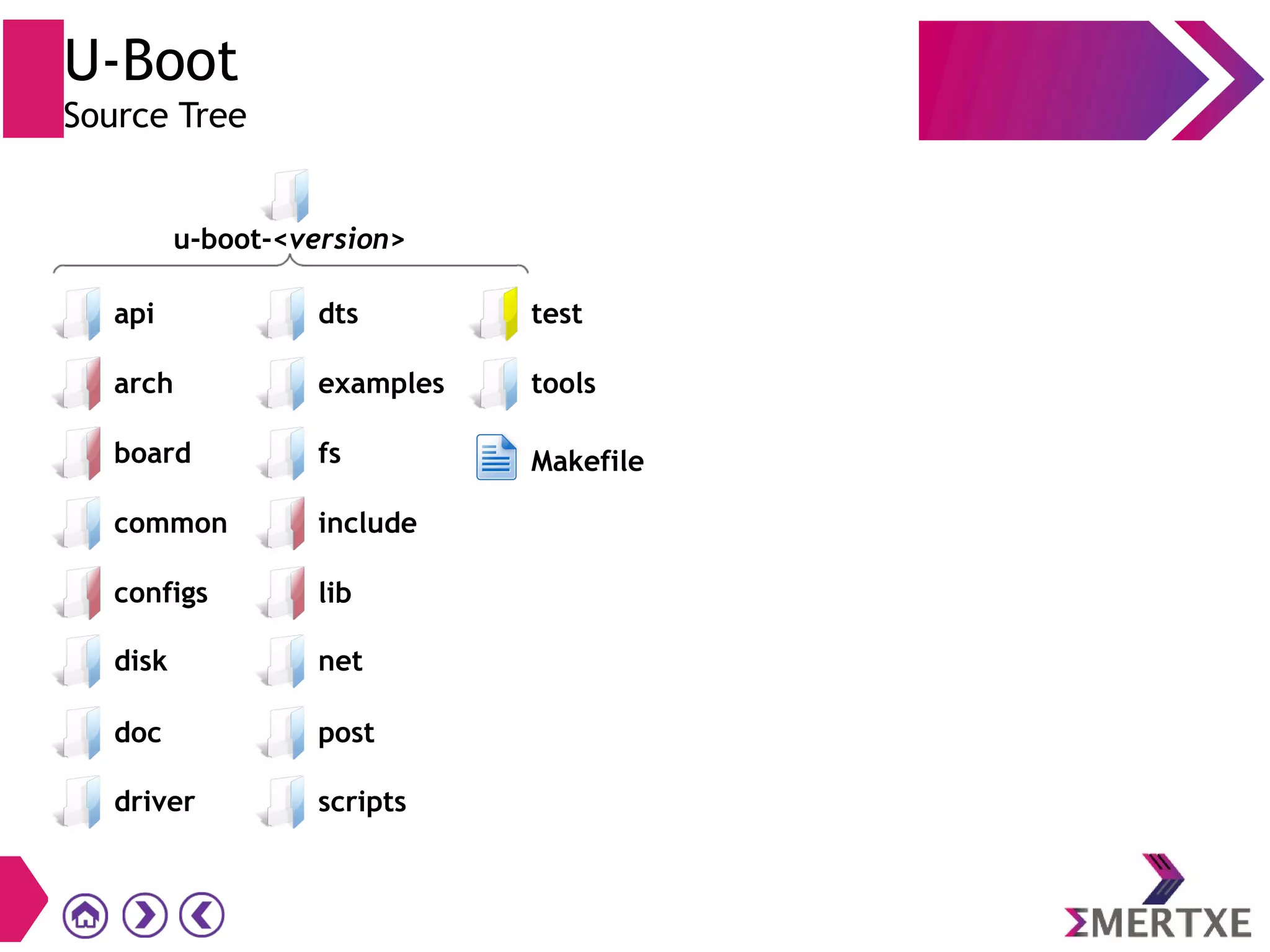

U-Boot
Source Tree
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Source Tree
● Various tools directories and
files
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

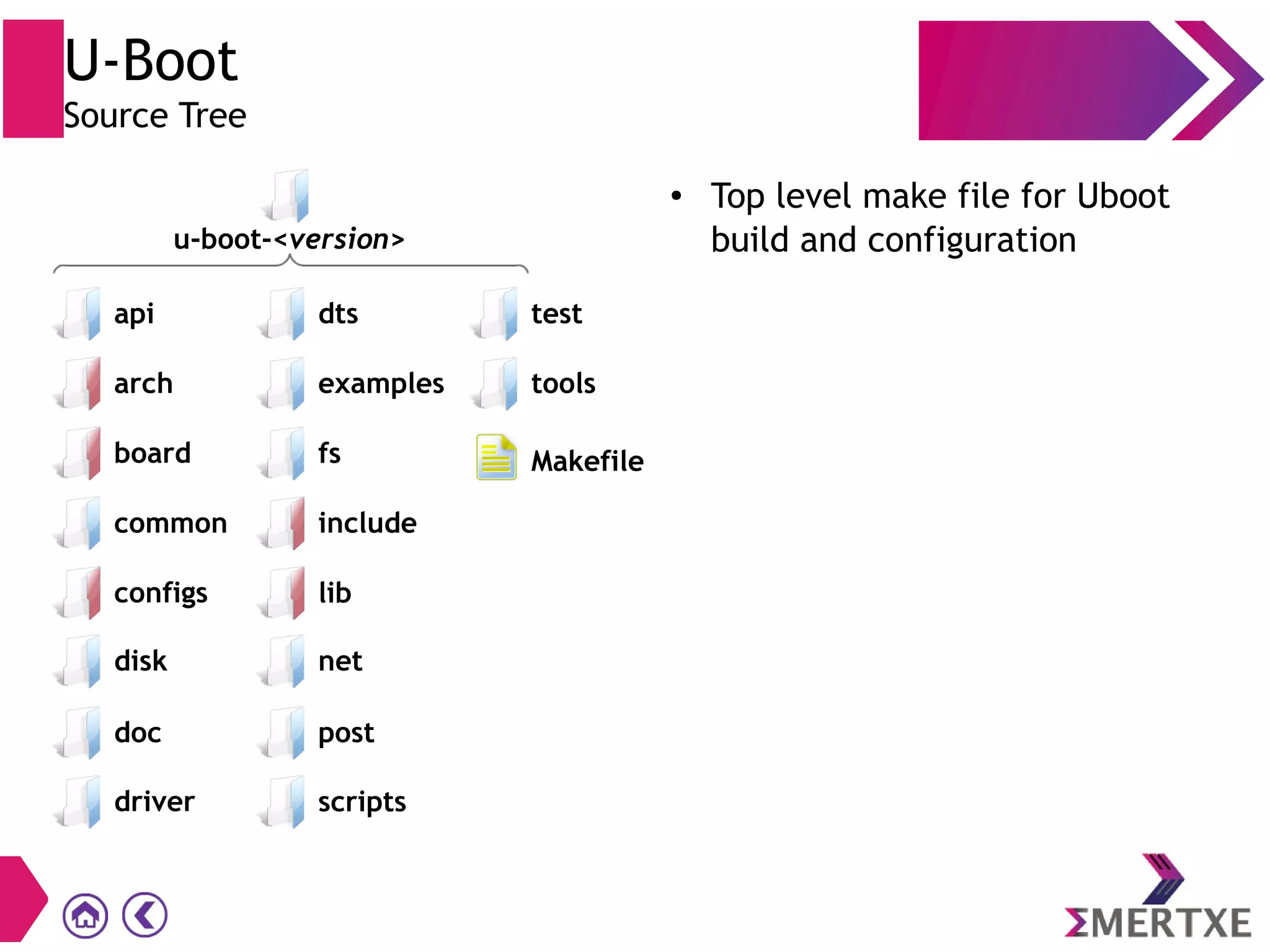

U-Boot
Source Tree
● Top level make file for Uboot
build and configuration
driver
api
arch
board
common
configs
post
scripts
dts
examples
fs
include
lib
test
tools
Makefile
disk net
doc
u-boot-<version>

U-Boot
Building

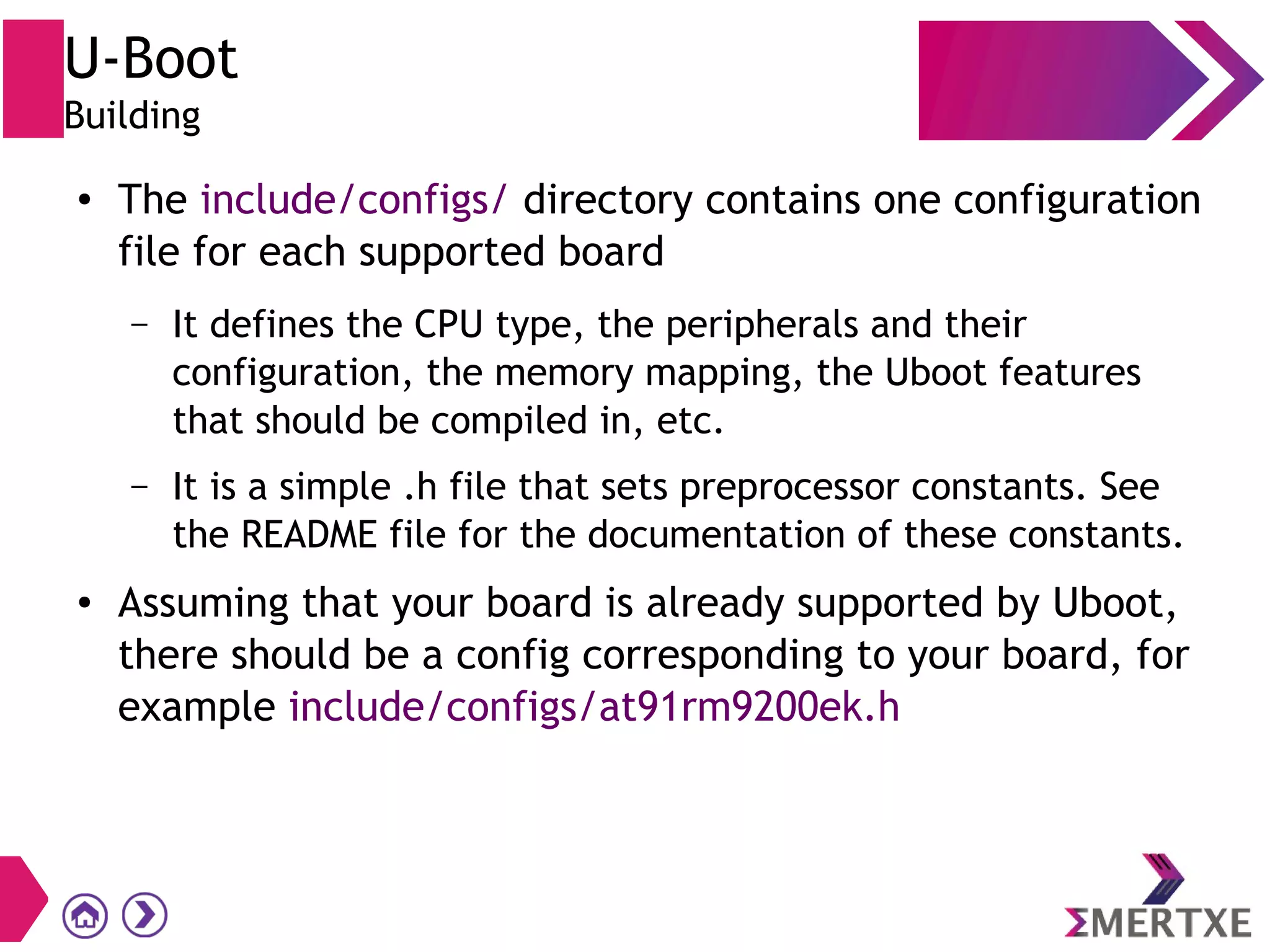

● The include/configs/ directory contains one configuration
file for each supported board
– It defines the CPU type, the peripherals and their
configuration, the memory mapping, the Uboot features
that should be compiled in, etc.
– It is a simple .h file that sets preprocessor constants. See
the README file for the documentation of these constants.
● Assuming that your board is already supported by Uboot,
there should be a config corresponding to your board, for
example include/configs/at91rm9200ek.h

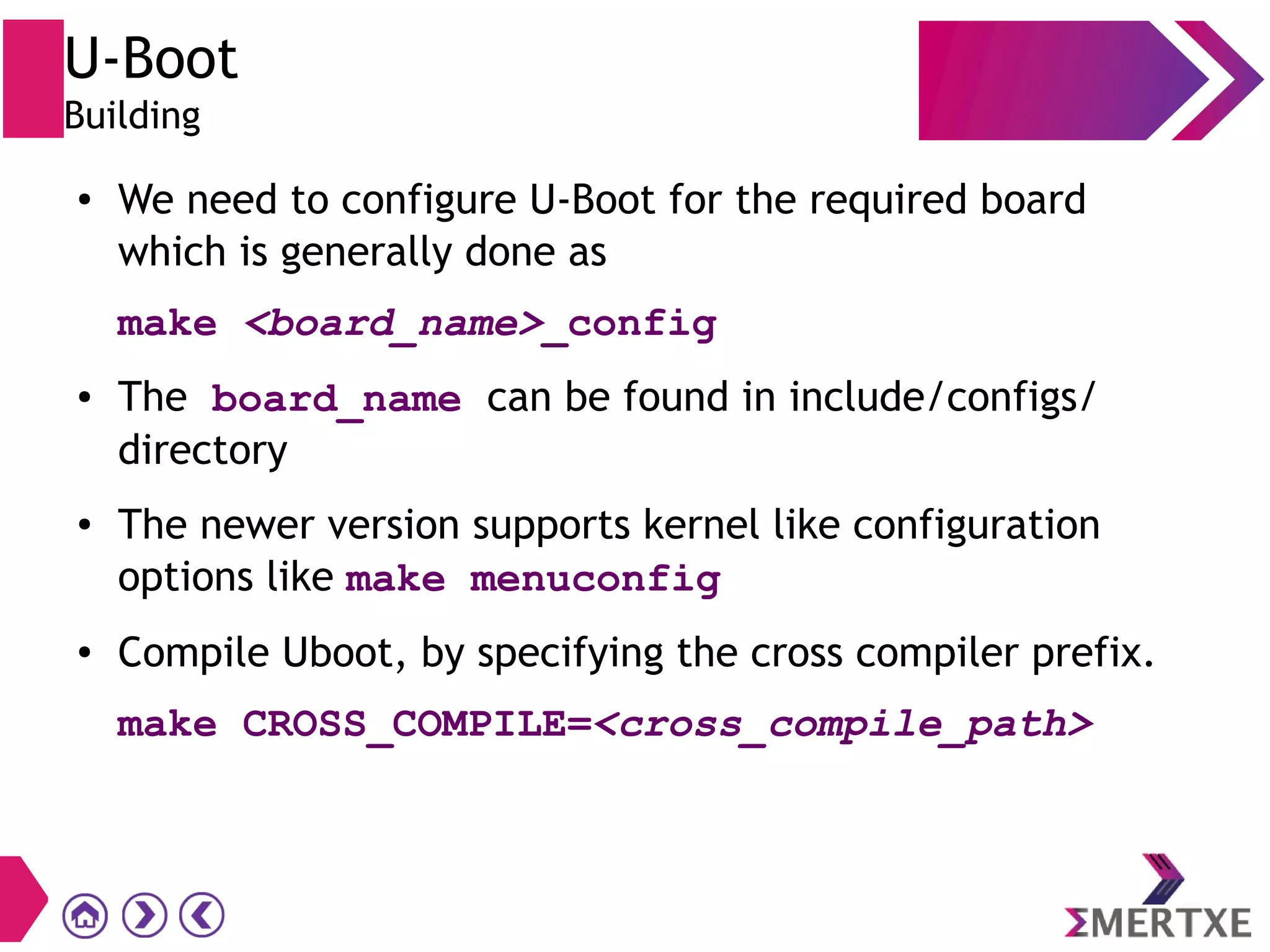

U-Boot
Building
● We need to configure U-Boot for the required board
which is generally done as
make <board_name>_config
● The board_name can be found in include/configs/
directory
● The newer version supports kernel like configuration
options like make menuconfig
● Compile Uboot, by specifying the cross compiler prefix.
make CROSS_COMPILE=<cross_compile_path>

U-Boot

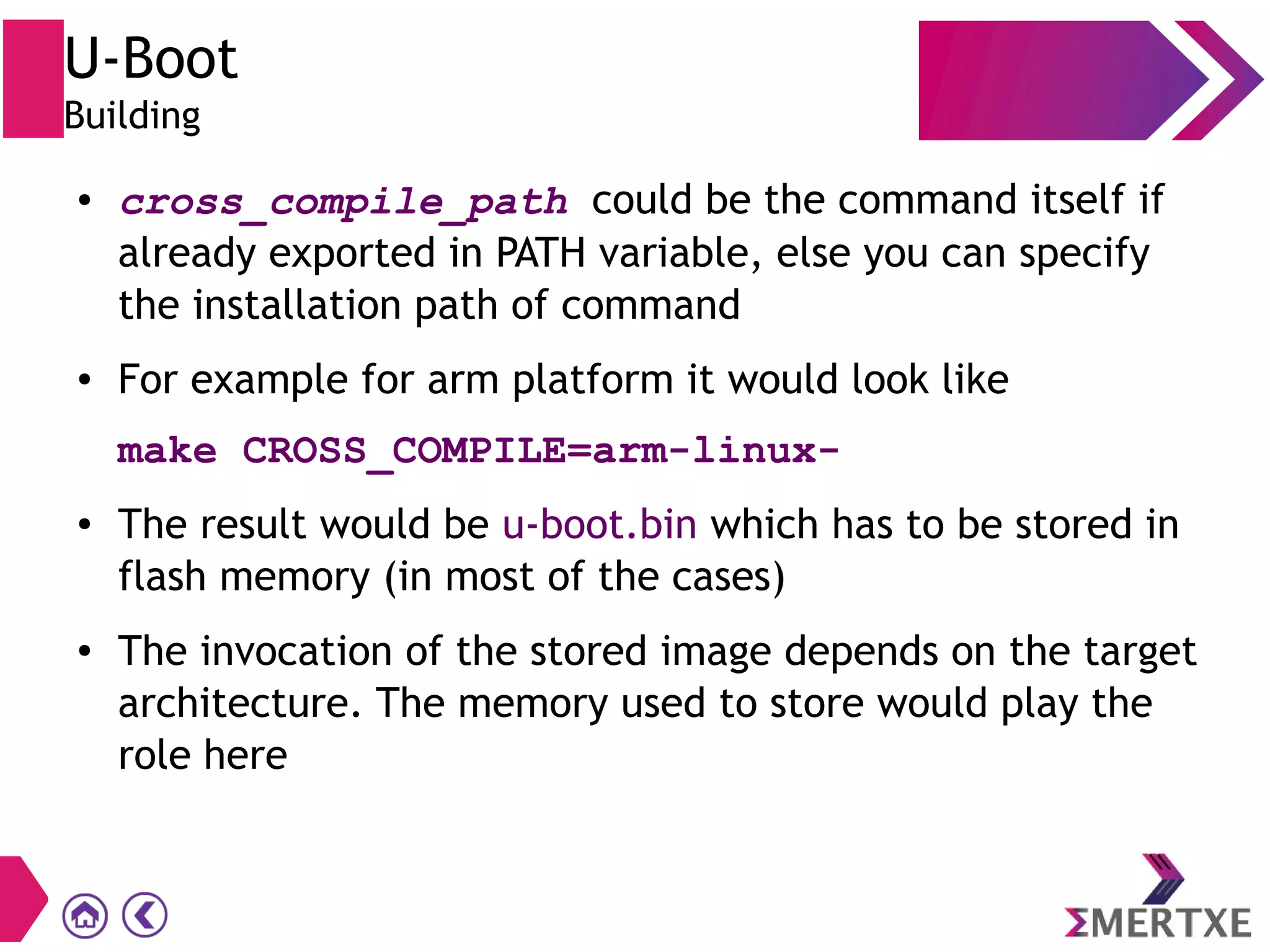

Building
● cross_compile_path could be the command itself if
already exported in PATH variable, else you can specify
the installation path of command
● For example for arm platform it would look like
make CROSS_COMPILE=arm-linux-
● The result would be u-boot.bin which has to be stored in
flash memory (in most of the cases)
● The invocation of the stored image depends on the target
architecture. The memory used to store would play the
role here

U-Boot
Responsibility
Execute from flash (If configured). Do POST
Relocate to RAM
Setup console for user interaction
Setup device driver for kernel (& RFS) image
Choose the kernel (& RFS) image
Download the kernel (& RFS) image
Choose the kernel (& RFS) imageChoose the kernel (& RFS) image
Setup kernel command line arguments
Jump to kernel start address
Codeflow

U-Boot

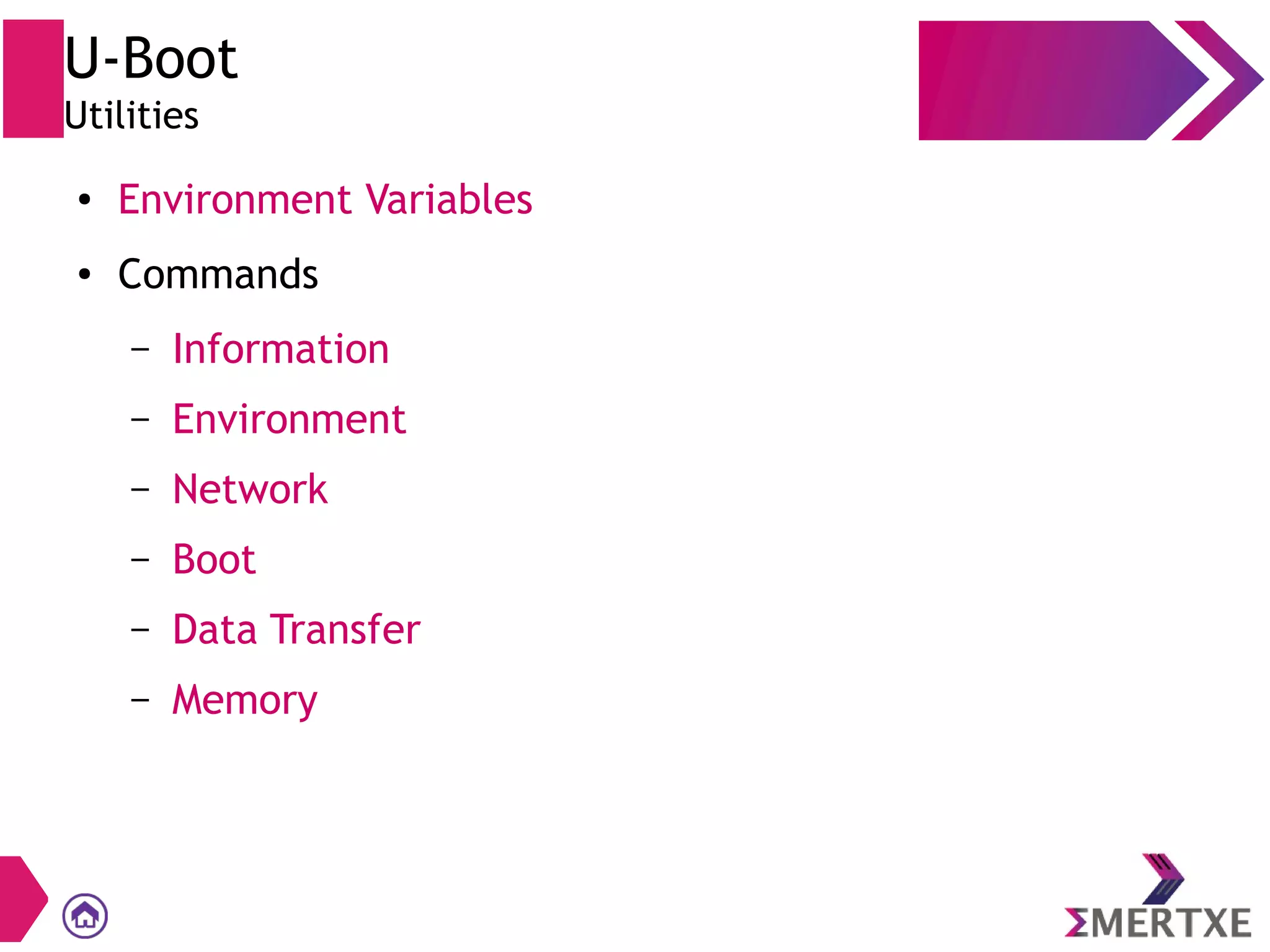

Utilities
● Environment Variables
● Commands
– Information
– Environment
– Network
– Boot
– Data Transfer
– Memory

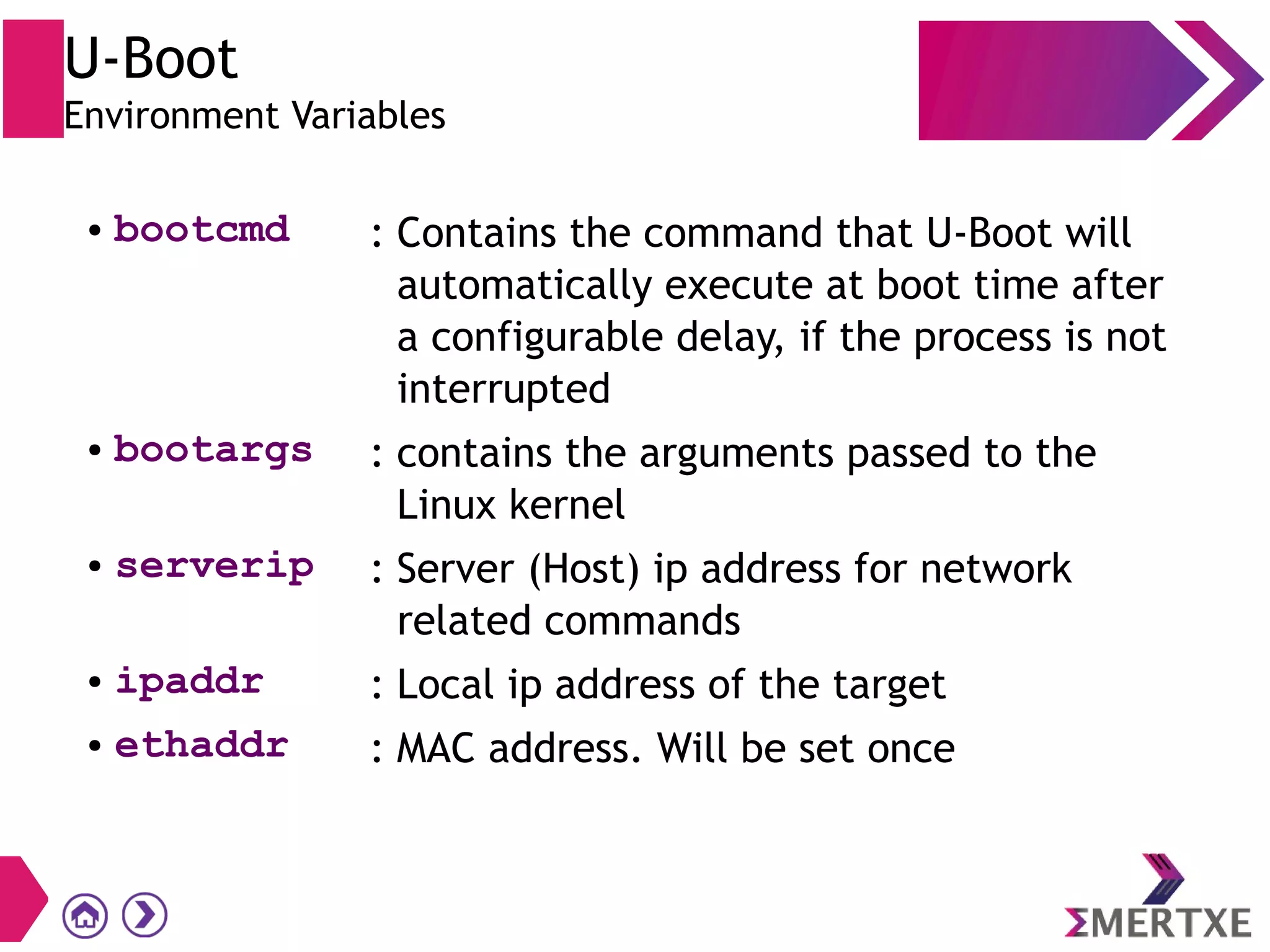

U-Boot
Environment Variables
● bootcmd : Contains the command that U-Boot will
automatically execute at boot time after
a configurable delay, if the process is not
interrupted
● bootargs : contains the arguments passed to the
Linux kernel
● serverip : Server (Host) ip address for network
related commands
● ipaddr : Local ip address of the target
● ethaddr : MAC address. Will be set once

U-Boot

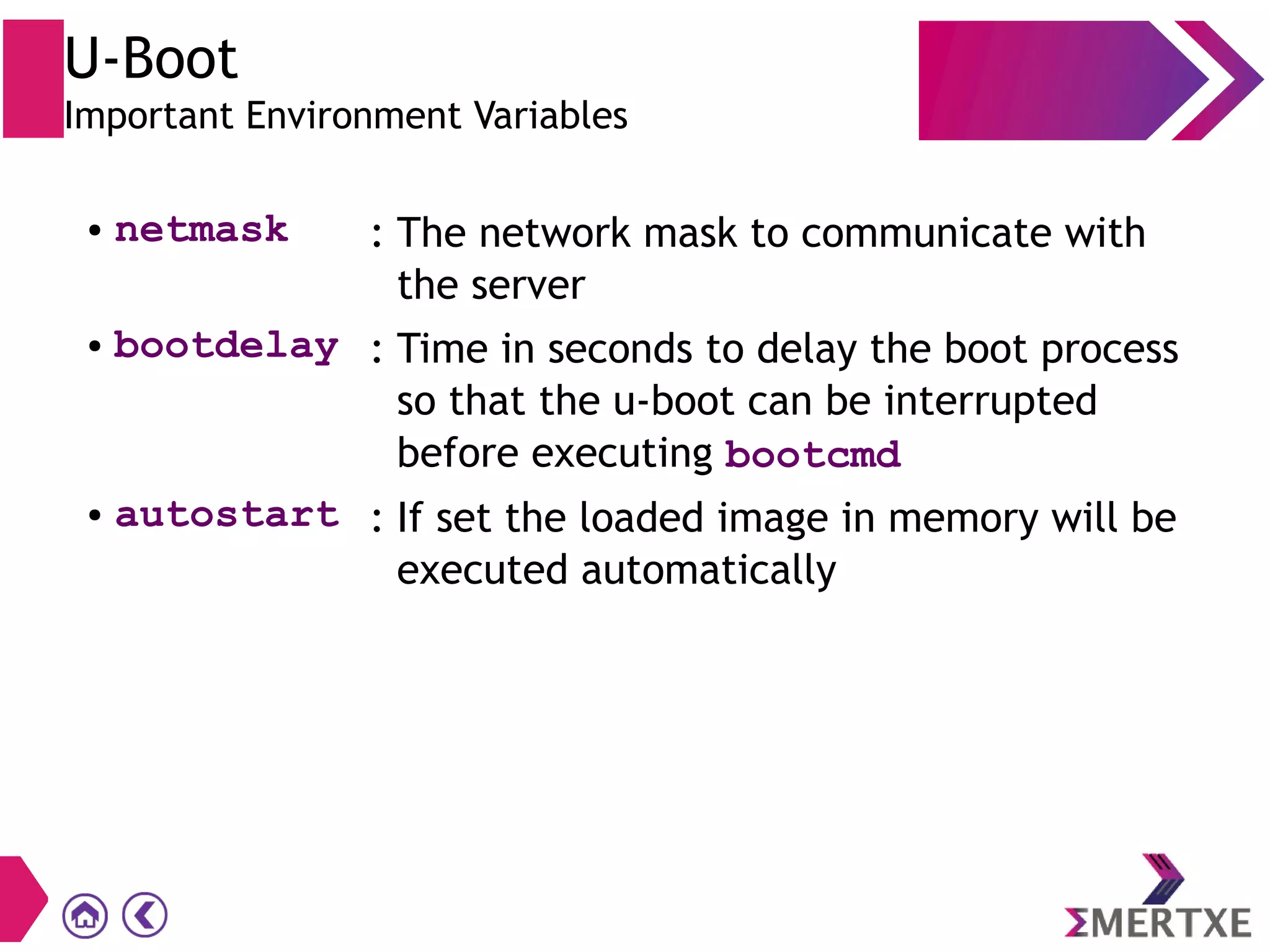

Important Environment Variables
● netmask : The network mask to communicate with
the server
● bootdelay : Time in seconds to delay the boot process
so that the u-boot can be interrupted
before executing bootcmd
● autostart : If set the loaded image in memory will be
executed automatically

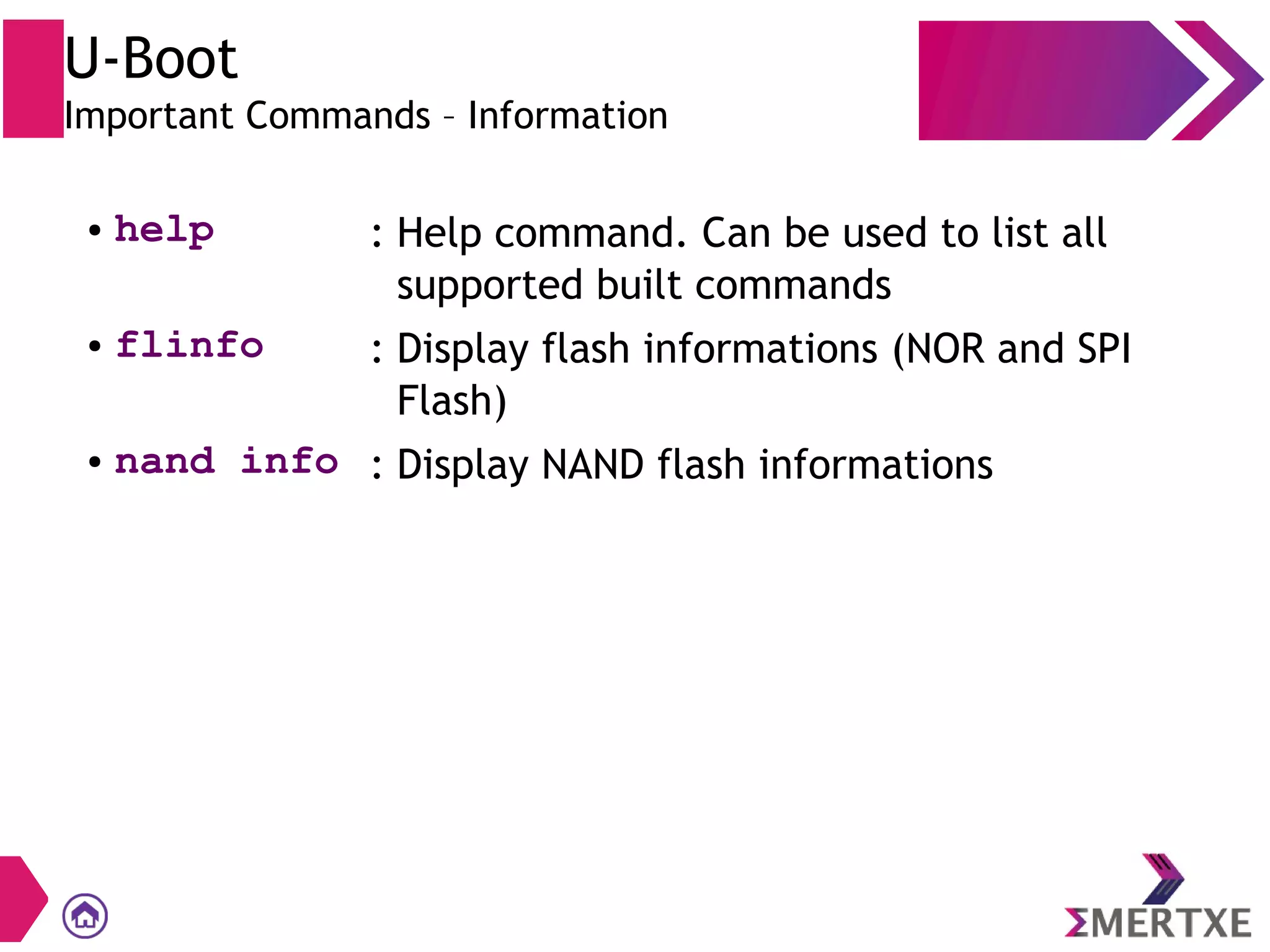

U-Boot
Important Commands – Information
● help : Help command. Can be used to list all
supported built commands
● flinfo : Display flash informations (NOR and SPI
Flash)
● nand info : Display NAND flash informations

U-Boot

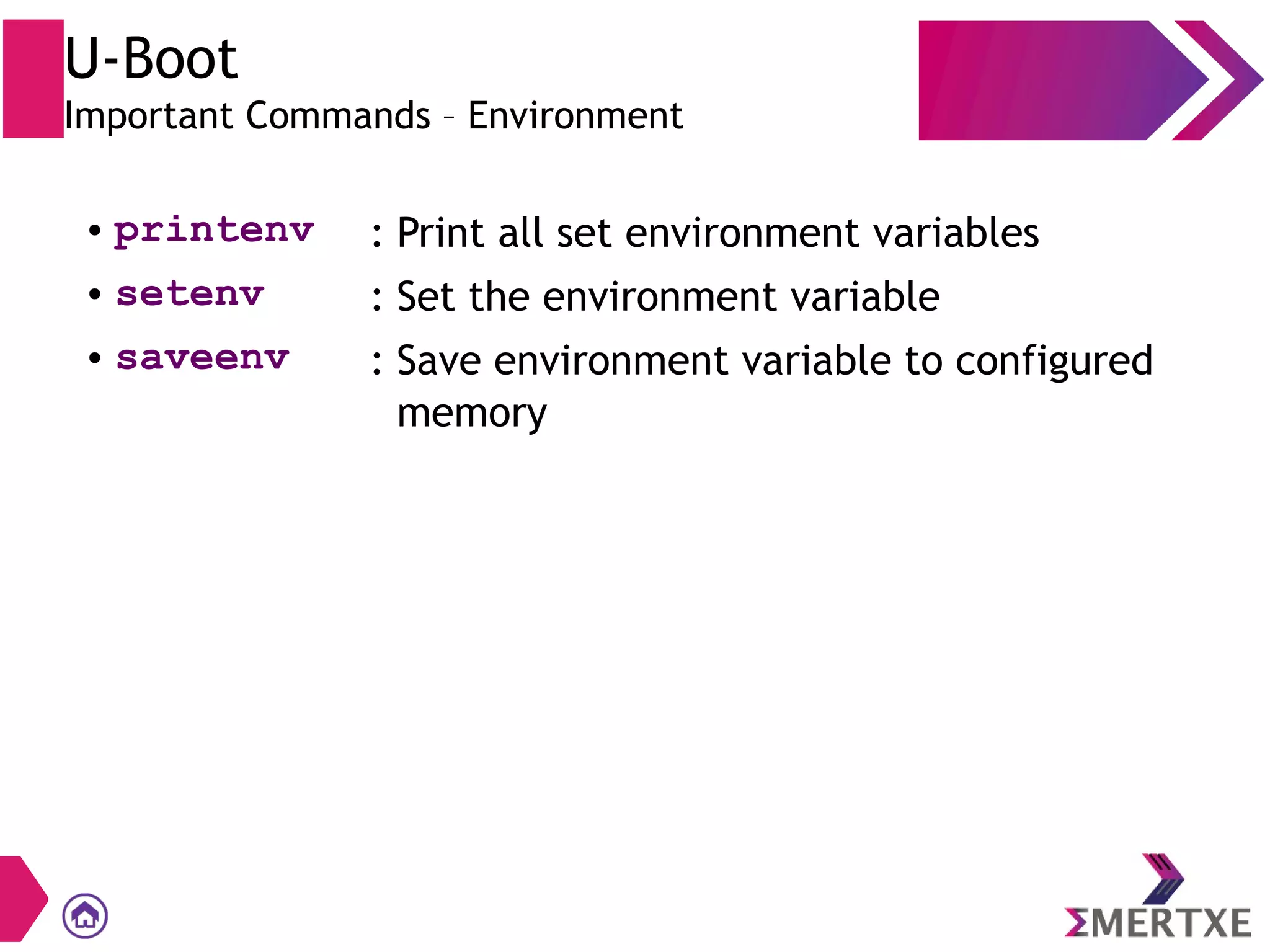

Important Commands – Environment
● printenv : Print all set environment variables
● setenv : Set the environment variable
● saveenv : Save environment variable to configured
memory

U-Boot

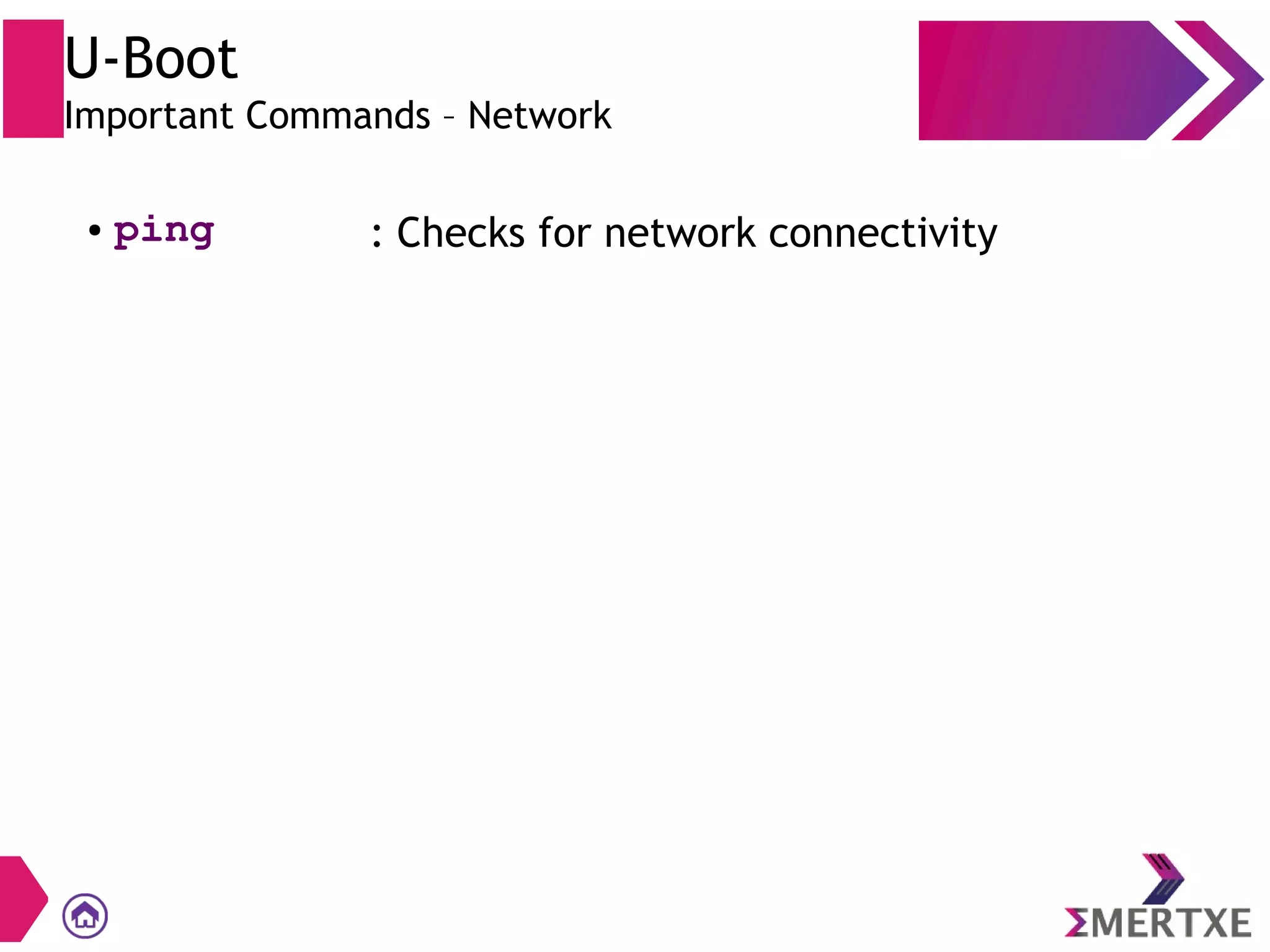

Important Commands – Network
● ping : Checks for network connectivity

U-Boot

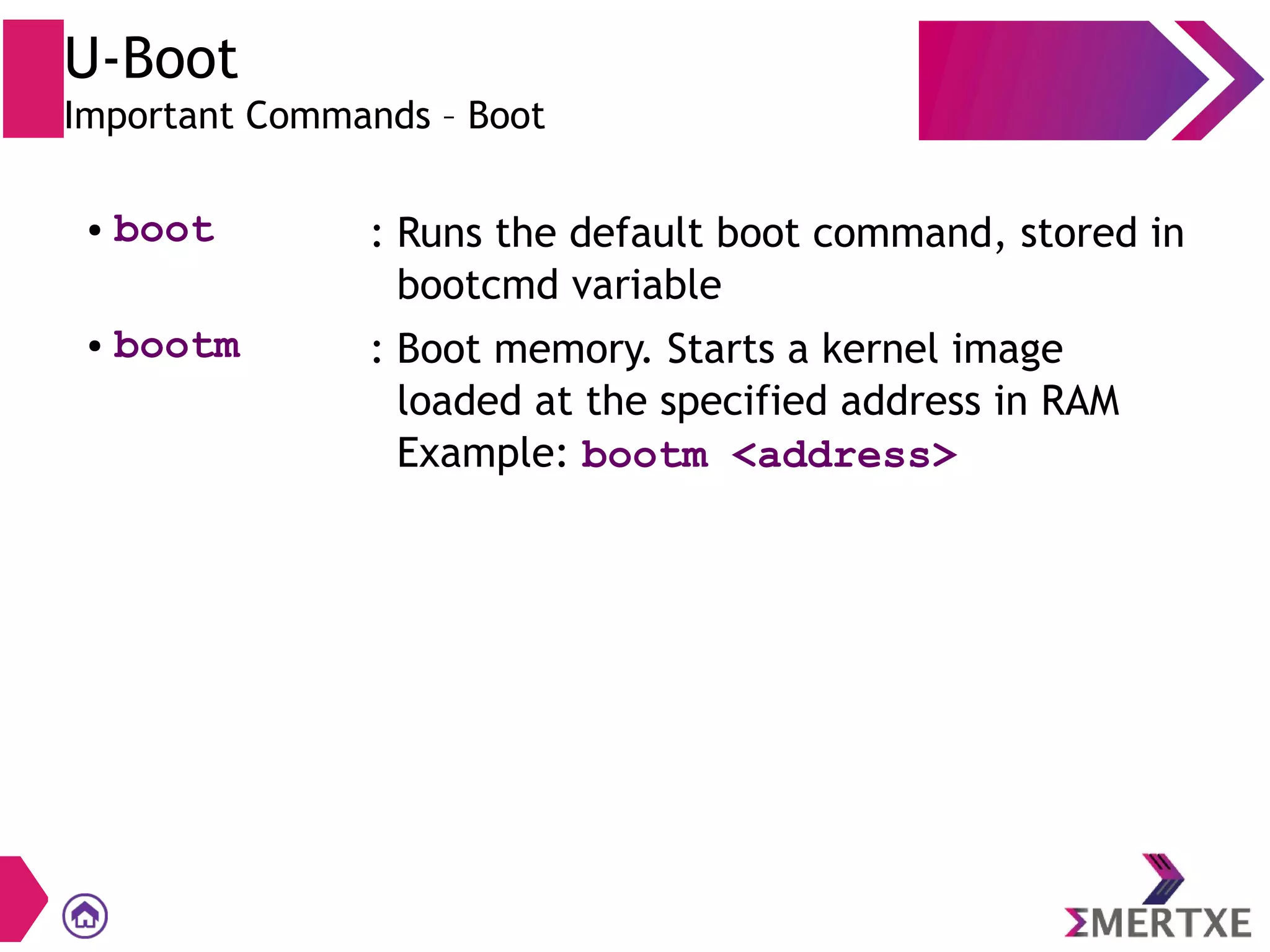

Important Commands – Boot
● boot : Runs the default boot command, stored in
bootcmd variable
● bootm : Boot memory. Starts a kernel image
loaded at the specified address in RAM
Example: bootm <address>

U-Boot

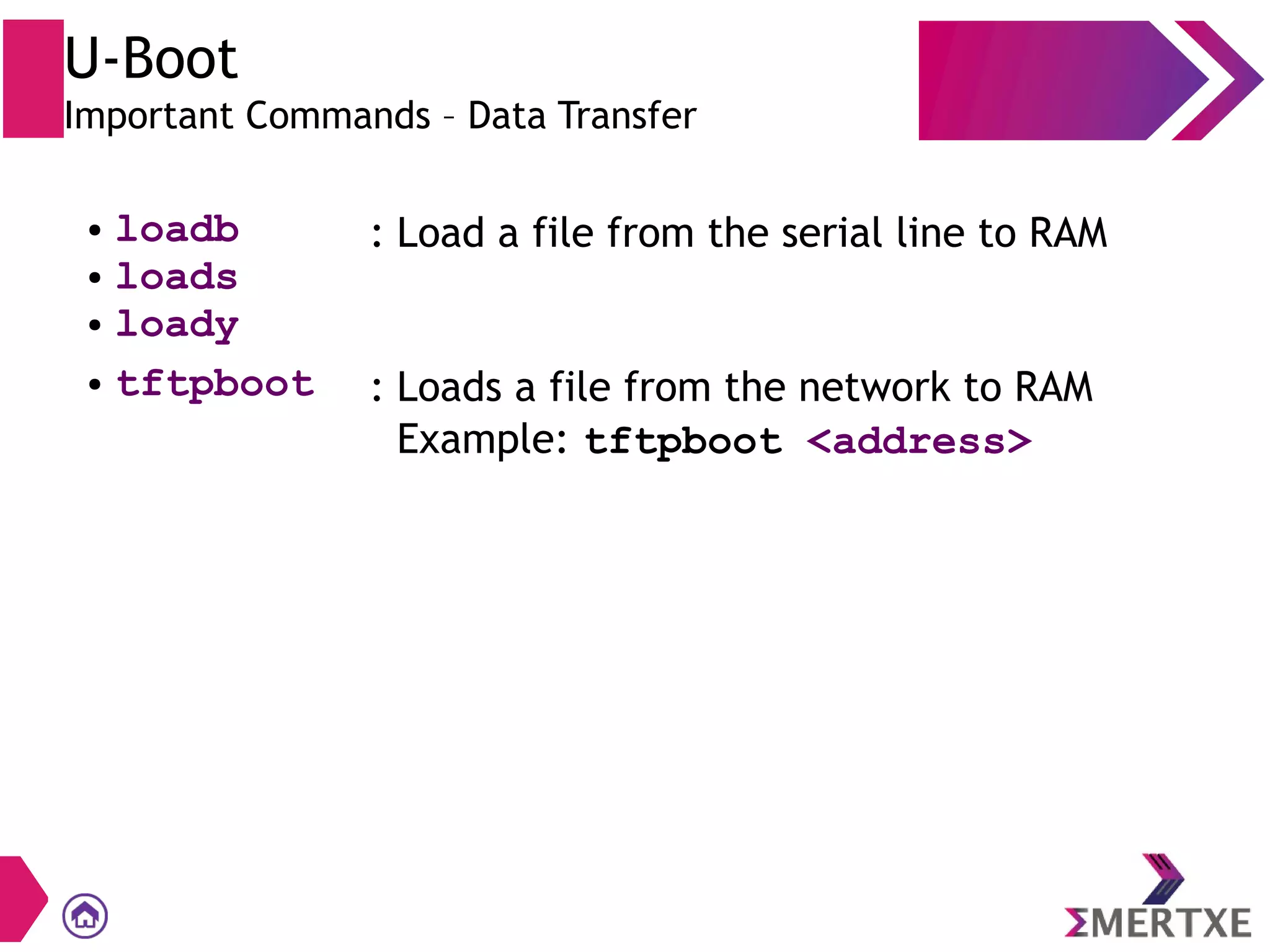

Important Commands – Data Transfer
● loadb
● loads
● loady
: Load a file from the serial line to RAM
● tftpboot : Loads a file from the network to RAM
Example: tftpboot <address>

U-Boot

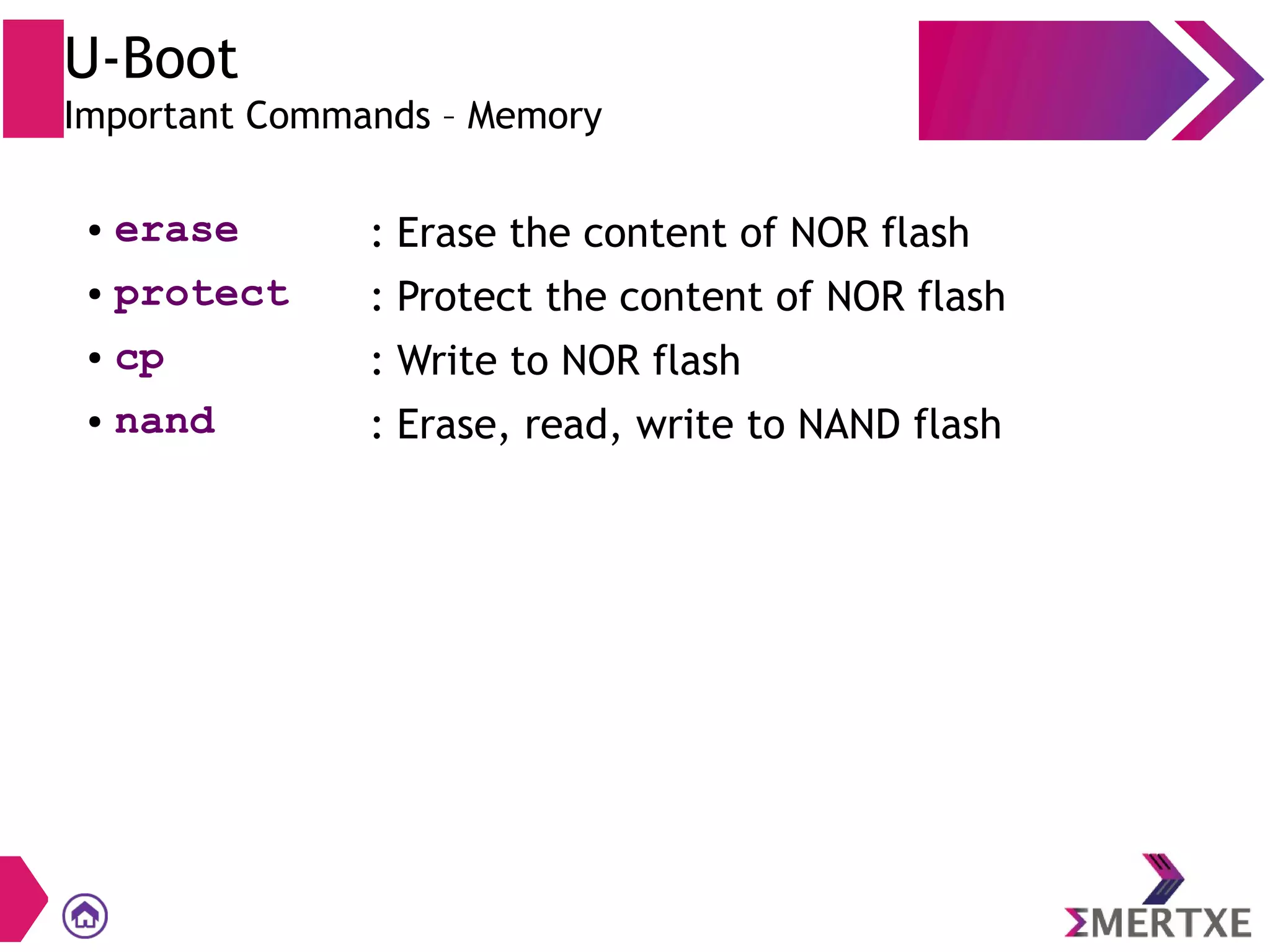

Important Commands – Memory
● erase : Erase the content of NOR flash
● protect : Protect the content of NOR flash
● cp : Write to NOR flash
● nand : Erase, read, write to NAND flash
