• 1.
  “ Equation ofLinear Regression Line” Presented by : Eng. Waleed Alzaghal YouTube Channel: Waleed Alzaghal
• 2.
  Equation of aStraight Line y = mx + b y : the y-value for a given x-value m : the slope of the line b : the y-intercept
• 3.

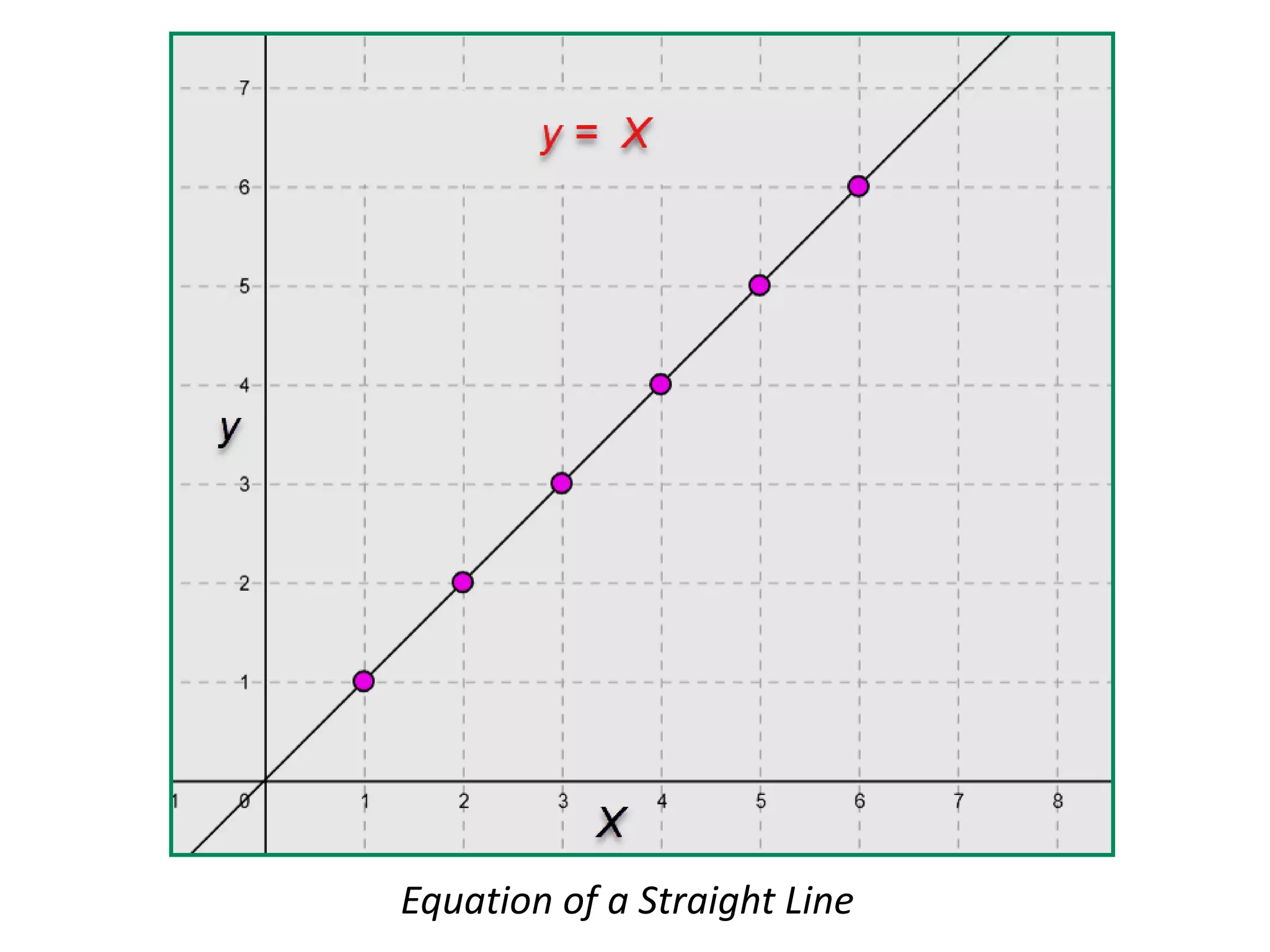

  Equation of aStraight Line

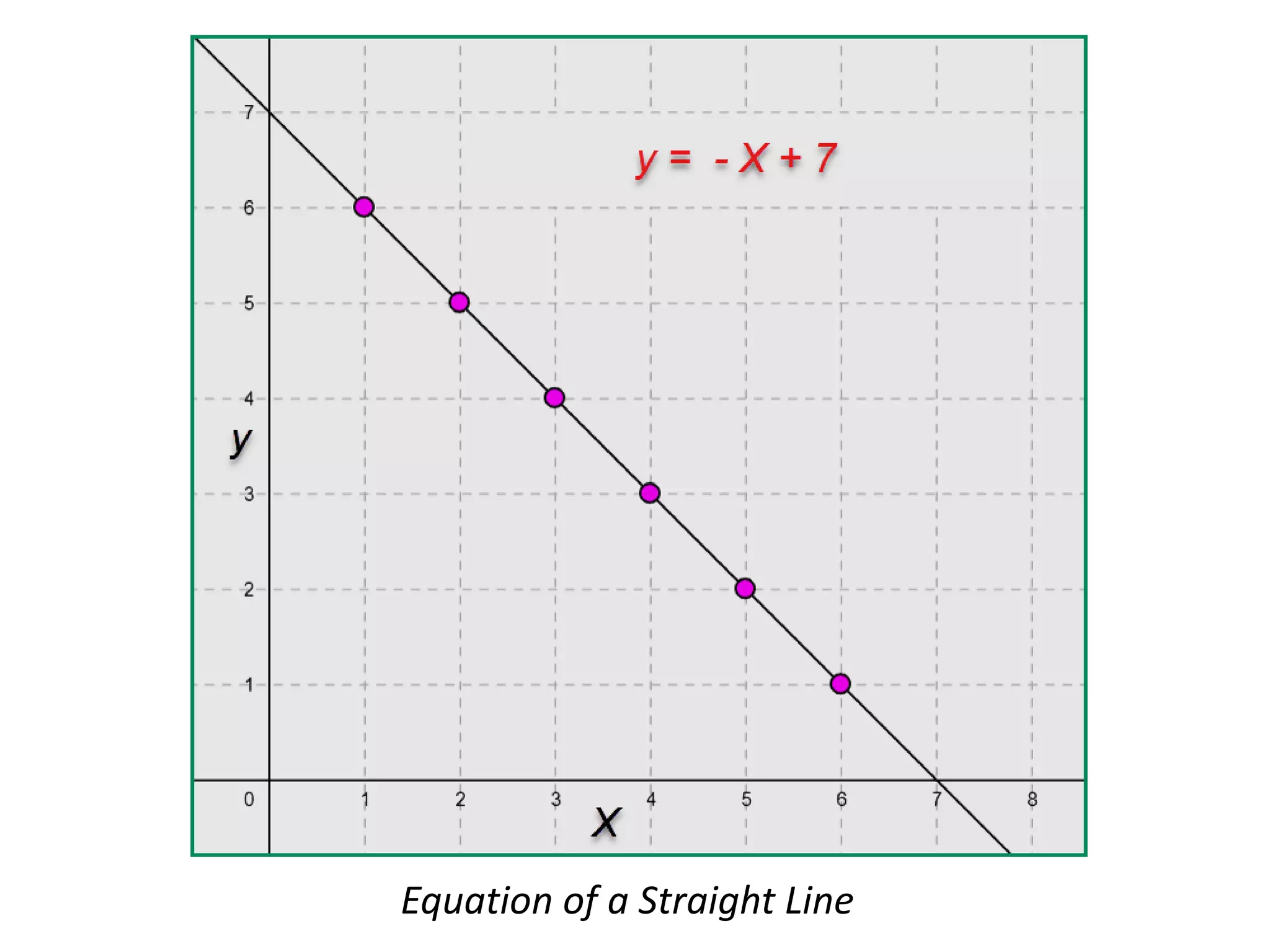

• 4.
  Equation of aStraight Line
• 5.
  Equation of aStraight Line
• 6.

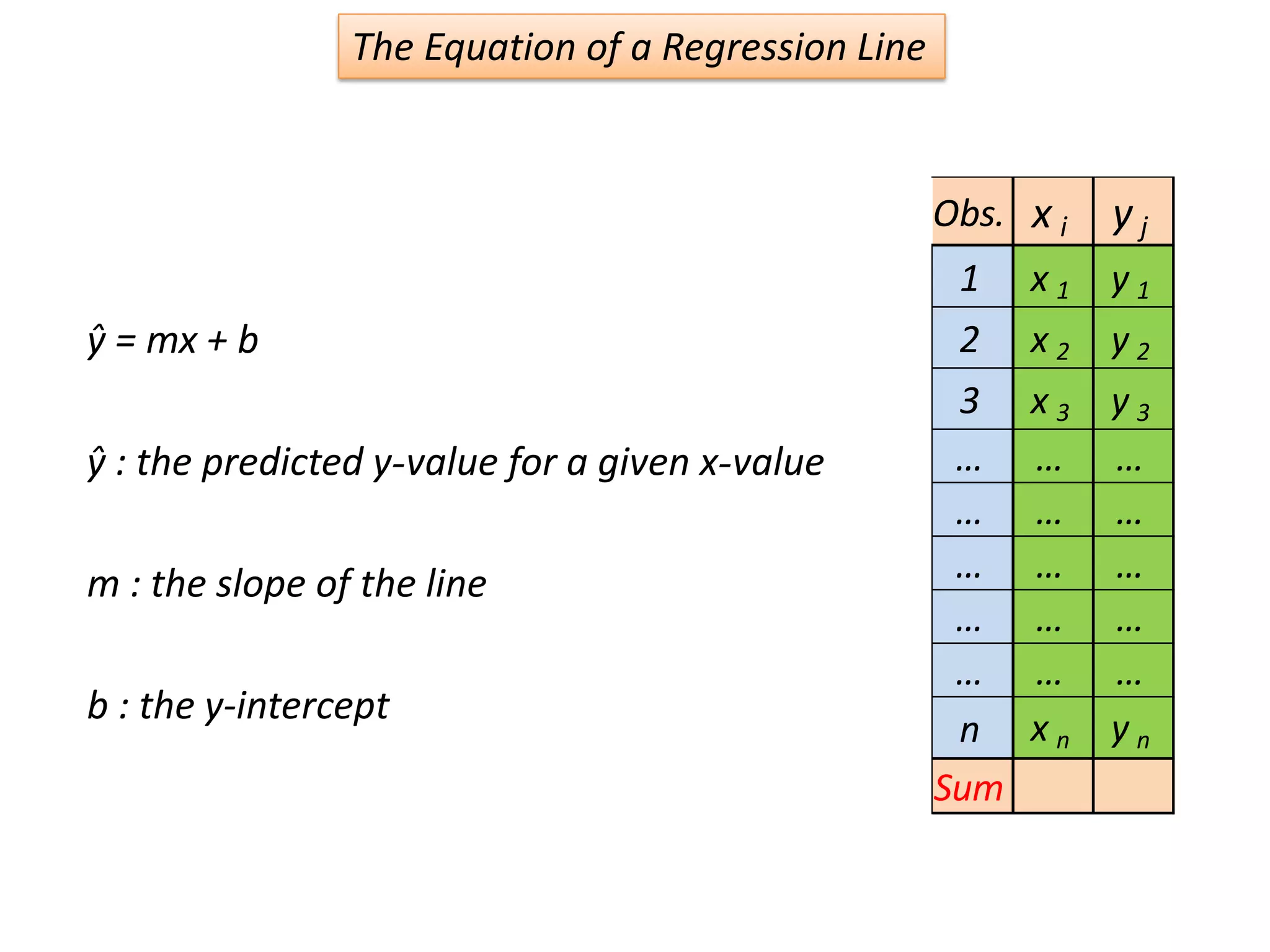

  The Equation ofa Regression Line ŷ = mx + b ŷ : the predicted y-value for a given x-value m : the slope of the line b : the y-intercept Obs. x i y j 1 x 1 y 1 2 x 2 y 2 3 x 3 y 3 … … … … … … … … … … … … … … … n x n y n Sum
• 7.

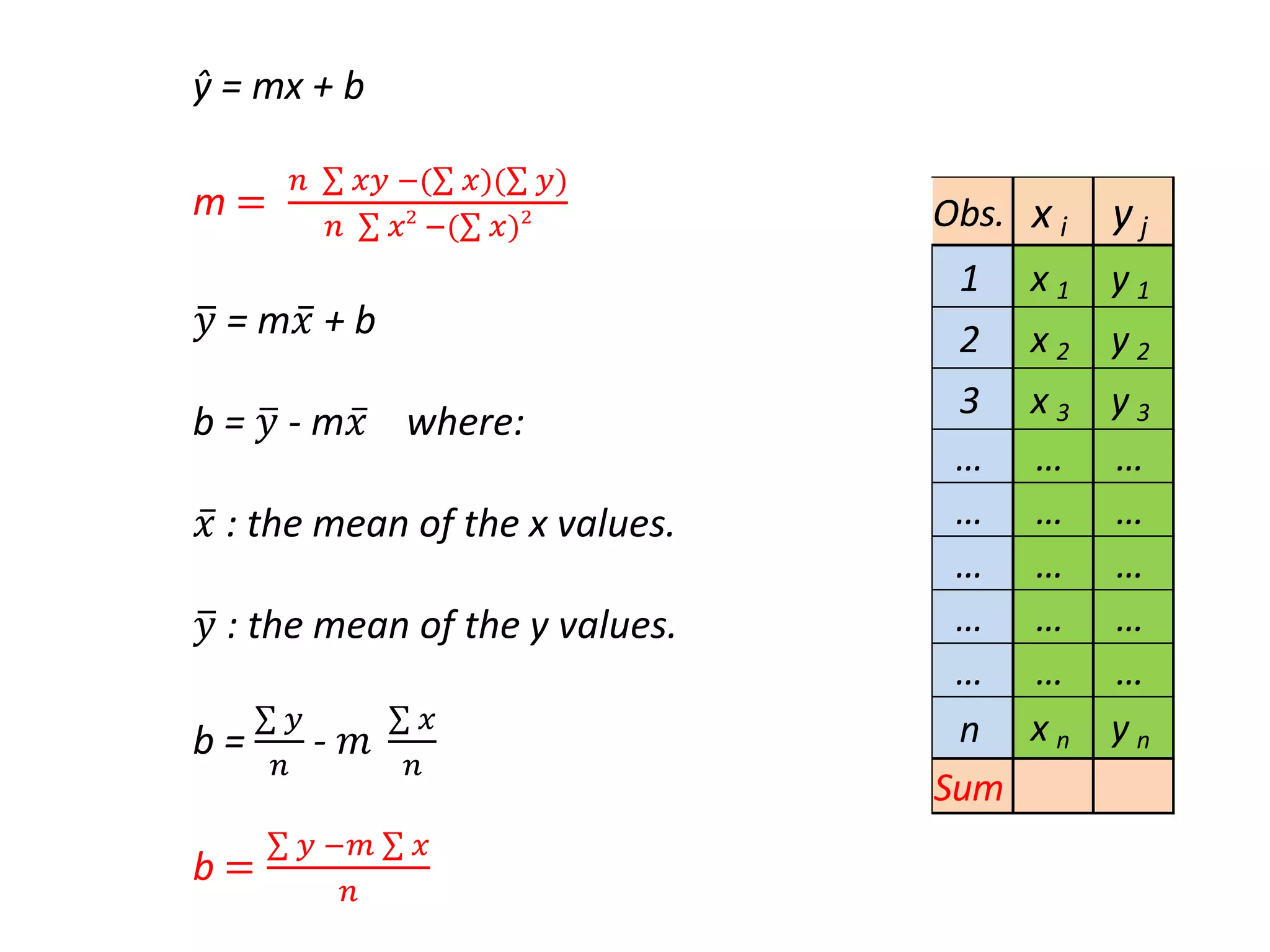

  ŷ = mx+ b m = 𝑛 𝑥𝑦 −( 𝑥)( 𝑦) 𝑛 𝑥2 −( 𝑥)2 𝑦 = m𝑥 + b b = 𝑦 - m𝑥 where: 𝑥 : the mean of the x values. 𝑦 : the mean of the y values. b = 𝑦 𝑛 - 𝑚 𝑥 𝑛 b = 𝑦 −𝑚 𝑥 𝑛 Obs. x i y j 1 x 1 y 1 2 x 2 y 2 3 x 3 y 3 … … … … … … … … … … … … … … … n x n y n Sum

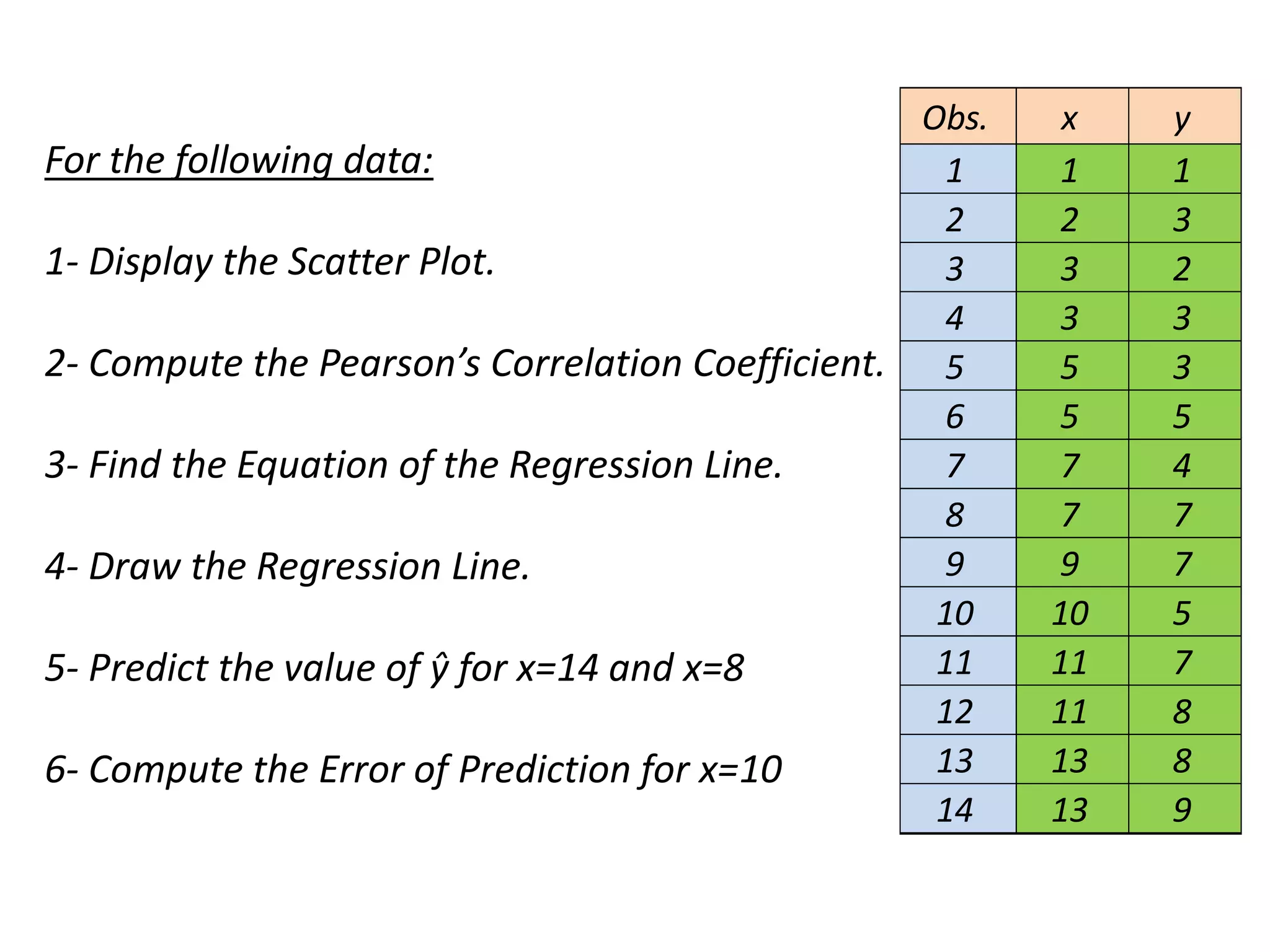

• 8.
  For the followingdata: 1- Display the Scatter Plot. 2- Compute the Pearson’s Correlation Coefficient. 3- Find the Equation of the Regression Line. 4- Draw the Regression Line. 5- Predict the value of ŷ for x=14 and x=8 6- Compute the Error of Prediction for x=10 Obs. x y 1 1 1 2 2 3 3 3 2 4 3 3 5 5 3 6 5 5 7 7 4 8 7 7 9 9 7 10 10 5 11 11 7 12 11 8 13 13 8 14 13 9

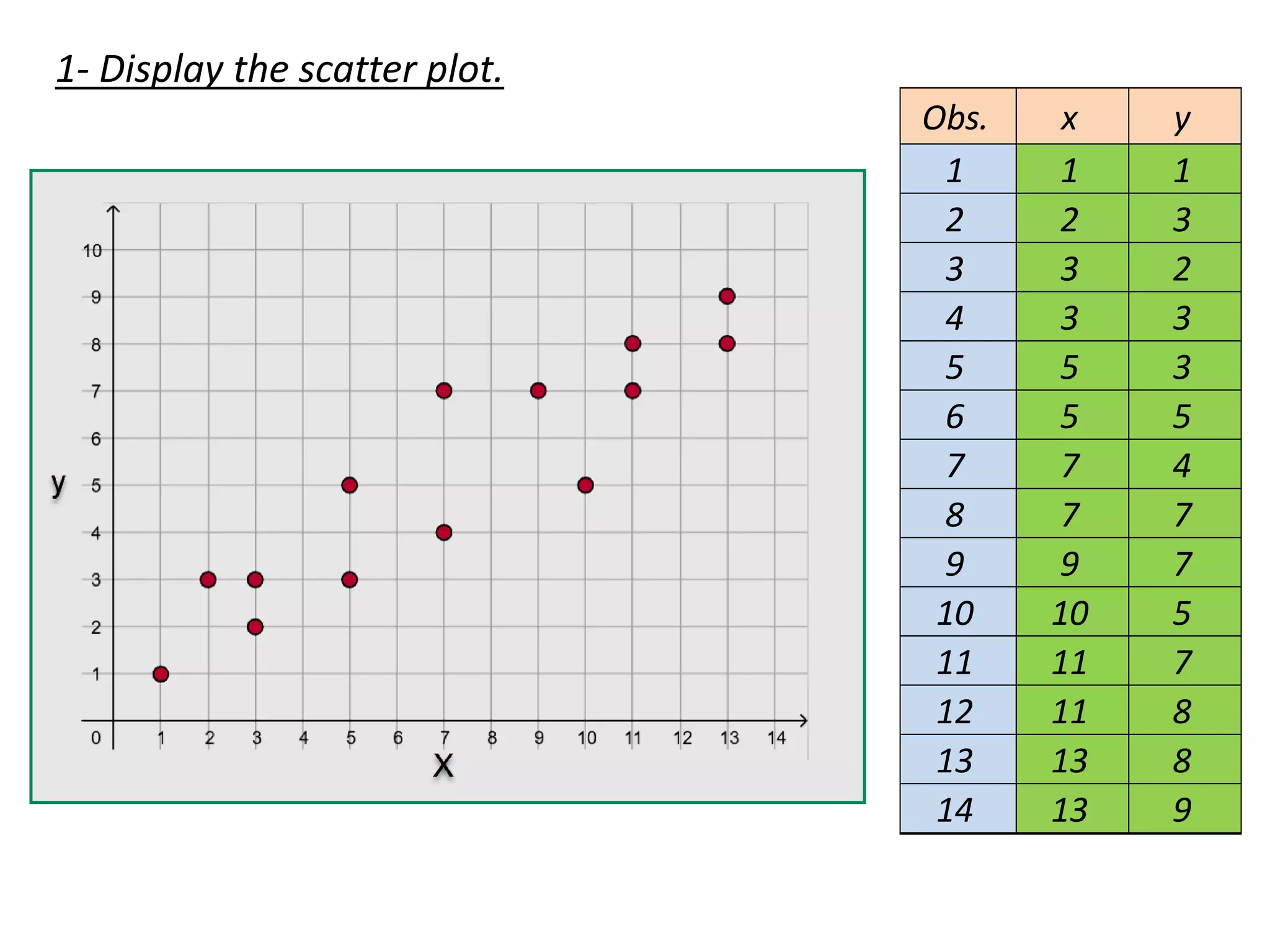

• 9.
  Obs. x y 11 1 2 2 3 3 3 2 4 3 3 5 5 3 6 5 5 7 7 4 8 7 7 9 9 7 10 10 5 11 11 7 12 11 8 13 13 8 14 13 9 1- Display the scatter plot.
• 10.

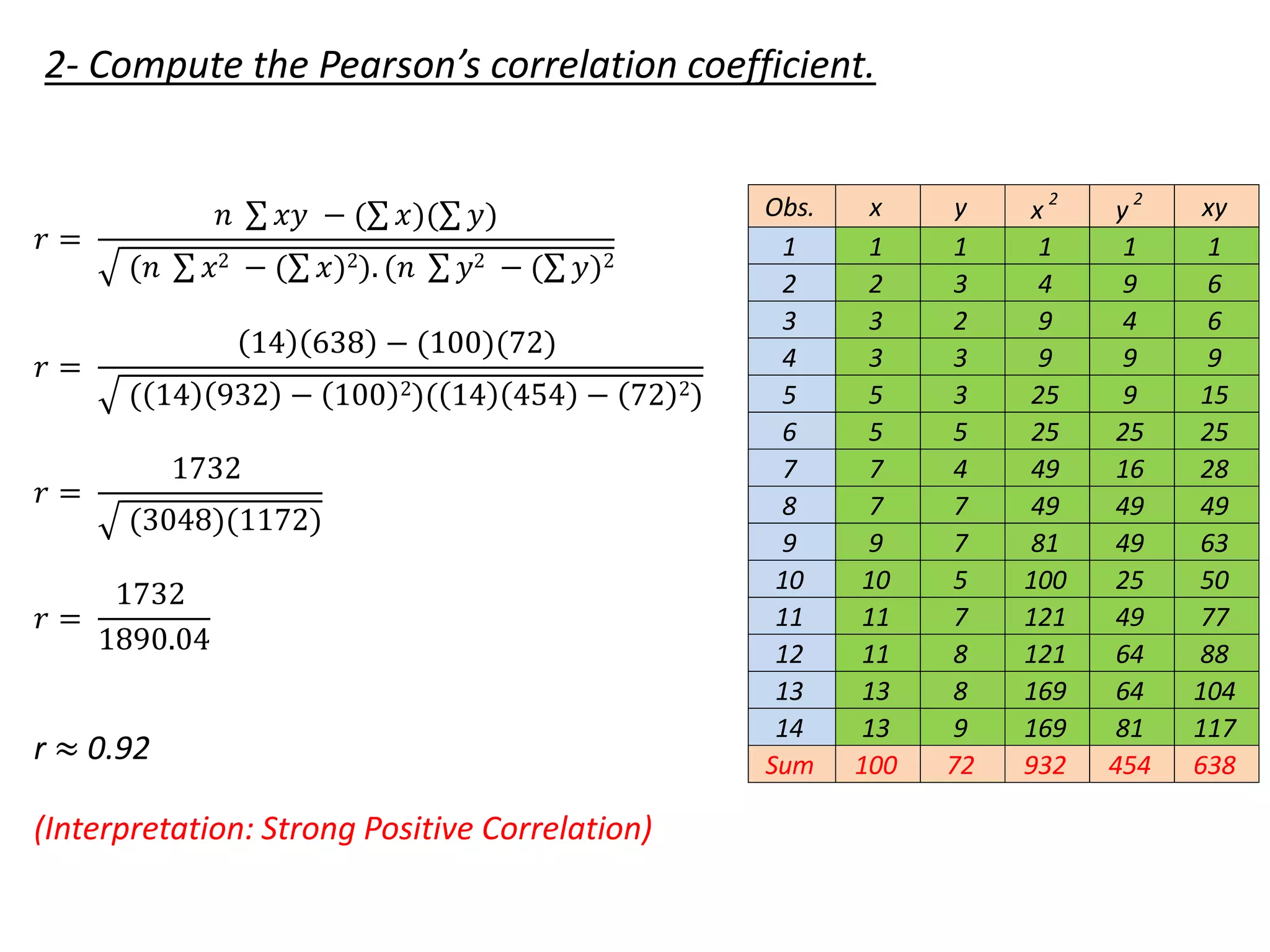

  Obs. x yx 2 y 2 xy 1 1 1 1 1 1 2 2 3 4 9 6 3 3 2 9 4 6 4 3 3 9 9 9 5 5 3 25 9 15 6 5 5 25 25 25 7 7 4 49 16 28 8 7 7 49 49 49 9 9 7 81 49 63 10 10 5 100 25 50 11 11 7 121 49 77 12 11 8 121 64 88 13 13 8 169 64 104 14 13 9 169 81 117 Sum 100 72 932 454 638 𝑟 = 𝑛 𝑥𝑦 − ( 𝑥)( 𝑦) (𝑛 𝑥2 − ( 𝑥)2). (𝑛 𝑦2 − ( 𝑦)2 𝑟 = 14 638 − (100)(72) ( 14 932 − 100 2)( 14 454 − 72 2) 𝑟 = 1732 (3048)(1172) 𝑟 = 1732 1890.04 r ≈ 0.92 (Interpretation: Strong Positive Correlation) 2- Compute the Pearson’s correlation coefficient.
• 11.

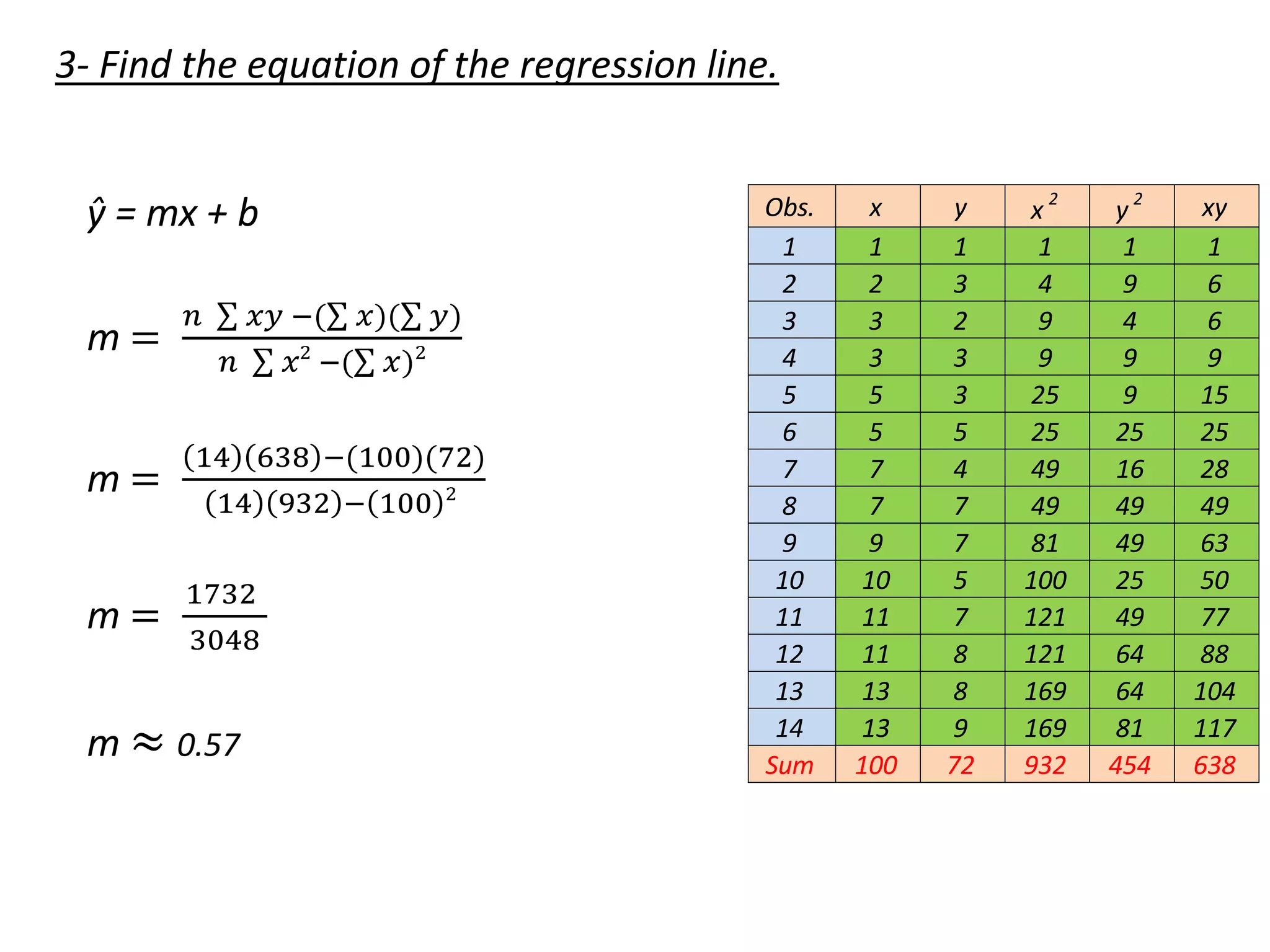

  ŷ = mx+ b m = 𝑛 𝑥𝑦 −( 𝑥)( 𝑦) 𝑛 𝑥2 −( 𝑥)2 m = 14 638 −(100)(72) 14 932 − 100 2 m = 1732 3048 m ≈ 0.57 3- Find the equation of the regression line. Obs. x y x 2 y 2 xy 1 1 1 1 1 1 2 2 3 4 9 6 3 3 2 9 4 6 4 3 3 9 9 9 5 5 3 25 9 15 6 5 5 25 25 25 7 7 4 49 16 28 8 7 7 49 49 49 9 9 7 81 49 63 10 10 5 100 25 50 11 11 7 121 49 77 12 11 8 121 64 88 13 13 8 169 64 104 14 13 9 169 81 117 Sum 100 72 932 454 638
• 12.
  ŷ = mx+ b b = 𝑦 −𝑚 𝑥 𝑛 b = (72) −(0.57)(100) 14 b = 15 14 b = 1.07 ŷ = 0.57 x + 1.07 Obs. x y x 2 y 2 xy 1 1 1 1 1 1 2 2 3 4 9 6 3 3 2 9 4 6 4 3 3 9 9 9 5 5 3 25 9 15 6 5 5 25 25 25 7 7 4 49 16 28 8 7 7 49 49 49 9 9 7 81 49 63 10 10 5 100 25 50 11 11 7 121 49 77 12 11 8 121 64 88 13 13 8 169 64 104 14 13 9 169 81 117 Sum 100 72 932 454 638 3- Find the equation of the regression line.
• 13.
  4- Draw theregression line.
• 14.
  5- Predict thevalue of ŷ for x=14 and x=8 For x=14 (Extrapolation) ŷ = 0.57 x + 1.07 ŷ = (0.57)(14) + 1.07 ŷ = 9.05 For x=8 (Interpolation) ŷ = 0.57 x + 1.07 ŷ = (0.57)(8) + 1.07 ŷ = 5.63
• 15.
  Predicted Value ŷ ŷ= 0.57 x + 1.07 For x=10 ŷ = (0.57)(10) + 1.07 = 6.77 Actual Value = 5 Error of Prediction = Predicted Value – Actual Value Error of Prediction = 6.77 – 5 = 1.77 6- Compute the Error of Prediction for x=10
