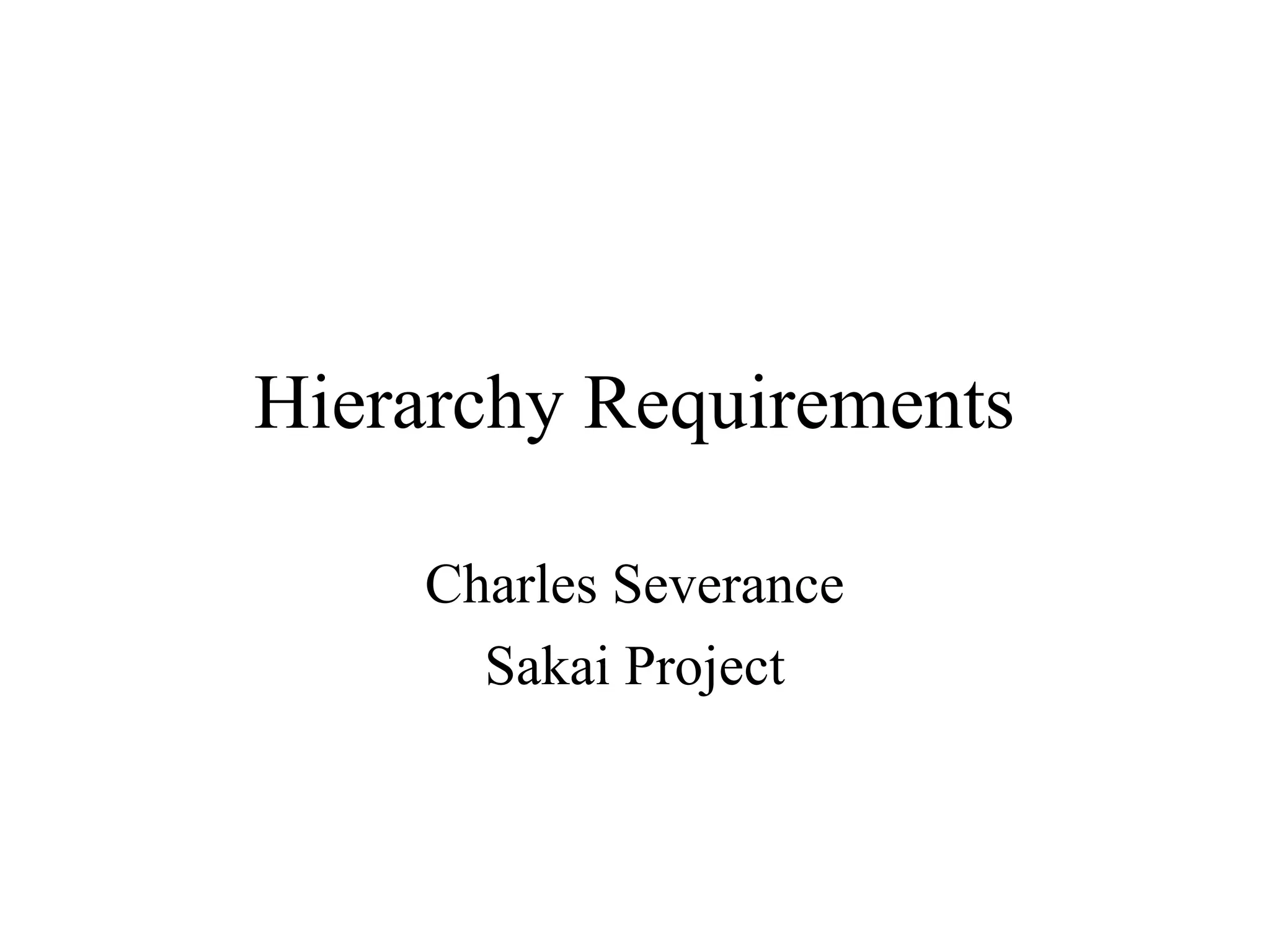

  Hierarchy Requirements Charles Severance SakaiProject
• 2.

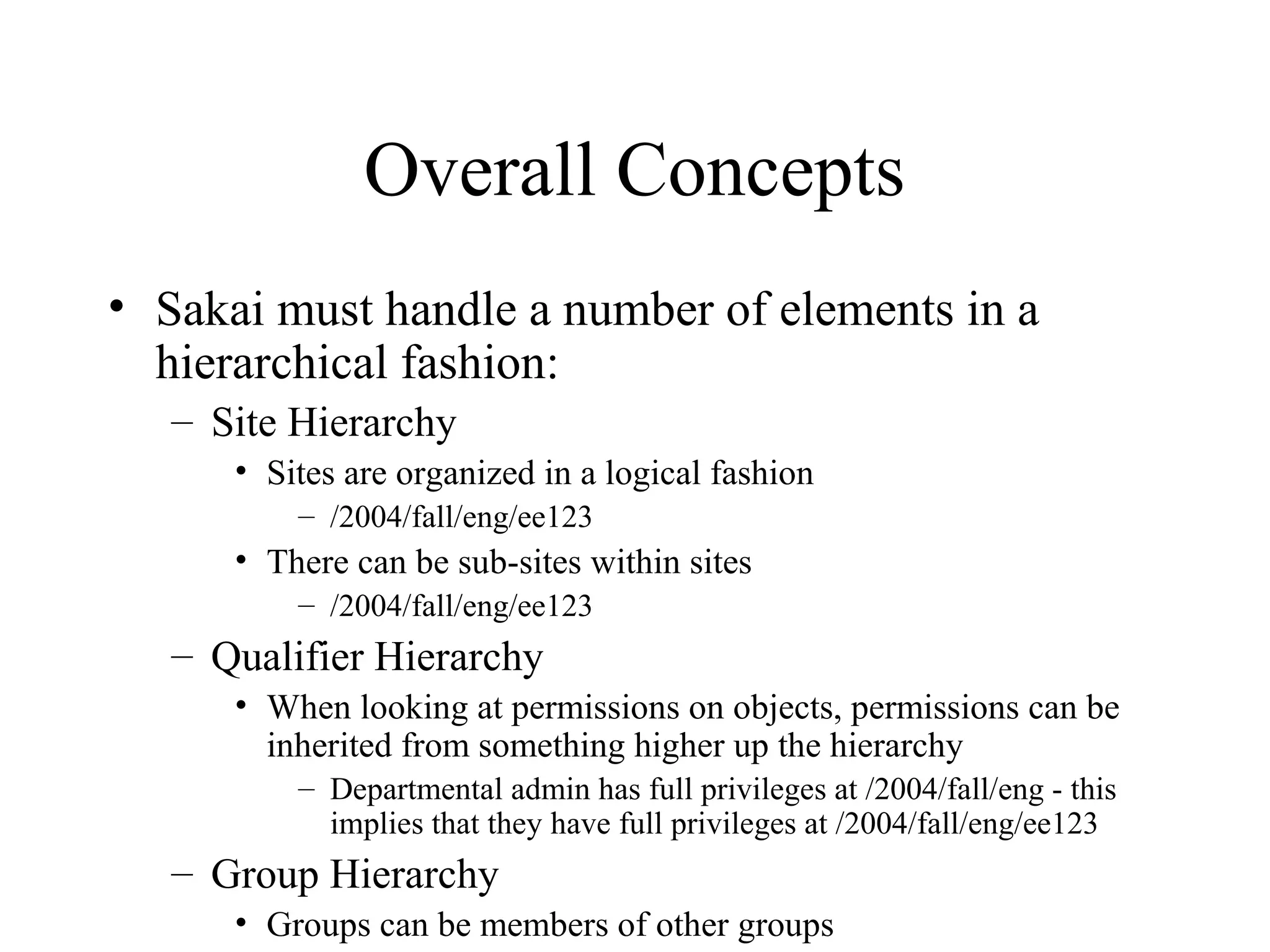

  Overall Concepts • Sakaimust handle a number of elements in a hierarchical fashion: – Site Hierarchy • Sites are organized in a logical fashion – /2004/fall/eng/ee123 • There can be sub-sites within sites – /2004/fall/eng/ee123 – Qualifier Hierarchy • When looking at permissions on objects, permissions can be inherited from something higher up the hierarchy – Departmental admin has full privileges at /2004/fall/eng - this implies that they have full privileges at /2004/fall/eng/ee123 – Group Hierarchy • Groups can be members of other groups
• 3.

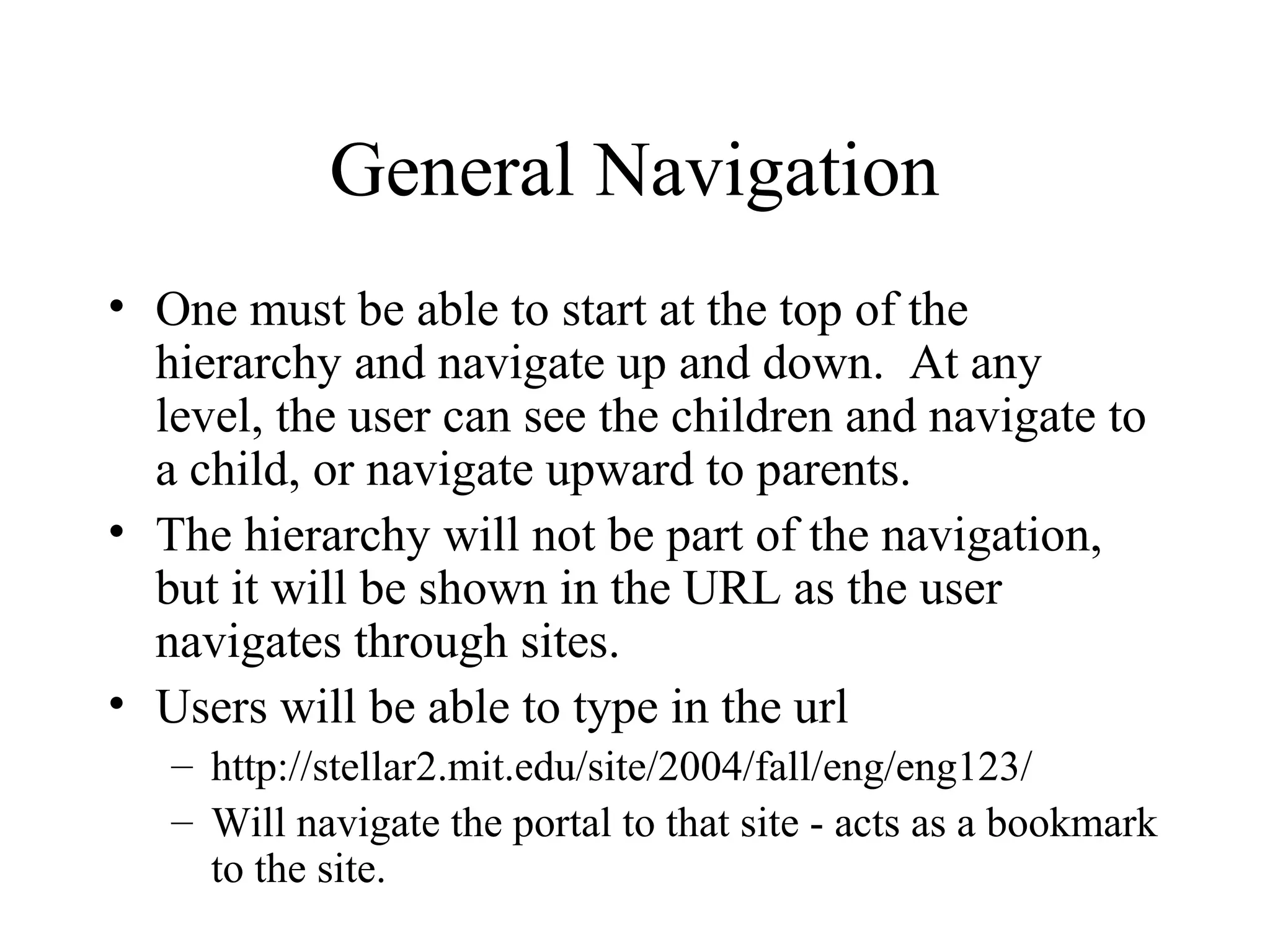

  General Navigation • Onemust be able to start at the top of the hierarchy and navigate up and down. At any level, the user can see the children and navigate to a child, or navigate upward to parents. • The hierarchy will not be part of the navigation, but it will be shown in the URL as the user navigates through sites. • Users will be able to type in the url – http://stellar2.mit.edu/site/2004/fall/eng/eng123/ – Will navigate the portal to that site - acts as a bookmark to the site.
• 4.

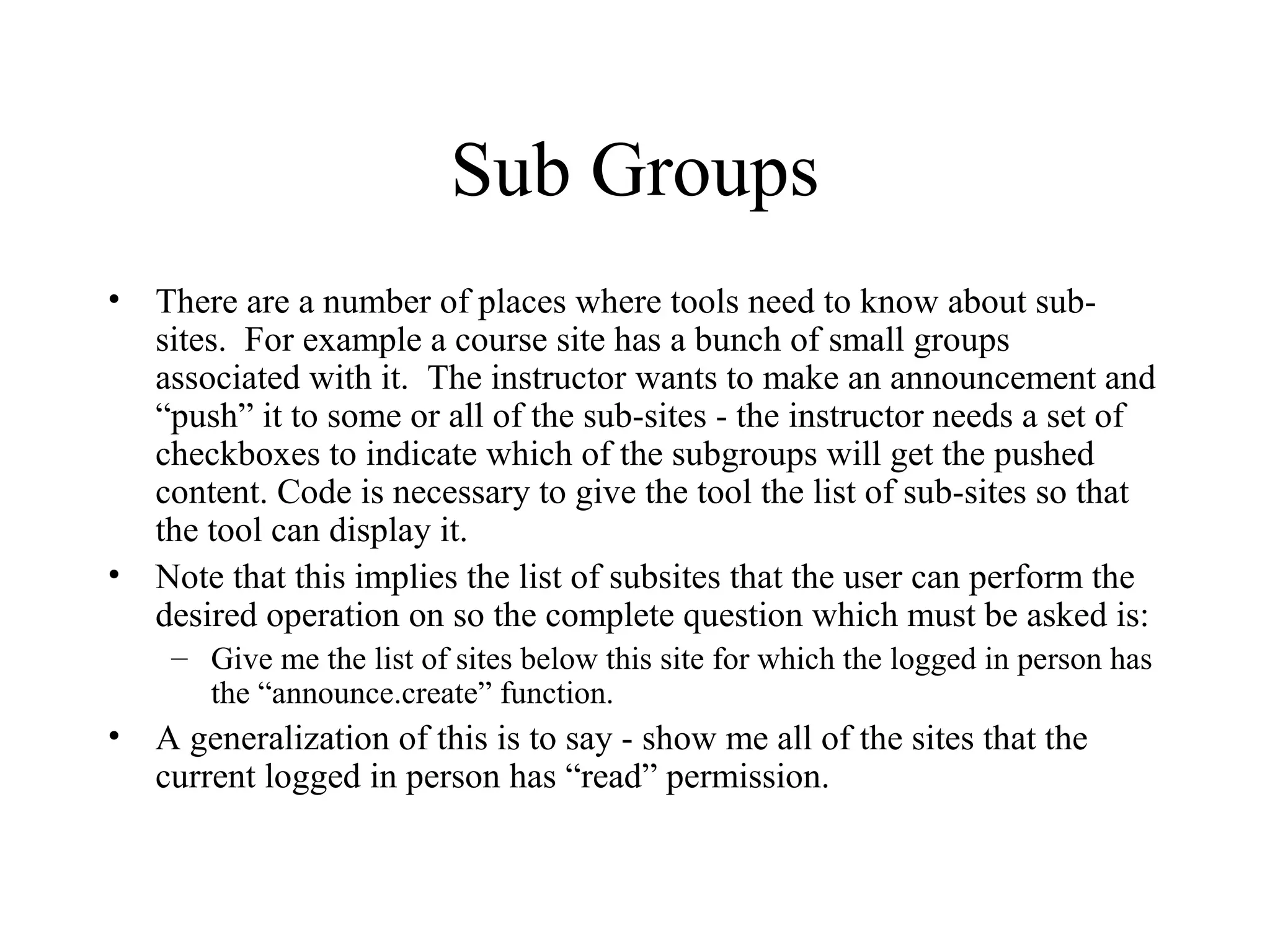

  Sub Groups • Thereare a number of places where tools need to know about sub- sites. For example a course site has a bunch of small groups associated with it. The instructor wants to make an announcement and “push” it to some or all of the sub-sites - the instructor needs a set of checkboxes to indicate which of the subgroups will get the pushed content. Code is necessary to give the tool the list of sub-sites so that the tool can display it. • Note that this implies the list of subsites that the user can perform the desired operation on so the complete question which must be asked is: – Give me the list of sites below this site for which the logged in person has the “announce.create” function. • A generalization of this is to say - show me all of the sites that the current logged in person has “read” permission.
• 5.

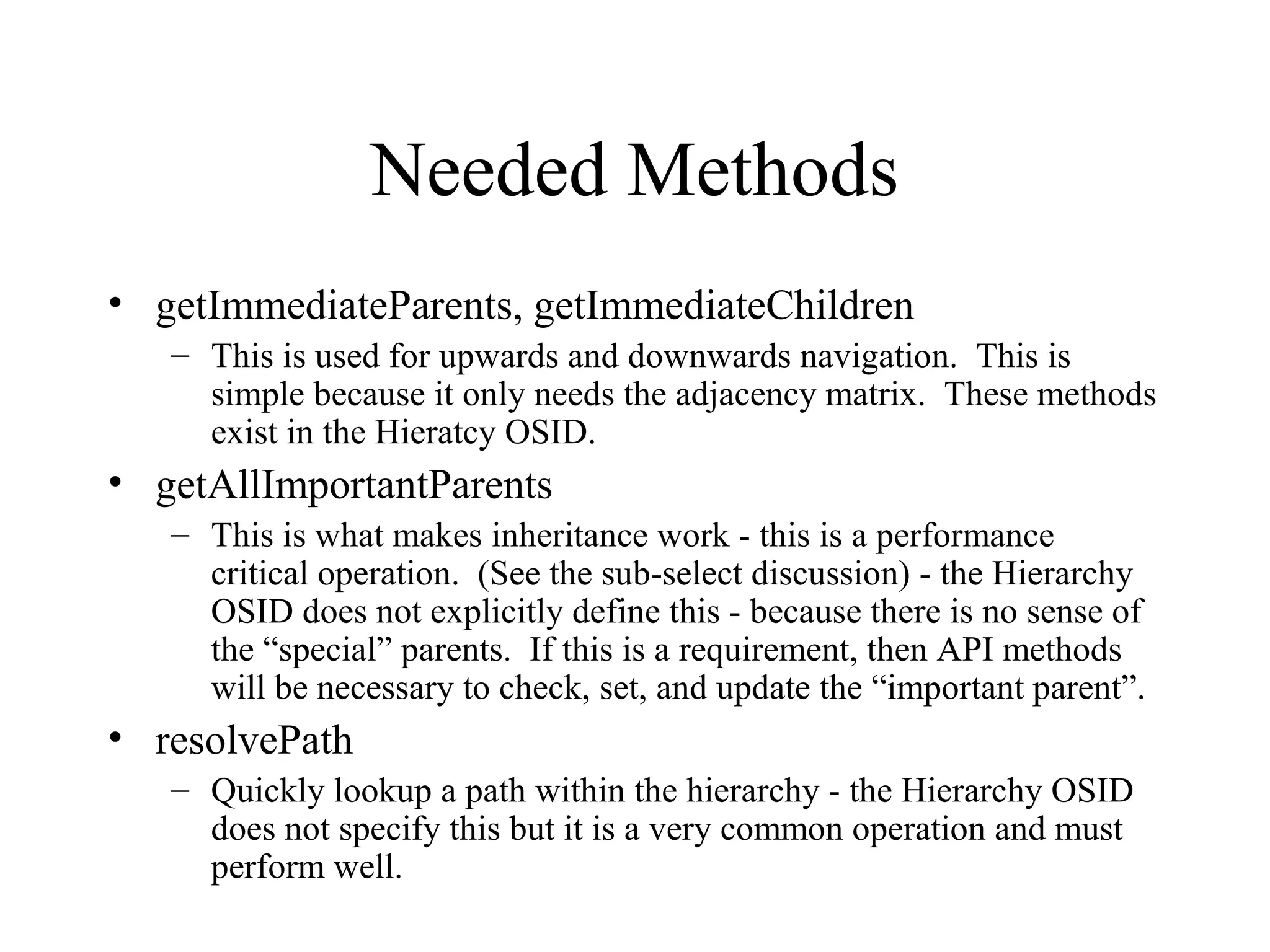

  Needed Methods • getImmediateParents,getImmediateChildren – This is used for upwards and downwards navigation. This is simple because it only needs the adjacency matrix. These methods exist in the Hieratcy OSID. • getAllImportantParents – This is what makes inheritance work - this is a performance critical operation. (See the sub-select discussion) - the Hierarchy OSID does not explicitly define this - because there is no sense of the “special” parents. If this is a requirement, then API methods will be necessary to check, set, and update the “important parent”. • resolvePath – Quickly lookup a path within the hierarchy - the Hierarchy OSID does not specify this but it is a very common operation and must perform well.
• 6.
  … Methods • getAllChildrenRecursively –This is likely needed - but it is not clear what the requirement really is here. Perhaps this is better viewed as the following. • getAllChildrenRecursivelyResolvingLinks – This would follow any soft links (assuming that we do soft links) - This concept is present in the Hierarchy OSID if we choose to interpret it in a particular way • addSoftParent, addHardParent – If we choose to support it, we need to differentiate the adding of soft and hard parents and define the sematics therein. This will also cause getSoftParents, getHardChildren, and then recursive and non-recursive variants.
• 7.

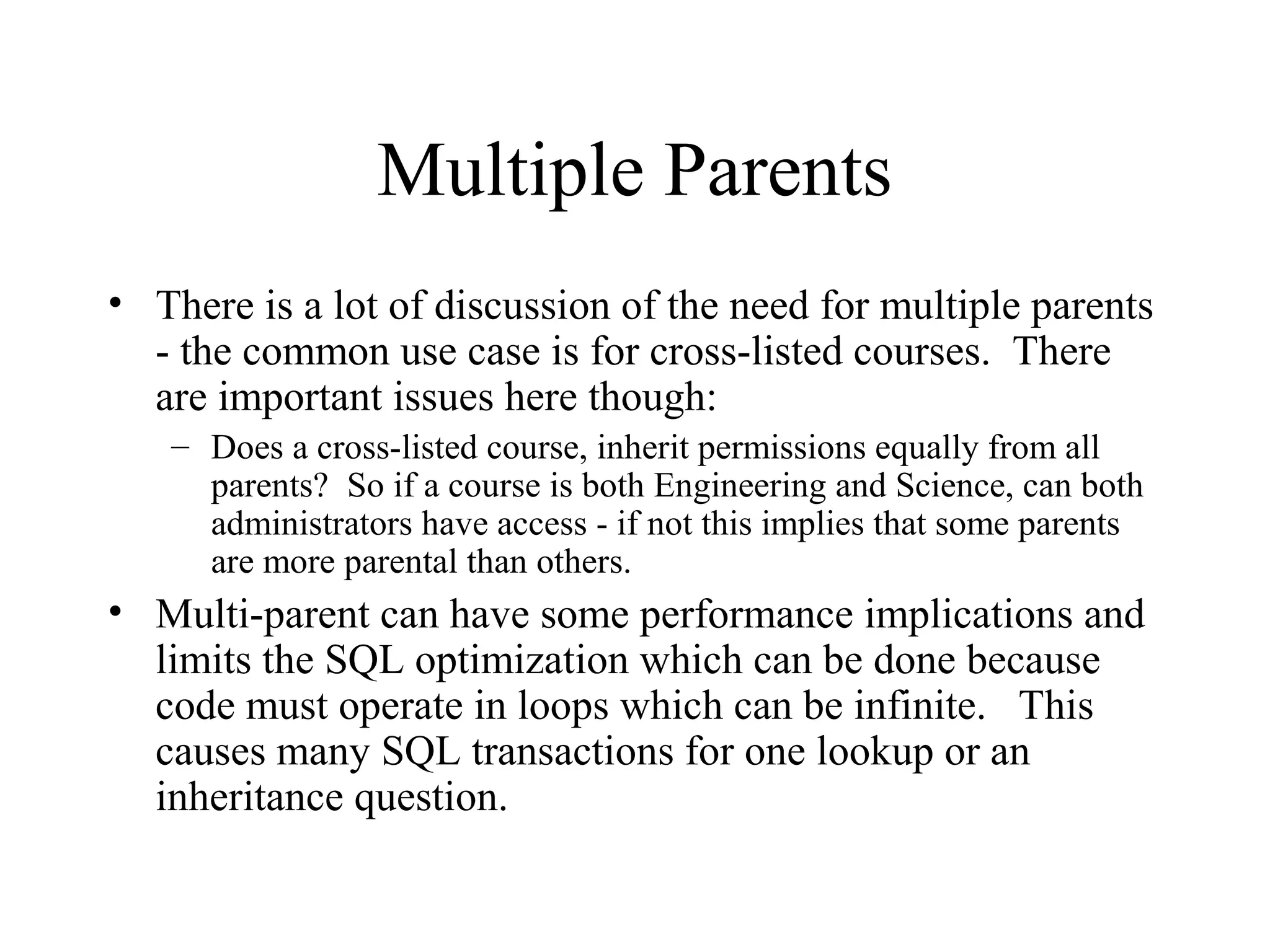

  Multiple Parents • Thereis a lot of discussion of the need for multiple parents - the common use case is for cross-listed courses. There are important issues here though: – Does a cross-listed course, inherit permissions equally from all parents? So if a course is both Engineering and Science, can both administrators have access - if not this implies that some parents are more parental than others. • Multi-parent can have some performance implications and limits the SQL optimization which can be done because code must operate in loops which can be infinite. This causes many SQL transactions for one lookup or an inheritance question.
• 8.
  Multi-Parent Link Type –One possible approach is to take the UNIX file system approach and treat the second and following parent links as soft links. This raises its own set of issues. • Soft links are only a navigation mechanism - permissions inherit across the hard-link only - UNIX like • What if the hard-link is severed and the node is deleted? Do the soft links hang out pointing to nothing or are they cleaned up? (probably cleaned up) • Are softlinks to “iNode” or to a path? UNIX chose path. • How do we handle loops in soft links? UNIX decided to limit the number of soft links traversed to some number - 64 or less usually. – Hard links can work - (iNode only) • Is there (one or several) primary parents? Is there a priority order? • If there is one primary link which controls inheritance and it is removed, which of the secondary links is “promoted” and takes over control of the inheritance? It would be nice for a human to make this decision and not code..
• 9.
  Performance • Performance isa critical requirement - often these hierarchy lookups are a large part of the DB load of an application. – It is not practical to cache the structure - There will be Sakai installations with 200K sites and each site may have several thousand files in a hierarchy. – It may not even be practical to have a single hierarchy - there may need to be a federated hierarchy of hierarchies. – Many of these algorithms are “n-squared” on insert because insert triggers some reorganization.
• 10.

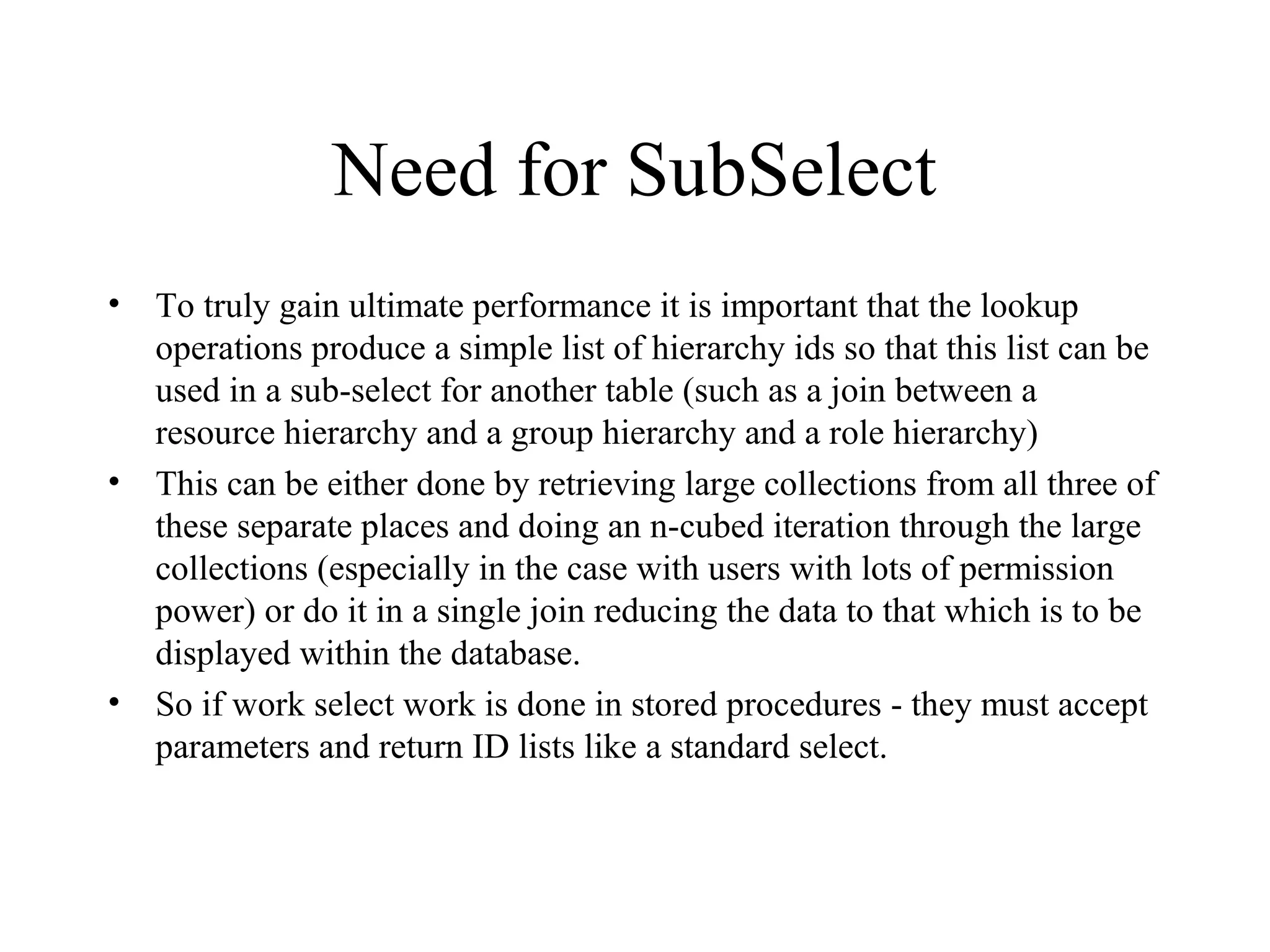

  Need for SubSelect •To truly gain ultimate performance it is important that the lookup operations produce a simple list of hierarchy ids so that this list can be used in a sub-select for another table (such as a join between a resource hierarchy and a group hierarchy and a role hierarchy) • This can be either done by retrieving large collections from all three of these separate places and doing an n-cubed iteration through the large collections (especially in the case with users with lots of permission power) or do it in a single join reducing the data to that which is to be displayed within the database. • So if work select work is done in stored procedures - they must accept parameters and return ID lists like a standard select.
• 11.
  Common Implementation Approaches • Straightparent - child structure – Insert is quite fast, lookup is loop-based with an SQL transaction to descend each level • Transitive closure of parent child – On insert, traverse upwards and add direct parent - child links for all parents “above” the child. – This ends up with NlogN data, but insert is log N and lookup is log N. – Often done with stored procedures or looping SQL • Specific Database Extensions – Oracle has such extensions - does this handle multi-rooted? • Overlapping sets – Based on maintaining pre-order numbering of nodes – N-Squared on insert, log N on lookup. Data is order-N – Insert performance suffers on large hierarchies.
• 12.

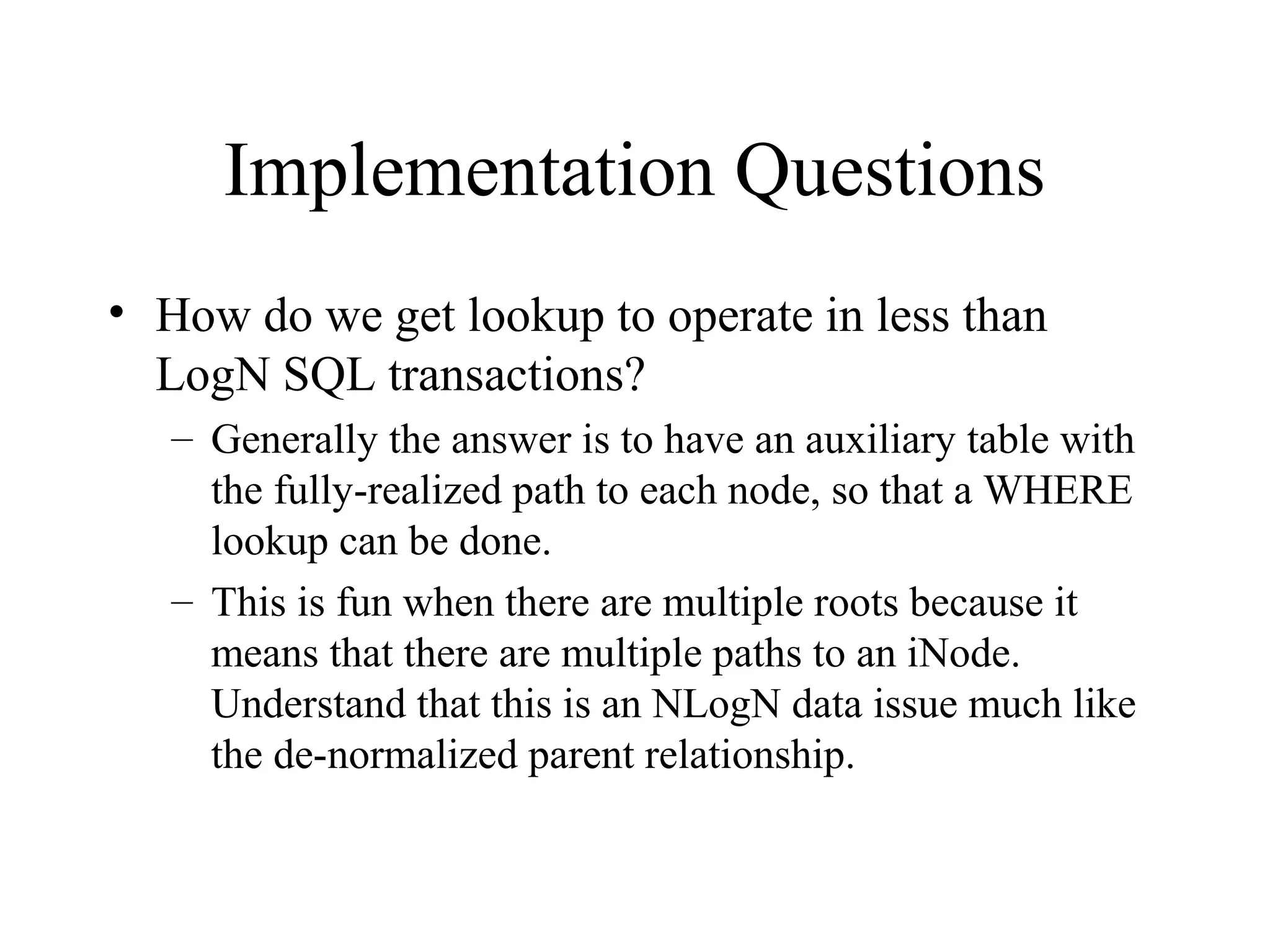

  Implementation Questions • Howdo we get lookup to operate in less than LogN SQL transactions? – Generally the answer is to have an auxiliary table with the fully-realized path to each node, so that a WHERE lookup can be done. – This is fun when there are multiple roots because it means that there are multiple paths to an iNode. Understand that this is an NLogN data issue much like the de-normalized parent relationship.
