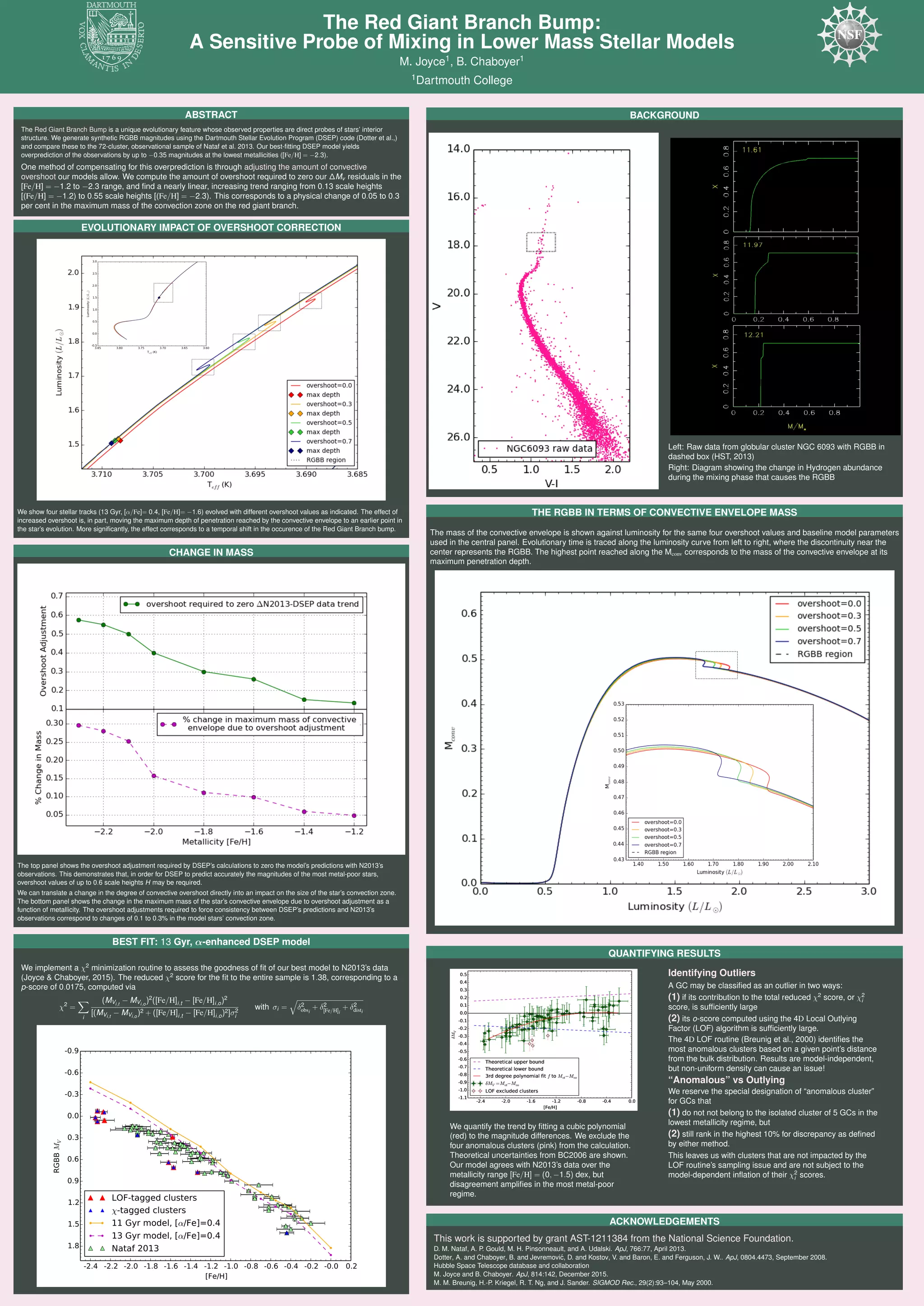

![The Red Giant Branch Bump:
A Sensitive Probe of Mixing in Lower Mass Stellar Models
M. Joyce1
, B. Chaboyer1
1
Dartmouth College
ABSTRACT
The Red Giant Branch Bump is a unique evolutionary feature whose observed properties are direct probes of stars’ interior
structure. We generate synthetic RGBB magnitudes using the Dartmouth Stellar Evolution Program (DSEP) code (Dotter et al.,)
and compare these to the 72-cluster, observational sample of Nataf et al. 2013. Our best-fitting DSEP model yields
overprediction of the observations by up to −0.35 magnitudes at the lowest metallicities ([Fe/H] = −2.3).
One method of compensating for this overprediction is through adjusting the amount of convective
overshoot our models allow. We compute the amount of overshoot required to zero our ∆Mv residuals in the
[Fe/H] = −1.2 to −2.3 range, and find a nearly linear, increasing trend ranging from 0.13 scale heights
[(Fe/H] = −1.2) to 0.55 scale heights [(Fe/H] = −2.3). This corresponds to a physical change of 0.05 to 0.3
per cent in the maximum mass of the convection zone on the red giant branch.
EVOLUTIONARY IMPACT OF OVERSHOOT CORRECTION
We show four stellar tracks (13 Gyr, [α/Fe]= 0.4, [Fe/H]= −1.6) evolved with different overshoot values as indicated. The effect of
increased overshoot is, in part, moving the maximum depth of penetration reached by the convective envelope to an earlier point in
the star’s evolution. More significantly, the effect corresponds to a temporal shift in the occurence of the Red Giant Branch bump.
CHANGE IN MASS
The top panel shows the overshoot adjustment required by DSEP’s calculations to zero the model’s predictions with N2013’s
observations. This demonstrates that, in order for DSEP to predict accurately the magnitudes of the most metal-poor stars,
overshoot values of up to 0.6 scale heights H may be required.
We can translate a change in the degree of convective overshoot directly into an impact on the size of the star’s convection zone.
The bottom panel shows the change in the maximum mass of the star’s convective envelope due to overshoot adjustment as a
function of metallicity. The overshoot adjustments required to force consistency between DSEP’s predictions and N2013’s
observations correspond to changes of 0.1 to 0.3% in the model stars’ convection zone.
BEST FIT: 13 Gyr, α-enhanced DSEP model
We implement a χ2
minimization routine to assess the goodness of fit of our best model to N2013’s data
(Joyce & Chaboyer, 2015). The reduced χ2
score for the fit to the entire sample is 1.38, corresponding to a
p-score of 0.0175, computed via
χ2
=
i
(MVi,t
− MVi,o
)2
([Fe/H]i,t − [Fe/H]i,o)2
[(MVi,t
− MVi,o
)2 + ([Fe/H]i,t − [Fe/H]i,o)2]σ2
i
with σi = δ2
obsi
+ δ2
[Fe/H]i
+ δ2
disti
-2.4 -2.2 -2.0 -1.8 -1.6 -1.4 -1.2 -1.0 -0.8 -0.6 -0.4 -0.2 -0.0 0.2
[Fe/H]
-0.9
-0.6
-0.3
0.0
0.3
0.6
0.9
1.2
1.5
1.8
RGBBMV
LOF-tagged clusters
χ-tagged clusters
11 Gyr model, [α/Fe]=0.4
13 Gyr model, [α/Fe]=0.4
Nataf 2013
BACKGROUND
Left: Raw data from globular cluster NGC 6093 with RGBB in
dashed box (HST, 2013)
Right: Diagram showing the change in Hydrogen abundance
during the mixing phase that causes the RGBB
THE RGBB IN TERMS OF CONVECTIVE ENVELOPE MASS
The mass of the convective envelope is shown against luminosity for the same four overshoot values and baseline model parameters
used in the central panel. Evolutionary time is traced along the luminosity curve from left to right, where the discontinuity near the
center represents the RGBB. The highest point reached along the Mconv corresponds to the mass of the convective envelope at its
maximum penetration depth.
QUANTIFYING RESULTS
We quantify the trend by fitting a cubic polynomial
(red) to the magnitude differences. We exclude the
four anomalous clusters (pink) from the calculation.
Theoretical uncertainties from BC2006 are shown.
Our model agrees with N2013’s data over the
metallicity range [Fe/H] = (0, −1.5) dex, but
disagreement amplifies in the most metal-poor
regime.
Identifying Outliers
A GC may be classified as an outlier in two ways:
(1) if its contribution to the total reduced χ2
score, or χ2
i
score, is sufficiently large
(2) its o-score computed using the 4D Local Outlying
Factor (LOF) algorithm is sufficiently large.
The 4D LOF routine (Breunig et al., 2000) identifies the
most anomalous clusters based on a given point’s distance
from the bulk distribution. Results are model-independent,
but non-uniform density can cause an issue!
“Anomalous” vs Outlying
We reserve the special designation of “anomalous cluster”
for GCs that
(1) do not not belong to the isolated cluster of 5 GCs in the
lowest metallicity regime, but
(2) still rank in the highest 10% for discrepancy as defined
by either method.
This leaves us with clusters that are not impacted by the
LOF routine’s sampling issue and are not subject to the
model-dependent inflation of their χ2
i scores.
ACKNOWLEDGEMENTS
This work is supported by grant AST-1211384 from the National Science Foundation.
D. M. Nataf, A. P. Gould, M. H. Pinsonneault, and A. Udalski. ApJ, 766:77, April 2013.
Dotter, A. and Chaboyer, B. and Jevremovi´c, D. and Kostov, V. and Baron, E. and Ferguson, J. W.. ApJ, 0804.4473, September 2008.
Hubble Space Telescope database and collaboration
M. Joyce and B. Chaboyer. ApJ, 814:142, December 2015.
M. M. Breunig, H.-P. Kriegel, R. T. Ng, and J. Sander. SIGMOD Rec., 29(2):93–104, May 2000.](https://image.slidesharecdn.com/b091acba-9077-486a-98ca-7257a897e126-160811190604/75/CS19posterA0-1-2048.jpg)
