Best practices for_scaling_java_applications_with_distributed_caching

Best Practices
for Scaling Java
Applications with
Distributed Caching

Copyright © 2011 Cacheonix Systems

Introduction
Presenter: Slava Imeshev
•  Founder at Cacheonix Systems developing
reliable clustered cache Cacheonix
•  Core expertise in reliable distributed systems
•  simeshev@cacheonix.com

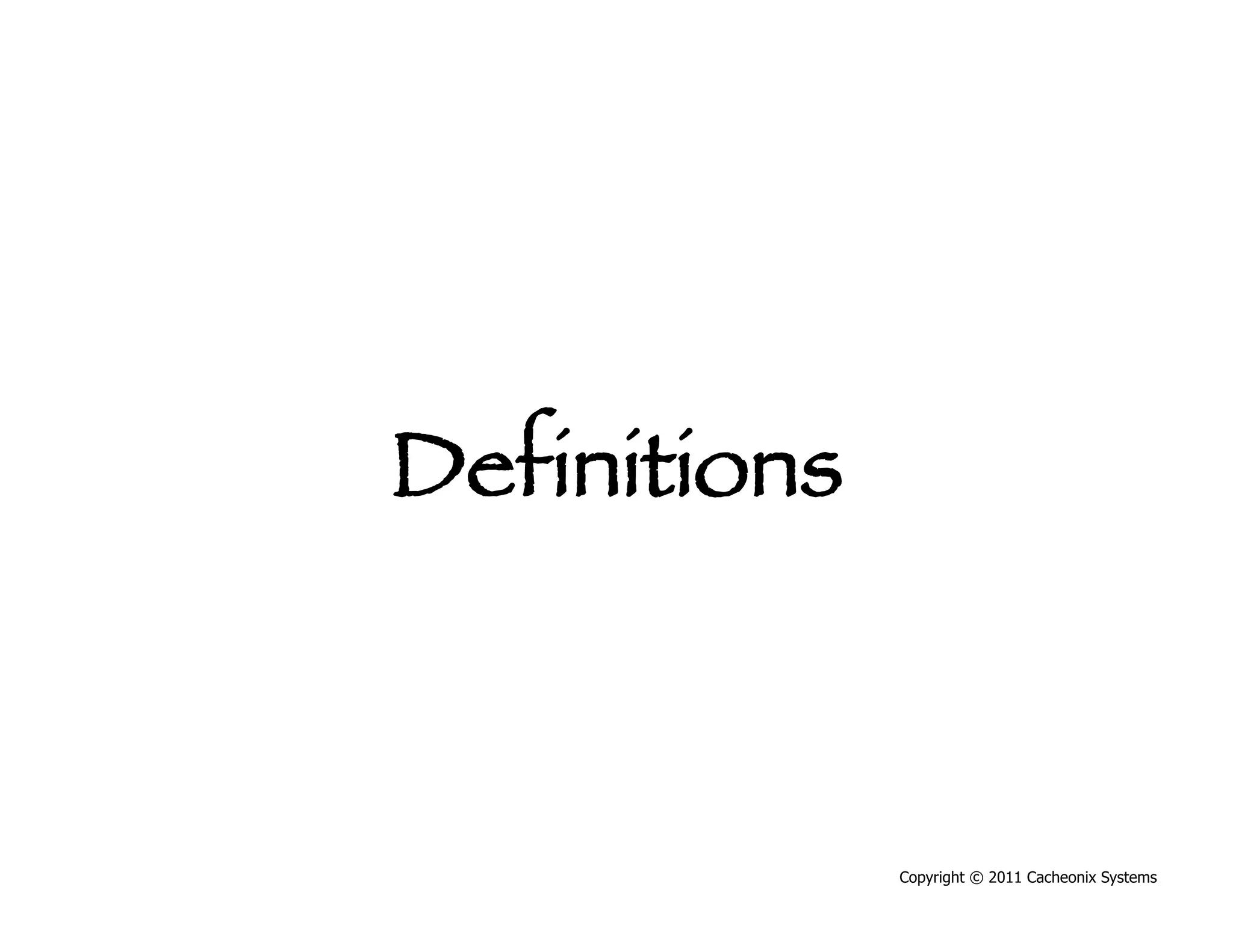

Definitions

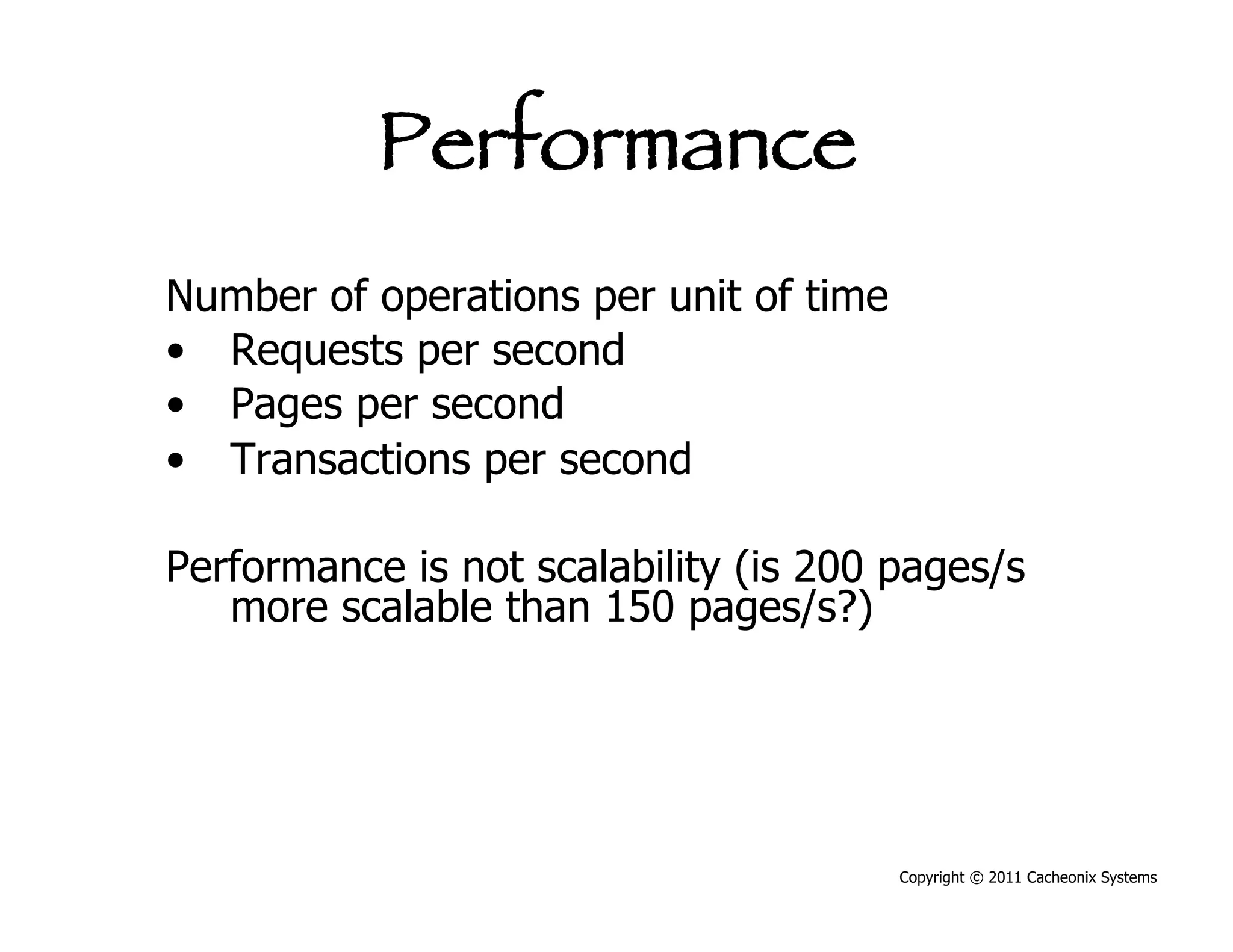

Performance
Number of operations per unit of time
•  Requests per second
•  Pages per second
•  Transactions per second

Performance is not scalability (is 200 pages/s
more scalable than 150 pages/s?)

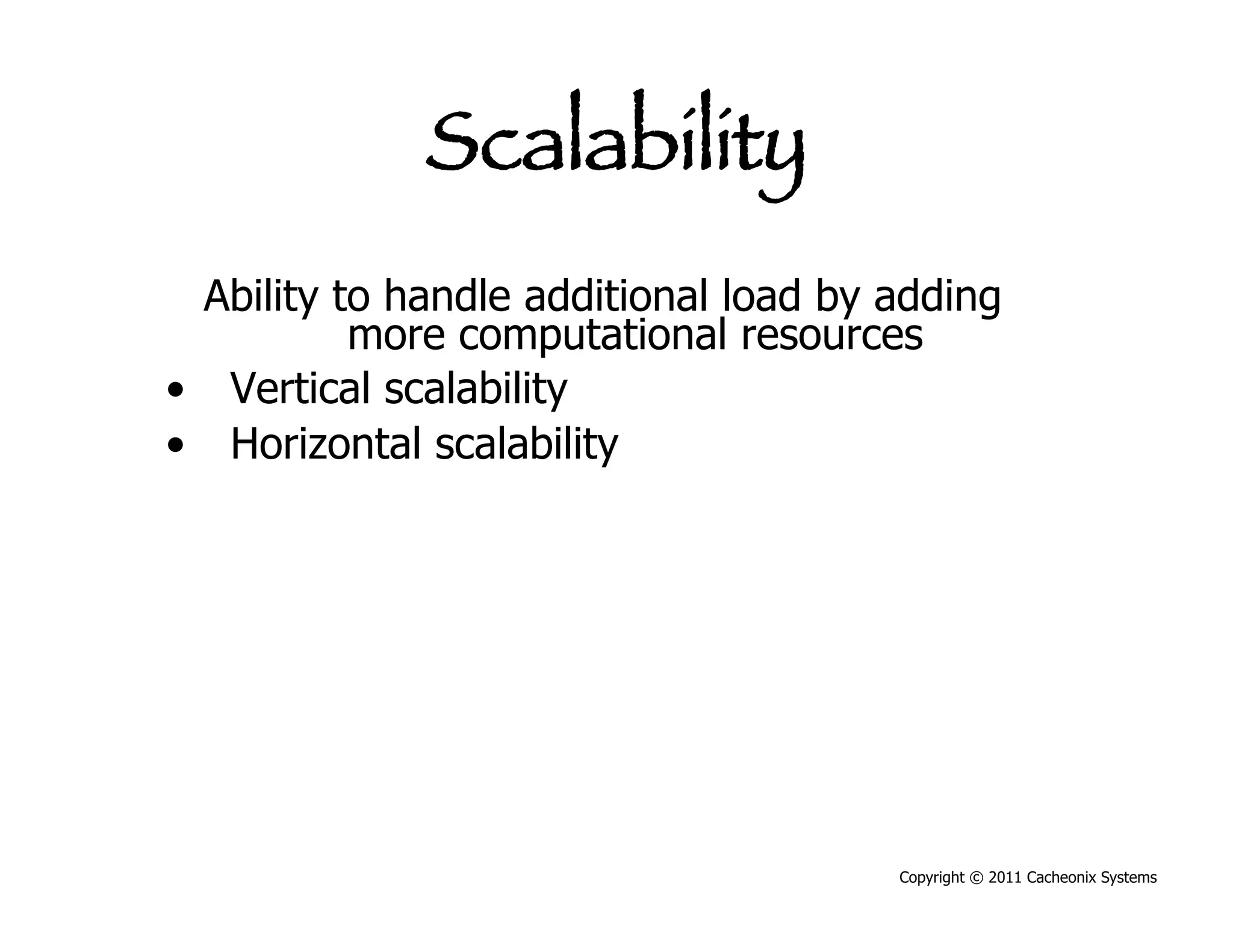

Scalability
Ability to handle additional load by adding
more computational resources
•  Vertical scalability
•  Horizontal scalability

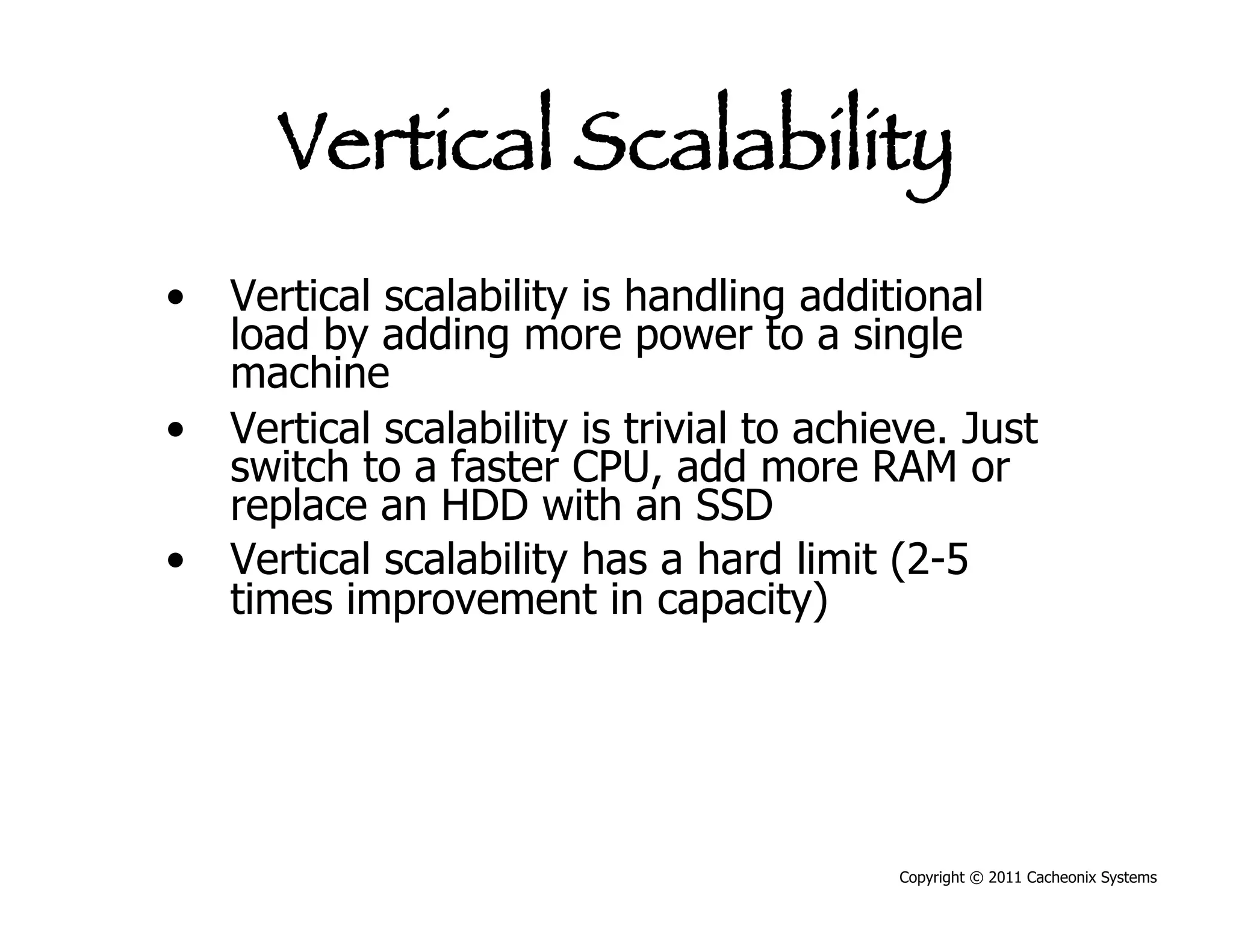

Vertical Scalability
•  Vertical scalability is handling additional
load by adding more power to a single
machine
•  Vertical scalability is trivial to achieve. Just
switch to a faster CPU, add more RAM or
replace an HDD with an SSD
•  Vertical scalability has a hard limit (2-5
times improvement in capacity)

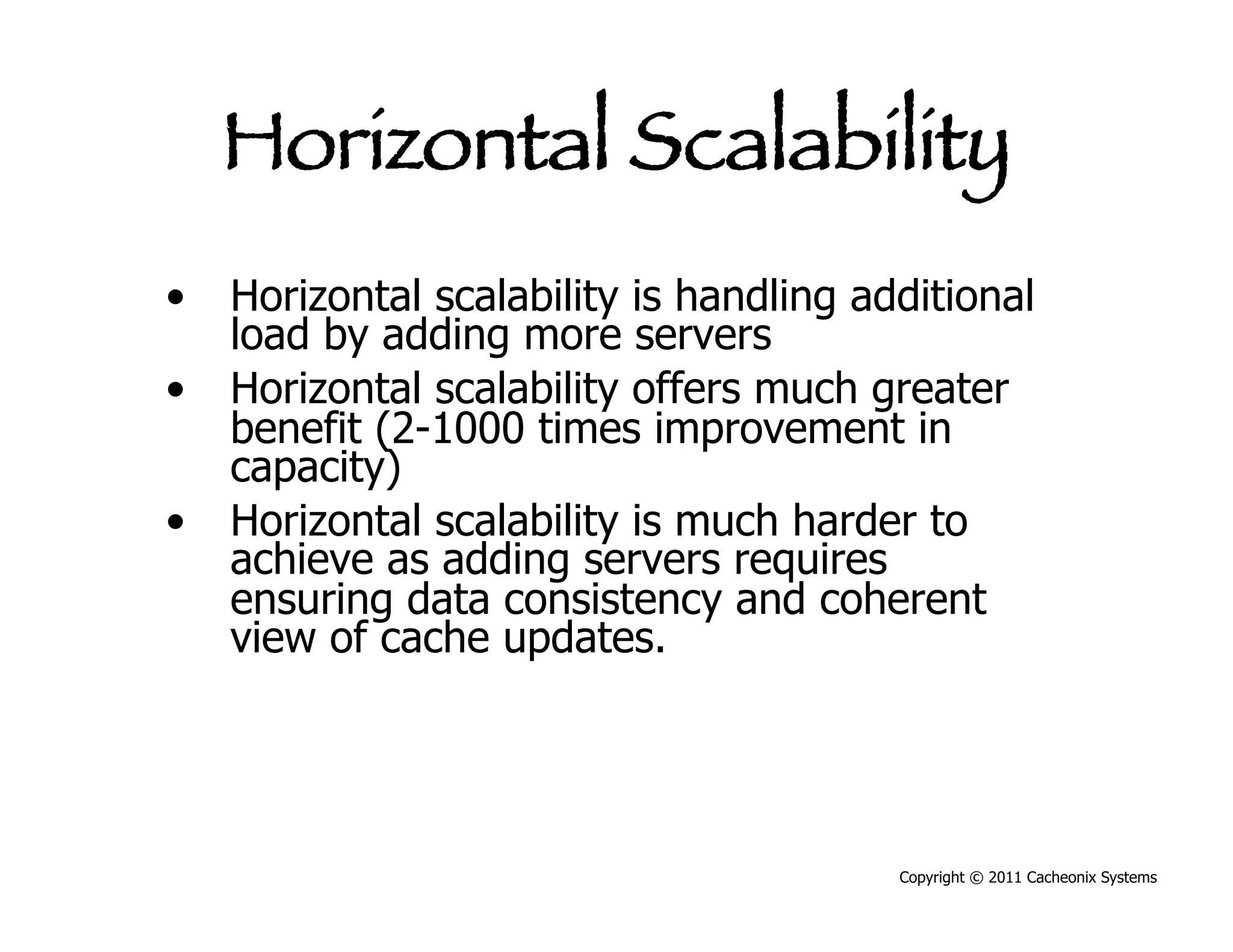

Horizontal Scalability
•  Horizontal scalability is handling additional
load by adding more servers
•  Horizontal scalability offers much greater
benefit (2-1000 times improvement in
capacity)
•  Horizontal scalability is much harder to
achieve as adding servers requires
ensuring data consistency and coherent
view of cache updates.

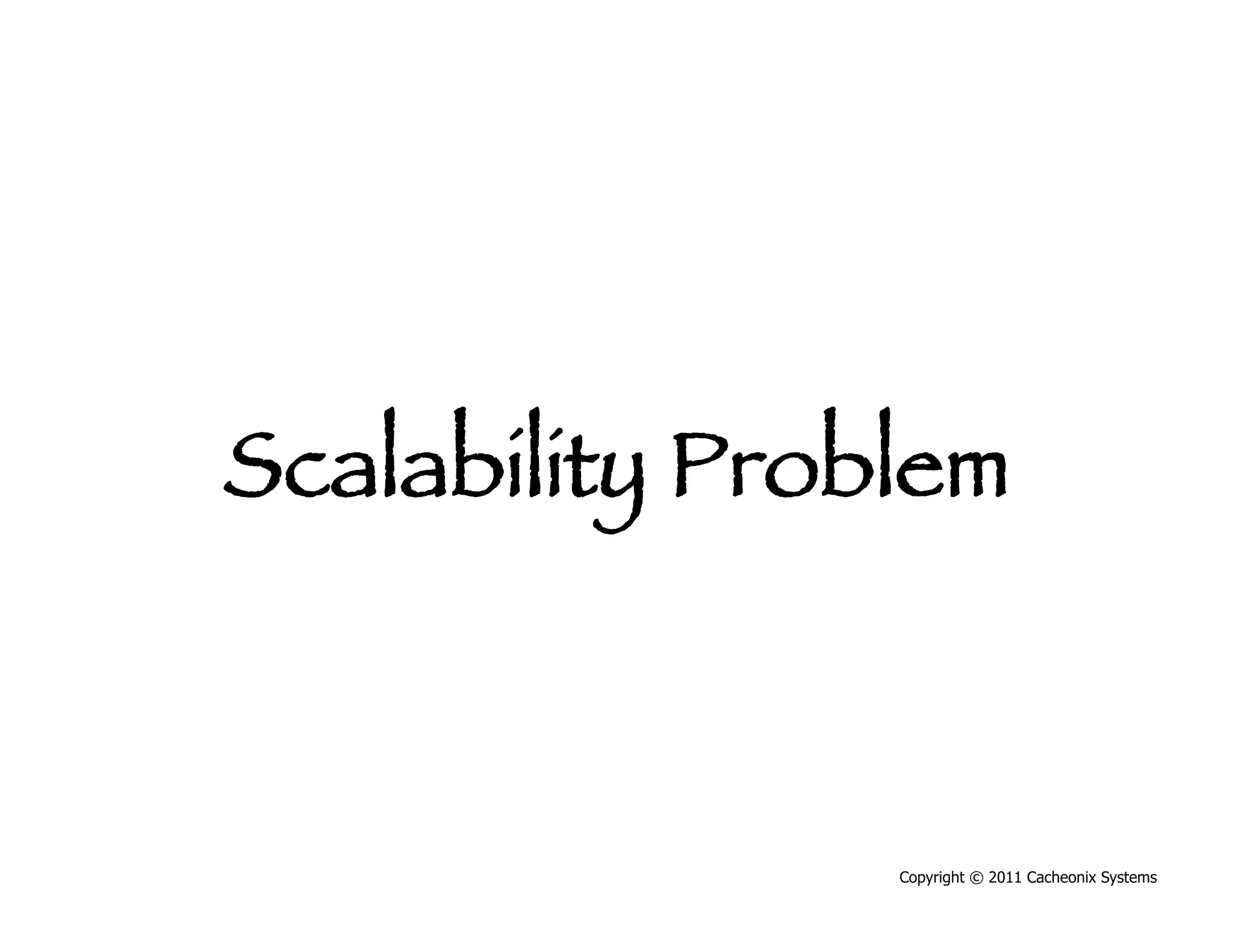

Scalability Problem

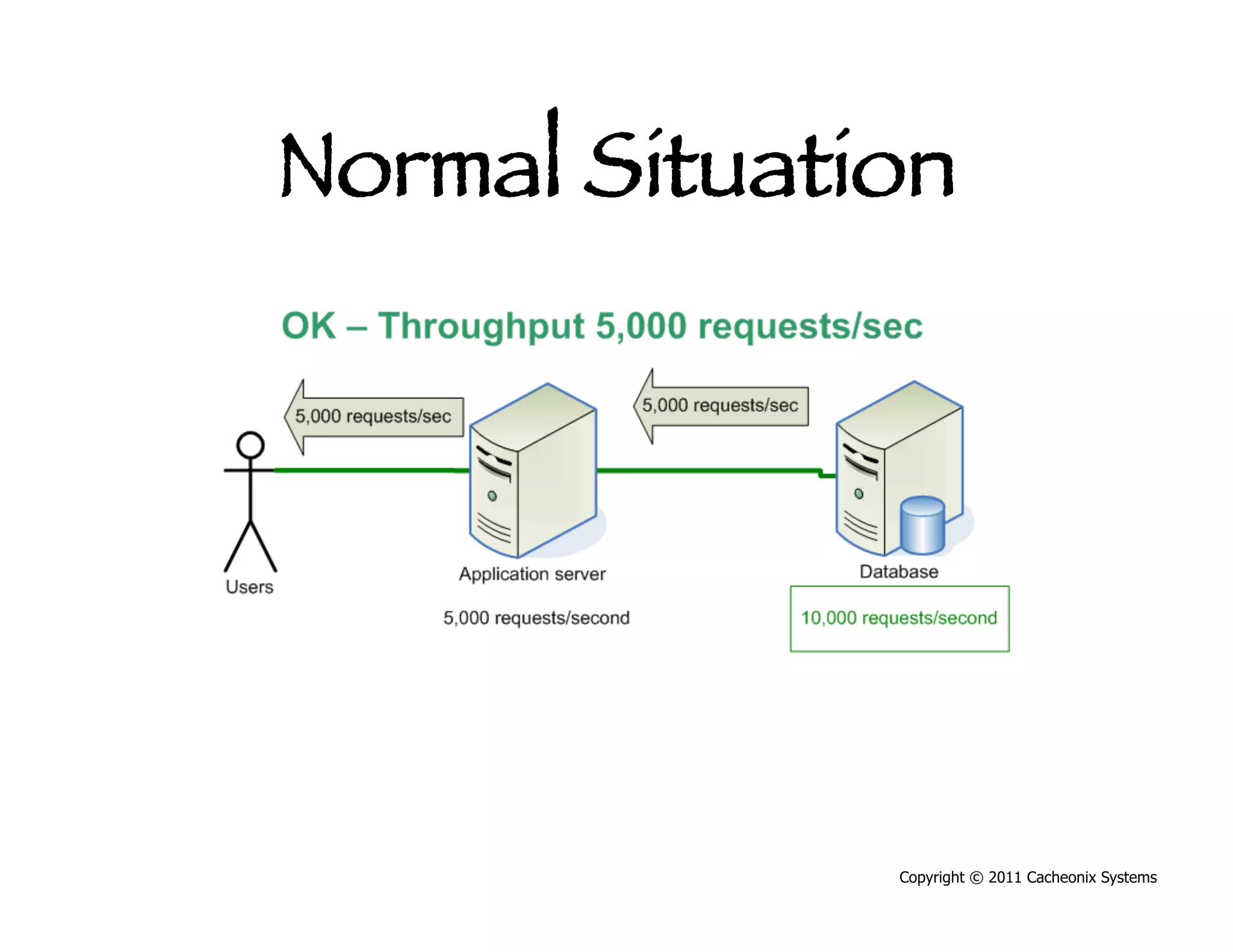

Normal Situation

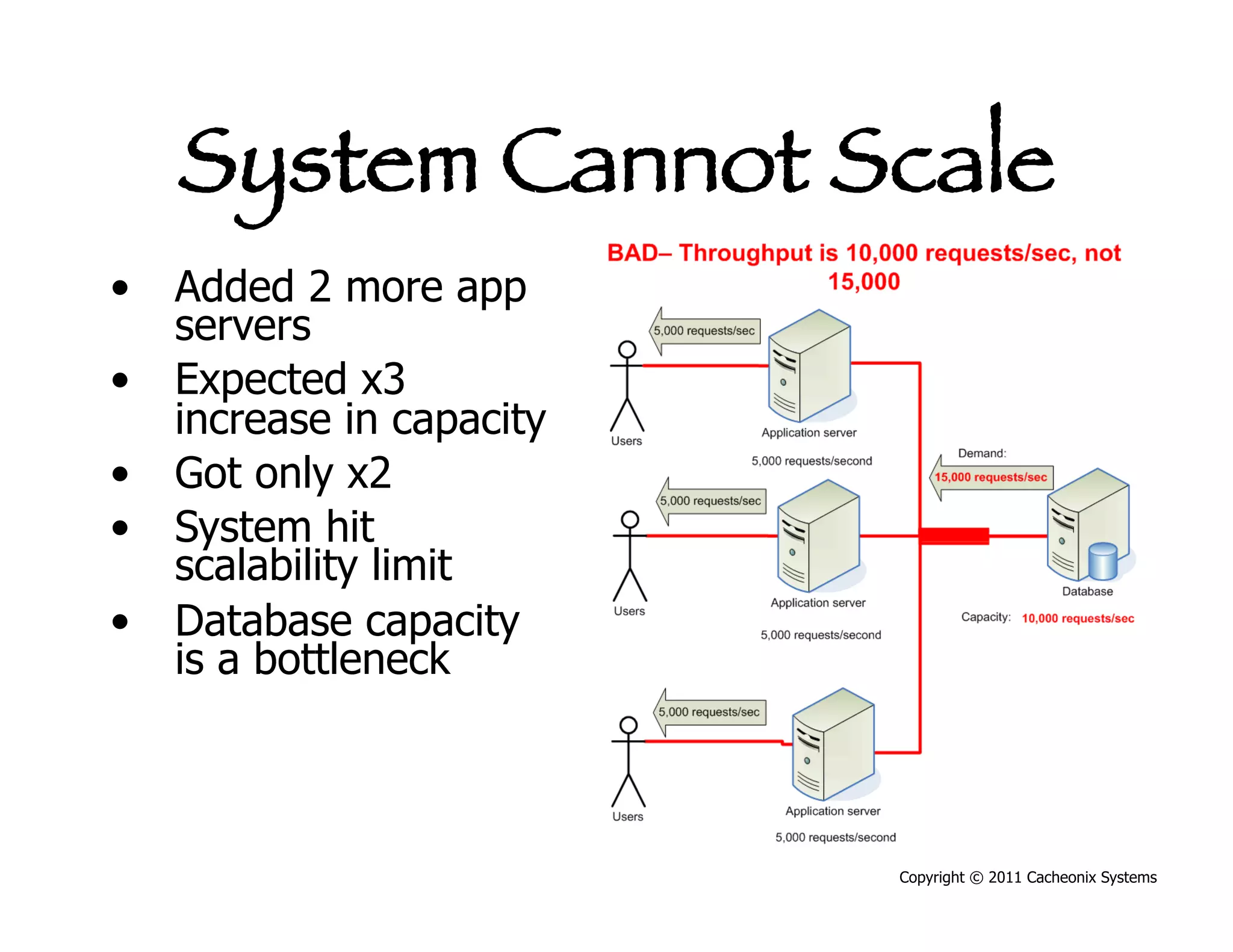

System Cannot Scale
•  Added 2 more app
servers
•  Expected x3
increase in capacity
•  Got only x2
•  System hit
scalability limit
•  Database capacity
is a bottleneck

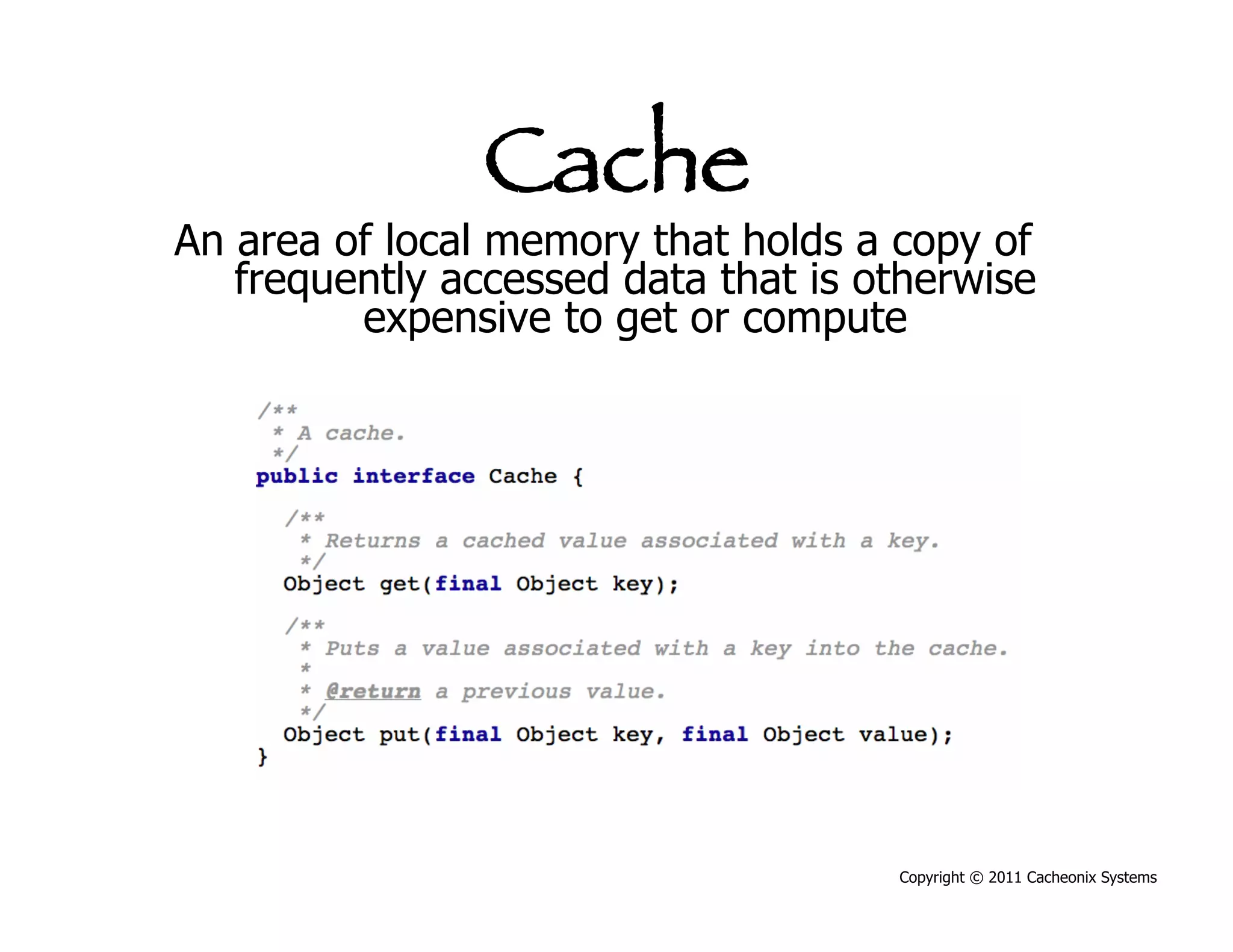

Cache
An area of local memory that holds a copy of
frequently accessed data that is otherwise
expensive to get or compute

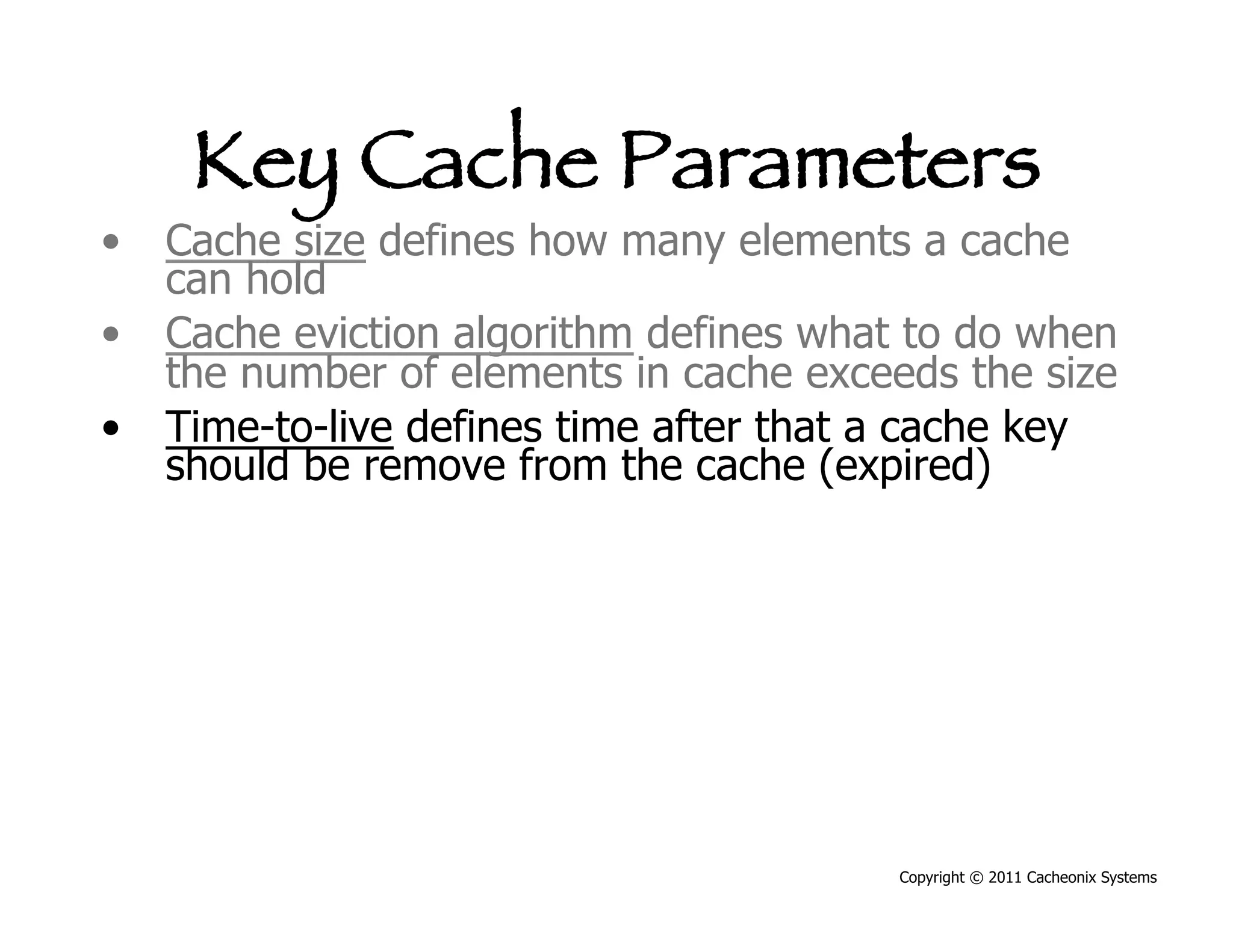

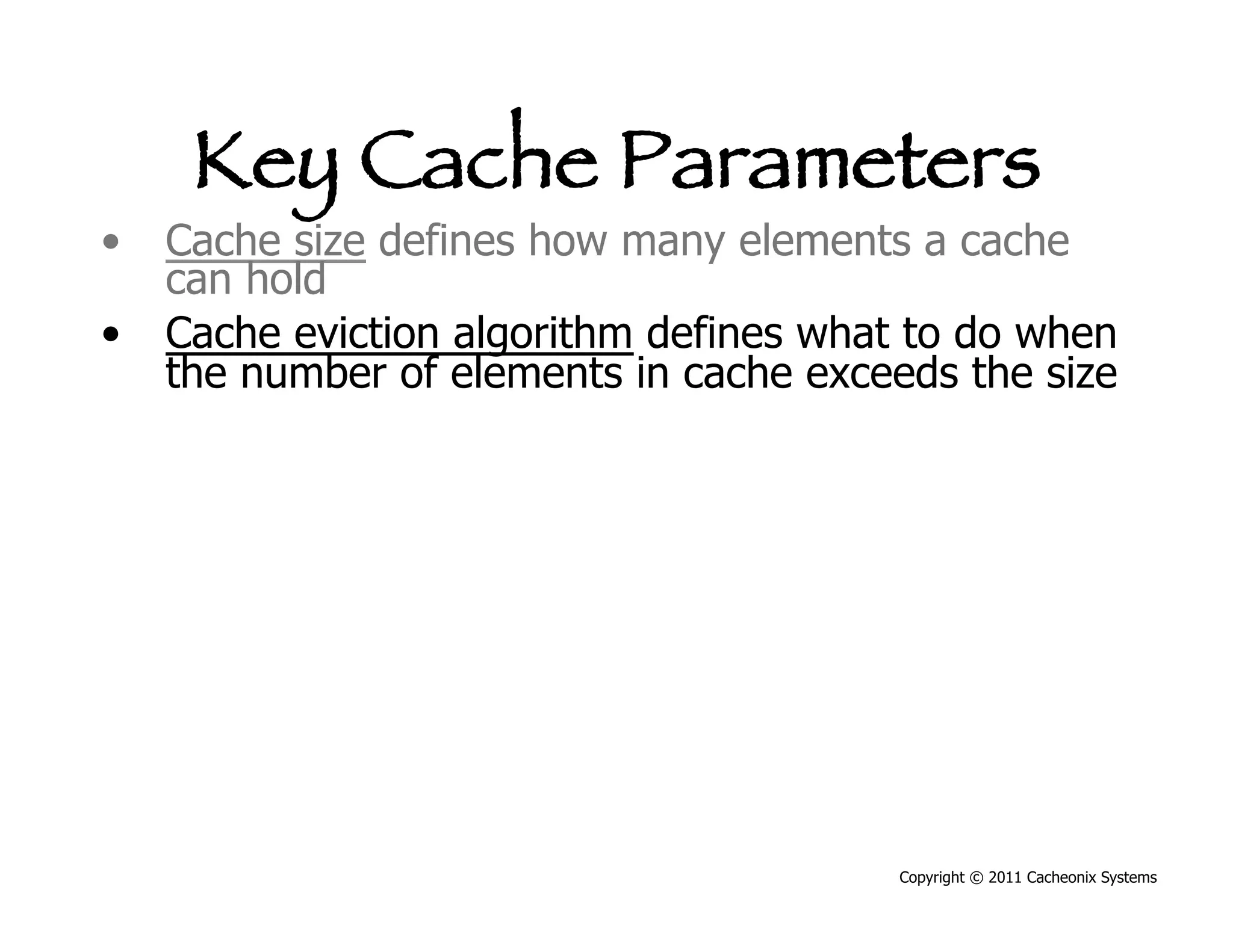

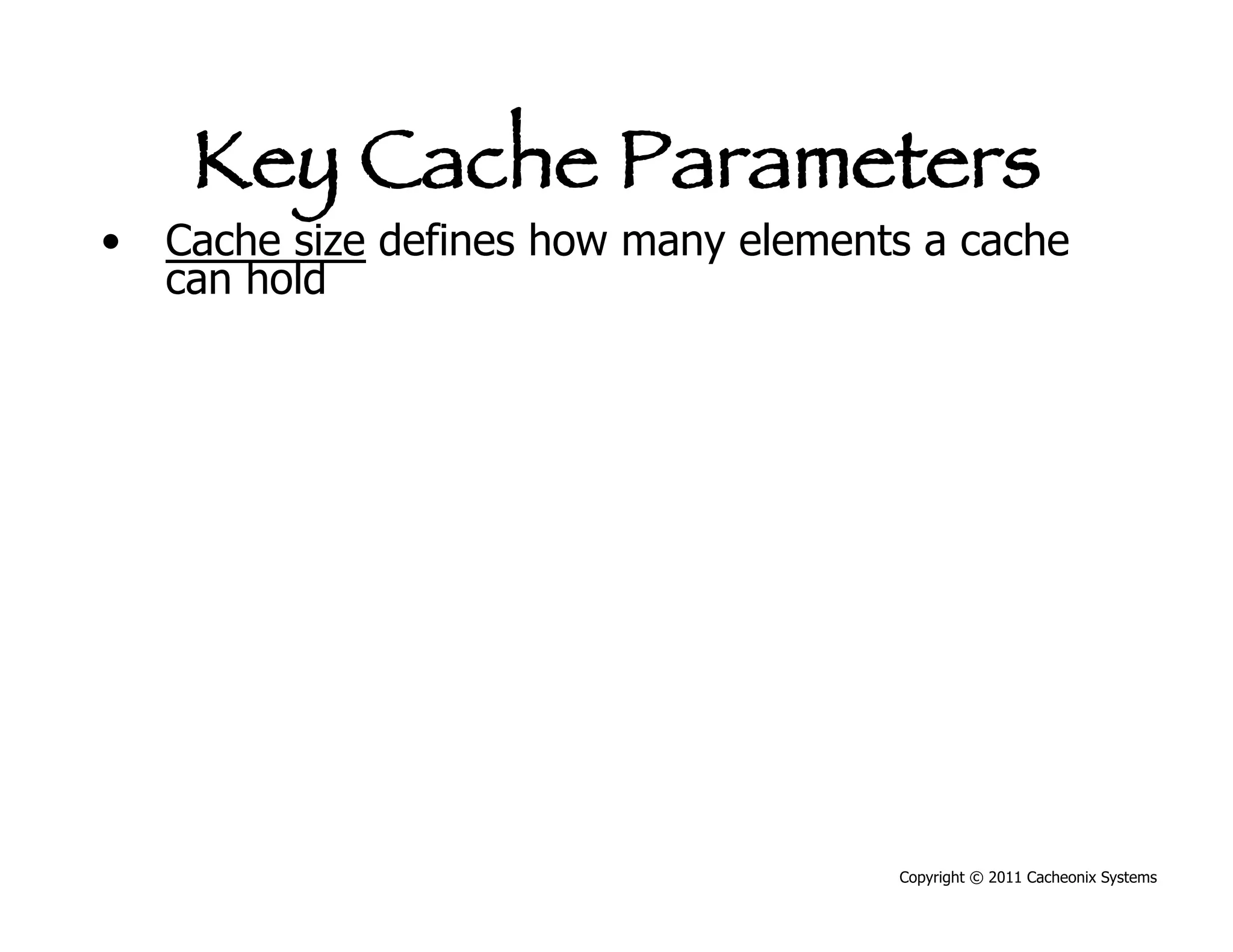

Key Cache Parameters
•  Cache size defines how many elements a cache
can hold


can hold
•  Cache eviction algorithm defines what to do when
the number of elements in cache exceeds the size


can hold
•  Cache eviction algorithm defines what to do when
the number of elements in cache exceeds the size
•  Time-to-live defines time after that a cache key
should be remove from the cache (expired)

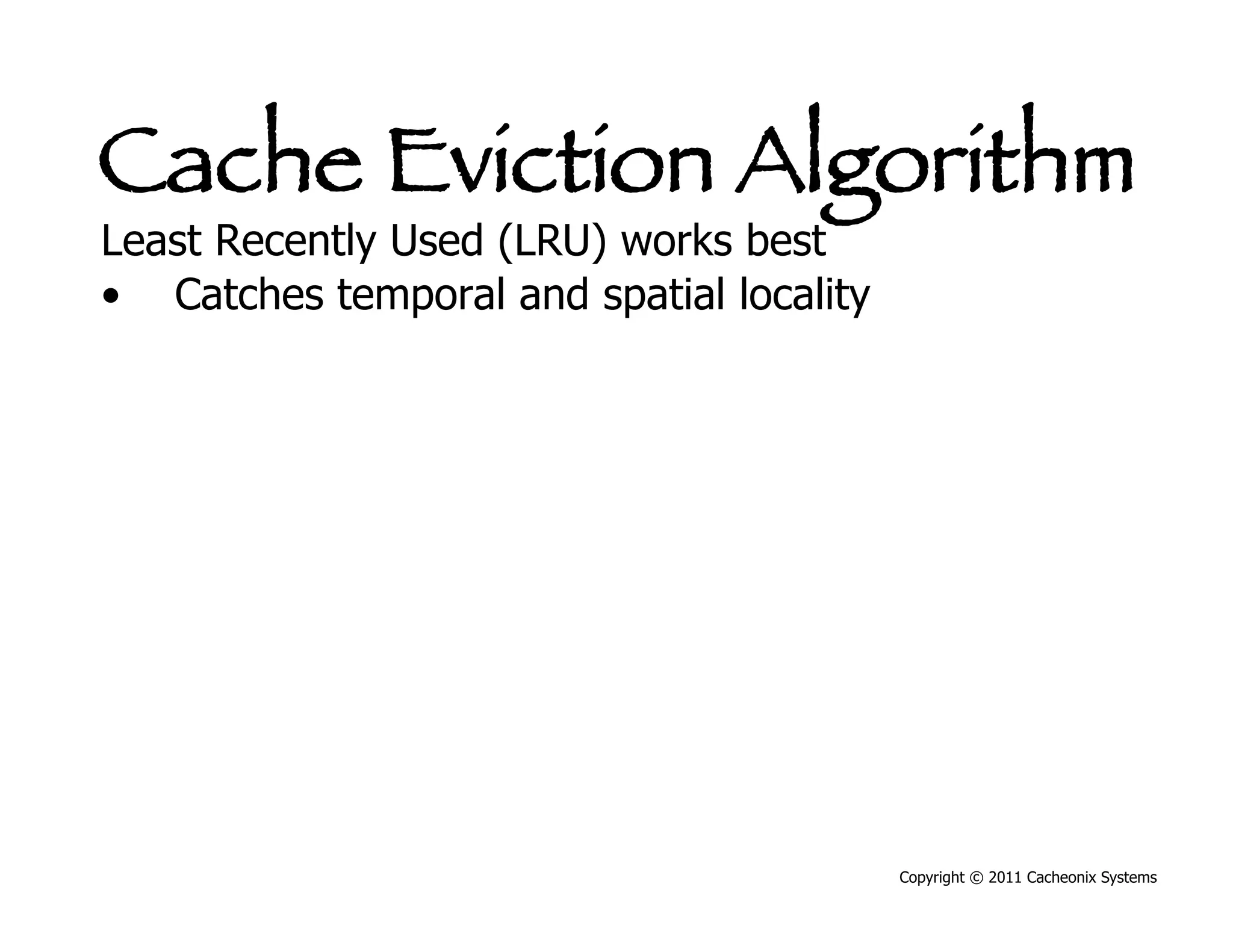

Cache Eviction Algorithm
Least Recently Used (LRU) works best
•  Catches temporal and spatial locality

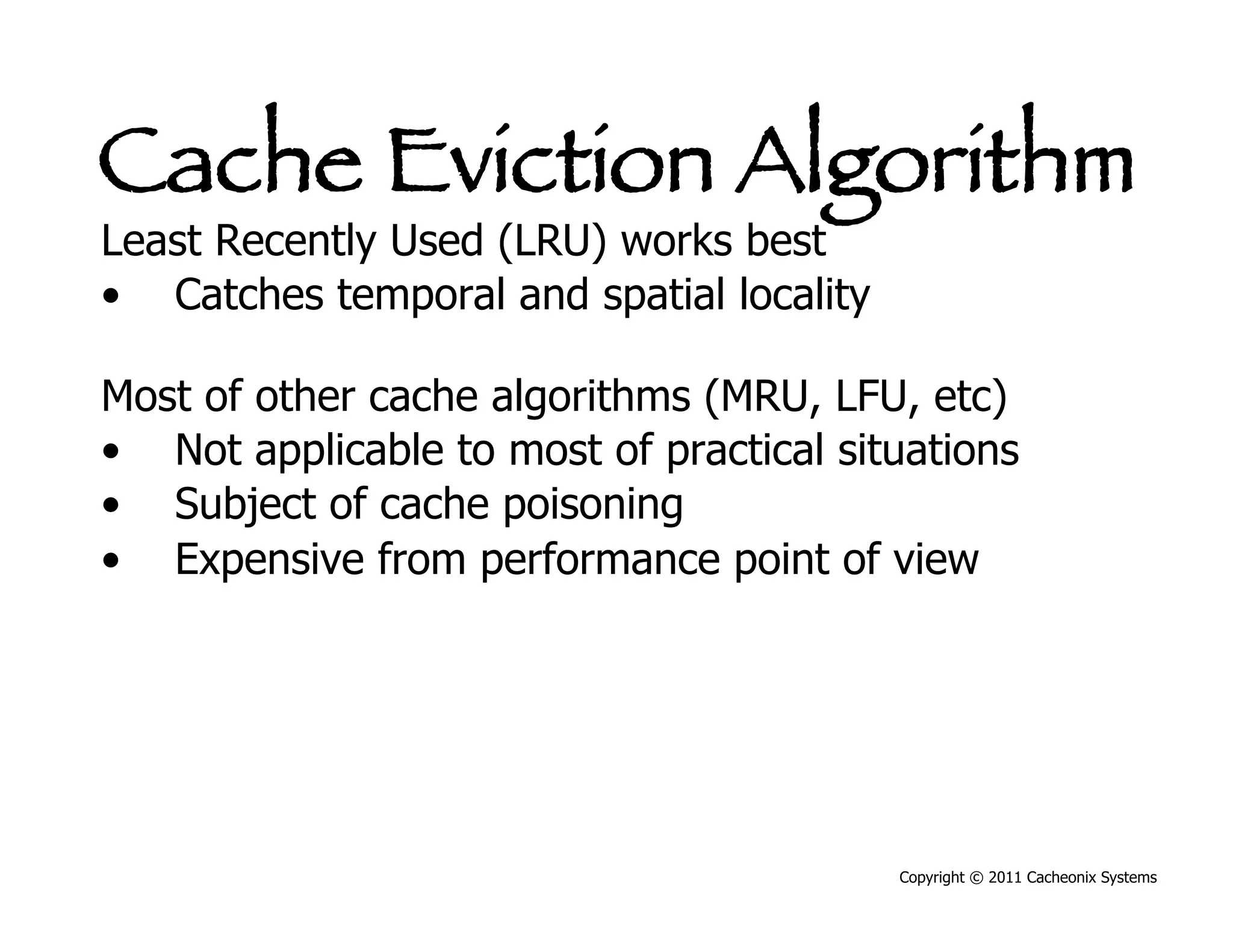

Cache Eviction Algorithm
Least Recently Used (LRU) works best
•  Catches temporal and spatial locality

Most of other cache algorithms (MRU, LFU, etc)
•  Not applicable to most of practical situations
•  Subject of cache poisoning
•  Expensive from performance point of view

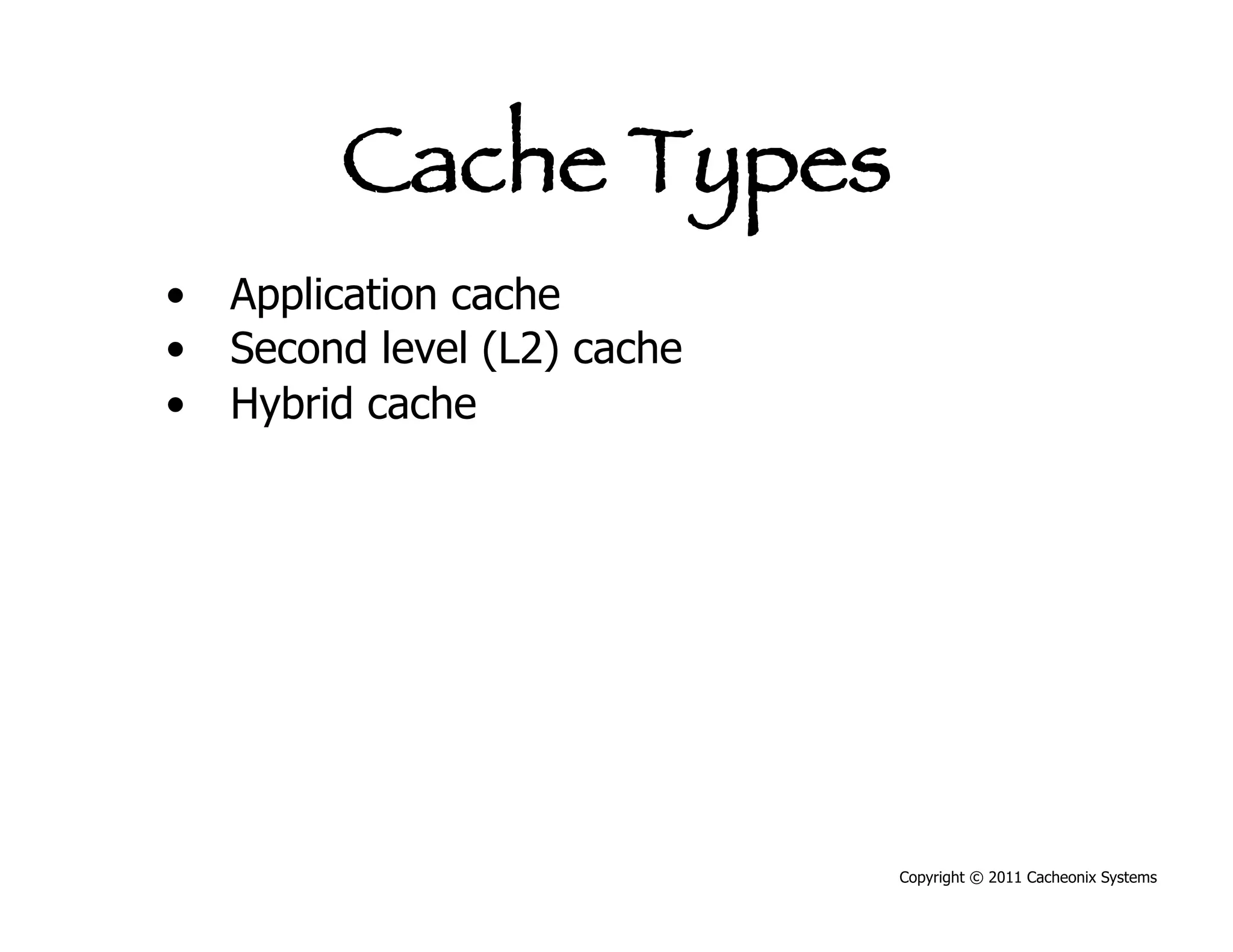

Cache Types
•  Application cache
•  Second level (L2) cache
•  Hybrid cache

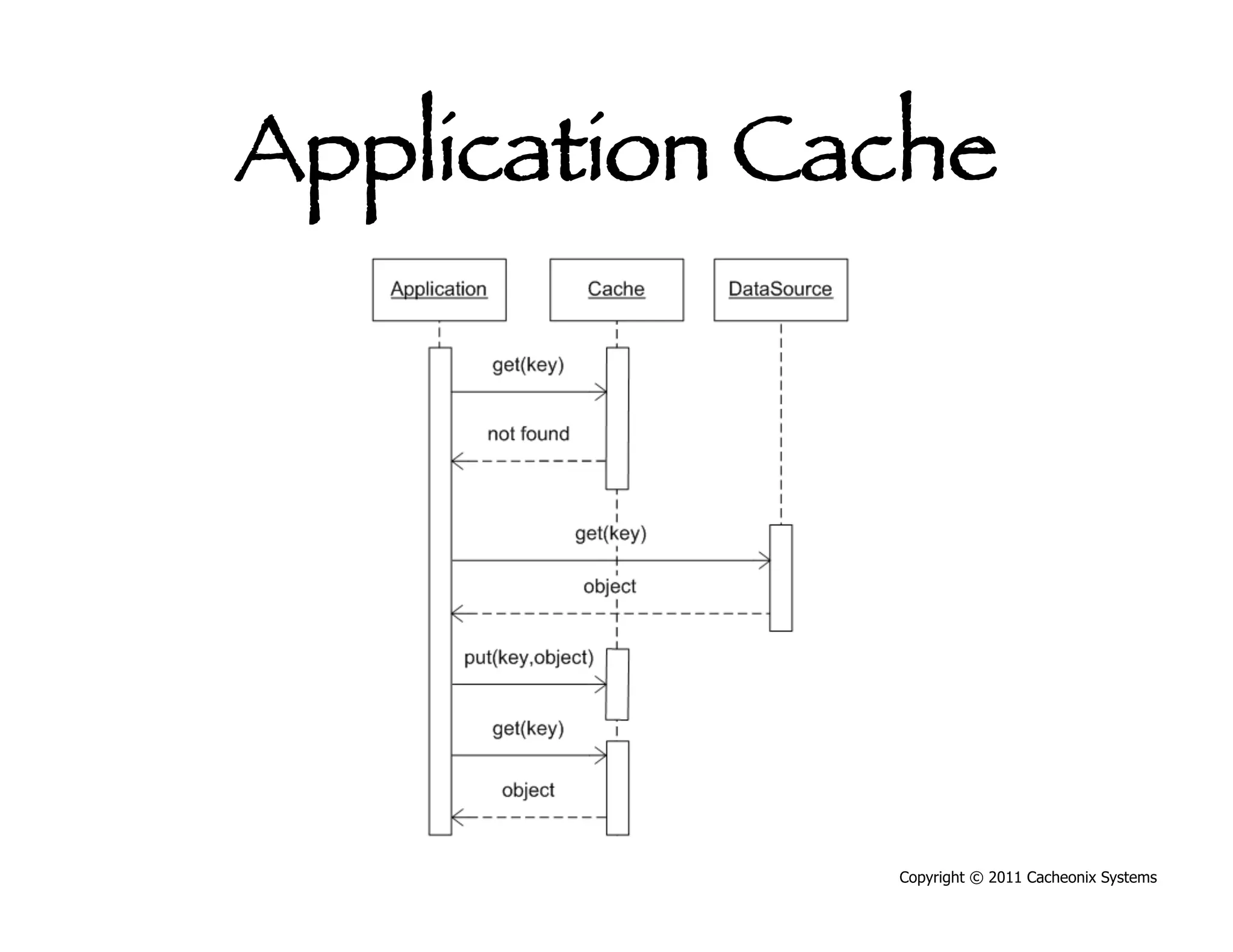

Application Cache

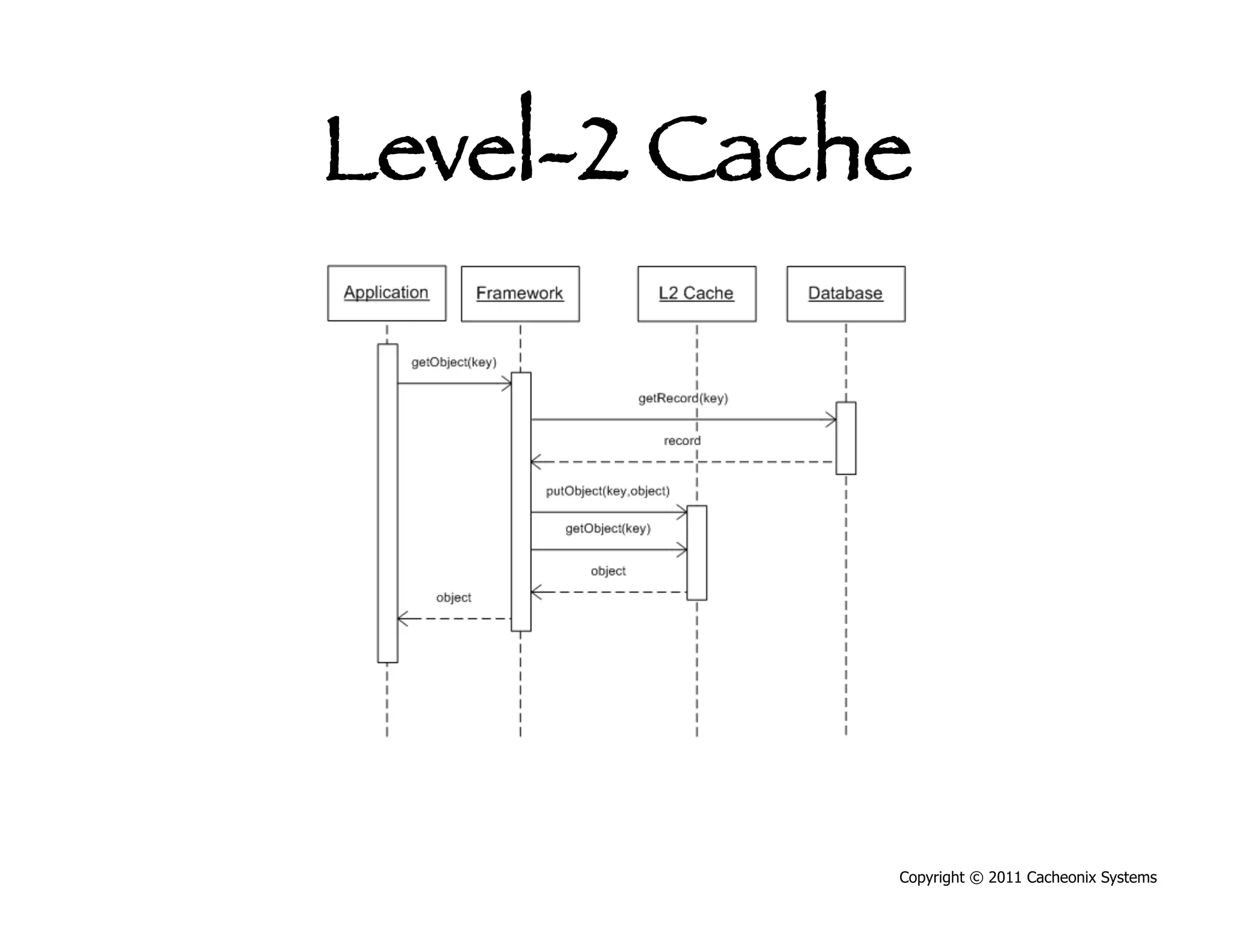

Level-2 Cache

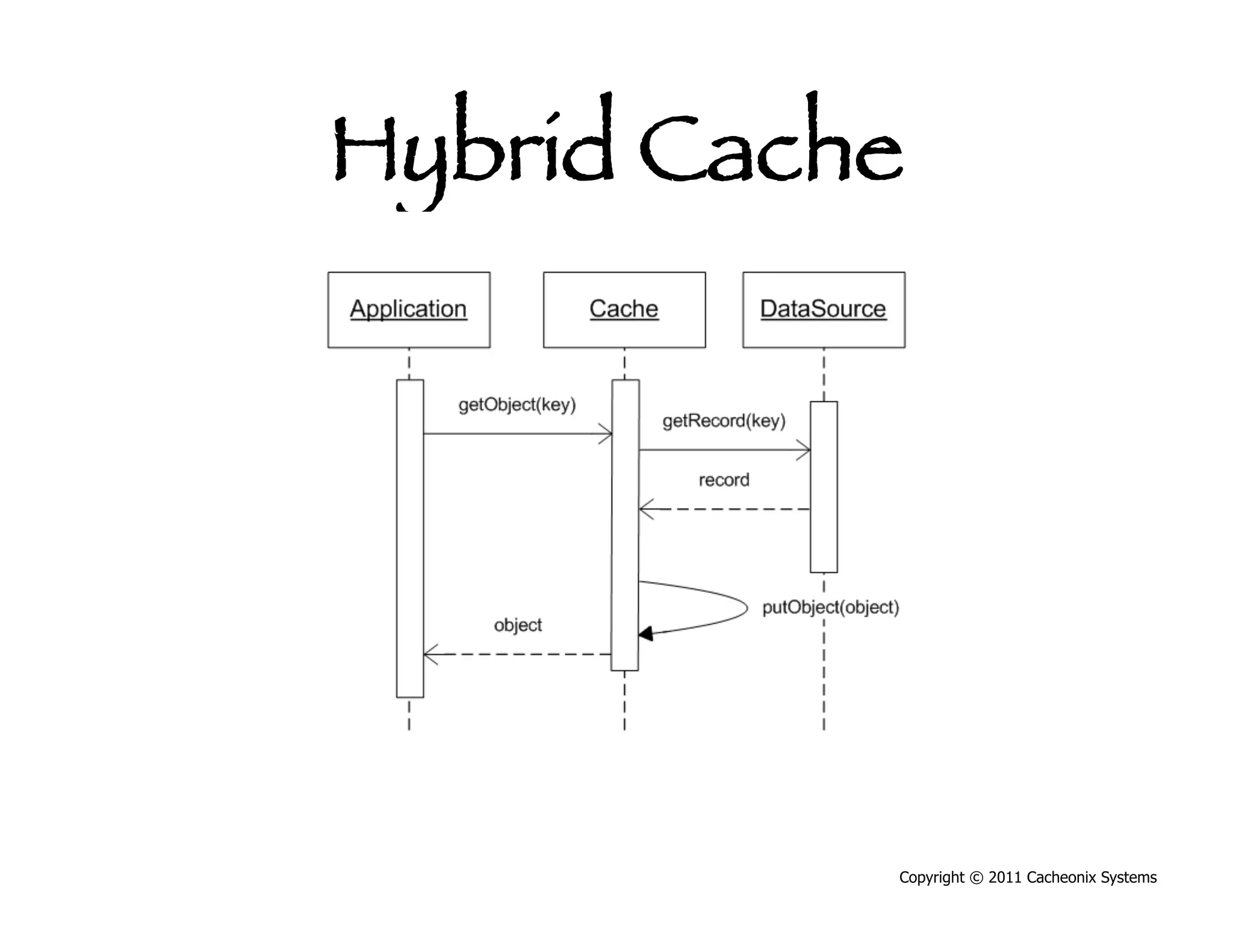

Hybrid Cache

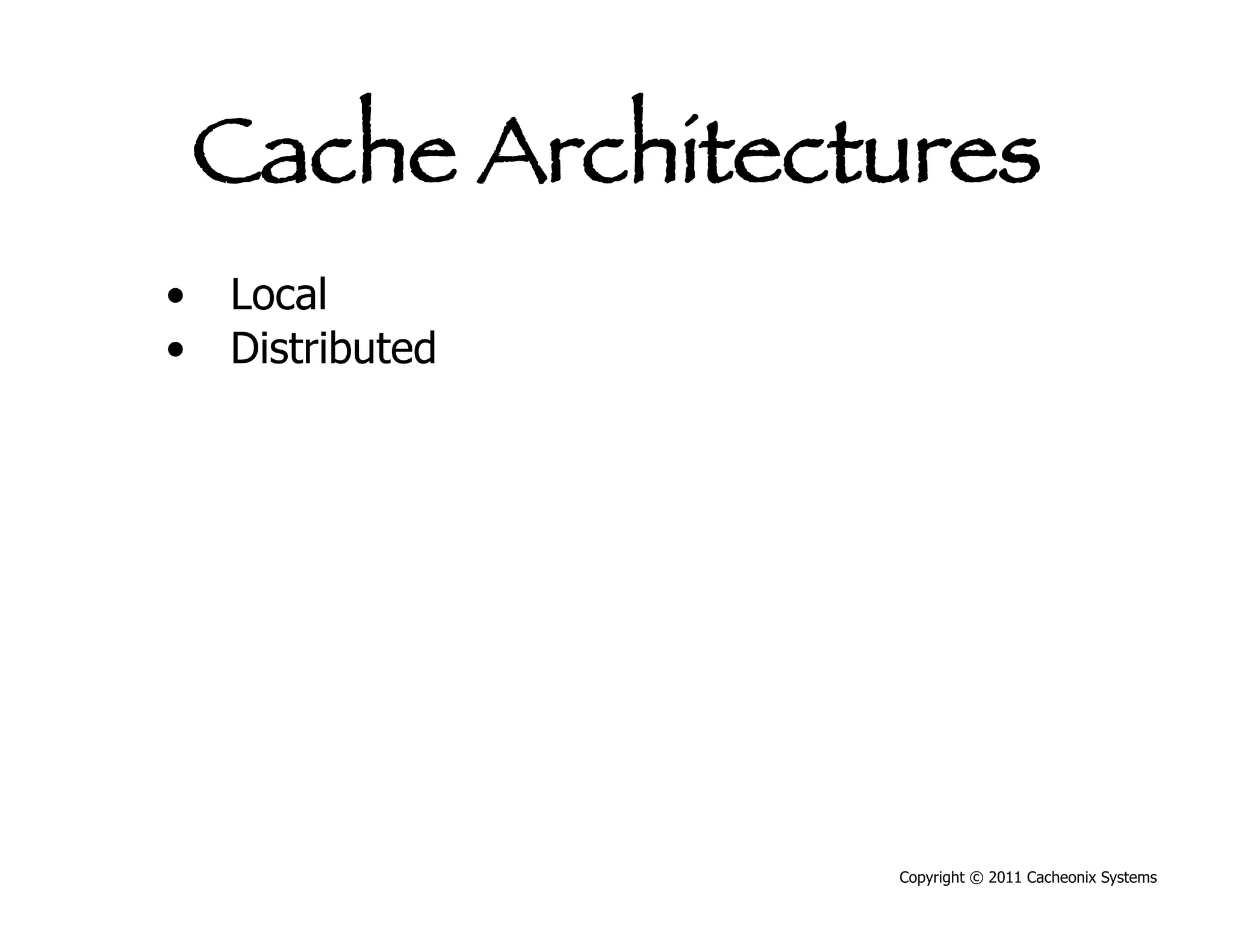

Cache Architectures
•  Local
•  Distributed

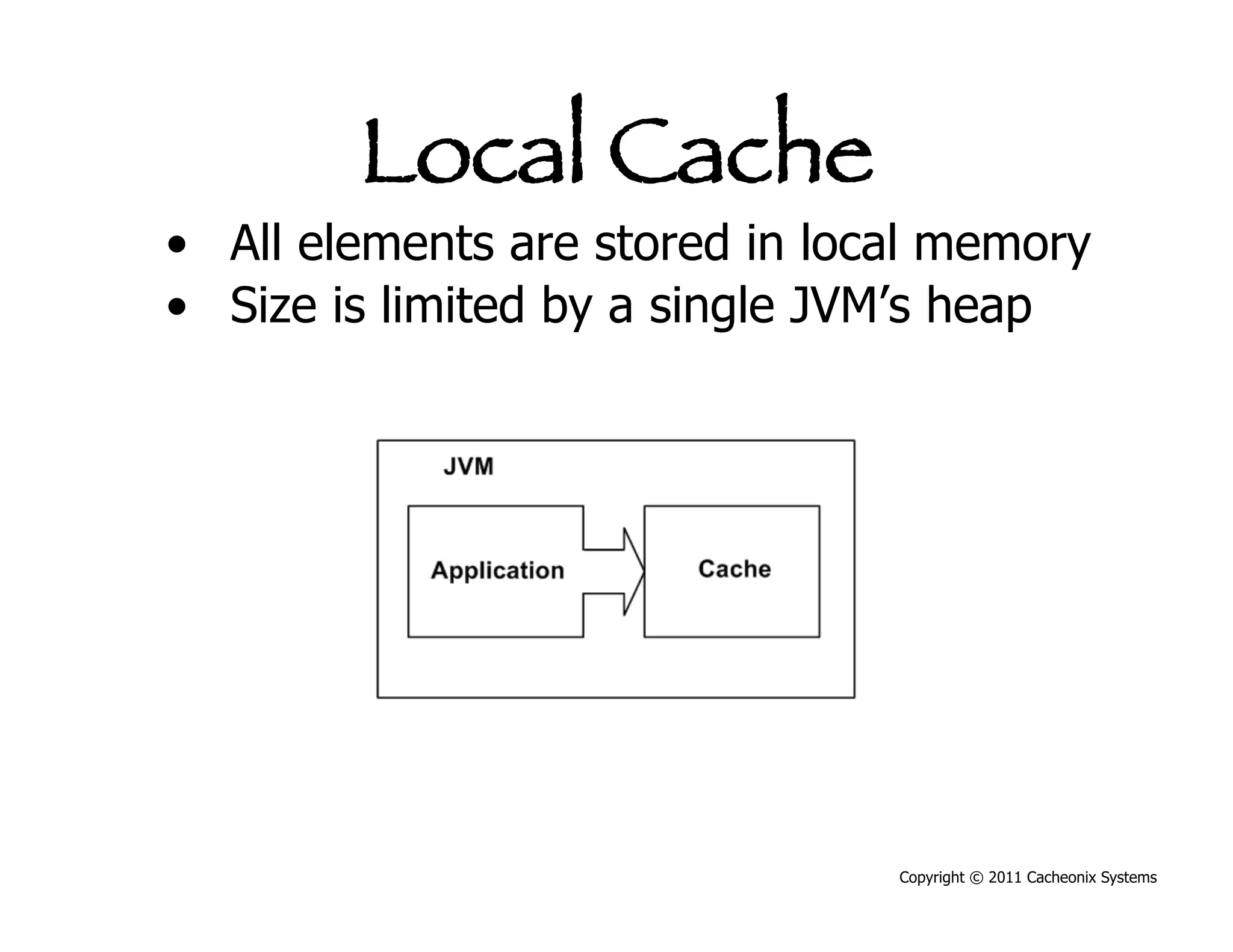

Local Cache
•  All elements are stored in local memory
•  Size is limited by a single JVM’s heap

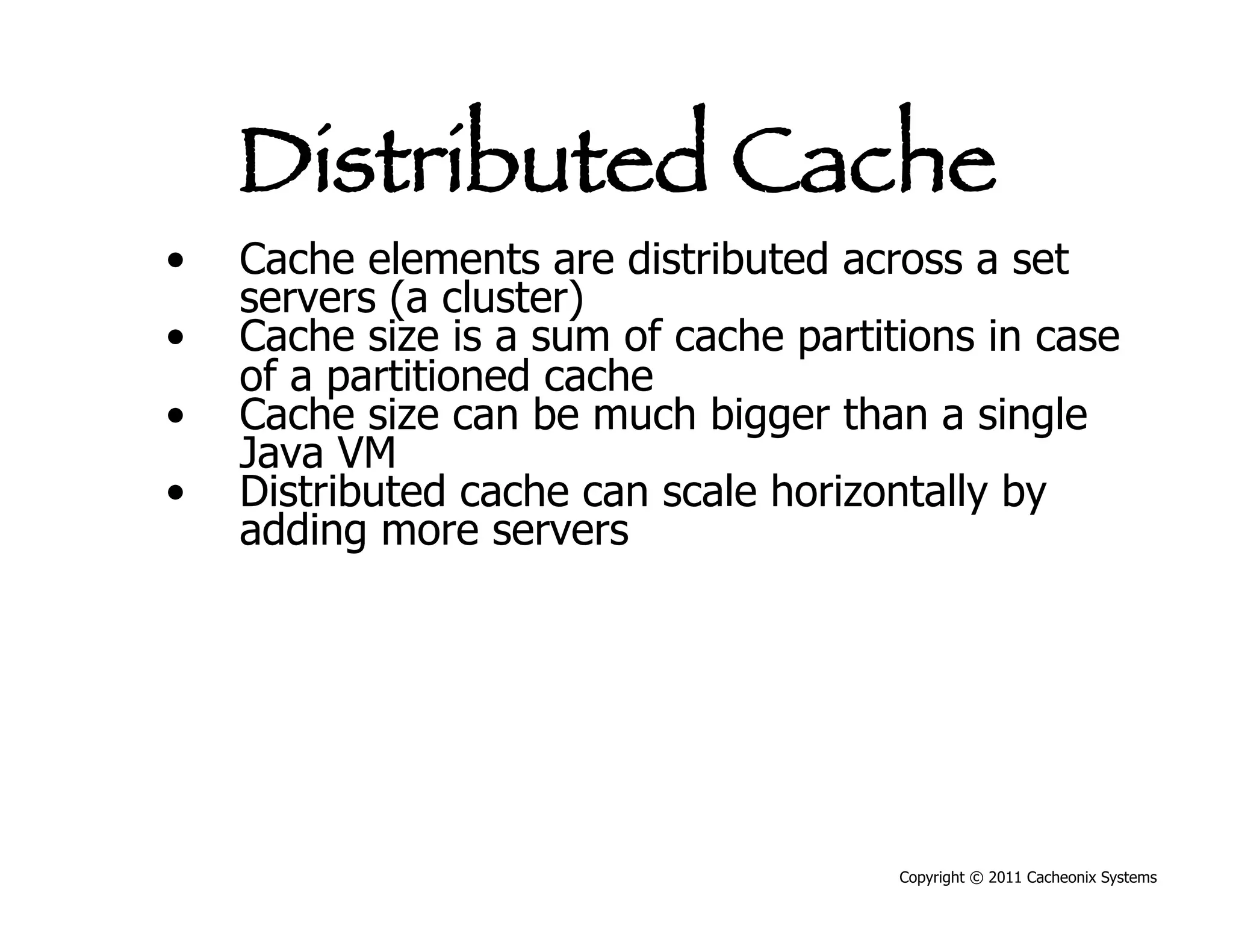

Distributed Cache
•  Cache elements are distributed across a set
servers (a cluster)
•  Cache size is a sum of cache partitions in case
of a partitioned cache
•  Cache size can be much bigger than a single
Java VM
•  Distributed cache can scale horizontally by
adding more servers

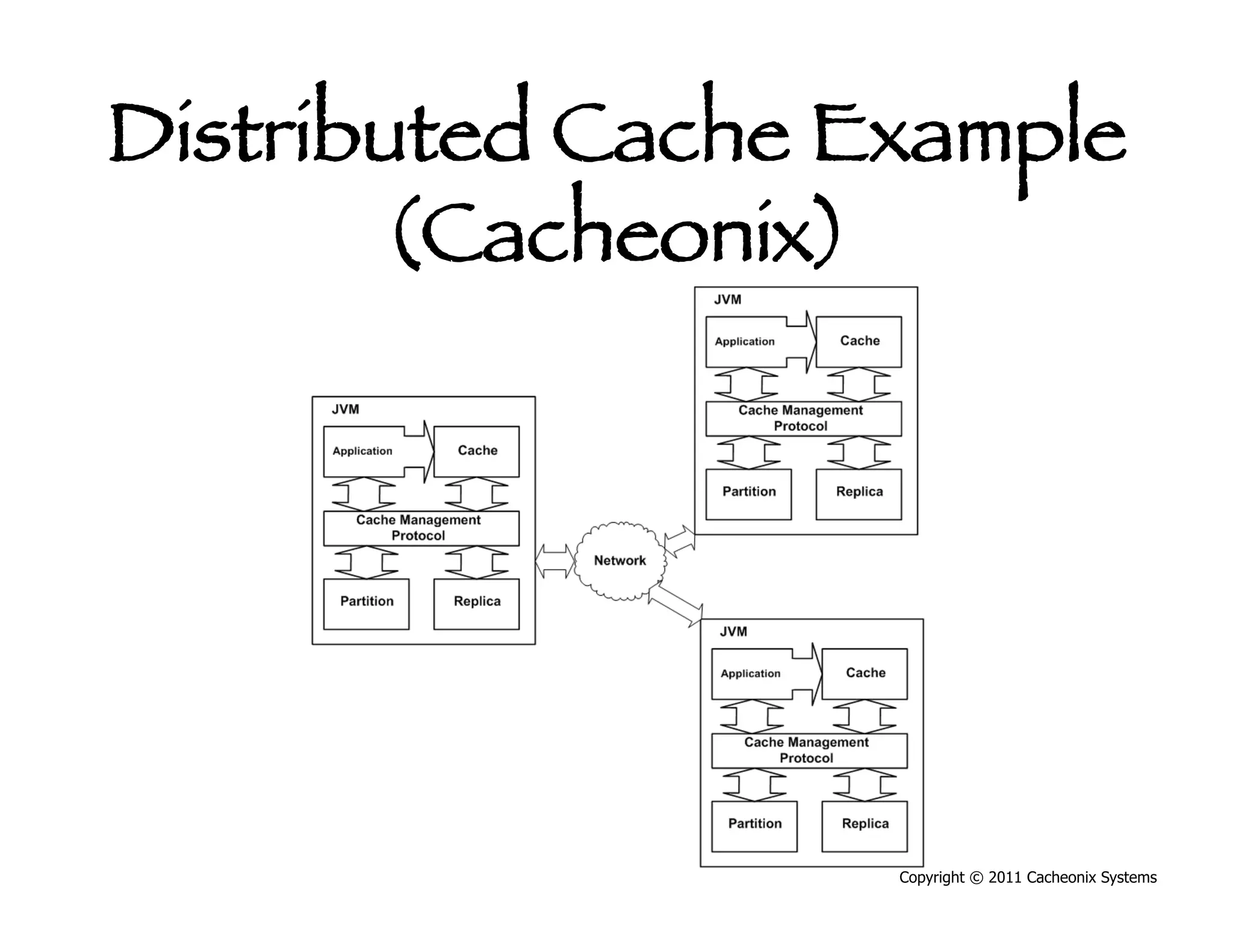

Distributed Cache Example
(Cacheonix)

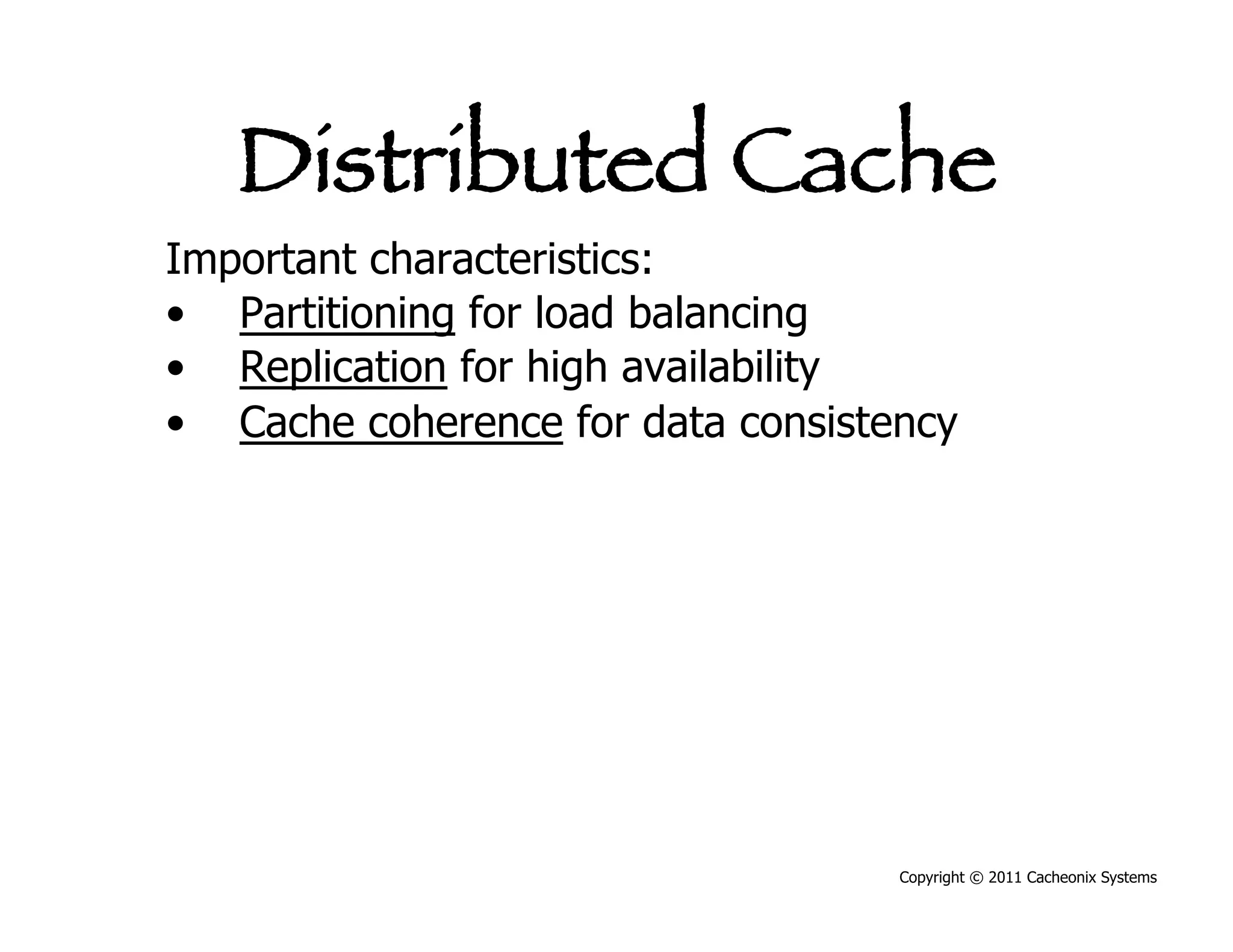

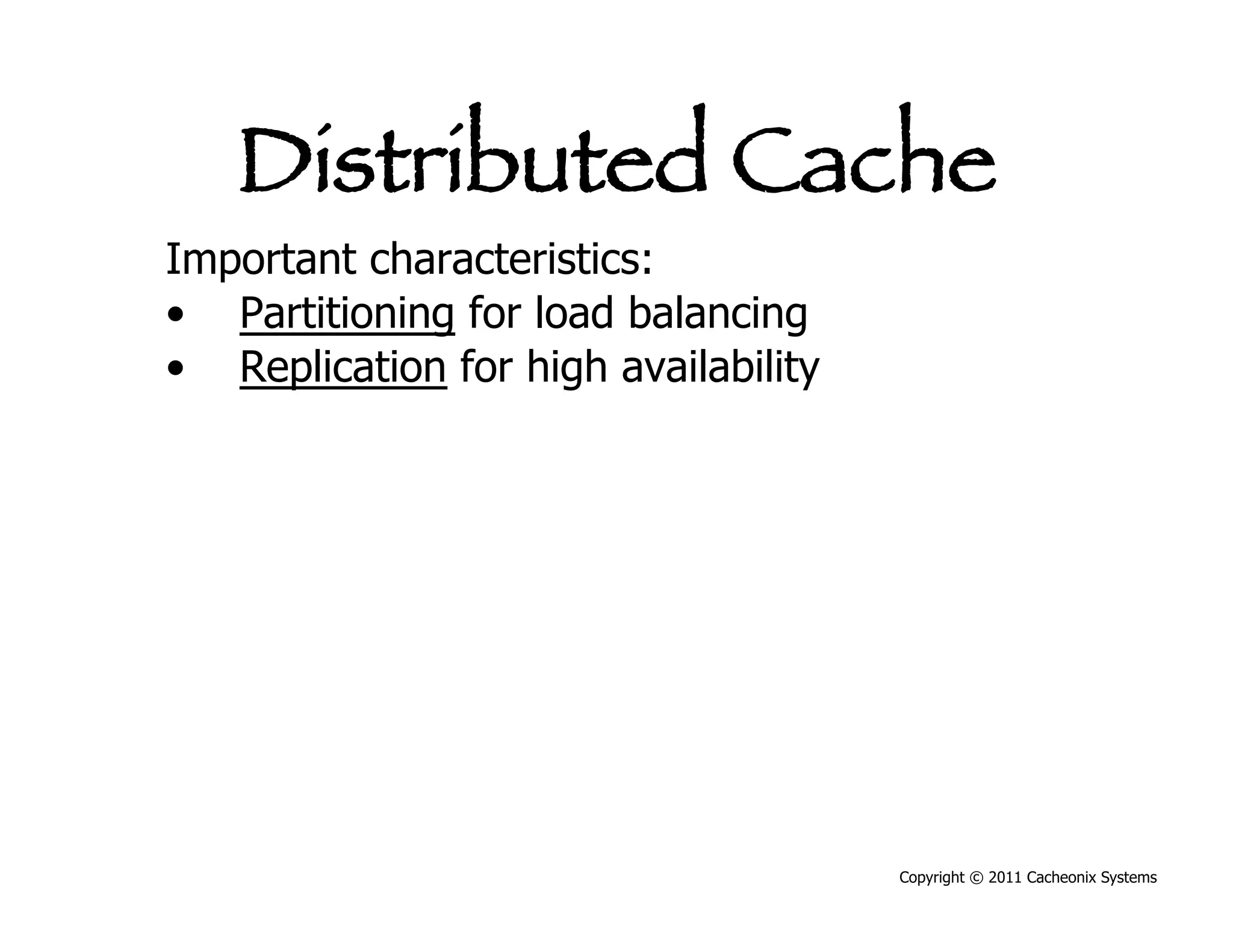

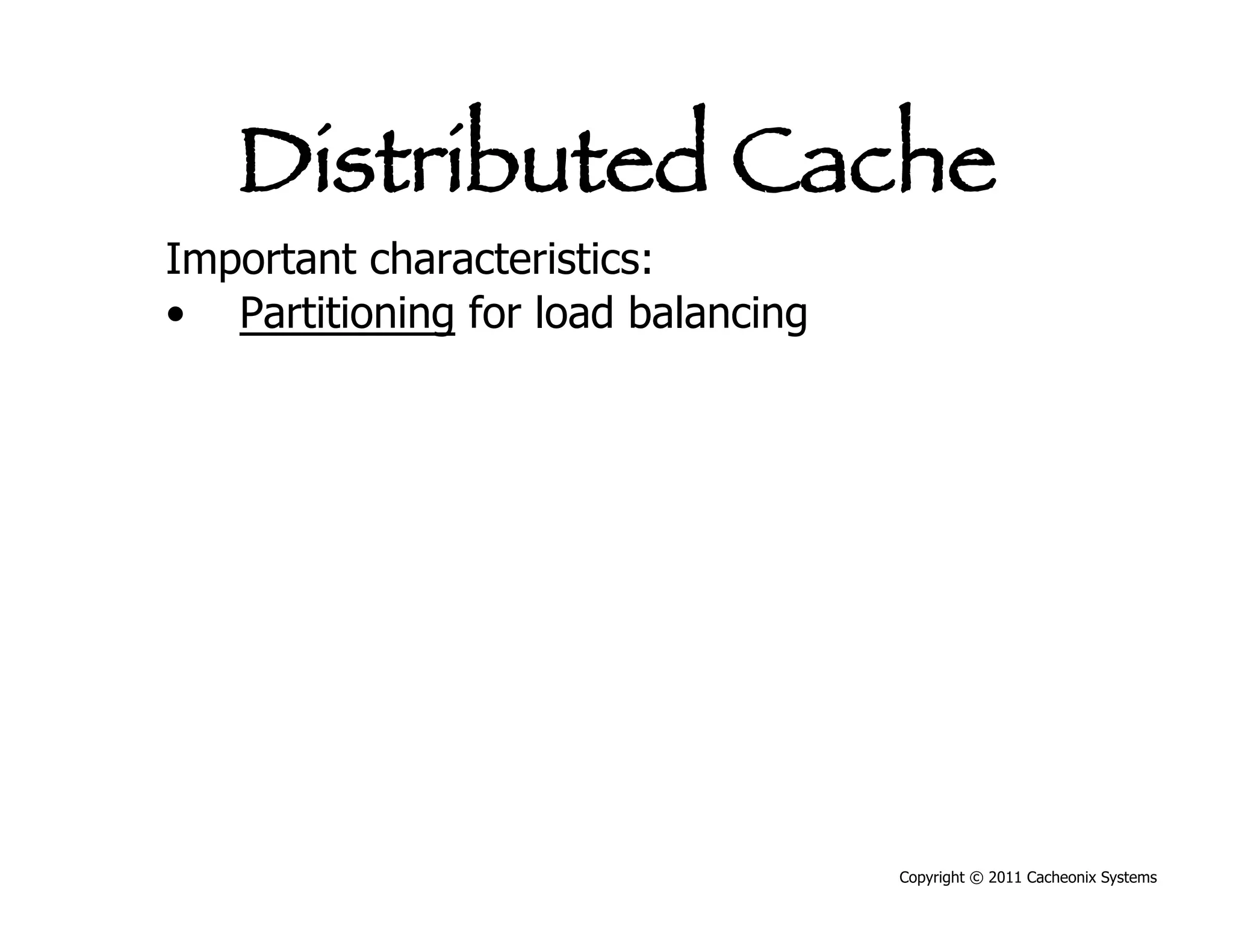

Distributed Cache
Important characteristics:
•  Partitioning for load balancing


Distributed Cache
•  Replication for high availability


Distributed Cache
•  Cache coherence for data consistency

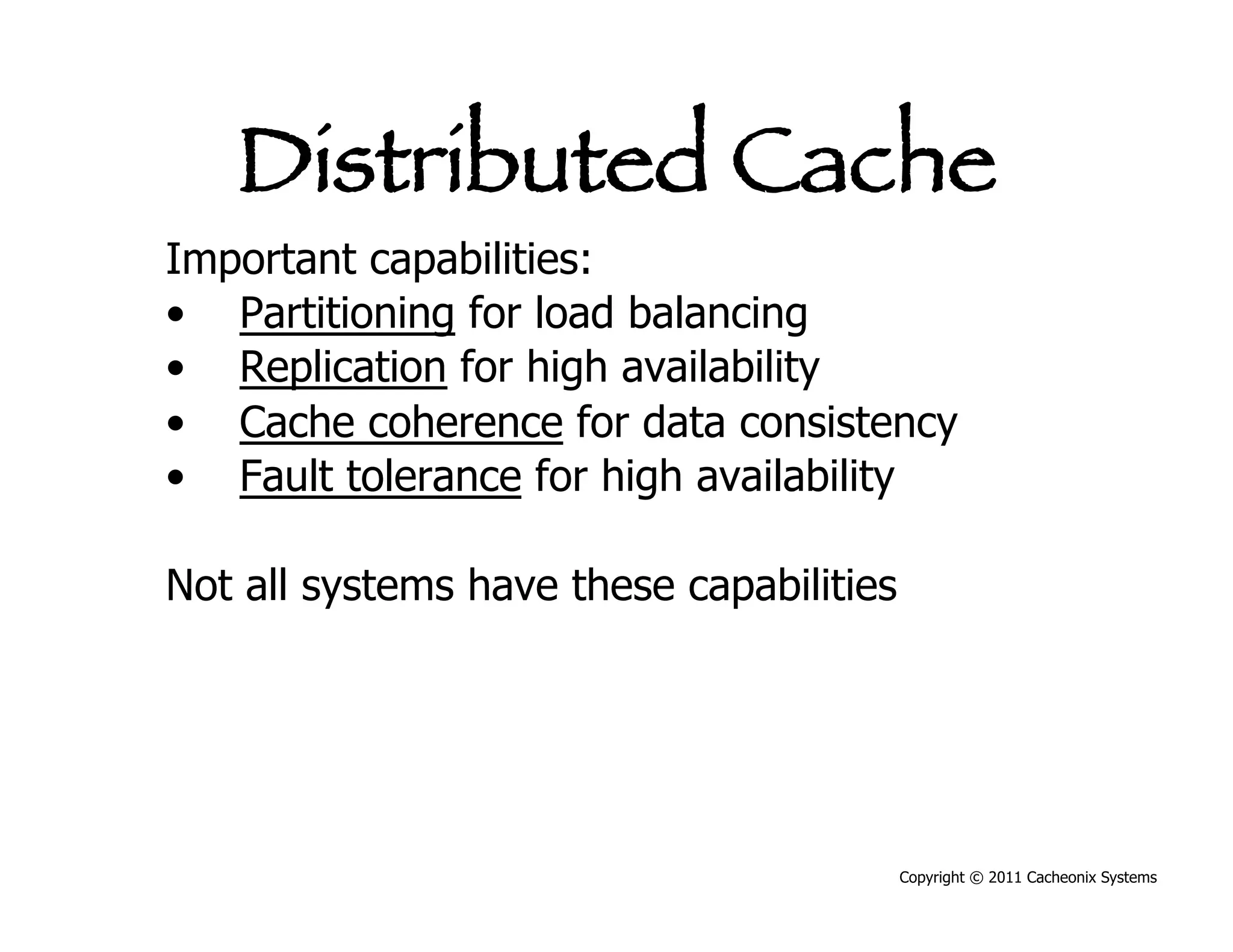

Distributed Cache
Important capabilities:
•  Cache coherence for data consistency
•  Fault tolerance for high availability

Not all systems have these capabilities

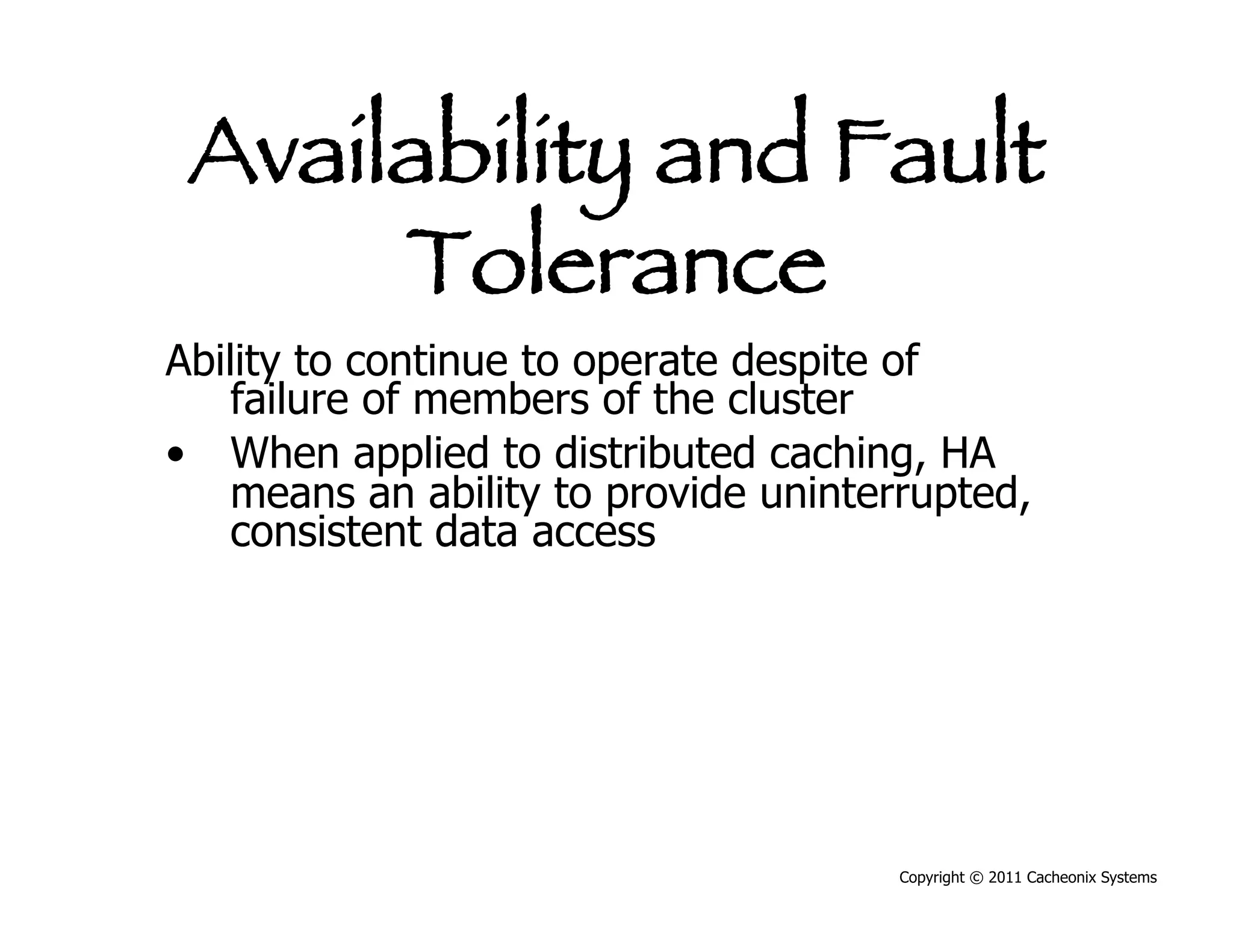

Availability and Fault
Tolerance
Ability to continue to operate despite of
failure of members of the cluster
•  When applied to distributed caching, HA
means an ability to provide uninterrupted,
consistent data access

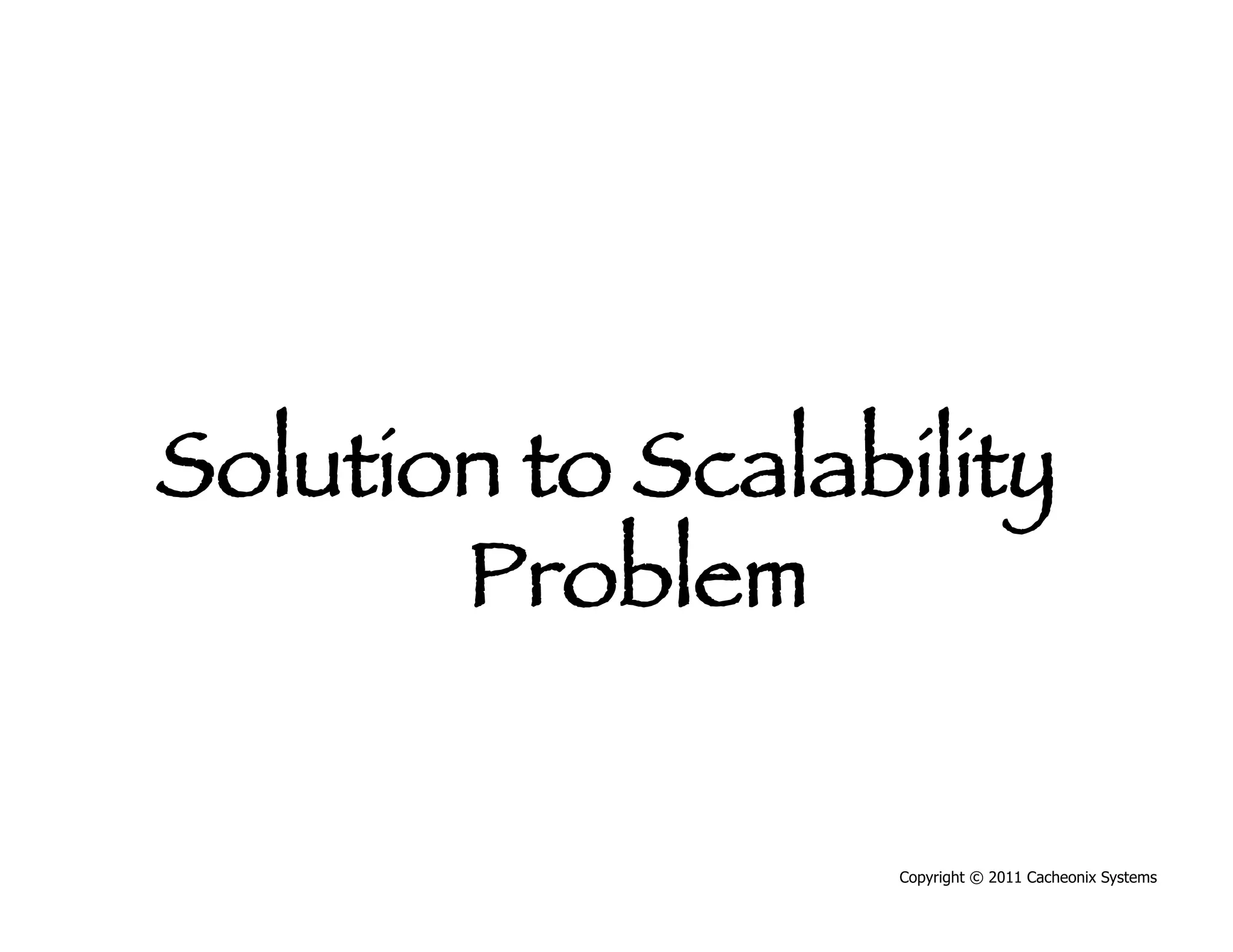

Solution to Scalability
Problem

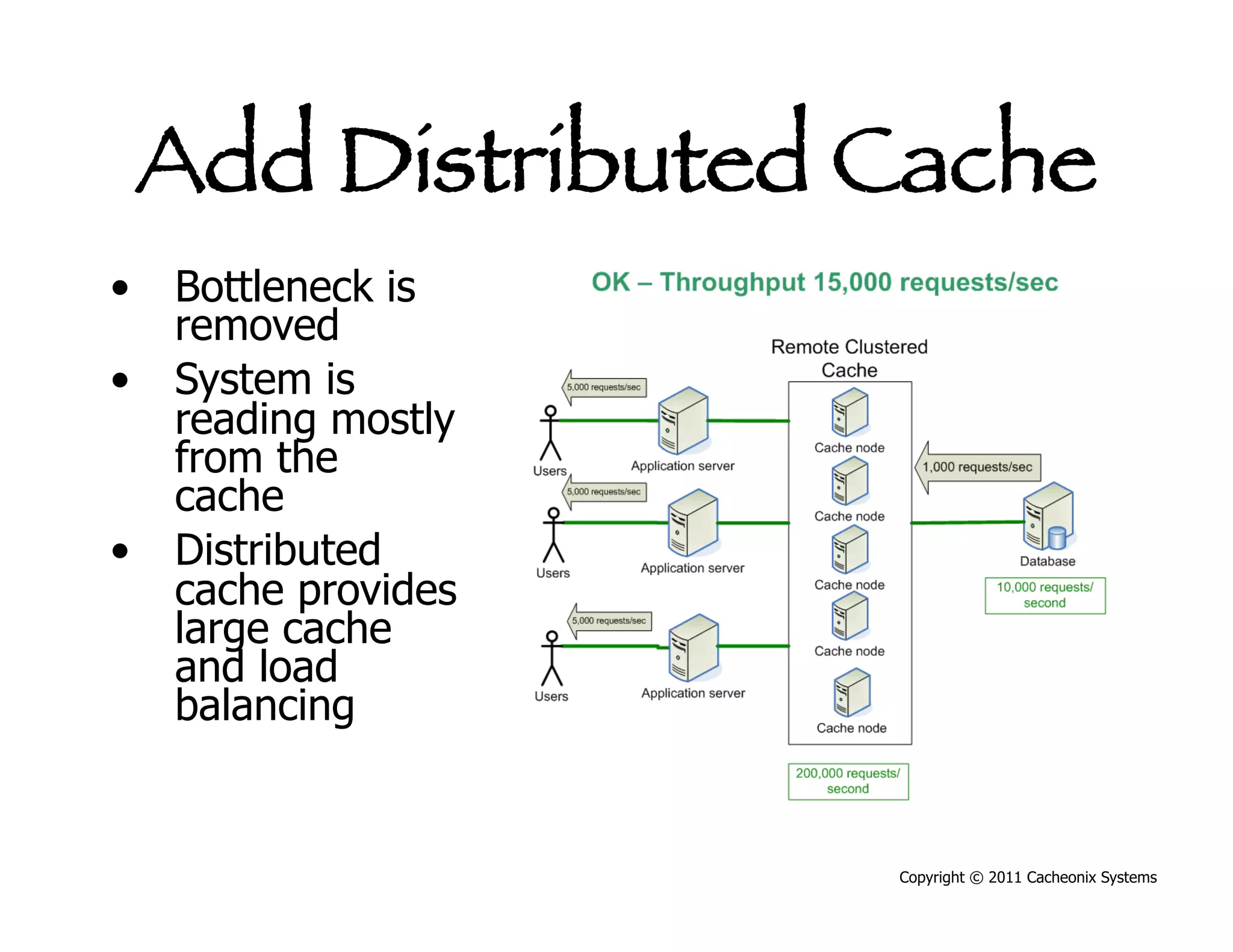

Add Distributed Cache
•  Bottleneck is
removed
•  System is
reading mostly
from the
cache
•  Distributed
cache provides
large cache
and load
balancing

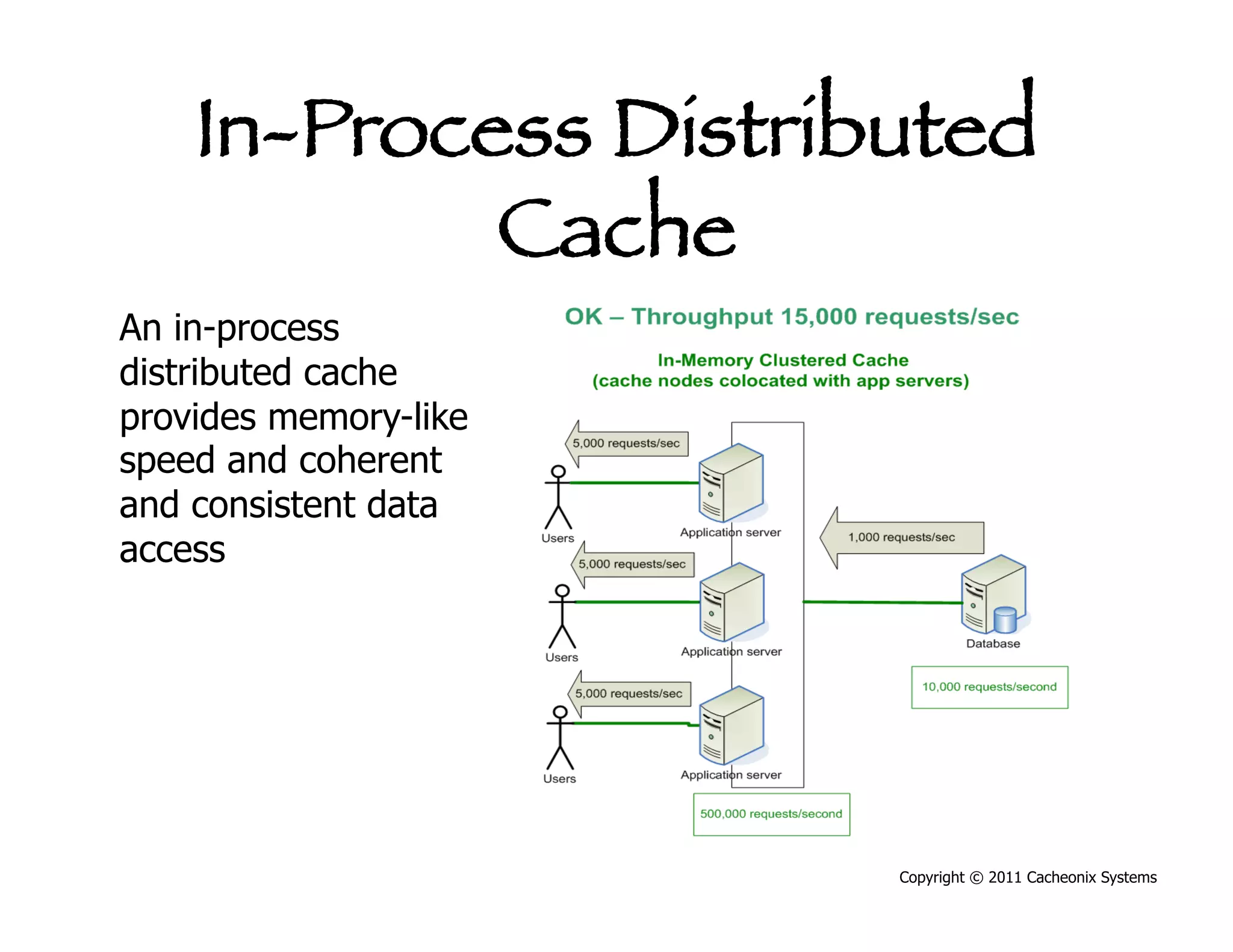

In-Process Distributed
Cache
An in-process
distributed cache
provides memory-like
speed and coherent
and consistent data
access

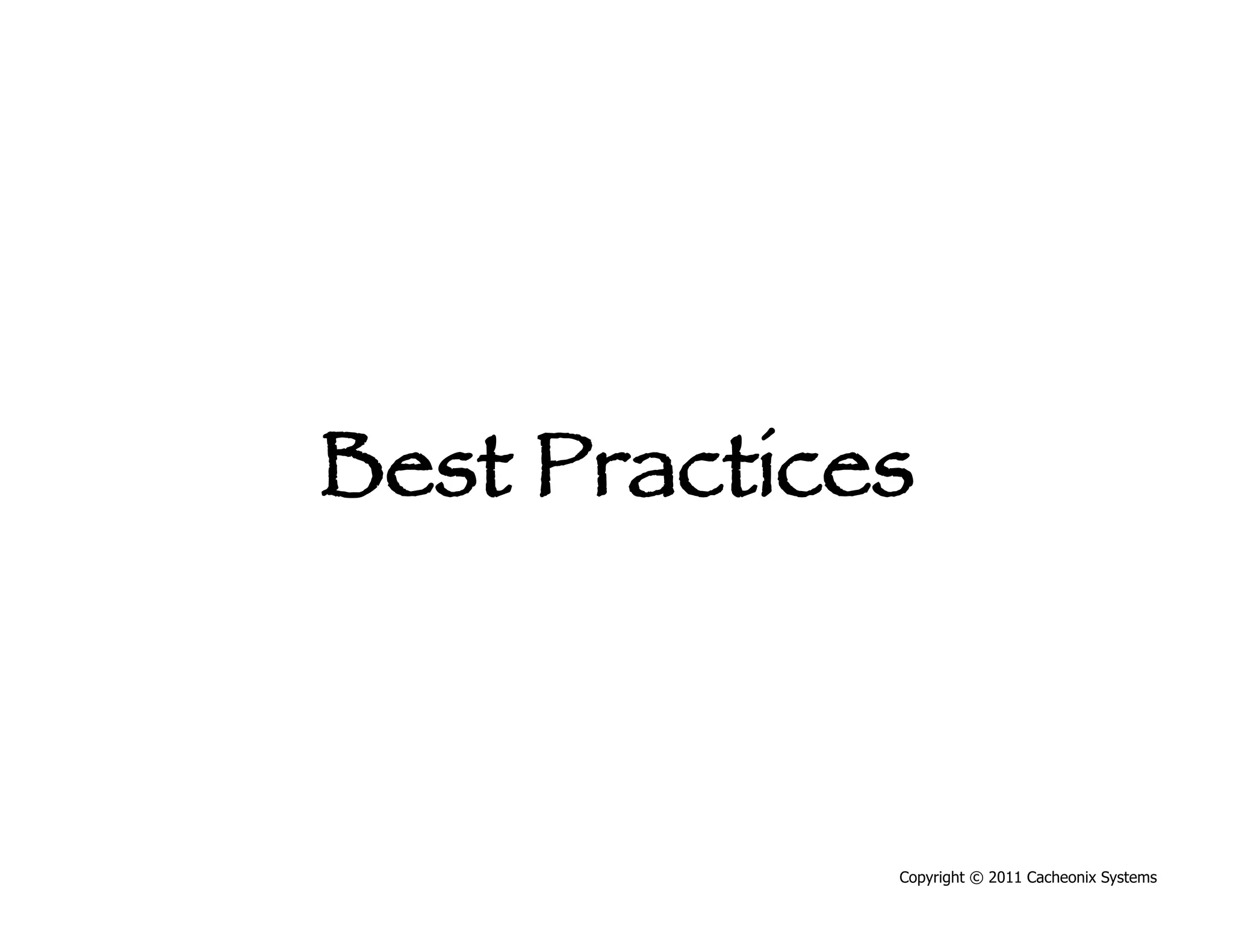

Best Practices

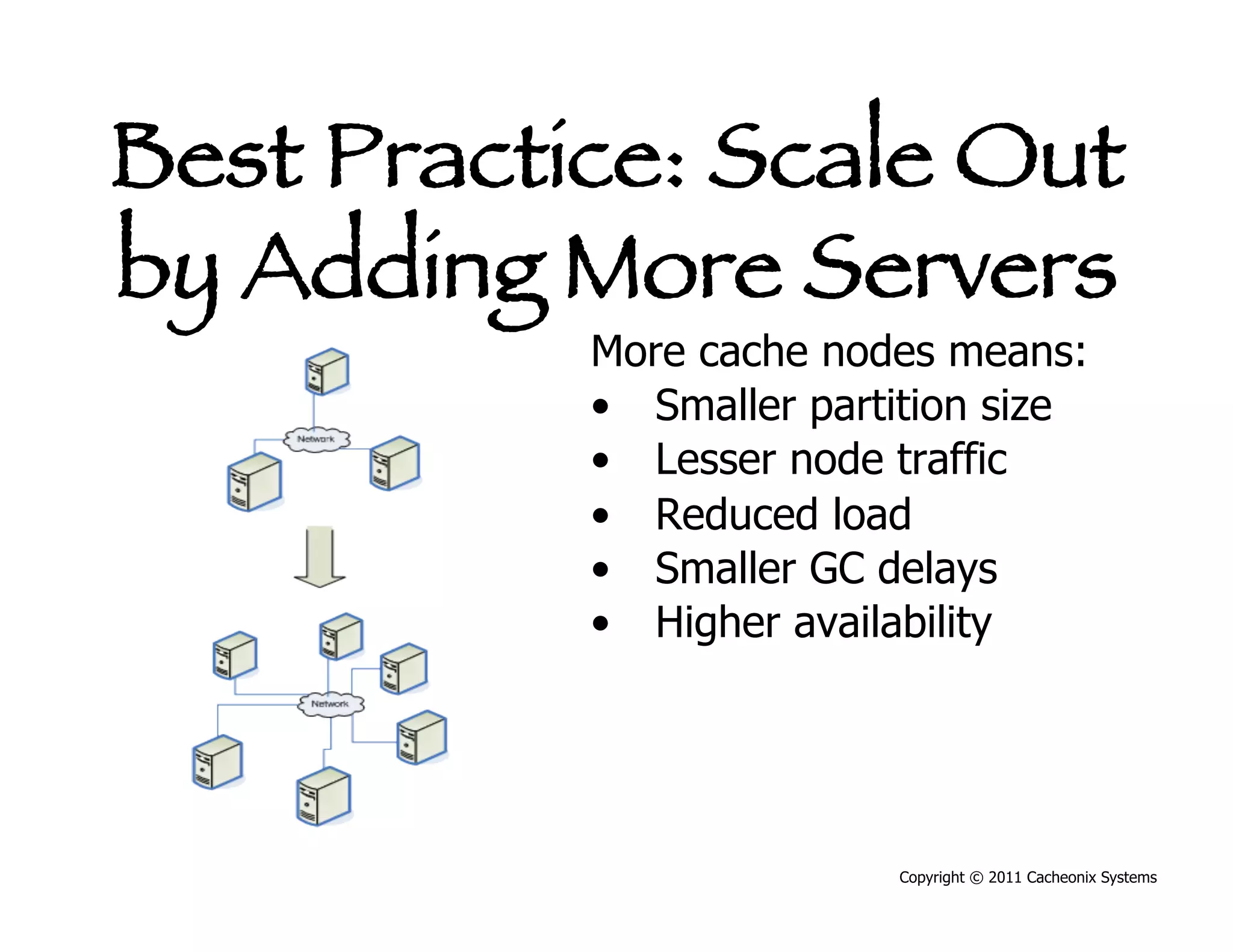

Best Practice: Scale Out
by Adding More Servers
More cache nodes means:
•  Smaller partition size
•  Lesser node traffic
•  Reduced load
•  Smaller GC delays
•  Higher availability


Best Practice: Scale Out
by Adding More Servers
More cache nodes means:
•  Bigger distributed cache
•  Better performance

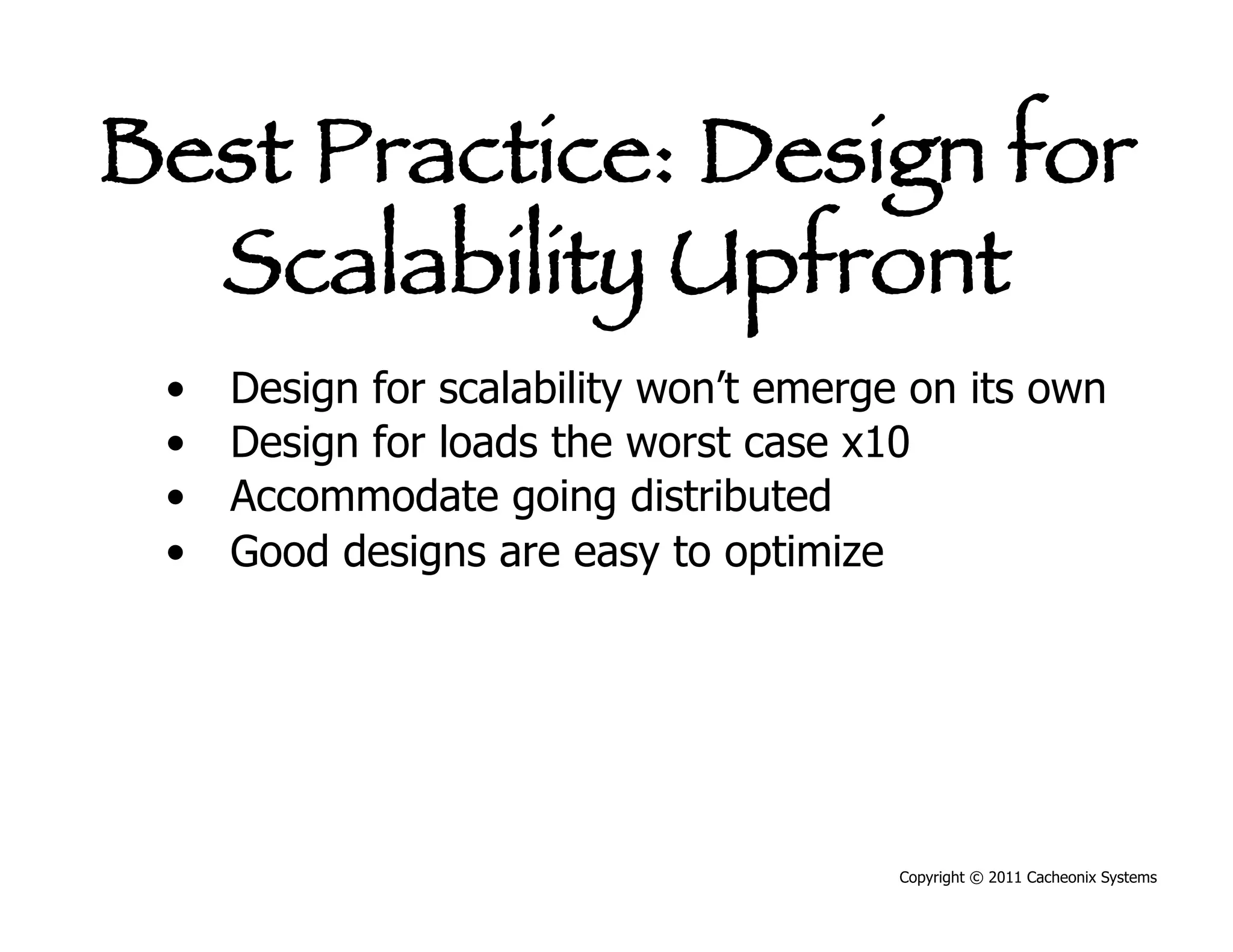

Best Practice: Design for
Scalability Upfront
•  Design for scalability won’t emerge on its own
•  Design for loads the worst case x10
•  Accommodate going distributed
•  Good designs are easy to optimize

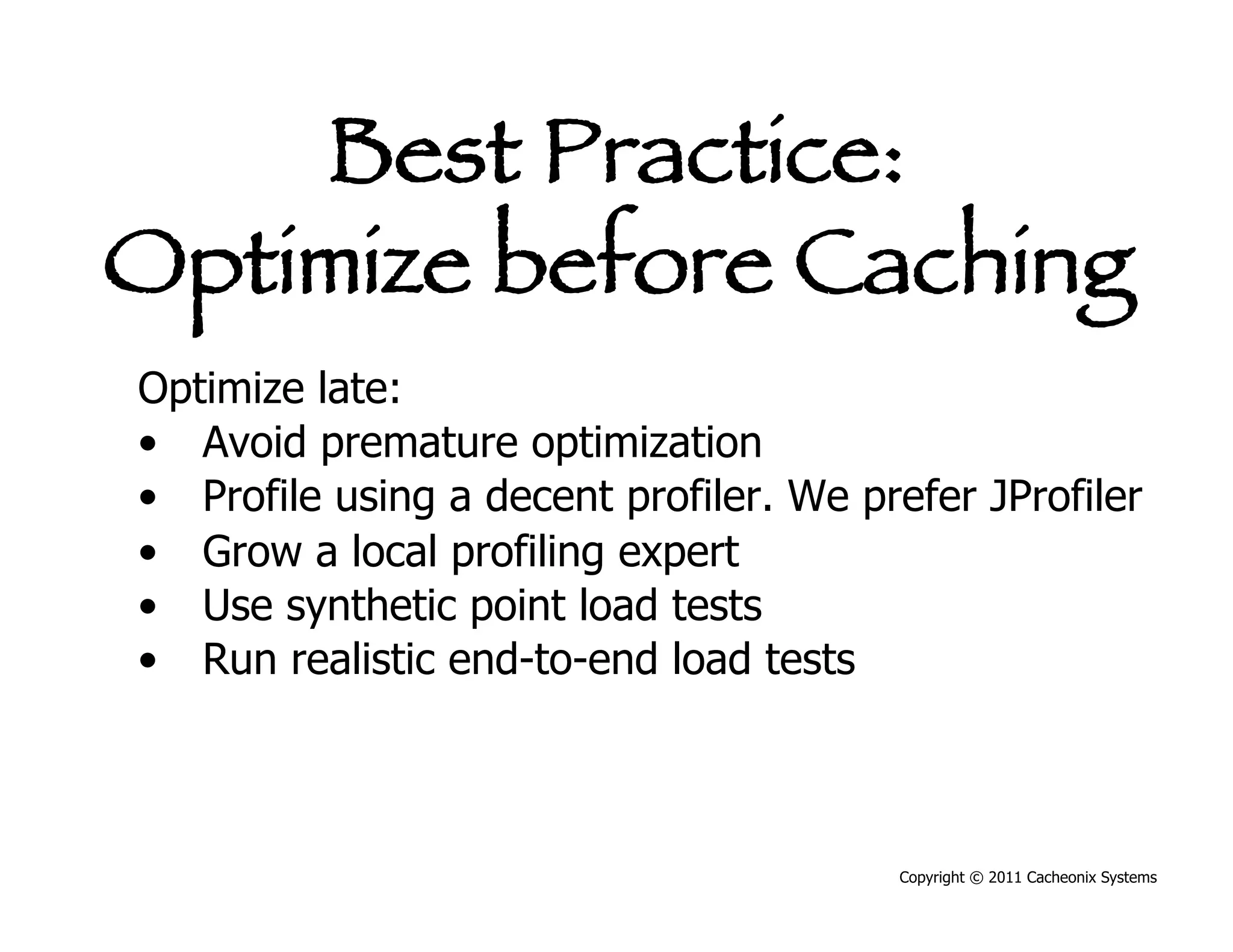

Best Practice:
Optimize before Caching
Optimize late:
•  Avoid premature optimization
•  Profile using a decent profiler. We prefer JProfiler
•  Grow a local profiling expert
•  Use synthetic point load tests
•  Run realistic end-to-end load tests

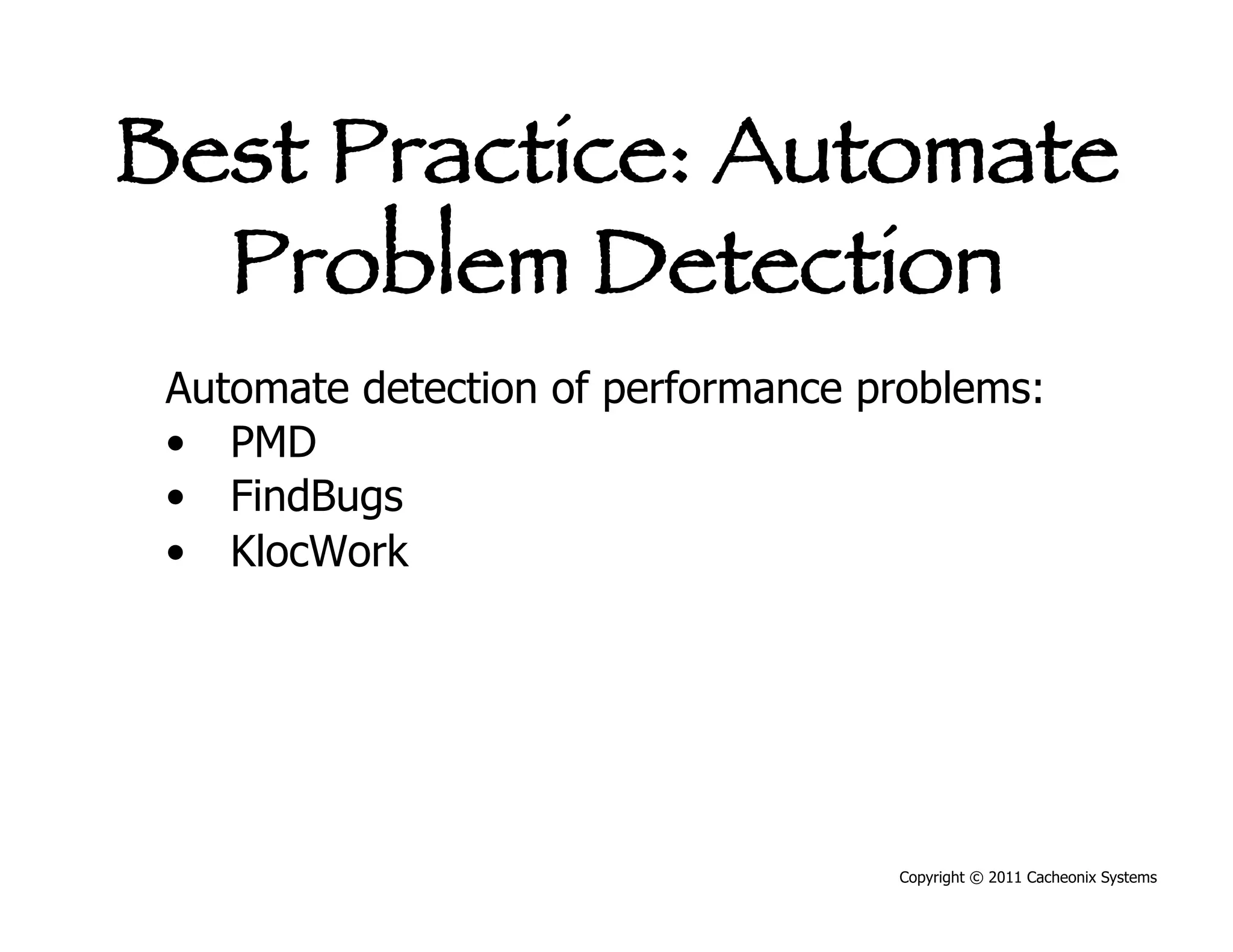

Best Practice: Automate
Problem Detection
Automate detection of performance problems:
•  PMD
•  FindBugs
•  KlocWork

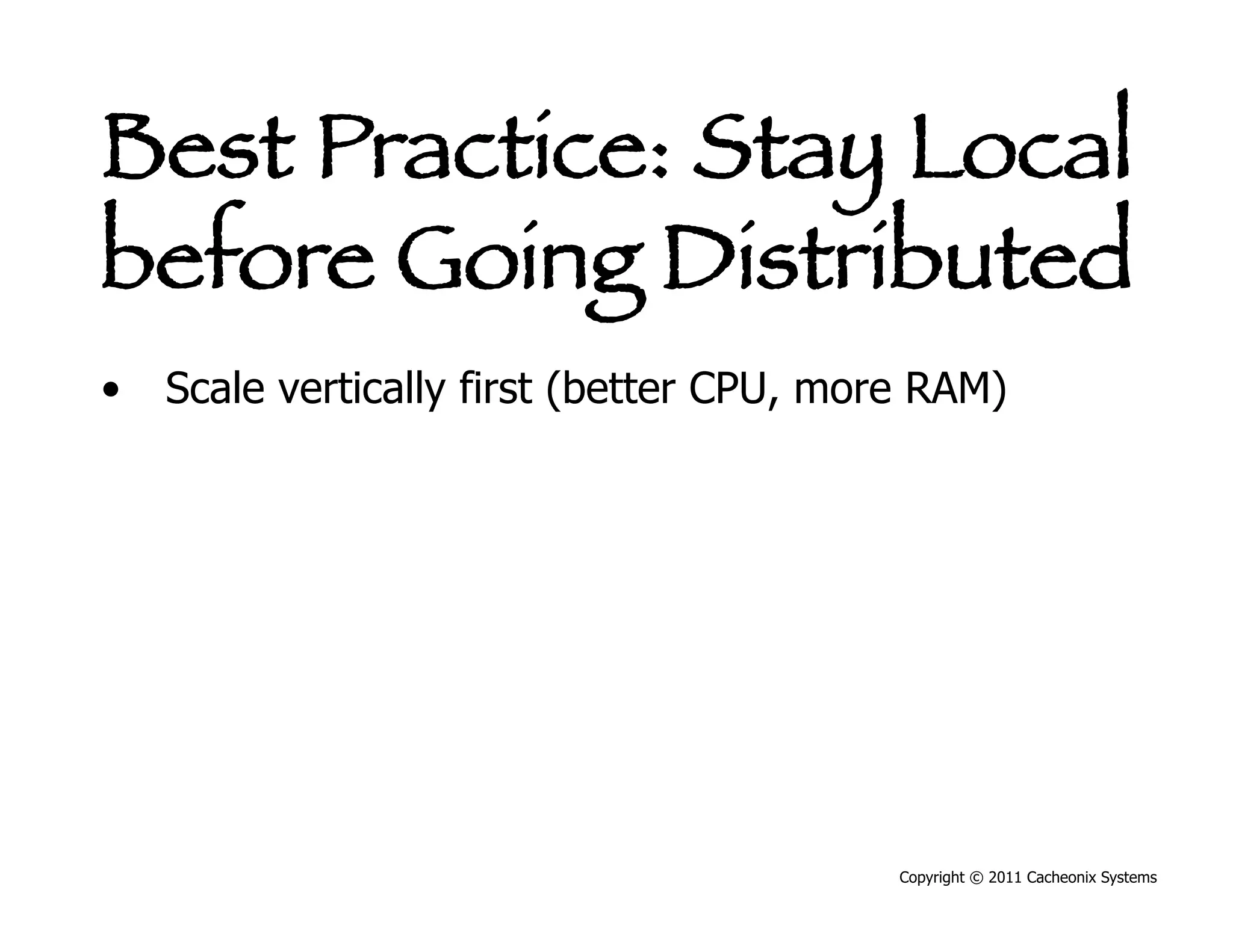

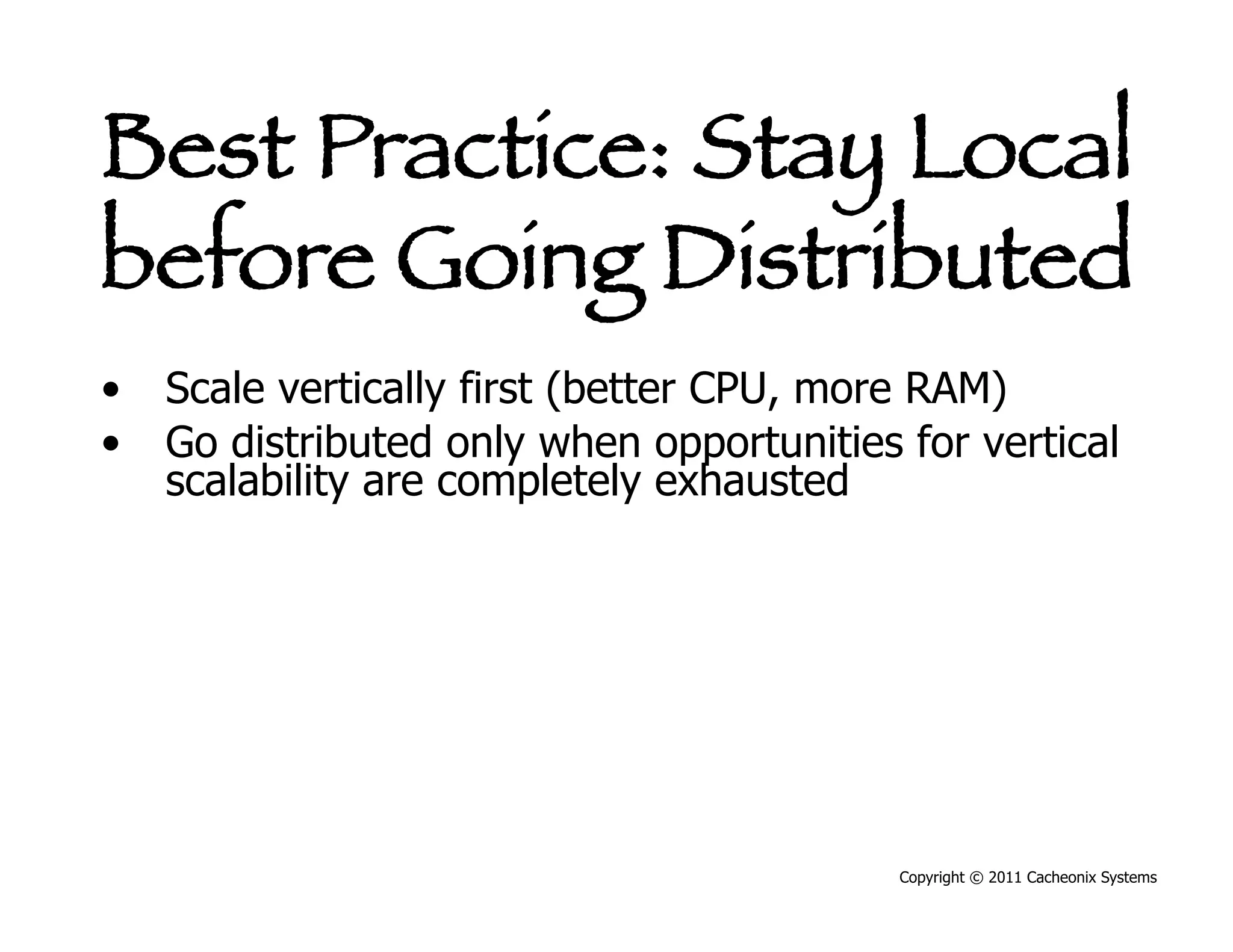

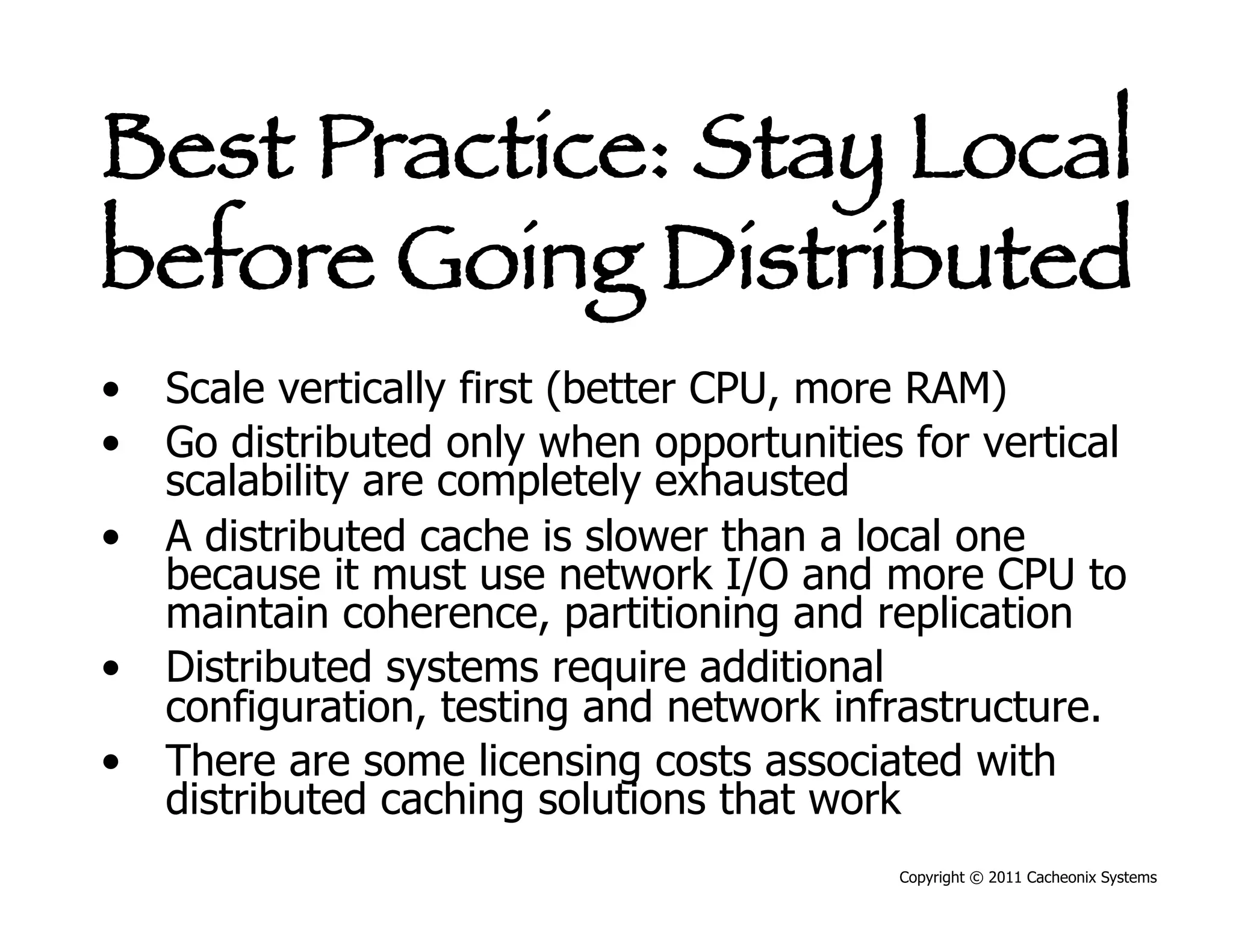

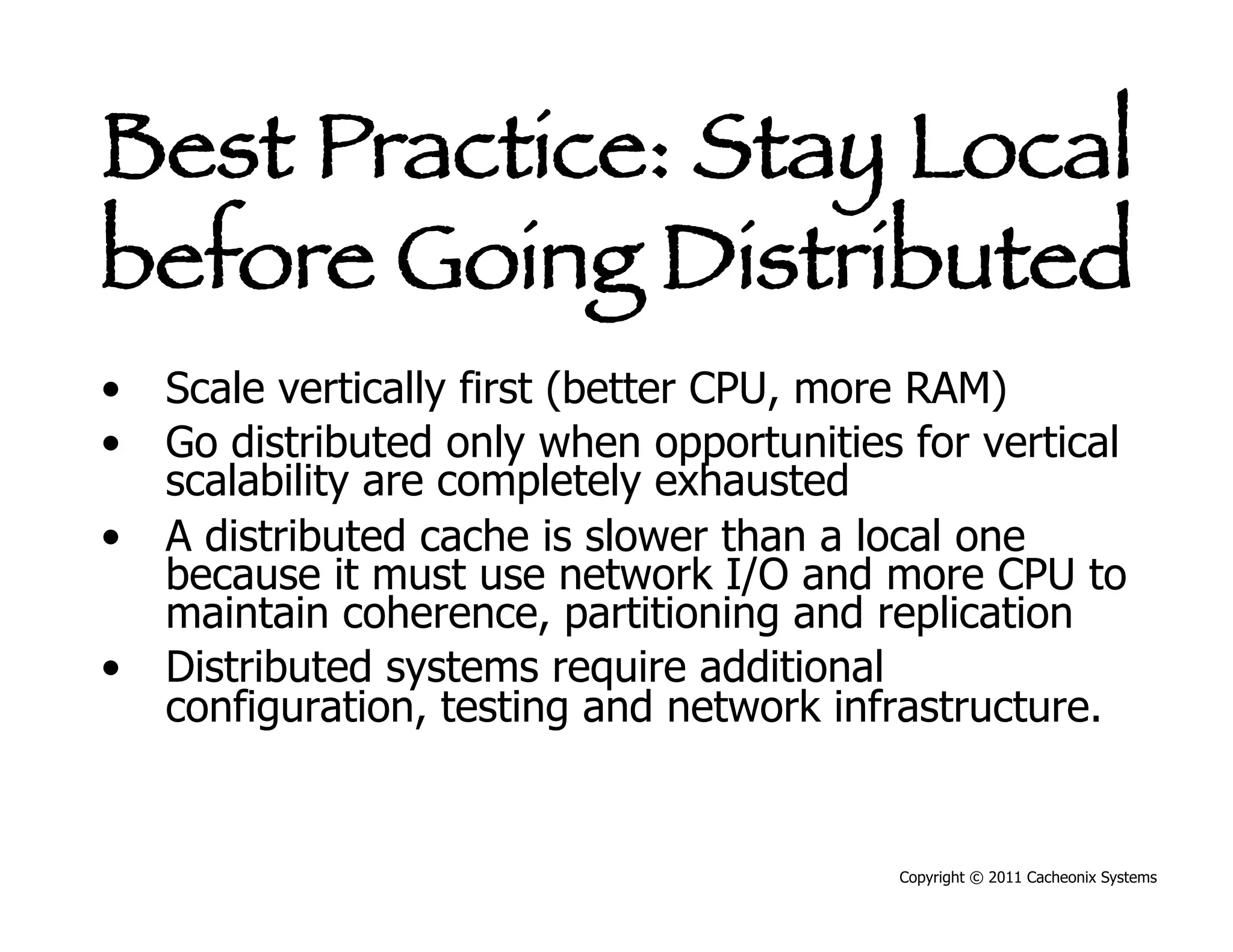

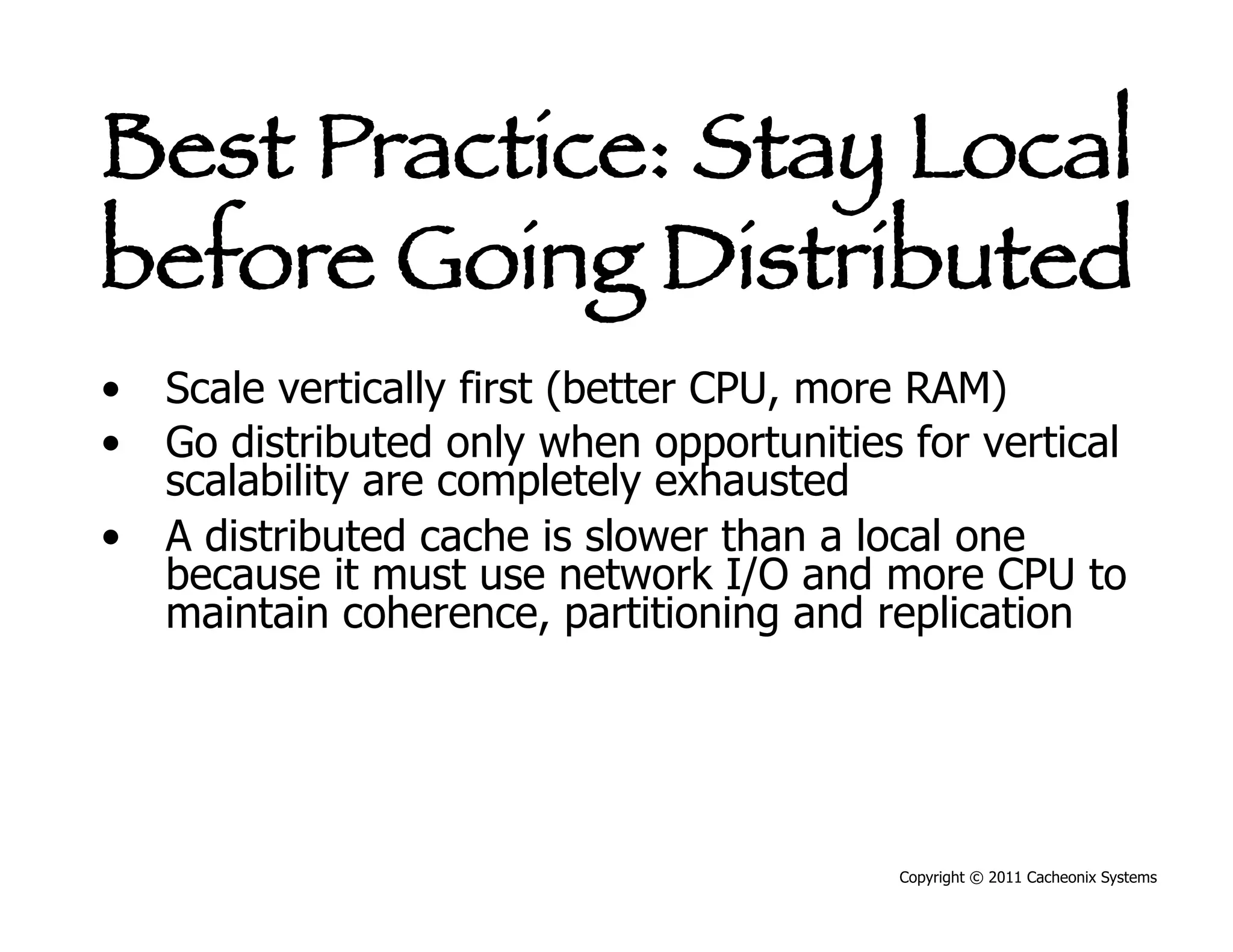

Best Practice: Stay Local
before Going Distributed
•  Scale vertically first (better CPU, more RAM)


•  Go distributed only when opportunities for vertical
scalability are completely exhausted


•  A distributed cache is slower than a local one
because it must use network I/O and more CPU to
maintain coherence, partitioning and replication


•  Distributed systems require additional
configuration, testing and network infrastructure.


•  Distributed systems require additional
configuration, testing and network infrastructure.
•  There are some licensing costs associated with
distributed caching solutions that work

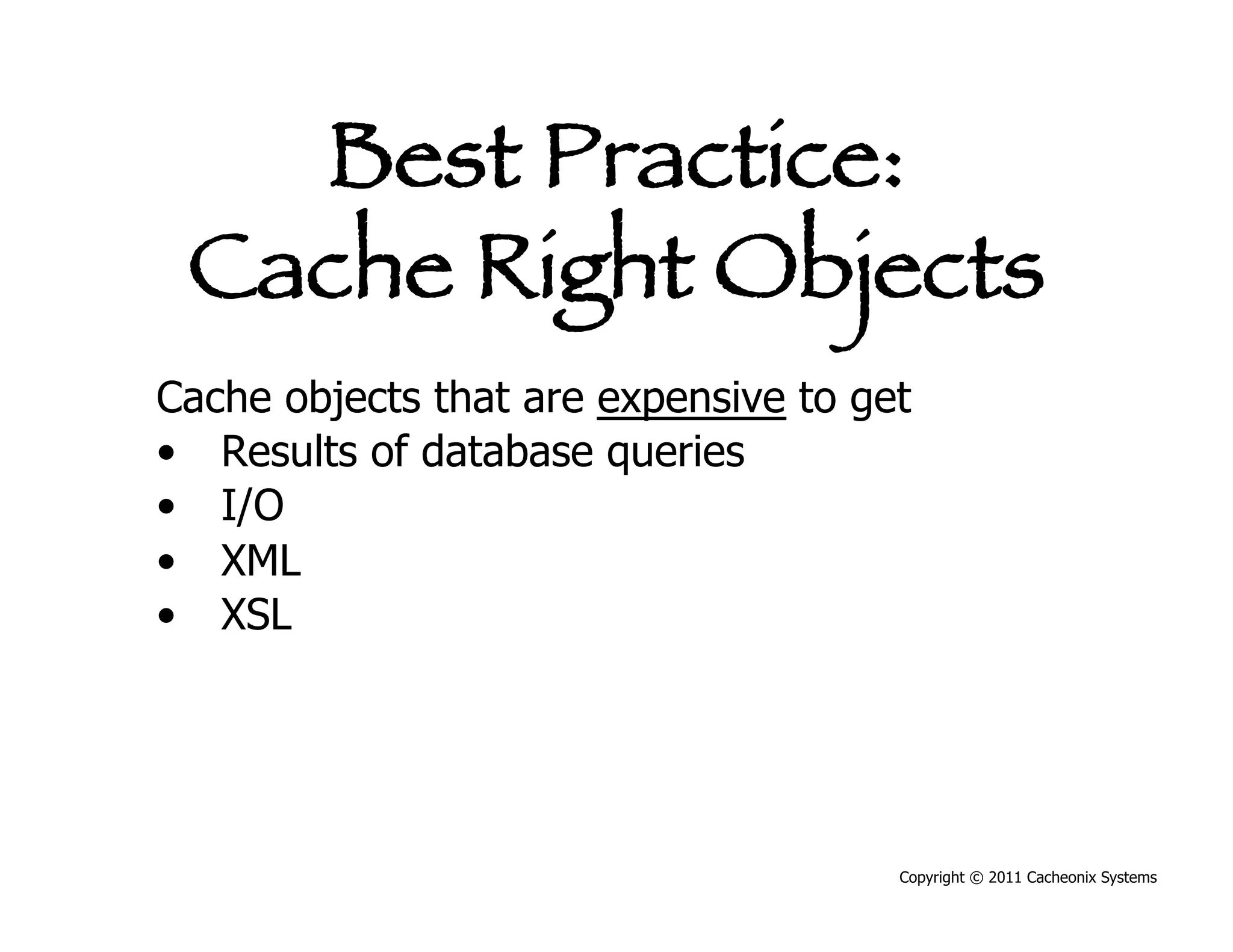

Best Practice:
Cache Right Objects
Cache objects that are expensive to get
•  Results of database queries
•  I/O
•  XML
•  XSL

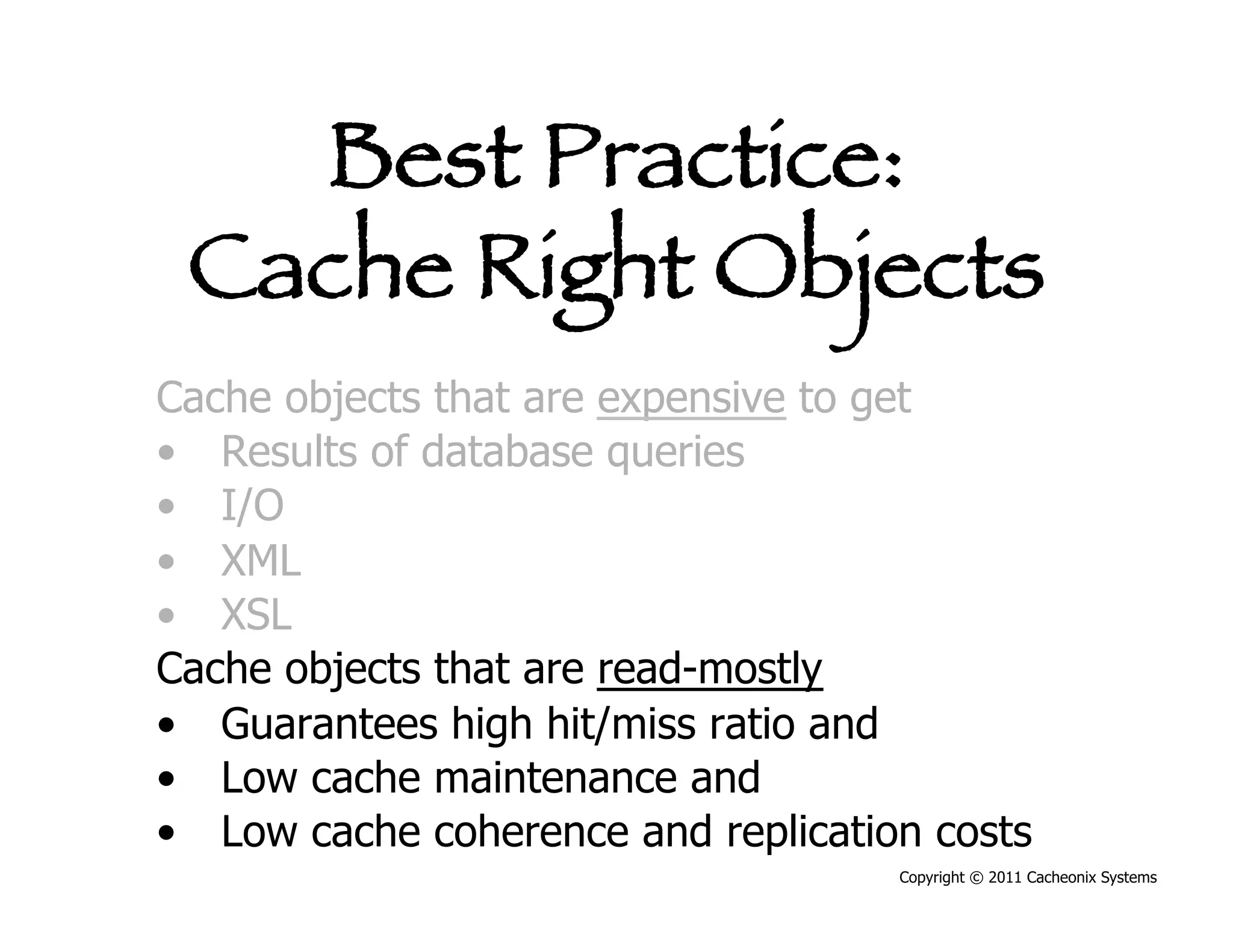

Best Practice:
Cache Right Objects
Cache objects that are expensive to get
•  Results of database queries
•  I/O
•  XML
•  XSL
Cache objects that are read-mostly
•  Guarantees high hit/miss ratio and
•  Low cache maintenance and
•  Low cache coherence and replication costs

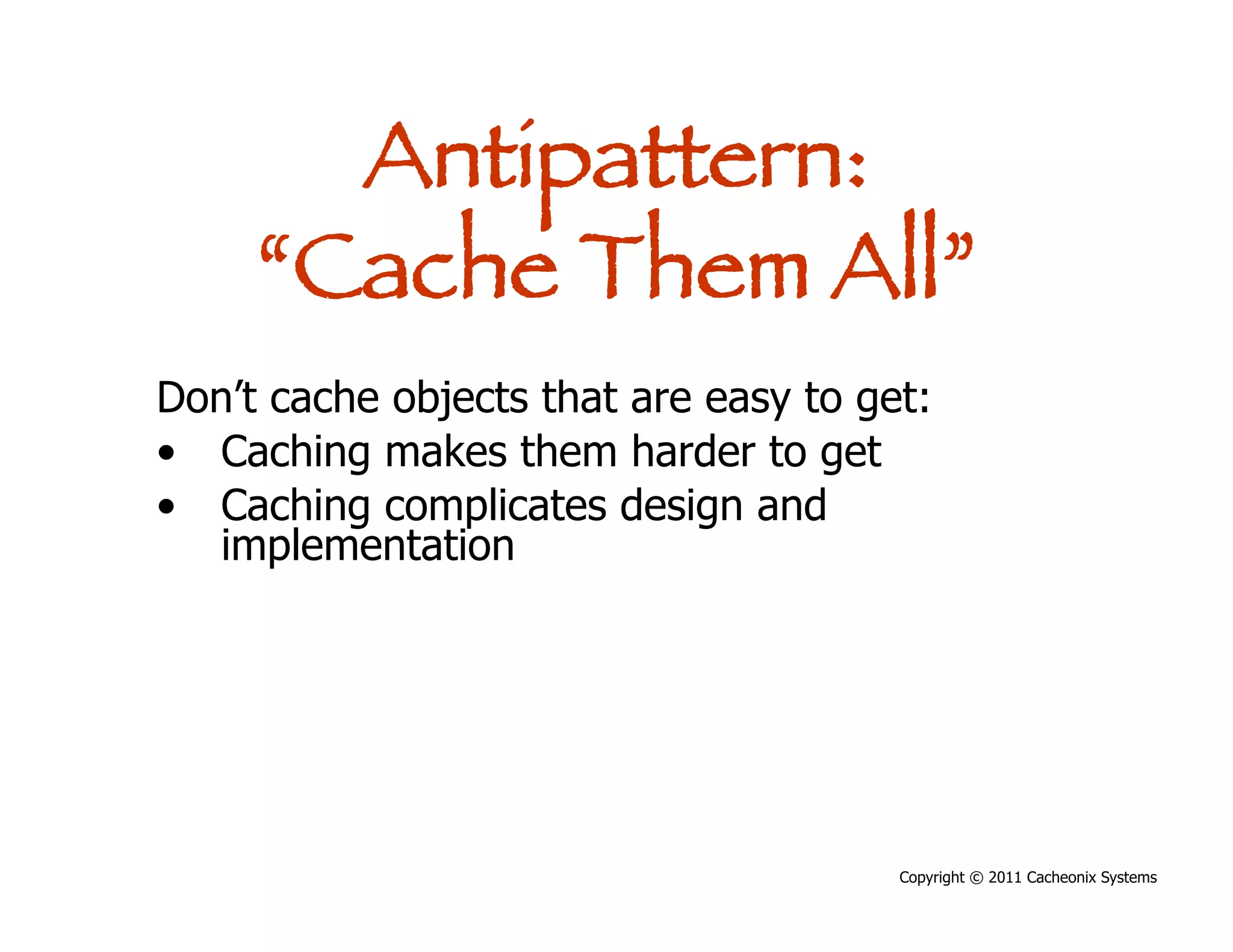

Antipattern:
“Cache Them All”
Don’t cache objects that are easy to get:
•  Caching makes them harder to get
•  Caching complicates design and
implementation

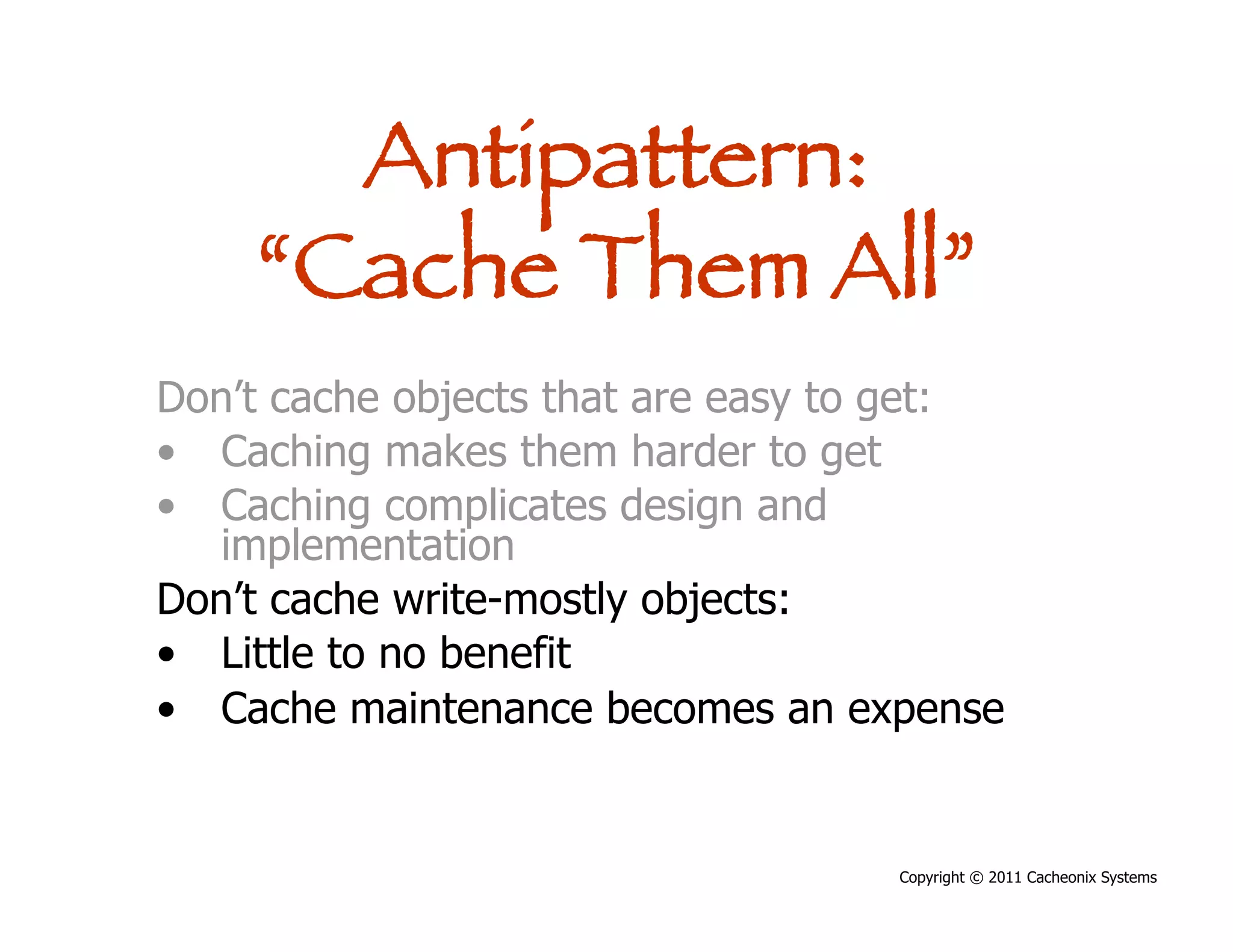

Antipattern:
“Cache Them All”
Don’t cache objects that are easy to get:
•  Caching makes them harder to get
•  Caching complicates design and
implementation
Don’t cache write-mostly objects:
•  Little to no benefit
•  Cache maintenance becomes an expense

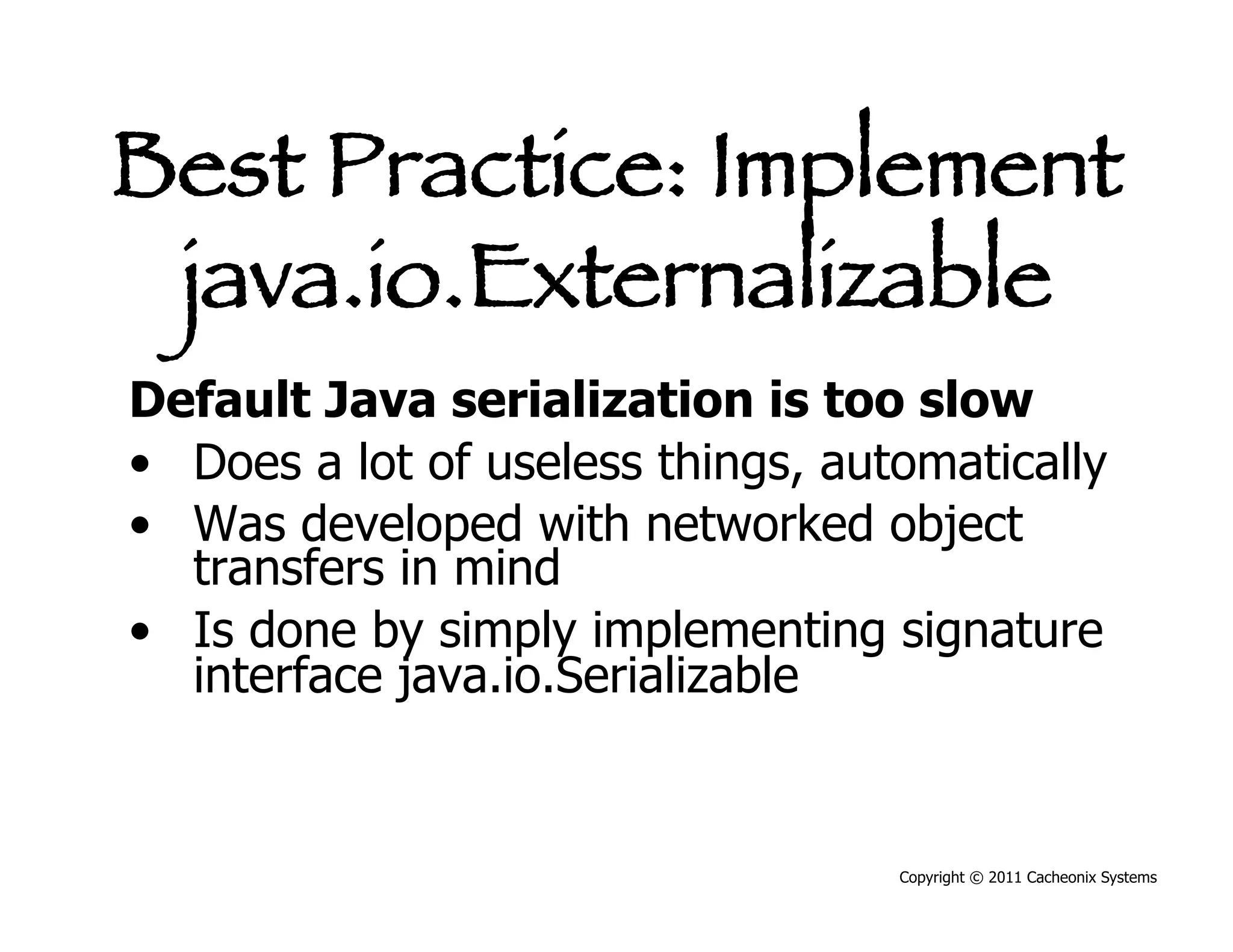

Best Practice: Implement
java.io.Externalizable
Default Java serialization is too slow
•  Does a lot of useless things, automatically
•  Was developed with networked object
transfers in mind
•  Is done by simply implementing signature
interface java.io.Serializable

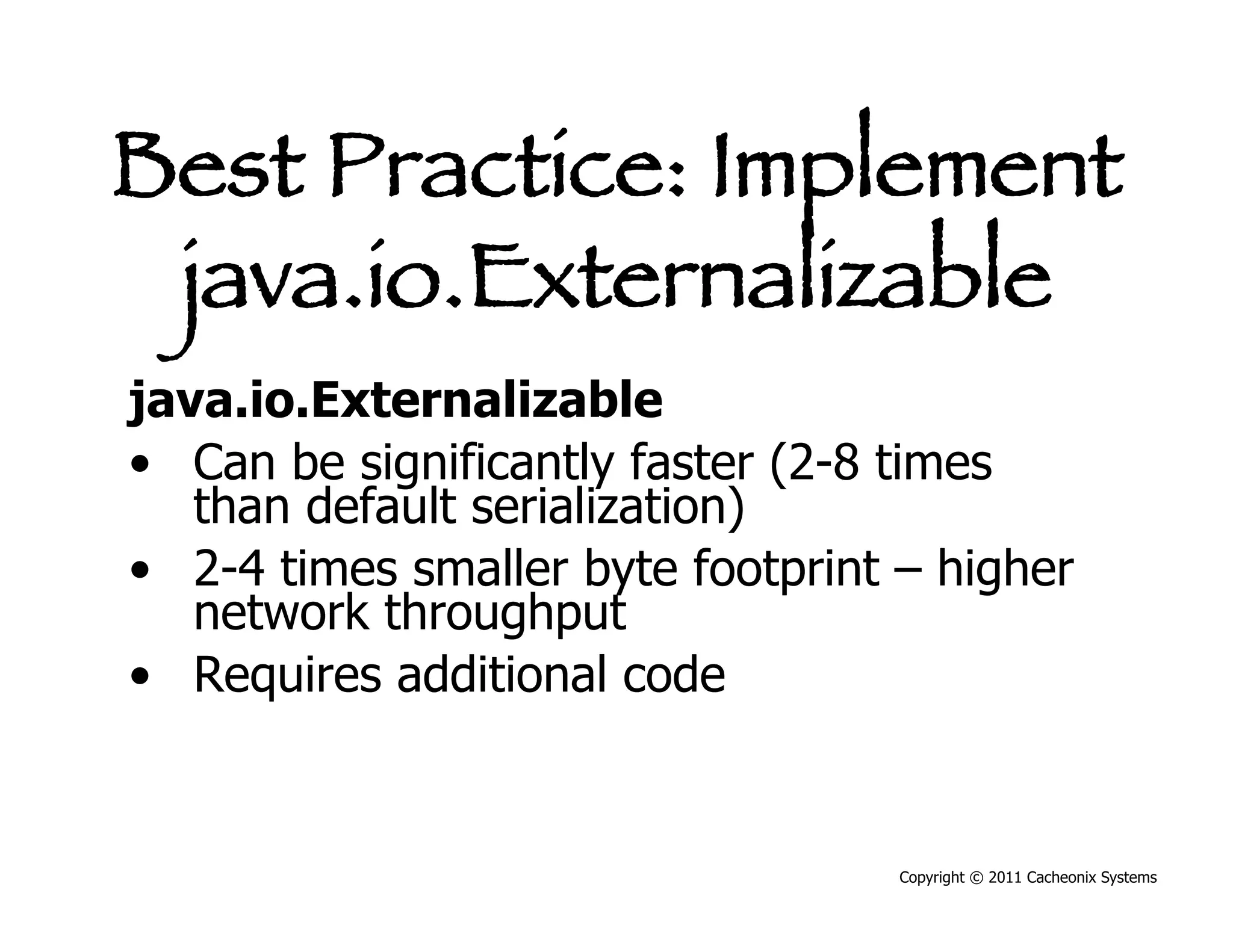

Best Practice: Implement
•  Can be significantly faster (2-8 times
than default serialization)
•  2-4 times smaller byte footprint – higher
network throughput
•  Requires additional code

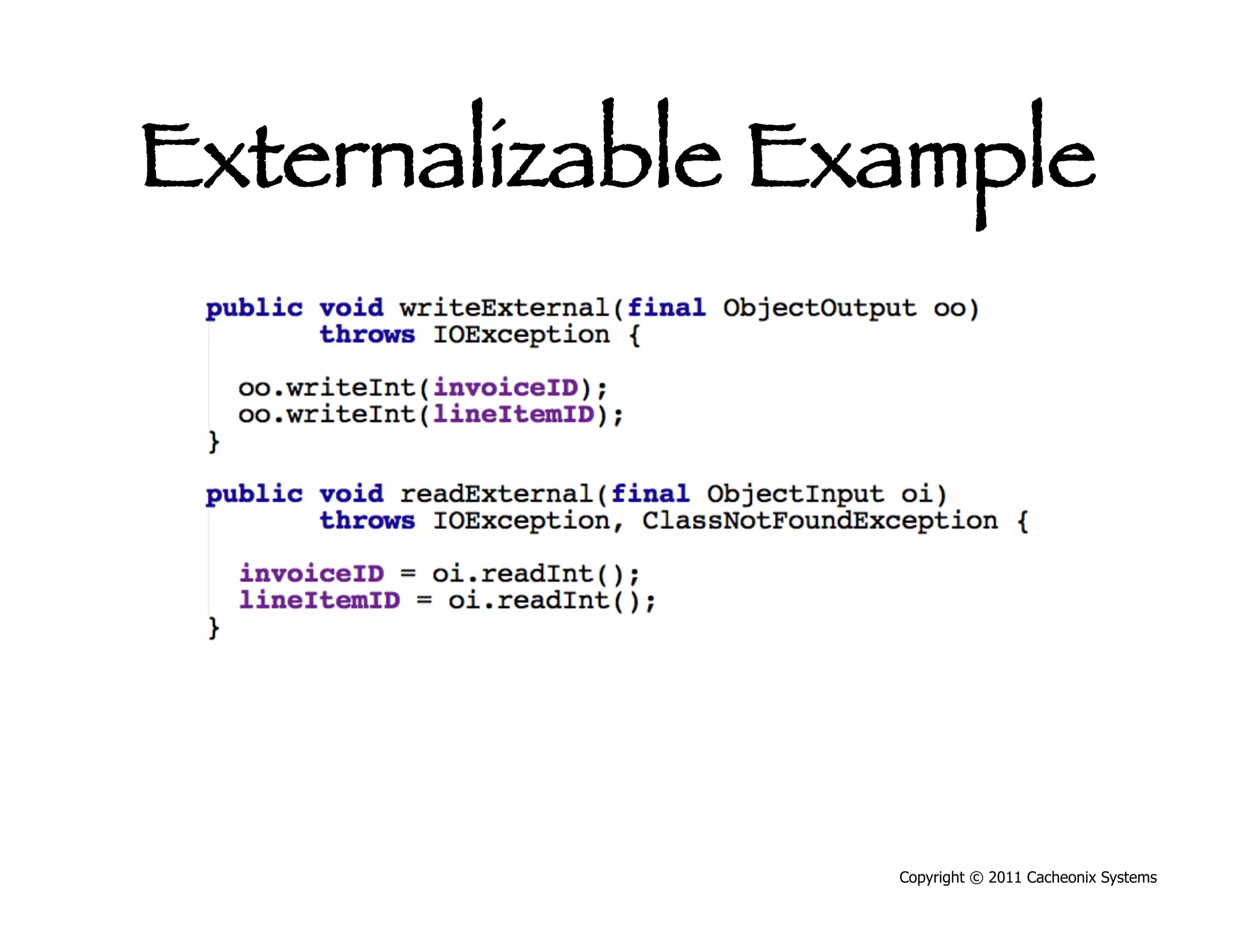

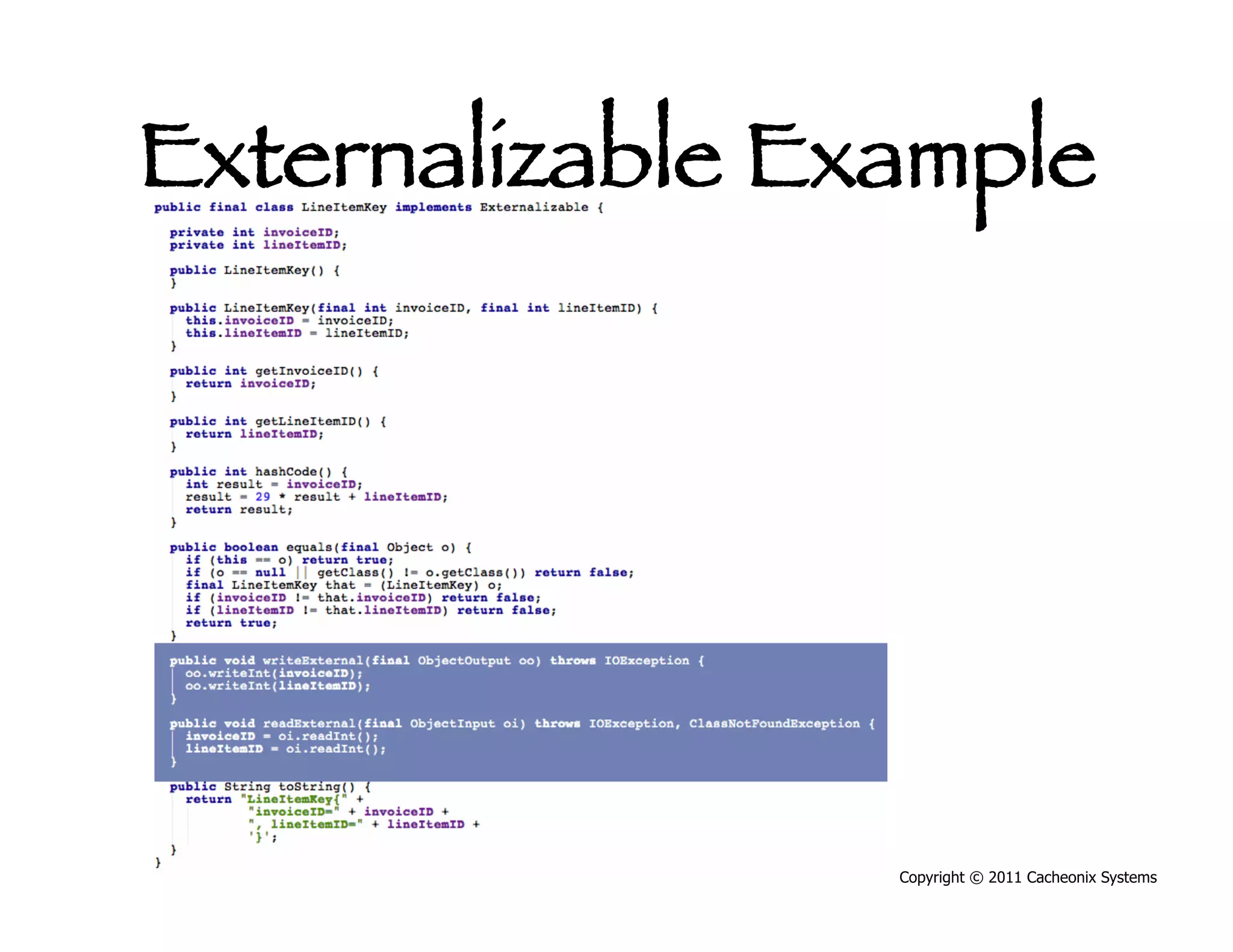

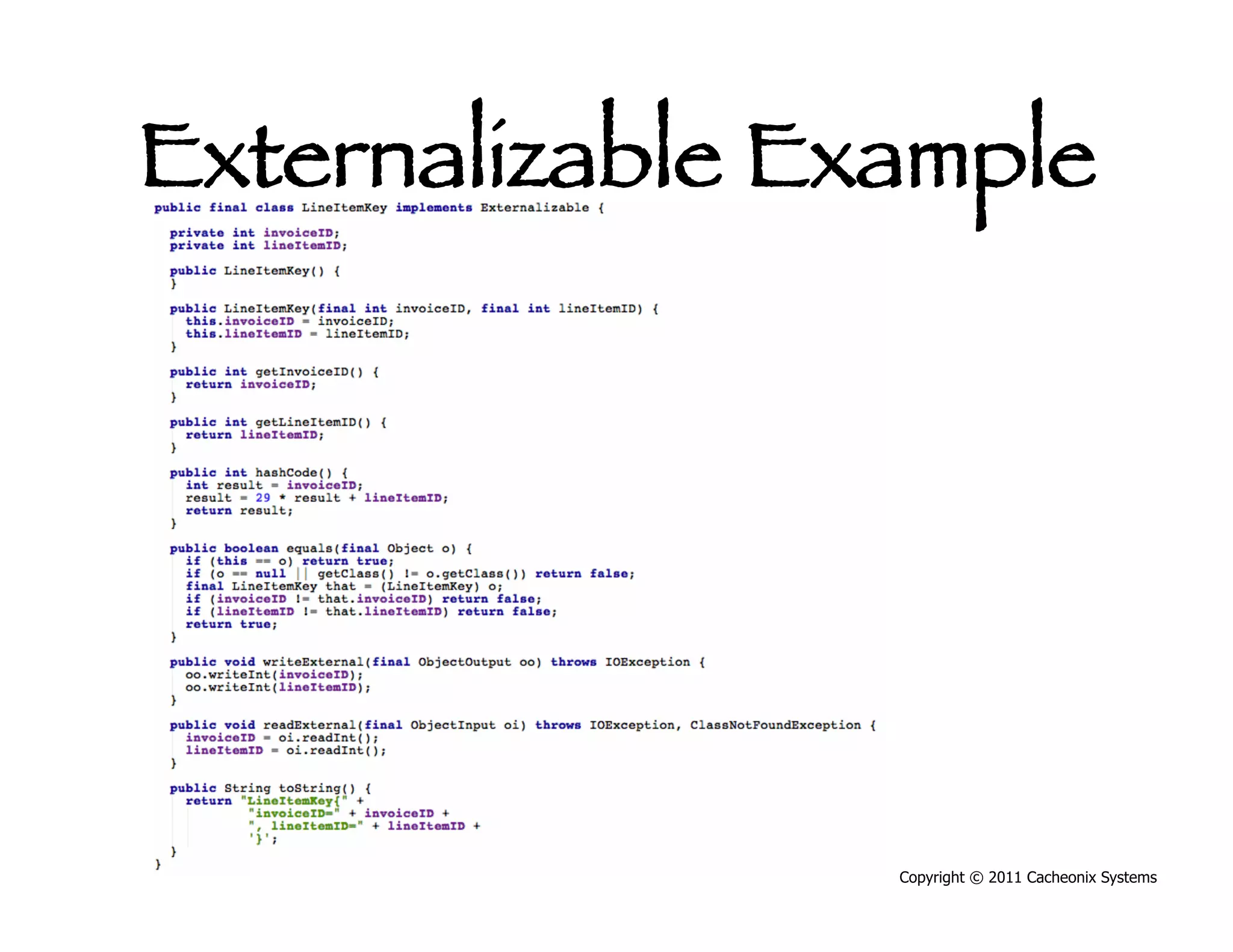

Externalizable Example

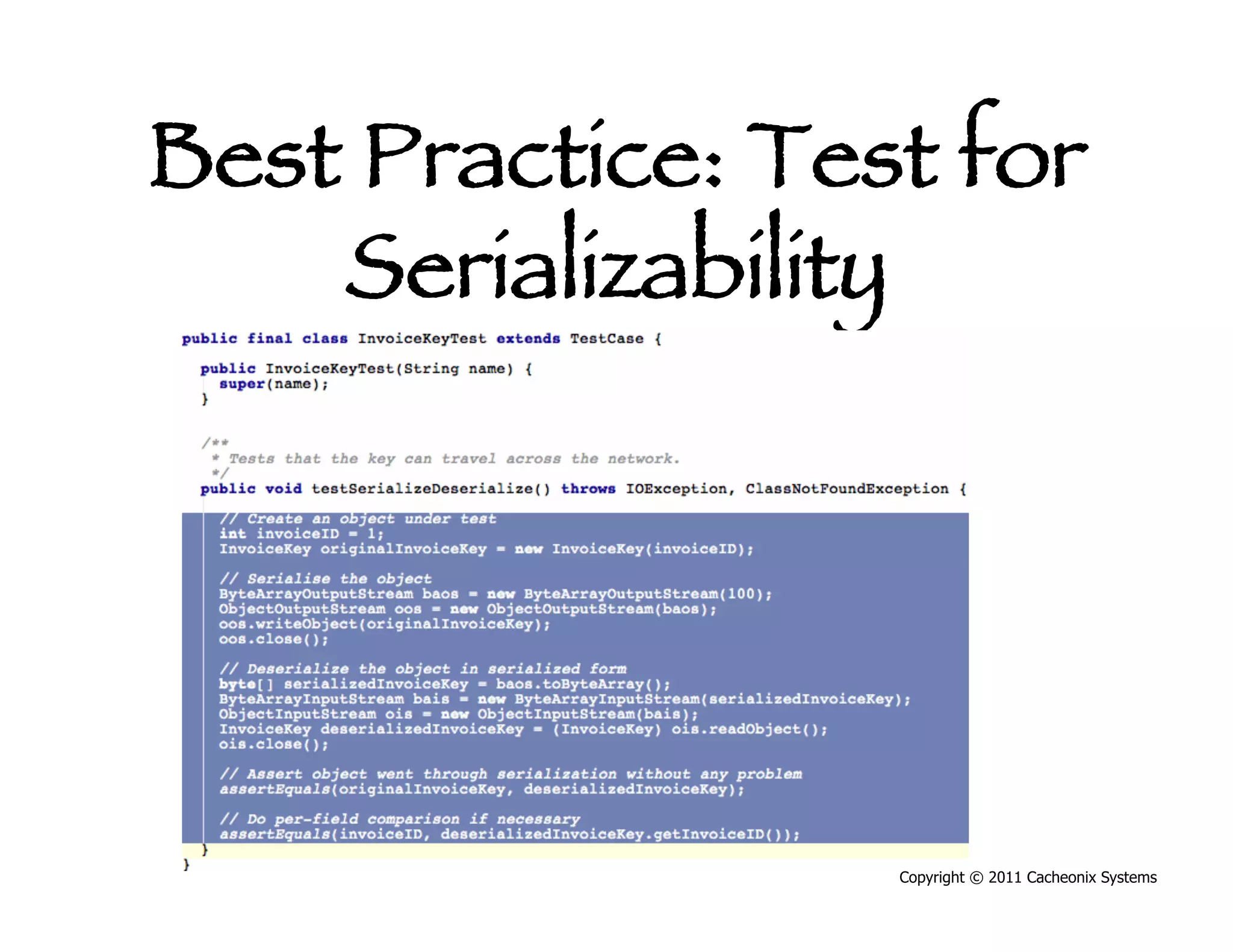

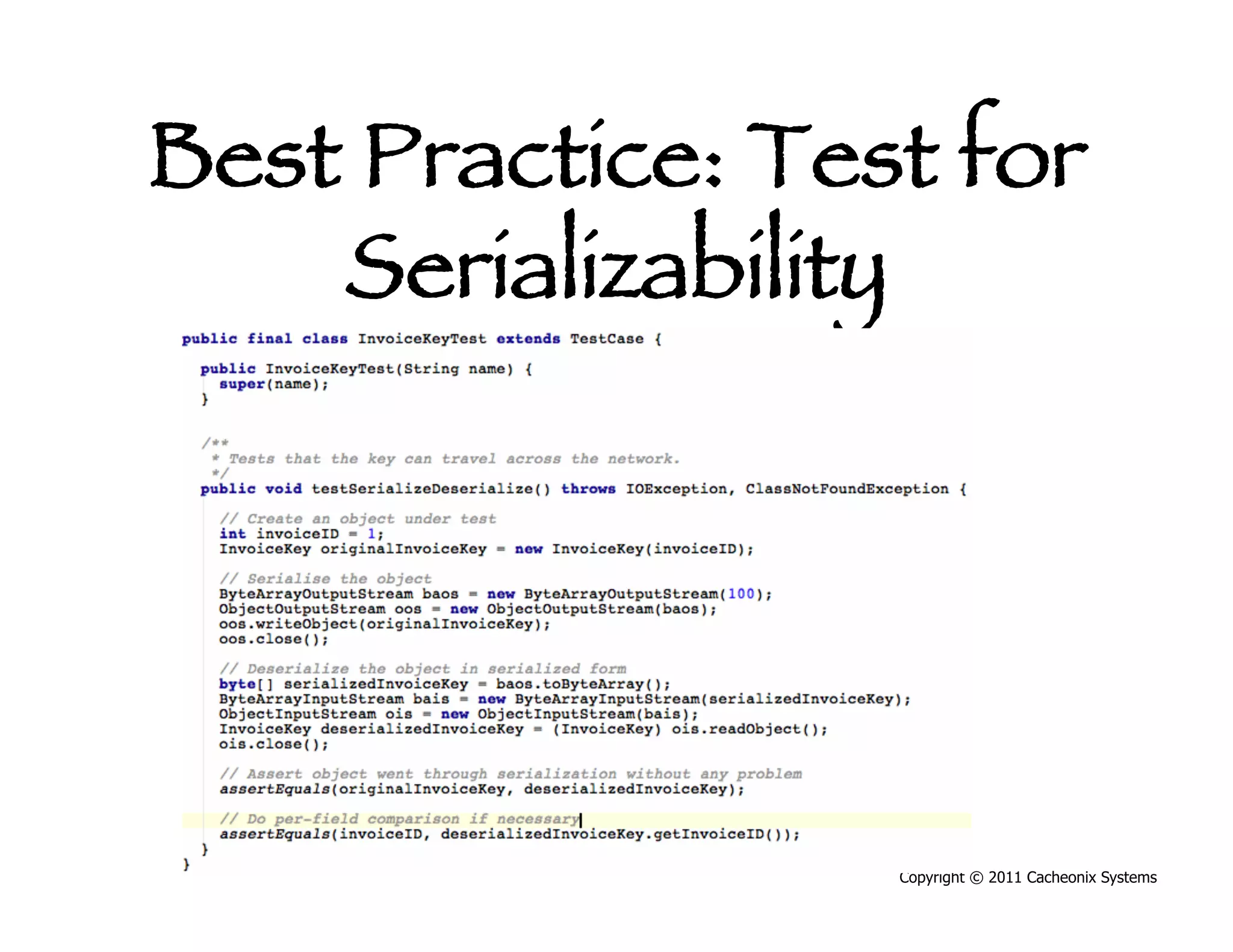

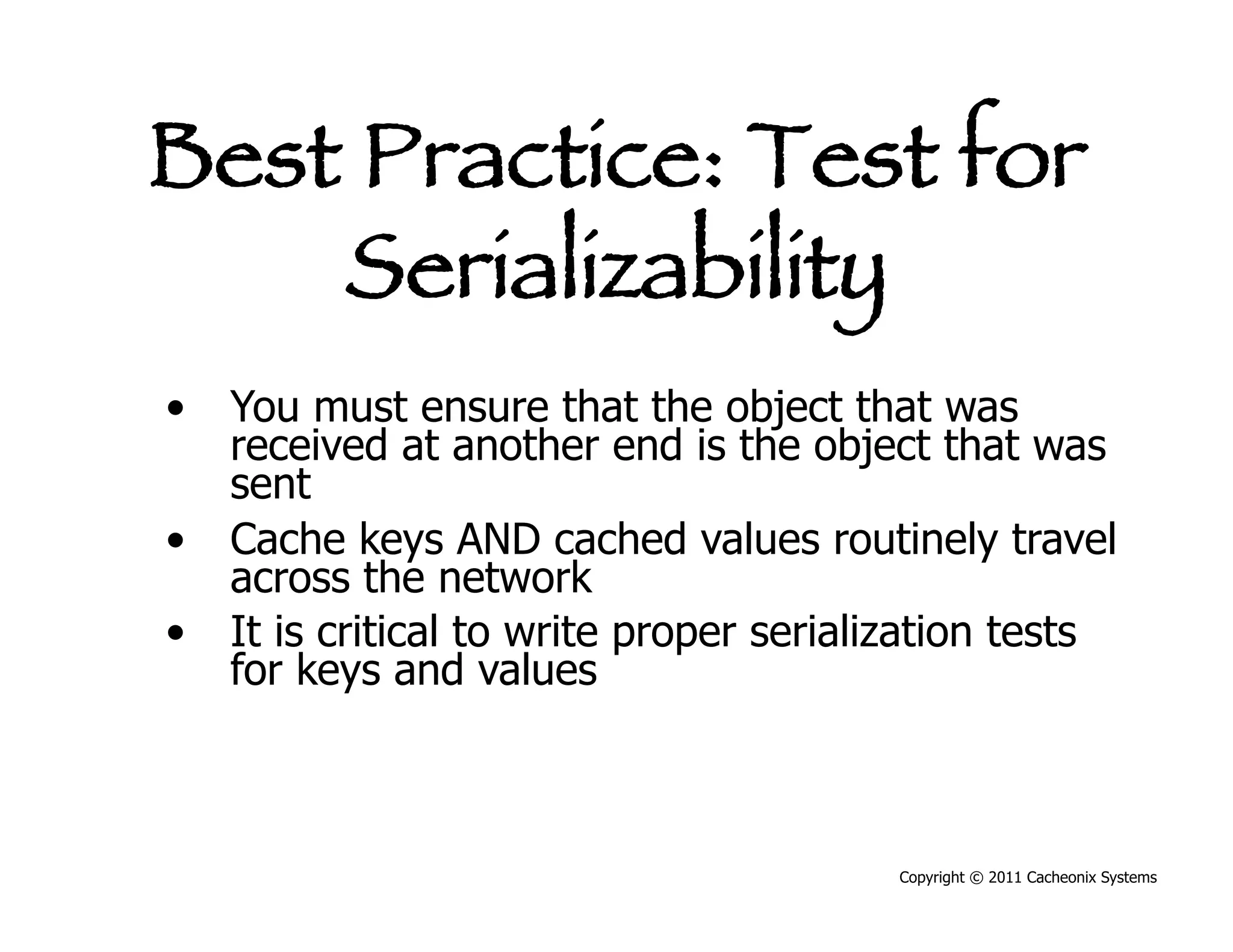

Best Practice: Test for
Serializability
•  You must ensure that the object that was
received at another end is the object that was
sent
•  Cache keys AND cached values routinely travel
across the network
•  It is critical to write proper serialization tests
for keys and values

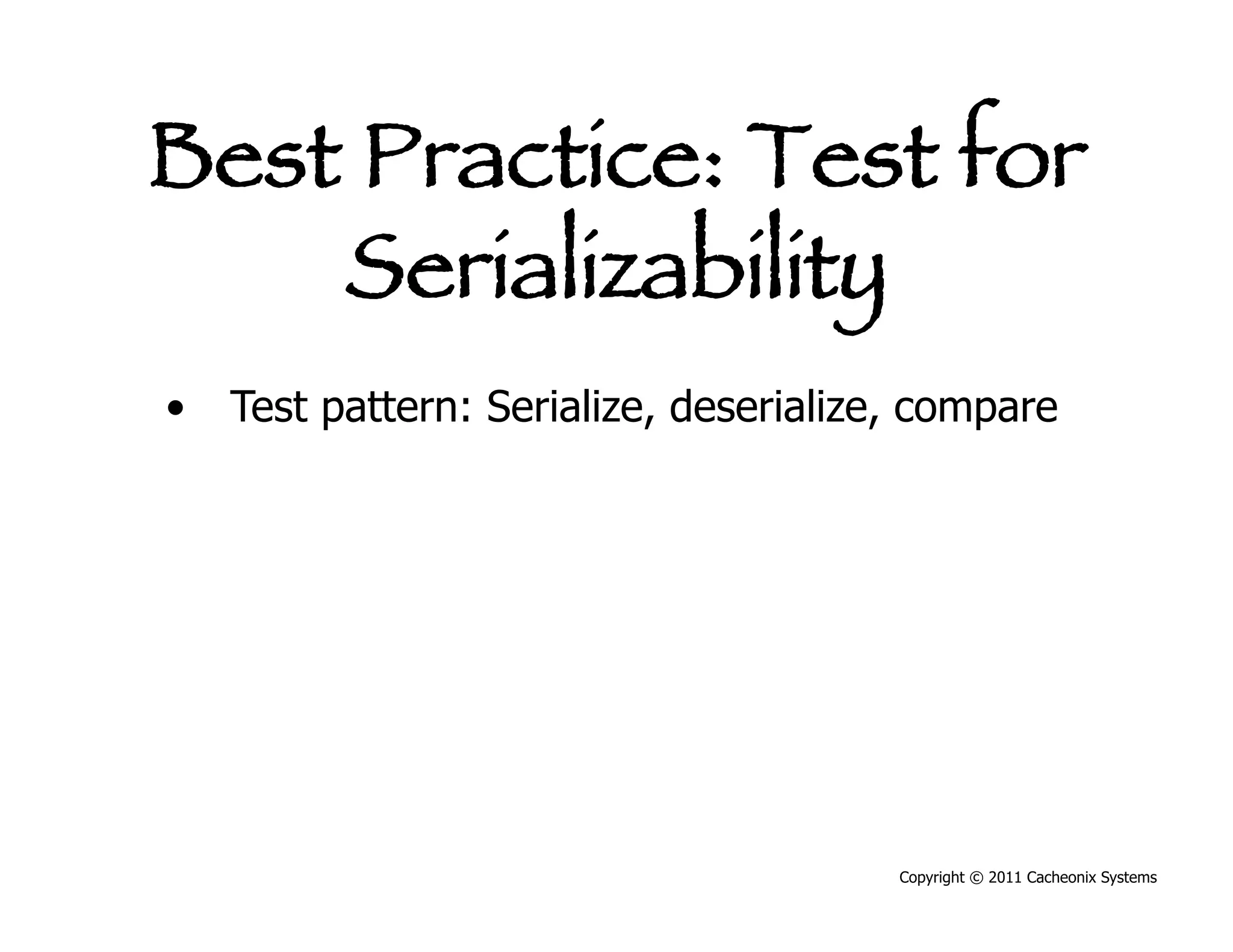

Serializability

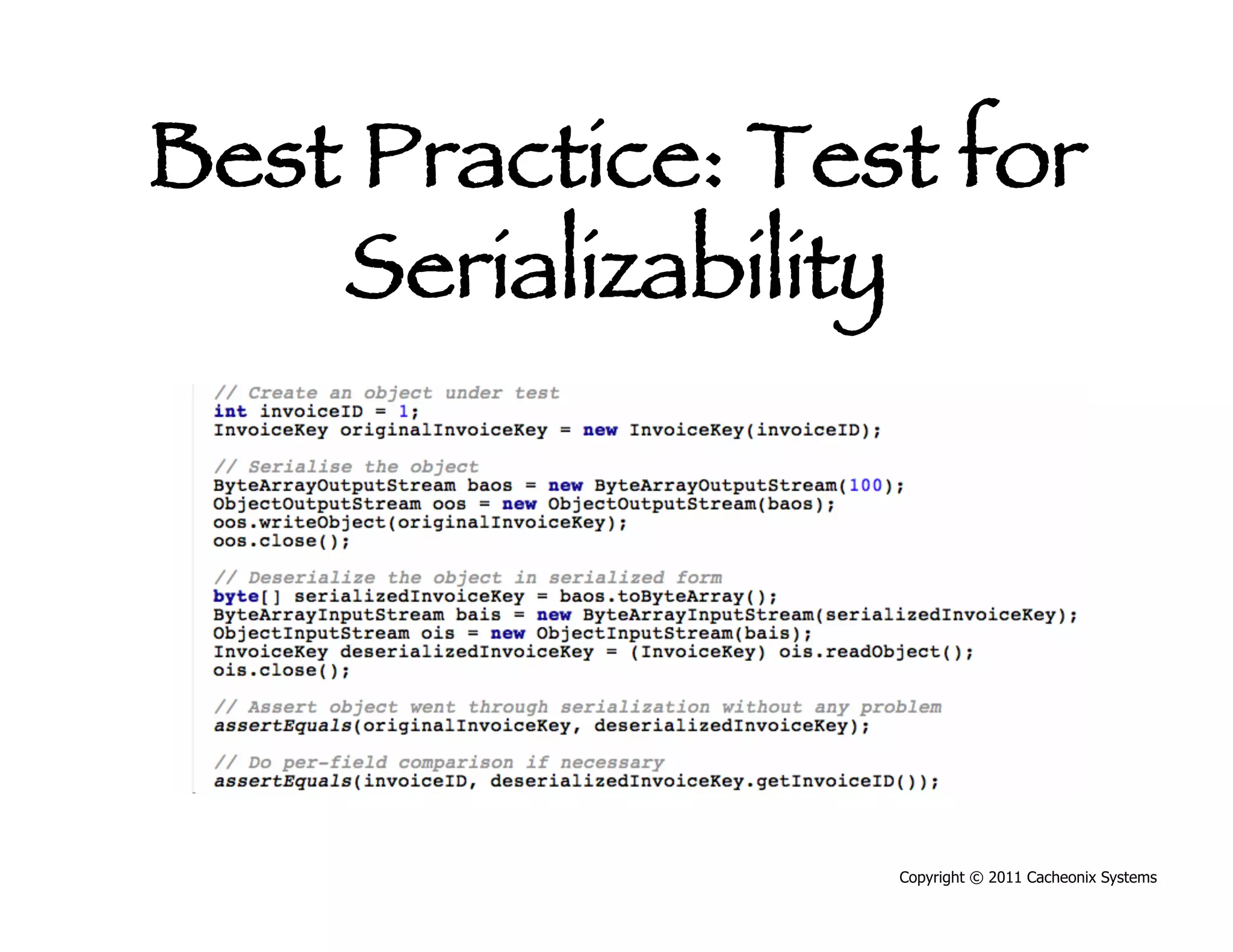

•  Test pattern: Serialize, deserialize, compare


Serializability

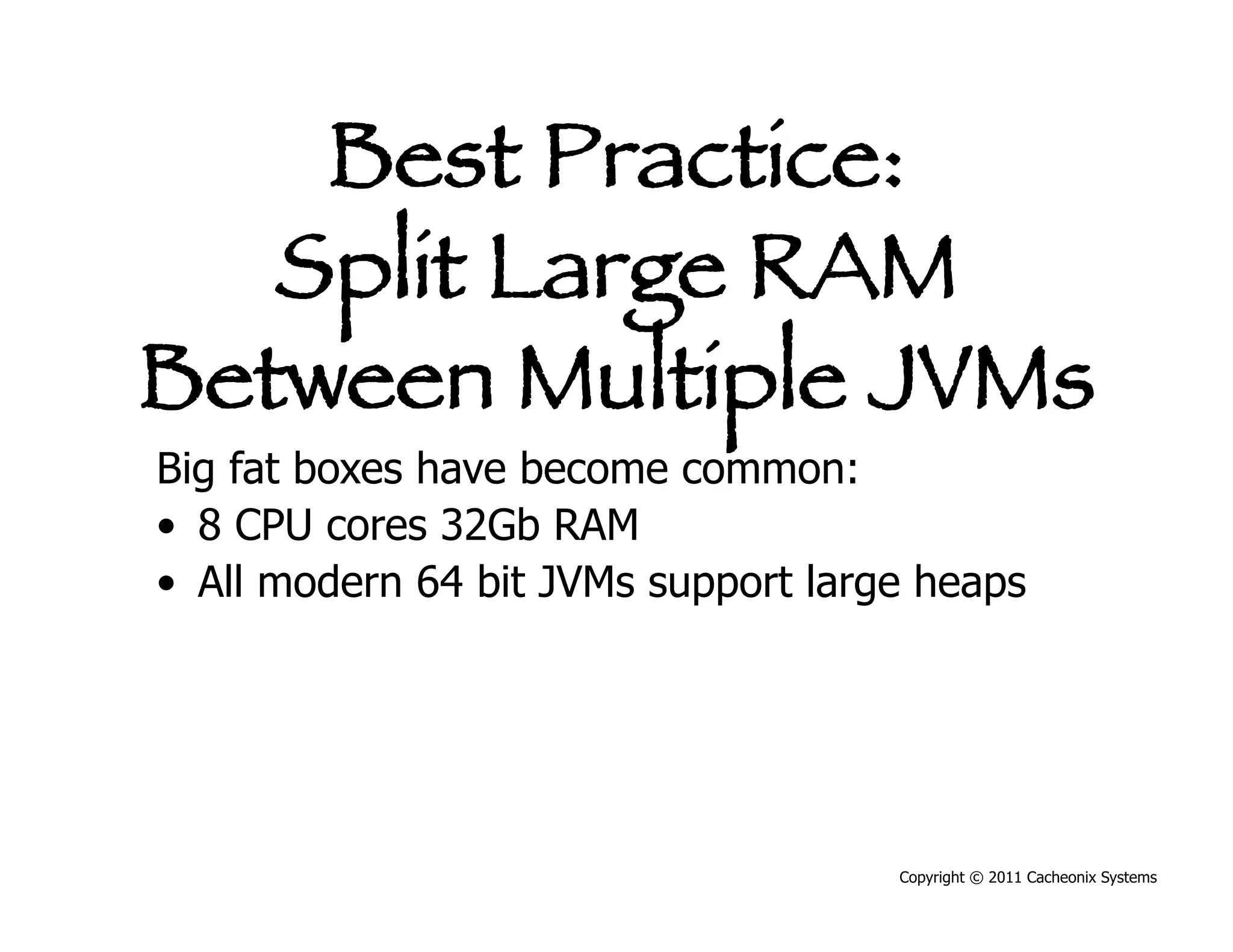

Best Practice:
Split Large RAM
Between Multiple JVMs
Big fat boxes have become common:
•  8 CPU cores 32Gb RAM
•  All modern 64 bit JVMs support large heaps

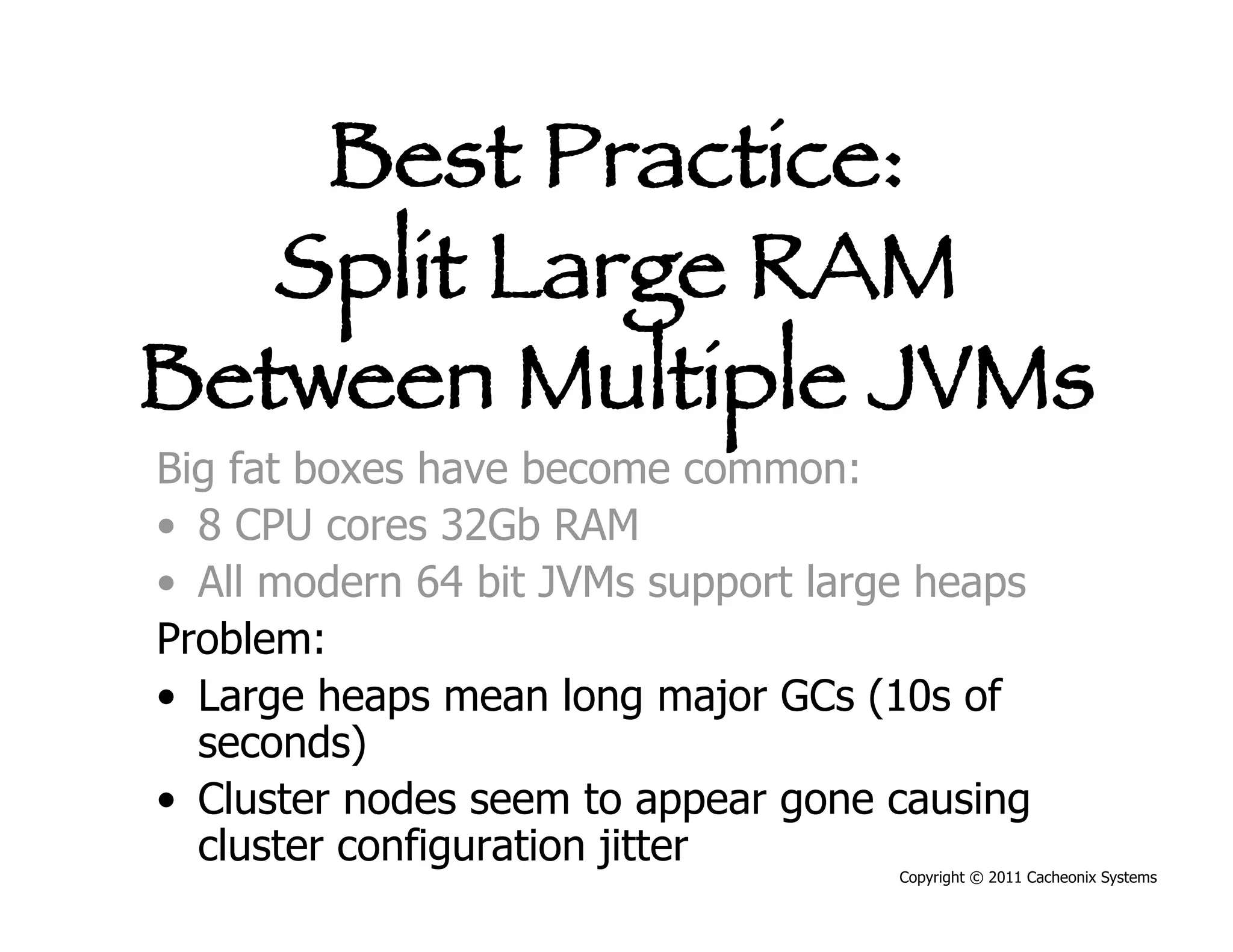

Best Practice:
Split Large RAM
Big fat boxes have become common:
•  8 CPU cores 32Gb RAM
•  All modern 64 bit JVMs support large heaps
Problem:
•  Large heaps mean long major GCs (10s of
seconds)
•  Cluster nodes seem to appear gone causing
cluster configuration jitter

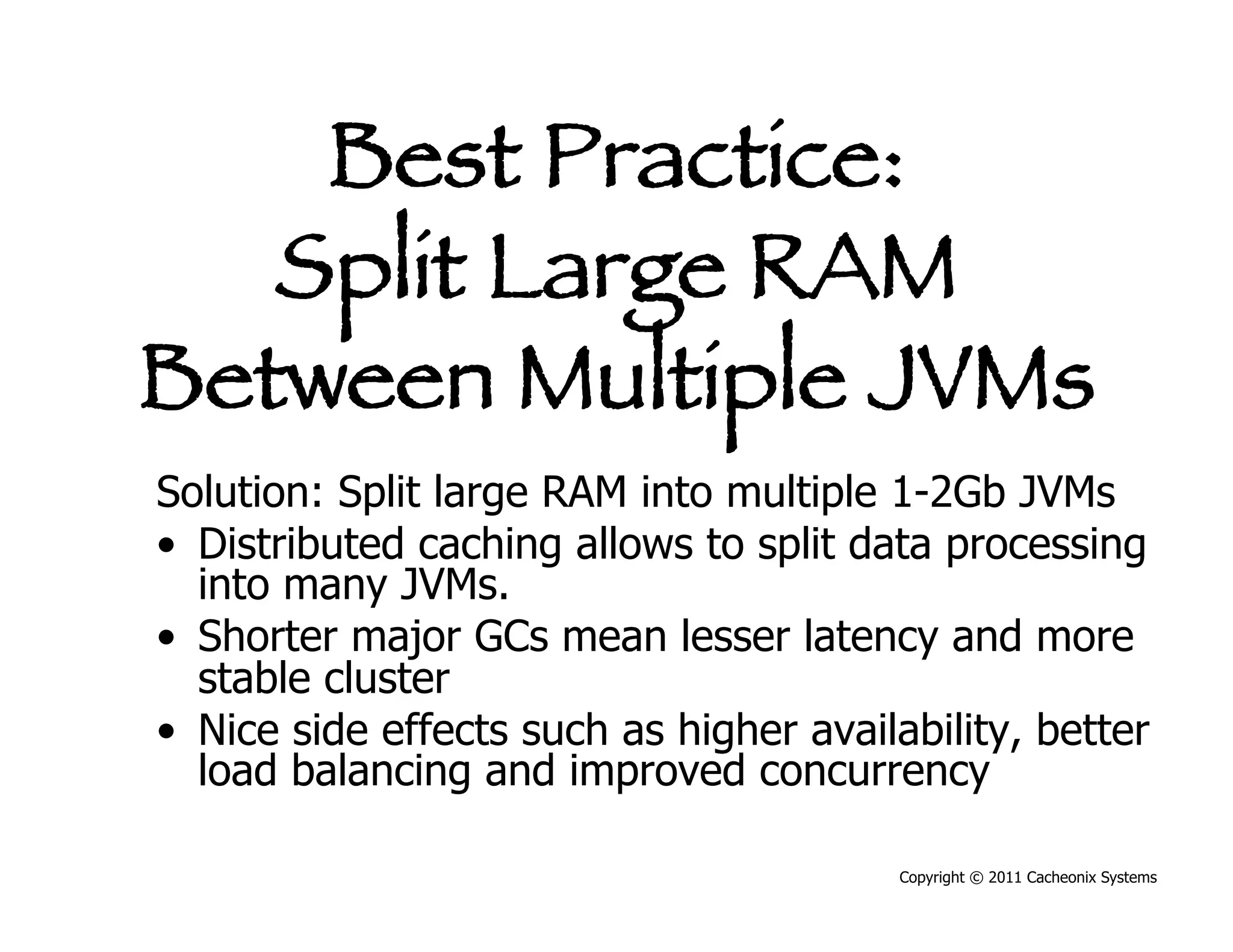

Best Practice:
Split Large RAM
Solution: Split large RAM into multiple 1-2Gb JVMs
•  Distributed caching allows to split data processing
into many JVMs.
•  Shorter major GCs mean lesser latency and more
stable cluster
•  Nice side effects such as higher availability, better
load balancing and improved concurrency

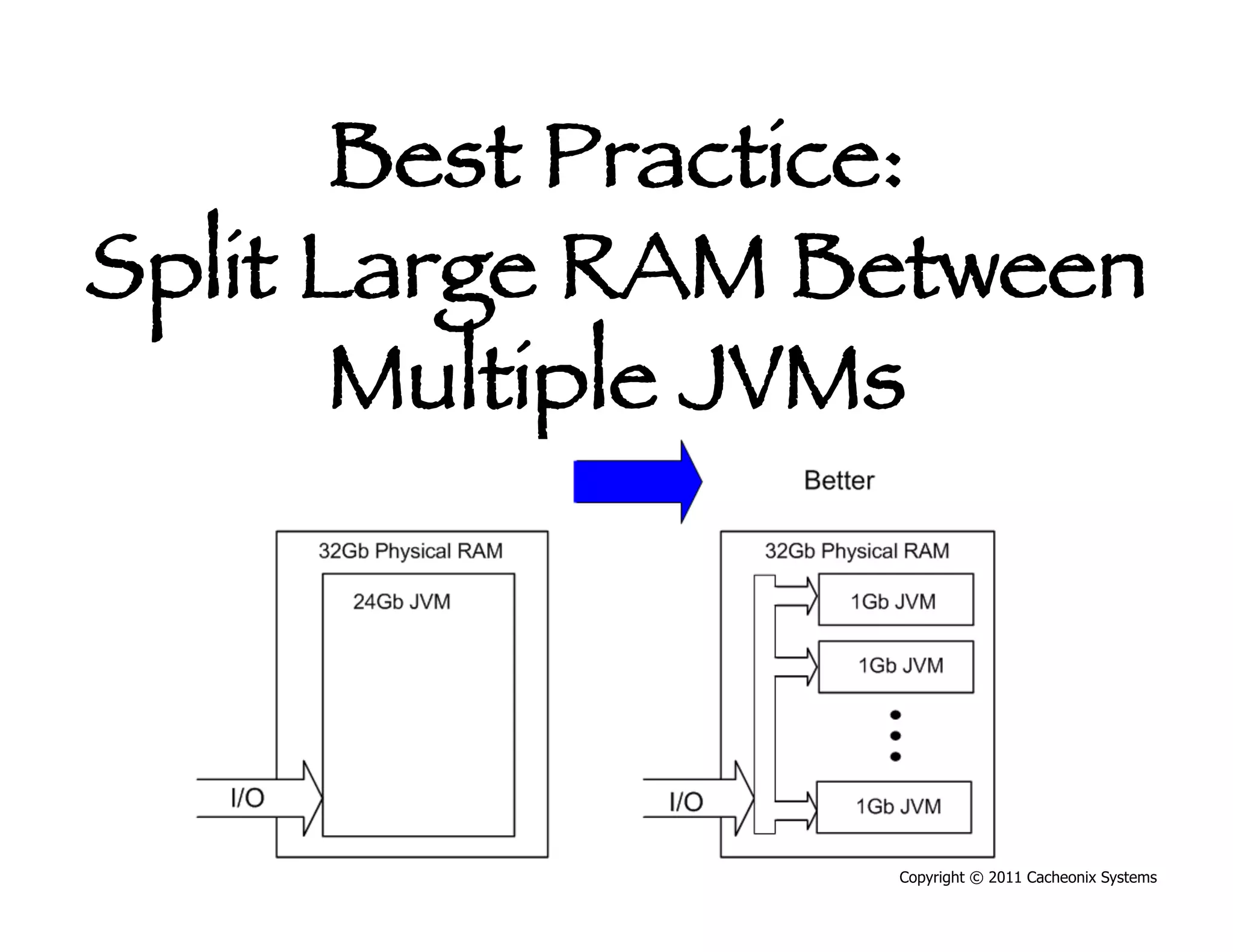

Best Practice:
Split Large RAM Between
Multiple JVMs

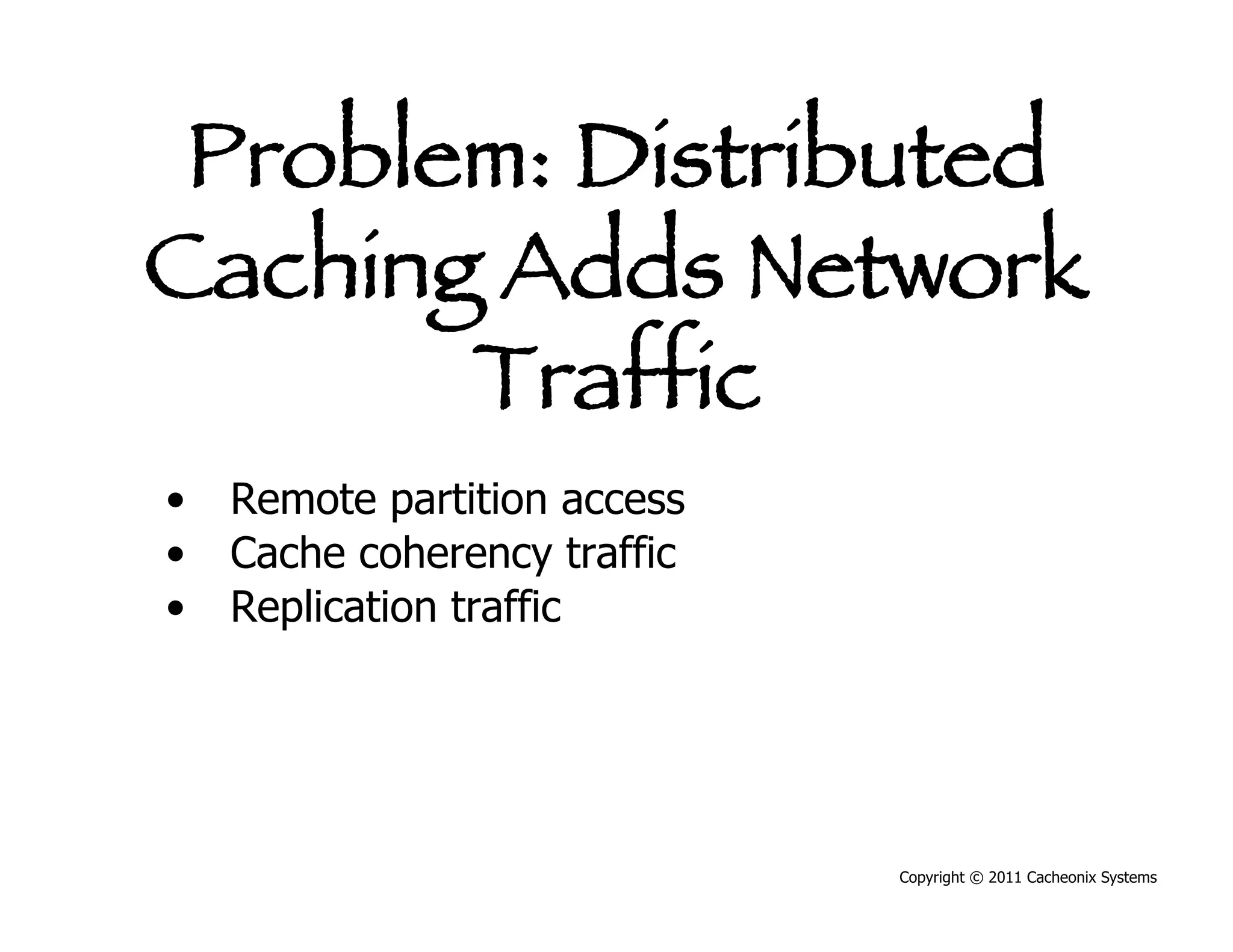

Problem: Distributed
Caching Adds Network
Traffic
•  Remote partition access
•  Cache coherency traffic
•  Replication traffic

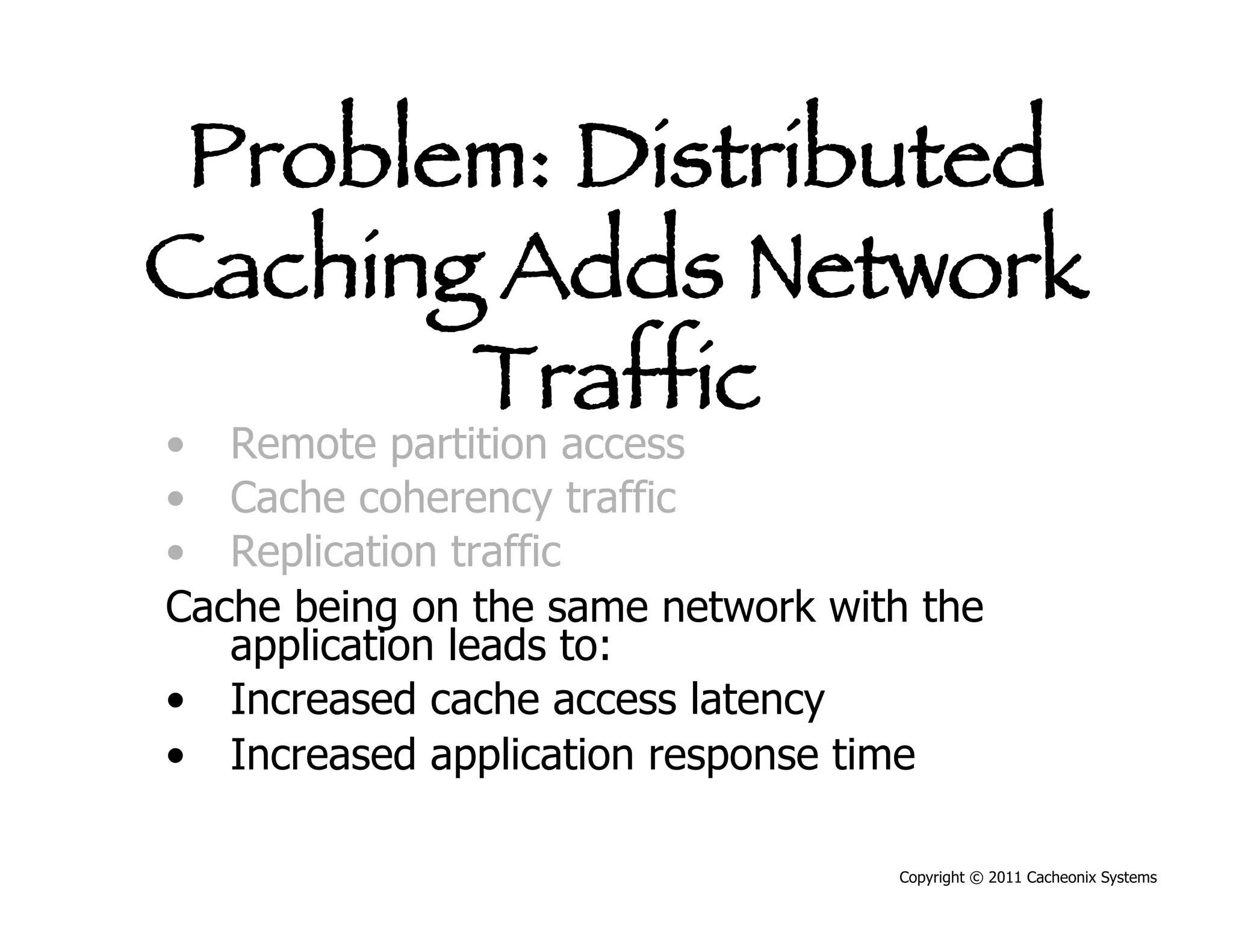

Problem: Distributed
Caching Adds Network
Traffic
•  Remote partition access
•  Cache coherency traffic
•  Replication traffic
Cache being on the same network with the
application leads to:
•  Increased cache access latency
•  Increased application response time

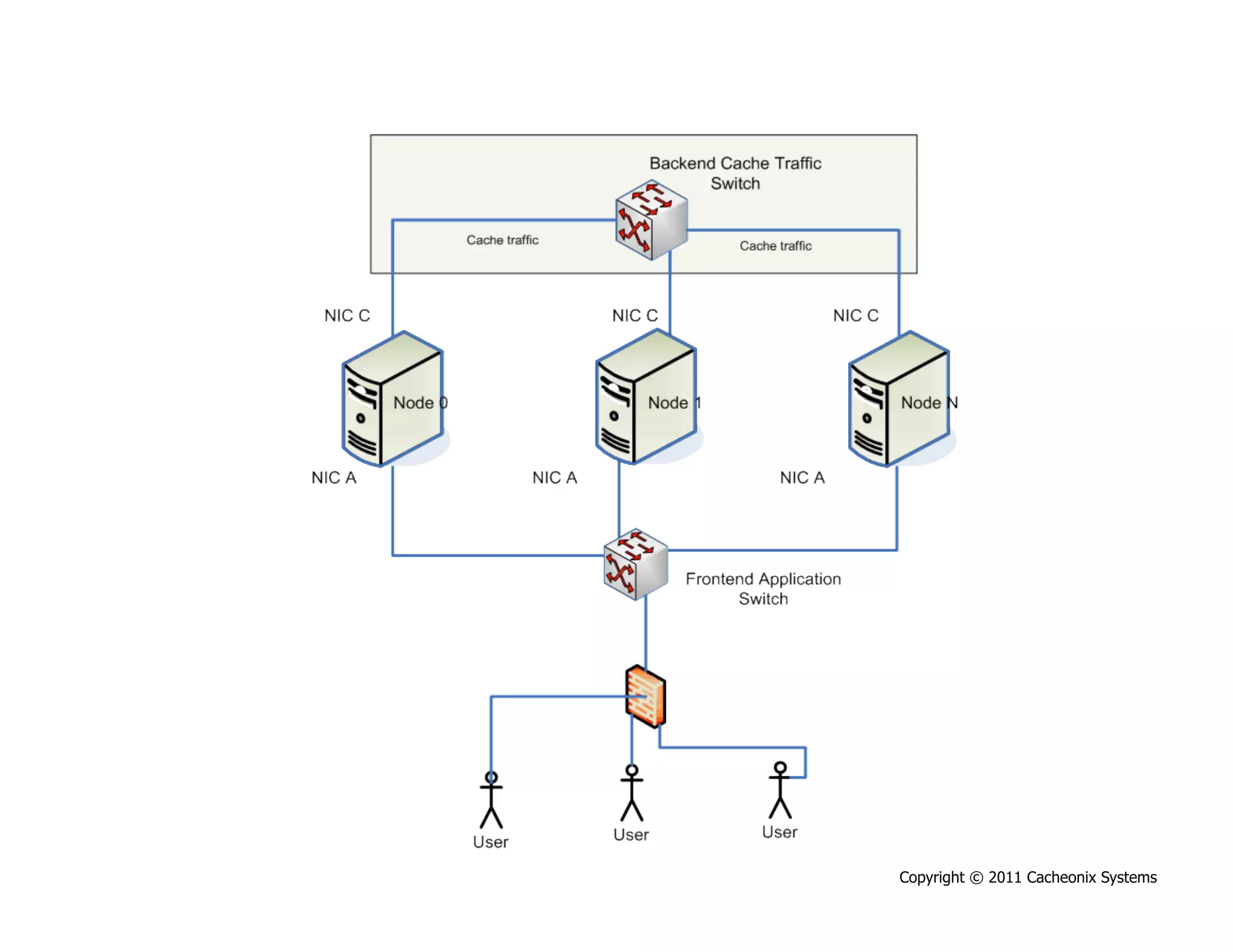

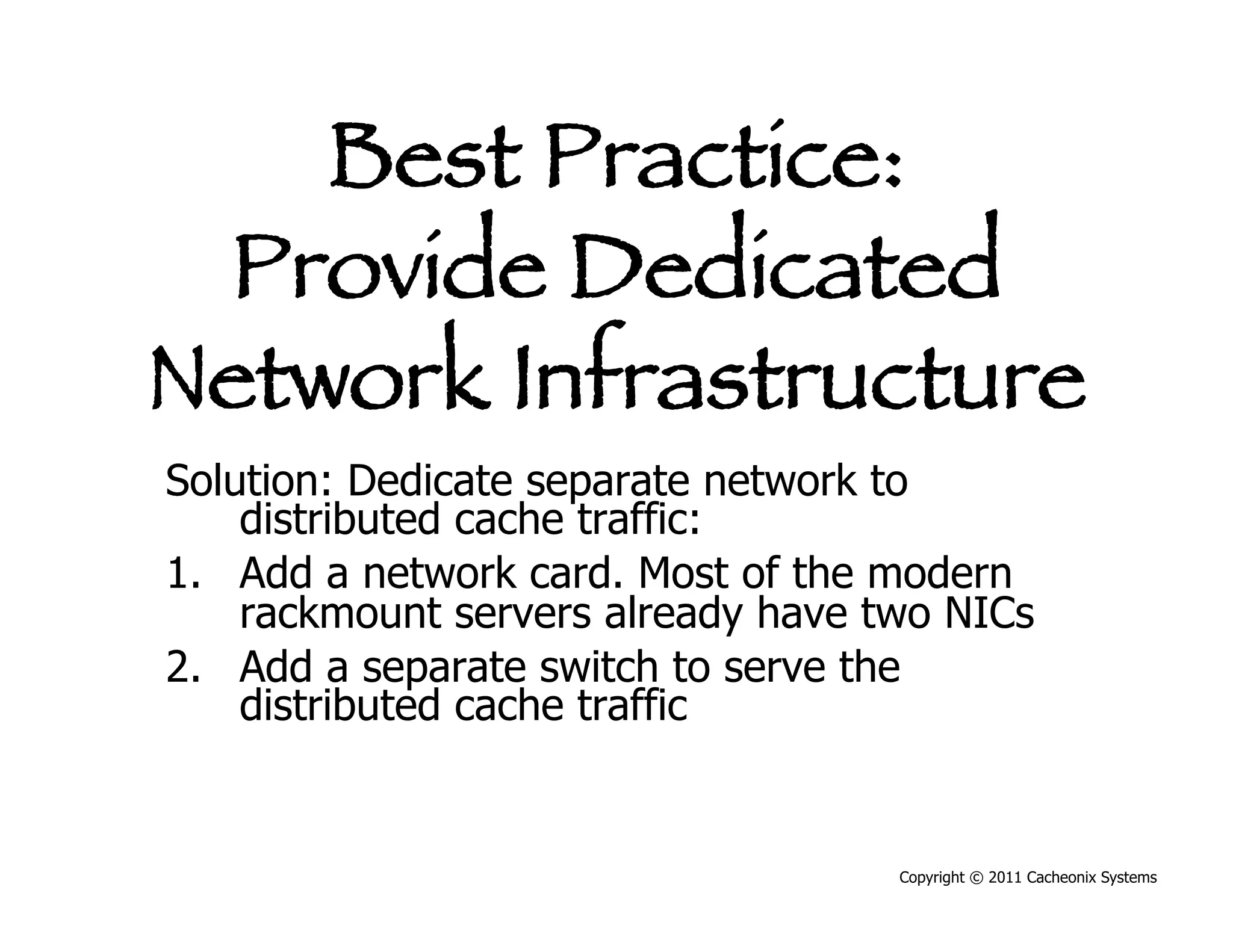

Best Practice:
Provide Dedicated
Network Infrastructure
Solution: Dedicate separate network to
distributed cache traffic:
1.  Add a network card. Most of the modern
rackmount servers already have two NICs
2.  Add a separate switch to serve the
distributed cache traffic

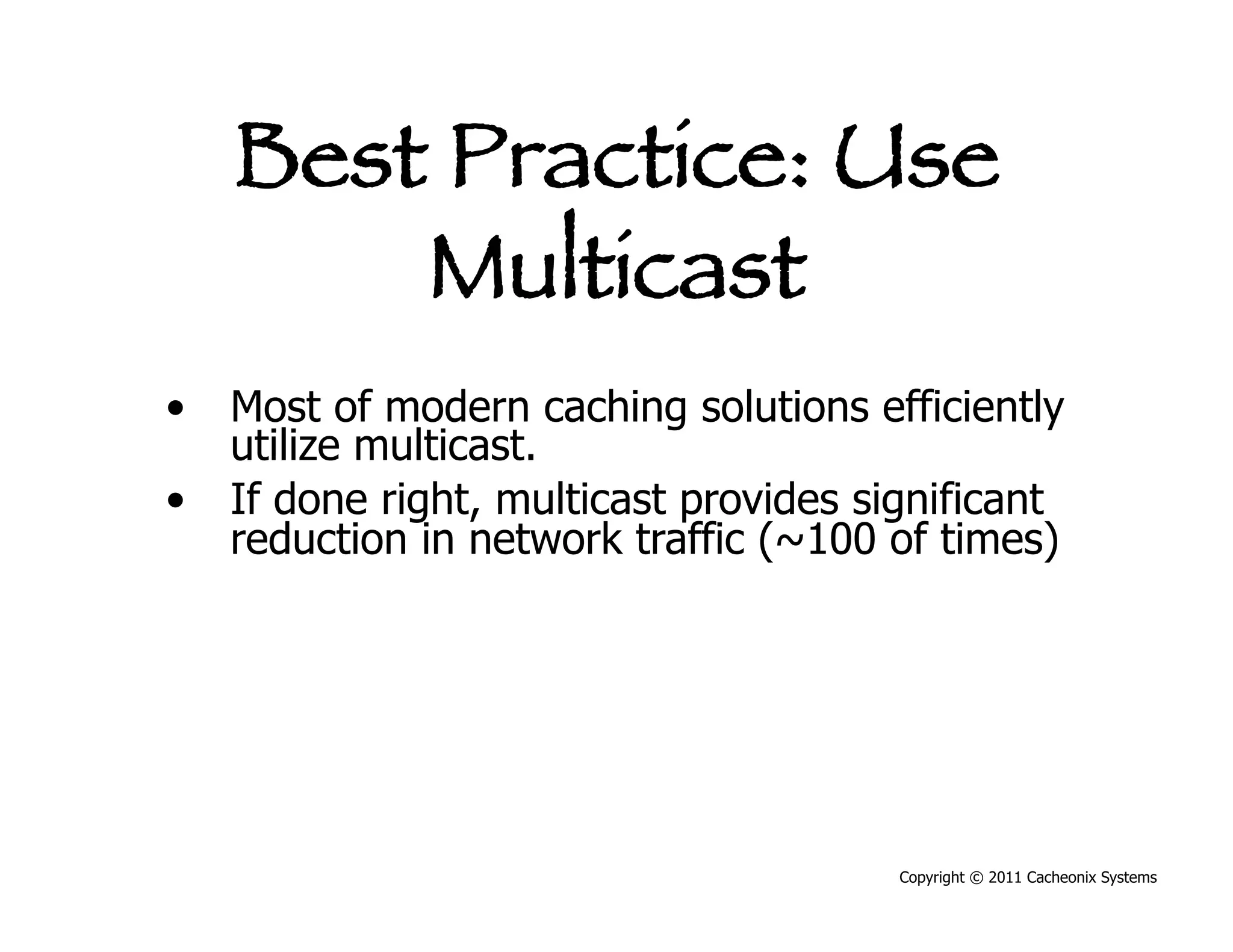

Best Practice: Use
Multicast
•  Most of modern caching solutions efficiently
utilize multicast.
•  If done right, multicast provides significant
reduction in network traffic (~100 of times)

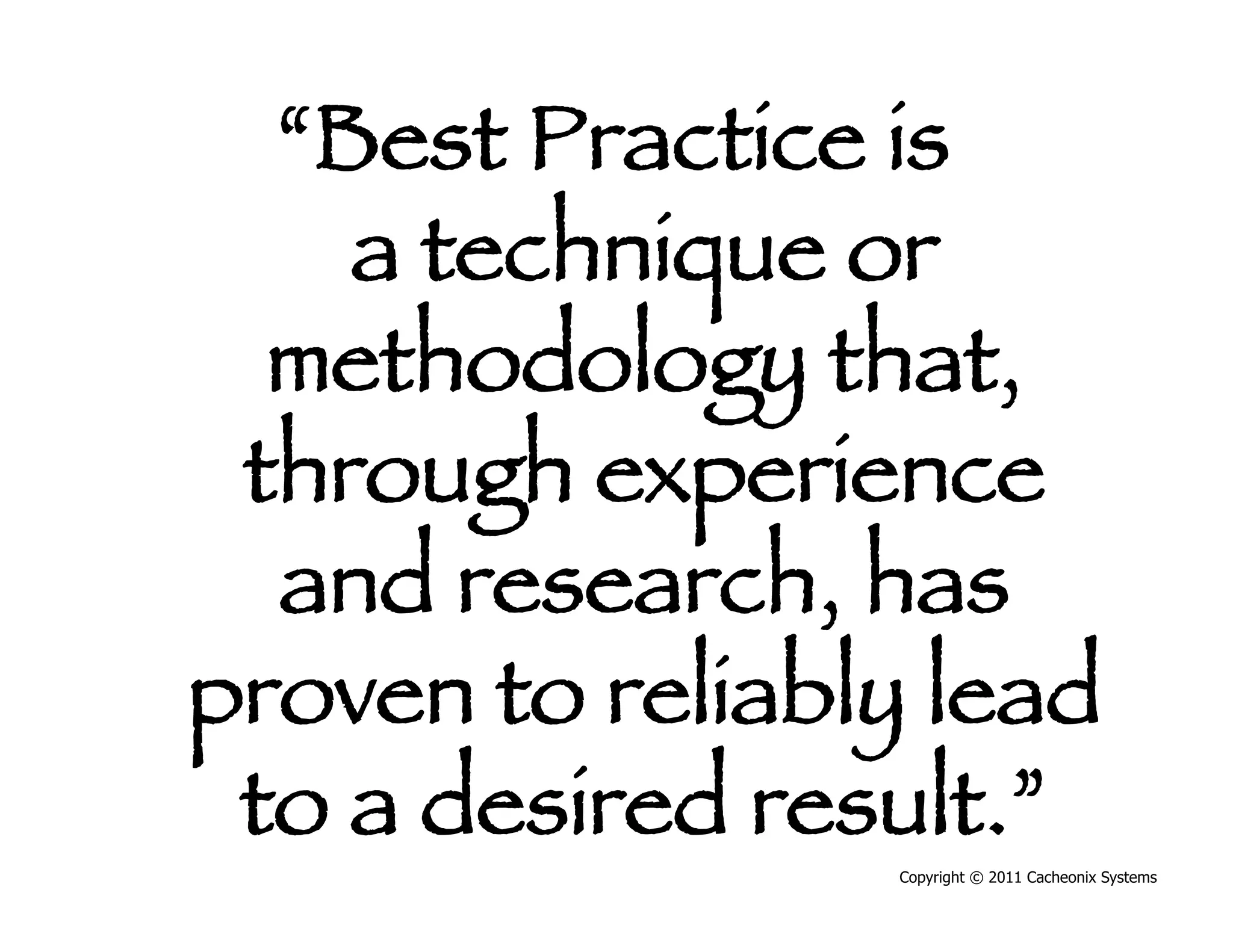

“Best Practice is
a technique or
methodology that,
through experience
and research, has
proven to reliably lead
to a desired result.”

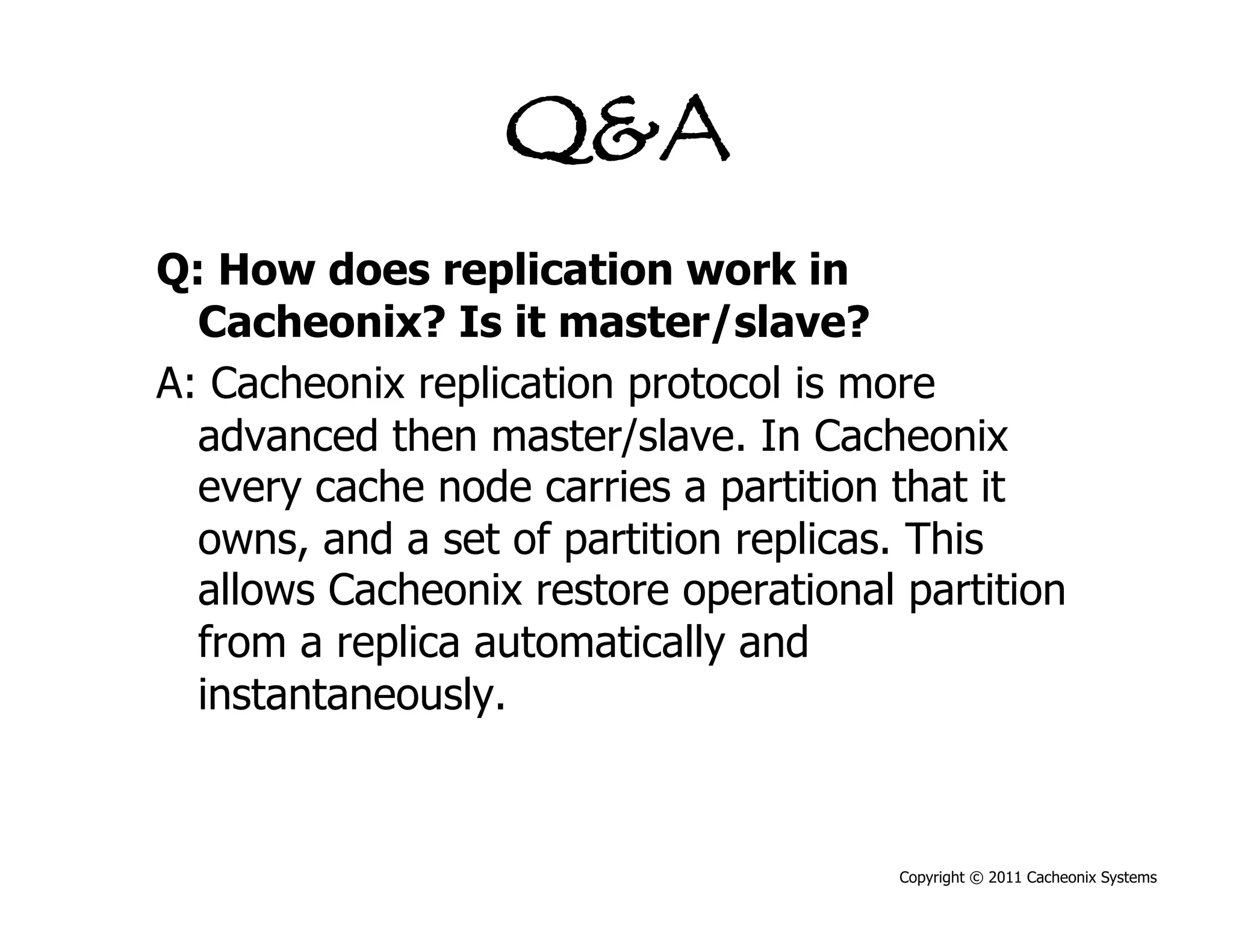

Q&A
Q: How does replication work in
Cacheonix? Is it master/slave?
A: Cacheonix replication protocol is more
advanced then master/slave. In Cacheonix
every cache node carries a partition that it
owns, and a set of partition replicas. This
allows Cacheonix restore operational partition
from a replica automatically and
instantaneously.

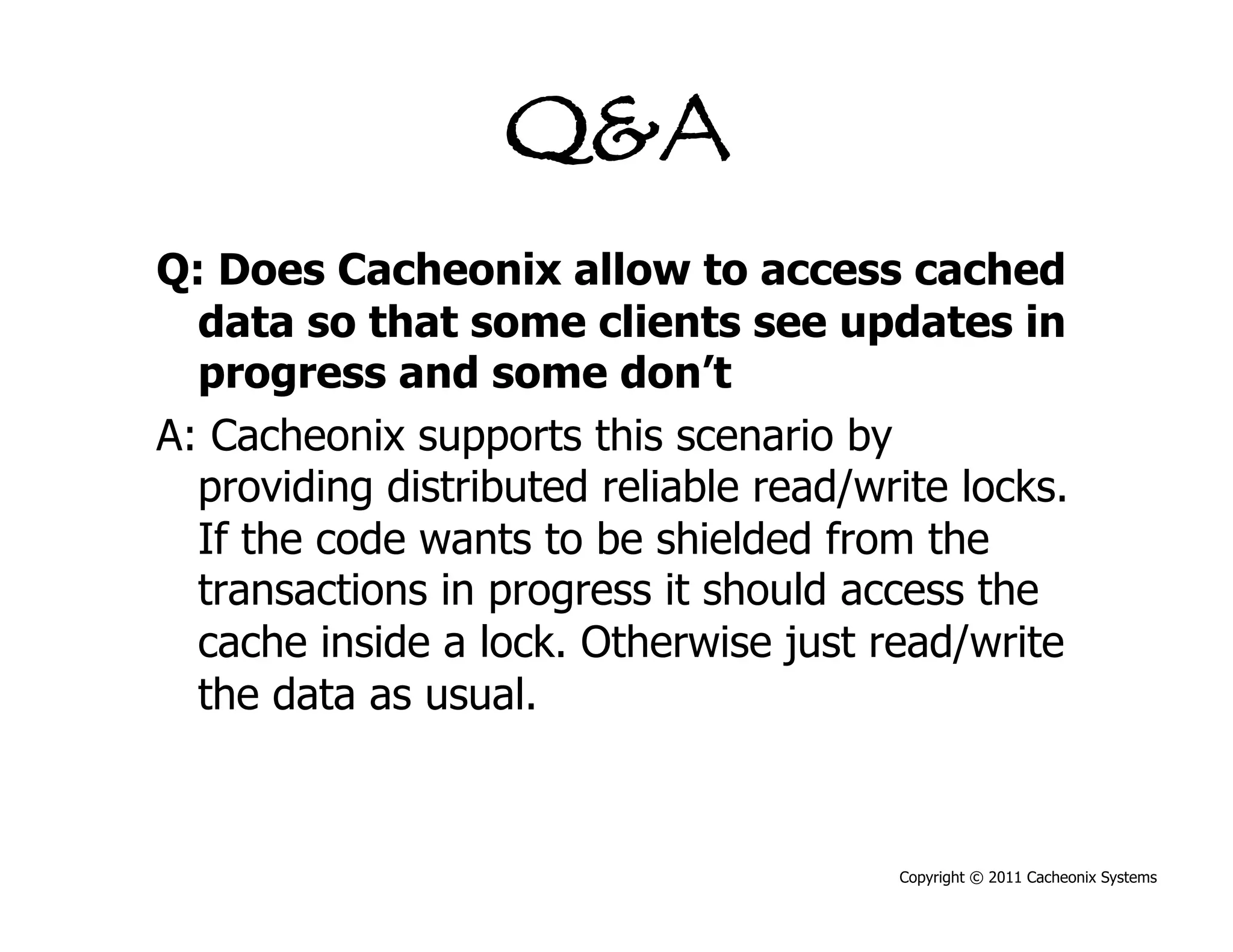

Q&A
Q: Does Cacheonix allow to access cached
data so that some clients see updates in
progress and some don’t
A: Cacheonix supports this scenario by
providing distributed reliable read/write locks.
If the code wants to be shielded from the
transactions in progress it should access the
cache inside a lock. Otherwise just read/write
the data as usual.

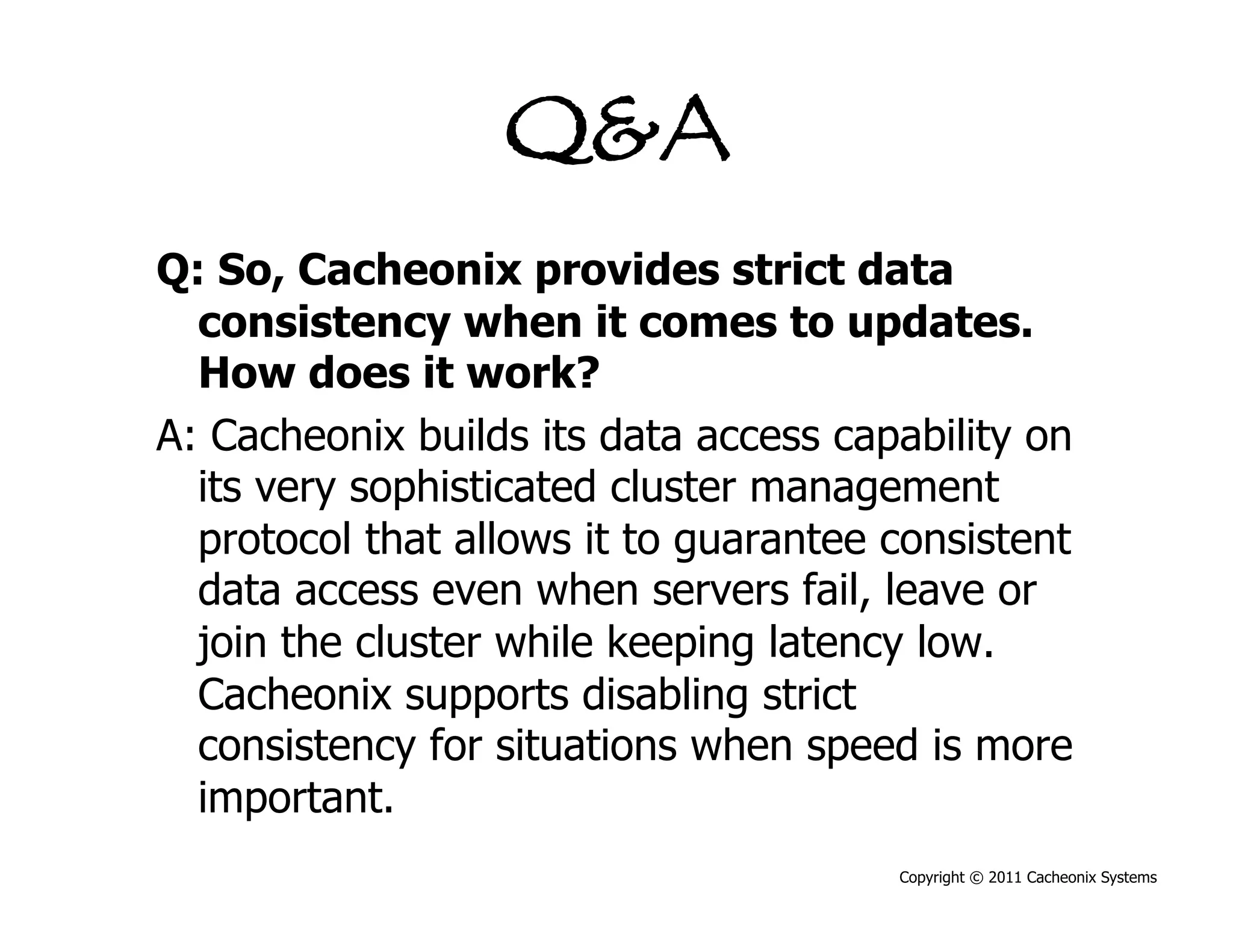

Q&A
Q: So, Cacheonix provides strict data
consistency when it comes to updates.
How does it work?
A: Cacheonix builds its data access capability on
its very sophisticated cluster management
protocol that allows it to guarantee consistent
data access even when servers fail, leave or
join the cluster while keeping latency low.
Cacheonix supports disabling strict
consistency for situations when speed is more
important.

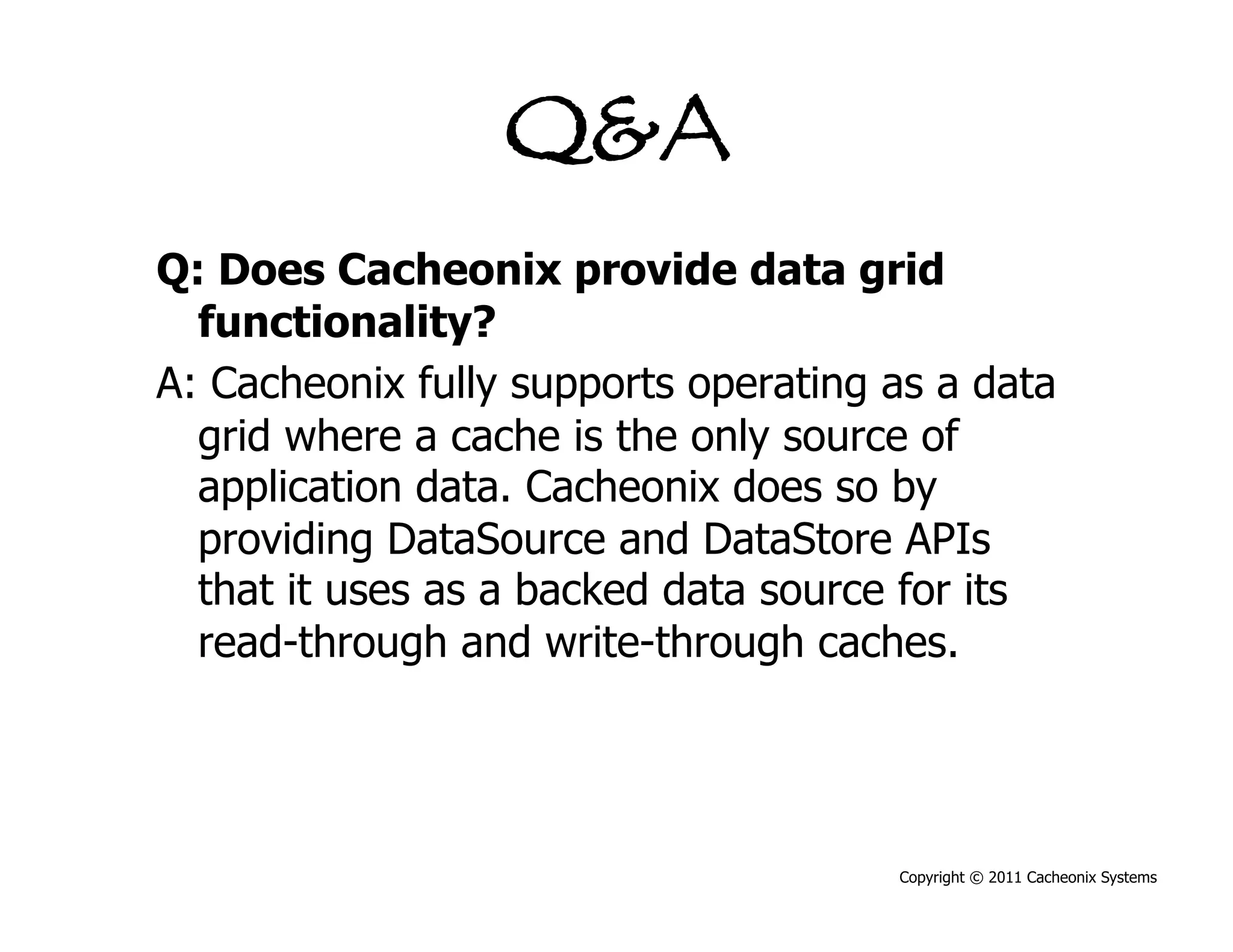

Q&A
Q: Does Cacheonix provide data grid
functionality?
A: Cacheonix fully supports operating as a data
grid where a cache is the only source of
application data. Cacheonix does so by
providing DataSource and DataStore APIs
that it uses as a backed data source for its
read-through and write-through caches.

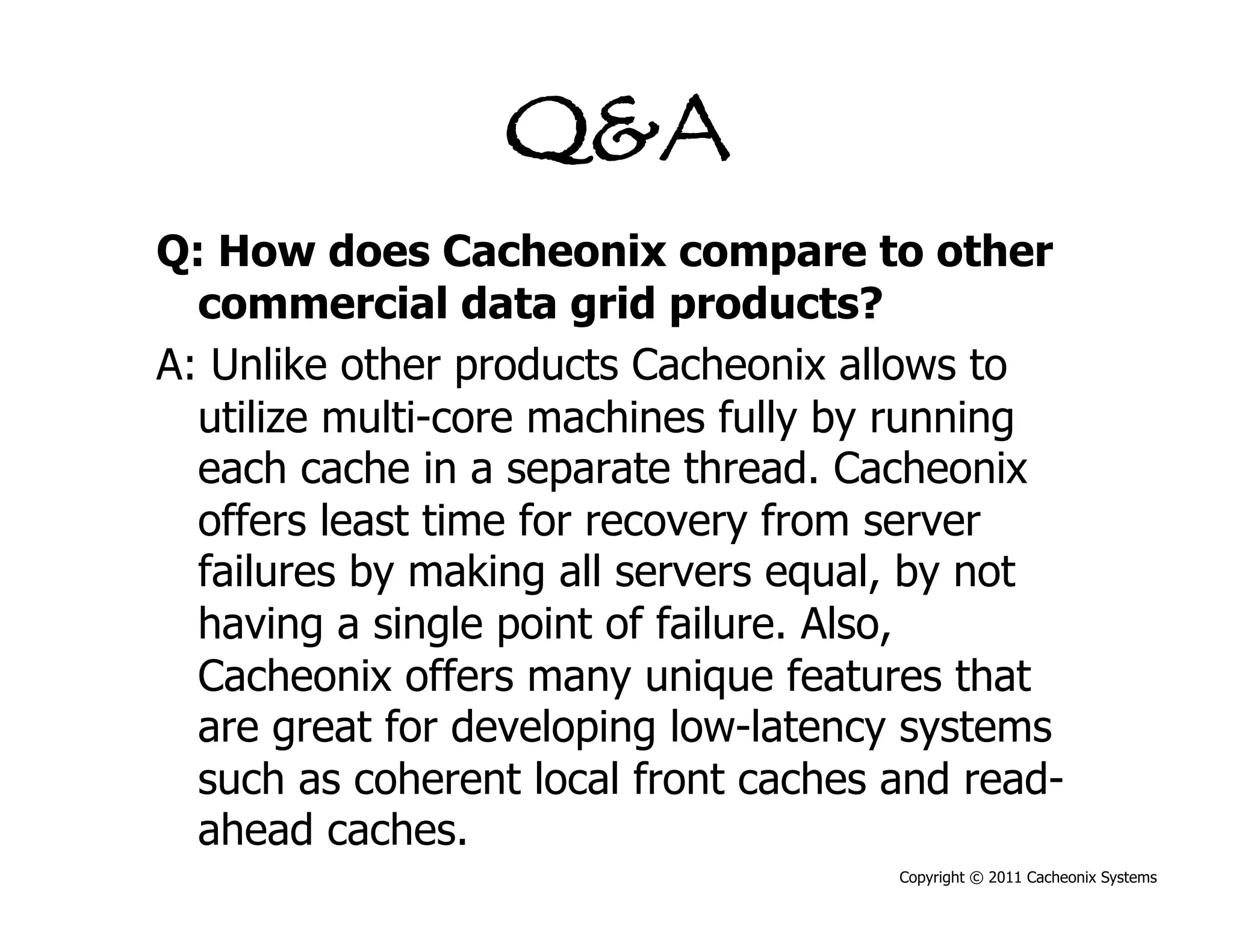

Q&A
Q: How does Cacheonix compare to other
commercial data grid products?
A: Unlike other products Cacheonix allows to
utilize multi-core machines fully by running
each cache in a separate thread. Cacheonix
offers least time for recovery from server
failures by making all servers equal, by not
having a single point of failure. Also,
Cacheonix offers many unique features that
are great for developing low-latency systems
such as coherent local front caches and read-
ahead caches.

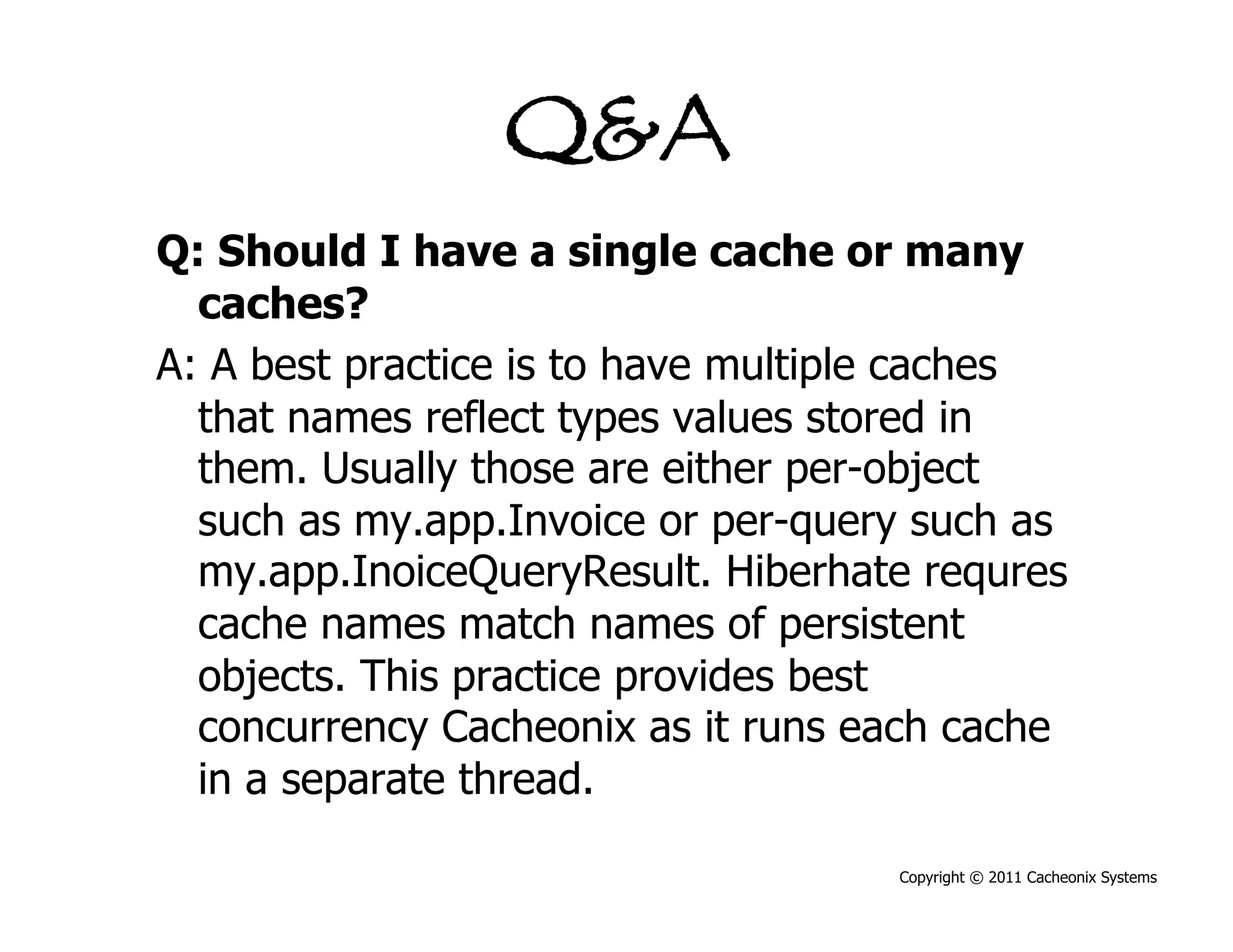

Q&A
Q: Should I have a single cache or many
caches?
A: A best practice is to have multiple caches
that names reflect types values stored in
them. Usually those are either per-object
such as my.app.Invoice or per-query such as
my.app.InoiceQueryResult. Hiberhate requres
cache names match names of persistent
objects. This practice provides best
concurrency Cacheonix as it runs each cache
in a separate thread.

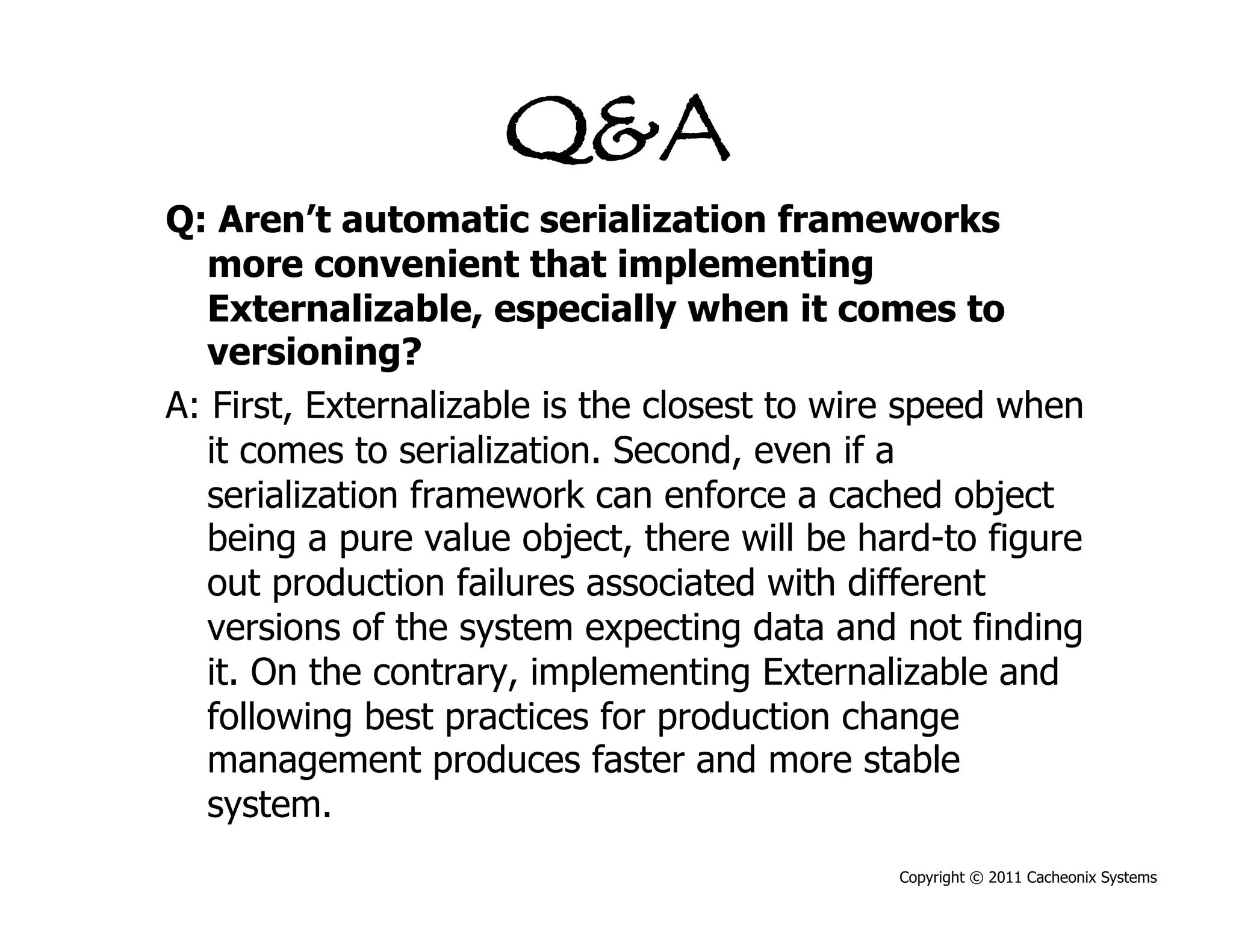

Q&A
Q: Aren’t automatic serialization frameworks
more convenient that implementing
Externalizable, especially when it comes to
versioning?
A: First, Externalizable is the closest to wire speed when
it comes to serialization. Second, even if a
serialization framework can enforce a cached object
being a pure value object, there will be hard-to figure
out production failures associated with different
versions of the system expecting data and not finding
it. On the contrary, implementing Externalizable and
following best practices for production change
management produces faster and more stable
system.

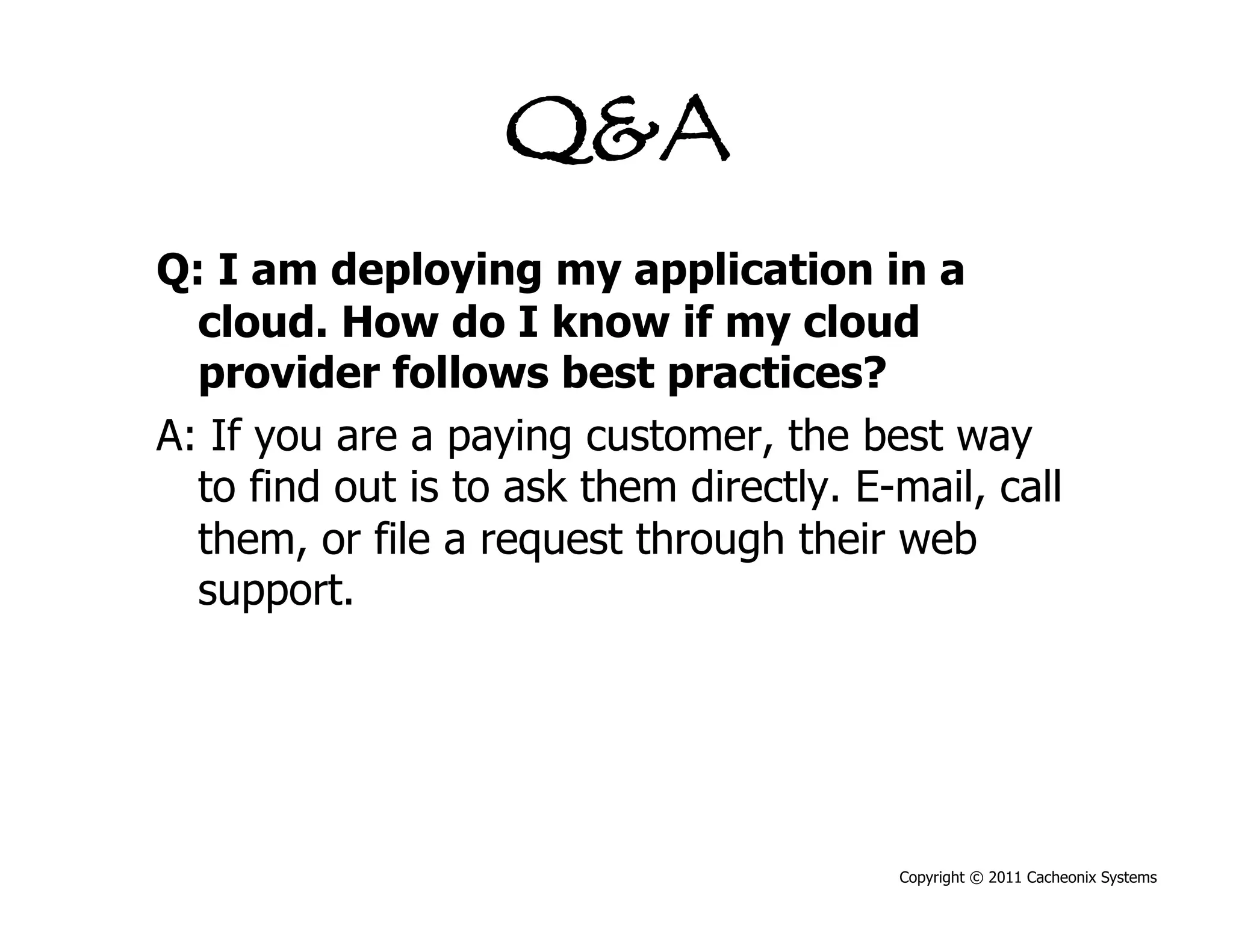

Q&A
Q: I am deploying my application in a
cloud. How do I know if my cloud
provider follows best practices?
A: If you are a paying customer, the best way
to find out is to ask them directly. E-mail, call
them, or file a request through their web
support.


Need help with scaling your application and
improving its performance with distributed
caching?
Visit us at www.cacheonix.com


Thank you!


Best practices for_scaling_java_applications_with_distributed_caching

More Related Content

What's hot

Viewers also liked

Similar to Best practices for_scaling_java_applications_with_distributed_caching

More from yamingd

Recently uploaded

Best practices for_scaling_java_applications_with_distributed_caching
