2-Agents- Artificial Intelligence

Artificial
Intelligence I :
Intelligent Agents
Lecturer: Tom Lenaerts
Institut de Recherches Interdisciplinaires et de
Développements en Intelligence Artificielle
(IRIDIA)
Université Libre de Bruxelles

TLo (IRIDIA) 2October 13, 2015

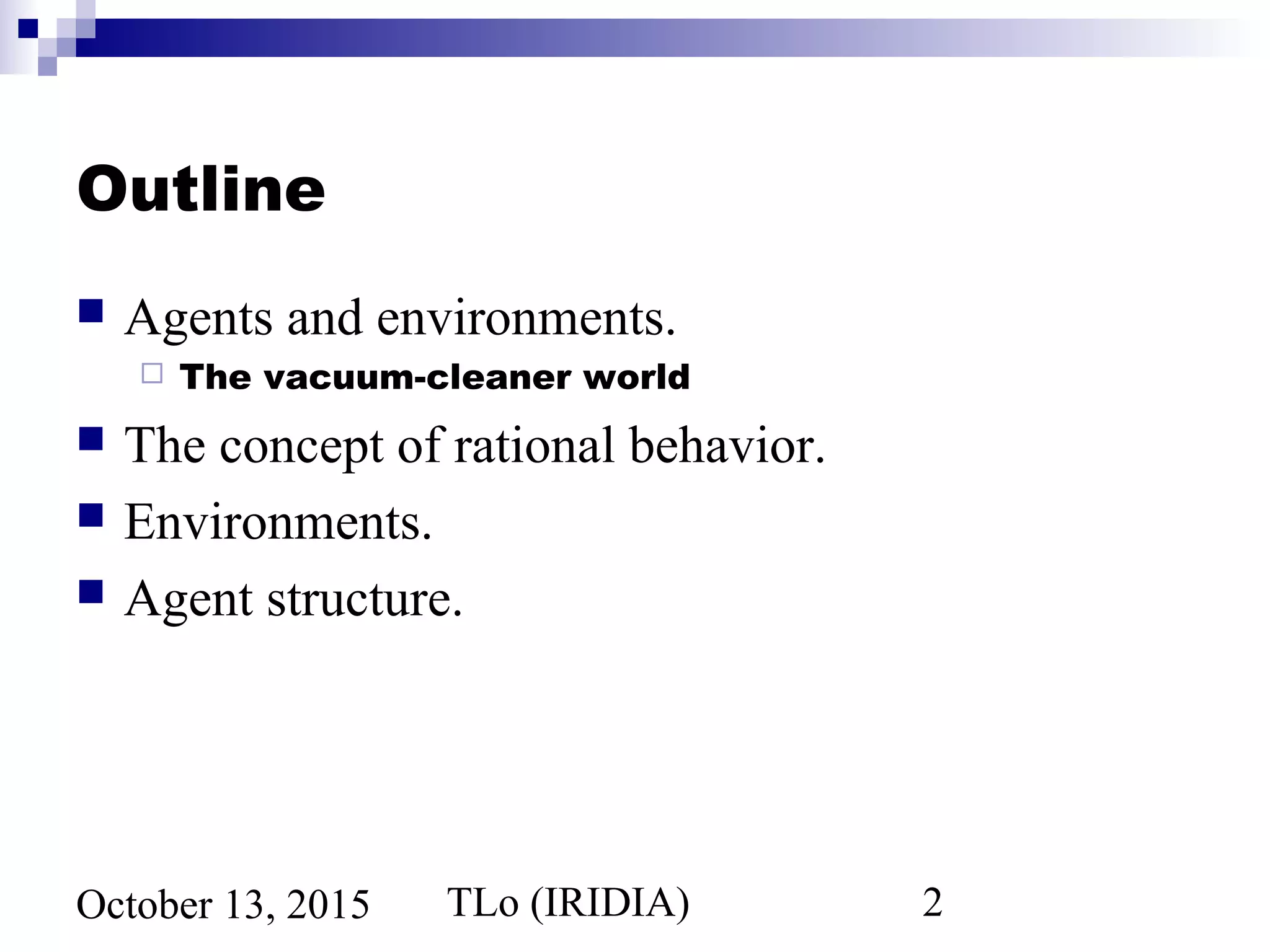

Outline
 Agents and environments.
 The vacuum-cleaner world
 The concept of rational behavior.
 Environments.
 Agent structure.

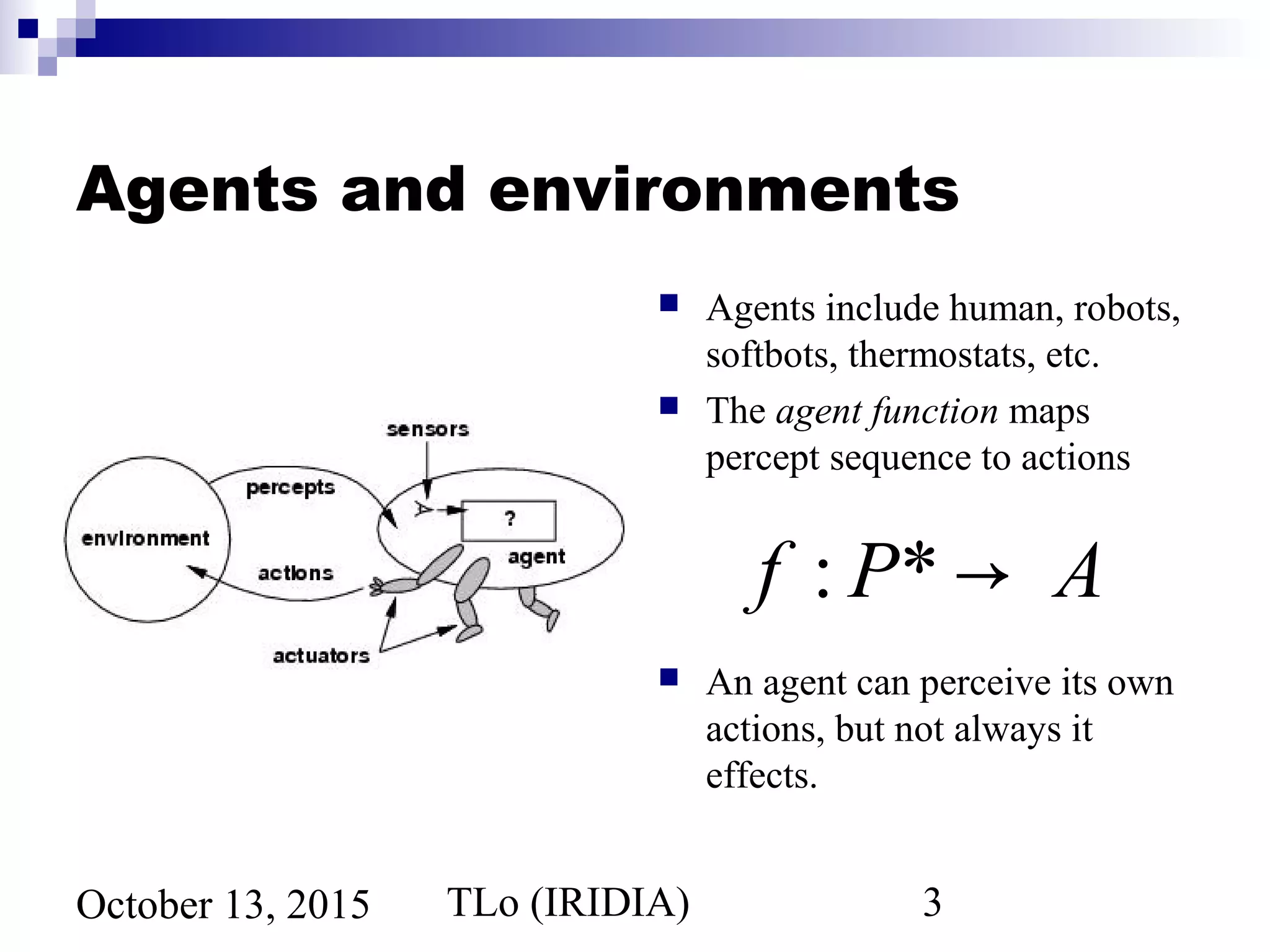

Agents and environments
 Agents include human, robots,
softbots, thermostats, etc.
 The agent function maps
percept sequence to actions
 An agent can perceive its own
actions, but not always it
effects.
f : P* → A

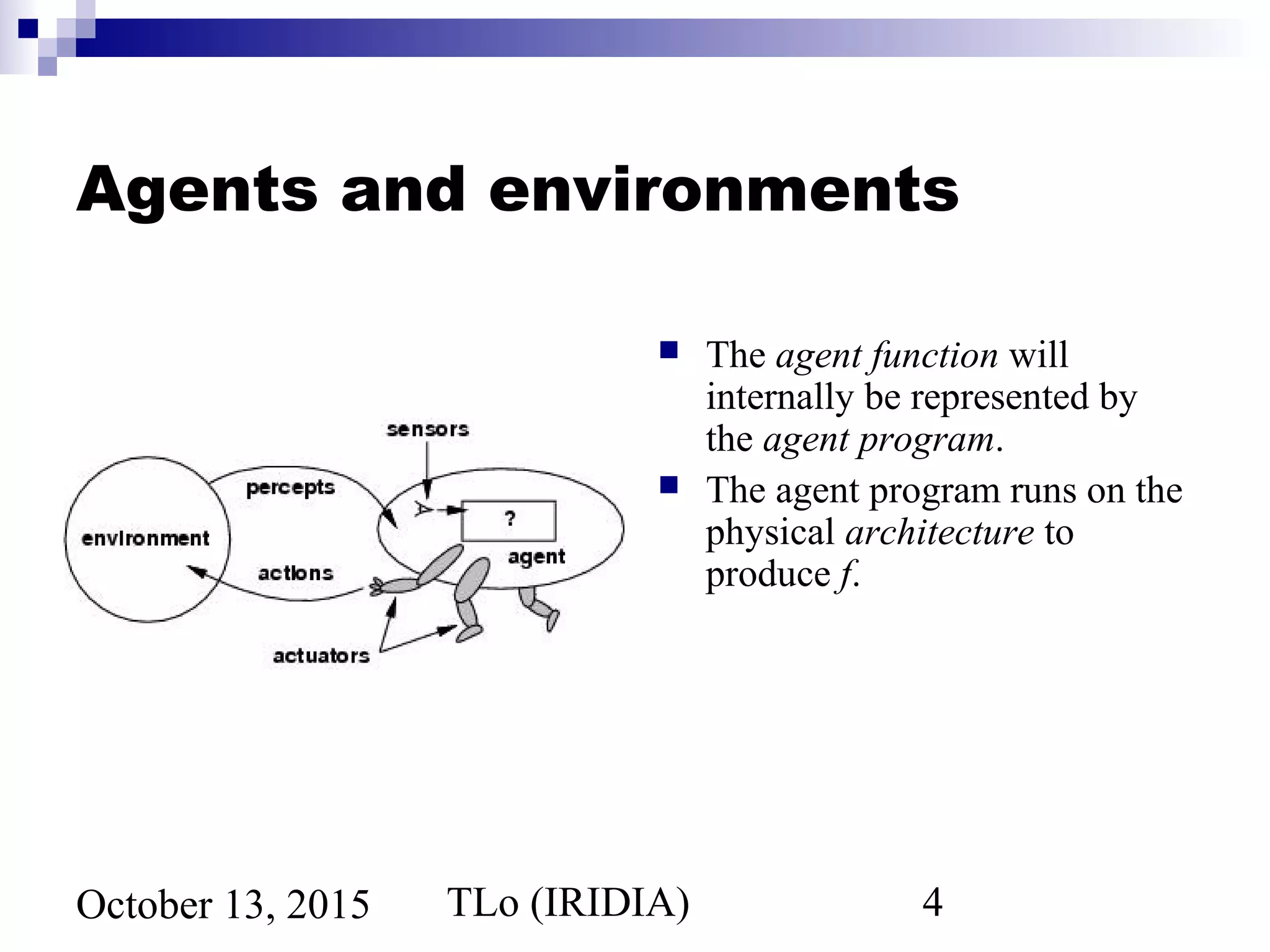

Agents and environments
 The agent function will
internally be represented by
the agent program.
 The agent program runs on the
physical architecture to
produce f.

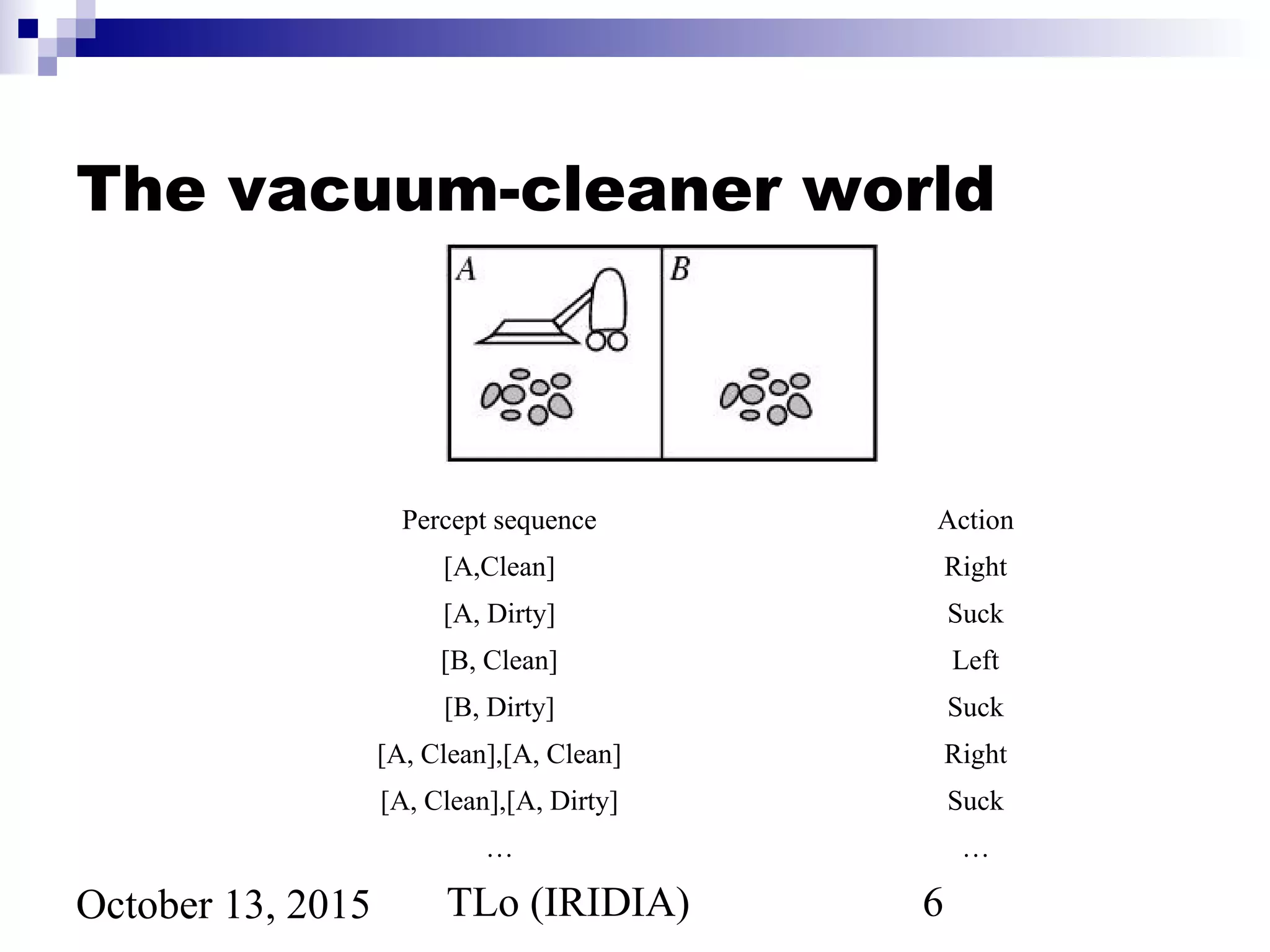

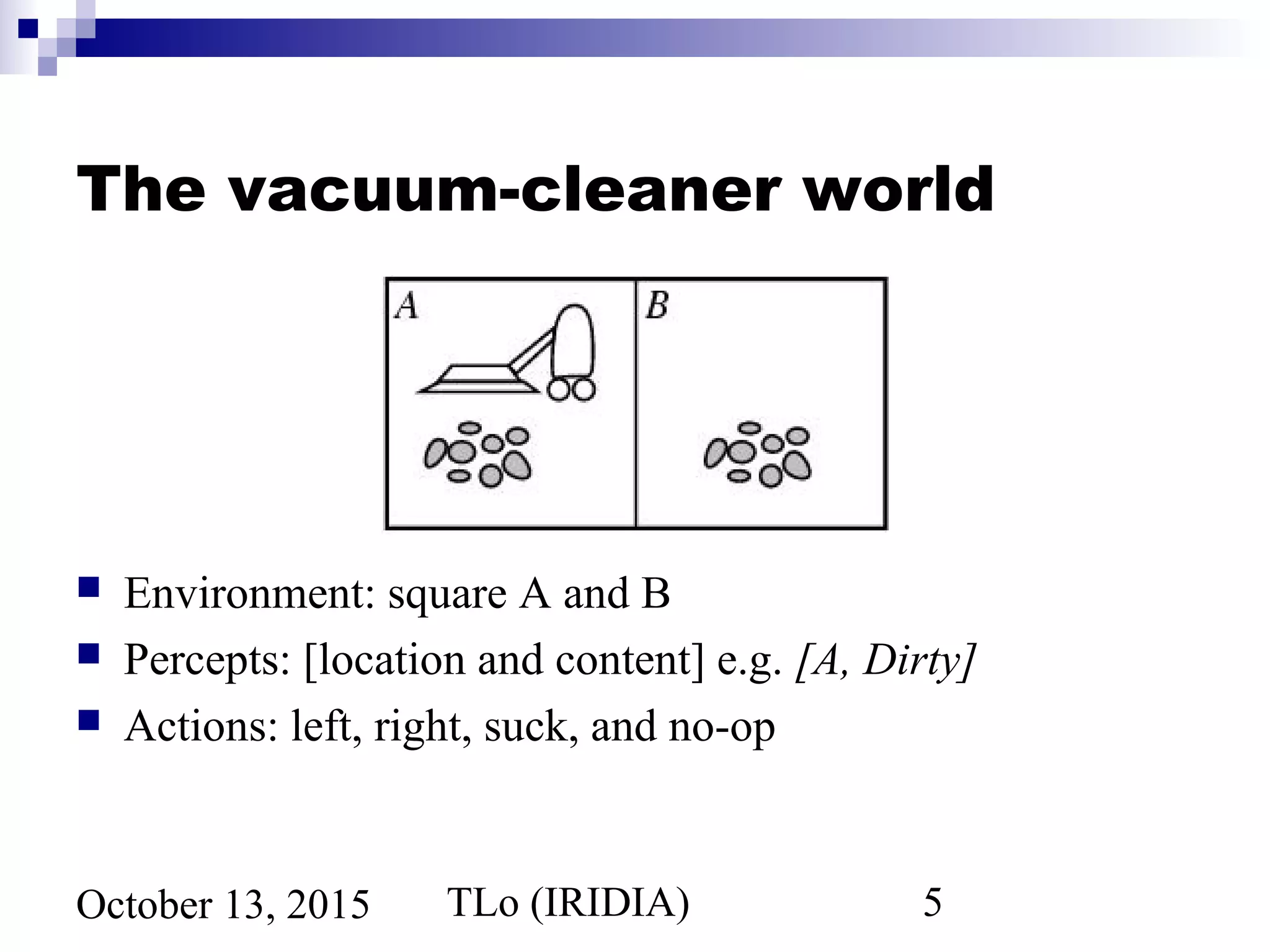

The vacuum-cleaner world
 Environment: square A and B
 Percepts: [location and content] e.g. [A, Dirty]
 Actions: left, right, suck, and no-op

Percept sequence Action
[A,Clean] Right
[A, Dirty] Suck
[B, Clean] Left
[B, Dirty] Suck
[A, Clean],[A, Clean] Right
[A, Clean],[A, Dirty] Suck
… …

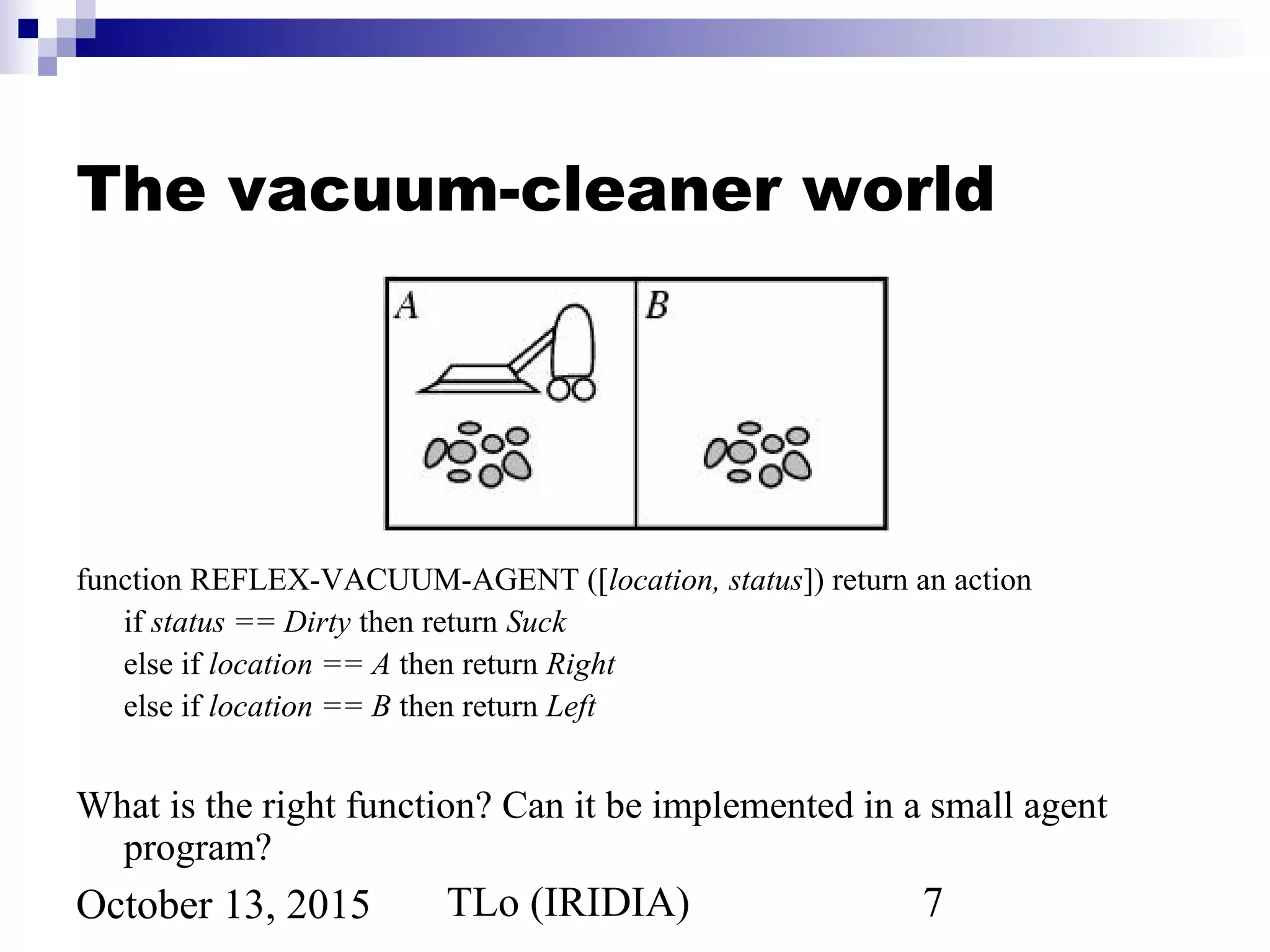

function REFLEX-VACUUM-AGENT ([location, status]) return an action
if status == Dirty then return Suck
else if location == A then return Right
else if location == B then return Left
What is the right function? Can it be implemented in a small agent
program?

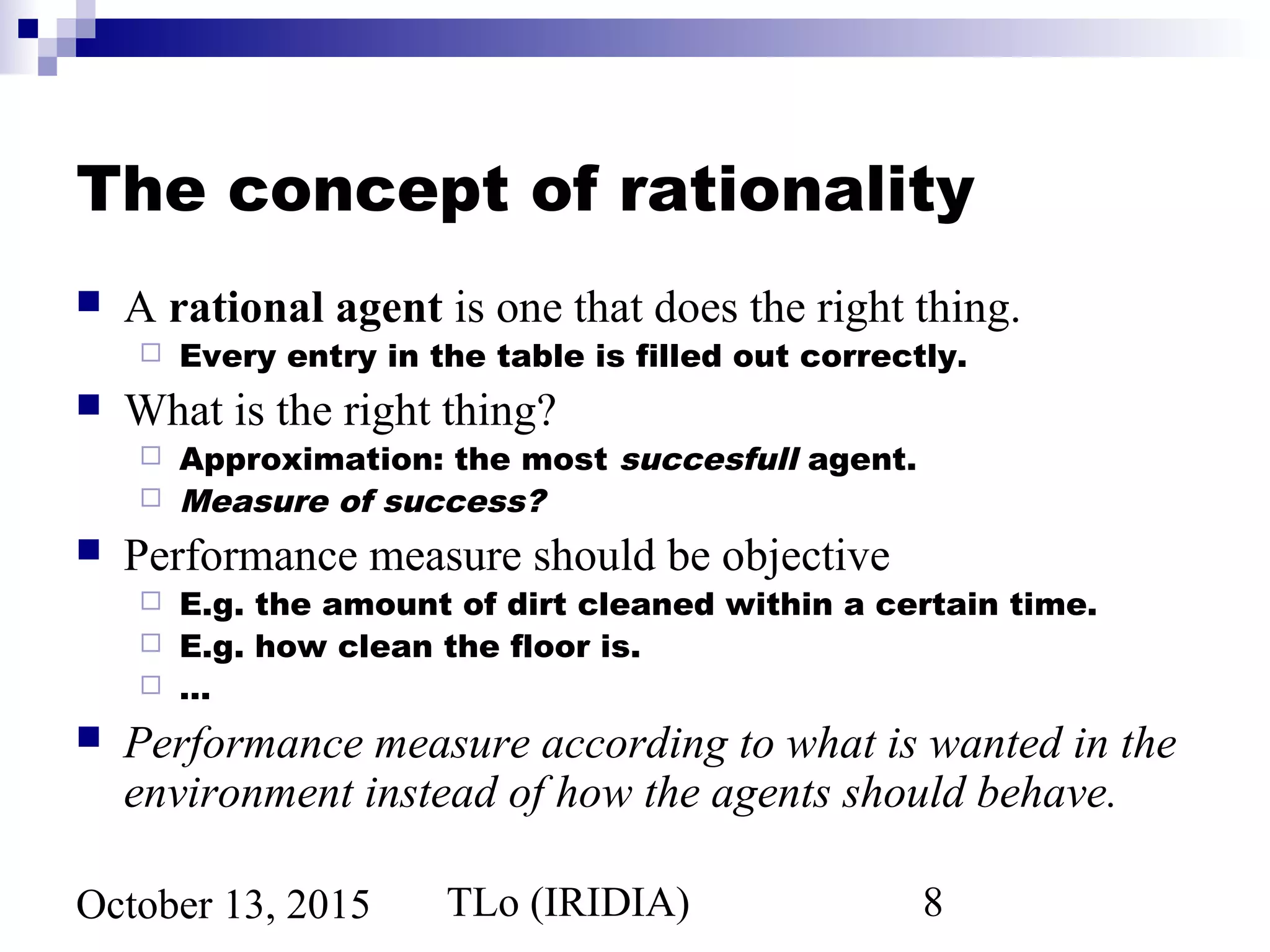

The concept of rationality
 A rational agent is one that does the right thing.
 Every entry in the table is filled out correctly.
 What is the right thing?
 Approximation: the most succesfull agent.
 Measure of success?
 Performance measure should be objective
 E.g. the amount of dirt cleaned within a certain time.
 E.g. how clean the floor is.
 …
 Performance measure according to what is wanted in the
environment instead of how the agents should behave.

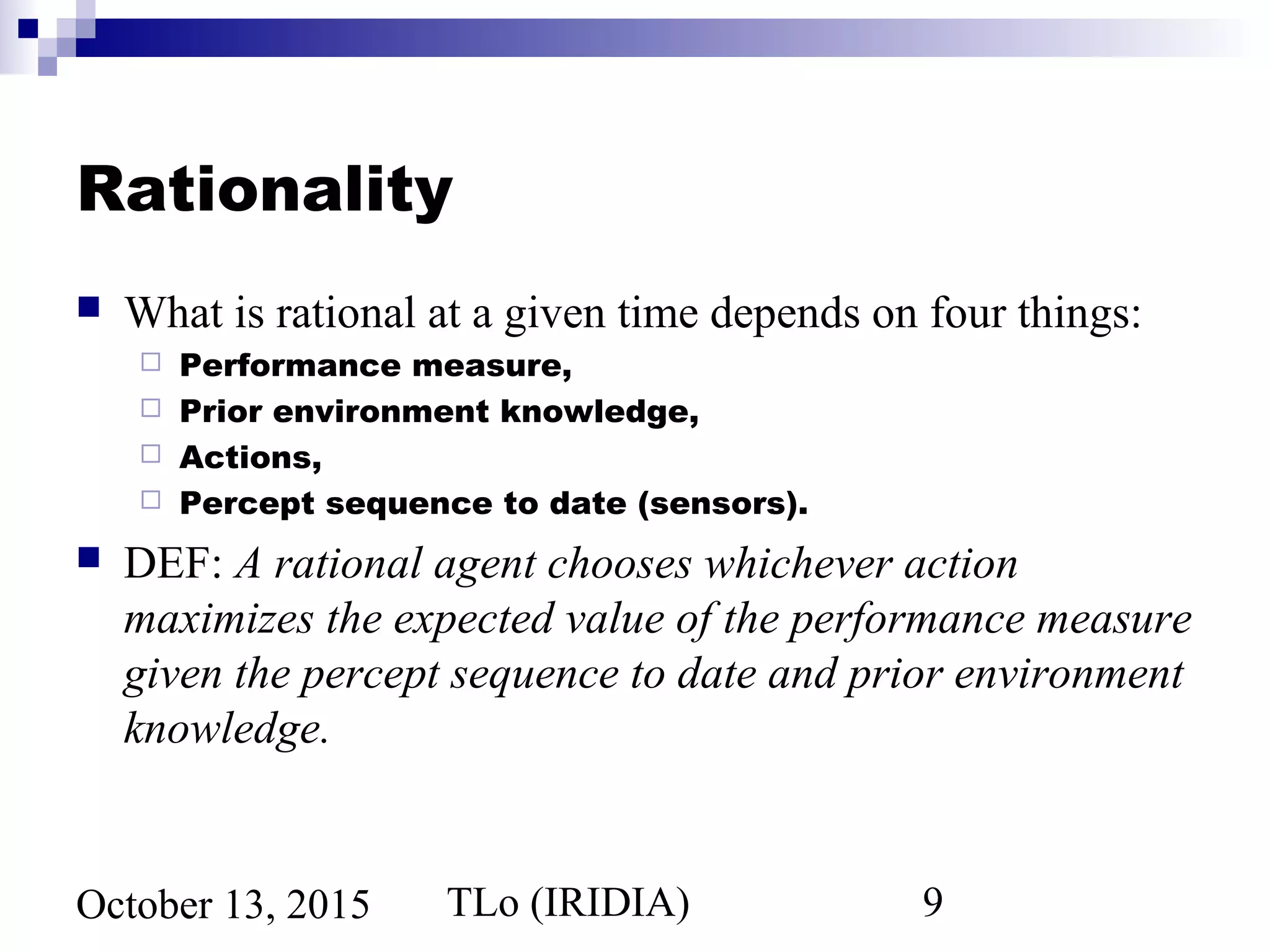

Rationality
 What is rational at a given time depends on four things:
 Performance measure,
 Prior environment knowledge,
 Actions,
 Percept sequence to date (sensors).
 DEF: A rational agent chooses whichever action
maximizes the expected value of the performance measure
given the percept sequence to date and prior environment
knowledge.

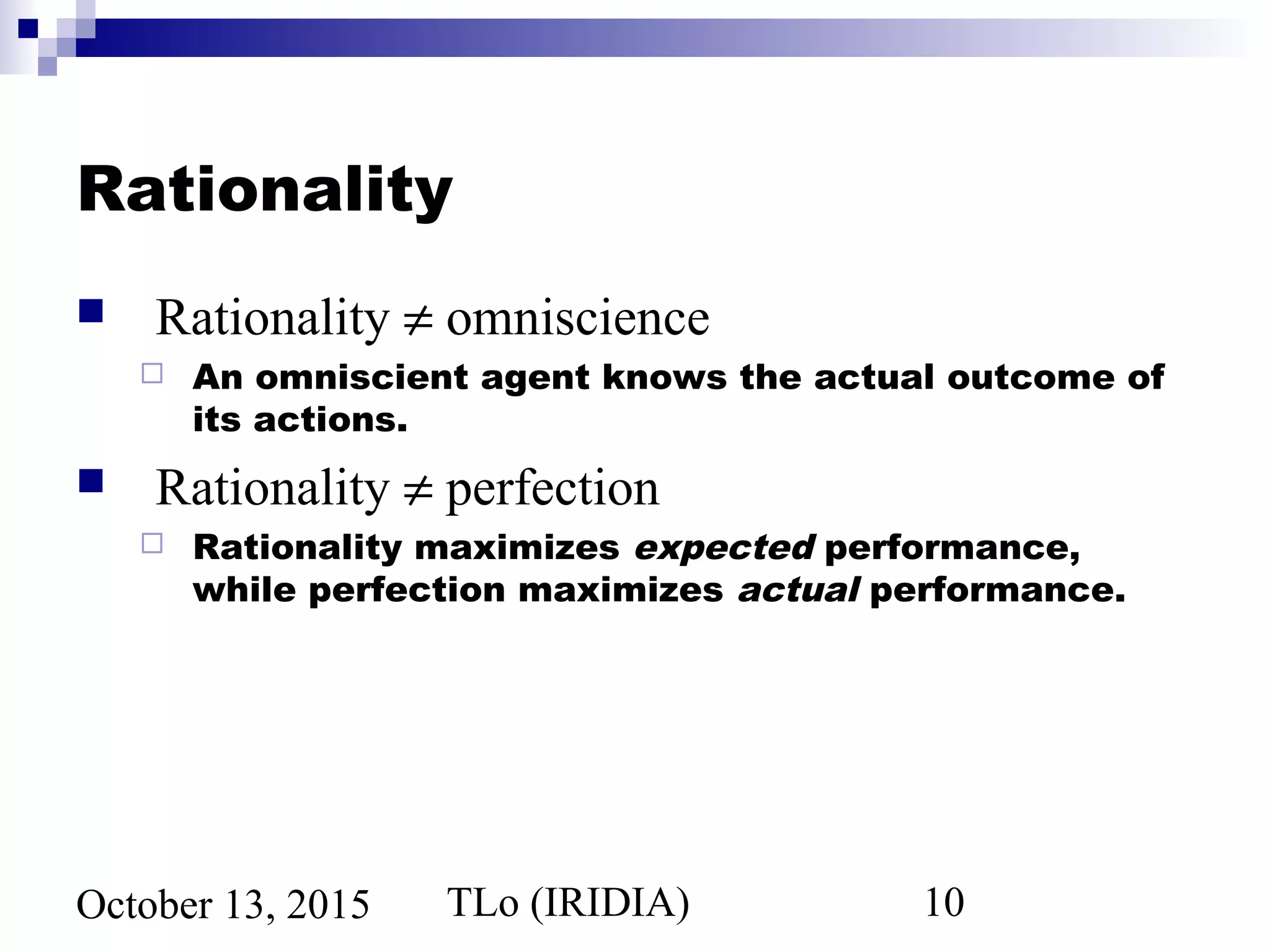

Rationality
 Rationality ≠ omniscience
 An omniscient agent knows the actual outcome of
its actions.
 Rationality ≠ perfection
 Rationality maximizes expected performance,
while perfection maximizes actual performance.

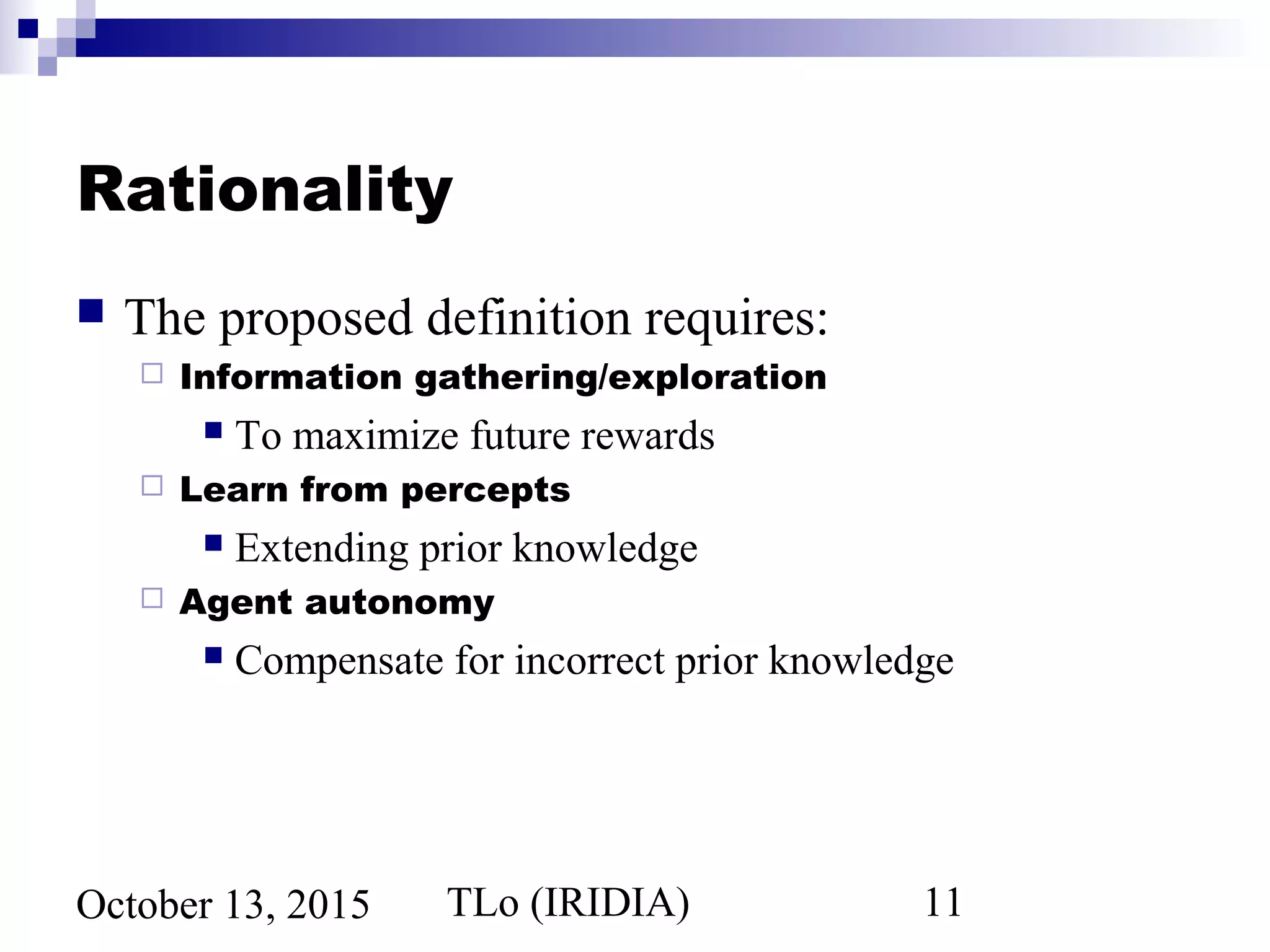

Rationality
 The proposed definition requires:
 Information gathering/exploration
 To maximize future rewards
 Learn from percepts
 Extending prior knowledge
 Agent autonomy
 Compensate for incorrect prior knowledge

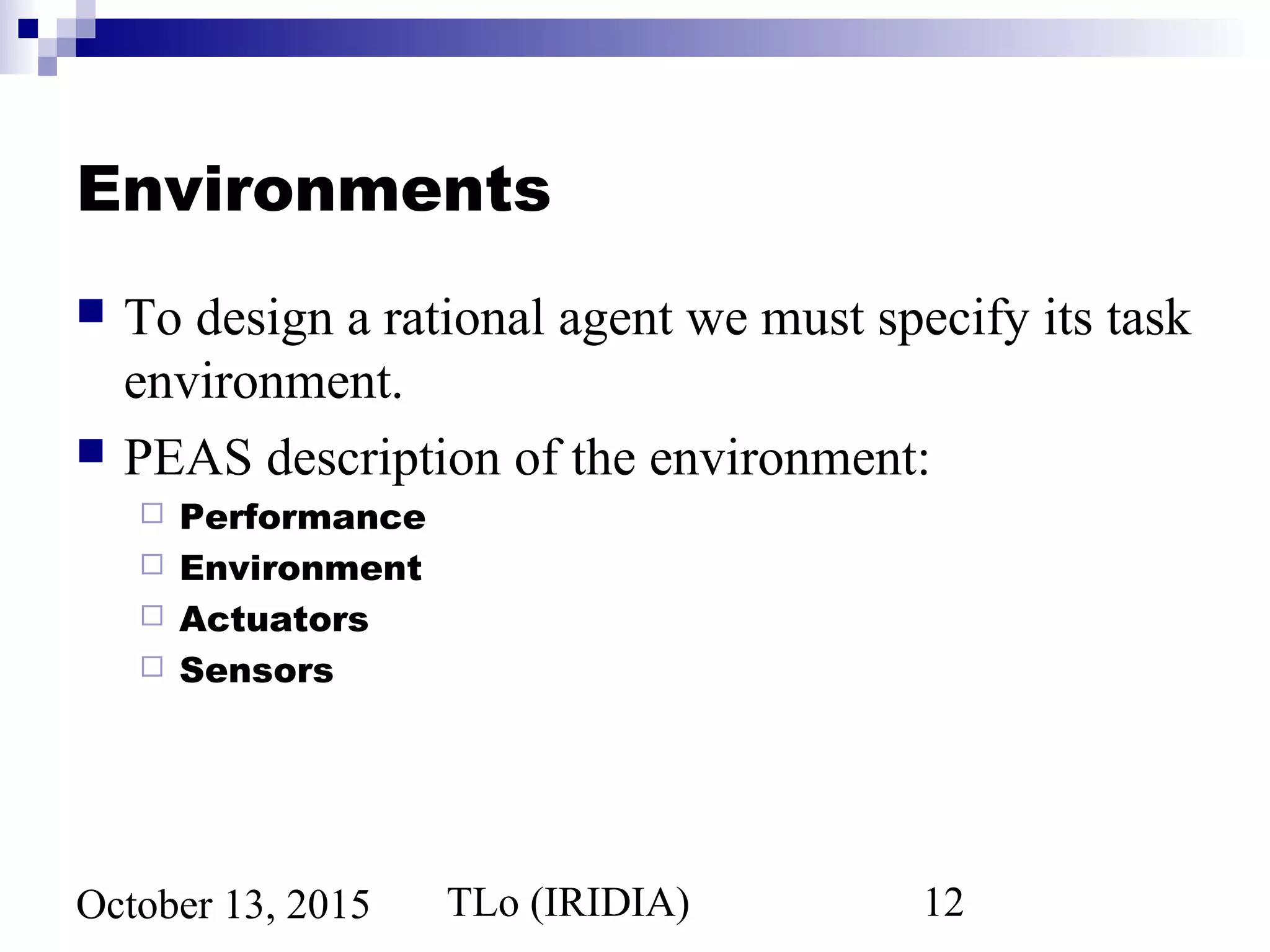

Environments
 To design a rational agent we must specify its task
environment.
 PEAS description of the environment:
 Performance
 Environment
 Actuators
 Sensors

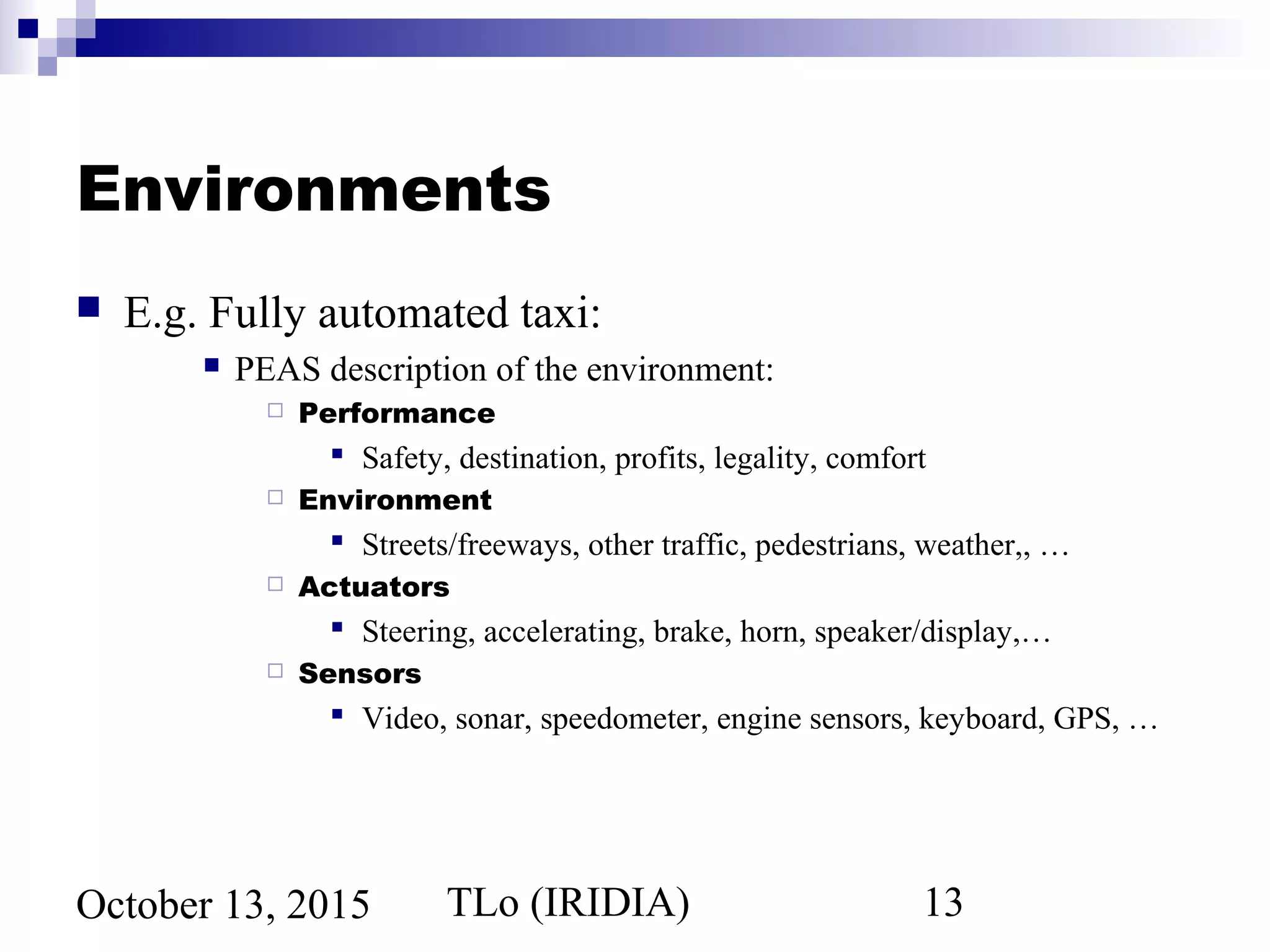

Environments
 E.g. Fully automated taxi:
 PEAS description of the environment:
 Performance
 Safety, destination, profits, legality, comfort
 Environment
 Streets/freeways, other traffic, pedestrians, weather,, …
 Actuators
 Steering, accelerating, brake, horn, speaker/display,…
 Sensors
 Video, sonar, speedometer, engine sensors, keyboard, GPS, …

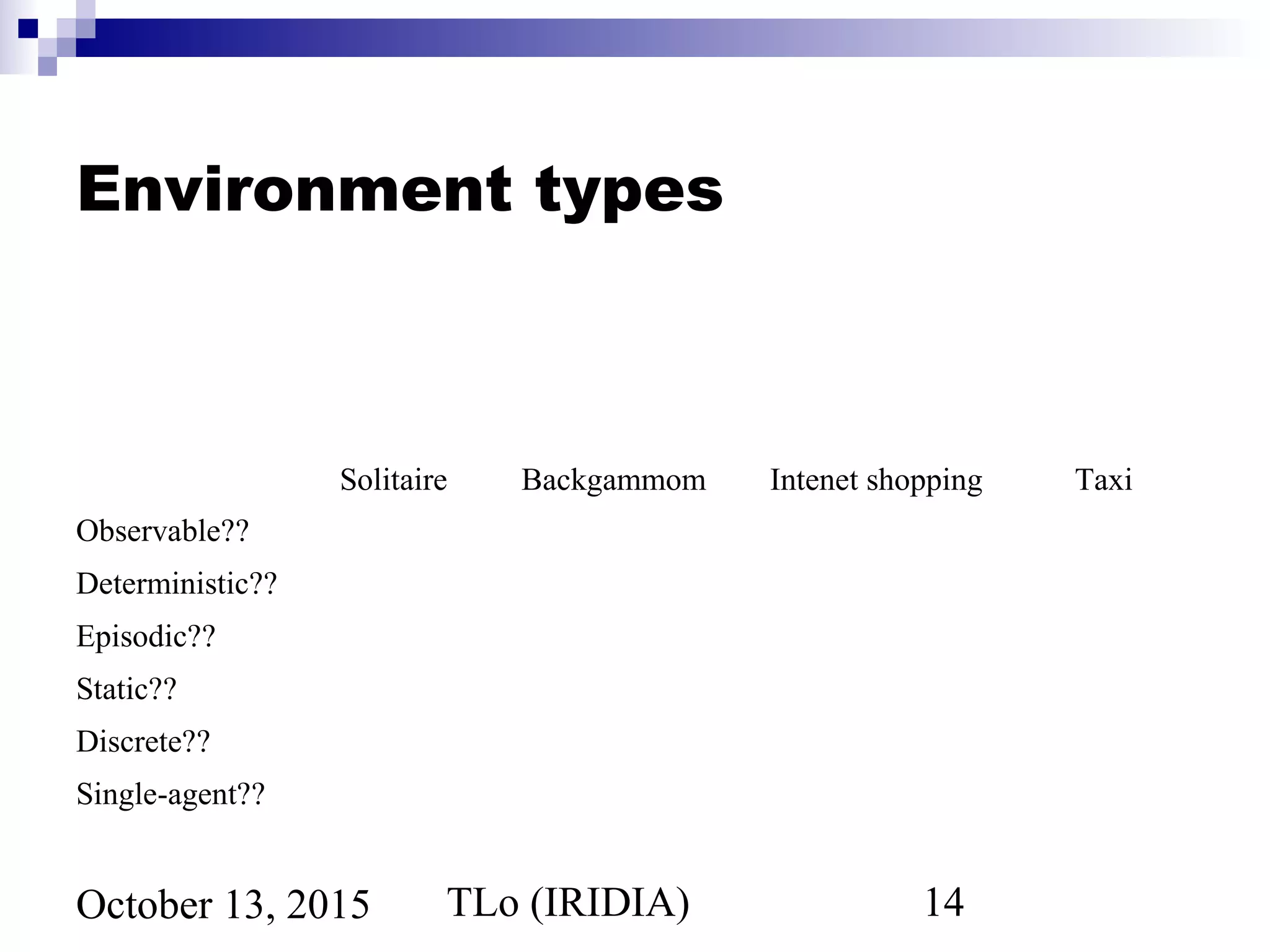

Environment types
Solitaire Backgammom Intenet shopping Taxi
Observable??
Deterministic??
Episodic??
Static??
Discrete??
Single-agent??

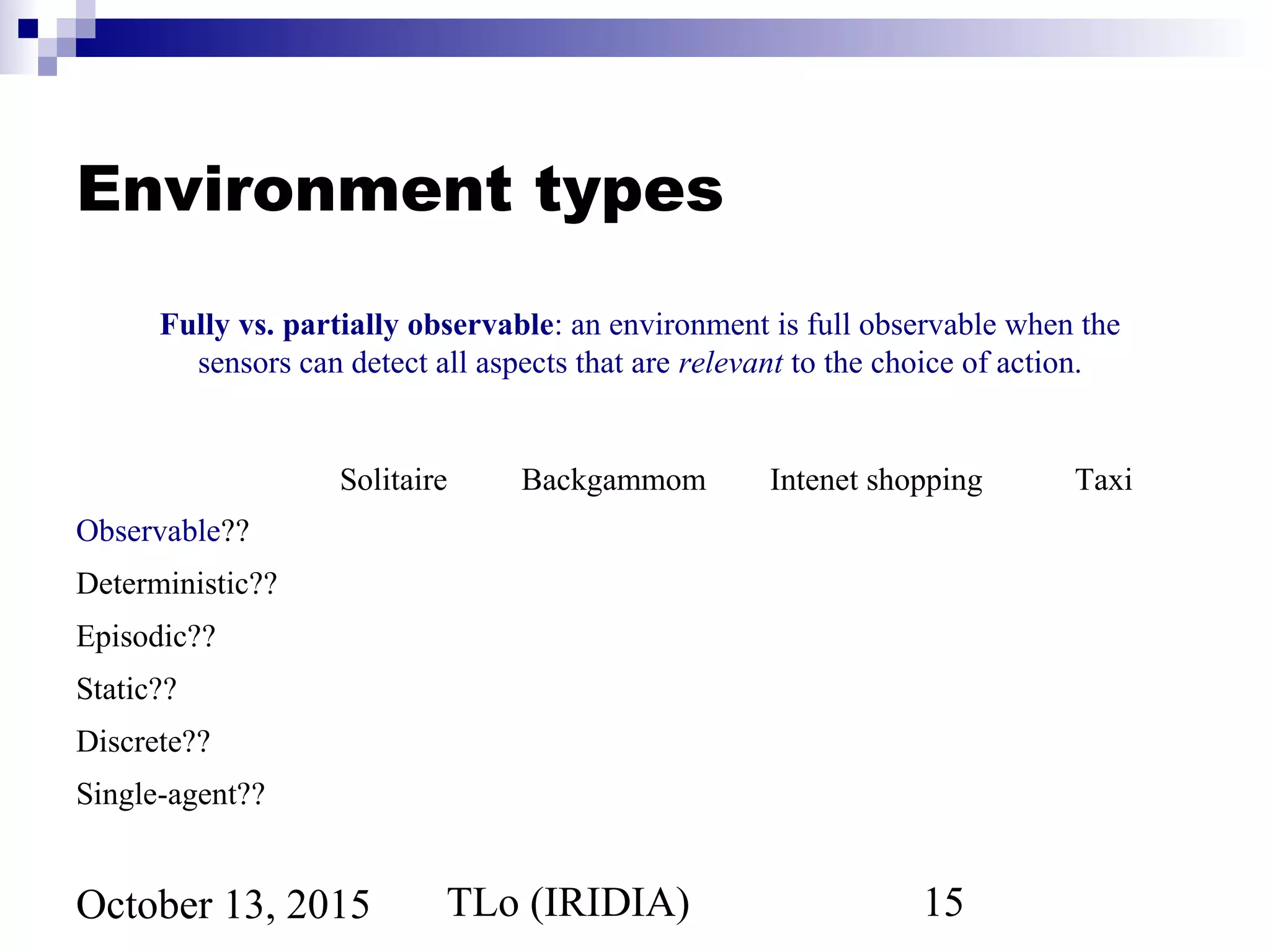

Environment types
Observable??
Deterministic??
Episodic??
Static??
Discrete??
Single-agent??
Fully vs. partially observable: an environment is full observable when the
sensors can detect all aspects that are relevant to the choice of action.

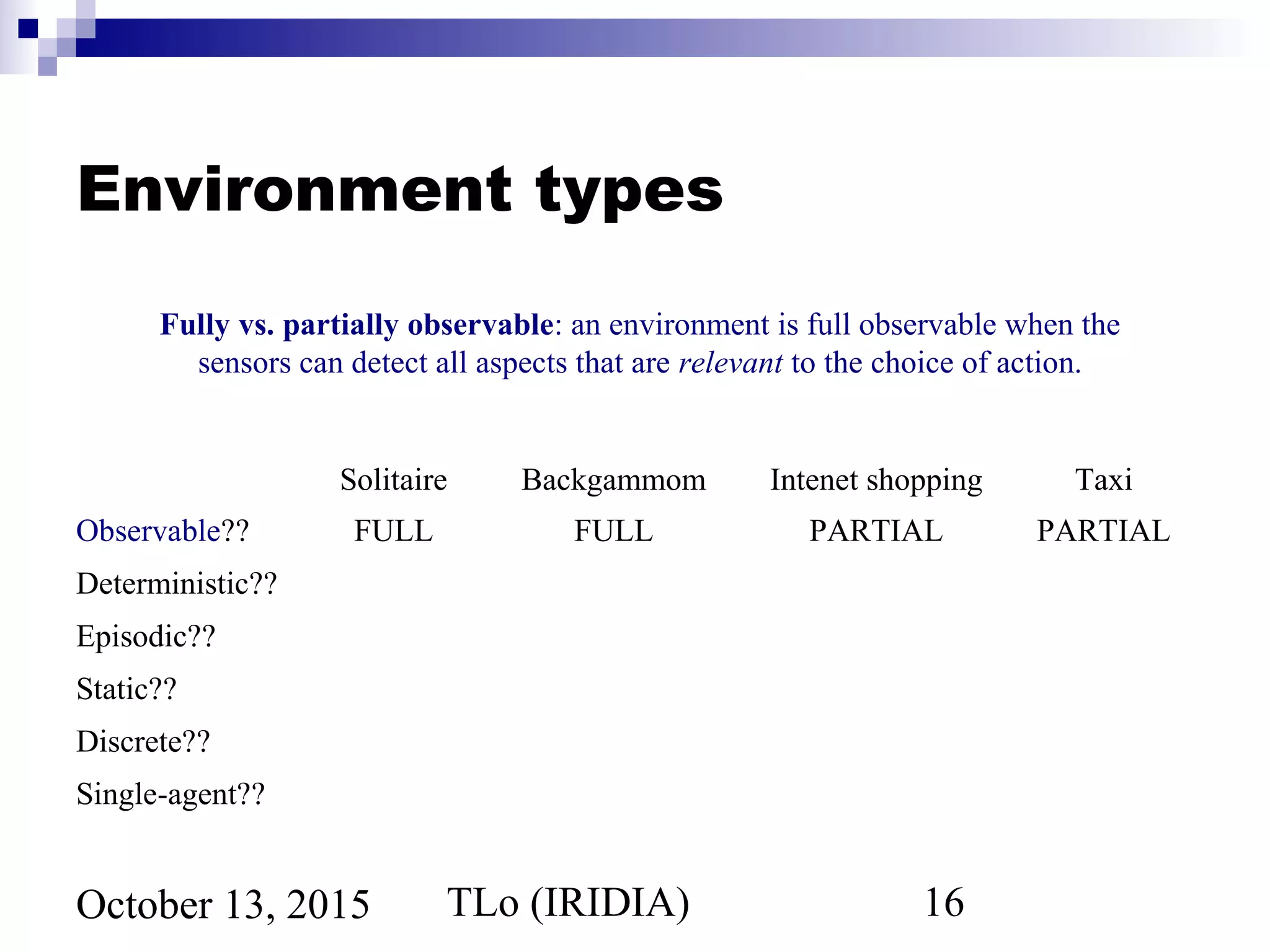

Environment types
Observable?? FULL FULL PARTIAL PARTIAL
Deterministic??
Episodic??
Static??
Discrete??
Single-agent??
Fully vs. partially observable: an environment is full observable when the
sensors can detect all aspects that are relevant to the choice of action.

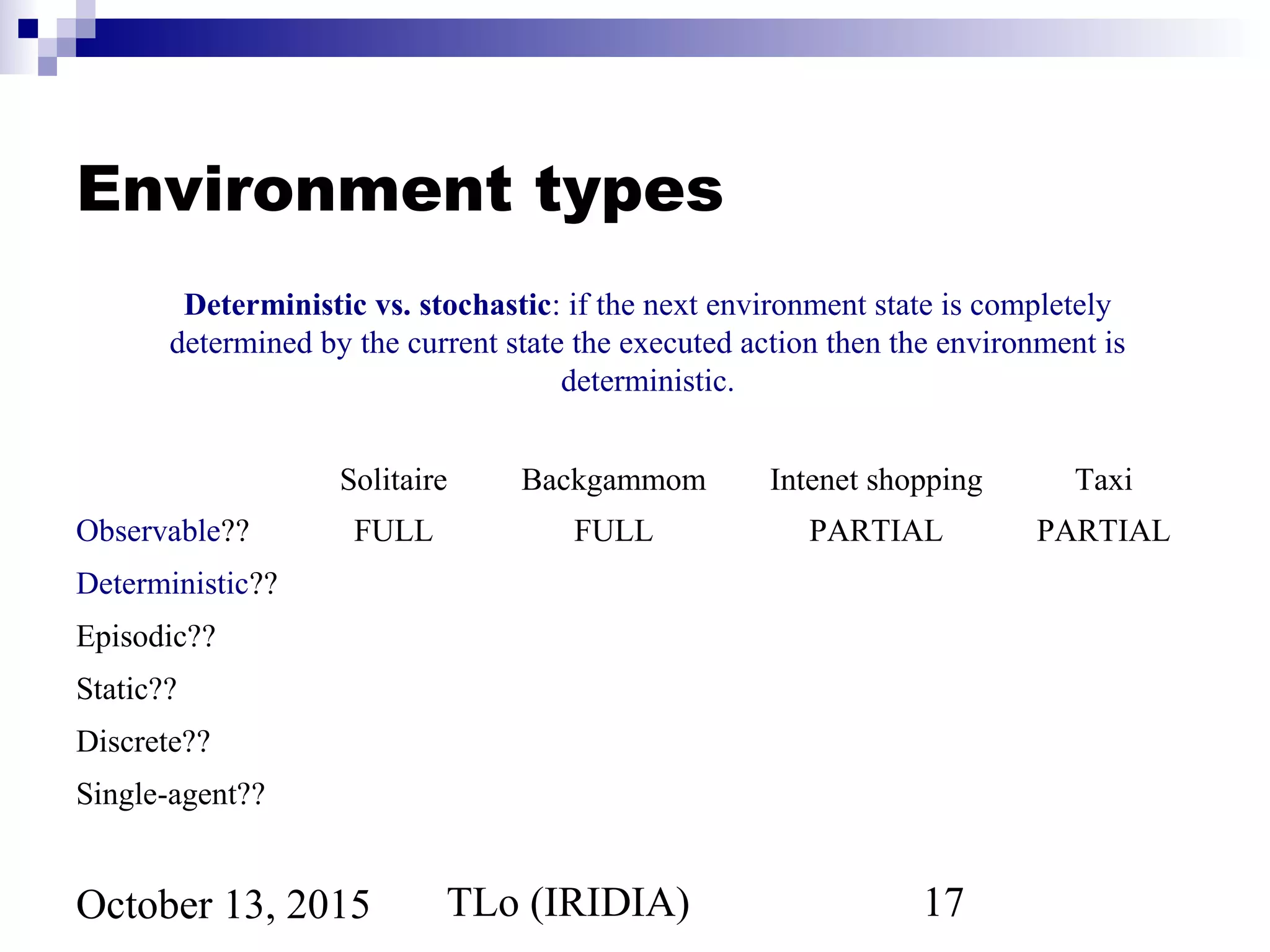

Environment types
Deterministic??
Episodic??
Static??
Discrete??
Single-agent??
Deterministic vs. stochastic: if the next environment state is completely
determined by the current state the executed action then the environment is
deterministic.

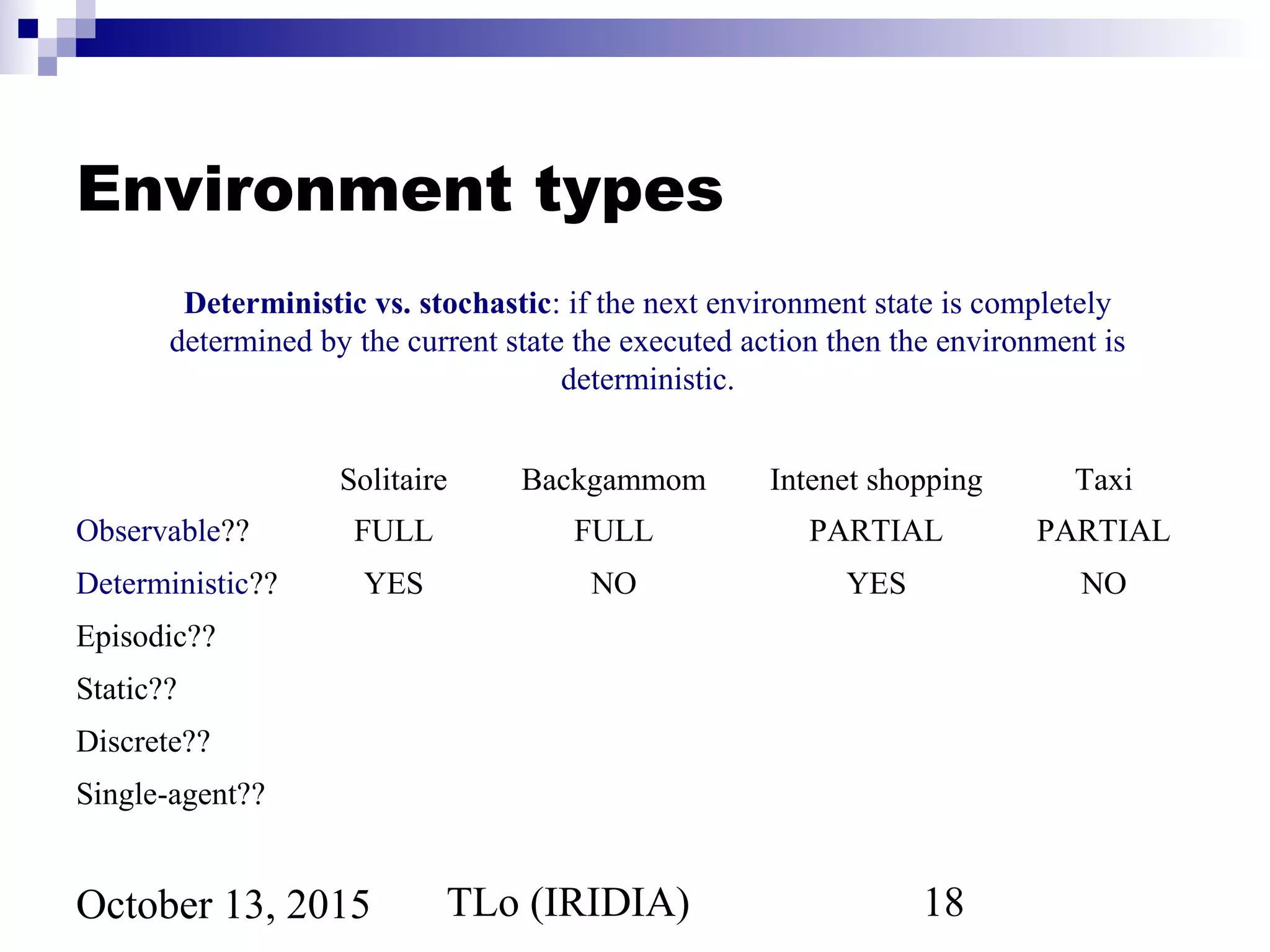

Environment types
Deterministic?? YES NO YES NO
Episodic??
Static??
Discrete??
Single-agent??
Deterministic vs. stochastic: if the next environment state is completely
determined by the current state the executed action then the environment is
deterministic.

Environment types
Episodic??
Static??
Discrete??
Single-agent??
Episodic vs. sequential: In an episodic environment the agent’s experience
can be divided into atomic steps where the agents perceives and then performs
A single action. The choice of action depends only on the episode itself

Environment types
Episodic?? NO NO NO NO
Static??
Discrete??
Single-agent??
Episodic vs. sequential: In an episodic environment the agent’s experience
can be divided into atomic steps where the agents perceives and then performs
A single action. The choice of action depends only on the episode itself

Environment types
Static??
Discrete??
Single-agent??
Static vs. dynamic: If the environment can change while the agent is choosing
an action, the environment is dynamic. Semi-dynamic if the agent’s performance
changes even when the environment remains the same.

Environment types
Static?? YES YES SEMI NO
Discrete??
Single-agent??
Static vs. dynamic: If the environment can change while the agent is choosing
an action, the environment is dynamic. Semi-dynamic if the agent’s performance
changes even when the environment remains the same.

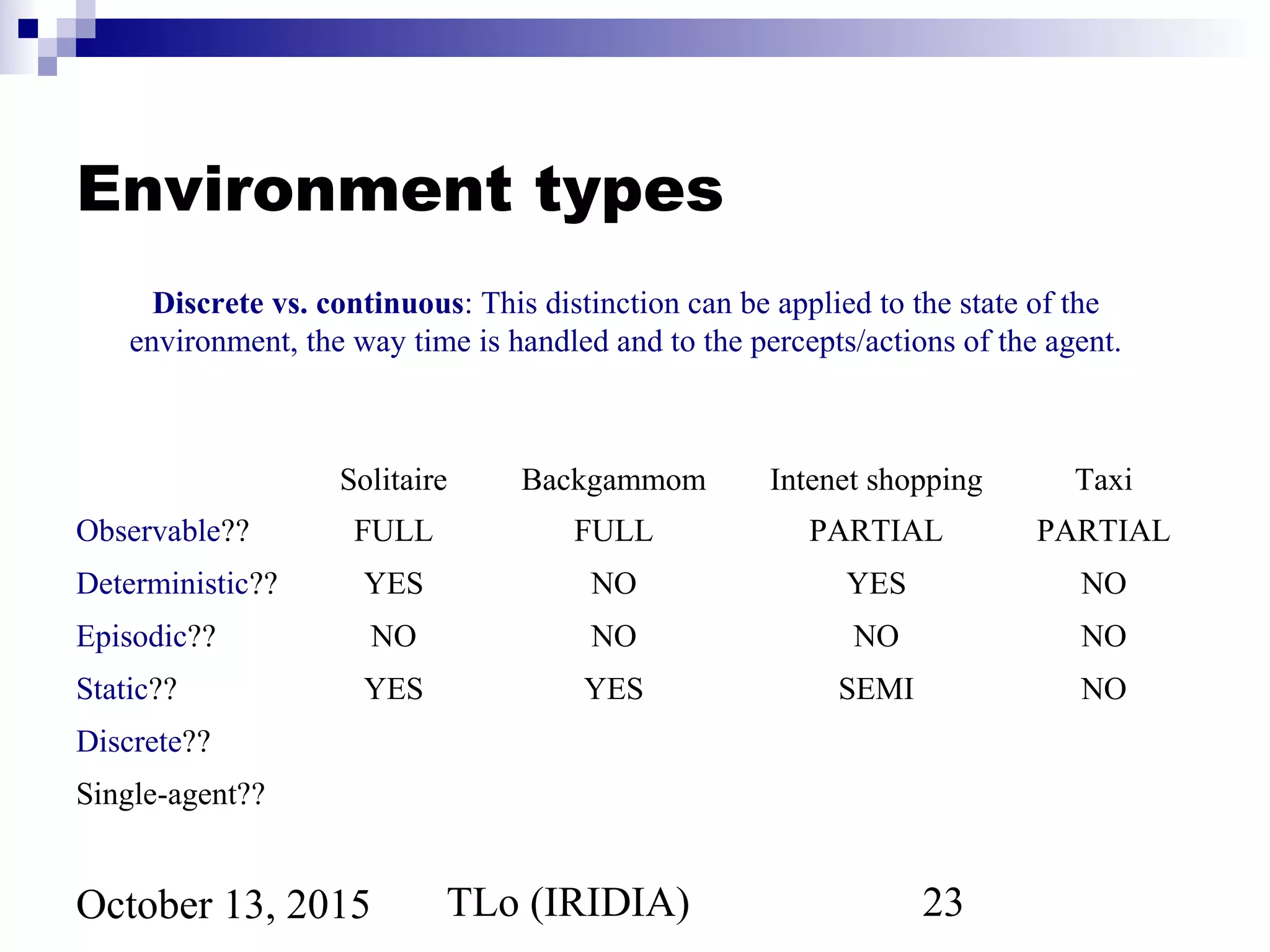

Environment types
Discrete??
Single-agent??
Discrete vs. continuous: This distinction can be applied to the state of the
environment, the way time is handled and to the percepts/actions of the agent.

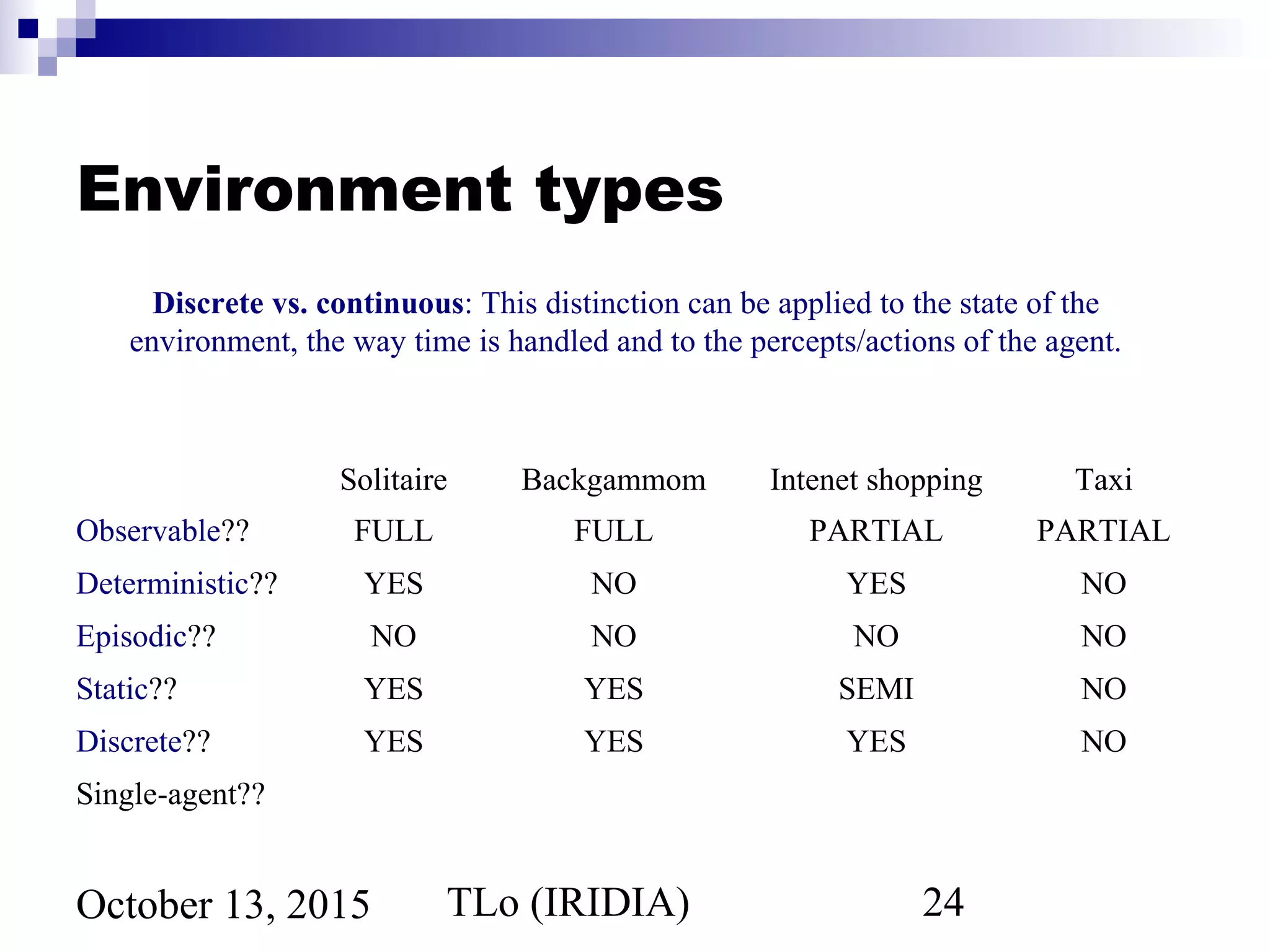

Environment types
Discrete?? YES YES YES NO
Single-agent??
Discrete vs. continuous: This distinction can be applied to the state of the
environment, the way time is handled and to the percepts/actions of the agent.

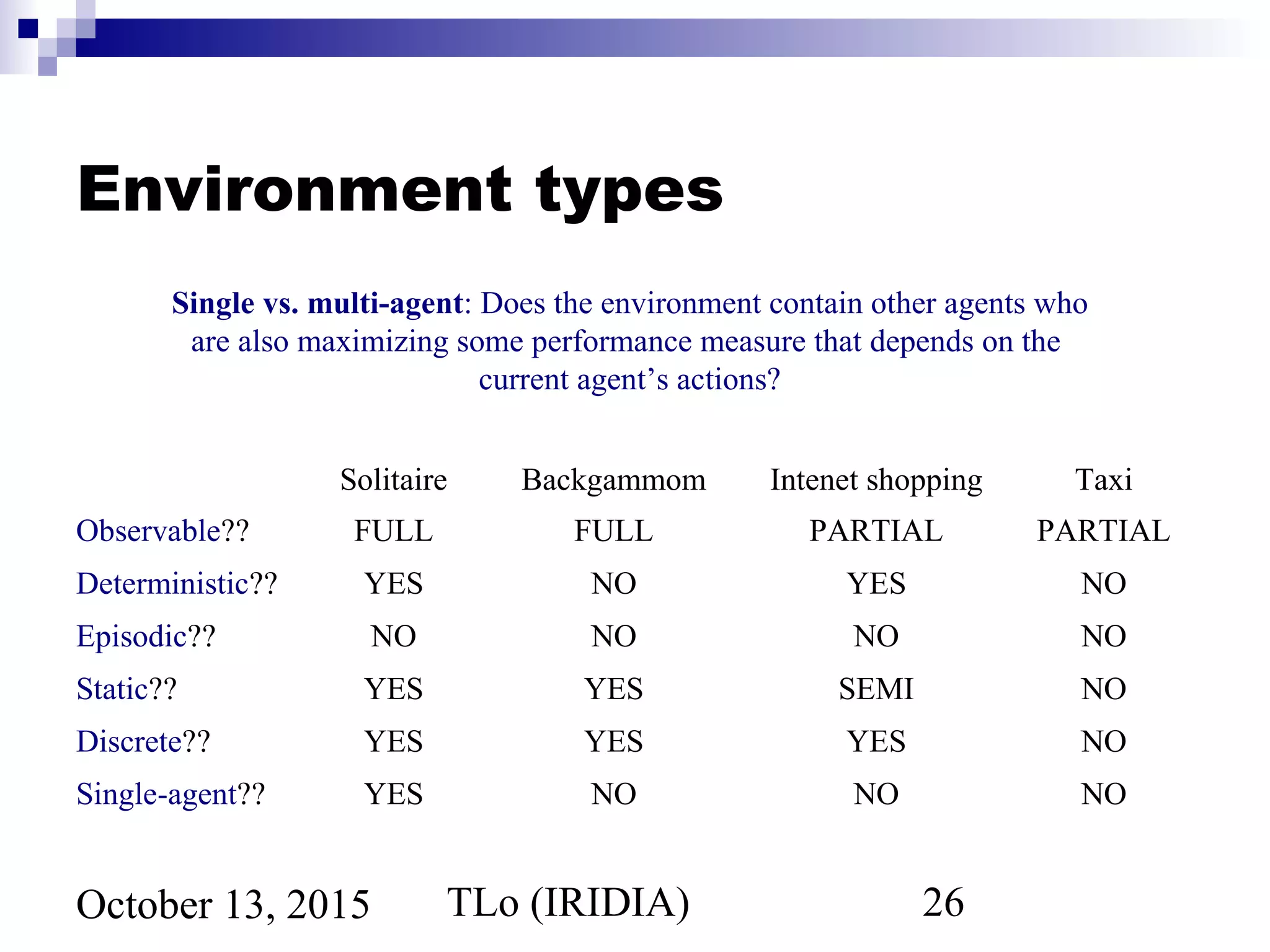

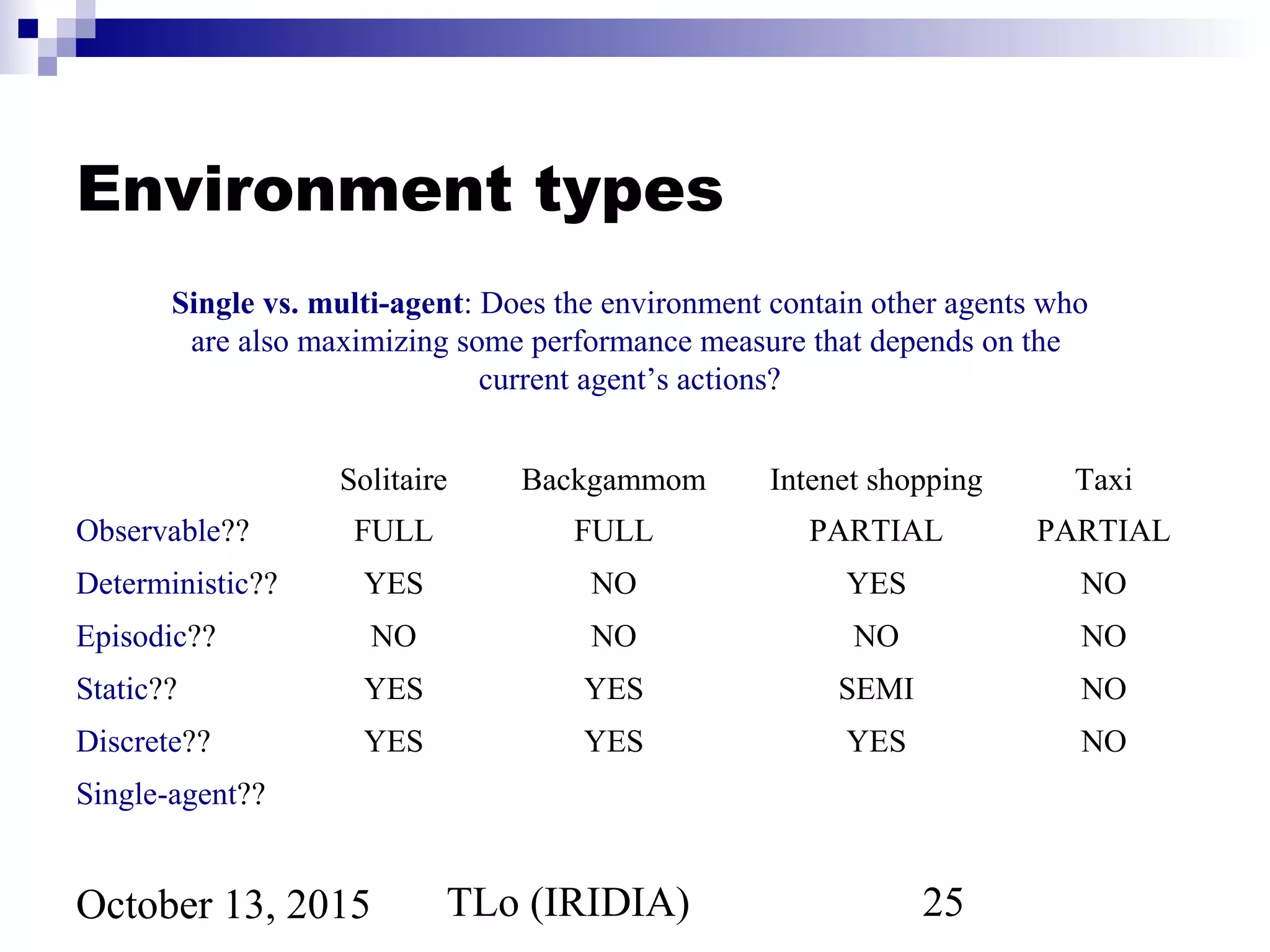

Environment types
Single-agent??
Single vs. multi-agent: Does the environment contain other agents who
are also maximizing some performance measure that depends on the
current agent’s actions?

Environment types
Single-agent?? YES NO NO NO
Single vs. multi-agent: Does the environment contain other agents who
are also maximizing some performance measure that depends on the
current agent’s actions?

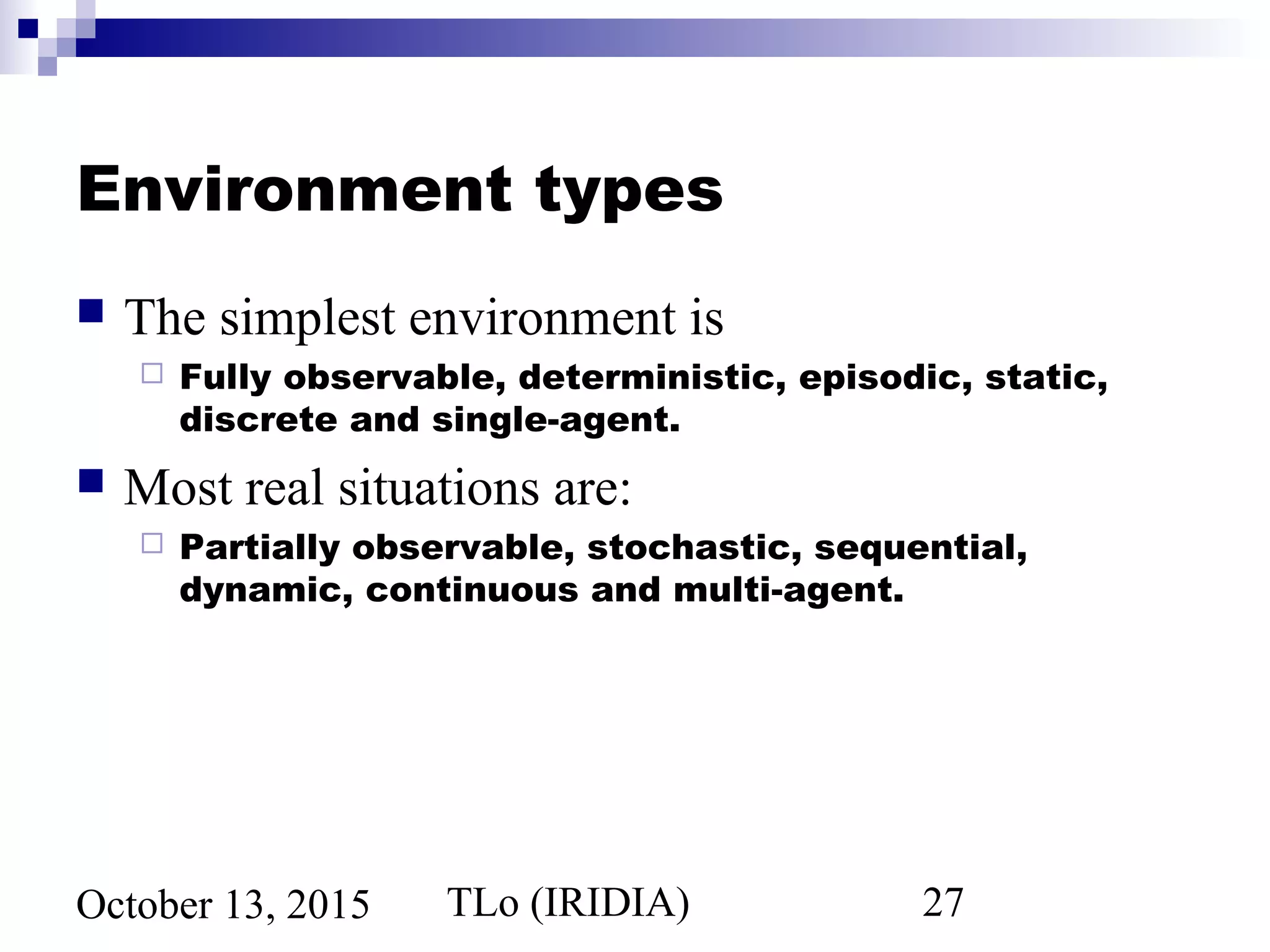

Environment types
 The simplest environment is
 Fully observable, deterministic, episodic, static,
discrete and single-agent.
 Most real situations are:
 Partially observable, stochastic, sequential,
dynamic, continuous and multi-agent.

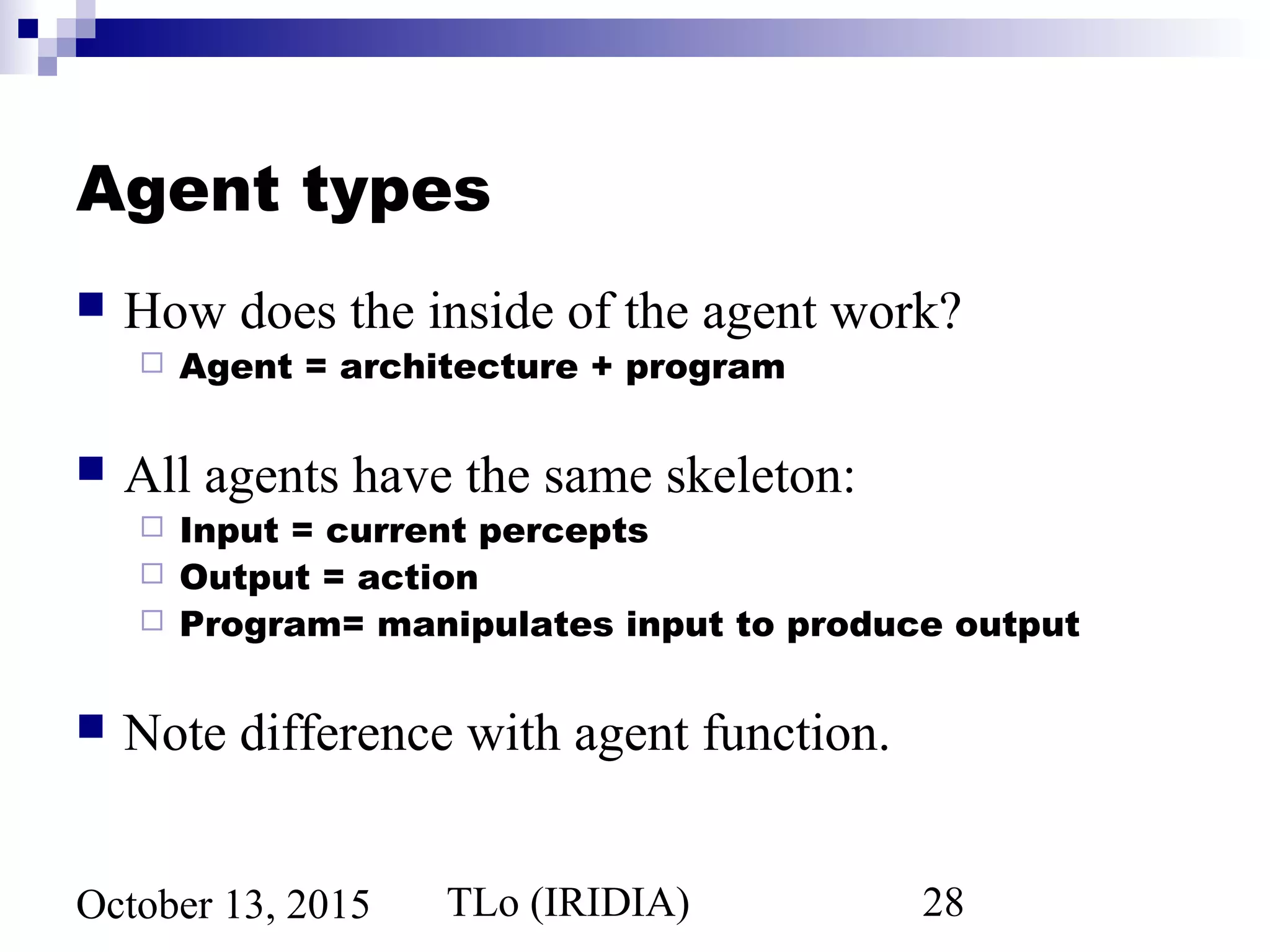

Agent types
 How does the inside of the agent work?
 Agent = architecture + program
 All agents have the same skeleton:
 Input = current percepts
 Output = action
 Program= manipulates input to produce output
 Note difference with agent function.

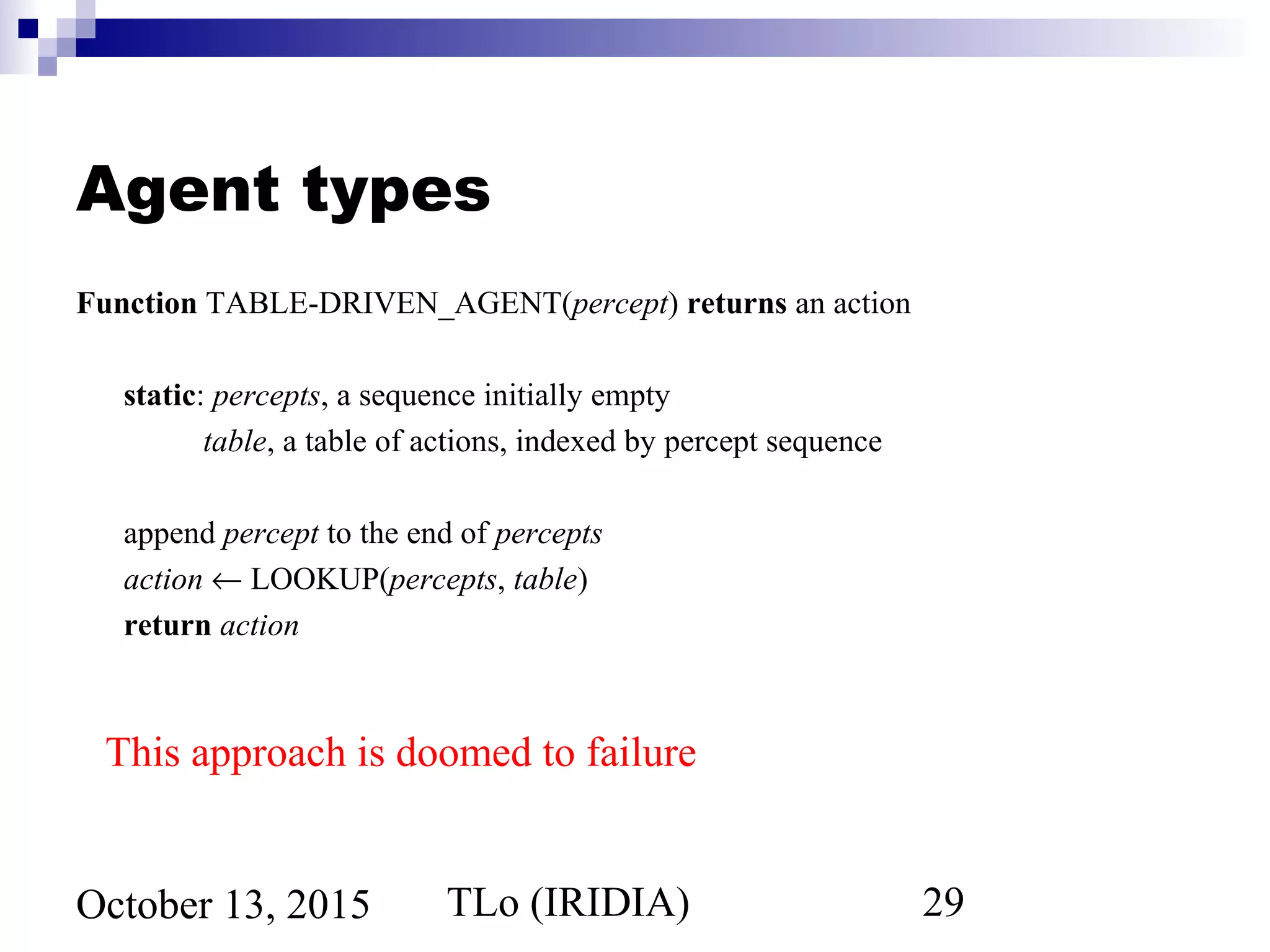

Agent types
Function TABLE-DRIVEN_AGENT(percept) returns an action
static: percepts, a sequence initially empty
table, a table of actions, indexed by percept sequence
append percept to the end of percepts
action ← LOOKUP(percepts, table)
return action
This approach is doomed to failure

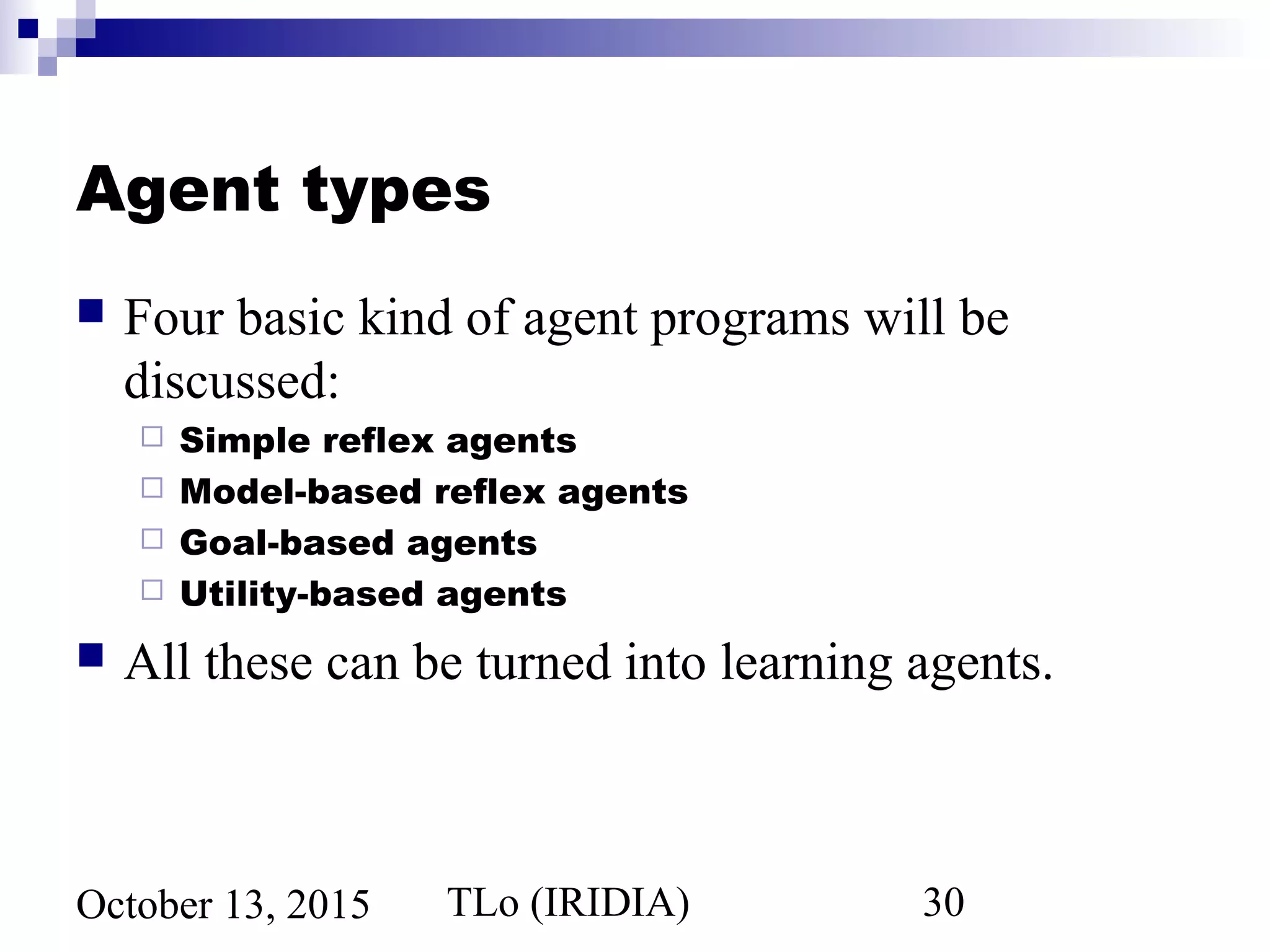

Agent types
 Four basic kind of agent programs will be
discussed:
 Simple reflex agents
 Model-based reflex agents
 Goal-based agents
 Utility-based agents
 All these can be turned into learning agents.

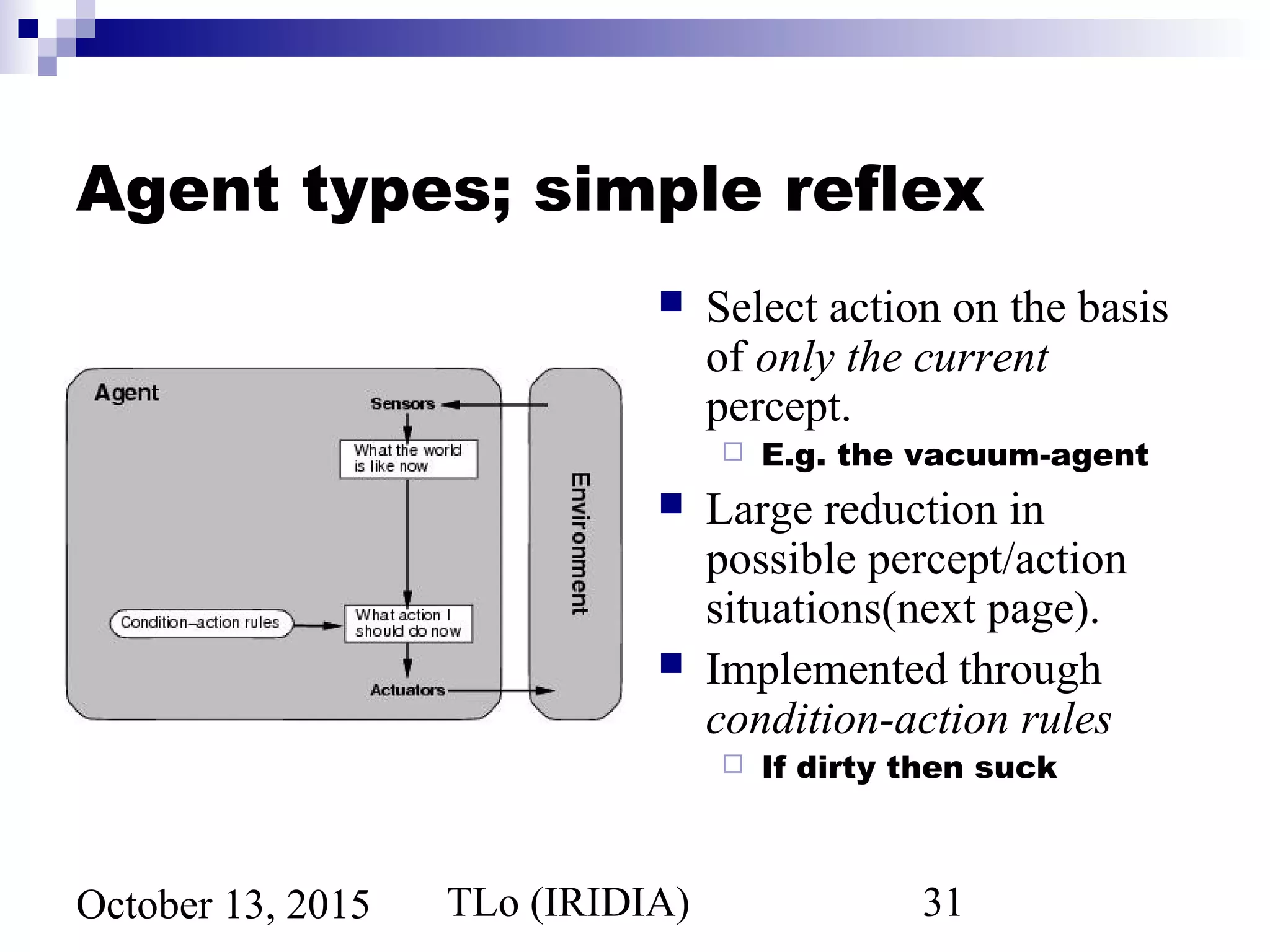

Agent types; simple reflex
 Select action on the basis
of only the current
percept.
 E.g. the vacuum-agent
 Large reduction in
possible percept/action
situations(next page).
 Implemented through
condition-action rules
 If dirty then suck

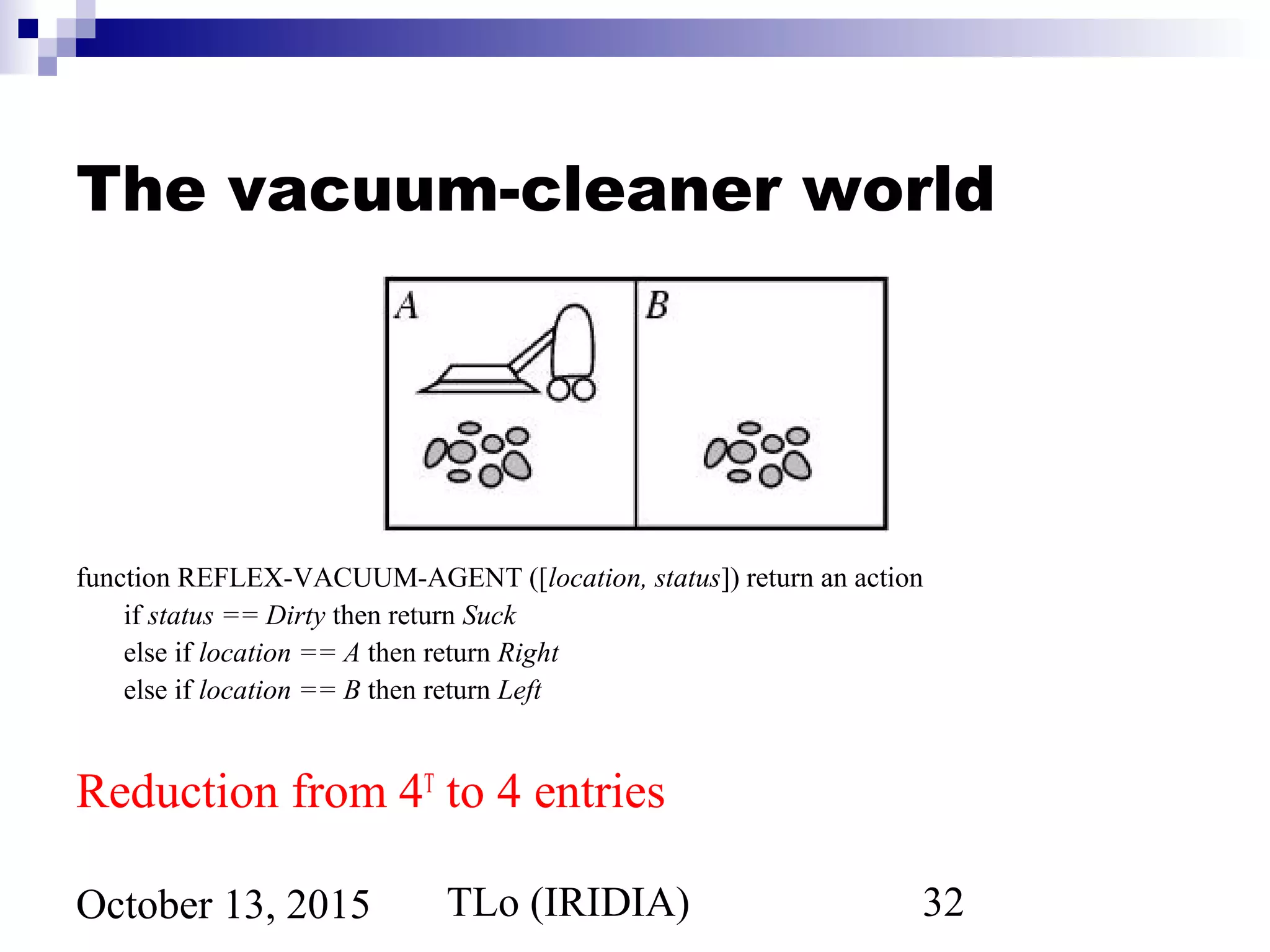

function REFLEX-VACUUM-AGENT ([location, status]) return an action
if status == Dirty then return Suck
else if location == A then return Right
else if location == B then return Left
Reduction from 4T
to 4 entries

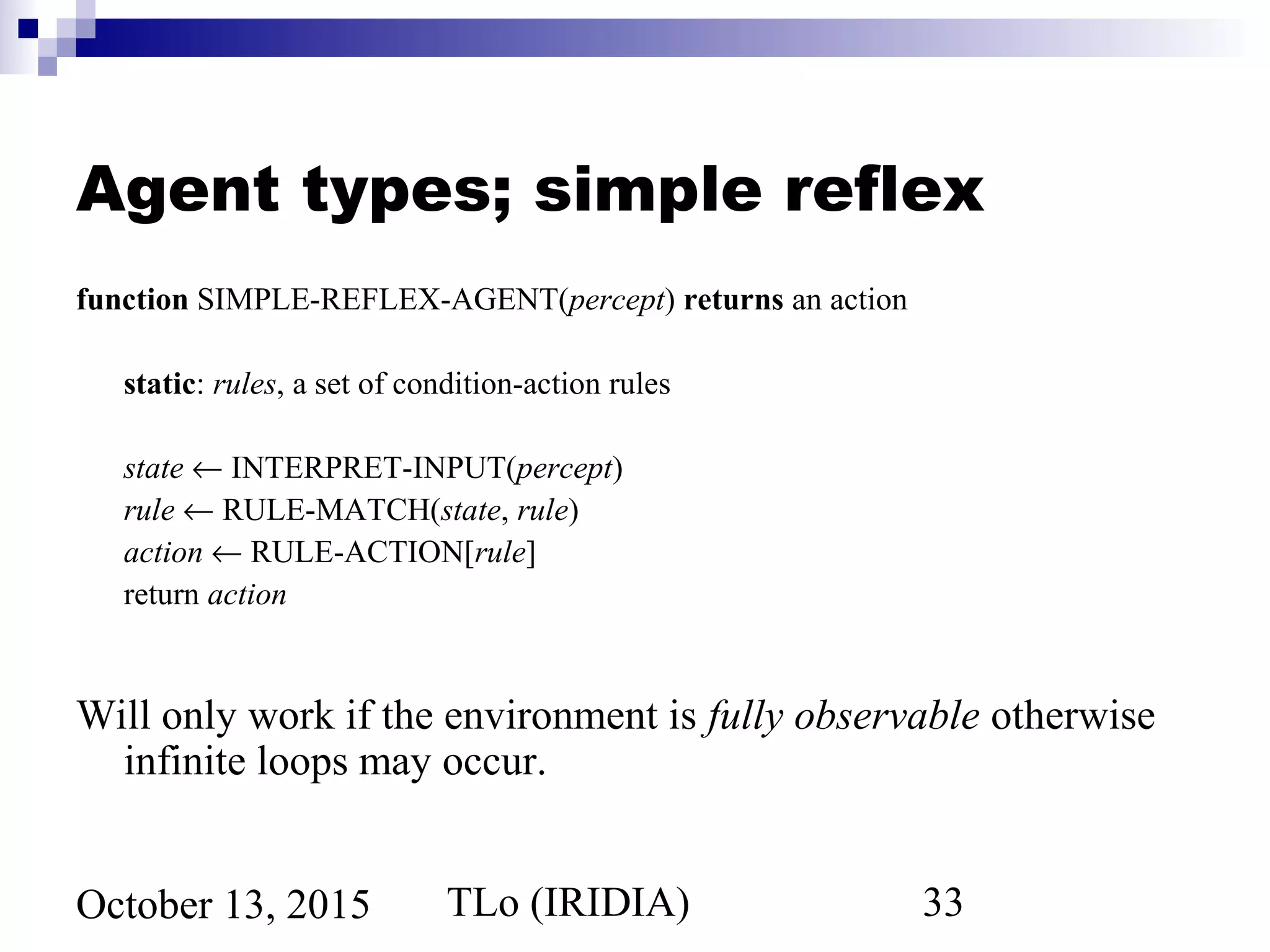

Agent types; simple reflex
function SIMPLE-REFLEX-AGENT(percept) returns an action
static: rules, a set of condition-action rules
state ← INTERPRET-INPUT(percept)
rule ← RULE-MATCH(state, rule)
action ← RULE-ACTION[rule]
return action
Will only work if the environment is fully observable otherwise
infinite loops may occur.

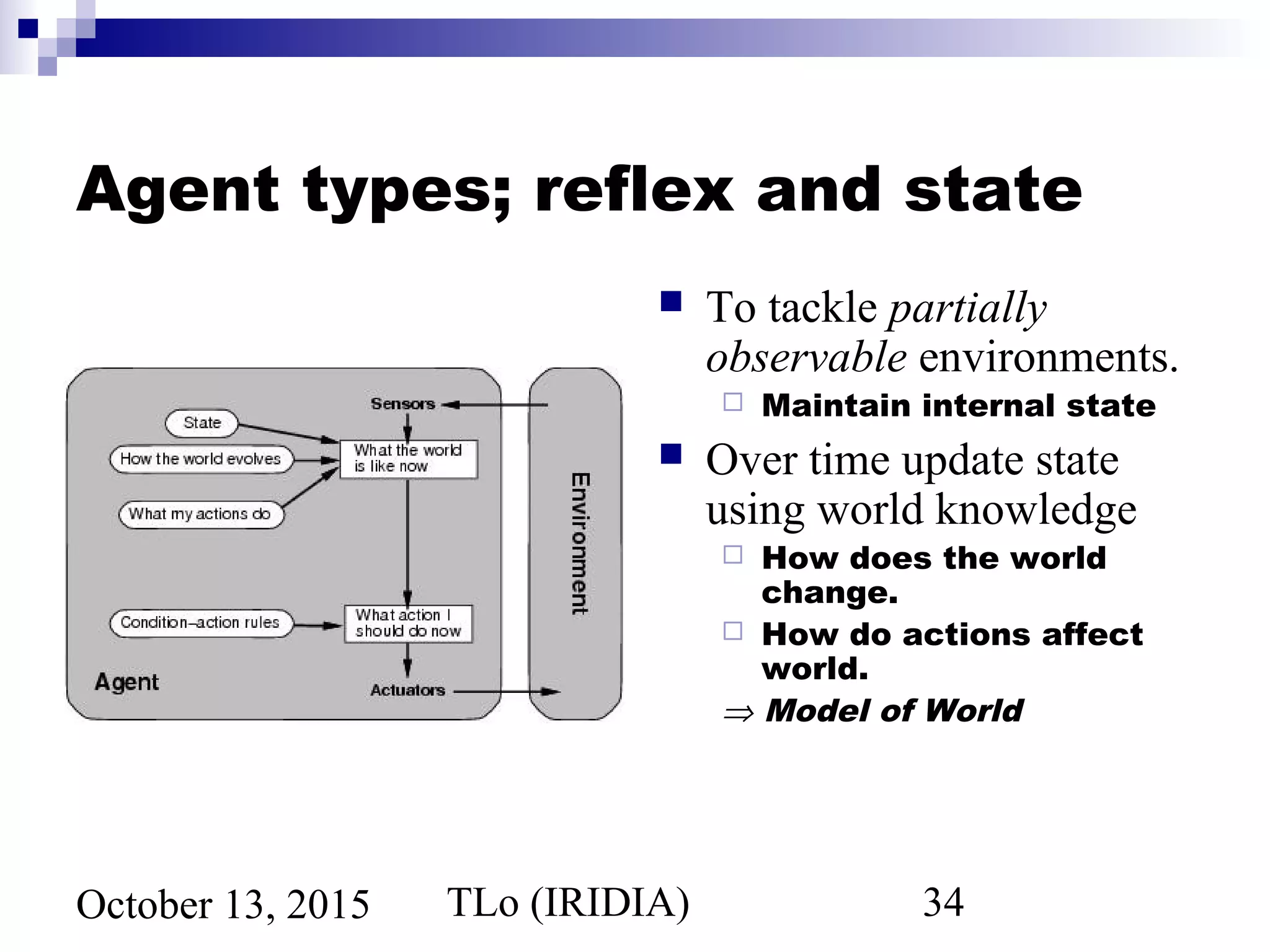

Agent types; reflex and state
 To tackle partially
observable environments.
 Maintain internal state
 Over time update state
using world knowledge
 How does the world
change.
 How do actions affect
world.
⇒ Model of World

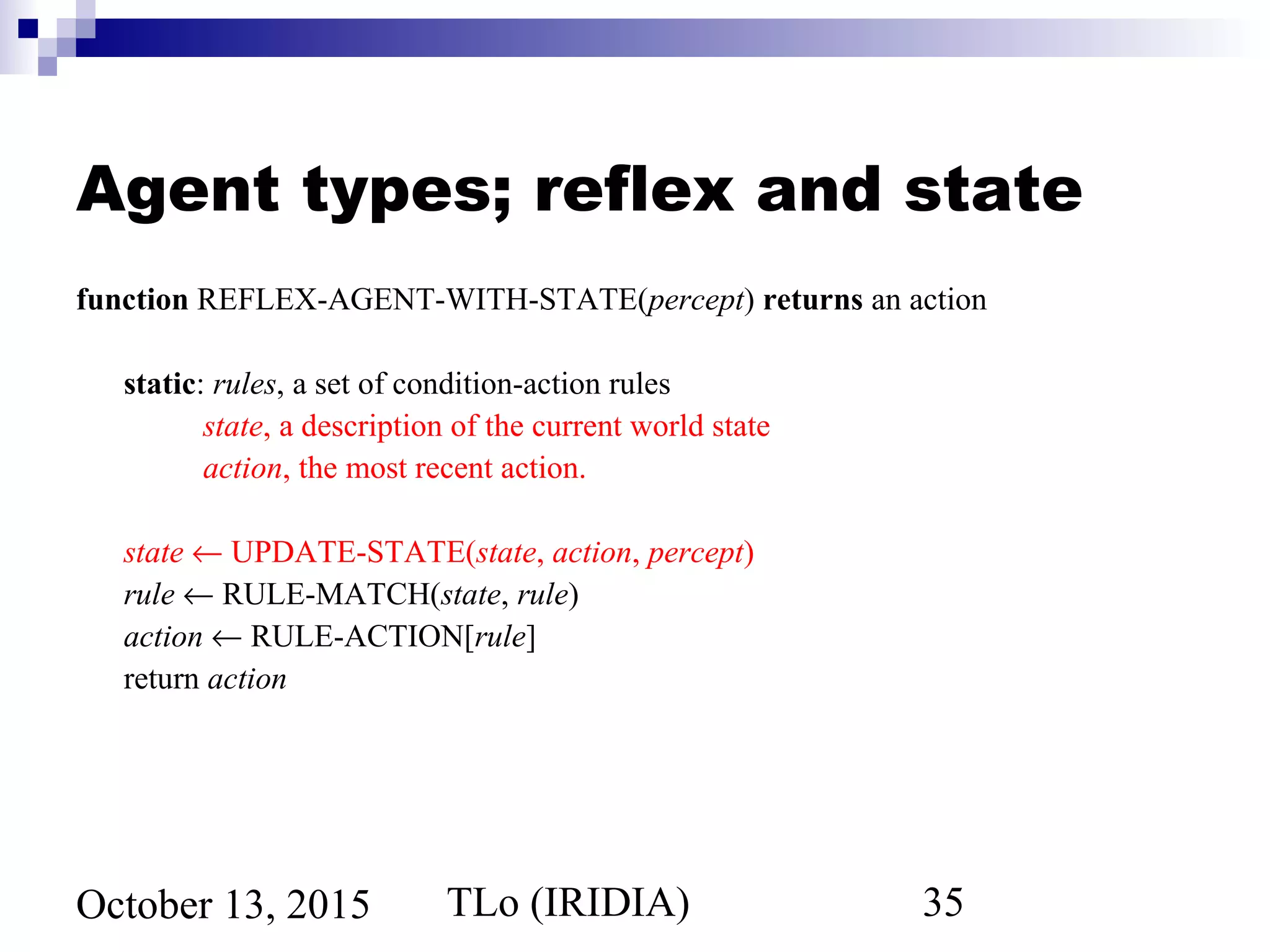

Agent types; reflex and state
function REFLEX-AGENT-WITH-STATE(percept) returns an action
static: rules, a set of condition-action rules
state, a description of the current world state
action, the most recent action.
state ← UPDATE-STATE(state, action, percept)
rule ← RULE-MATCH(state, rule)
action ← RULE-ACTION[rule]
return action

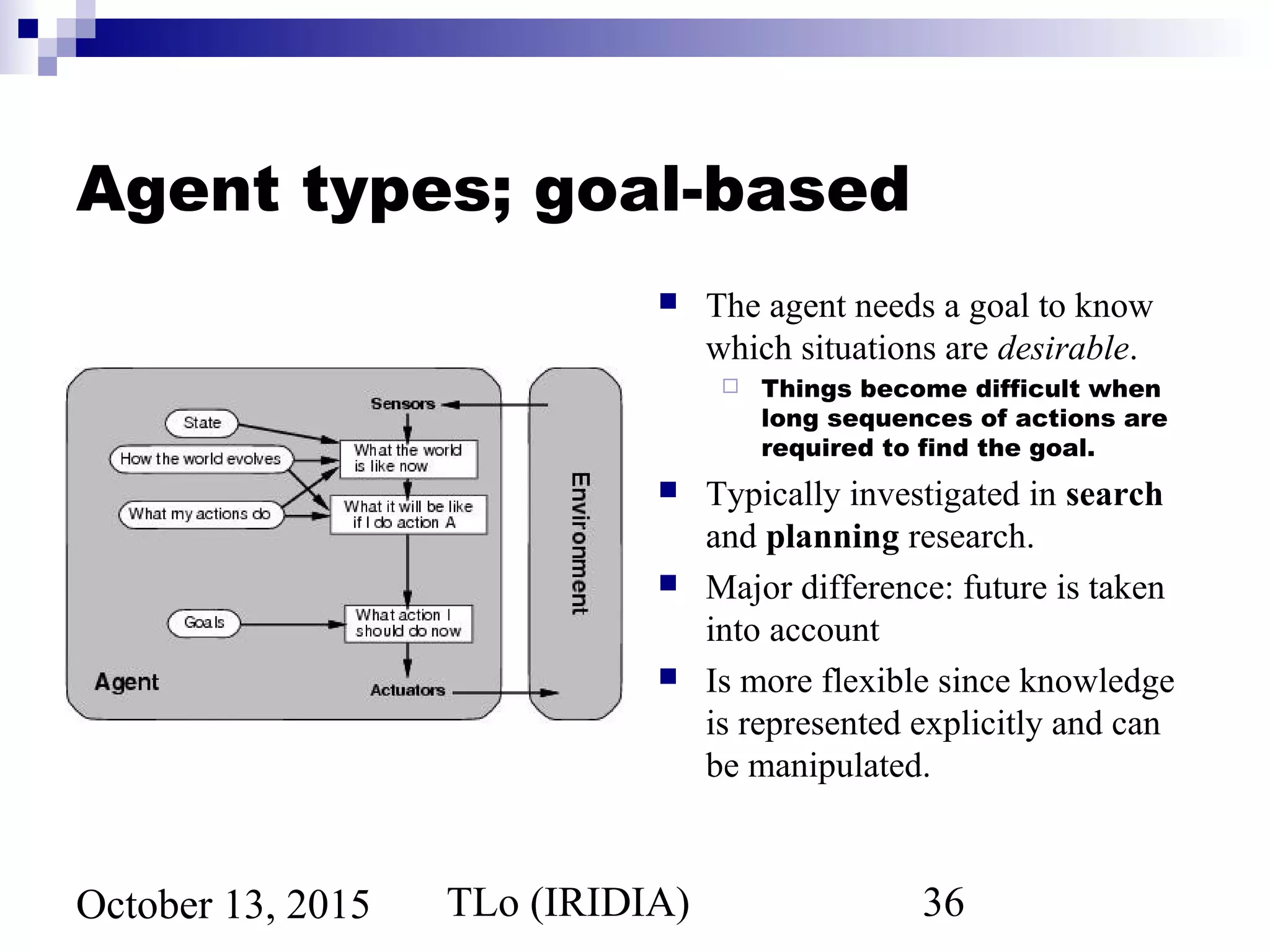

Agent types; goal-based
 The agent needs a goal to know
which situations are desirable.
 Things become difficult when
long sequences of actions are
required to find the goal.
 Typically investigated in search
and planning research.
 Major difference: future is taken
into account
 Is more flexible since knowledge
is represented explicitly and can
be manipulated.

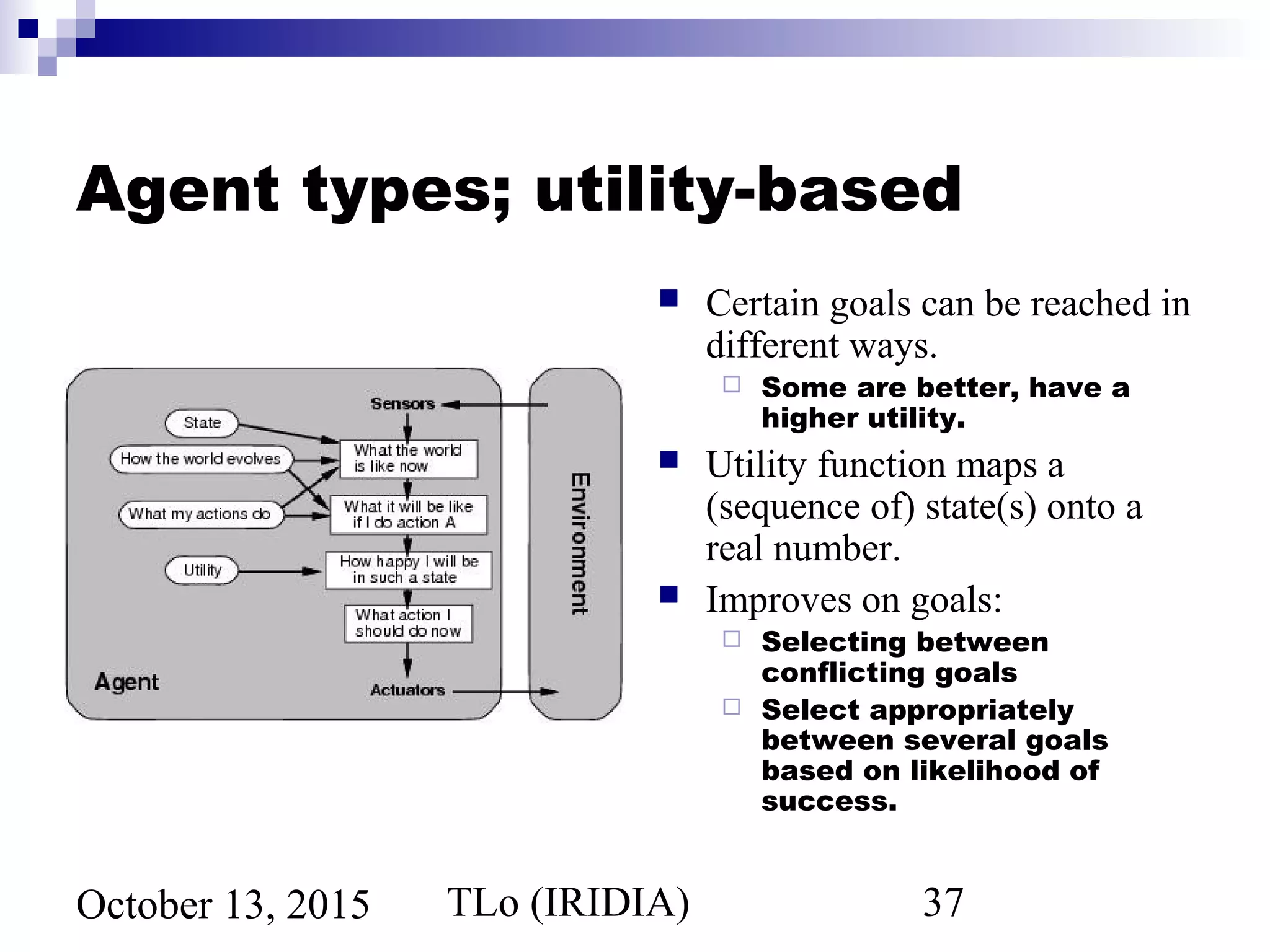

Agent types; utility-based
 Certain goals can be reached in
different ways.
 Some are better, have a
higher utility.
 Utility function maps a
(sequence of) state(s) onto a
real number.
 Improves on goals:
 Selecting between
conflicting goals
 Select appropriately
between several goals
based on likelihood of
success.

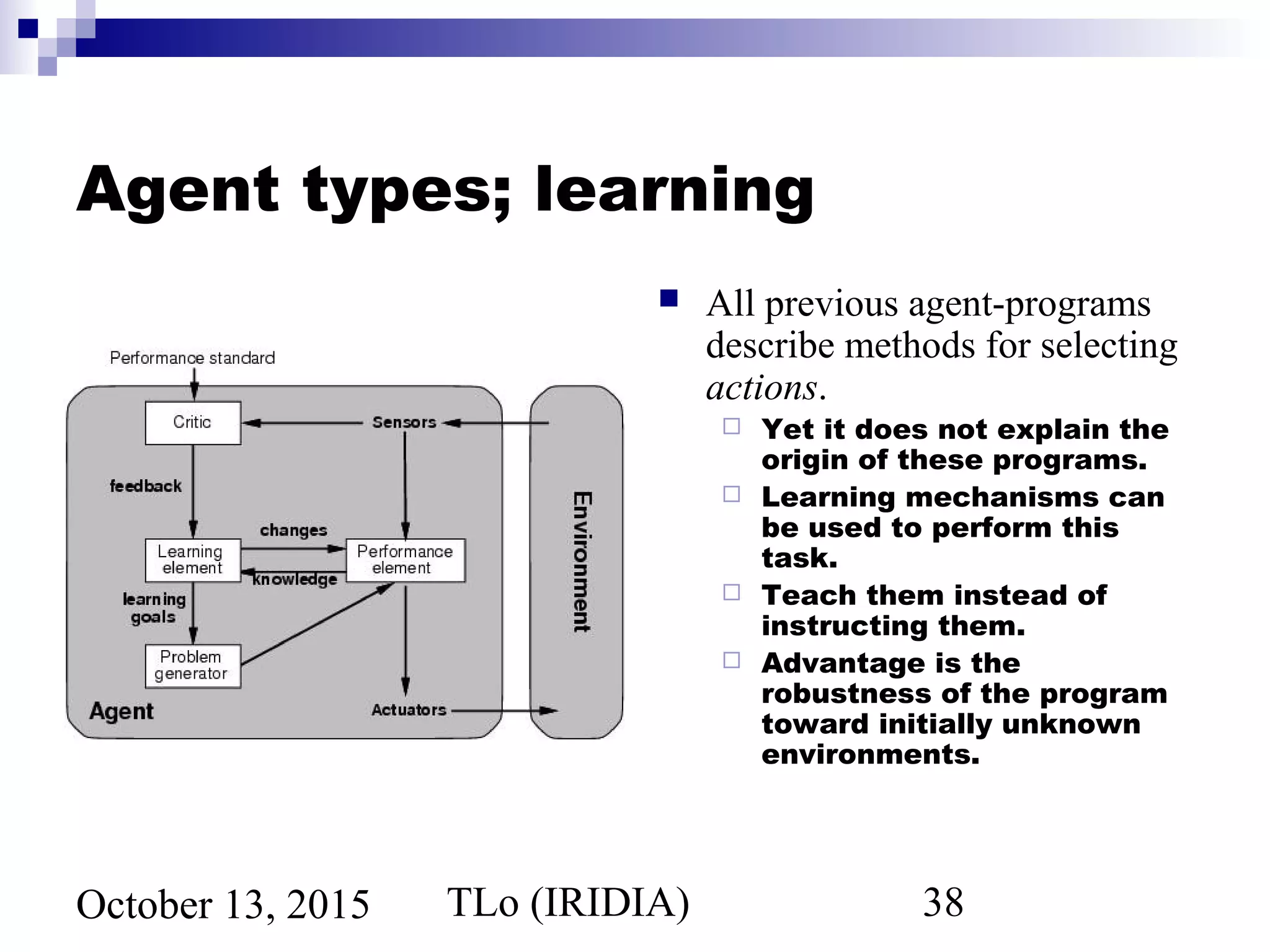

Agent types; learning
 All previous agent-programs
describe methods for selecting
actions.
 Yet it does not explain the
origin of these programs.
 Learning mechanisms can
be used to perform this
task.
 Teach them instead of
instructing them.
 Advantage is the
robustness of the program
toward initially unknown
environments.

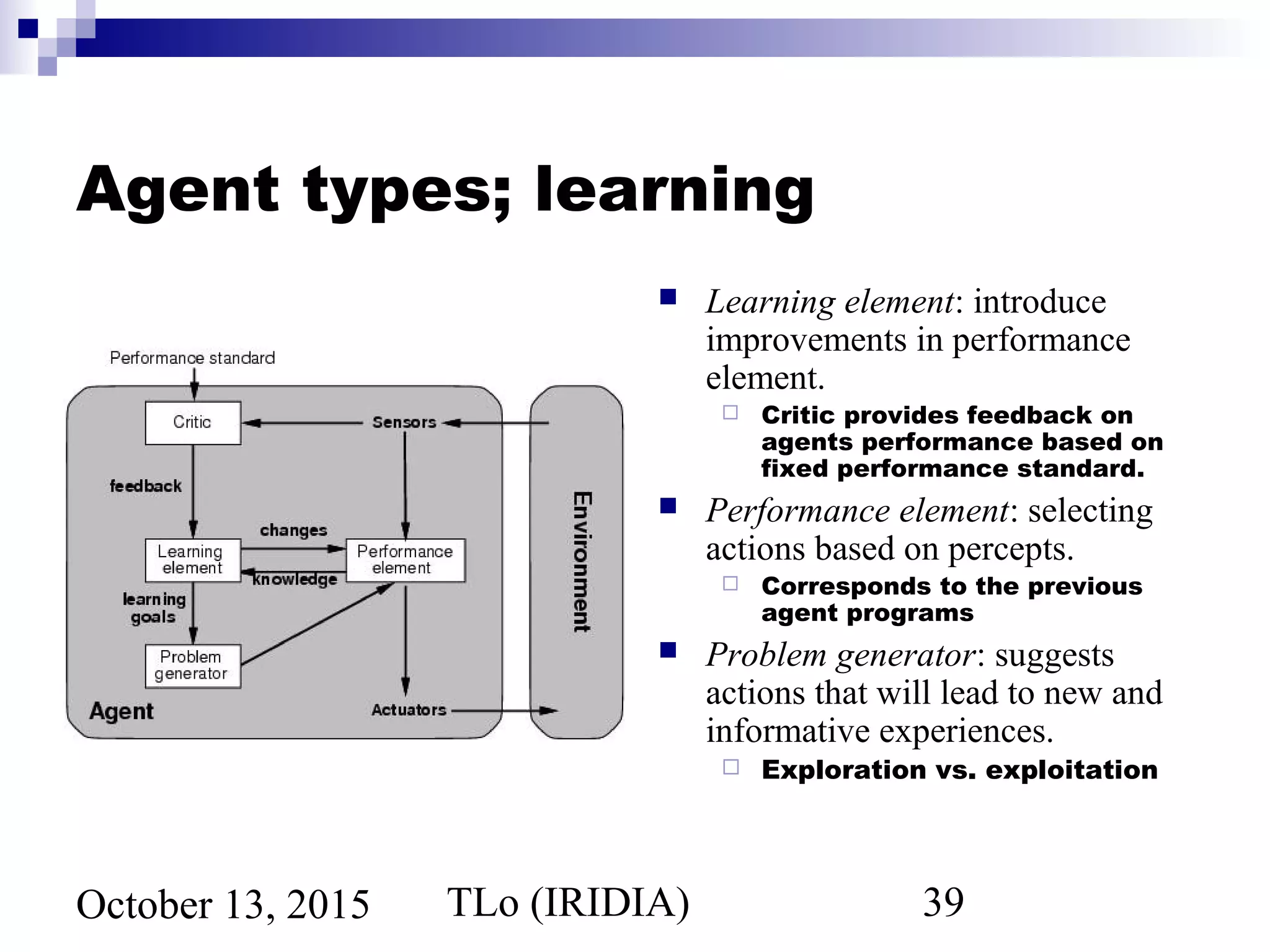

Agent types; learning
 Learning element: introduce
improvements in performance
element.
 Critic provides feedback on
agents performance based on
fixed performance standard.
 Performance element: selecting
actions based on percepts.
 Corresponds to the previous
agent programs
 Problem generator: suggests
actions that will lead to new and
informative experiences.
 Exploration vs. exploitation
